Brushed Motor
Outstanding Response and Control
The new Quicrun brushed motors offer improved performance,
reliability, and response over other motors.
With improved materials and overall design,
these motors offer significant power gains.
Excellent efficiency
With up to 69% maximum efficiency,
the Quicrun brushed motors far exceed
standard motors of the same
specifications (555-11T).
The maximum efficiency is up to 17% higher.
These new motors run cooler (Lower temps)
than similar motors under the same load.
Zero-cogging torque design
The 555 motor adopts a 5-slot design,
and the motor cogging effect is virtually eliminated.
These new motors have a very small torque fluctuation and,
bring a very linear response at all speeds
for an improved overall drive feel.
Adjustable mechanical
timing of the motor
The mechanical timing of the motor can be adjusted by -20 — 20 °.
This allows users to fine-tune the RPM and feel of motors.
Timing adjustments also allow
the motors to be used for CCW and CW applications.
Specialized Carbon Brush
for extended life
Developed specifically for these motors,
the new brushes feature a custom blend
to provide extremely long life,
while providing great performance.
These motors start to compare
to brushless motors in terms of life span.
Modular design for easy service and cleaning
The motors feature an easy-to-service rebuildable design.
Convenient for cleaning and maintenance,
effectively prolonging the life span and maintaining
the efficiency of the motor.
PCB anti-interference
board
The motor is equipped with a
dual PCB anti-interference board.
These reduce the harmful spikes and
noise from affecting your speed control.
PCB anti-interference board
Quality materials
To ensure high tolerance to abuse and heavy-duty driving,
a 200°C high-temperature resistant magnet,
180°C high-temperature resistant copper
wire has been used.
Combined with 0.35 mm (only 555) ultra-thin silicon steel sheet,
and the Hobbywing custom carbon brush,
these motors are built to handle the demands of today's driver.

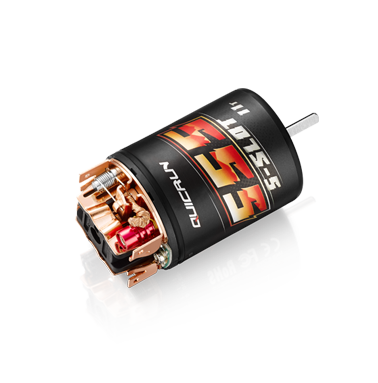

QuicRun Brushed 555
QuicRun Brushed 540
Product Name
Product Number
Type Scale

Brushed/Brushless

Turns
Relevant Parameters RPM@7.4V

Input Voltage

Slot
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)
Other Parameters Applications
Product Name QuicRun Brushed 540-30T QuicRun Brushed 540-40T QuicRun Brushed 555-11T QuicRun Brushed 555-13T
Product Number 30404313 30404314 30404315 30404316
Type Scale

Brushed/Brushless

Turns
1/10th

Brushed

30T
1/10th

Brushed

40T
1/10th

Brushed

11T
1/10th

Brushed

13T
Relevant Parameters RPM@7.4V

Input Voltage

Slot
14000

≤12.6V

3
10500

≤12.6V

3
17000

≤10V

5
14000

≤12.6V

5
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)
36

53.2

3.175

168g
36

53.2

3.175

169g
36

58.5

3.175

193g
36

58.5

3.175

193g
Other Parameters Applications 1/10th On-road / Buggy / Crawler & 2WD Truck 1/10th On-road / Buggy / Crawler & 2WD Truck 1/10th Crawler / Short course truck / Monster truck
