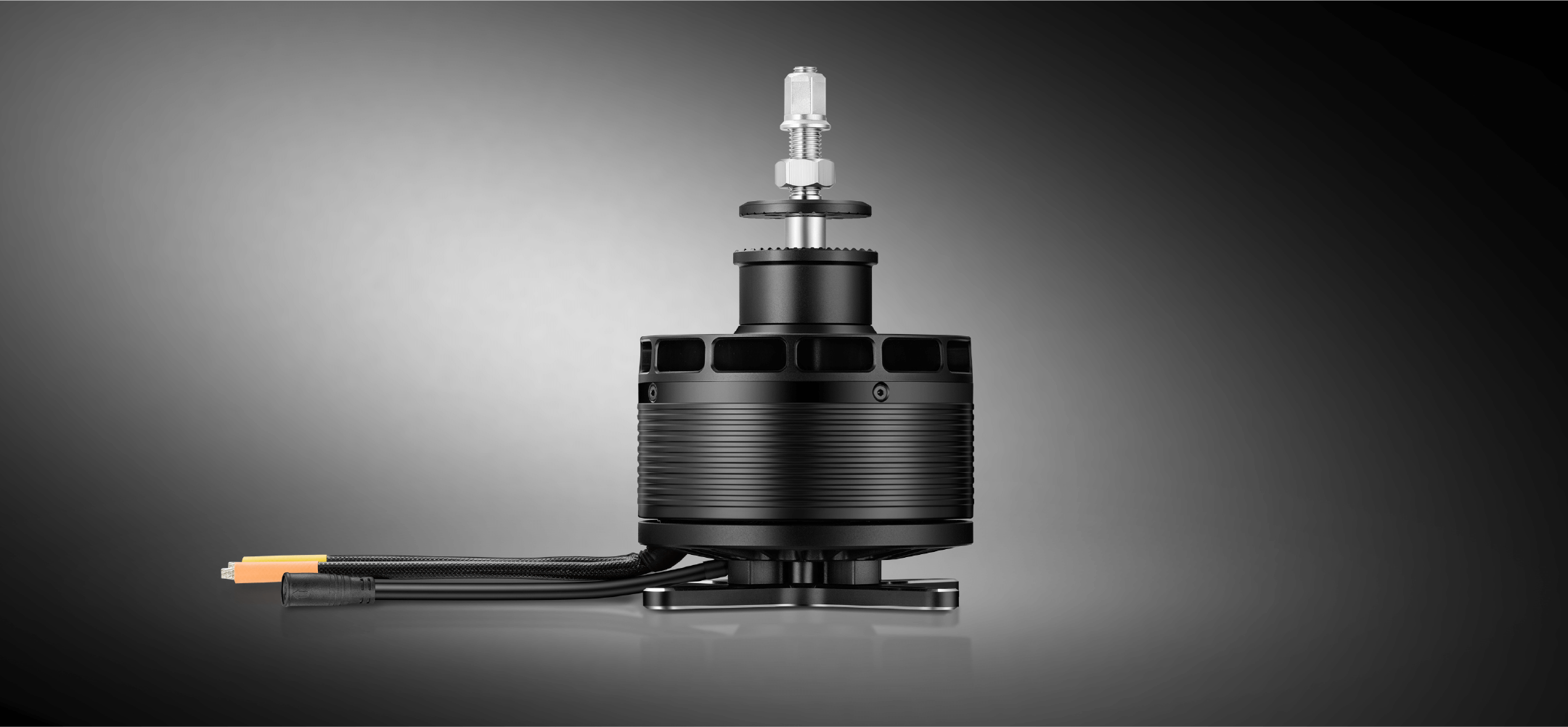

T7225

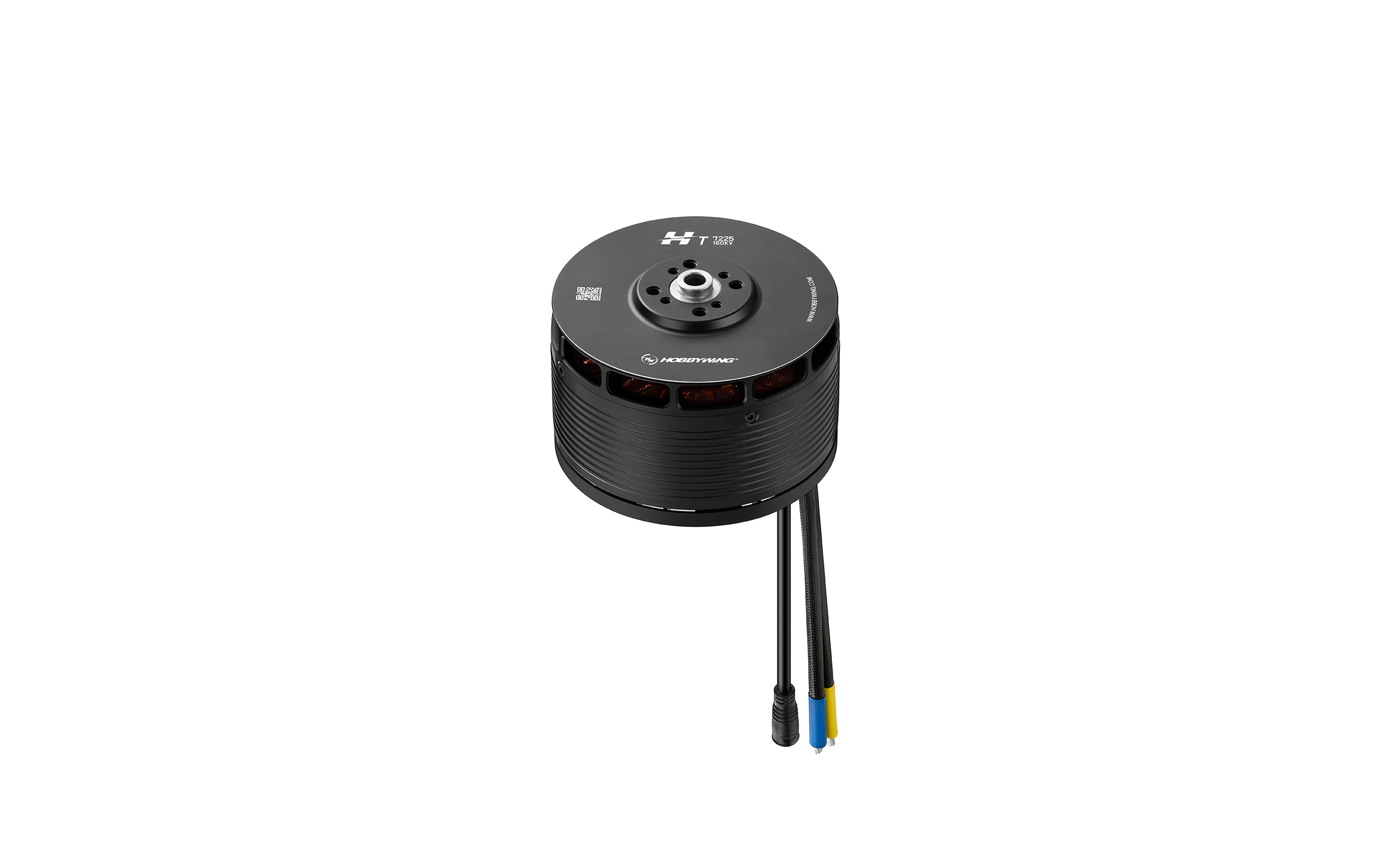

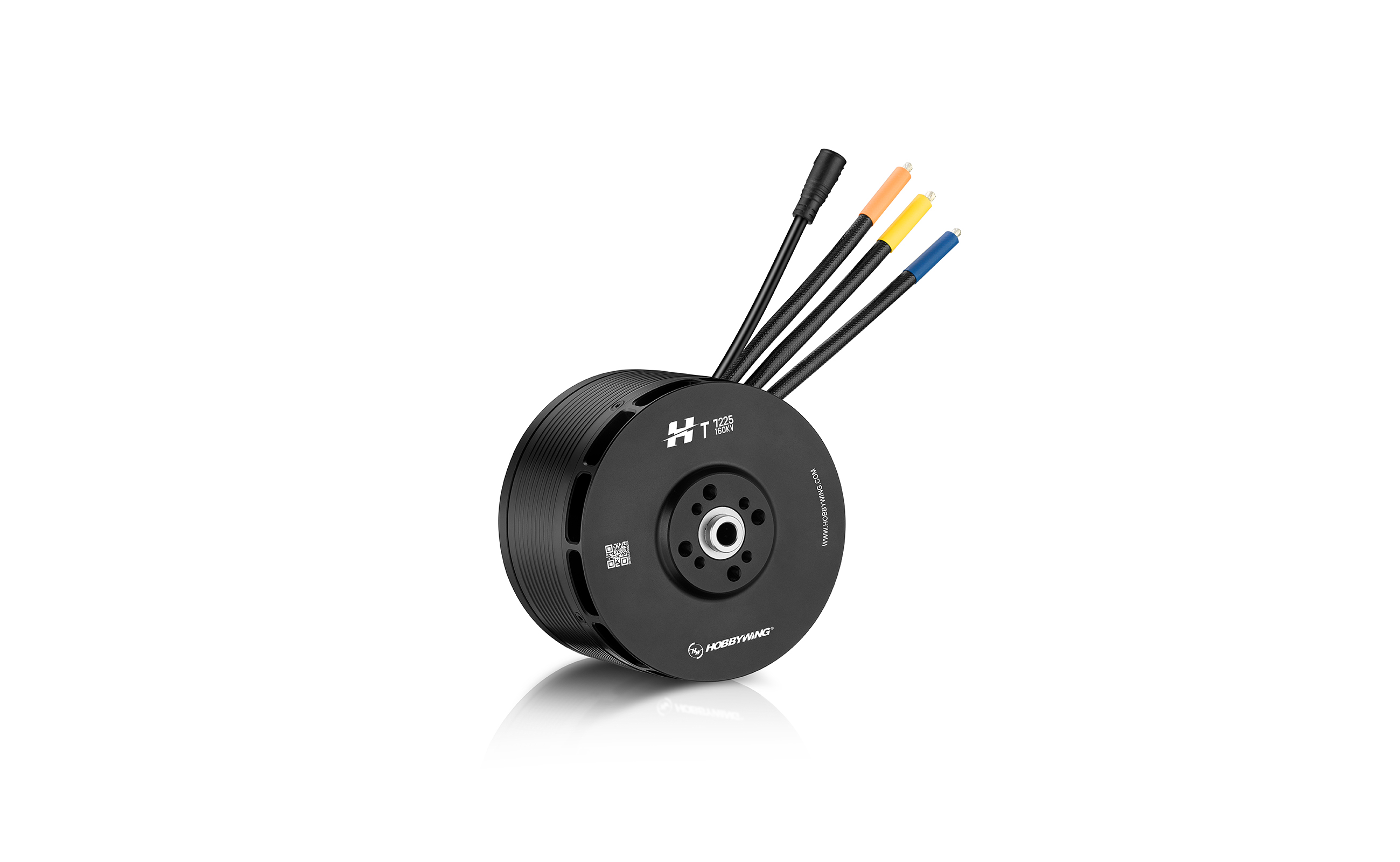

T7225Fixed-Wing UAV Cruise Motor
Available in 160KV & 190KV - optimized for electric fixed-wing UAV cruise operations.
Perfect electric alternative to 40CC combustion engines.

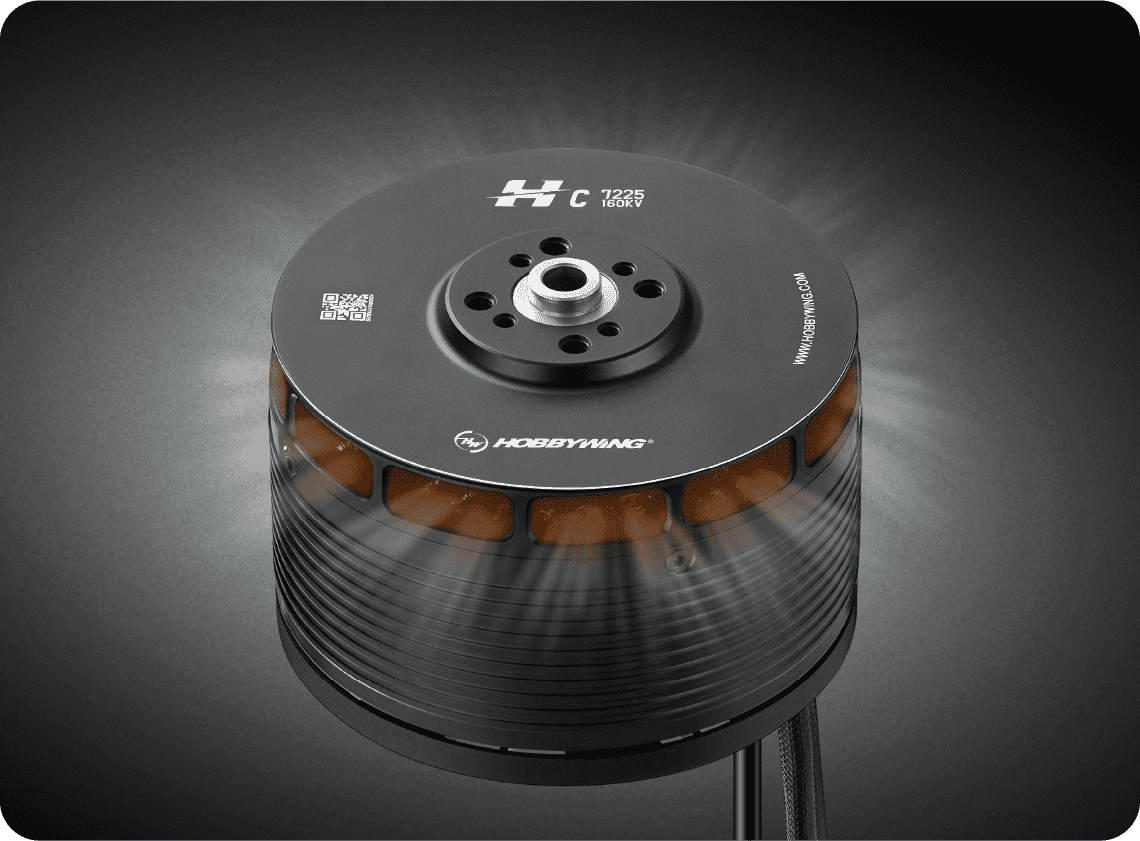

Exceptional Power with
Efficient Heat Dissipation

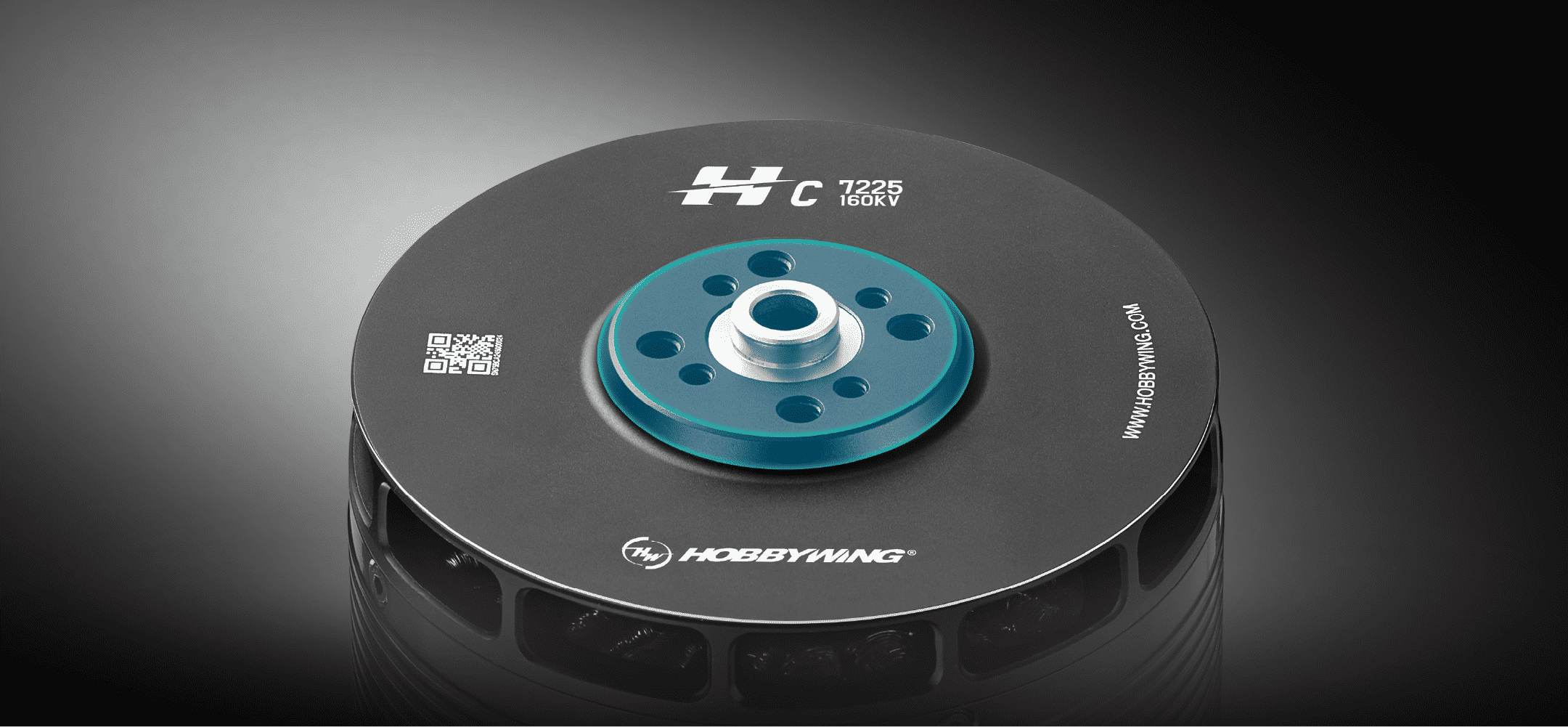

  • The rotor bracket features a rectangular exhaust
  • outlet design that effectively reduces
  • airflow resistance and turbulence,
  • enhances heat exhaust efficiency and boosts
  • overall heat dissipation efficiency by 20%,
  • thus maintaining stable operation
  • during extended, high-load flights.

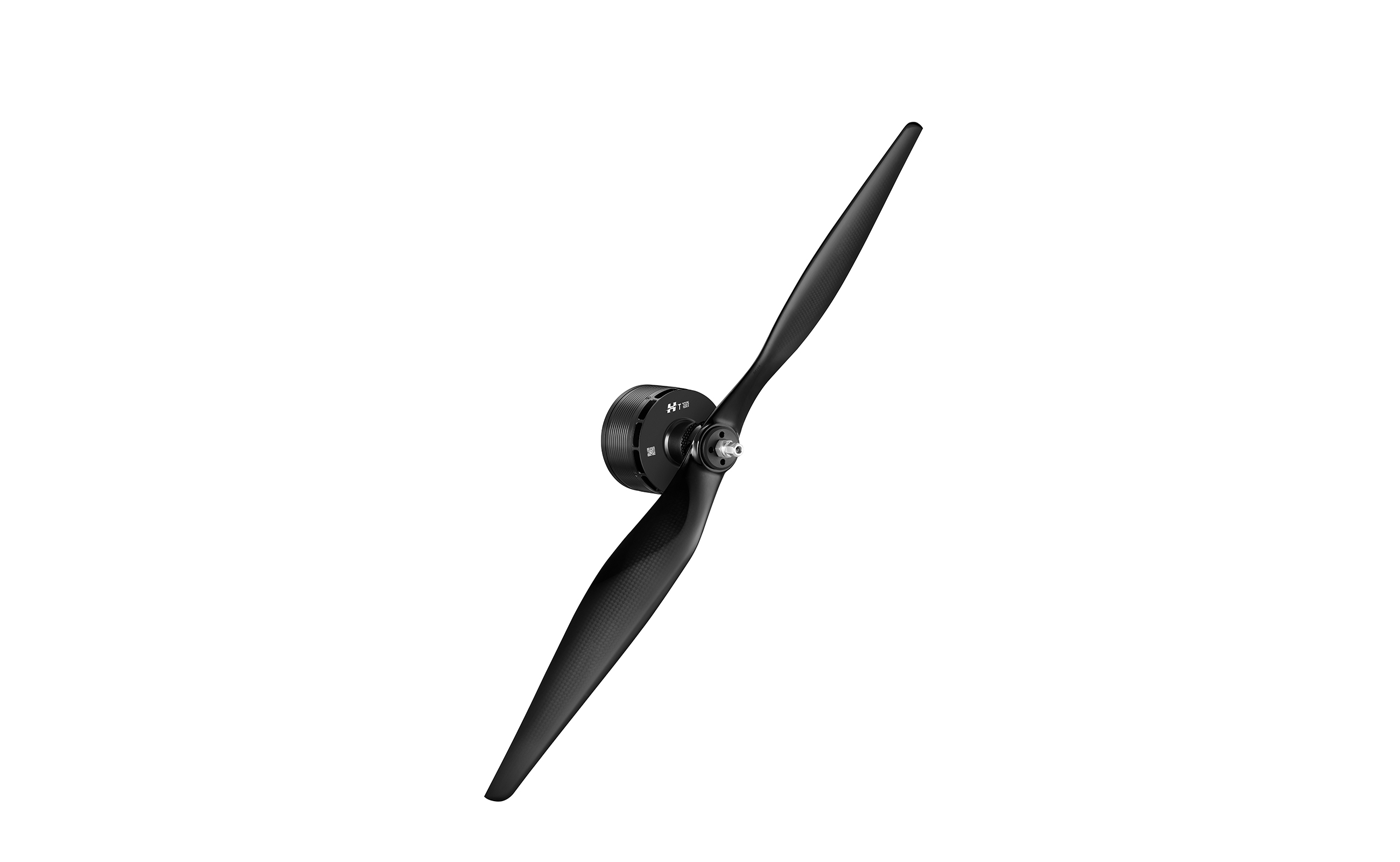

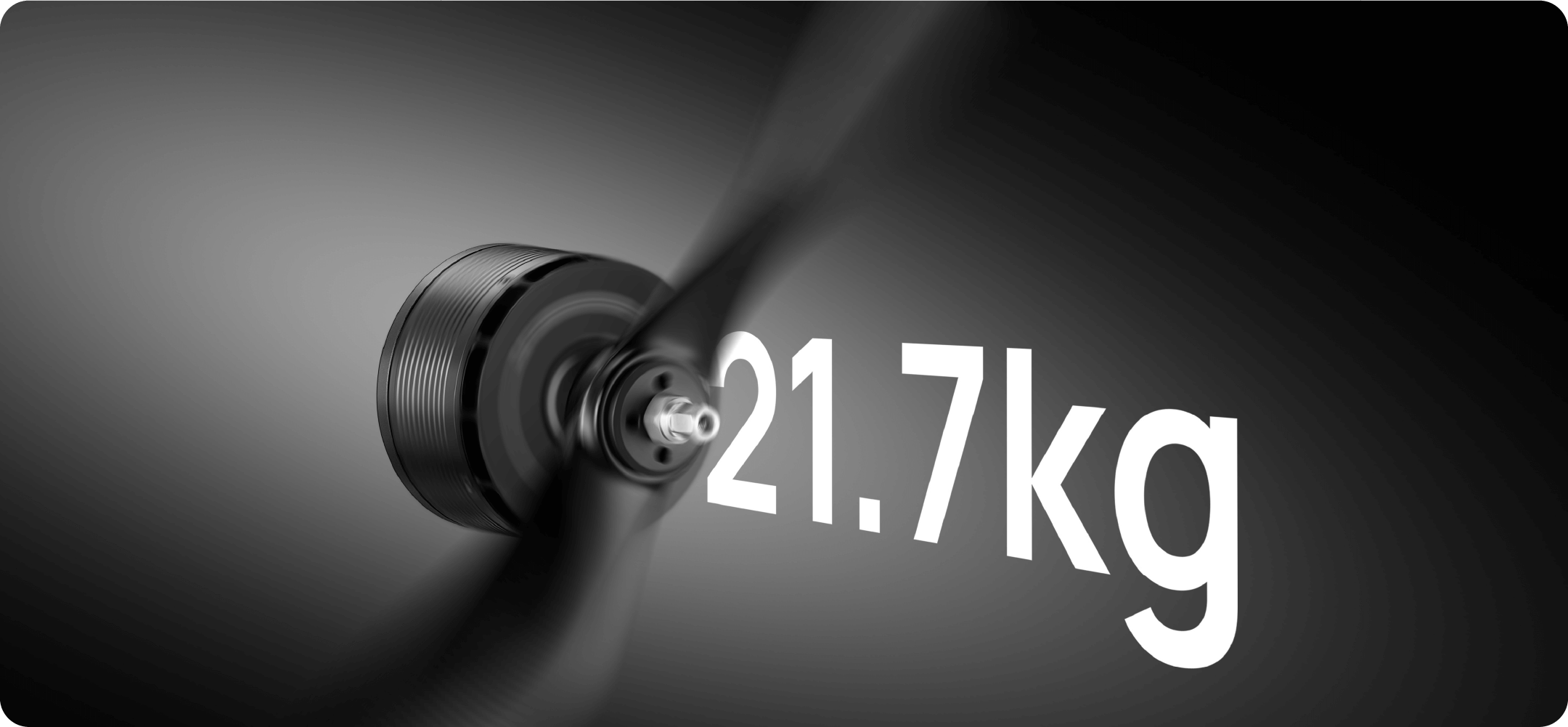

It delivers up to 21.7kg thrust with 24-inch propellers at 48V
and provides reliable performance to
handle unexpected flight conditions with ease.
Outperforms comparable motors under the same voltage with

Maximum Thrust
5% Higher

Sustained High-Load Operation
30% Longer

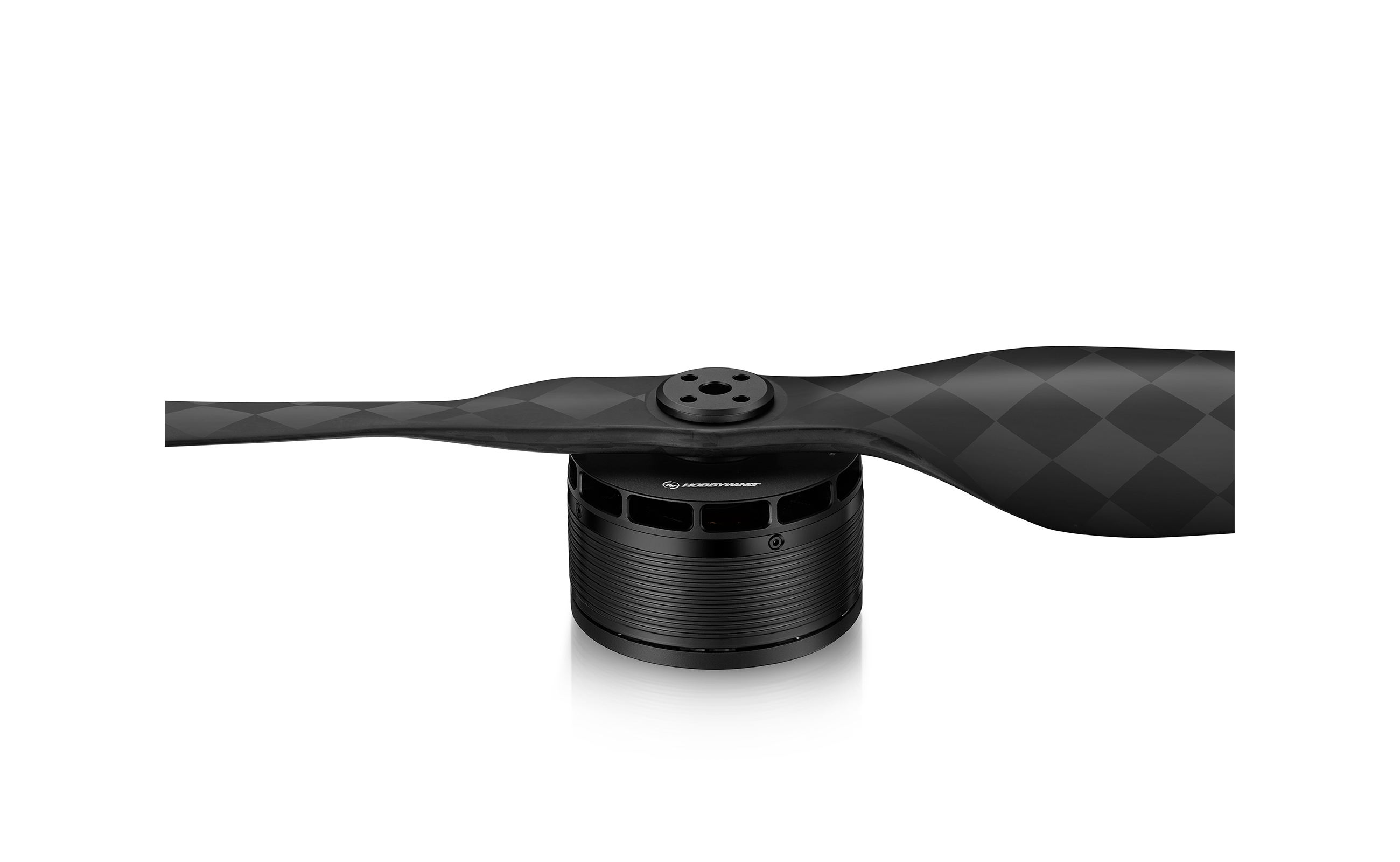

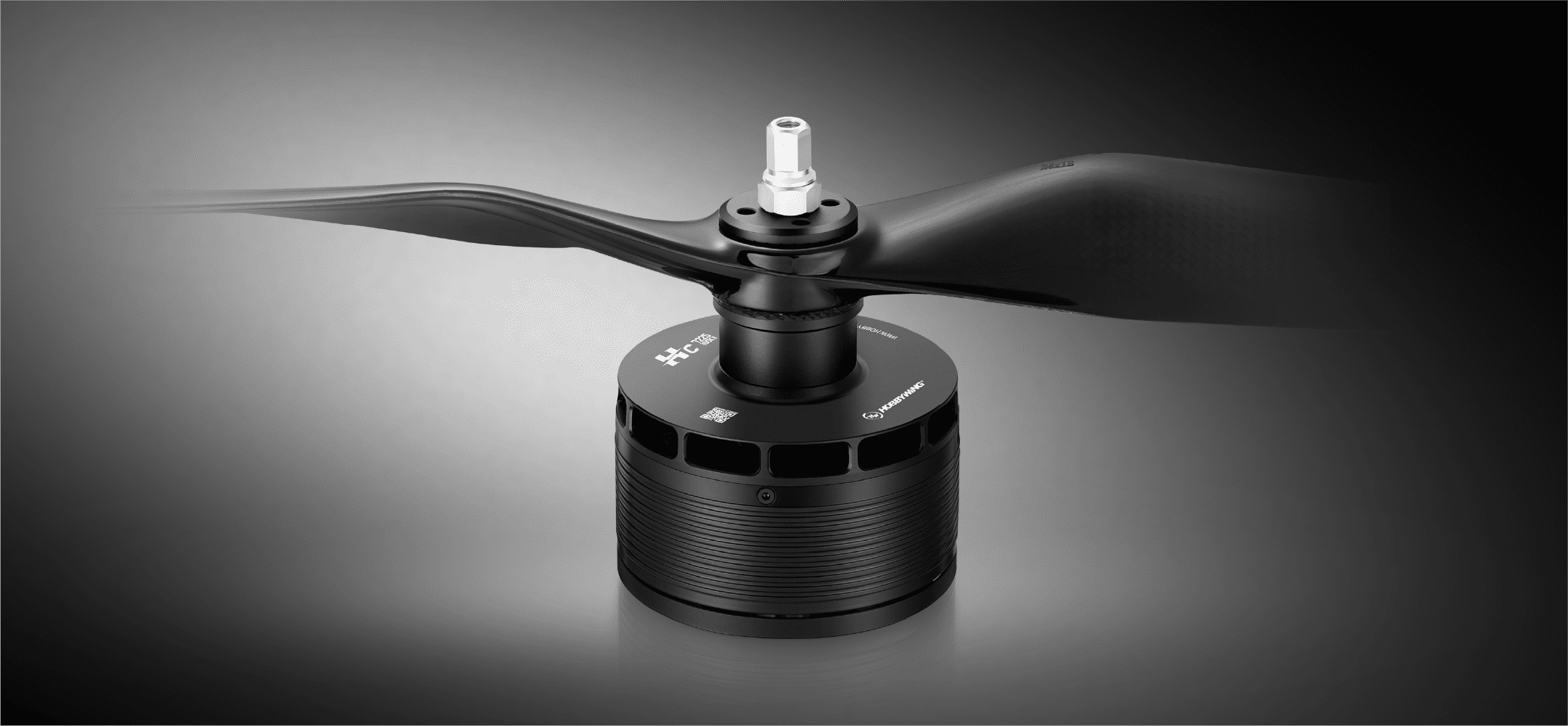

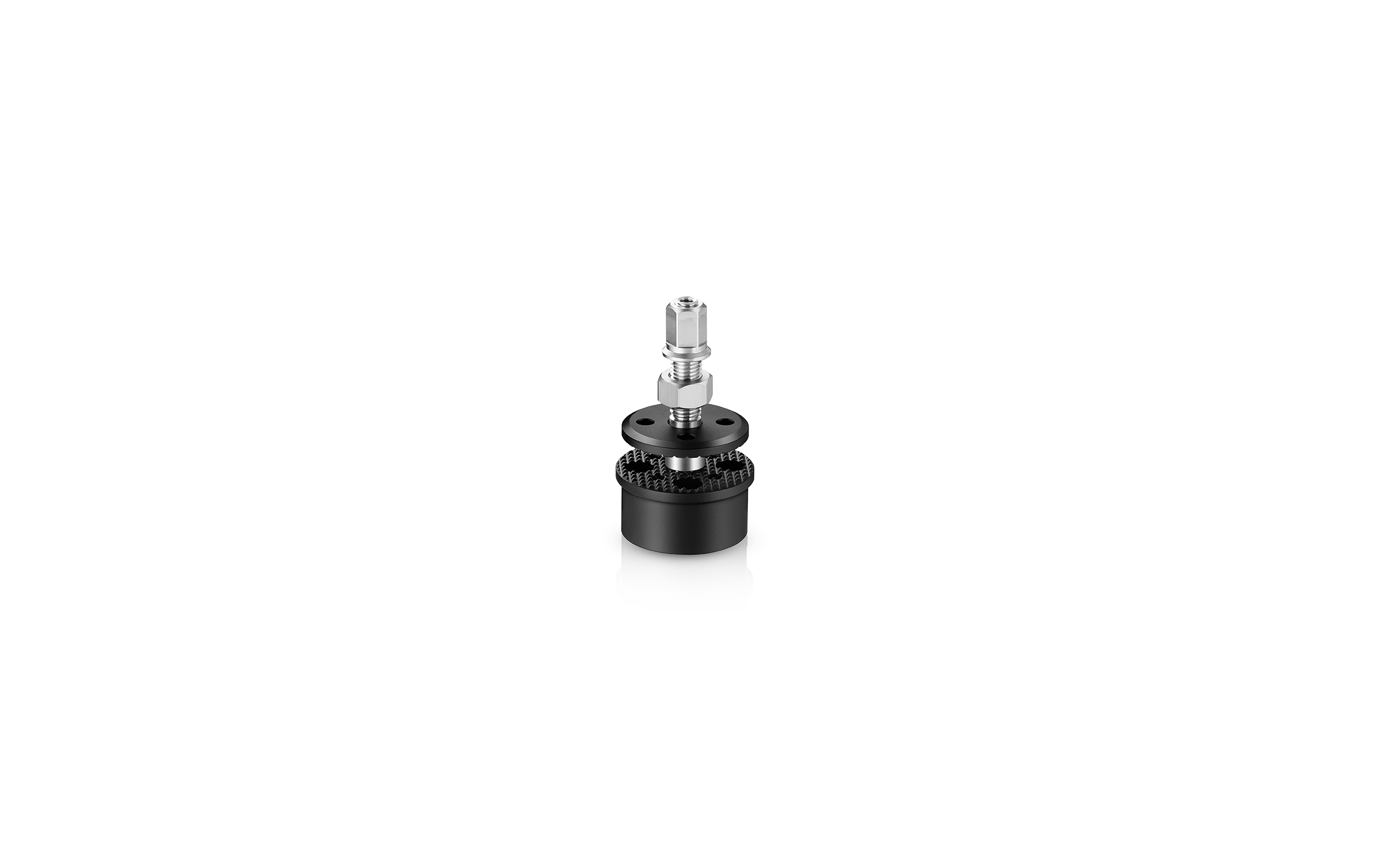

Detachable Propeller Adapter and
Easy Propeller Locking by IPC Function for
Versatile Applications

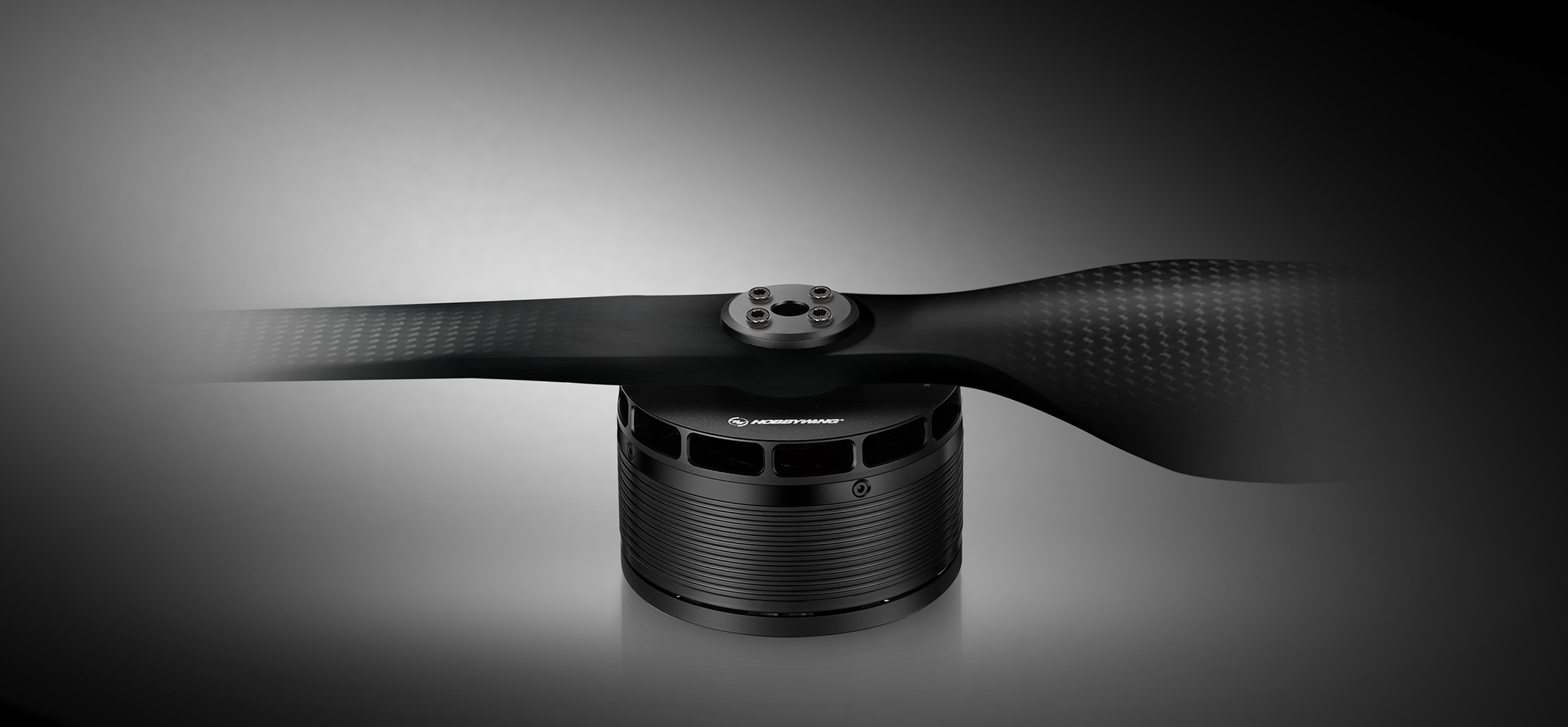

  • The rotor bracket adopts a boss design that
  • prevents interference with the edge structure of propeller roots,
  • accommodating both folding and non-folding propellers.

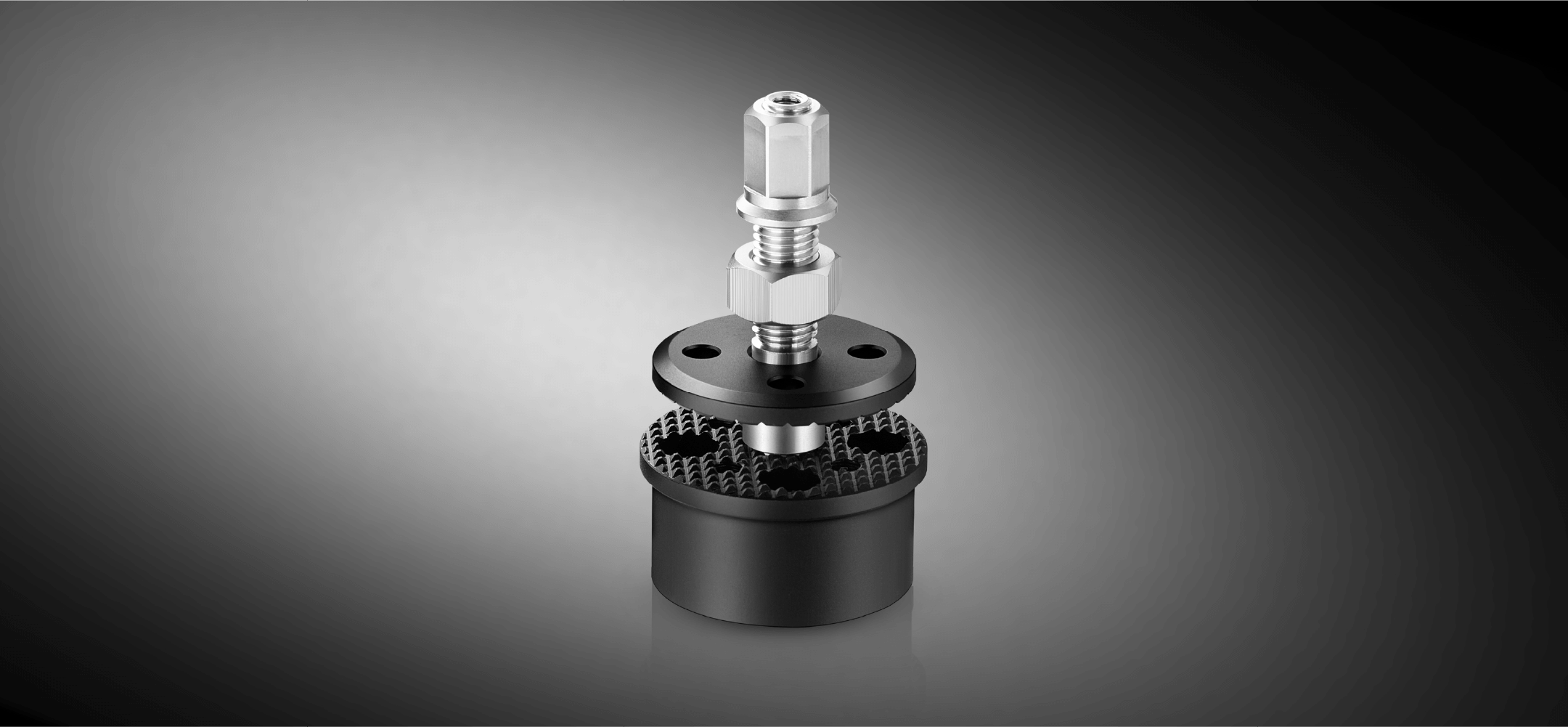

  • Detachable propeller adapter base featuring integrated anti-slip,
  • anti-rotation, and interlocking mechanisms.

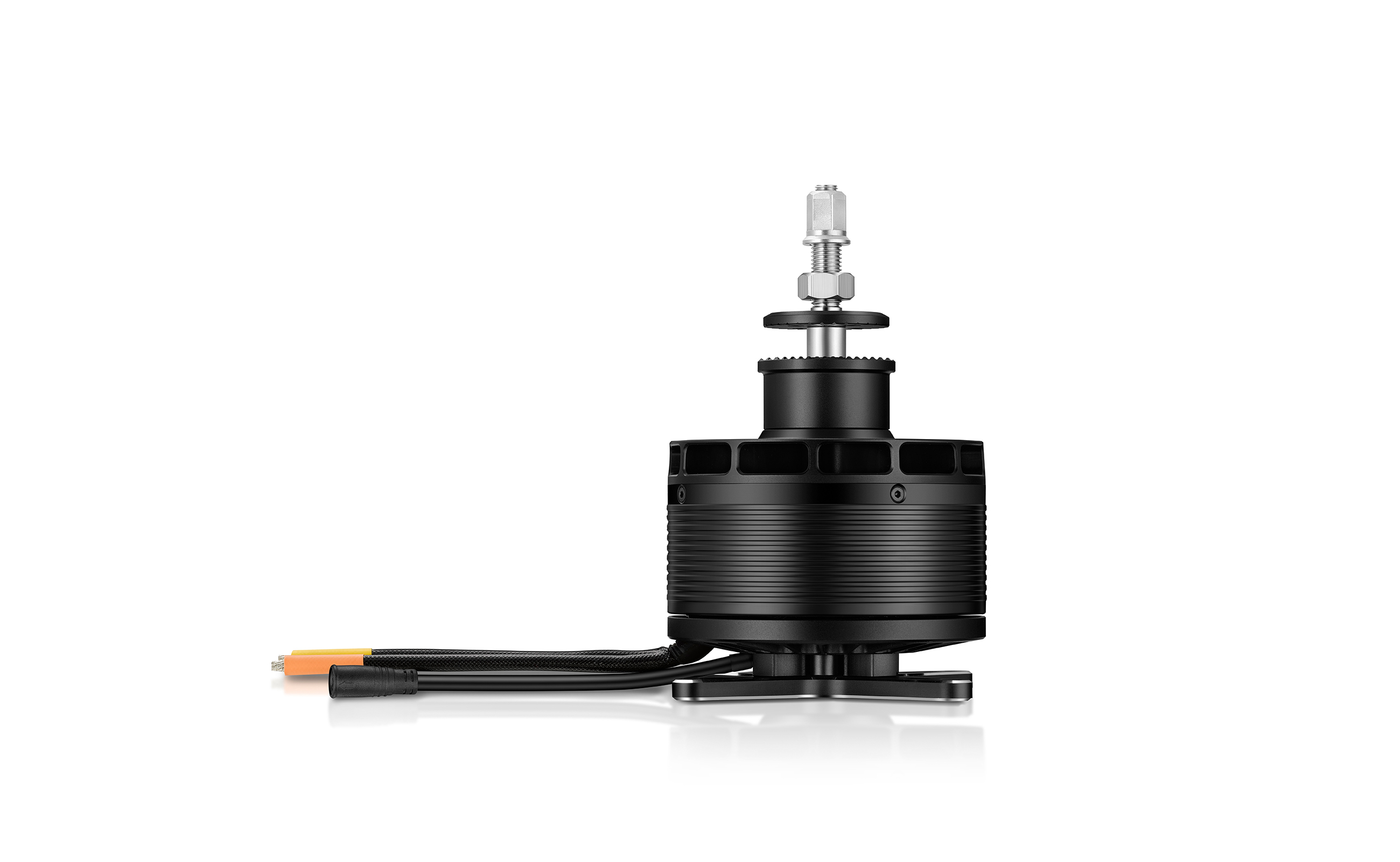

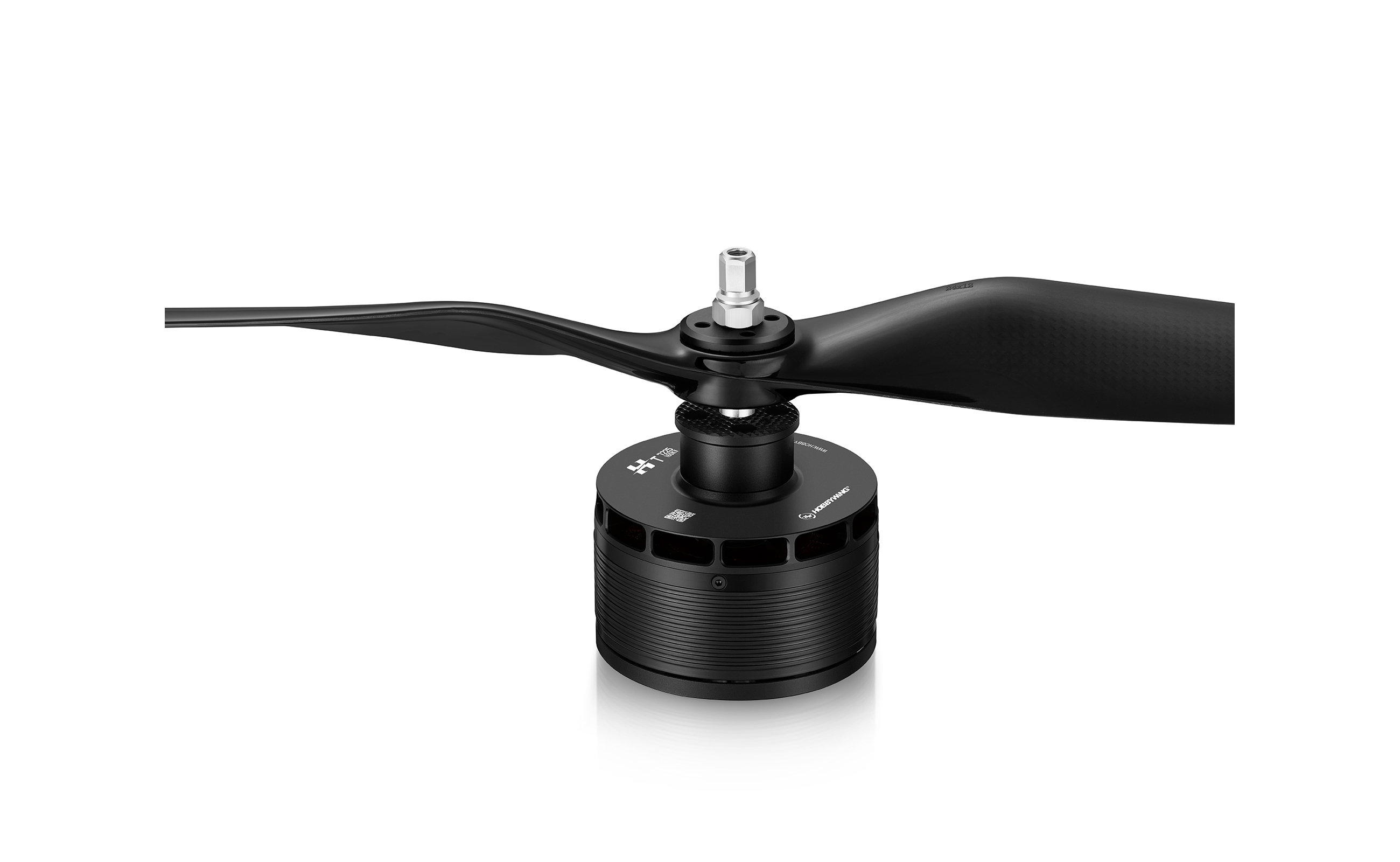

  • Innovative anti-loosening propeller adapter structure
  • prevents propeller detachment due to nut loosening,
  • thus enhancing flight safety.
  • Patented design certification [Patent No.: 202311210278.7]
  • Supports multiple mounting configurations
  • for quick adaption to meet
  • the demands of efficiency and diverse applications.

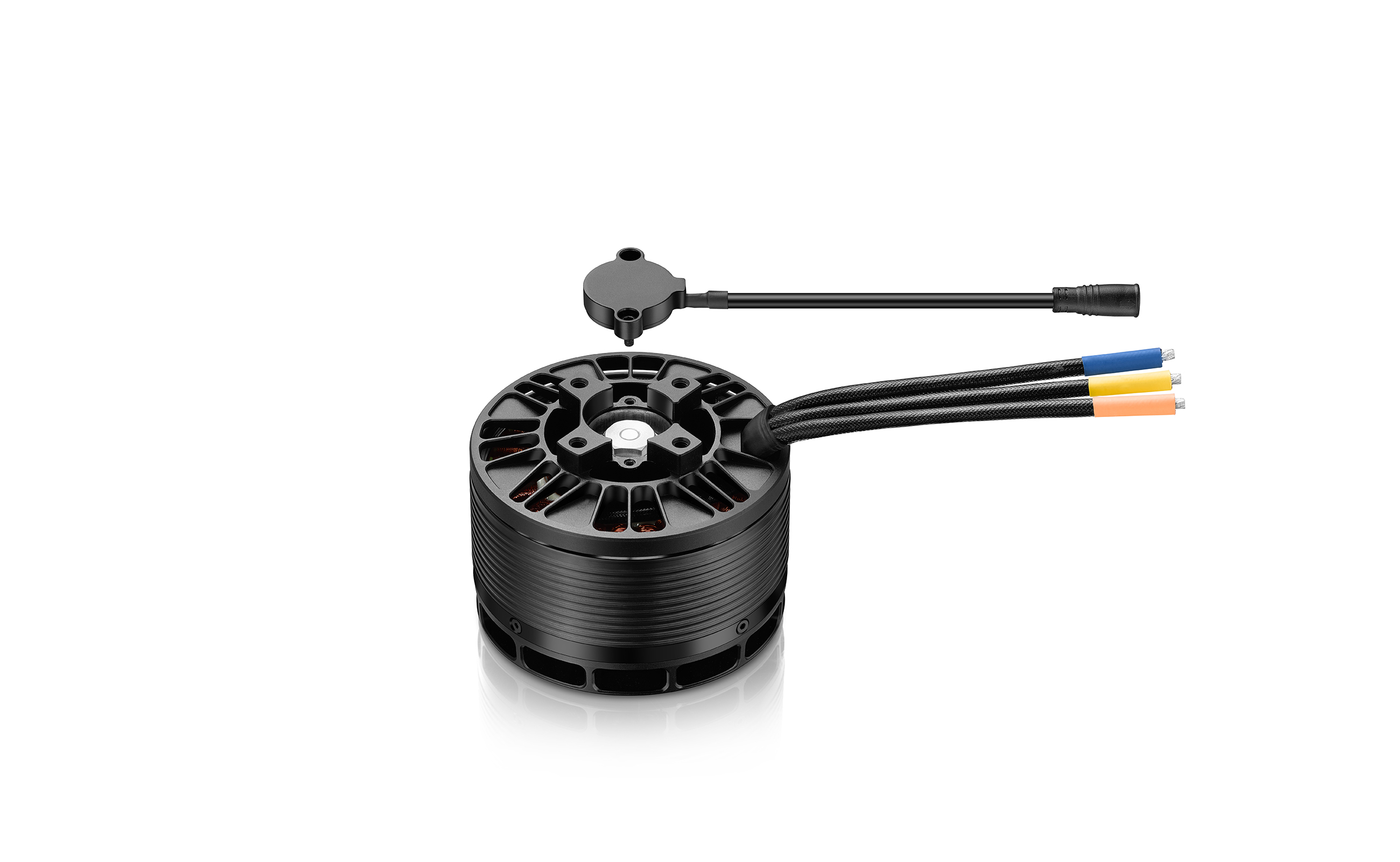

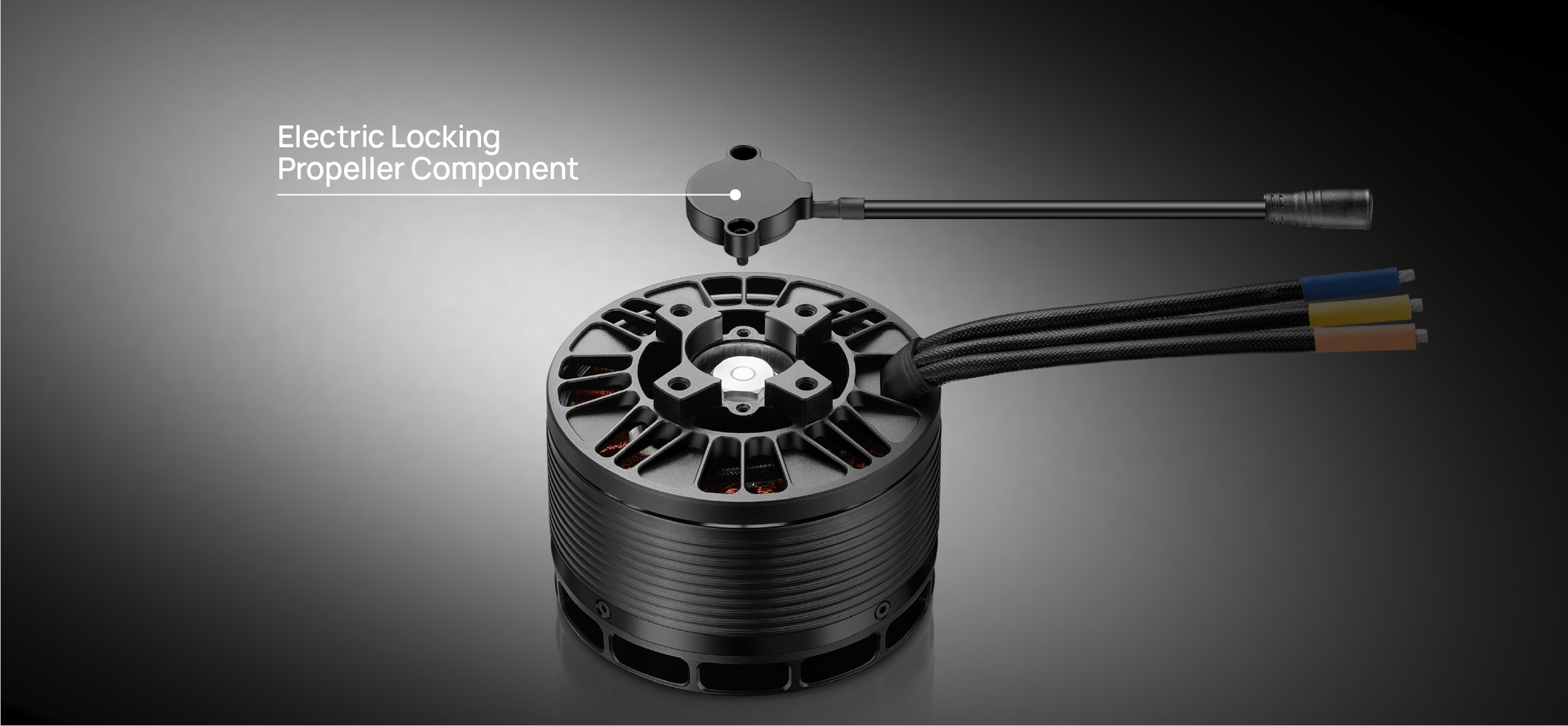

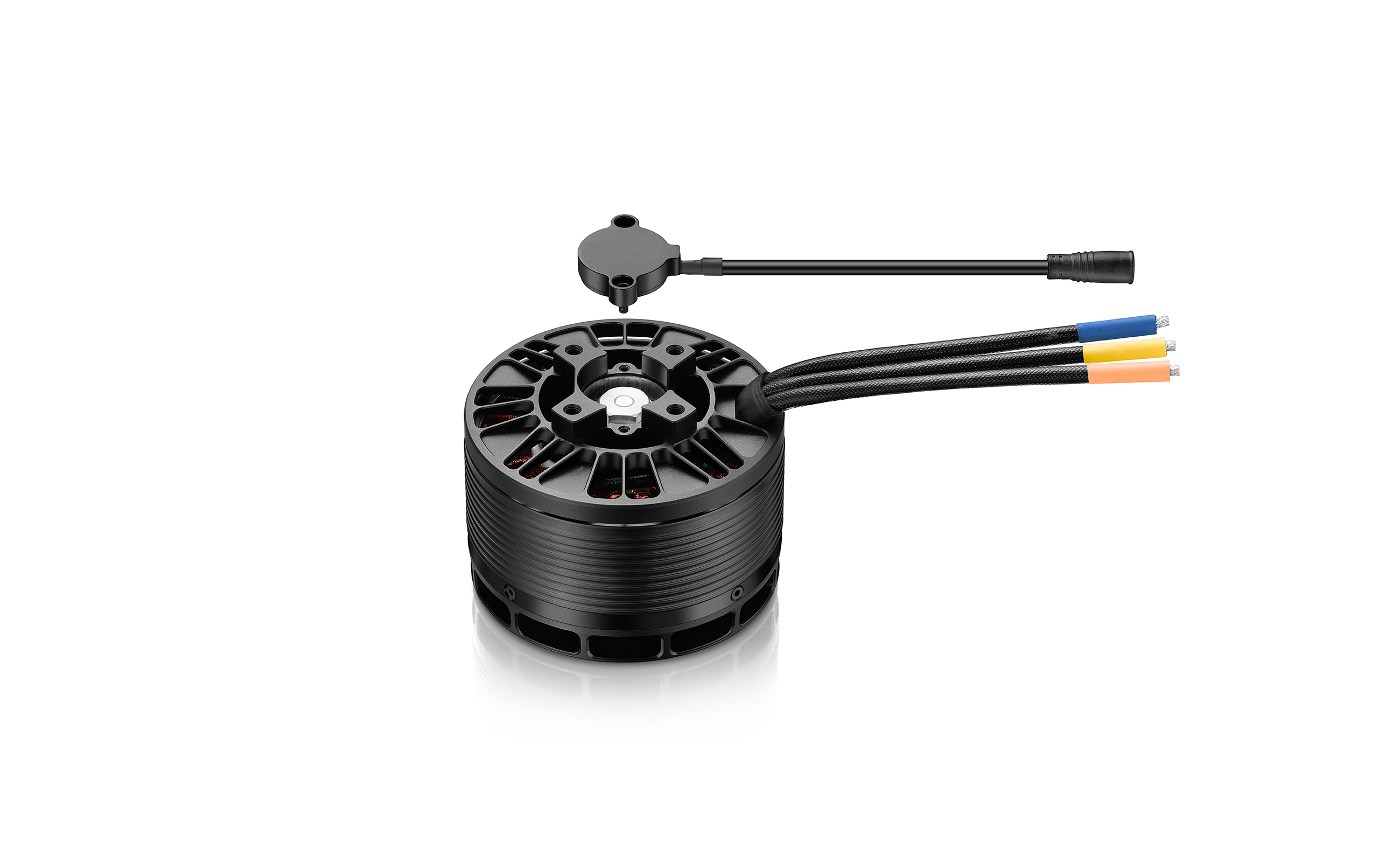

  • The stator seat is compatible with electrical locking propeller components
  • and offers optional installation based on needs,
  • thus ensuring quick and easy assembly.
  • When paired with HOBBYWING IPC (Intelligent Propeller Control) ESC,
  • the system enables customizable propeller positioning to minimize
  • ground contact risks and enhance equipment protection.
Premium Materials and Reliable Design

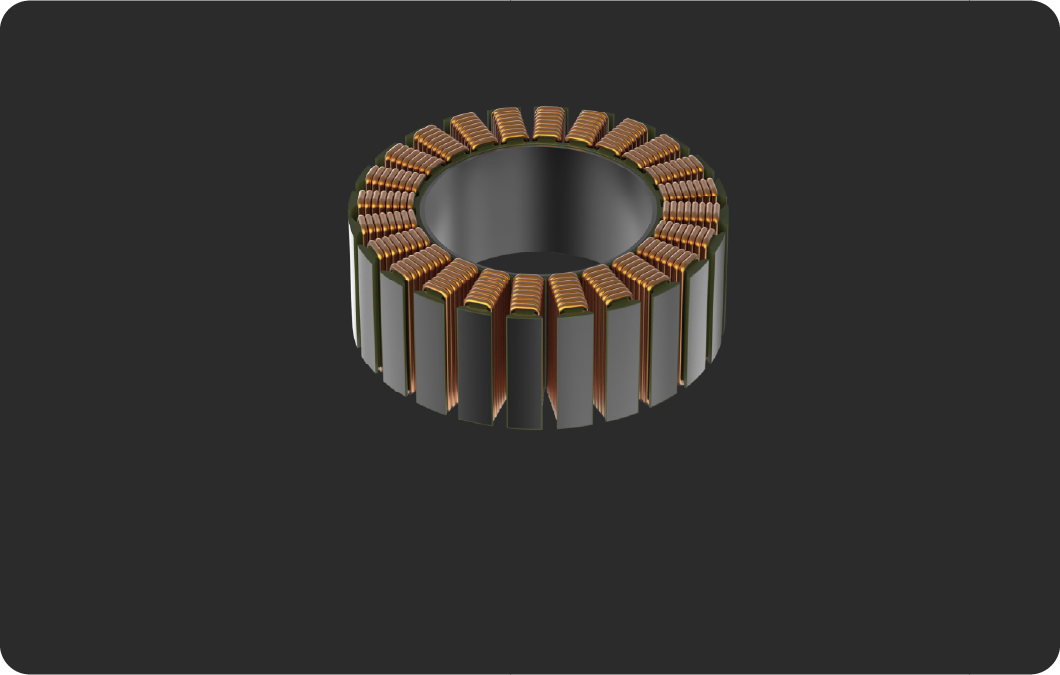

Steel Cores
Constructed with industry-leading 0.2mm
low-loss silicon steel cores and 220°C
temperature-resistant enameled wires.

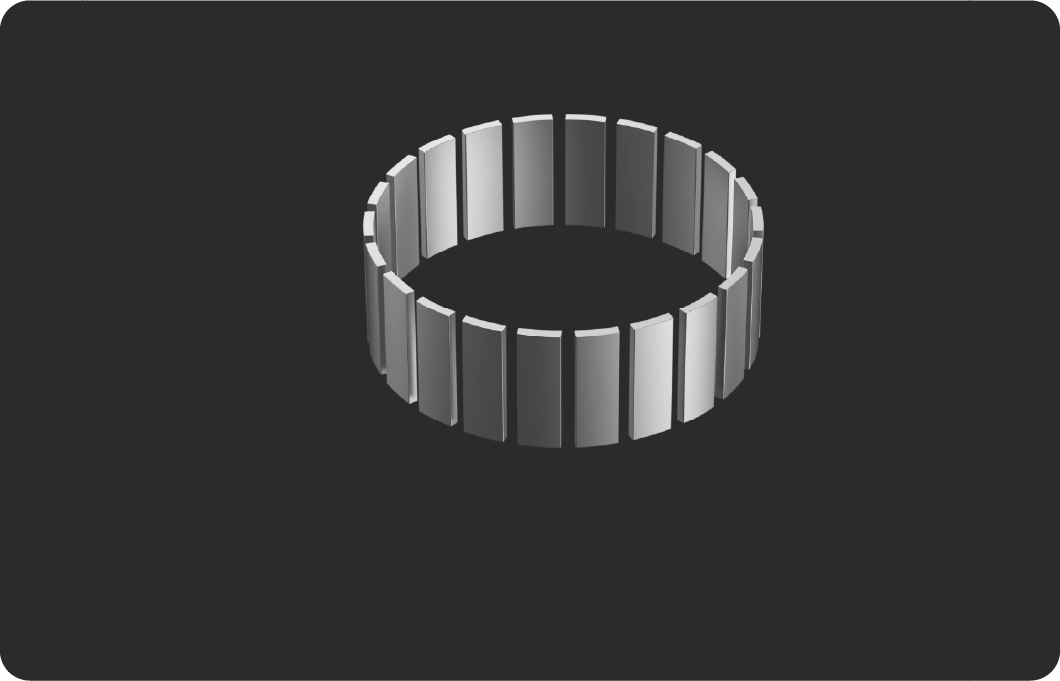

Magnet Segment
High-grade curved magnetic tiles enhance
magnetic energy density to deliver
superior torque for the motor.

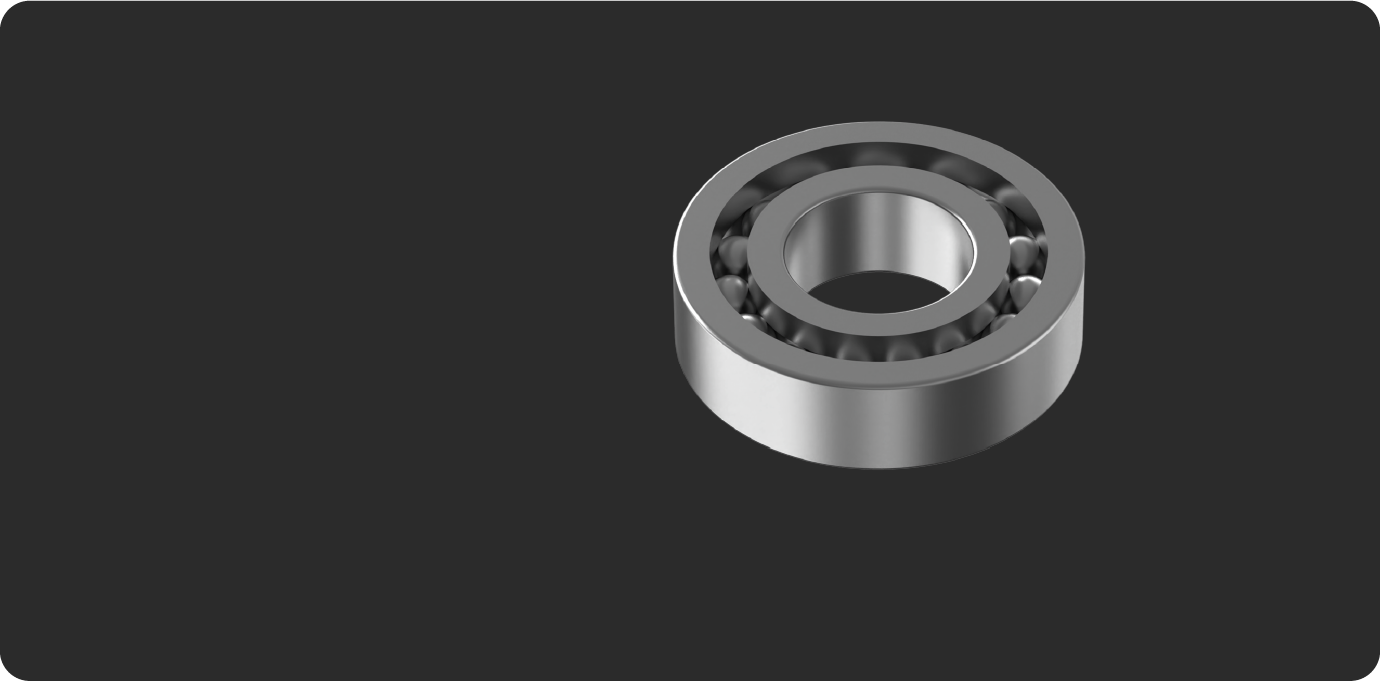

Bearings
Premium international-brand bearings provide
low friction torque and extended service life to
meet diverse flight requirements.

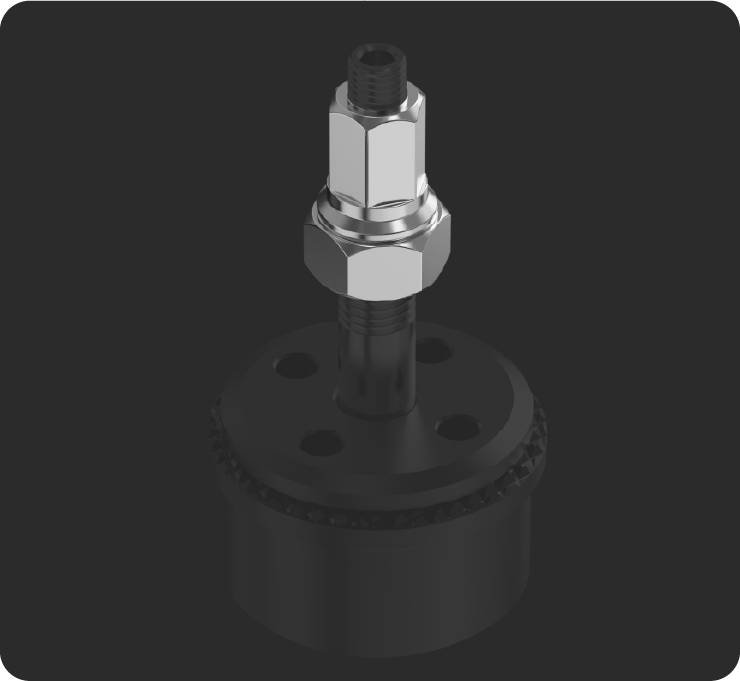

Titanium Alloy Nuts
Standard titanium alloy nuts on
the propeller mount for optimal
weight reduction.

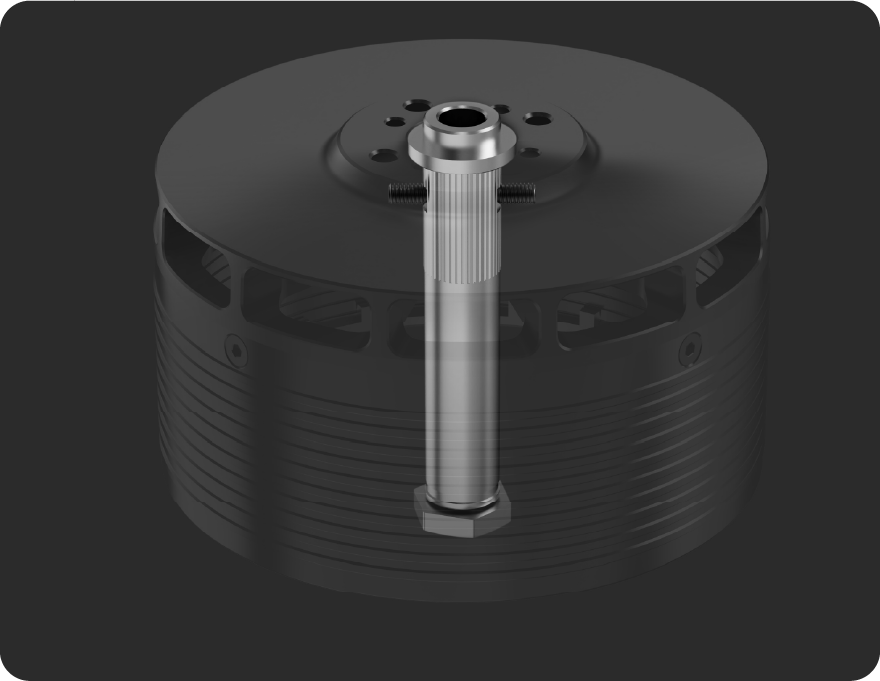

Knurled Shaft
Knurled shaft-to-bracket interface
with side set screw locking for
dual redundant security.

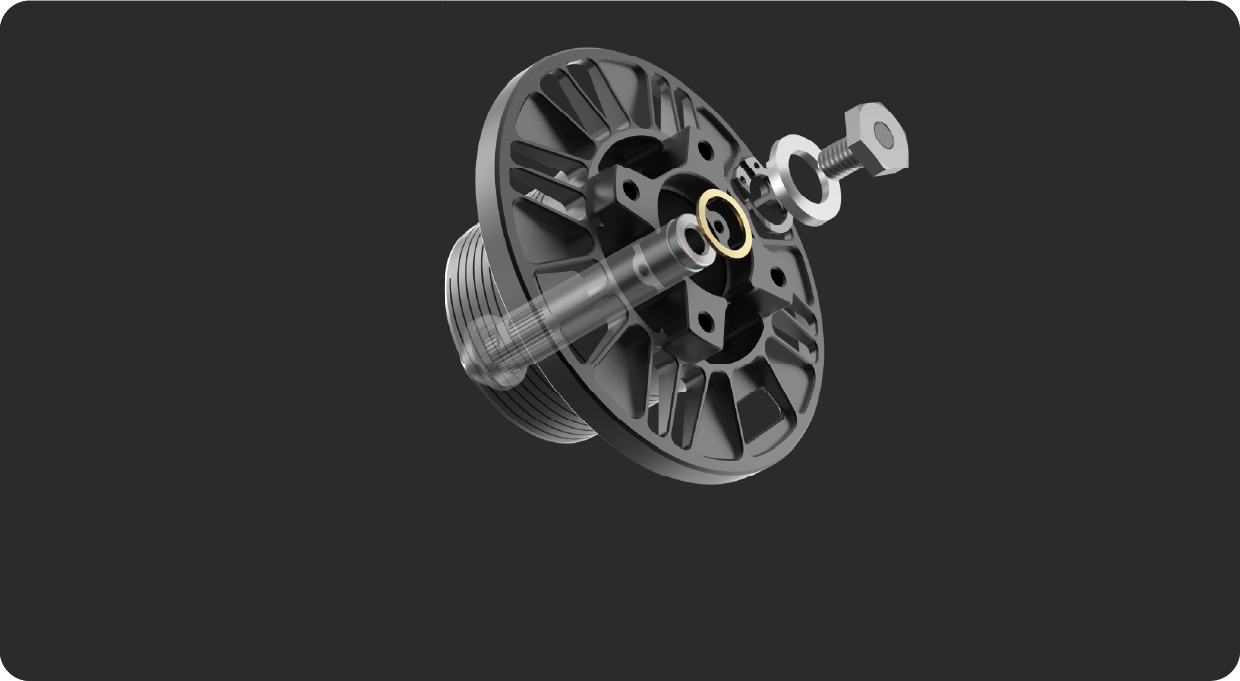

Multi-Layer Securing Mechanism
Multi-layer securing mechanism at the rotor shaft end,
utilizing copper washer, circlip,
and screw fastening for enhanced stability and reliability.

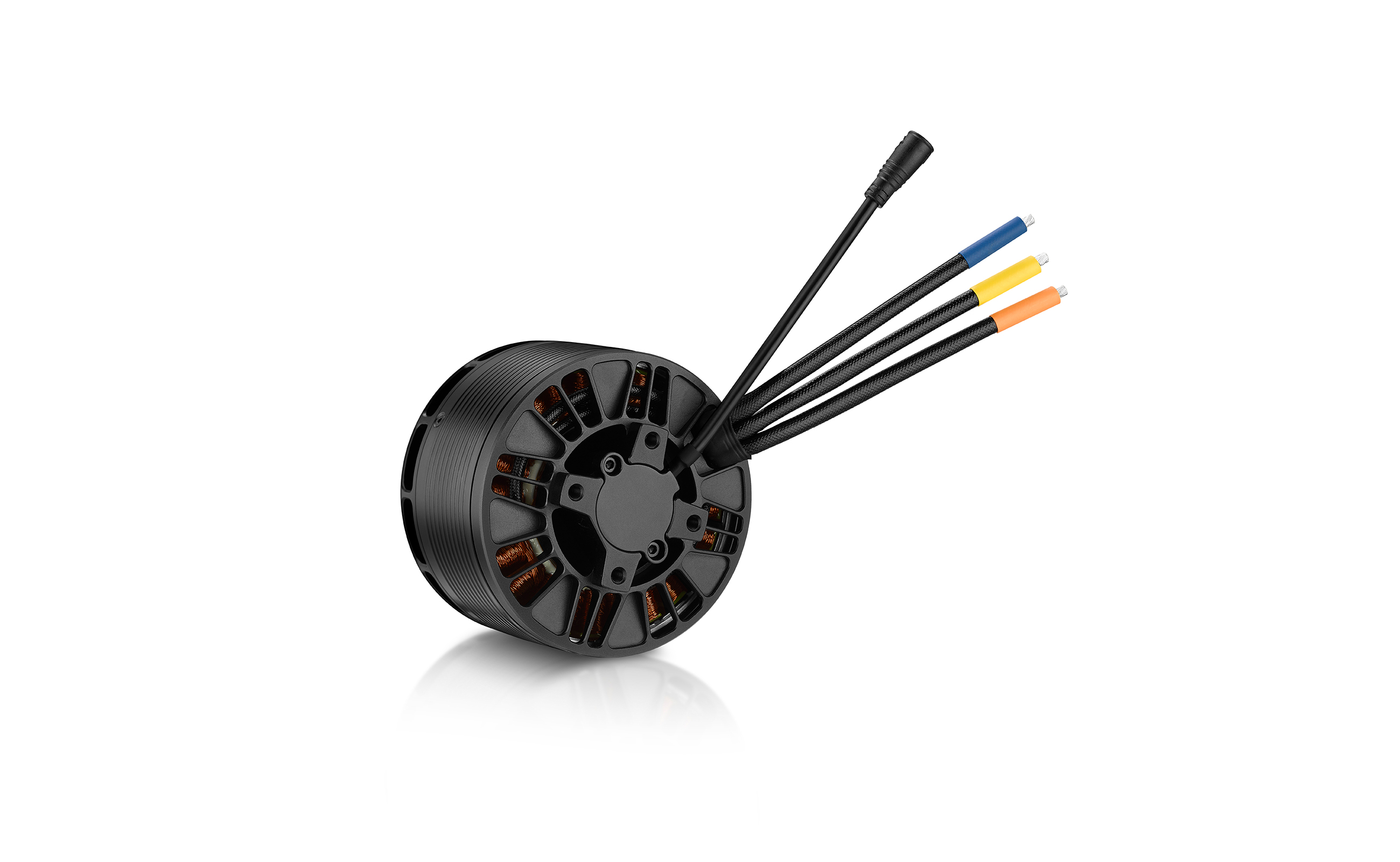

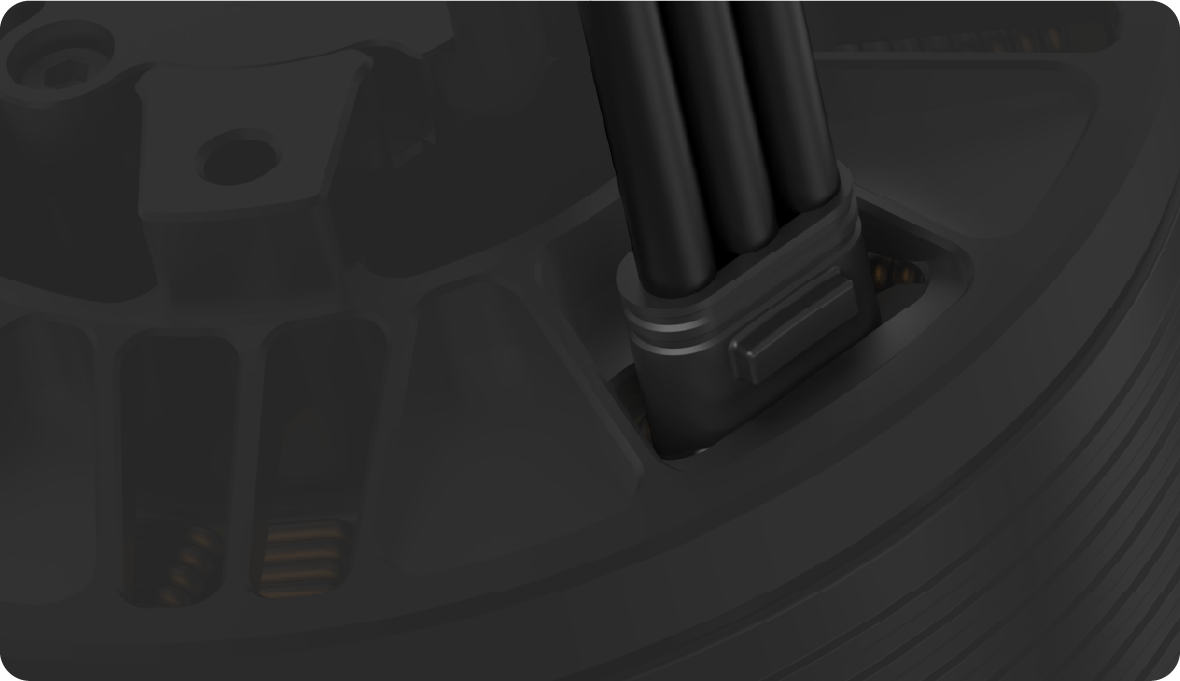

Silicone Rubber Cable Sleeves
Custom silicone rubber cable sleeves for the
motor's three-phase wire outlet,
combining aesthetic appeal with superior insulation.

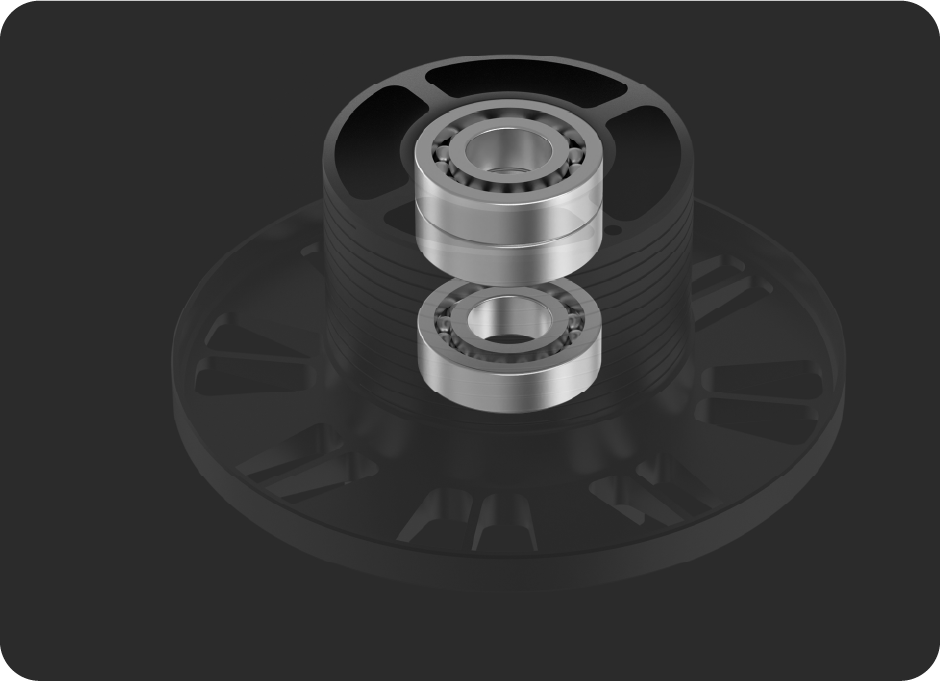

Triple-Bearing System
Triple-bearing system design ensures
optimal dynamic balance,
enhancing impact resistance and
durability for worry-free flight operations.

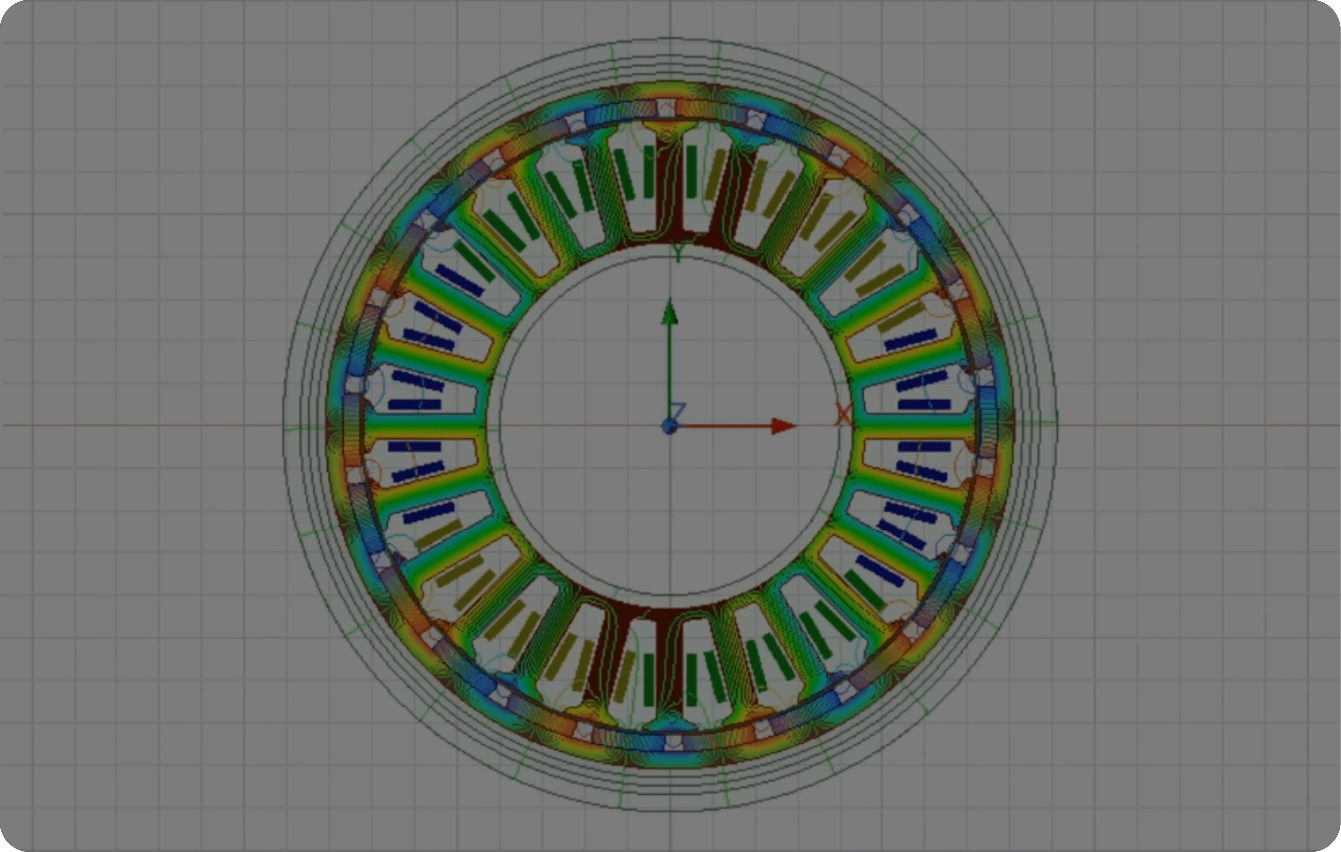

Featuring an Innovative Magnetic Circuit Design that
Optimally Matches Drive Parameter Requirements,
thereby Enabling a More Rapid Response of the Propulsion System
Rigorous Testing for High Reliability
and Extended Lifespan

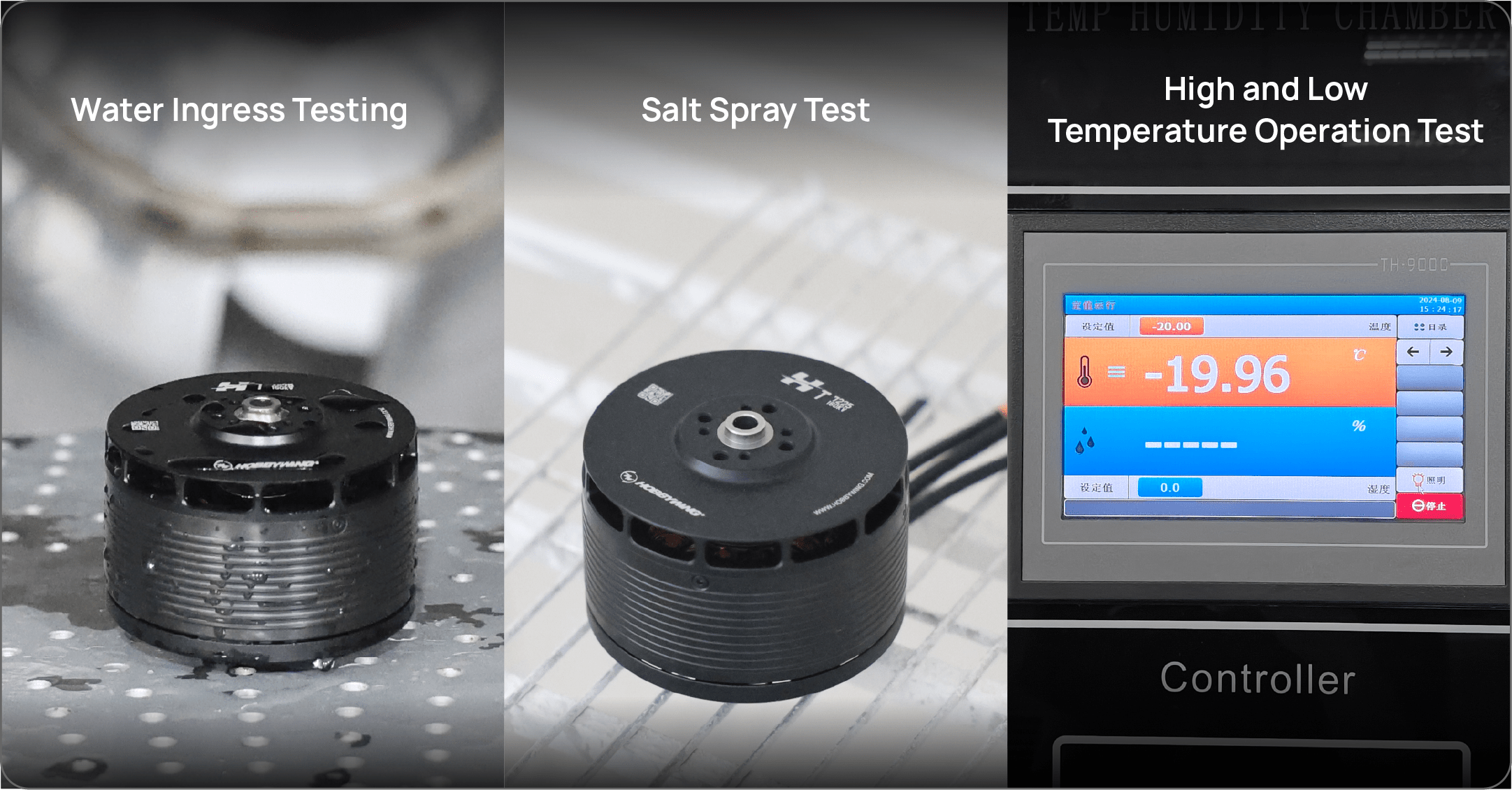

  • Validated through rigorous industry testing standards,
  • including Drive Performance Validation (DPV), Water Ingress Testing,
  • Salt Spray Test, Mechanical Stress Testing, and Tri-Comprehensive (Temperature, Humidity, Vibration)  Test,
  • plus 1,000-hour laboratory fatigue life validation,
  • ensuring sustained performance in challenging environments.
Recommended Combinations
  • MotorT7225-190KV/160KV
  • Propeller22x12" / 24x12"
  • ESCXRotor Pro-H200A-14S-BLDC
  • Battery12S LiPo
  • Takeoff Weight of Single Motor30~35kg

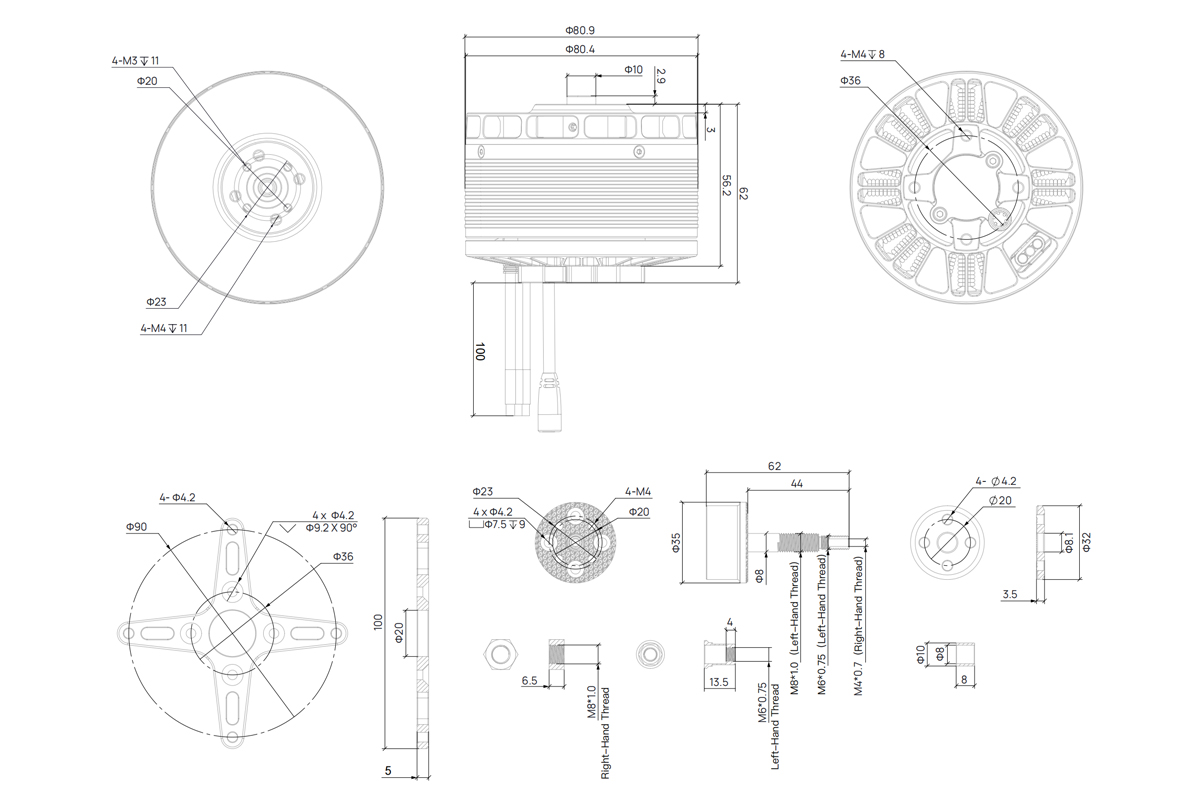

T7225 CAD
Product NameT7225
  • 160KV
  • 190KV
Specifications
  • Model
  • Protection level
  • Motor size
  • Slot& Pole
  • Stator size
  • Dynamic balance
  • Stator process
  • Bearing
  • Enamelled wire
  • Motor axle diameter
  • Magnet
  • Props mounting dimensions
  • Isolation test
  • Motor mounting dimensions
  • T7225
  • IPX5
  • Φ80.9*H62mm
  • 24N22P
  • Φ72.0mm
  • ≤15mg
  • High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
  • Water proof bearing
  • 220℃
  • Φ10mm
  • 180℃
  • 4×M3@D20mm&4×M4@D23mm
  • 500V AC high voltage resistance test
  • 4×M4@D36mm
  • T7225
  • IPX5
  • Φ80.9*H62mm
  • 24N22P
  • Φ72.0mm
  • ≤15mg
  • High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
  • Water proof bearing
  • 220℃
  • Φ10mm
  • 180℃
  • 4×M3@D20mm&4×M4@D23mm
  • 500V AC high voltage resistance test
  • 4×M4@D36mm
Specification
  • KV
  • Battery(LiPo)
  • No-load current
  • Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）
  • Max power
  • Max thrust
  • Resistance
  • Wire size
  • Wire length
  • Weight（With wire）
  • 160
  • LiPo-12S (48V)
  • 4.36A
  • 132.7A
  • 6377W
  • 21.7kg
  • 18.4mΩ
  • Enamelled wire outlet
  • 100mm
  • 755g
  • 190
  • LiPo-12S (48V)
  • 5.76A
  • 137.6A
  • 6611W
  • 19.7kg
  • 17.1mΩ
  • Enamelled wire outlet
  • 100mm
  • 755g
Recommended application combinations
  • Motor
  • Propeller
  • ESC
  • Battery
  • Takeoff weight of single motor
  • T7225-160KV
  • 24x12"
  • XRotor Pro-H200A-14S
  • 12S LiPo
  • 30~35kg
  • T7225-190KV
  • 22x12"
  • XRotor Pro-H200A-14S
  • 12S LiPo
  • 30~35kg
24x12"-36V Load performance parameters
24x12"-36V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

36V (10S LiPo)

24x12"

33%

1834

5.3

191.2

2230

9.6

0.55

51℃

35%

2028

6.0

214.7

2340

9.4

0.60

37%

2248

6.7

242.7

2458

9.3

0.67

39%

2488

7.6

274.90

2582

9.1

0.74

42%

2876

9.2

330.2

2771

8.7

0.85

45%

3288

10.9

392.9

2958

8.4

0.98

48%

3716

12.8

462.3

3140

8.0

1.11

51%

4158

14.9

537.9

3317

7.7

1.24

54%

4614

17.2

620.0

3490

7.4

1.38

57%

5087

19.7

709.0

3659

7.2

1.52

60%

5580

22.3

806.0

3827

6.9

1.67

63%

6098

25.3

912.3

3995

6.7

1.82

66%

6646

28.5

1029.4

4165

6.5

1.99

69%

7226

32.1

1158.8

4338

6.2

2.16

72%

7840

36.1

1301.7

4513

6.0

2.35

75%

8487

40.4

1458.9

4689

5.8

2.55

78%

9163

45.2

1630.4

4863

5.6

2.76

81%

9858

50.3

1814.5

5034

5.4

2.98

84%

10559

55.7

2007.8

5197

5.3

3.20

87%

11246

61.1

2204.0

5349

5.1

3.42

90%

11892

66.4

2394.1

5486

5.0

3.62

100%

13255

77.8

2806.7

5767

4.7

4.02
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
24x12"-40V Load performance parameters
24x12"-40V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

40V(10S LiPo)

24x12"

33%

2218

6.1

243.3

2448

9.1

0.66

54℃

35%

2475

6.9

277.5

2576

8.9

0.74

37%

2747

7.9

315.8

2707

8.7

0.82

39%

3032

8.9

358.0

2840

8.5

0.90

42%

3482

10.7

428.7

3039

8.1

1.04

45%

3958

12.7

508.4

3238

7.8

1.18

48%

4459

14.9

597.5

3435

7.5

1.33

51%

4987

17.4

696.5

3629

7.2

1.49

54%

5544

20.1

806.0

3822

6.9

1.66

57%

6131

23.1

927.0

4012

6.6

1.84

60%

6751

26.5

1060.6

4200

6.4

2.03

63%

7405

30.2

1207.7

4387

6.1

2.22

66%

8093

34.2

1369.6

4573

5.9

2.43

69%

8814

38.6

1547.3

4759

5.7

2.65

72%

9568

43.5

1741.3

4945

5.5

2.88

75%

10347

48.7

1951.8

5131

5.3

3.12

78%

11146

54.4

2178.1

5316

5.1

3.37

81%

11955

60.4

2418.0

5498

4.9

3.63

84%

12759

66.6

2667.7

5674

4.8

3.89

87%

13542

72.9

2920.8

5839

4.6

4.14

90%

14282

79.1

3168.5

5985

4.5

4.38

100%

16066

94.7

3792.7

6284

4.2

4.93
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
24x12"-44V Load performance parameters
24x12"-44V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

44V(12S LiPo)

24x12"

33%

2655

7.0

309.2

2657

8.6

0.79

80°C 2min16s

35%

2949

8.0

351.3

2797

8.4

0.88

37%

3265

9.1

399.4

2941

8.2

0.97

39%

3599

10.3

453.4

3087

7.9

1.07

42%

4133

12.4

545.3

3306

7.6

1.23

45%

4702

14.8

650.1

3524

7.2

1.40

48%

5303

17.4

767.6

3738

6.9

1.59

51%

5938

20.4

897.9

3949

6.6

1.78

54%

6606

23.6

1041.7

4156

6.3

1.98

57%

7309

27.2

1199.5

4360

6.1

2.19

60%

8049

31.2

1372.8

4562

5.9

2.42

63%

8826

35.5

1562.8

4763

5.6

2.66

66%

9641

40.2

1771.6

4963

5.4

2.91

69%

10492

45.4

2000.8

5162

5.2

3.17

72%

11377

51.1

2252.3

5362

5.1

3.44

75%

12289

57.4

2526.9

5561

4.9

3.73

78%

13220

64.1

2824.4

5758

4.7

4.03

81%

14159

71.3

3141.9

5951

4.5

4.33

84%

15091

78.9

3473.6

6134

4.3

4.63

87%

15994

86.5

3809.6

6305

4.2

4.93

90%

16845

93.9

4136.1

6457

4.1

5.22

100%

18874

111.8

4927.0

6776

3.8

5.90
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
24x12"-48V Load performance parameters
24x12"-48V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

48V(12S LiPo)

24x12"

33%

3068

7.8

376.6

2863

8.1

0.92

80℃ 1min

35%

3416

8.9

429.6

3009

8.0

1.02

37%

3801

10.2

491.7

3165

7.7

1.13

39%

4215

11.7

562.5

3325

7.5

1.26

42%

4877

14.2

683.6

3569

7.1

1.46

45%

5575

17.1

821.1

3811

6.8

1.67

48%

6298

20.3

973.8

4046

6.5

1.89

51%

7043

23.7

1141.2

4273

6.2

2.11

54%

7811

27.5

1323.5

4494

5.9

2.35

57%

8605

31.7

1521.9

4710

5.7

2.60

60%

9429

36.2

1738.2

4923

5.4

2.85

63%

10290

41.1

1974.8

5134

5.2

3.12

66%

11193

46.5

2234.7

5344

5.0

3.40

69%

12143

52.5

2520.7

5554

4.8

3.70

72%

13140

59.0

2835.4

5764

4.6

4.01

75%

14181

66.2

3181.0

5974

4.5

4.34

78%

15260

74.0

3558.4

6181

4.3

4.69

81%

16362

82.5

3966.4

6383

4.1

5.05

84%

17466

91.6

4400.7

6575

4.0

5.42

87%

18543

101.0

4852.1

6754

3.8

5.79

90%

19553

110.4

5303.8

6913

3.7

6.16

100%

21713

132.7

6376.3

7224

3.4

7.00
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
22x12"-36V Load performance parameters
22x12"-36V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

36V(10S LiPo)

22x12"

33%

1761

5.7

204.1

2514

8.6

0.52

46℃

35%

1969

6.4

229.6

2644

8.6

0.57

37%

2185

7.2

258.8

2776

8.4

0.64

39%

2410

8.1

291.5

2908

8.3

0.70

42%

2760

9.6

346.9

3108

8.0

0.80

45%

3127

11.4

409.9

3307

7.6

0.91

48%

3513

13.3

480.4

3506

7.3

1.03

51%

3919

15.5

558.5

3705

7.0

1.15

54%

4347

17.9

644.5

3902

6.7

1.27

57%

4800

20.5

738.8

4098

6.5

1.41

60%

5278

23.3

842.2

4294

6.3

1.55

63%

5783

26.5

955.4

4489

6.1

1.70

66%

6316

29.9

1079.4

4684

5.9

1.85

69%

6877

33.7

1215.4

4880

5.7

2.02

72%

7462

37.8

1364.5

5075

5.5

2.19

75%

8070

42.4

1527.5

5272

5.3

2.37

78%

8694

47.3

1704.2

5468

5.1

2.57

81%

9327

52.5

1893.2

5662

4.9

2.77

84%

9958

58.0

2090.9

5849

4.8

2.97

87%

10576

63.5

2291.1

6025

4.6

3.17

90%

11165

68.9

2485.0

6181

4.5

3.35

100%

12597

81.5

2940.9

6473

4.3

3.76
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
22x12"-40V Load performance parameters
22x12"-40V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

40V(10S LiPo)

22x12"

33%

2165

6.6

263.5

2766

8.2

0.63

49℃

35%

2409

7.4

297.3

2909

8.1

0.70

37%

2656

8.3

334.6

3050

7.9

0.77

39%

2910

9.4

375.6

3190

7.7

0.84

42%

3309

11.1

445.3

3401

7.4

0.96

45%

3739

13.1

525.9

3616

7.1

1.09

48%

4205

15.4

618.4

3835

6.8

1.22

51%

4710

18.1

723.6

4057

6.5

1.37

54%

5256

21.0

841.8

4278

6.2

1.53

57%

5840

24.3

973.2

4499

6.0

1.70

60%

6460

27.9

1118.0

4716

5.8

1.89

63%

7111

31.9

1276.6

4930

5.6

2.08

66%

7789

36.2

1449.7

5140

5.4

2.29

69%

8487

40.9

1638.0

5349

5.2

2.50

72%

9197

46.0

1842.1

5558

5.0

2.72

75%

9912

51.4

2061.7

5768

4.8

2.94

78%

10625

57.3

2295.4

5978

4.6

3.16

81%

11326

63.4

2539.9

6186

4.5

3.38

84%

12010

69.6

2790.2

6386

4.3

3.59

87%

12669

75.8

3039.8

6574

4.2

3.80

90%

13298

81.9

3281.3

6742

4.1

4.00

100%

15041

97.7

3916.2

7074

3.8

4.54
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
22x12"-44V Load performance parameters
22x12"-44V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

44V(10S LiPo)

22x12"

33%

2516

7.2

318.7

2984

7.9

0.73

80℃4min50s

35%

2770

8.2

360.2

3129

7.7

0.80

37%

3062

9.3

409.5

3286

7.5

0.88

39%

3383

10.6

465.9

3451

7.3

0.98

42%

3904

12.8

562.5

3703

6.9

1.13

45%

4461

15.3

672.4

3952

6.6

1.29

48%

5043

18.0

794.8

4194

6.3

1.47

51%

5646

21.1

929.5

4429

6.1

1.64

54%

6269

24.5

1077.1

4659

5.8

1.83

57%

6917

28.1

1238.9

4885

5.6

2.03

60%

7592

32.2

1416.7

5110

5.4

2.23

63%

8302

36.6

1612.8

5336

5.1

2.45

66%

9050

41.5

1829.7

5565

4.9

2.68

69%

9840

47.0

2069.7

5797

4.8

2.92

72%

10675

53.0

2334.7

6031

4.6

3.17

75%

11550

59.6

2625.7

6263

4.4

3.44

78%

12459

66.8

2942.2

6491

4.2

3.72

81%

13389

74.5

3282.2

6709

4.1

4.01

84%

14321

82.6

3640.8

6913

3.9

4.31

87%

15225

91.0

4009.2

7101

3.8

4.61

90%

16065

99.3

4372.6

7270

3.7

4.90

100%

17692

116.9

5149.5

7609

3.4

5.54
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
22x12"-48V Load performance parameters
22x12"-48V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

48V(12S LiPo)

22x12"

33%

2947

8.3

397.4

3219

7.4

0.86

80℃
1min25S

35%

3274

9.5

454.3

3384

7.2

0.95

37%

3631

10.8

519.0

3555

7.0

1.06

39%

4010

12.3

591.4

3731

6.8

1.17

42%

4615

14.8

713.6

3996

6.5

1.34

45%

5254

17.7

852.0

4259

6.2

1.53

48%

5923

20.9

1006.4

4517

5.9

1.73

51%

6621

24.5

1177.5

4771

5.6

1.94

54%

7349

28.4

1366.4

5021

5.4

2.16

57%

8112

32.8

1574.6

5268

5.2

2.39

60%

8913

37.5

1804.0

5514

4.9

2.63

63%

9757

42.8

2056.7

5758

4.7

2.89

66%

10645

48.6

2334.9

6002

4.6

3.17

69%

11578

55.0

2640.9

6245

4.4

3.46

72%

12552

61.9

2977.0

6485

4.2

3.76

75%

13561

69.6

3346.2

6722

4.1

4.08

78%

14591

78.1

3751.4

6954

3.9

4.41

81%

15623

87.3

4194.7

7179

3.7

4.76

84%

16630

97.3

4674.9

7398

3.6

5.12

87%

17577

107.8

5182.6

7608

3.4

5.50

90%

18419

118.4

5692.3

7804

3.2

5.87

100%

19711

137.6

6611.0

8134

3.0

6.54
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >
T7225 CAD
T7225-160KV-24x12 Specification
T7225-190KV-22x12 Specification
T7225 Load performance parameters
T7225 Model Drawing

Software Download

H13 Flashing light Information

FAQ

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends

Privacy Policy 粤ICP备14009225号-1  |  ©2015 Hobbywing Technology CO., LTD.. All rights reserved
T7225
Overview Specifications Support Accessories Detail Contact us Shop
T7225Fixed-Wing UAV Cruise Motor
Available in 160KV & 190KV - optimized for electric fixed-wing UAV cruise operations.
Perfect electric alternative to 40CC combustion engines.
Exceptional Power with
Efficient Heat Dissipation
  • The rotor bracket features a rectangular exhaust
  • outlet design that effectively reduces
  • airflow resistance and turbulence,
  • enhances heat exhaust efficiency and boosts
  • overall heat dissipation efficiency by 20%,
  • thus maintaining stable operation
  • during extended, high-load flights.
It delivers up to 21.7kg thrust with 24-inch propellers at 48V
and provides reliable performance to
handle unexpected flight conditions with ease.
Outperforms comparable motors under the same voltage with

Maximum Thrust
5% Higher

Sustained High-Load Operation
30% Longer

Detachable Propeller Adapter and
Easy Propeller Locking by IPC Function for
Versatile Applications
  • The rotor bracket adopts a boss design that
  • prevents interference with the edge structure of propeller roots,
  • accommodating both folding and non-folding propellers.
  • Detachable propeller adapter base featuring integrated anti-slip,
  • anti-rotation, and interlocking mechanisms.
  • Innovative anti-loosening propeller adapter structure
  • prevents propeller detachment due to nut loosening,
  • thus enhancing flight safety.
  • Patented design certification [Patent No.: 202311210278.7]
  • Supports multiple mounting configurations
  • for quick adaption to meet
  • the demands of efficiency and diverse applications.
  • The stator seat is compatible with electrical locking propeller components
  • and offers optional installation based on needs,
  • thus ensuring quick and easy assembly.

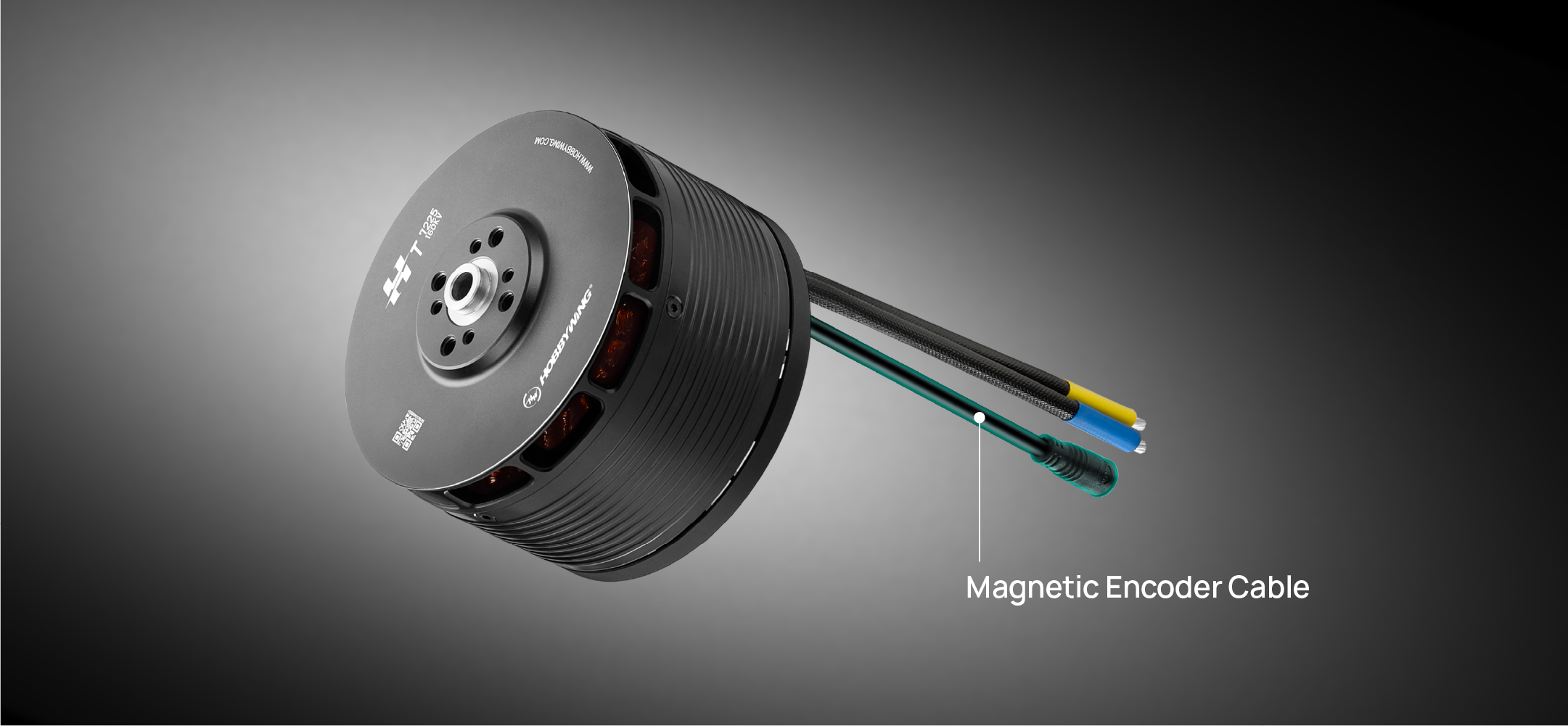

  • When paired with HOBBYWING IPC (Intelligent Propeller Control) ESC,
  • the system enables customizable propeller positioning to minimize
  • ground contact risks and enhance equipment protection.
Premium Materials and Reliable Design
Steel Cores
Constructed with industry-leading 0.2mm
low-loss silicon steel cores and 220°C
temperature-resistant enameled wires.
Magnet Segment
High-grade curved magnetic tiles enhance
magnetic energy density to deliver
superior torque for the motor.
Bearings
Premium international-brand bearings provide
low friction torque and extended service life to
meet diverse flight requirements.
Titanium Alloy Nuts
Standard titanium alloy nuts on
the propeller mount for optimal
weight reduction.
Knurled Shaft
Knurled shaft-to-bracket interface
with side set screw locking for
dual redundant security.
Multi-Layer Securing Mechanism
Multi-layer securing mechanism at the rotor shaft end,
utilizing copper washer, circlip,
and screw fastening for enhanced stability and reliability.
Silicone Rubber Cable Sleeves
Custom silicone rubber cable sleeves for the
motor's three-phase wire outlet,
combining aesthetic appeal with superior insulation.
Triple-Bearing System
Triple-bearing system design ensures
optimal dynamic balance,
enhancing impact resistance and
durability for worry-free flight operations.
Featuring an Innovative Magnetic Circuit Design that
Optimally Matches Drive Parameter Requirements,
thereby Enabling a More Rapid Response of the Propulsion System
Rigorous Testing for High Reliability
and Extended Lifespan
  • Validated through rigorous industry testing standards,
  • including Drive Performance Validation (DPV), Water Ingress Testing,
  • Salt Spray Test, Mechanical Stress Testing, and Tri-Comprehensive (Temperature, Humidity, Vibration)  Test,
  • plus 1,000-hour laboratory fatigue life validation,
  • ensuring sustained performance in challenging environments.
Recommended Combinations
  • MotorT7225-190KV/160KV
  • Propeller22x12" / 24x12"
  • ESCXRotor Pro-H200A-14S-BLDC
  • Battery12S LiPo
  • Takeoff Weight of Single Motor30~35kg
T7225 CAD
Product NameT7225
  • 160KV
  • 190KV
Specifications
  • Model
  • Protection level
  • Motor size
  • Slot& Pole
  • Stator size
  • Dynamic balance
  • Stator process
  • Bearing
  • Enamelled wire
  • Motor axle diameter
  • Magnet
  • Props mounting dimensions
  • Isolation test
  • Motor mounting dimensions
  • T7225
  • IPX5
  • Φ80.9*H62mm
  • 24N22P
  • Φ72.0mm
  • ≤15mg
  • High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
  • Water proof bearing
  • 220℃
  • Φ10mm
  • 180℃
  • 4×M3@D20mm&4×M4@D23mm
  • 500V AC high voltage resistance test
  • 4×M4@D36mm
  • T7225
  • IPX5
  • Φ80.9*H62mm
  • 24N22P
  • Φ72.0mm
  • ≤15mg
  • High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
  • Water proof bearing
  • 220℃
  • Φ10mm
  • 180℃
  • 4×M3@D20mm&4×M4@D23mm
  • 500V AC high voltage resistance test
  • 4×M4@D36mm
Specification
  • KV
  • Battery(LiPo)
  • No-load current
  • Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）
  • Max power
  • Max thrust
  • Resistance
  • Wire size
  • Wire length
  • Weight（With wire）
  • 160
  • LiPo-12S (48V)
  • 4.36A
  • 132.7A
  • 6377W
  • 21.7kg
  • 18.4mΩ
  • Enamelled wire outlet
  • 100mm
  • 755g
  • 190
  • LiPo-12S (48V)
  • 5.76A
  • 137.6A
  • 6611W
  • 19.7kg
  • 17.1mΩ
  • Enamelled wire outlet
  • 100mm
  • 755g
Recommended application combinations
  • Motor
  • Propeller
  • ESC
  • Battery
  • Takeoff weight of single motor
  • T7225-160KV
  • 24x12"
  • XRotor Pro-H200A-14S
  • 12S LiPo
  • 30~35kg
  • T7225-190KV
  • 22x12"
  • XRotor Pro-H200A-14S
  • 12S LiPo
  • 30~35kg
24x12"-36V Load performance parameters
24x12"-36V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

36V (10S LiPo)

24x12"

33%

1834

5.3

191.2

2230

9.6

0.55

51℃

35%

2028

6.0

214.7

2340

9.4

0.60

37%

2248

6.7

242.7

2458

9.3

0.67

39%

2488

7.6

274.90

2582

9.1

0.74

42%

2876

9.2

330.2

2771

8.7

0.85

45%

3288

10.9

392.9

2958

8.4

0.98

48%

3716

12.8

462.3

3140

8.0

1.11

51%

4158

14.9

537.9

3317

7.7

1.24

54%

4614

17.2

620.0

3490

7.4

1.38

57%

5087

19.7

709.0

3659

7.2

1.52

60%

5580

22.3

806.0

3827

6.9

1.67

63%

6098

25.3

912.3

3995

6.7

1.82

66%

6646

28.5

1029.4

4165

6.5

1.99

69%

7226

32.1

1158.8

4338

6.2

2.16

72%

7840

36.1

1301.7

4513

6.0

2.35

75%

8487

40.4

1458.9

4689

5.8

2.55

78%

9163

45.2

1630.4

4863

5.6

2.76

81%

9858

50.3

1814.5

5034

5.4

2.98

84%

10559

55.7

2007.8

5197

5.3

3.20

87%

11246

61.1

2204.0

5349

5.1

3.42

90%

11892

66.4

2394.1

5486

5.0

3.62

100%

13255

77.8

2806.7

5767

4.7

4.02
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
24x12"-40V Load performance parameters
24x12"-40V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

40V(10S LiPo)

24x12"

33%

2218

6.1

243.3

2448

9.1

0.66

54℃

35%

2475

6.9

277.5

2576

8.9

0.74

37%

2747

7.9

315.8

2707

8.7

0.82

39%

3032

8.9

358.0

2840

8.5

0.90

42%

3482

10.7

428.7

3039

8.1

1.04

45%

3958

12.7

508.4

3238

7.8

1.18

48%

4459

14.9

597.5

3435

7.5

1.33

51%

4987

17.4

696.5

3629

7.2

1.49

54%

5544

20.1

806.0

3822

6.9

1.66

57%

6131

23.1

927.0

4012

6.6

1.84

60%

6751

26.5

1060.6

4200

6.4

2.03

63%

7405

30.2

1207.7

4387

6.1

2.22

66%

8093

34.2

1369.6

4573

5.9

2.43

69%

8814

38.6

1547.3

4759

5.7

2.65

72%

9568

43.5

1741.3

4945

5.5

2.88

75%

10347

48.7

1951.8

5131

5.3

3.12

78%

11146

54.4

2178.1

5316

5.1

3.37

81%

11955

60.4

2418.0

5498

4.9

3.63

84%

12759

66.6

2667.7

5674

4.8

3.89

87%

13542

72.9

2920.8

5839

4.6

4.14

90%

14282

79.1

3168.5

5985

4.5

4.38

100%

16066

94.7

3792.7

6284

4.2

4.93
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
24x12"-44V Load performance parameters
24x12"-44V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

44V(12S LiPo)

24x12"

33%

2655

7.0

309.2

2657

8.6

0.79

80°C 2min16s

35%

2949

8.0

351.3

2797

8.4

0.88

37%

3265

9.1

399.4

2941

8.2

0.97

39%

3599

10.3

453.4

3087

7.9

1.07

42%

4133

12.4

545.3

3306

7.6

1.23

45%

4702

14.8

650.1

3524

7.2

1.40

48%

5303

17.4

767.6

3738

6.9

1.59

51%

5938

20.4

897.9

3949

6.6

1.78

54%

6606

23.6

1041.7

4156

6.3

1.98

57%

7309

27.2

1199.5

4360

6.1

2.19

60%

8049

31.2

1372.8

4562

5.9

2.42

63%

8826

35.5

1562.8

4763

5.6

2.66

66%

9641

40.2

1771.6

4963

5.4

2.91

69%

10492

45.4

2000.8

5162

5.2

3.17

72%

11377

51.1

2252.3

5362

5.1

3.44

75%

12289

57.4

2526.9

5561

4.9

3.73

78%

13220

64.1

2824.4

5758

4.7

4.03

81%

14159

71.3

3141.9

5951

4.5

4.33

84%

15091

78.9

3473.6

6134

4.3

4.63

87%

15994

86.5

3809.6

6305

4.2

4.93

90%

16845

93.9

4136.1

6457

4.1

5.22

100%

18874

111.8

4927.0

6776

3.8

5.90
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
24x12"-48V Load performance parameters
24x12"-48V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

48V(12S LiPo)

24x12"

33%

3068

7.8

376.6

2863

8.1

0.92

80℃ 1min

35%

3416

8.9

429.6

3009

8.0

1.02

37%

3801

10.2

491.7

3165

7.7

1.13

39%

4215

11.7

562.5

3325

7.5

1.26

42%

4877

14.2

683.6

3569

7.1

1.46

45%

5575

17.1

821.1

3811

6.8

1.67

48%

6298

20.3

973.8

4046

6.5

1.89

51%

7043

23.7

1141.2

4273

6.2

2.11

54%

7811

27.5

1323.5

4494

5.9

2.35

57%

8605

31.7

1521.9

4710

5.7

2.60

60%

9429

36.2

1738.2

4923

5.4

2.85

63%

10290

41.1

1974.8

5134

5.2

3.12

66%

11193

46.5

2234.7

5344

5.0

3.40

69%

12143

52.5

2520.7

5554

4.8

3.70

72%

13140

59.0

2835.4

5764

4.6

4.01

75%

14181

66.2

3181.0

5974

4.5

4.34

78%

15260

74.0

3558.4

6181

4.3

4.69

81%

16362

82.5

3966.4

6383

4.1

5.05

84%

17466

91.6

4400.7

6575

4.0

5.42

87%

18543

101.0

4852.1

6754

3.8

5.79

90%

19553

110.4

5303.8

6913

3.7

6.16

100%

21713

132.7

6376.3

7224

3.4

7.00
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
22x12"-36V Load performance parameters
22x12"-36V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

36V(10S LiPo)

22x12"

33%

1761

5.7

204.1

2514

8.6

0.52

46℃

35%

1969

6.4

229.6

2644

8.6

0.57

37%

2185

7.2

258.8

2776

8.4

0.64

39%

2410

8.1

291.5

2908

8.3

0.70

42%

2760

9.6

346.9

3108

8.0

0.80

45%

3127

11.4

409.9

3307

7.6

0.91

48%

3513

13.3

480.4

3506

7.3

1.03

51%

3919

15.5

558.5

3705

7.0

1.15

54%

4347

17.9

644.5

3902

6.7

1.27

57%

4800

20.5

738.8

4098

6.5

1.41

60%

5278

23.3

842.2

4294

6.3

1.55

63%

5783

26.5

955.4

4489

6.1

1.70

66%

6316

29.9

1079.4

4684

5.9

1.85

69%

6877

33.7

1215.4

4880

5.7

2.02

72%

7462

37.8

1364.5

5075

5.5

2.19

75%

8070

42.4

1527.5

5272

5.3

2.37

78%

8694

47.3

1704.2

5468

5.1

2.57

81%

9327

52.5

1893.2

5662

4.9

2.77

84%

9958

58.0

2090.9

5849

4.8

2.97

87%

10576

63.5

2291.1

6025

4.6

3.17

90%

11165

68.9

2485.0

6181

4.5

3.35

100%

12597

81.5

2940.9

6473

4.3

3.76
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
22x12"-40V Load performance parameters
22x12"-40V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

40V(10S LiPo)

22x12"

33%

2165

6.6

263.5

2766

8.2

0.63

49℃

35%

2409

7.4

297.3

2909

8.1

0.70

37%

2656

8.3

334.6

3050

7.9

0.77

39%

2910

9.4

375.6

3190

7.7

0.84

42%

3309

11.1

445.3

3401

7.4

0.96

45%

3739

13.1

525.9

3616

7.1

1.09

48%

4205

15.4

618.4

3835

6.8

1.22

51%

4710

18.1

723.6

4057

6.5

1.37

54%

5256

21.0

841.8

4278

6.2

1.53

57%

5840

24.3

973.2

4499

6.0

1.70

60%

6460

27.9

1118.0

4716

5.8

1.89

63%

7111

31.9

1276.6

4930

5.6

2.08

66%

7789

36.2

1449.7

5140

5.4

2.29

69%

8487

40.9

1638.0

5349

5.2

2.50

72%

9197

46.0

1842.1

5558

5.0

2.72

75%

9912

51.4

2061.7

5768

4.8

2.94

78%

10625

57.3

2295.4

5978

4.6

3.16

81%

11326

63.4

2539.9

6186

4.5

3.38

84%

12010

69.6

2790.2

6386

4.3

3.59

87%

12669

75.8

3039.8

6574

4.2

3.80

90%

13298

81.9

3281.3

6742

4.1

4.00

100%

15041

97.7

3916.2

7074

3.8

4.54
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
22x12"-44V Load performance parameters
22x12"-44V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

44V(10S LiPo)

22x12"

33%

2516

7.2

318.7

2984

7.9

0.73

80℃4min50s

35%

2770

8.2

360.2

3129

7.7

0.80

37%

3062

9.3

409.5

3286

7.5

0.88

39%

3383

10.6

465.9

3451

7.3

0.98

42%

3904

12.8

562.5

3703

6.9

1.13

45%

4461

15.3

672.4

3952

6.6

1.29

48%

5043

18.0

794.8

4194

6.3

1.47

51%

5646

21.1

929.5

4429

6.1

1.64

54%

6269

24.5

1077.1

4659

5.8

1.83

57%

6917

28.1

1238.9

4885

5.6

2.03

60%

7592

32.2

1416.7

5110

5.4

2.23

63%

8302

36.6

1612.8

5336

5.1

2.45

66%

9050

41.5

1829.7

5565

4.9

2.68

69%

9840

47.0

2069.7

5797

4.8

2.92

72%

10675

53.0

2334.7

6031

4.6

3.17

75%

11550

59.6

2625.7

6263

4.4

3.44

78%

12459

66.8

2942.2

6491

4.2

3.72

81%

13389

74.5

3282.2

6709

4.1

4.01

84%

14321

82.6

3640.8

6913

3.9

4.31

87%

15225

91.0

4009.2

7101

3.8

4.61

90%

16065

99.3

4372.6

7270

3.7

4.90

100%

17692

116.9

5149.5

7609

3.4

5.54
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
22x12"-48V Load performance parameters
22x12"-48V Load performance parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Temperature(℃)

48V(12S LiPo)

22x12"

33%

2947

8.3

397.4

3219

7.4

0.86

80℃
1min25S

35%

3274

9.5

454.3

3384

7.2

0.95

37%

3631

10.8

519.0

3555

7.0

1.06

39%

4010

12.3

591.4

3731

6.8

1.17

42%

4615

14.8

713.6

3996

6.5

1.34

45%

5254

17.7

852.0

4259

6.2

1.53

48%

5923

20.9

1006.4

4517

5.9

1.73

51%

6621

24.5

1177.5

4771

5.6

1.94

54%

7349

28.4

1366.4

5021

5.4

2.16

57%

8112

32.8

1574.6

5268

5.2

2.39

60%

8913

37.5

1804.0

5514

4.9

2.63

63%

9757

42.8

2056.7

5758

4.7

2.89

66%

10645

48.6

2334.9

6002

4.6

3.17

69%

11578

55.0

2640.9

6245

4.4

3.46

72%

12552

61.9

2977.0

6485

4.2

3.76

75%

13561

69.6

3346.2

6722

4.1

4.08

78%

14591

78.1

3751.4

6954

3.9

4.41

81%

15623

87.3

4194.7

7179

3.7

4.76

84%

16630

97.3

4674.9

7398

3.6

5.12

87%

17577

107.8

5182.6

7608

3.4

5.50

90%

18419

118.4

5692.3

7804

3.2

5.87

100%

19711

137.6

6611.0

8134

3.0

6.54
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature data at 100% throttle operation, for reference only.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >
T7225 CAD
T7225-160KV-24x12 Specification
T7225-190KV-22x12 Specification
T7225 Load performance parameters
T7225 Model Drawing

Software Download

H13 Flashing light Information

FAQ
Top

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends

Privacy Policy | 粤ICP备14009225号-1  |  ©2015 Hobbywing Technology CO., LTD.. All rights reserved
