Xrotor Pro H200a 24s Foc Drone Esc
XRotor Pro H200A 24S FOC ESC Precision Power for Heavy-Lift Missions,
24S High-Voltage, FOC Performance.
High-Voltage • High-Power-Density ESC
Built for Heavy-Lift Industrial Drones

Optimized for heavy-lift multirotors,

large VTOL lift motors, and cruise propulsion,

delivering unmatched performance across high-payload logistics,

surveying, and long-range missions.

Precise Control, Ultra-Fast Response
Higher Efficiency, Lower Noise
Precise FOC Control
Powered by a modular design and Hobbywing’s advanced algorithm,
the ESC utilizes mature FOC technology to provide accurate drive,
smooth energy recovery, and rock-solid power delivery under heavy loads.
Xrotor Pro H200a 24s Foc Drone Electronic Speed Controller
Ultra-Fast Response
Fully optimized for response speed and throttle linearity,
the power system responds to commands with zero delay,
enhancing dynamic responsiveness during flight.
High Voltage Drone Propulsion Solution
Higher Efficiency
The inherently high-efficiency FOC algorithm,
combined with a new flow-guiding design,
reduces internal resistance, minimizes energy loss,
and improves overall propulsion efficiency.
Foc Uav Esc
Ultra-Low Noise Operation
FOC vector control delivers precise current regulation to suppress
torque ripple and dramatically cut motor noise.
Paired with a vibration-optimized propulsion design, it eliminates abnormal noise,
perfect for noise-sensitive missions.
vocie
Outstanding Heat Dissipation
Robust Protection
Featuring a lightweight nano-coating
process and sealed cable-gland
design, this ESC offers enhanced
water and dust resistance,
achieving an IP55 protection rating
IP55
(customizable up to IP67)

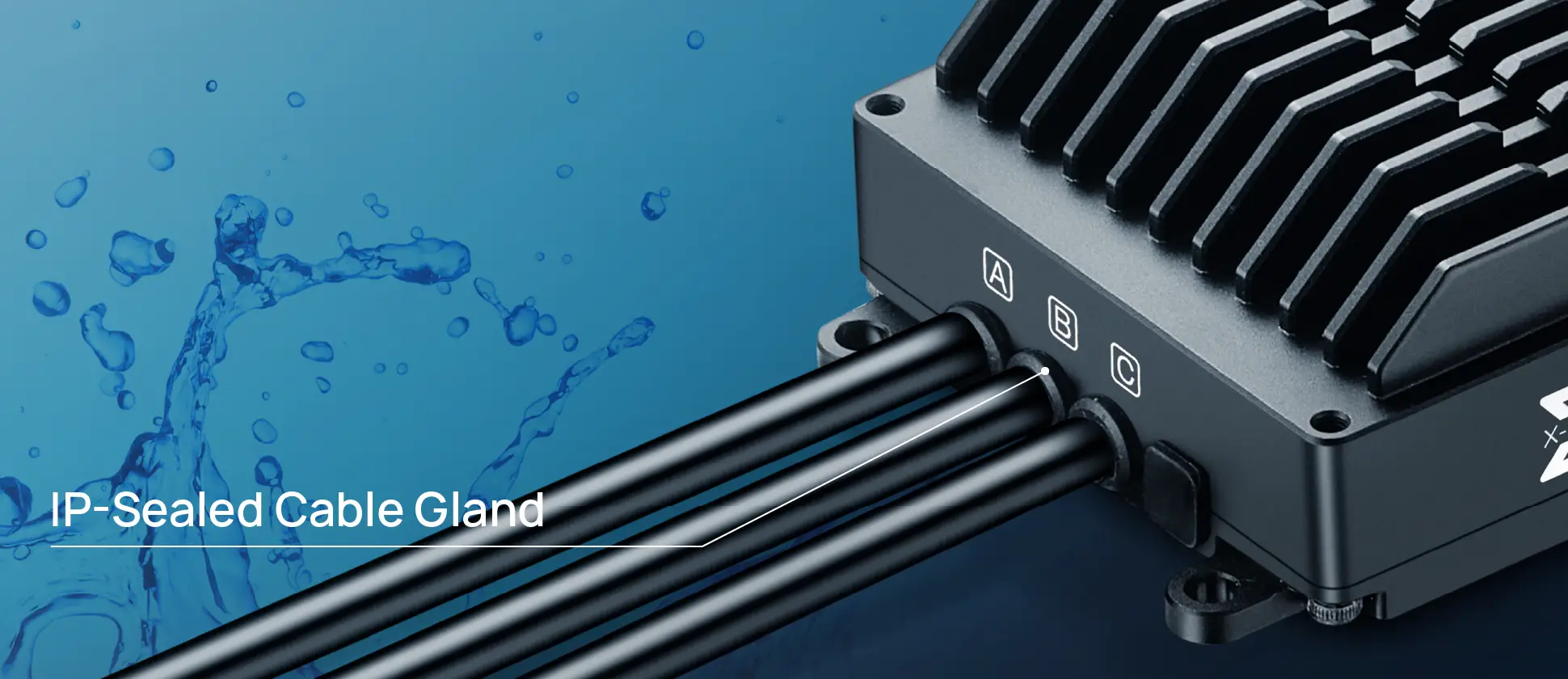

High Protection
Featuring a lightweight nano-coating process and sealed cable-gland design, this ESC offers enhanced water and dust resistance, achieving an IP55 protection rating IP55 (customizable up to IP67)
200a 24s Drone Speed Controller
Ual Sided Cooling

Optimized Thermal Architecture

Dual-sided design with direct contact between covers and power device zones

enables rapid heat removal. Augmented by extensive, multidirectional heat sinks,

the system achieves superior cooling under demanding high-load/high-temperature

conditions for prolonged, reliable performance.

Reliable & Durable
Intelligent & Safety

Dual-throttle
redundancy
Enabling fast and seamless
switching in case of
abnormalities to enhance safety.

Power-On Self-Check+Multiple Intelligent Protections
+Black-Box Function

for easy fault diagnosis and operational safety assurance.

Power-on
self-check
Multiple intelligent
Protections
Black-box
function

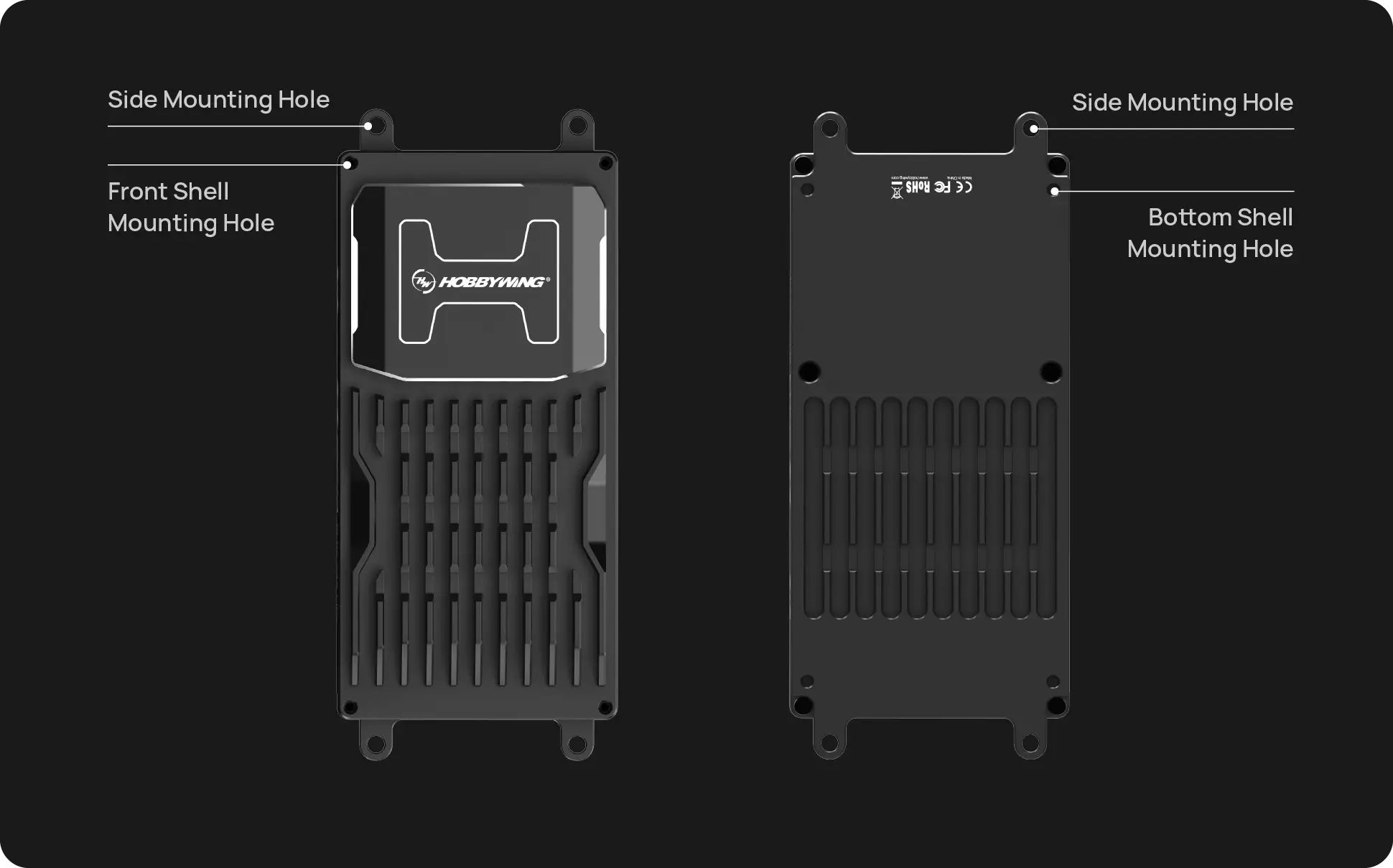

Easy & Versatile Installation

Classic H-series ESC structure supports top-cover,

bottom-cover, and side-hole mounting options,

enabling quick, adaptable setup for diverse heavy-lift drone designs.

Simple Installation

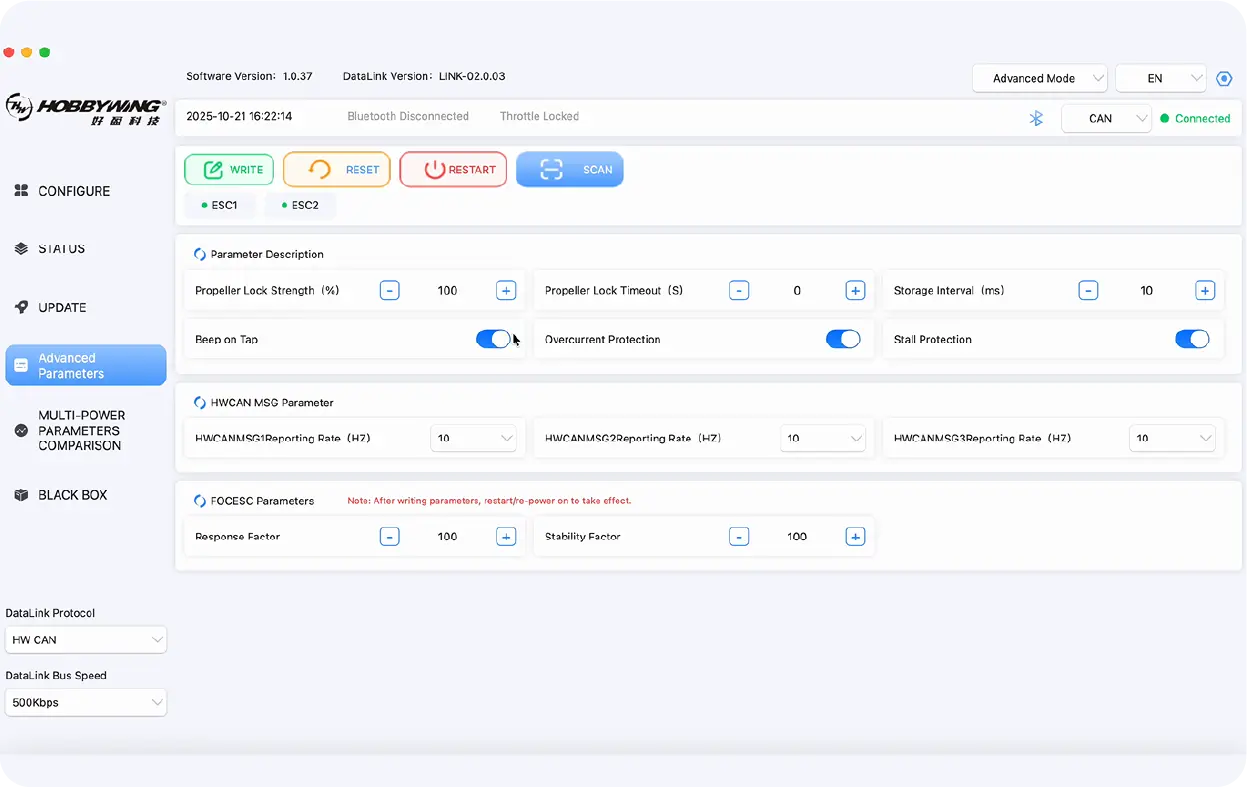

HOBBYWING’s proprietary PC
software enables parameter tuning
OTA upgrades

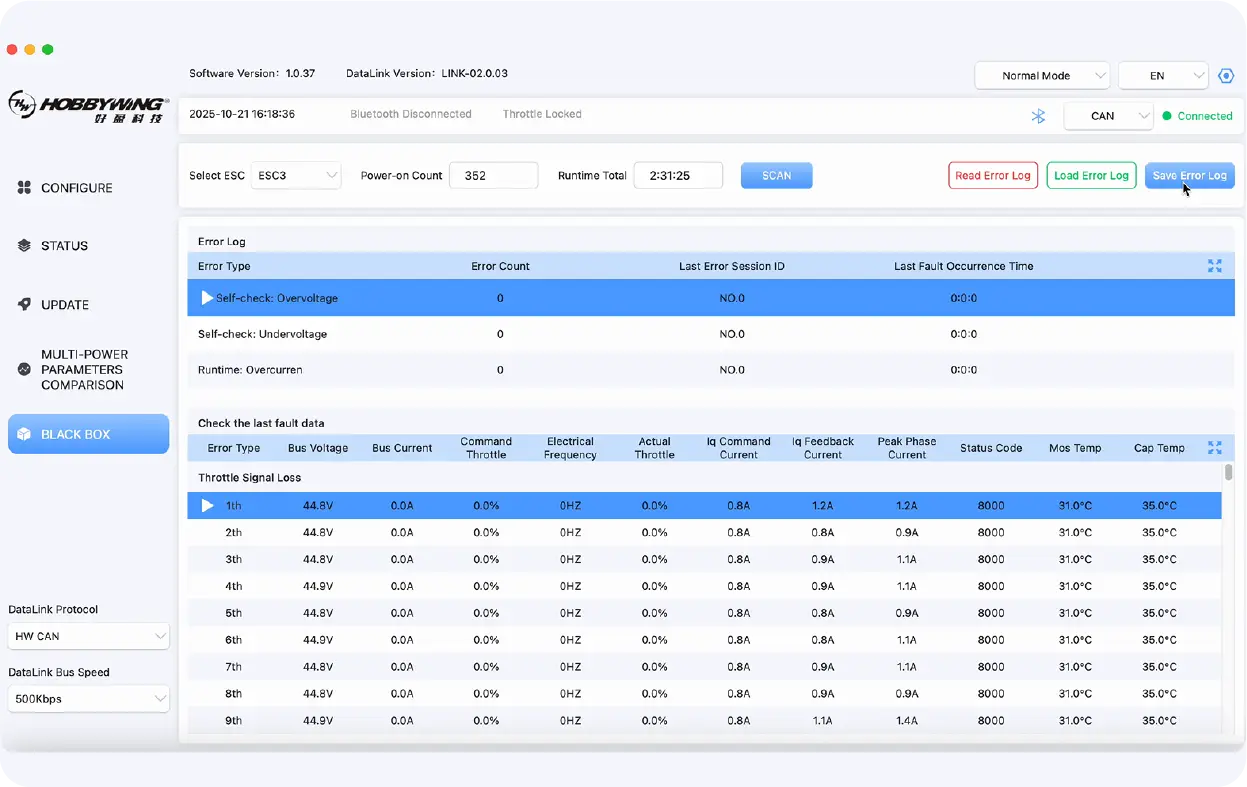

Black-box data recording
HOBBYWING’s proprietary PC software enables parameter tuning
OTA upgrades
Black-box data recording
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team

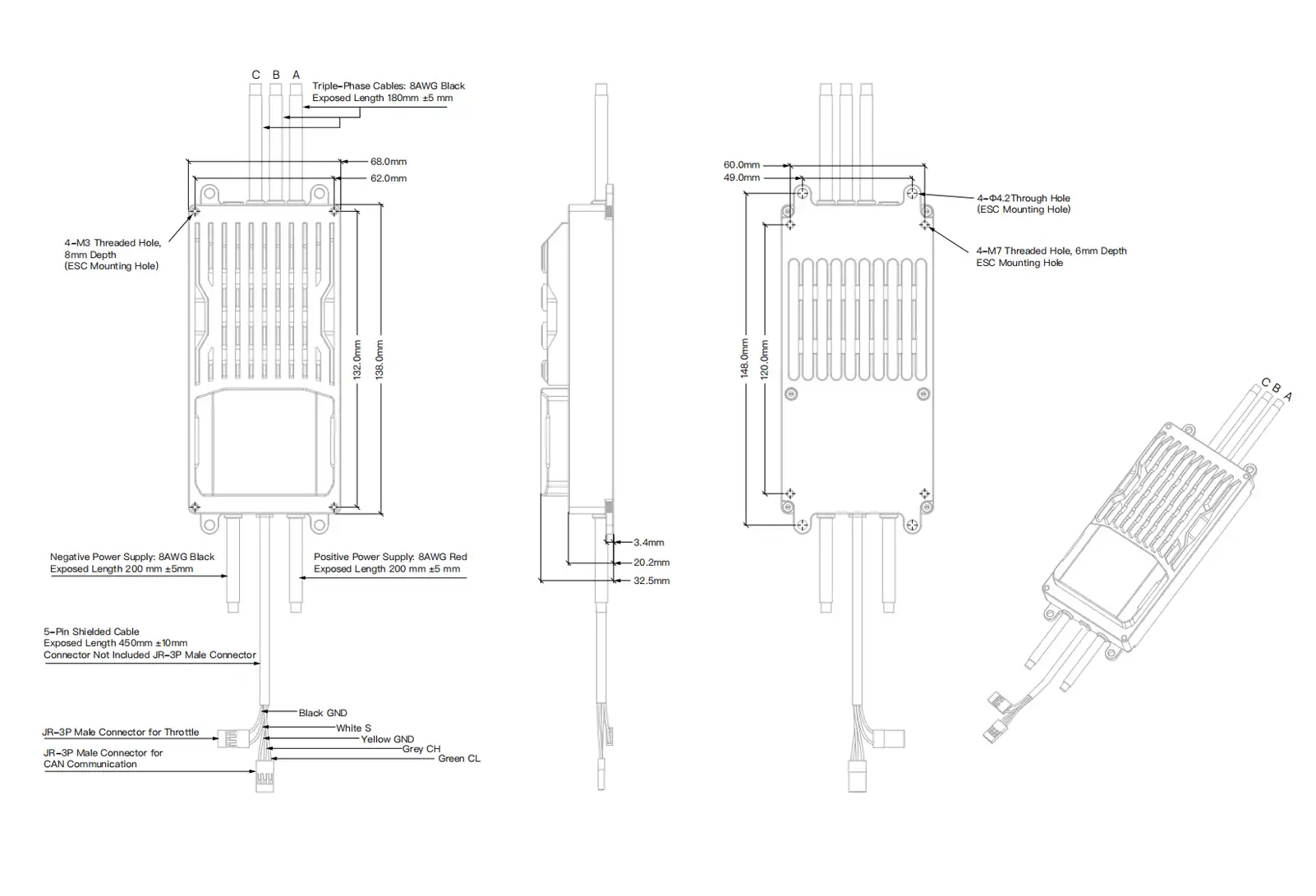

XRotor Pro H200A 24S FOC CAD
Product NameXRotor Pro H200A 24S FOC
Specifications
  • Input Voltage
  • Continuous Current
  • Peak Current (3 seconds)
  • Operating Temperature
  • Communication Protocol
  • Throttle Signal Isolated Mode
  • Firmware Upgrade
  • Digital Throttle
  • PWM Input Signal Level
  • Throttle Signal Frequency
  • Operating Pulse Width
  • Throttle Travel Calibration
  • Double Throttle Signal
  • Propeller Positioning
  • Failure Storage
  • Waterproof Rating
  • Weight(Without Cable)
  • Size
  • Signal Cable Define
  • Cable Specification
  • 36~108V
  • 85A(Good heat dissipation)
  • 200A (3S)
  • -40℃~65℃
  • CAN / RS485 (Serial port customizable )
  • Throttle and communication Isolation
  • Supported
  • Supported (CAN)
  • 5V/3.3V
  • 50~500Hz
  • 1100~1940μs
  • Throttle range cannot be calibrated, but the range can be modified by software
  • Supported (CAN and PWM)
  • Supported
  • 2-40 hours real-time data and fault data, real-time up to ms level
  • IP55(IP67 customizable)
  • 420g
  • 138x68x32.5mm (Without mounting ears)
  • The yellow wire is the ground wire, the gray wire is CH, and the green wire is CL; the black wire is the ground wire, and the white wire is the throttle signal wire
  • Input: Silicone cable-8AWG-200mm *2
    Output: Silicone cable-8AWG-180mm *3
    Signal: Shielded cable-5pin-450mm *1, JR-3Pin male connector *2
