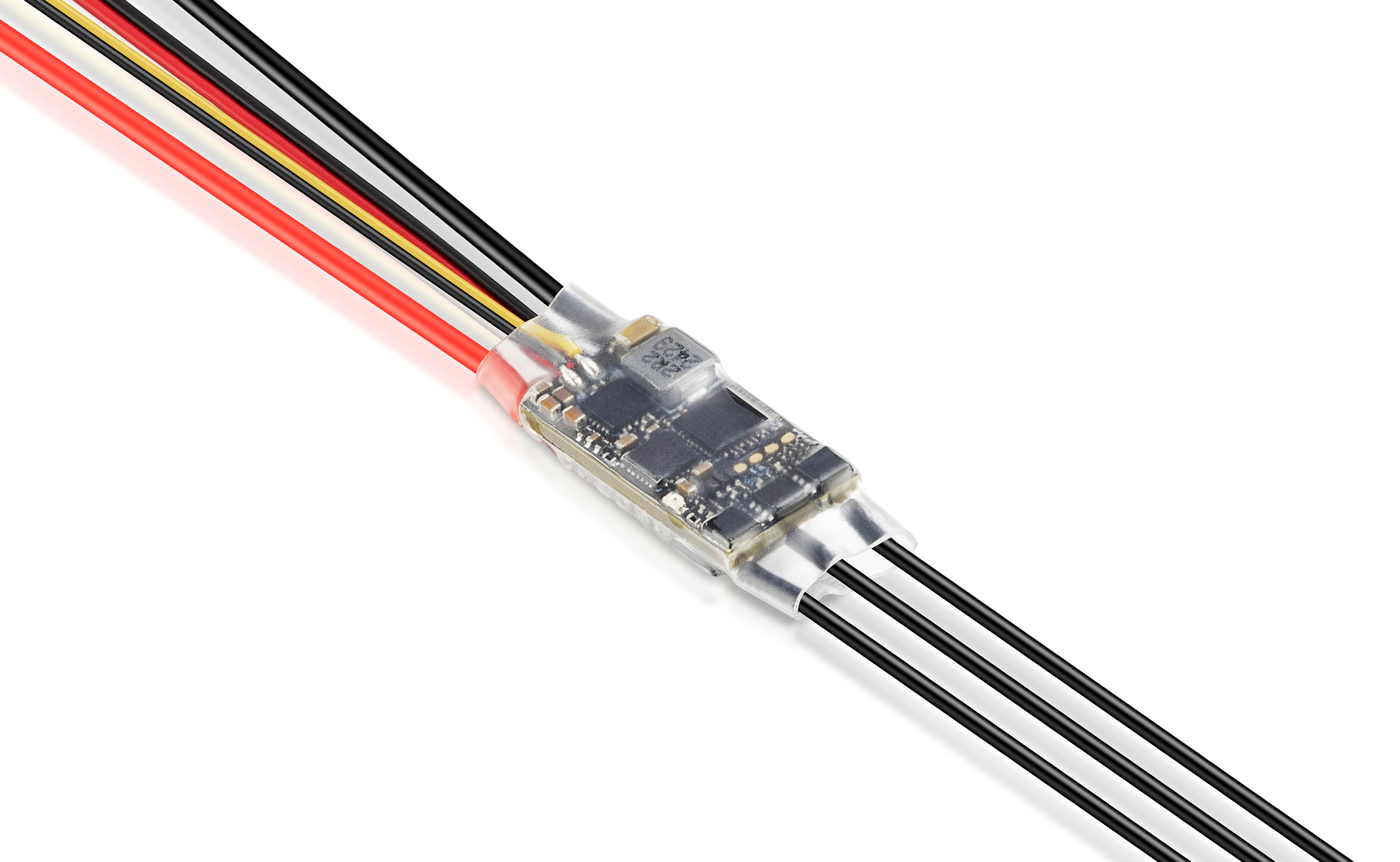

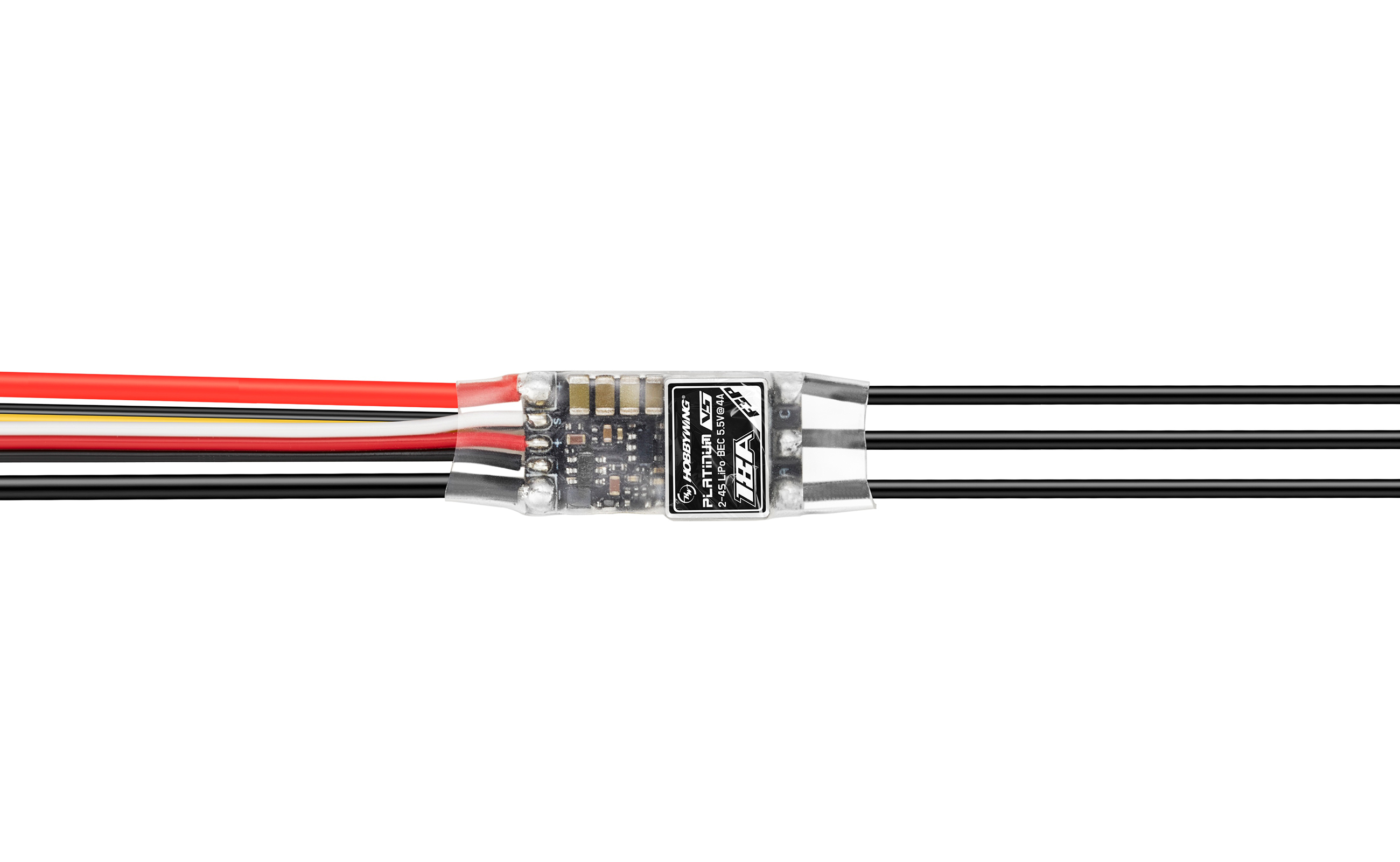

Platinum 18A V5 F3P
Specialized in F3P Indoor Aerobatic

With superior design, the ESC is more
compact and lightweight, weighing less than
4g per unit.

Featuring a high-performance 32-bit MCU
processor and robust self-developed algo-
rithm, the ESC delivers instantaneous peak
current up to 30A.


Ensuring rapid and smooth power output. This
enables F3P aircraft to effortlessly achieve high
performance with unparalleled agility, flexibility,
and responsiveness.
Perfect Match with HOBBYWING Motors
Ultimate Solution for F3P Competition
Paired with HOBBYWING Platinum 2603/2604 motor
1
Optimized for exceptional
power, precise control, and
outstanding performance
2
Its mounting position is
compatible with the
majority of F3P airframes
3
Enabling easy installation,
making it the preferred
choice for F3P contest
High-Power BEC
Enhanced Output Capacity
High-power switch-mode
BEC
Peak current
6A
Guarantee stable and reliable output
for high-performance servos
Rapid Throttle
Response for
3D/4D Flight

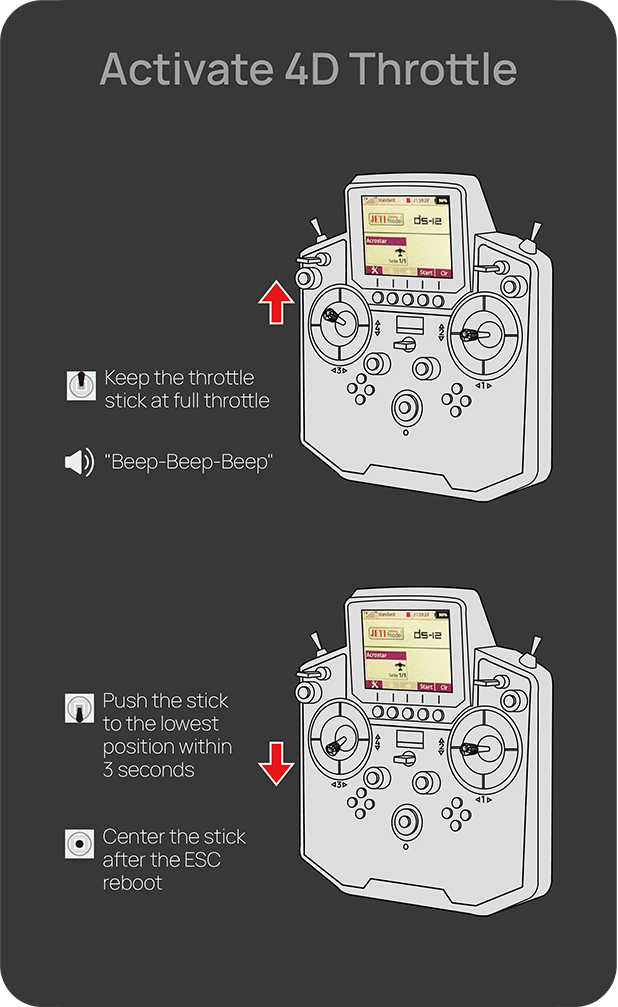

Seamless transition between 3D and 4D modes
via transmitter stick programming. Achieving
instantaneous responsiveness in either 3D or 4D mode, bringing exceptional control over
aerobatics, experiencing enjoyable flight.
Note: During the transition between 3D and 4D modes, the motor will emit beep sound, providing more intuitive feedback.
Multiple
Protections for
Worry-Free Flight

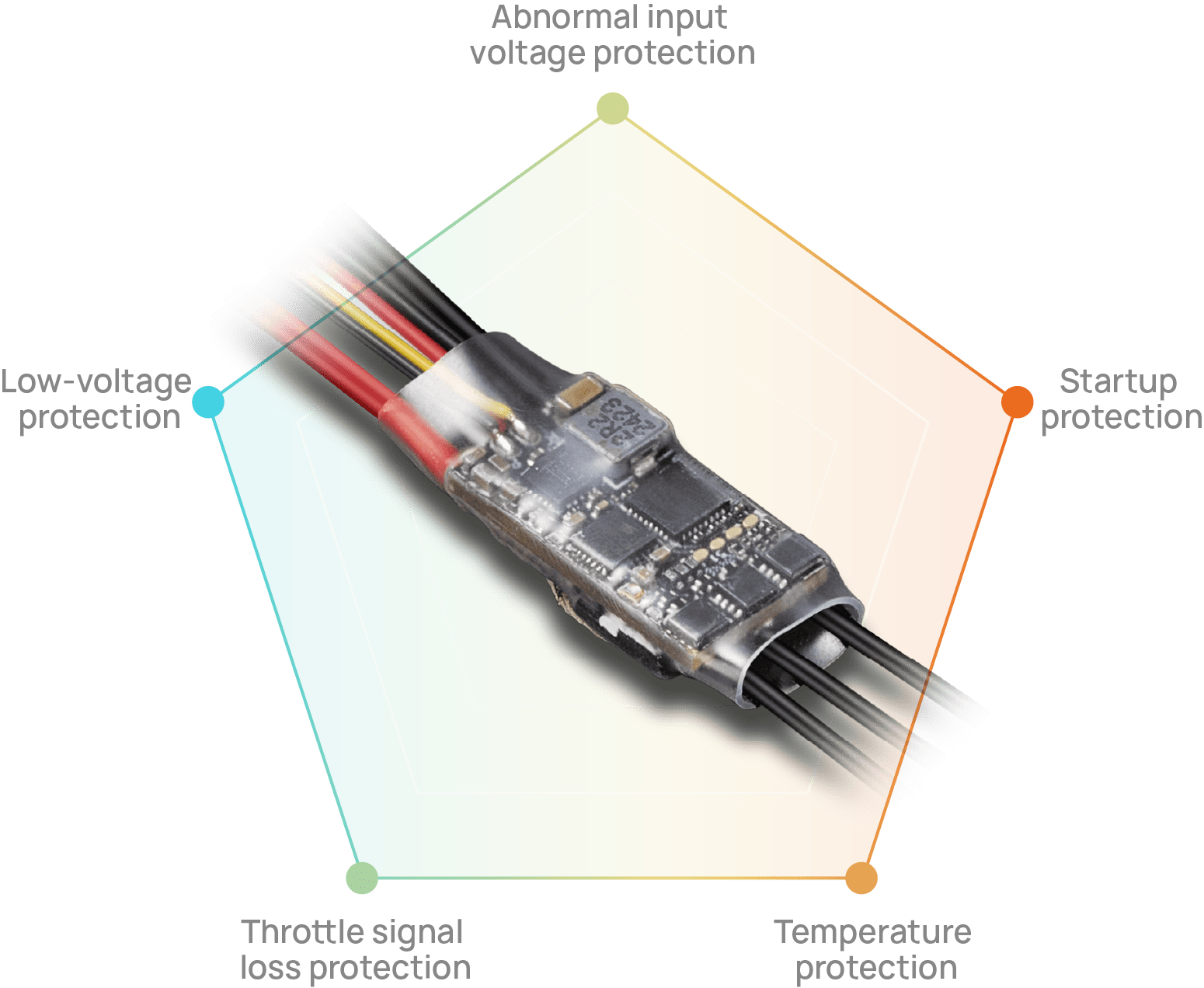

  • Incorporating multiple protection functions including abnormal
    input voltage protection, startup protection, temperature
    protection, throttle signal loss protection, and low-voltage
    protection    . This effectively extends service life of the ESC and
    guarantees comprehensive flight safety.
Product NamePlatinum 18A V5 F3P
Product Number
  •
  • 30202100
Type
  • Brushed/Brushless
  • High Voltage/Regular
  • Brushless
  • Regular
Specifications
  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • 18A/30A
  • 2-4S LiPo
  • Switch Mode：5.5V & Cont. 4A，Peak 6A
Wires & Connectors
  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Red-18AWG-100mm*1/Black-18AWG-100mm*1
  • Black-20AWG-100mm*3
  • No
  • 2.0mm Gold Connectors (Female)
ESC Programing via
  • Transmitter
  • LED Program Card
  • LED Program Box
  • LCD Program Box
  • OTA Programmer
  • Program Port
  • Not Supported
  • Not Supported
  • Not Supported
  • Supported
  • Supported
  • Separate Program Cable
Firmware
  • Firmware Upgrade
  • Supported
Telemetry Function
  •
  • Futaba S.Bus2；etc.
Size & Weight
  • Size
  • Weight
  • 24.6*12.8*7.5mm
  • 11.9g (INCL wires)
Application
  •
  • 120g-320g F3P electric fixed-wing
Support

Manuals & Documents

Manuals

Software Download

FAQ

S.BUS2 Telemetry Adapter for Futaba

S.BUS2 Telemetry Adapter for Futaba

Part Number: 30850500
Size: 25x13x6mm
Applications: Some of Platinum V4/V4.1/V5
series aircraft ESC ;
Some of XeRun series of car ESCs.
* For details, please refer to ESC manual to
ensure if the ESC can work with this device.

+
OTA Programmer

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.

+
LCD Program Box Pro

NEW

LCD Program Box Pro

Product Number: 30502002
Input Voltage: DC 5V~12.6V
Application: brushless ESC
Weight: 85g
Display:LCD

+
