VTOL

Burst in Ascent, Stability in Cruise.

Home > Drone Propulsion System > VTOL
V11122/11130
V11122/11130

New
Battery(LiPo): 24S LiPo
KV:60KV
Weight（With wire): 1319g
Recommended Thrust/rotor: 20~23kg/Rotor
Protection level: IP45
MV Matt VTOL Propeller
MV Matt VTOL Propeller

New
Propeller Type: VTOL Unfolding Propeller
MV：Matt VTOL
XRotor H200A-14S-BLDC/FOC
XRotor H200A-14S-BLDC/FOC

Input Voltage: 6-14S（18-65V）
Continuous current :100A（Good heat dissipation）
Weight（Without Cable）: 270g
Size: 116*56*31.5mm
Communication protocol: CAN(Custom Serial port)
lsolation mode: Throttle/ communication supported
XRotor H150A 24S FOC V1
XRotor H150A 24S FOC V1

Input Voltage: 18-24s（54~104.4V）
Peak Current (3s): 50A (Good heat dissipation)
Weight: 464g (Without wires)
Size: 164*66*38mm
Communication protocol: CAN(Custom Serial port)
Throttle signal isolated: Isolated
XRotor H150A 14S FOC
XRotor H150A 14S FOC

Input Voltage: 12-14S（44-60.9V）
Continuous current:60A（Good heat dissipation）
Weight（Without Cable）: 198g
Size: 116*49.4*29.6mm
Communication protocol: CAN(Custom Serial port)
Throttle signal isolated: Isolated
XRotor H130A 14S BLDC/FOC
XRotor H130A 14S BLDC/FOC

Input Voltage:6-14S（18-65V）
Peak Current: 60A（Good heat dissipation）
Weight（Without Cable）:148g
Size: 96.5*46*23.5mm
Communication protocol: CAN+485(Custom Serial port)
Throttle signal isolated: Throttle And Communication Isolation
XRotor H120A 18S FOC V1
XRotor H120A 18S FOC V1

Input Voltage: 12-18s（44-78.3V）
Peak Current (3s): 120A (Good heat dissipation)
Weight: 234g (Without wires)
Size: 116*49.4*34.8mm
Communication protocol: CAN
Throttle signal isolated: Isolated
XRotor H120A 14S FOC V1
XRotor H120A 14S FOC V1

Input Voltage: 12-14S(44-63V)
Peak Current (3s): 120A (Good heat dissipation)
Weight: 185.6g(Without wires)
Size: 113*56*25.9mm
Communication protocol: CAN(Custom Serial port)
Throttle signal isolated: Isolated (Custom non-isolated)
XRotor H100A 14S Foc V1
XRotor H100A 14S Foc V1

Input Voltage: 12~14S(44~63V)
Peak Current (3s): 40A (Good heat dissipation)
Weight: 144.1g(Without wires)
Size: 83*59*27.4mm
Communication protocol: CAN
Throttle signal isolated: Isolated (Custom non-isolated)

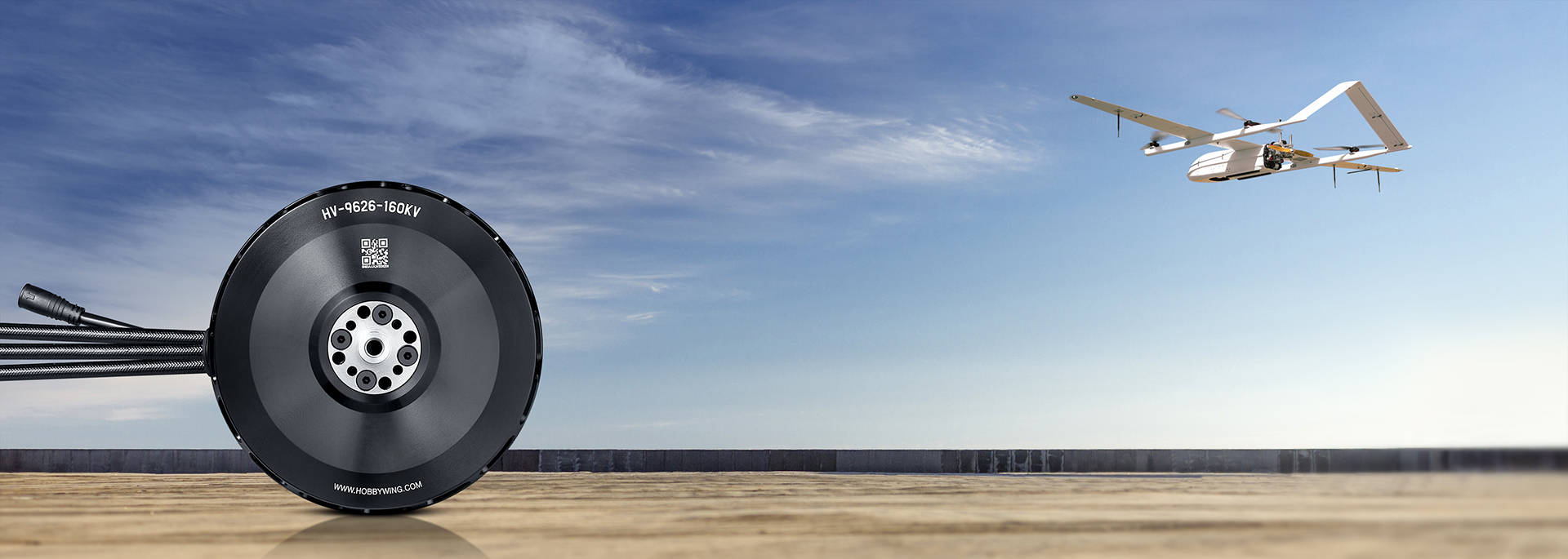

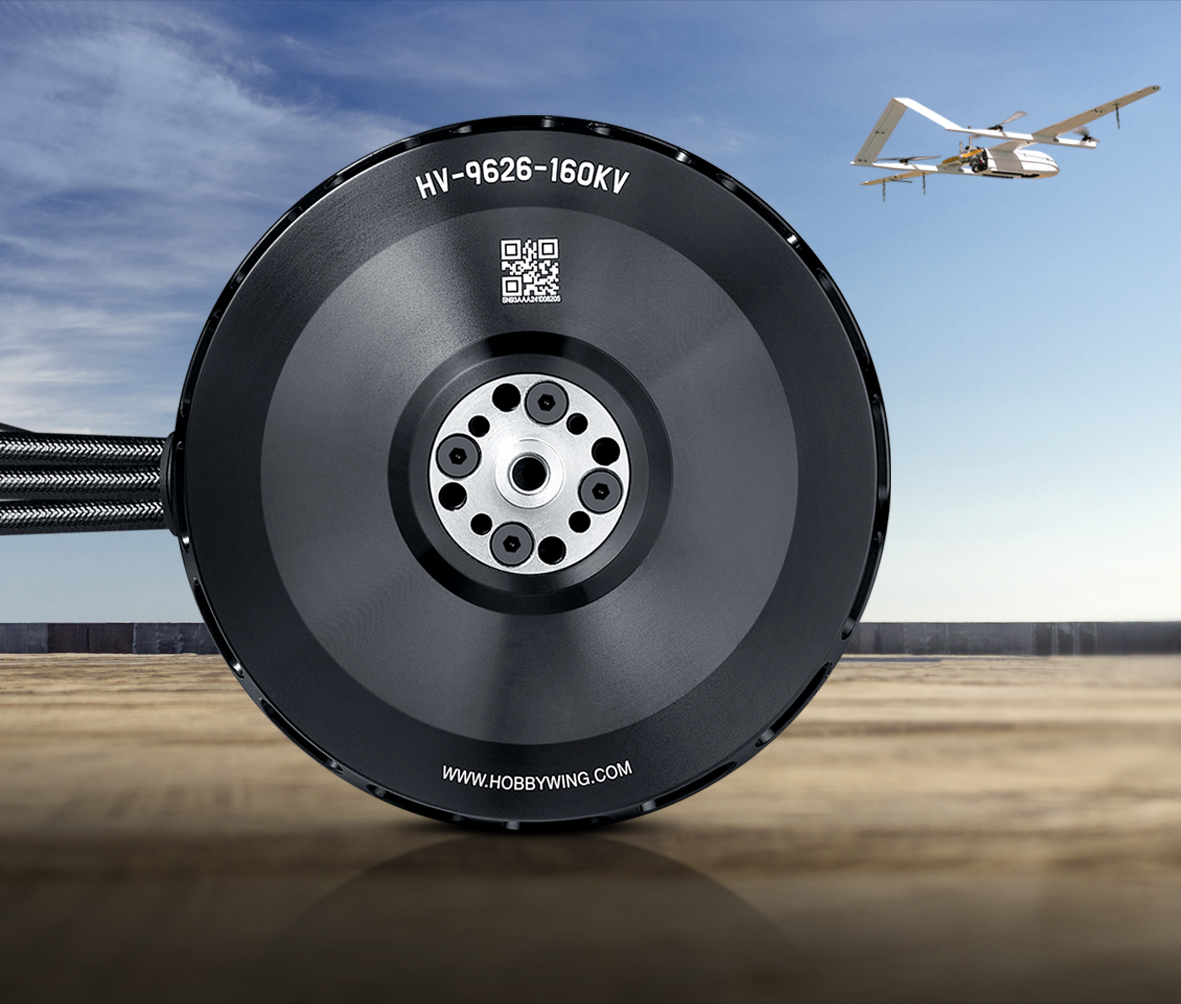

V9626 160KV
V9626 160KV

Battery(LiPo): 12S
KV:160KV
Recommended Thrust/rotor: 12~16kg/Rotor
Weight（With wire): 975g
Protection level: IPX5
XRotor H80A 14S BLDC/FOC
XRotor H80A 14S BLDC/FOC

Input Voltage: 6-14S（18-65V）
Peak Current:40A（Good heat dissipation）
Weight（Without Cable）: 87g
Size: 84*35*20mm
Communication protocol:CAN(Custom Serial port)
Throttle signal isolated: Customizable Throttle Isolation
XRotor H60A 6S/14S BLDC/FOC
XRotor H60A 6S/14S BLDC/FOC

Input Voltage: 4-6S(12-27V)/ 6-14S(18-63V)
Peak Current : 40A/25A(Good heat dissipation)
Weight( without wire): 53g/67g
Size: 71*32.2*16.2mm / 78.5*32.5*17.6mm
Communication protocol: CAN(Custom Serial port)
lsolation mode: Customizable Throttle Isolation
