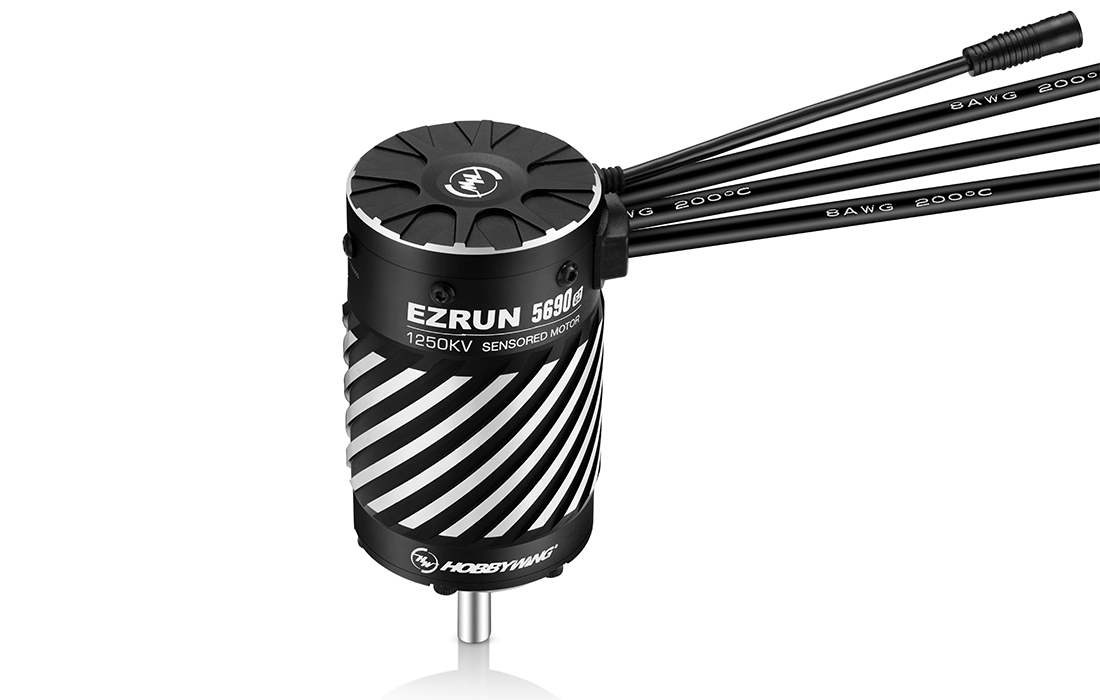

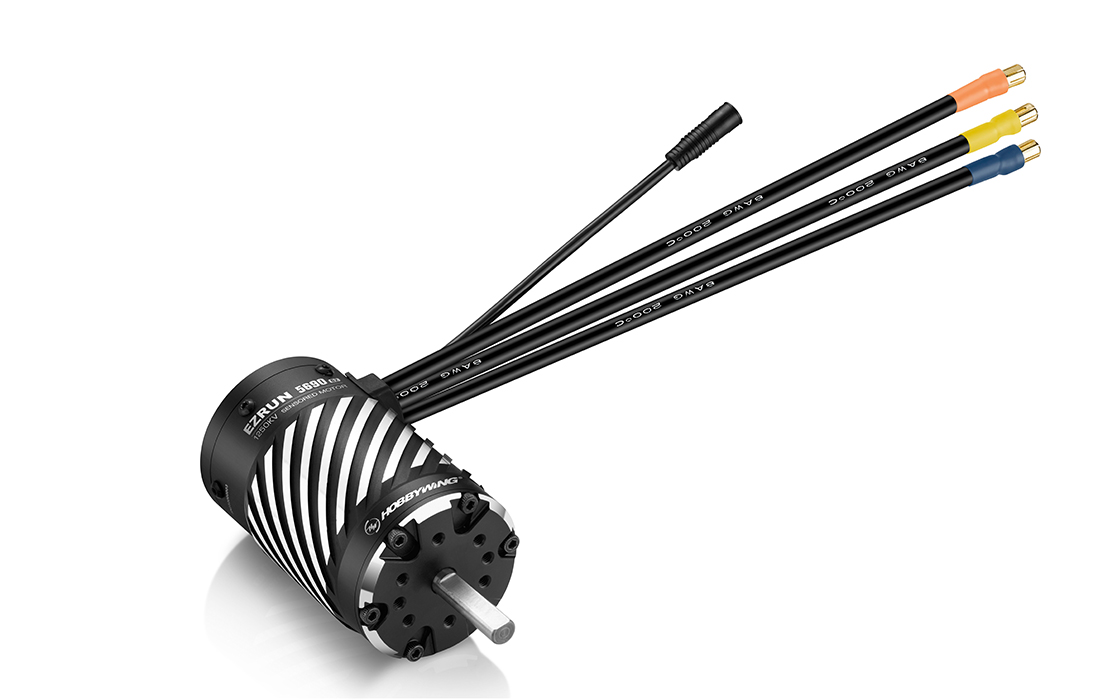

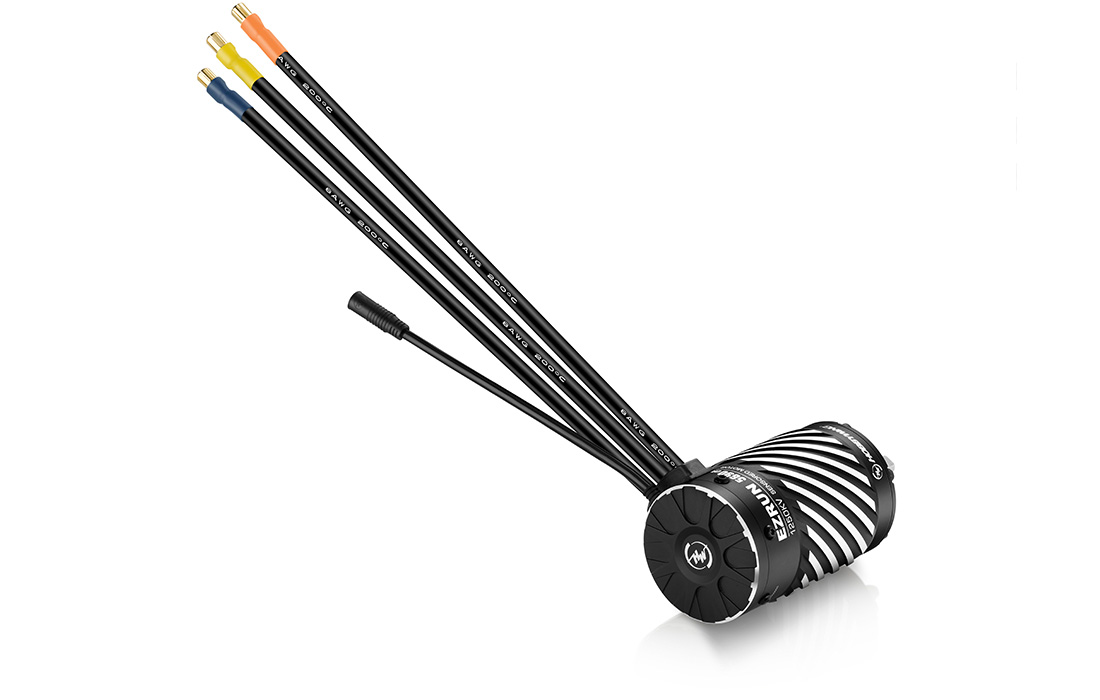

EzRun 5690 SD G2

Elegant
Appearance

The motor casing adopts an innovatively
spiral groove heat dissipation structure.
It not only has good heat dissipation,
but visually appealing.

8S Sensored motor

Power On Demand

The EzRun 5690SD G2 motor is known to be dynamic and dominant.
The motor supports up to 8S LiPo,
and they are built to meet the needs of various demands on the market.
The motor is powerful,
and has a great response and a linear feel at low speed to
allow the vehicle to easily perform various maneuvers.
Great control, and plenty of power for hard launches,
straight-line speed, and jumps.

The motor supports up to

Allow the vehicle to easily
perform various maneuvers

Hard Launches
Straight-line
speed
Jumps

WiderAdaptability

Motor comes with 6.5mm plugs pre installed onto the motor power wires.
Additional 8MM size motor plugs are included for usage with
ESC's that have larger sized 8mm motor plugs like the Max5 G2.

The 6.5mm male head

After replacing the 8.0mm male head, Perfectly compatible with EzRun MAX5 HV G2

Note:
8.0mm plug is standard
in the motor package

EzRun MAX5 HV G2ESC

New sensor line interface,
All-weather operation capability

The new sensor wire connection enhances the motor protection level and solves
waterproof problems faced by traditional connections.
The overall protection level of the motor reaches IP67,
and the excellent waterproof and dustproof performance can easily cope with
various weather conditions and harsh environments.

Note:
The IP67 protection level mentioned above is splash-proof,
water-proof, and dust-proof under normal use,
but it is not permanently effective,
and the protection performance may decline
due to daily wear and aging.
Do not soak in water for a long time,
otherwise the product may be damaged.

New Sensor
connection

The overall protection
level of the motor reaches

IP67

Splash-proof
Water-proof
Dust-proof

module design
for easy
maintenance

The motor adopts a modular structure
design, which is convenient for daily cleaning and
maintenance, effectively prolonging the service
life of the motor and maintaining the working
efficiency of the motor.

Front End Set

Stator Set

Rotor

Rear End Set

Quality Material

Performance provides a solid guarantee.

Note: 5690 supports up to 43000RPM.

Adopts high-hardness
aluminum CNC

Can

High-quality top of
the line brands

Bearings

Ultra-thin top of
the line brands

Silicon
Steel Sheets

High temperature-
resistant oxygen-free

Copper Wires

High-strength Kevlar fiber-
wound explosion-proof

Rotors

Durable alloy

Output Shafts

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Pole
Relevant Parameters	KV Rating LiPo Cells No-load Current(A)
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Connectors (mm) Wire Weight (g) Front Bearing Rear Bearing
Other Parameters	ESC Vehicles

Product Name		EZRUN 5690SD G2-1250KV
Product Number		30402350
Type	Scale Brushed/Brushless Sensored/Sensorless Pole	1/5^th,1/6^th BL SD 4
Relevant Parameters	KV Rating LiPo Cells No-load Current(A)	1250KV 3-8S LIPO 6.6A
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Connectors (mm) Wire Weight (g) Front Bearing Rear Bearing	56 90.2 8 6.5mm (male) Black-8AWG-250MMmm3 867g D22D8T7 D19D8*T6
Other Parameters	ESC Vehicles	EZRUN MAX6 G2， EZRUN MAX5 HV G2(8mm motor connectors required) 1/6^th Short course truck,Truck &1/5^th Light-load Truck Examples: Losi Super Baja Rey，ARRMA Kraton 8S，ARRMA Outcast 8S
