Integrated Propulsion Systems for Multirotor/Quadcopter Drones
Product Selection
|
CN

Integrated Drone Propulsion System

Innovation and Performance for a simplified assembly.

Home > Drone Propulsion Systems > MULTIROTOR > INTEGRATED PROPULSION SYSTEM

X11 G2

New
Thrust/rotor: 17 kg/axis(Sea level)
Total Weight: 1980 g (with cable and propeller)
Recommended LiPo Battery: 14S(LiPo）
Propeller: MFP 43x14
Tube Diameter: 45 mm
Recommended Drone: For 30L agricultural quadcopter, Class IV UAV

X9 Plus G2L

New
Thrust/rotor: 12-14 kg/axis(Sea level)
Total Weight: 1852 g (with cable and propeller)
Recommended LiPo Battery: 12~14S(LiPo）
Propeller: MFP 43x14
Tube Diameter: 45 mm
Recommended Drone: For 20L agricultural quadcopter, Class IV UAV

X9 G2L

New
Thrust/rotor: 7-12 kg/axis(Sea level)
Total Weight: 1532 g （with cable and Props）
Recommended LiPo Battery: 12~14S(LiPo）
Propeller: MFP 36x11
Tube Diameter: 40 mm
Recommended Drone: For 16L agricultural quadcopter, Class IV UAV

X6 Plus G2

New
Thrust/rotor: 4-6 kg/axis(Sea level)
Total Weight: 748 g (with cable and Props)
Recommended LiPo Battery: 12~14S(LiPo）
Propeller: MFP 24x80
Tube Diameter: 30 mm
Recommended Drone: For 5L agricultural quadcopter,
10L agricultural hexacopter, Class III UAV
Hobbywing P50M heavy lift drone motor

P50M

Propulsion System for Industrial Drones

New

Thrust/rotor: 50kg
Weight (With Cable & Props): 6.1~6.3kg
Input Voltage: 280~450V
Propeller: MSC 64x20 / USC 54x23
Tube Diameter: Φ60mm
Hobbywing H13 Drone Motor & ESC

H13MD

Original Name: H13
Propulsion System for Industrial Drones

New
Thrust/rotor: 45kg
Total Weight: 7890±100g/8010±100g
Recommended LiPo Battery: 24S/28S（LiPo）
Propeller: MP54x20"/MP57x20"
Tube Diameter: φ60mm
Hobbywing H8M drone motor

H8M

Propulsion System for Industrial Drones

New
Thrust/rotor：2.5~3.5kg
Total Weight: 458g
Recommended LiPo Battery: 12S
Diameter X Thread Pitch: MSC 30x9.8
Powertrain Arm Tube Outer Diameter: φ30mm
Hobbywing H6M drone motor ESC

H6M

Propulsion System for Industrial Drones

New
Thrust/rotor： 2~2.5kg
Total Weight: 385g
Recommended LiPo Battery: 12S
Diameter X Thread Pitch: MSC 22x7.8
Powertrain Arm Tube Outer Diameter: φ30mm

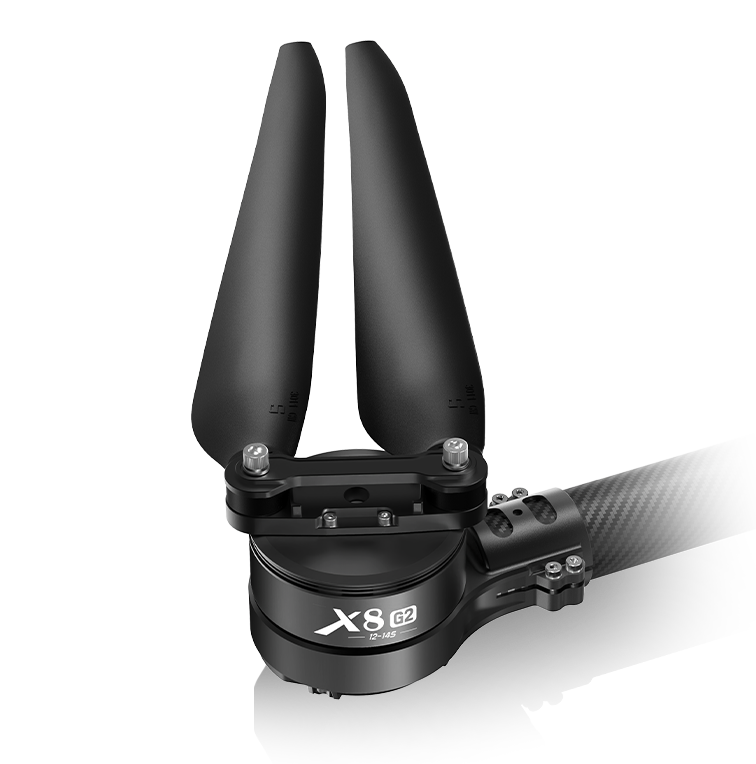

Hobbywing X8 G2 Drone motor and ESC

X8 G2

Original Name: XRotor X8 G2

Thrust/rotor: 5-7.5kg/rotor
Total Weight: 1095g (Inc prop)
Recommended LiPo Battery: 12-14S(LiPo)
Propeller: MFP 30x11S
Tube Diameter: 35mm/40mm
X15 Heavy Lift Drone Motor

X15

Original Name: XRotor X15-15623
Agricultural UAV thrust systems

Thrust/rotor: 32.5-37.5kg
Total Weight: 5908g (Inc prop)
Recommended LiPo Battery: 18S(LiPo)
Propeller: MFP 63x24
Tube Diameter: 60mm
Recommended Drone: For 70L agricultural quadcopter
Hobbywing X13 Drone Motor & ESC

X13

Original Name: XRotor X13-13825
Agricultural UAV thrust systems

Thrust/rotor: 25-27kg/rotor
Total Weight: 4257g(Inc prop) / 4087g(Inc prop)
Recommended LiPo Battery: 12-14S/18S(LiPo)
Propeller: MFP 56x20
Tube Diameter: 50mm
Recommended Drone: For 50L agricultural quadcopter
X11 Max Drone Brushless Motor

X11 Max

Original Name: XRotor X11 Max
Agricultural UAV thrust systems

Thrust/rotor: 20-22kg/axis
Total Weight: 2800g
Recommended LiPo Battery: 18S(LiPo)
Propeller: MFP 48x17.5
Tube Diameter: 50mm
Recommended Drone: For 40L agricultural quadcopter
