Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|

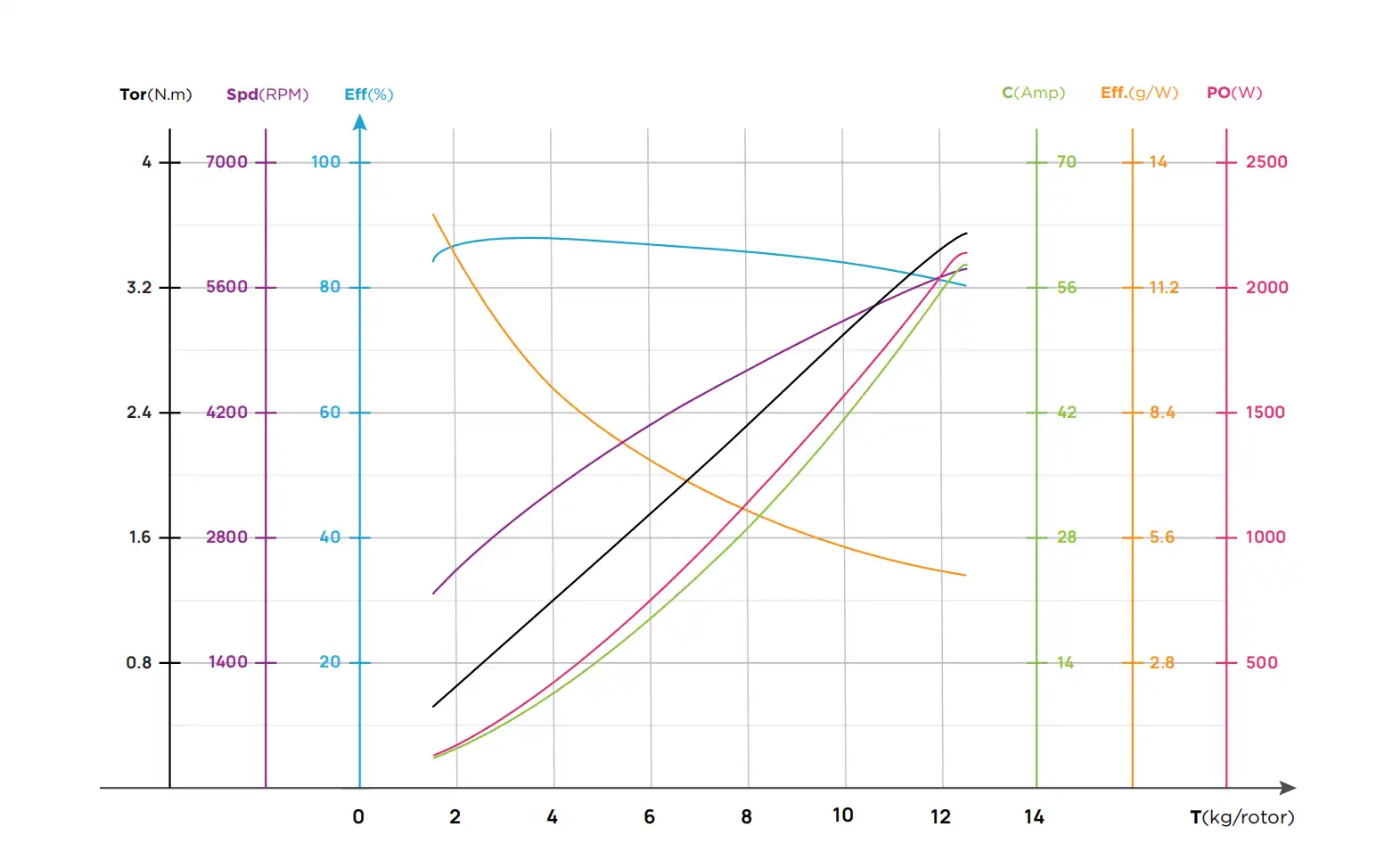

46V(12S LiPo) |
MFP 24x8.0 |
33% |
1736 |
3.0 |
137.7 |
2169 |
12.6 |
0.51 |
115.8 |
68 |
|
35% |
2017 |
3.6 |
167.2 |
2327 |
12.1 |
0.59 |
143.8 |
|||
|
37% |
2318 |
4.4 |
201.7 |
2486 |
11.5 |
0.67 |
174.4 |
|||
|
39% |
2634 |
5.3 |
241.8 |
2646 |
10.9 |
0.76 |
210.6 |
|||
|
42% |
3131 |
6.7 |
310.4 |
2881 |
10.1 |
0.89 |
268.5 |
|||
|
45% |
3646 |
8.4 |
388.7 |
3107 |
9.4 |
1.04 |
338.4 |
|||
|
48% |
4174 |
10.4 |
476.5 |
3325 |
8.8 |
1.19 |
414.3 |
|||
|
51% |
4712 |
12.4 |
572.3 |
3534 |
8.2 |
1.34 |
495.9 |
|||
|
54% |
5256 |
14.7 |
676.2 |
3735 |
7.8 |
1.50 |
586.6 |
|||
|
57% |
5807 |
17.1 |
787.6 |
3929 |
7.4 |
1.65 |
678.8 |
|||
|
60% |
6364 |
19.7 |
907.1 |
4116 |
7.0 |
1.81 |
780.1 |
|||
|
63% |
6927 |
22.5 |
1035.0 |
4298 |
6.7 |
1.98 |
891.1 |
|||
|
66% |
7495 |
25.5 |
1171.4 |
4474 |
6.4 |
2.14 |
1002.6 |
|||
|
69% |
8068 |
28.6 |
1316.8 |
4645 |
6.1 |
2.31 |
1123.6 |
|||
|
72% |
8644 |
32.0 |
1470.6 |
4810 |
5.9 |
2.47 |
1244.1 |
|||
|
75% |
9219 |
35.5 |
1632.5 |
4968 |
5.6 |
2.63 |
1368.2 |
|||
|
78% |
9786 |
39.2 |
1800.5 |
5119 |
5.4 |
2.79 |
1495.5 |
|||
|
81% |
10337 |
42.9 |
1971.2 |
5260 |
5.2 |
2.95 |
1624.8 |
|||
|
84% |
10861 |
46.6 |
2140.4 |
5391 |
5.1 |
3.10 |
1750.0 |
|||
|
87% |
11342 |
50.1 |
2301.3 |
5508 |
4.9 |
3.23 |
1862.9 |
|||
|
90% |
11762 |
53.2 |
2445.1 |
5610 |
4.8 |
3.35 |
1967.9 |
|||
|
100% |
12526 |
58.0 |
2663.7 |
5760 |
4.7 |
3.51 |
2117.0 |
-
Drone Propulsion Systems
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- X Series
- H Series
- P Series
-
-
-
- PROPELLER Superior efficiency, exceptional stability.
- Carbon Plastic Propeller
- Carbon Fiber Propeller
-
- CENTRIFUGAL NOZZLE Efficient atomizing, precise spraying.
- 9L
-
- WATER PUMP Minimal maintenance, long service life.
- 5L
- 8L
- 30L
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- P Series
-
-
-
- PROPELLER Powerful burst, high intensity.
- Carbon Fiber Propeller
-
- Fixed-Wing UAV Cruise Motor Convenient, efficient and stable.
- 72XX
- 80XX
-
-
RC Power Systems
RC Cars Power SystemRC Boat Power System
-
e-Vehicle Power Systems
Electric MotorcycleElectric SkateboardElectric Scooter
- Service and Support

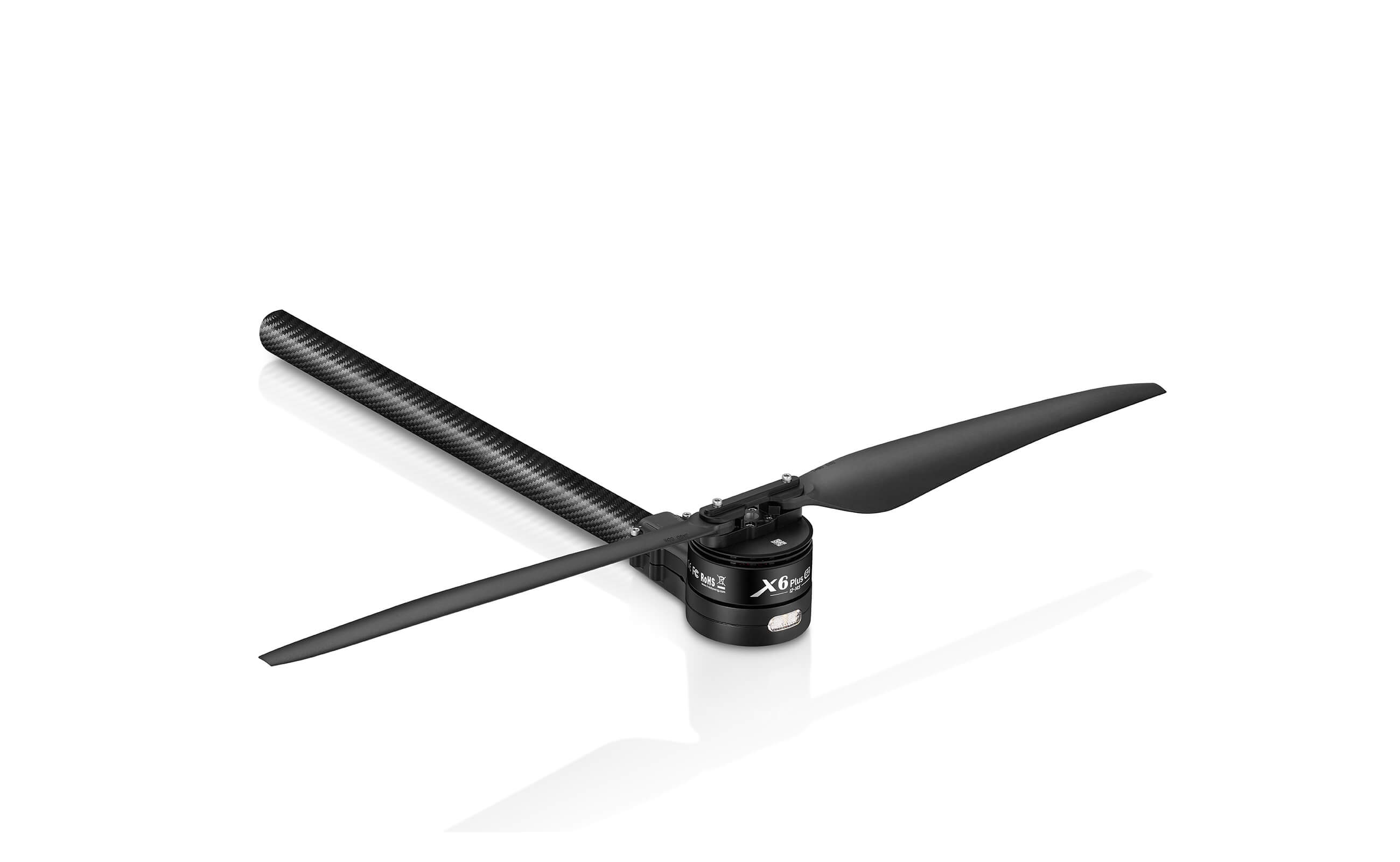

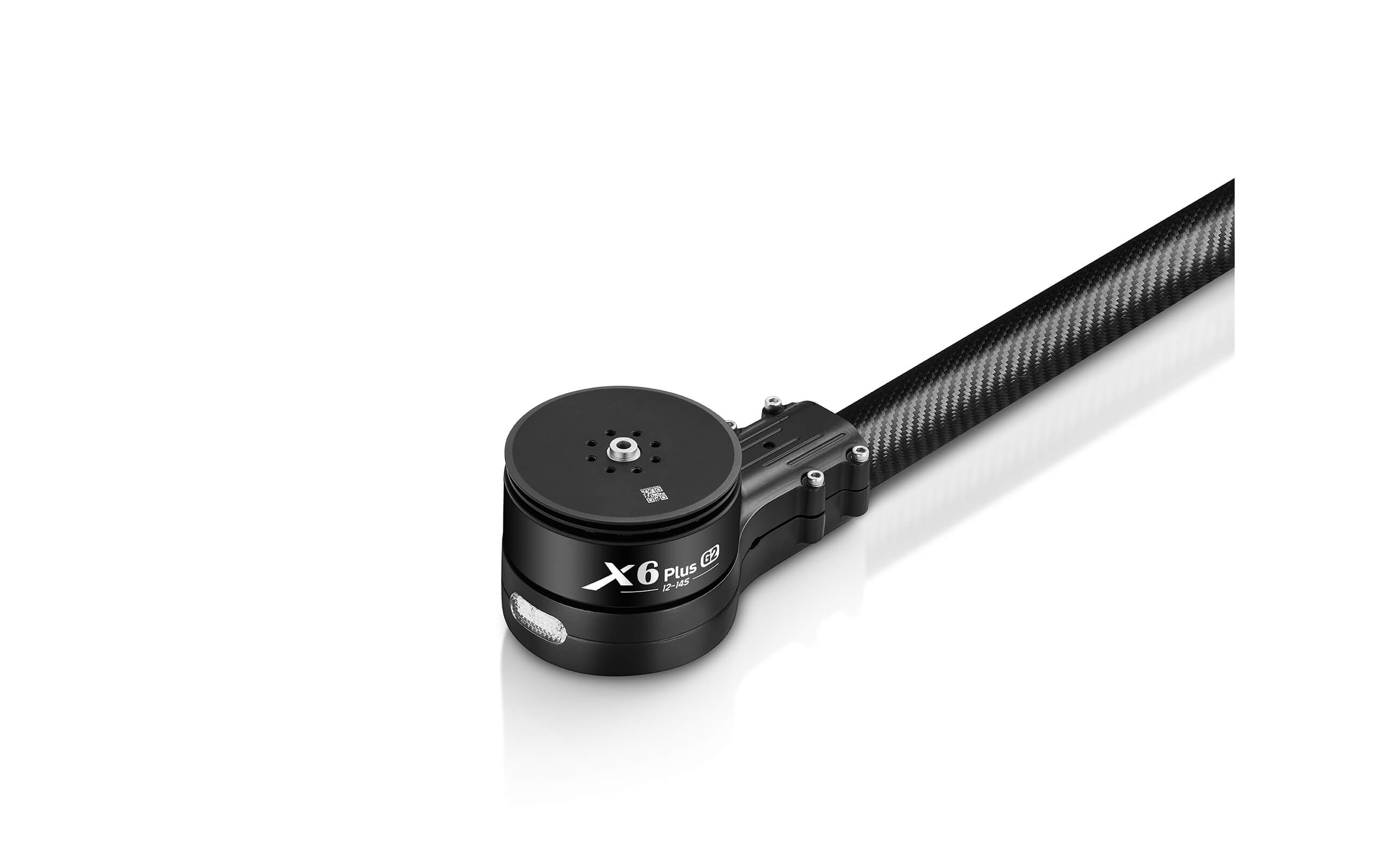

Using the time tested X6 Plus platform,
the updated X6 Plus G2 takes the proven reliability and
incorporates new industrial application technology to meet
the growing demands of todays ever changing markets.
Small-to-Mid UAVs
10L agricultural hexacopters,
and CAAC Class III
training drone(<25kg)
Functional Upgrade with
Higher Efficiency
Enhanced Stability
Sustainable Reliability

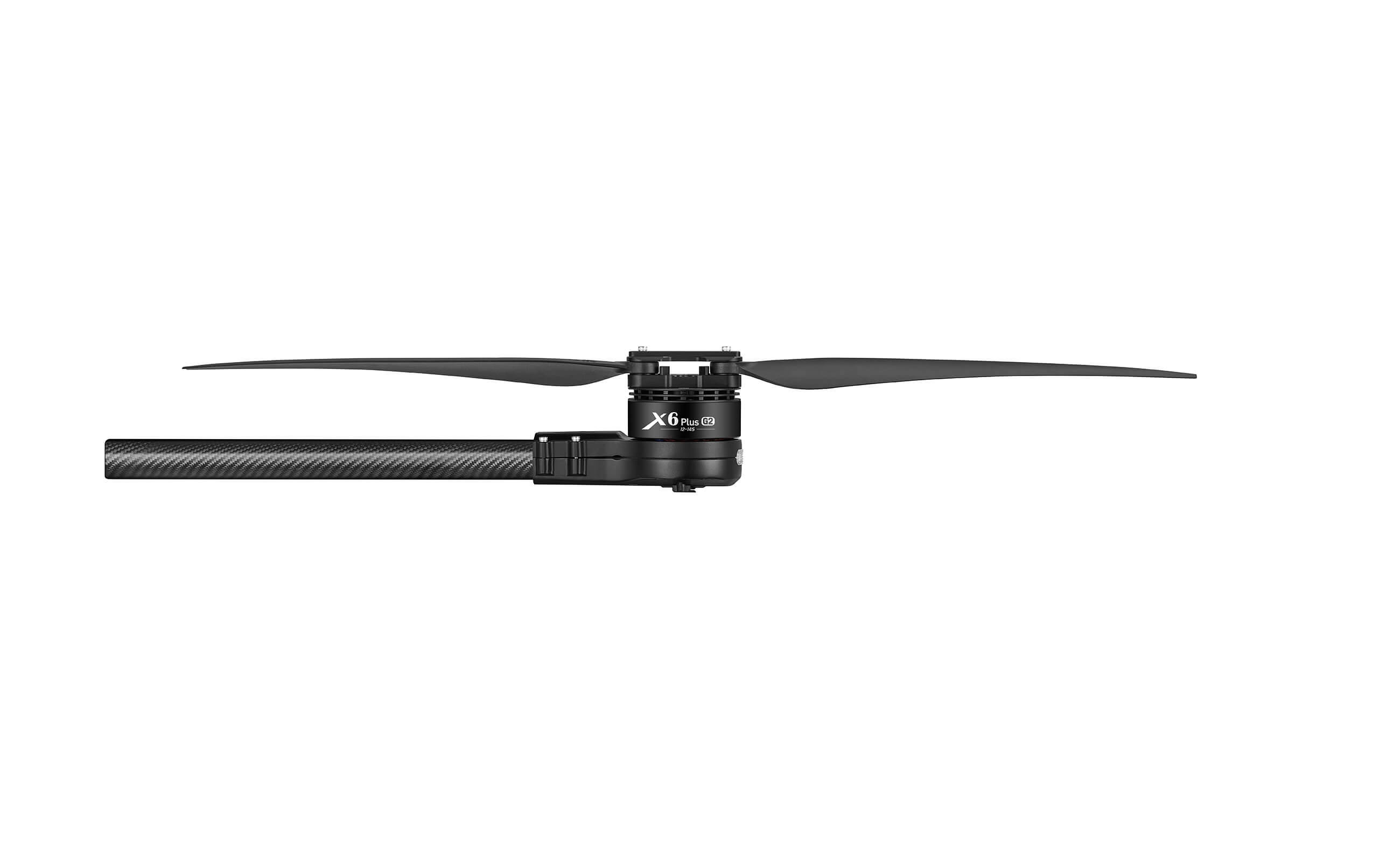

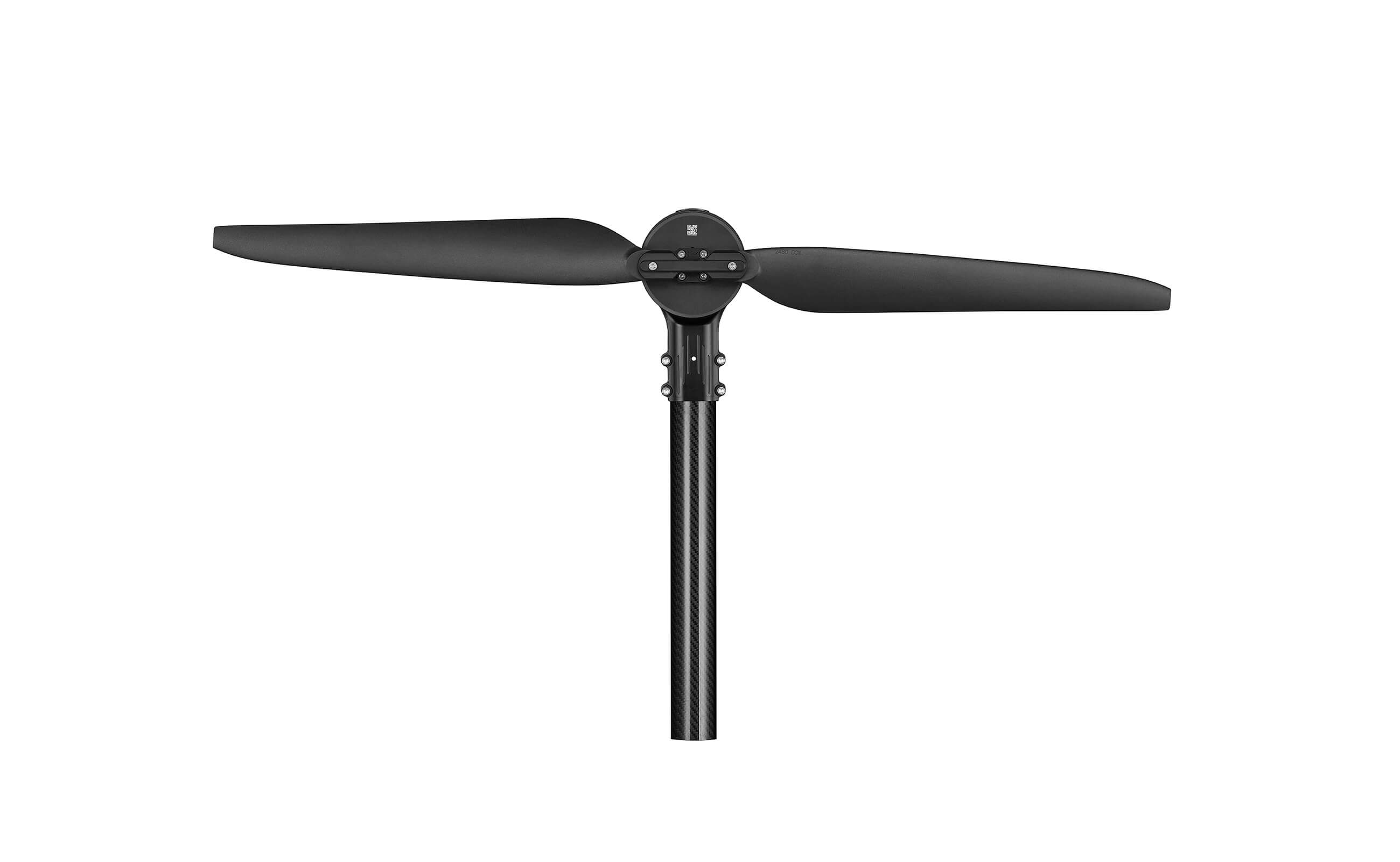

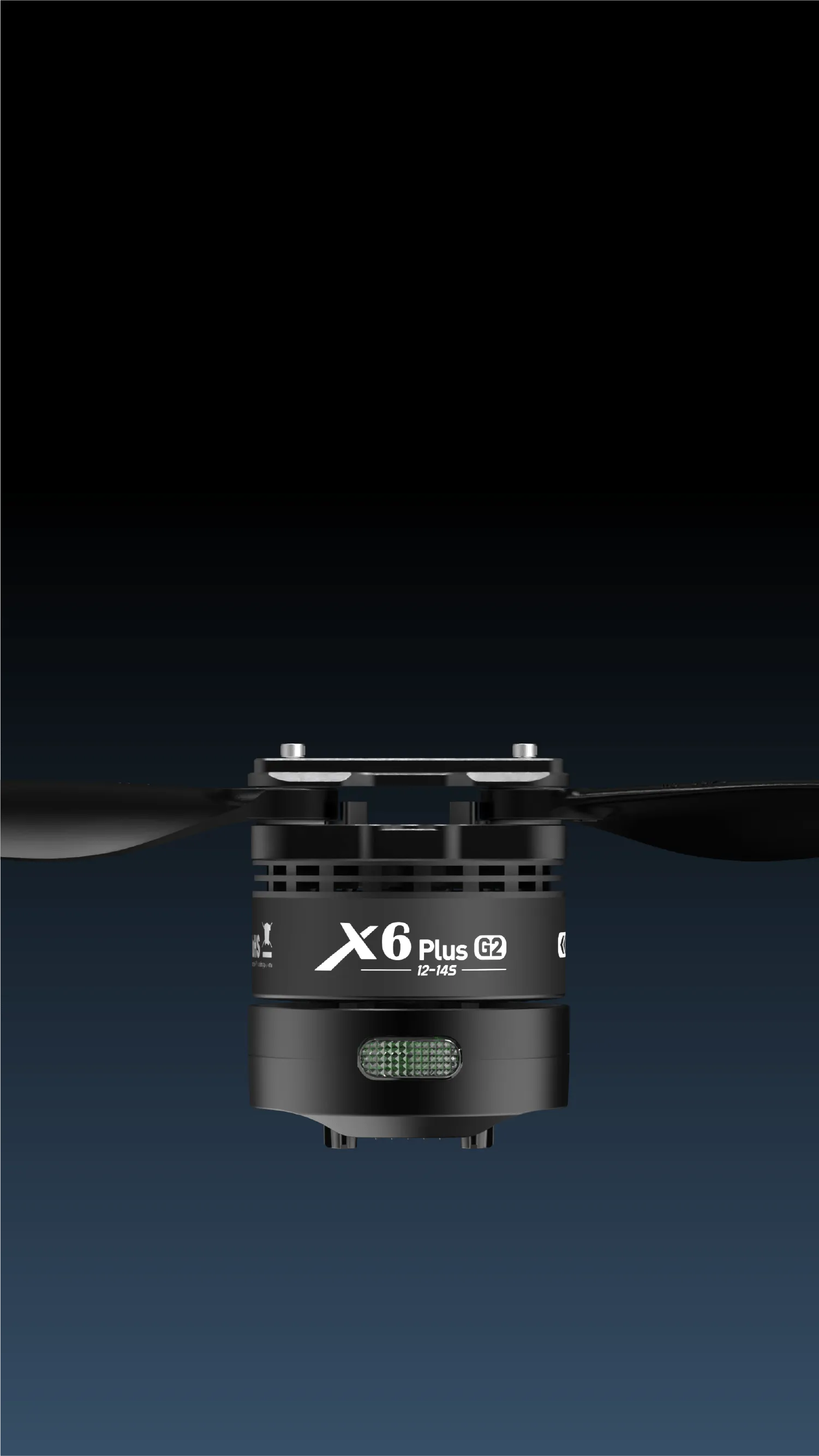

X6 Plus G2
748g
X6 Plus
790g
X6 Plus G2
12.5kg
X6 Plus
11.8kg

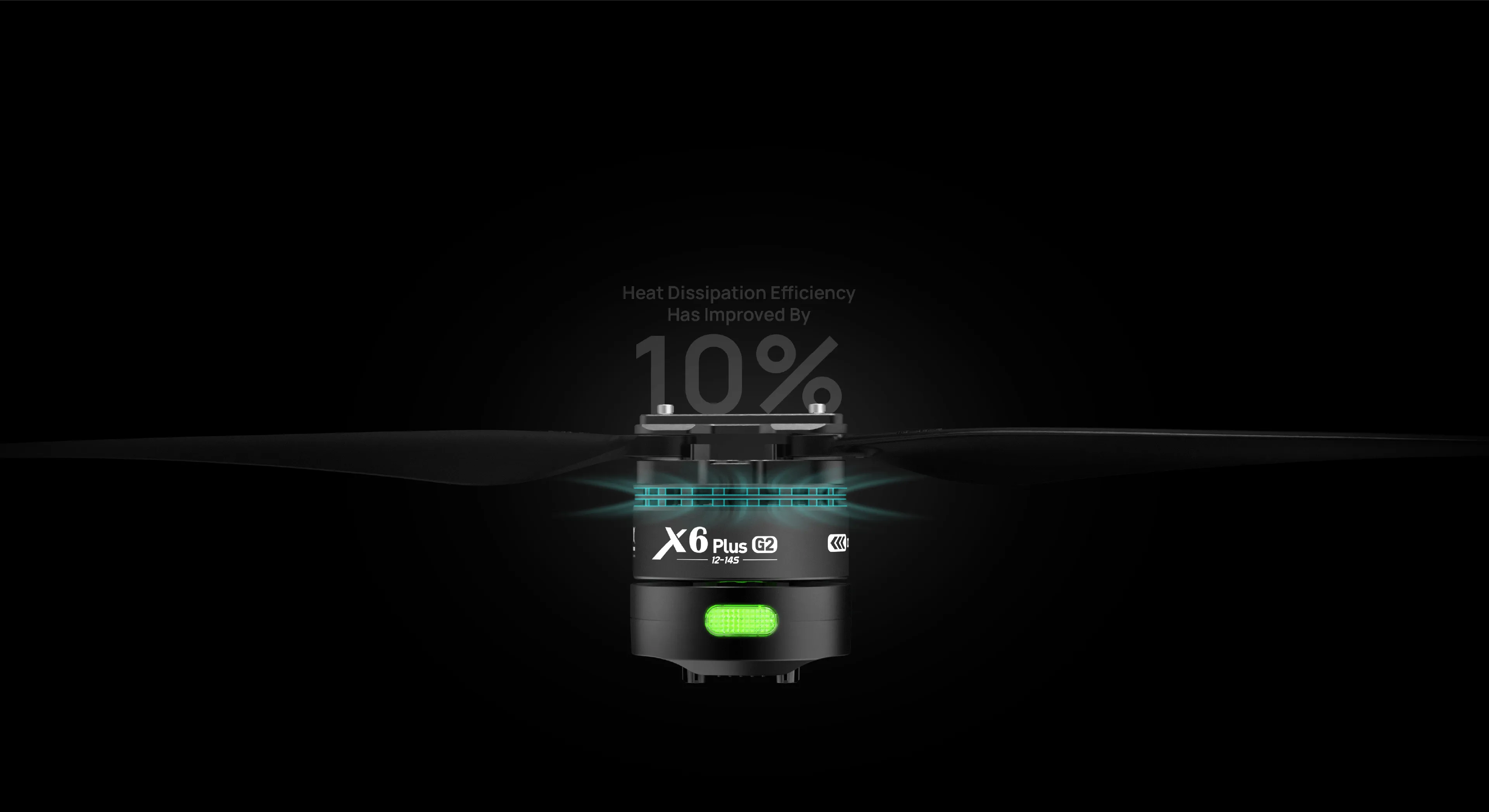

Efficient Heat Dissipation
Featuring a dual layer centrifugal fan casing with integrated air vents,
the X6 Plus G2 ensures debris will not build up,
while airflow and heat dissipation is improved.
Lower temps ensure improved overall performance.

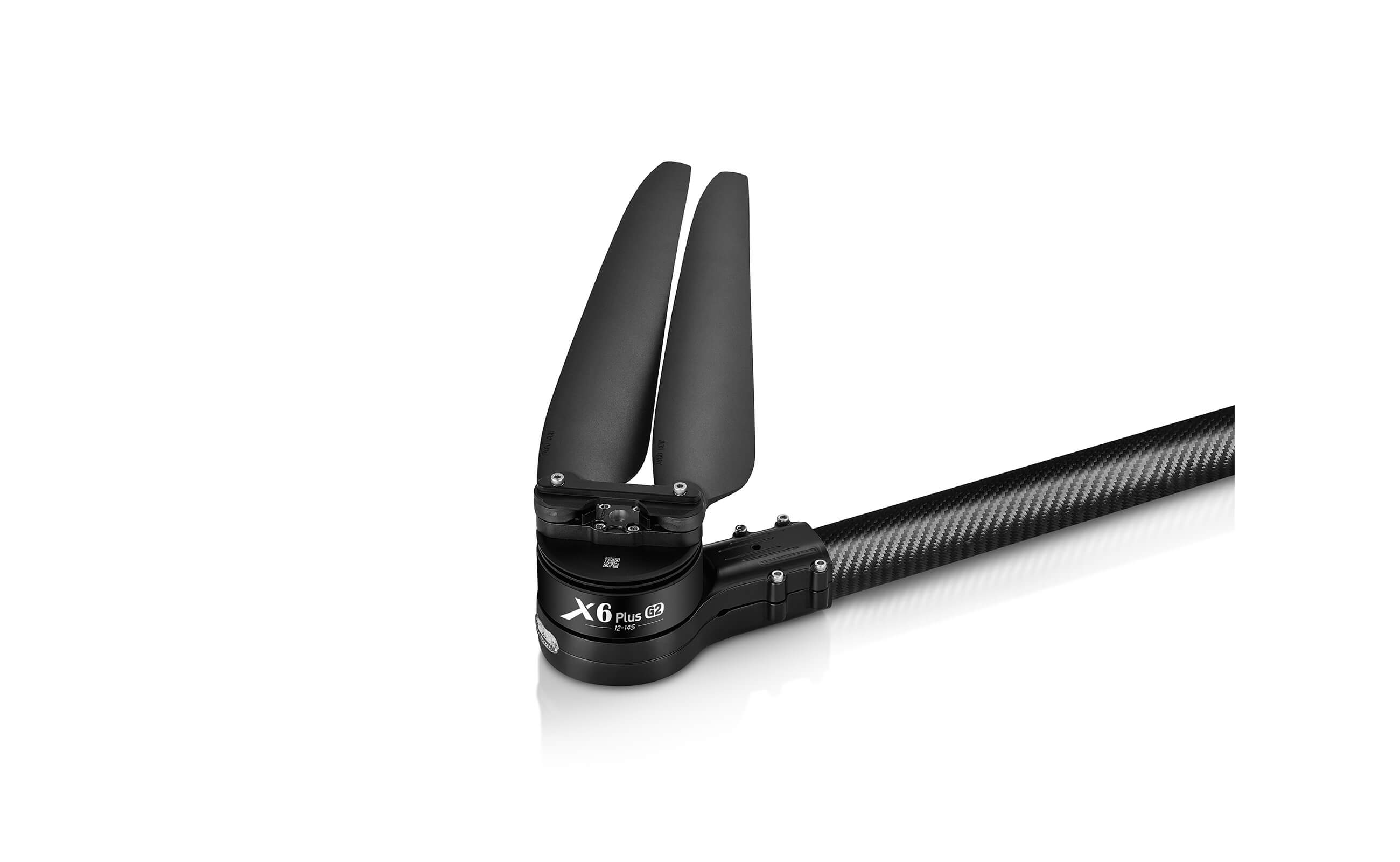

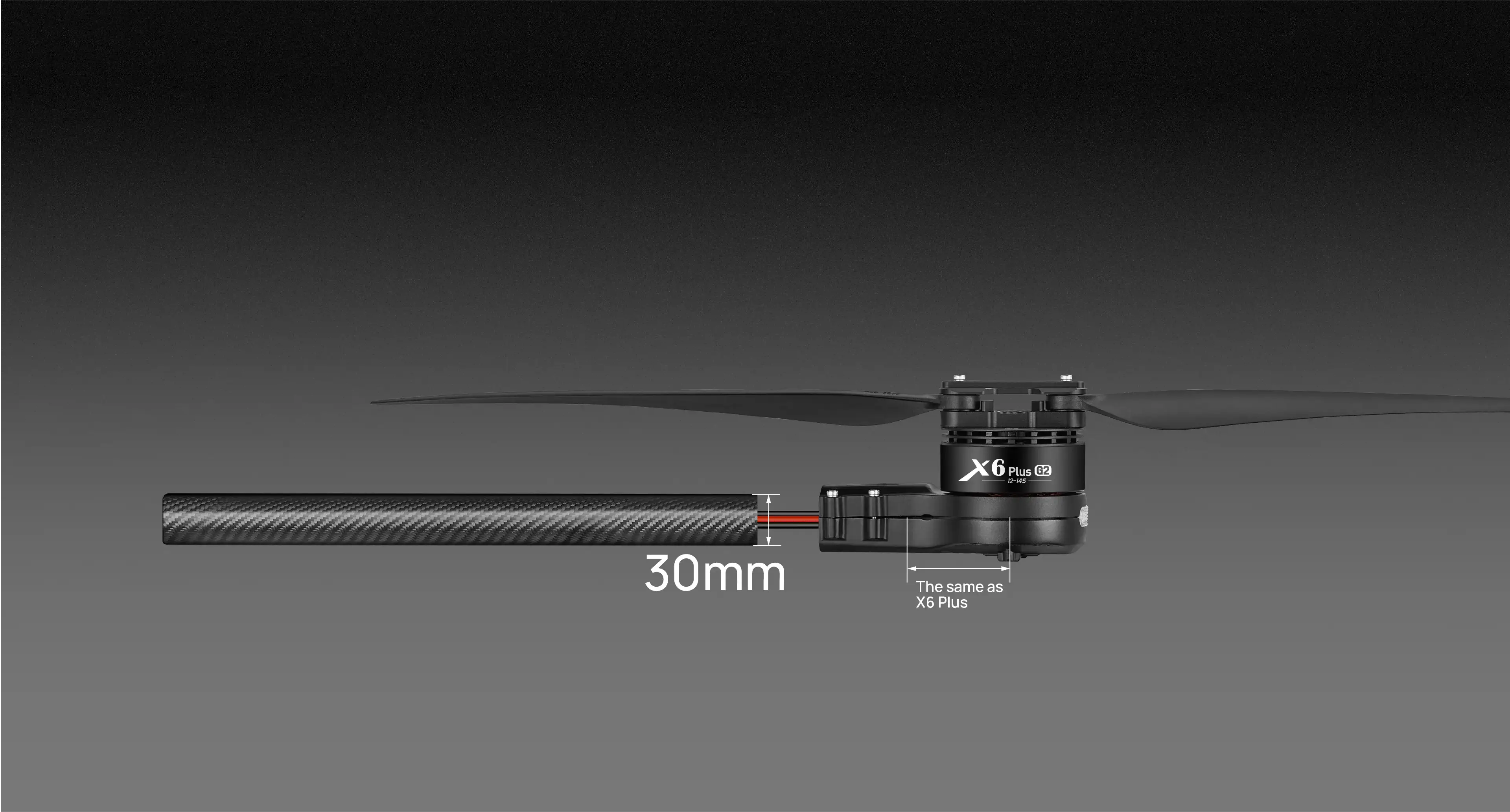

Perfect Compatibility

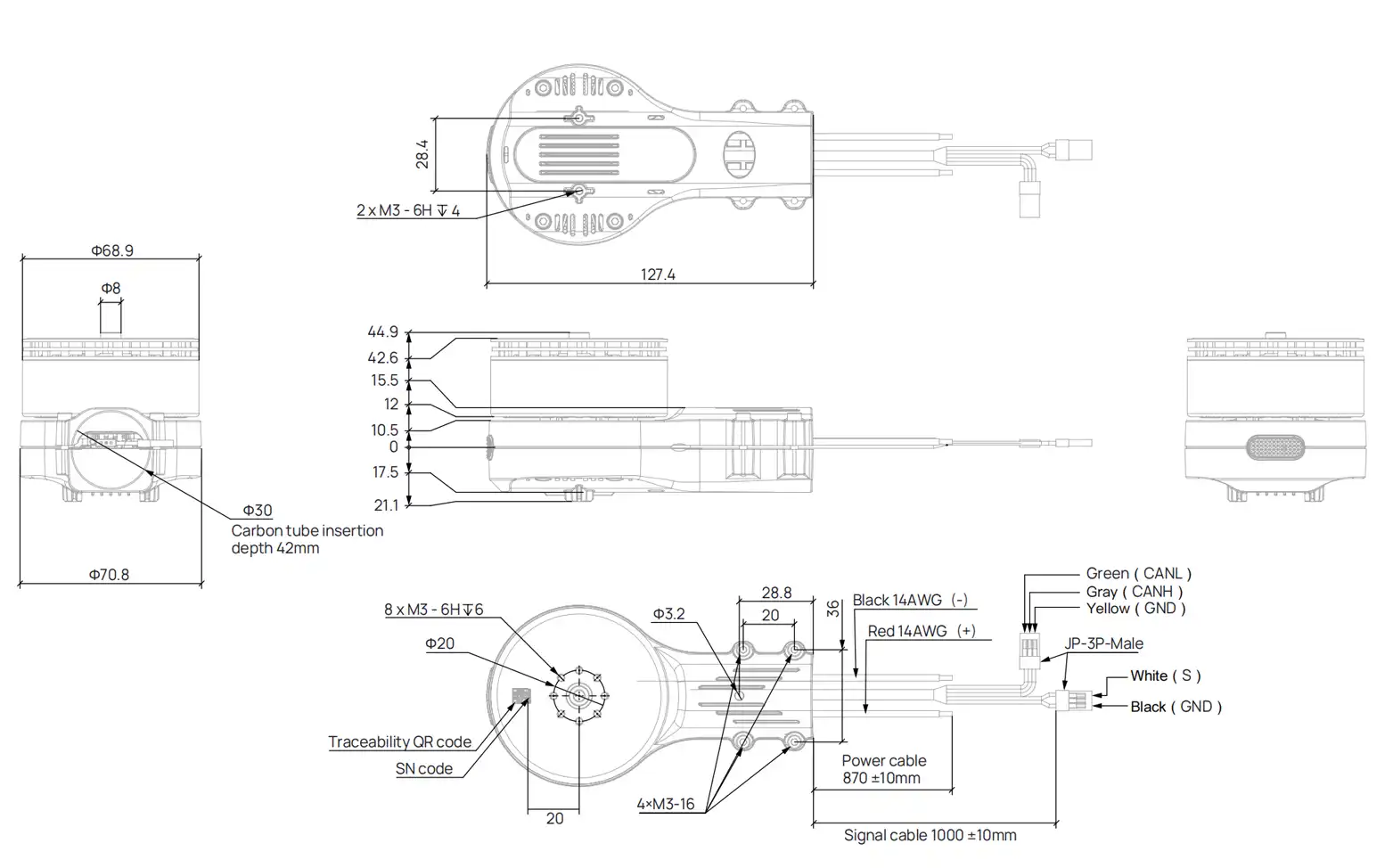

X6 Plus G2 retains the same 30mm tube diameter and the
design distance from the tube clamp mounting face to motor center,
ensuring consistent motor-to-motor distance without modifying the entire structure.
The innovative
algorithms enable
quick system integration with the
flight controller of the original
drone, offering a brand-new and
extraordinary performance experience
with high-speed dynamic response
A reliable and
high-performance

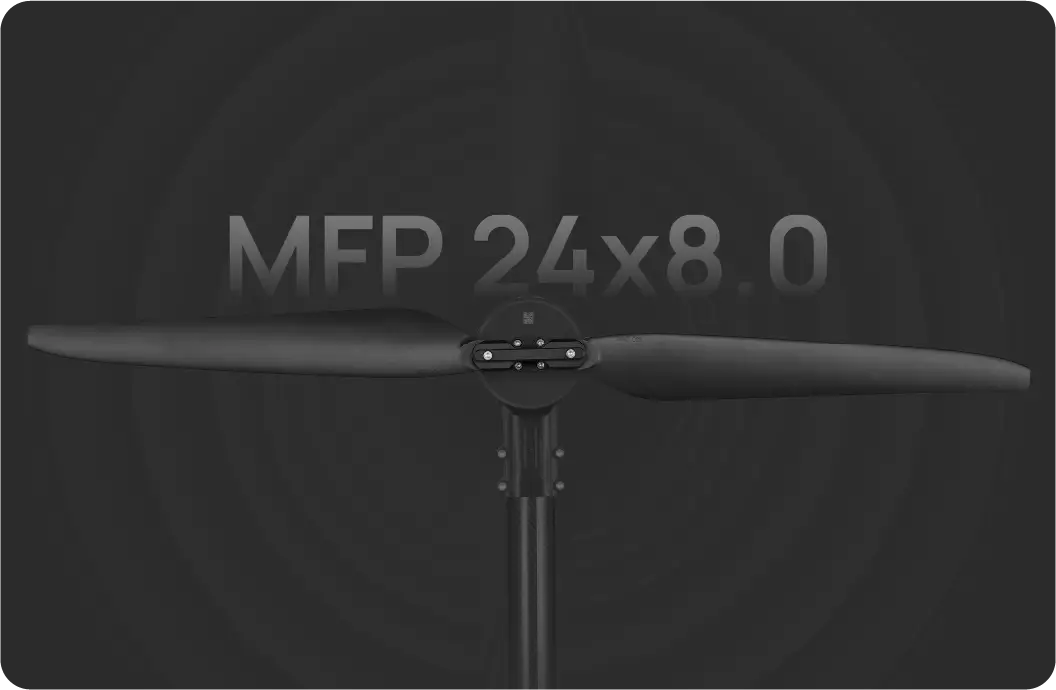

MFP 24x8.0 carbon plastic folding propeller
provides the perfect match of motor,
propeller and mounting adaptor.
Modes for Easy Use
Parameter Adjustment via Remote Controller
If a DataLinkBox is not available, users can adjust motor rotation direction and navigation light colors directly via the remote controller based on application requirements for emergency settings.
Parameter Adjustment via
Bluetooth in the Mobile APP
The newly launched DataLink V3 supports APP (compatible with Android and iOS; Huawei HarmonyOS currently not supported), it can quickly configure 90% of ESC parameters outdoors via Bluetooth.

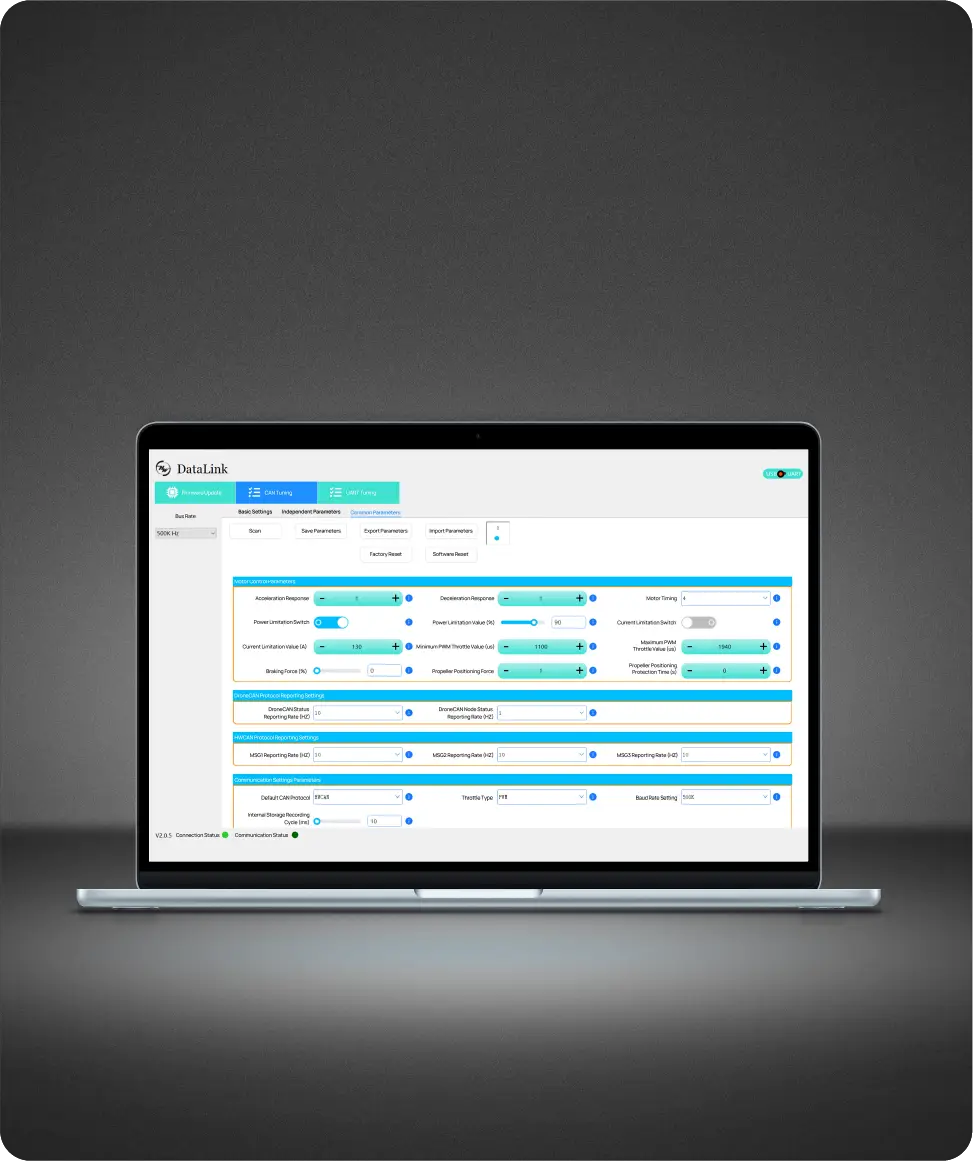

Parameter Adjustment via
PC Software
Additionally, the OTA function of the PC DataLink host computer software enables efficient and convenient upgrades of multiple ESC firmware in one drone.
Dual Throttle Redundancy Control
X6 Plus G2 supports CAN interface,
which enables real-time data exchange
with the flight controller system,
allowing users to monitor critical
flight parameters
(speed, throttle, current, voltage, temperature)
to assist users in rapid data analysis &
response and enhanced flight safety.
Modes for Easy Use

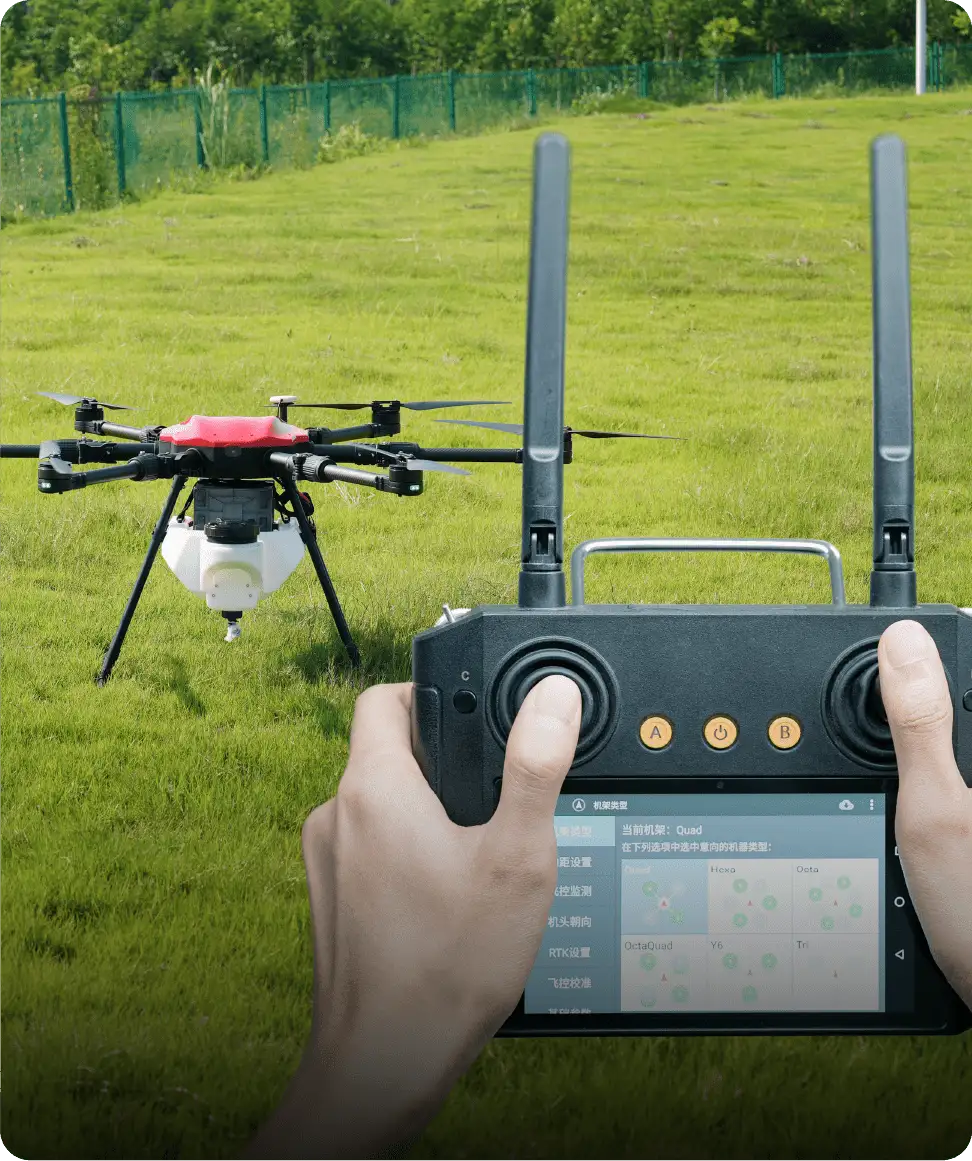

Parameter Adjustment via Remote Controller
If a DataLinkBox is not available, users can adjust motor
rotation direction and navigation light colors directly via
the remote controller based on application requirements
for emergency settings.

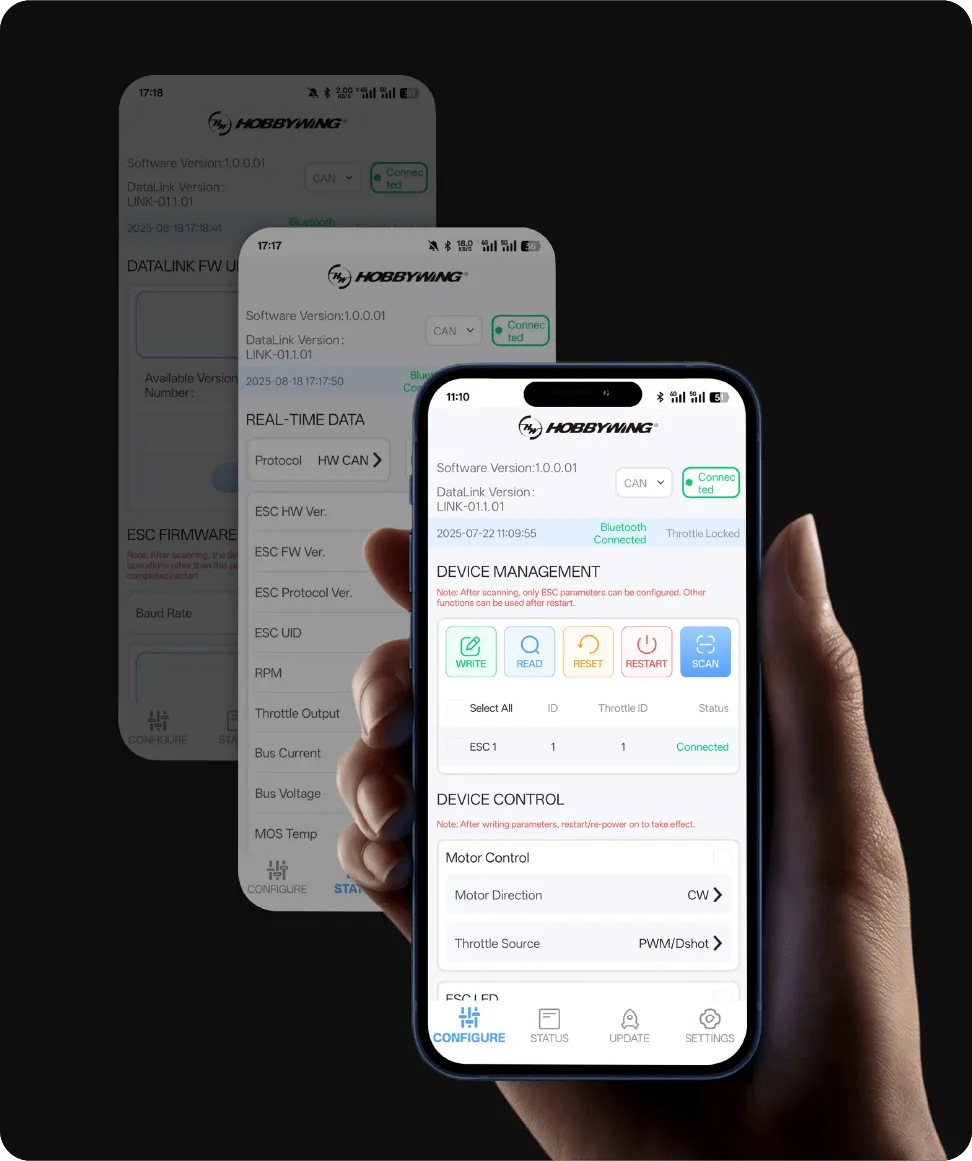

Parameter Adjustment via
Bluetooth in the Mobile APP
The newly launched DataLink V3 supports APP (compatible
with Android and iOS; Huawei HarmonyOS currently not
supported), it can quickly configure 90% of ESC
parameters outdoors via Bluetooth.
Parameter Adjustment via
PC Software
Dual Throttle Redundancy Control
X6 Plus G2 supports CAN interface,
which enables real-time data exchange
with the flight controller system,
allowing users to monitor critical
flight parameters
(speed, throttle, current, voltage, temperature)
to assist users in rapid data analysis &
response and enhanced flight safety.
X6 Plus G2 inherits the dual throttle control solution that
integrates CAN bus digital signals and PWM analog signals,
significantly improving real-time responsiveness and anti-interference performance,
ensuring precise throttle control for enhanced reliability.
Analog Throttle
Digital Throttle
High-speed dynamic response, even under standalone GPS operation without RTK,
it can maintain stable position holding,
further enhancing flight safety and route precision.
Note: The system is reserved for customized DShot
digital throttle and corresponding protocol compatibility,
effectively meeting the demand for FPV adapting to larger drone frame,
and enabling rapid building of the FPV propulsion system.
The product supports DroneCAN and HWCAN (default) protocols.
It also enables intercommunication with multiple mainstream flight controller systems,
such as ArduPilot open source ecosystem, VK, BOYING, Jiyi,
and ACFLY to build an intelligent flight ecosystem through CAN communication.
X6 Plus G2 adds a log function that records
dynamic ESC data for up to 24 hours of operation.
In case of abnormal conditions,
users can access the data via the host computer
software (DataLink) for fast fault diagnosis
and troubleshooting.
Effortlessly Conquering
Harsh Environments

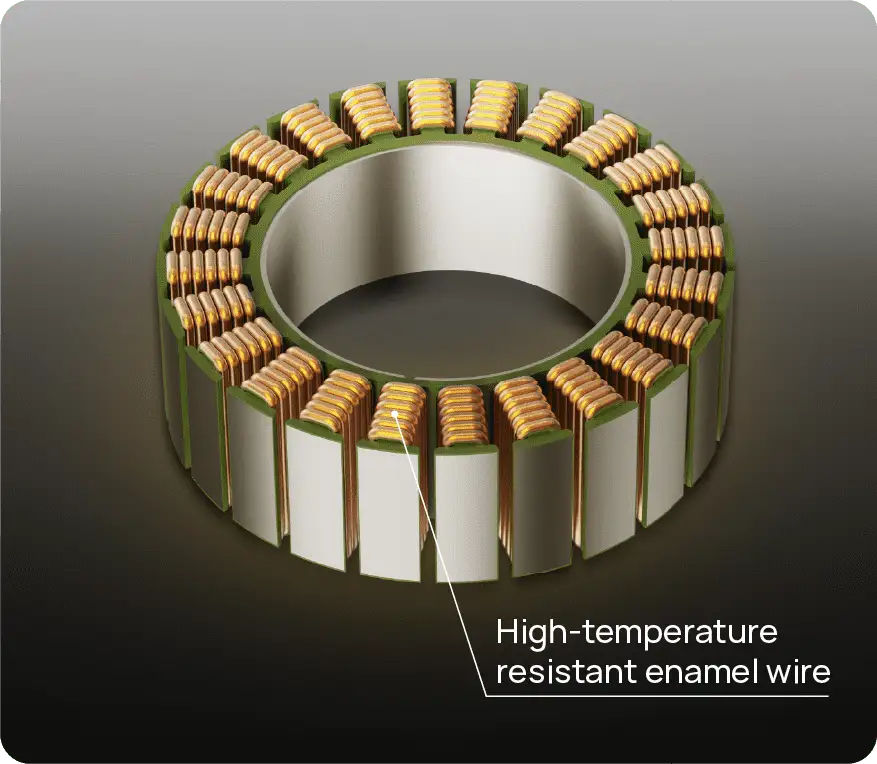

The X6 Plus G2 UAV motor is coated with
high-temperature resistant enamel wire,
capable of withstanding temperatures up to 200°C.
With an ingress protection rating of IPX6
the motor is capable of long-term and stable operation in harsh operating environments, including rain, pesticide mist, high temperatures, and dust. With a liquid drainage channel, after use can be simply rinsed with water for easier maintenance.
for Secure Flights
X6 Plus G2 integrates various software and hardware protection mechanisms,
including over-current, motor stall, throttle loss, temperature anomaly monitoring,
and over/under-voltage protection, ensuring comprehensive safety during flight.
(This protection function can be enabled or disabled as needed,
allowing flexible configuration based on the requirements of the overall system.)
Overvoltage warning
Undervoltage warning
Fail to resetthrottle to zero
Short-circuit fault
Disconnection fault
Overcurrent fault
Motor stall fault
Throttle loss warning
MOS over-temperaturewarning
Capacitor over-temperaturewarning
-
-
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
-
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage
- Tube outer diameter
- Weight(with cable and Props)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated power input
- Rated power output
- Pinout
-
- 12.5 kg(Sea level)
- 6kg (Sea level)
- 7.3 g/W
- 12S~14S(LiPo)
- 14S-54V / 12S-48V
- 18~63 V
- D30 mm
- 748 g*
- Power cable: 14AWG 870 mm* Signal cable: 10000 mm*
- -20~50 ℃
- IPX6
- 820 W
- 705 W
- Black-GND, White-PWM & Yellow-GND, Gray-CH, Green-CL
-
- Rated voltage
- Communication protocol
- Peak current (3 seconds)
- Continuous current
- Throttle travel calibration
- Double throttle signal
- Operating pulse width
- Failure storage & Log
-
- 14 S / 12 S
- Cyphal(UAVCAN)
- 80 A (3s)
- 25 A
- Not supported
- PWM + CAN
- 1050~1950 μs
- Supported
-
- KV
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 150 KV
- 28N24P
- 62x18 mm
- 68.9 mm
-
- Model
- Total Weight
- Material of Props
- Single Weight
-

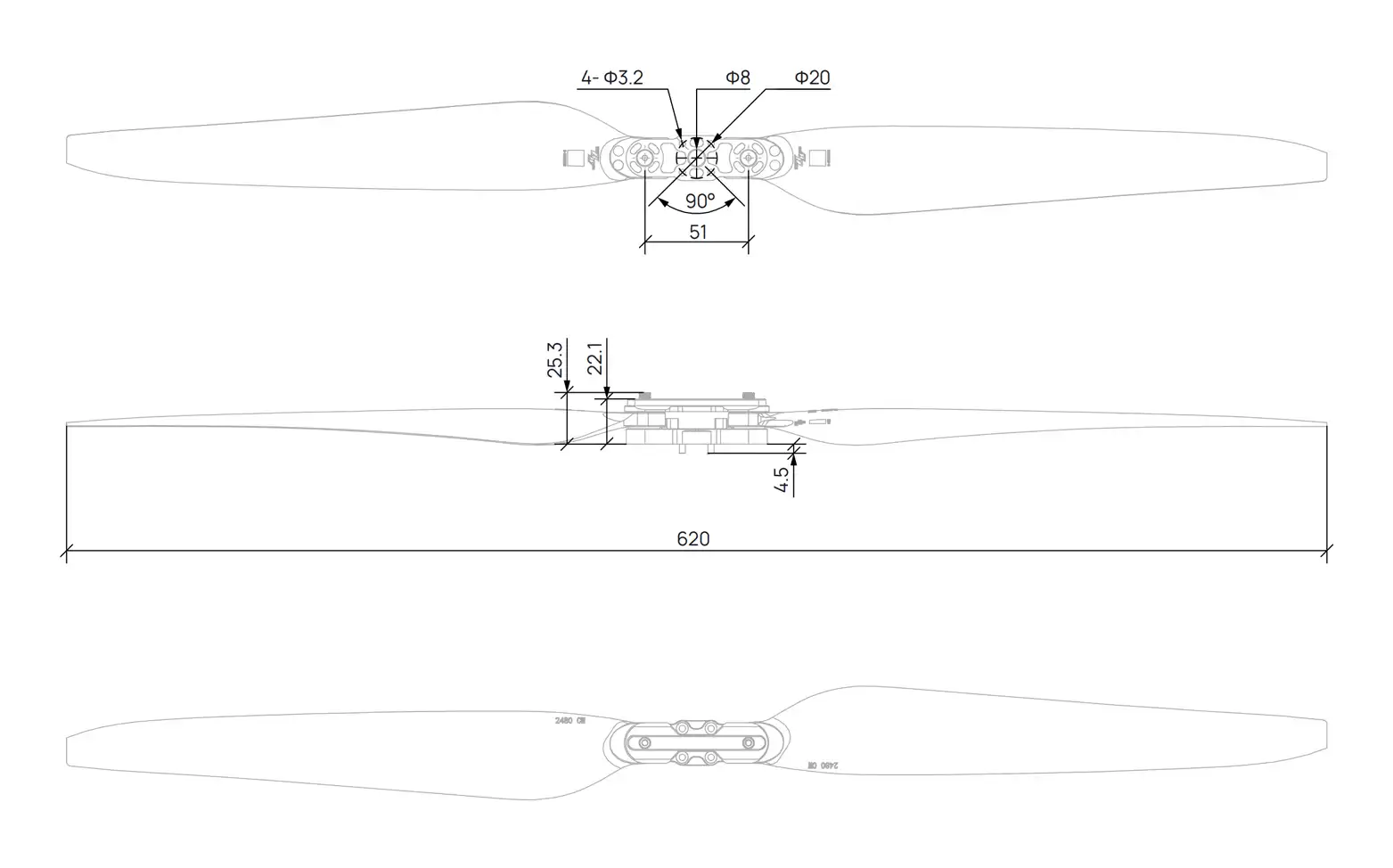

- MFP 24x8.0 (Folding propeller)
- 107 g*
- Carbon fibre-reinforced nylon composite material
- 33.5 g*
-
- * Subject to the actual product.
-
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|

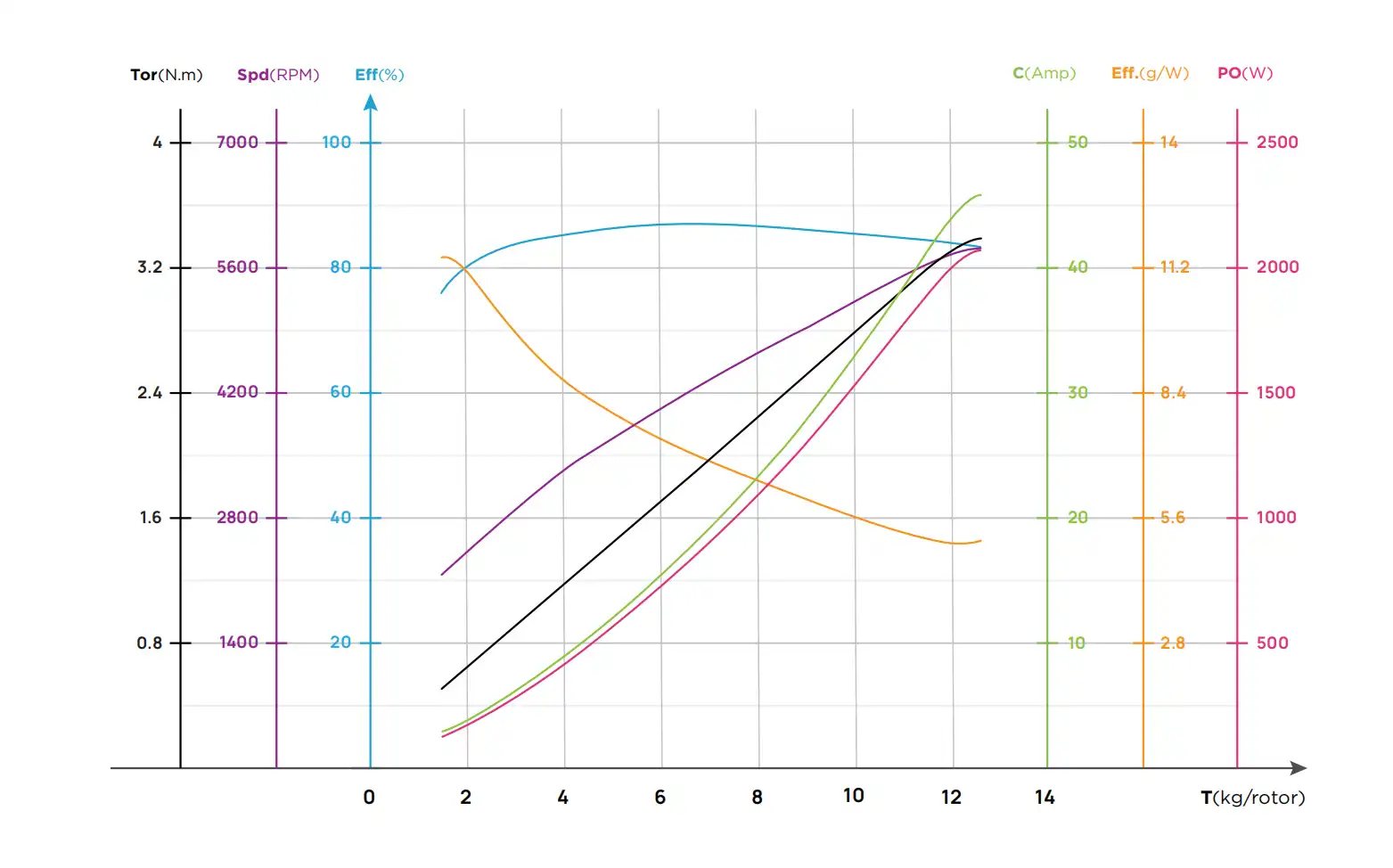

54V(14S LiPo) |
MFP 24x8.0 |
33% |
1785 |
2.9 |
155.7 |
2220 |
11.5 |
0.52 |
121.2 |
68 |
|
35% |
2077 |
3.4 |
185.1 |
2376 |
11.2 |
0.60 |
148.6 |
|||
|
37% |
2385 |
4.1 |
220.5 |
2535 |
10.8 |
0.68 |
180.5 |
|||
|
39% |
2706 |
4.8 |
261.5 |
2694 |
10.3 |
0.77 |
216.9 |
|||
|
42% |
3208 |
6.1 |
332.4 |
2932 |
9.7 |
0.91 |
279.5 |
|||
|
45% |
3731 |
7.6 |
412.7 |
3164 |
9.0 |
1.06 |
350.8 |
|||
|
48% |
4272 |
9.3 |
501.0 |
3386 |
8.5 |
1.21 |
429.8 |
|||
|
51% |
4826 |
11.0 |
595.9 |
3598 |
8.1 |
1.37 |
515.1 |
|||
|
54% |
5390 |
12.9 |
697.1 |
3800 |
7.7 |
1.52 |
605.8 |
|||
|
57% |
5960 |
14.9 |
804.6 |
3992 |
7.4 |
1.68 |
701.4 |
|||
|
60% |
6535 |
17.0 |
918.7 |
4177 |
7.1 |
1.83 |
801.8 |
|||
|
63% |
7109 |
19.3 |
1040.2 |
4355 |
6.8 |
1.99 |
907.1 |
|||
|
66% |
7681 |
21.6 |
1169.4 |
4531 |
6.6 |
2.14 |
1017.6 |
|||
|
69% |
8246 |
24.2 |
1306.2 |
4703 |
6.3 |
2.30 |
1133.3 |
|||
|
72% |
8800 |
26.8 |
1449.8 |
4873 |
6.1 |
2.46 |
1253.7 |
|||
|
75% |
9338 |
29.6 |
1598.2 |
5039 |
5.8 |
2.61 |
1377.5 |
|||
|
78% |
9856 |
32.4 |
1748.4 |
5198 |
5.6 |
2.76 |
1502.0 |
|||
|
81% |
10346 |
35.1 |
1896.4 |
5346 |
5.5 |
2.90 |
1623.8 |
|||
|
84% |
10803 |
37.7 |
2037.3 |
5480 |
5.3 |
3.03 |
1738.3 |
|||
|
87% |
11218 |
40.1 |
2166.1 |
5595 |
5.2 |
3.14 |
1841.0 |
|||
|
90% |
11581 |
42.2 |
2278.1 |
5688 |
5.1 |
3.24 |
1927.7 |
|||
|
100% |
12521 |
46.0 |
2484.2 |
5838 |
5.0 |
3.40 |
2076.2 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
Using the time tested X6 Plus platform,
the updated X6 Plus G2 takes the proven reliability and
incorporates new industrial application technology to meet
the growing demands of todays ever changing markets.
Small-to-Mid UAVs
10L agricultural hexacopters,
and CAAC Class III
training drone(<25kg)
Functional Upgrade with
Higher Efficiency
Enhanced Stability
Sustainable Reliability
X6 Plus G2
748g
X6 Plus
790g
X6 Plus G2
12.5kg
X6 Plus
11.8kg
Efficient Heat Dissipation
Featuring a dual layer centrifugal fan casing with integrated air vents,
the X6 Plus G2 ensures debris will not build up,
while airflow and heat dissipation is improved.
Lower temps ensure improved overall performance.
Perfect Compatibility
X6 Plus G2 retains the same 30mm tube diameter and the
design distance from the tube clamp mounting face to motor center,
ensuring consistent motor-to-motor distance without modifying the entire structure.
The innovative
algorithms enable
quick system integration with the
flight controller of the original
drone, offering a brand-new and
extraordinary performance experience
with high-speed dynamic response
A reliable and
high-performance
MFP 24x8.0 carbon plastic folding propeller
provides the perfect match of motor,
propeller and mounting adaptor.
Modes for Easy Use
Parameter Adjustment via Remote Controller
If a DataLinkBox is not available, users can adjust motor rotation direction and navigation light colors directly via the remote controller based on application requirements for emergency settings.
Parameter Adjustment via
Bluetooth in the Mobile APP
The newly launched DataLink V3 supports APP (compatible with Android and iOS; Huawei HarmonyOS currently not supported), it can quickly configure 90% of ESC parameters outdoors via Bluetooth.
Parameter Adjustment via
PC Software
Additionally, the OTA function of the PC DataLink host computer software enables efficient and convenient upgrades of multiple ESC firmware in one drone.
Dual Throttle Redundancy Control
X6 Plus G2 supports CAN interface,
which enables real-time data exchange
with the flight controller system,
allowing users to monitor critical
flight parameters
(speed, throttle, current, voltage, temperature)
to assist users in rapid data analysis &
response and enhanced flight safety.
Modes for Easy Use
Parameter Adjustment via Remote Controller
If a DataLinkBox is not available, users can adjust motor
rotation direction and navigation light colors directly via
the remote controller based on application requirements
for emergency settings.
Parameter Adjustment via
Bluetooth in the Mobile APP
The newly launched DataLink V3 supports APP (compatible
with Android and iOS; Huawei HarmonyOS currently not
supported), it can quickly configure 90% of ESC
parameters outdoors via Bluetooth.
Parameter Adjustment via
PC Software
Dual Throttle Redundancy Control
X6 Plus G2 supports CAN interface,
which enables real-time data exchange
with the flight controller system,
allowing users to monitor critical
flight parameters
(speed, throttle, current, voltage, temperature)
to assist users in rapid data analysis &
response and enhanced flight safety.
X6 Plus G2 inherits the dual throttle control solution that
integrates CAN bus digital signals and PWM analog signals,
significantly improving real-time responsiveness and anti-interference performance,
ensuring precise throttle control for enhanced reliability.
Analog Throttle
Digital Throttle
High-speed dynamic response, even under standalone GPS operation without RTK,
it can maintain stable position holding,
further enhancing flight safety and route precision.
Note: The system is reserved for customized DShot
digital throttle and corresponding protocol compatibility,
effectively meeting the demand for FPV adapting to larger drone frame,
and enabling rapid building of the FPV propulsion system.
The product supports DroneCAN and HWCAN (default) protocols.
It also enables intercommunication with multiple mainstream flight controller systems,
such as ArduPilot open source ecosystem, VK, BOYING, Jiyi,
and ACFLY to build an intelligent flight ecosystem through CAN communication.
X6 Plus G2 adds a log function that records
dynamic ESC data for up to 24 hours of operation.
In case of abnormal conditions,
users can access the data via the host computer
software (DataLink) for fast fault diagnosis
and troubleshooting.
Effortlessly Conquering
Harsh Environments
The X6 Plus G2 UAV motor is coated with
high-temperature resistant enamel wire,
capable of withstanding temperatures up to 200°C.
With an ingress protection rating of IPX6
the motor is capable of long-term and stable operation in harsh operating environments, including rain, pesticide mist, high temperatures, and dust. With a liquid drainage channel, after use can be simply rinsed with water for easier maintenance.
for Secure Flights
X6 Plus G2 integrates various software and hardware protection mechanisms,
including over-current, motor stall, throttle loss, temperature anomaly monitoring,
and over/under-voltage protection, ensuring comprehensive safety during flight.
(This protection function can be enabled or disabled as needed,
allowing flexible configuration based on the requirements of the overall system.)
Overvoltage warningUndervoltage warningFail to resetthrottle to zero
Short-circuit faultDisconnection faultOvercurrent faultMotor stall faultThrottle loss warningMOS over-temperaturewarning
Capacitor over-temperaturewarning
-
- Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
-
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage
- Tube outer diameter
- Weight(with cable and Props)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated power input
- Rated power output
- Pinout
-
- 12.5 kg(Sea level)
- 6kg (Sea level)
- 7.3 g/W
- 12S~14S(LiPo)
- 14S-54V / 12S-48V
- 18~63 V
- D30 mm
- 748 g*
- Power cable: 14AWG 870 mm* Signal cable: 10000 mm*
- -20~50 ℃
- IPX6
- 820 W
- 705 W
- Black-GND, White-PWM & Yellow-GND, Gray-CH, Green-CL
-
- Rated voltage
- Communication protocol
- Peak current (3 seconds)
- Continuous current
- Throttle travel calibration
- Double throttle signal
- Operating pulse width
- Failure storage & Log
-
- 14 S / 12 S
- Cyphal(UAVCAN)
- 80 A (3s)
- 25 A
- Not supported
- PWM + CAN
- 1050~1950 μs
- Supported
-
- KV
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 150 KV
- 28N24P
- 62x18 mm
- 68.9 mm
-
- Model
- Total Weight
- Material of Props
- Single Weight
-
- MFP 24x8.0 (Folding propeller)
- 107 g*
- Carbon fibre-reinforced nylon composite material
- 33.5 g*
-
- * Subject to the actual product.
-
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
46V(12S LiPo) |
MFP 24x8.0 |
33% |
1736 |
3.0 |
137.7 |
2169 |
12.6 |
0.51 |
115.8 |
68 |
|
35% |
2017 |
3.6 |
167.2 |
2327 |
12.1 |
0.59 |
143.8 |
|||
|
37% |
2318 |
4.4 |
201.7 |
2486 |
11.5 |
0.67 |
174.4 |
|||
|
39% |
2634 |
5.3 |
241.8 |
2646 |
10.9 |
0.76 |
210.6 |
|||
|
42% |
3131 |
6.7 |
310.4 |
2881 |
10.1 |
0.89 |
268.5 |
|||
|
45% |
3646 |
8.4 |
388.7 |
3107 |
9.4 |
1.04 |
338.4 |
|||
|
48% |
4174 |
10.4 |
476.5 |
3325 |
8.8 |
1.19 |
414.3 |
|||
|
51% |
4712 |
12.4 |
572.3 |
3534 |
8.2 |
1.34 |
495.9 |
|||
|
54% |
5256 |
14.7 |
676.2 |
3735 |
7.8 |
1.50 |
586.6 |
|||
|
57% |
5807 |
17.1 |
787.6 |
3929 |
7.4 |
1.65 |
678.8 |
|||
|
60% |
6364 |
19.7 |
907.1 |
4116 |
7.0 |
1.81 |
780.1 |
|||
|
63% |
6927 |
22.5 |
1035.0 |
4298 |
6.7 |
1.98 |
891.1 |
|||
|
66% |
7495 |
25.5 |
1171.4 |
4474 |
6.4 |
2.14 |
1002.6 |
|||
|
69% |
8068 |
28.6 |
1316.8 |
4645 |
6.1 |
2.31 |
1123.6 |
|||
|
72% |
8644 |
32.0 |
1470.6 |
4810 |
5.9 |
2.47 |
1244.1 |
|||
|
75% |
9219 |
35.5 |
1632.5 |
4968 |
5.6 |
2.63 |
1368.2 |
|||
|
78% |
9786 |
39.2 |
1800.5 |
5119 |
5.4 |
2.79 |
1495.5 |
|||
|
81% |
10337 |
42.9 |
1971.2 |
5260 |
5.2 |
2.95 |
1624.8 |
|||
|
84% |
10861 |
46.6 |
2140.4 |
5391 |
5.1 |
3.10 |
1750.0 |
|||
|
87% |
11342 |
50.1 |
2301.3 |
5508 |
4.9 |
3.23 |
1862.9 |
|||
|
90% |
11762 |
53.2 |
2445.1 |
5610 |
4.8 |
3.35 |
1967.9 |
|||
|
100% |
12526 |
58.0 |
2663.7 |
5760 |
4.7 |
3.51 |
2117.0 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
54V(14S LiPo) |
MFP 24x8.0 |
33% |
1785 |
2.9 |
155.7 |
2220 |
11.5 |
0.52 |
121.2 |
68 |
|
35% |
2077 |
3.4 |
185.1 |
2376 |
11.2 |
0.60 |
148.6 |
|||
|
37% |
2385 |
4.1 |
220.5 |
2535 |
10.8 |
0.68 |
180.5 |
|||
|
39% |
2706 |
4.8 |
261.5 |
2694 |
10.3 |
0.77 |
216.9 |
|||
|
42% |
3208 |
6.1 |
332.4 |
2932 |
9.7 |
0.91 |
279.5 |
|||
|
45% |
3731 |
7.6 |
412.7 |
3164 |
9.0 |
1.06 |
350.8 |
|||
|
48% |
4272 |
9.3 |
501.0 |
3386 |
8.5 |
1.21 |
429.8 |
|||
|
51% |
4826 |
11.0 |
595.9 |
3598 |
8.1 |
1.37 |
515.1 |
|||
|
54% |
5390 |
12.9 |
697.1 |
3800 |
7.7 |
1.52 |
605.8 |
|||
|
57% |
5960 |
14.9 |
804.6 |
3992 |
7.4 |
1.68 |
701.4 |
|||
|
60% |
6535 |
17.0 |
918.7 |
4177 |
7.1 |
1.83 |
801.8 |
|||
|
63% |
7109 |
19.3 |
1040.2 |
4355 |
6.8 |
1.99 |
907.1 |
|||
|
66% |
7681 |
21.6 |
1169.4 |
4531 |
6.6 |
2.14 |
1017.6 |
|||
|
69% |
8246 |
24.2 |
1306.2 |
4703 |
6.3 |
2.30 |
1133.3 |
|||
|
72% |
8800 |
26.8 |
1449.8 |
4873 |
6.1 |
2.46 |
1253.7 |
|||
|
75% |
9338 |
29.6 |
1598.2 |
5039 |
5.8 |
2.61 |
1377.5 |
|||
|
78% |
9856 |
32.4 |
1748.4 |
5198 |
5.6 |
2.76 |
1502.0 |
|||
|
81% |
10346 |
35.1 |
1896.4 |
5346 |
5.5 |
2.90 |
1623.8 |
|||
|
84% |
10803 |
37.7 |
2037.3 |
5480 |
5.3 |
3.03 |
1738.3 |
|||
|
87% |
11218 |
40.1 |
2166.1 |
5595 |
5.2 |
3.14 |
1841.0 |
|||
|
90% |
11581 |
42.2 |
2278.1 |
5688 |
5.1 |
3.24 |
1927.7 |
|||
|
100% |
12521 |
46.0 |
2484.2 |
5838 |
5.0 |
3.40 |
2076.2 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
