X8 G2New-Generation Integrated Drone Propulsion System

  • The brand-new generation X8 G2 is originated from the mature X8 integrated propulsion system
  • refined through years of market experience. It not only builds on the reliable experience
  • accumulated from extensive practical agricultural applications, but also incorporates
  • cutting-edge technologies to meet the evolving needs of industries such as logistics, training
  • and education, delivering a comprehensive upgrade in both functionality and performance.
  • Specifically designed
    for small and
    medium-sized drones
  • More lightweight
    design
  • Ensures high-speed
    cruising, superior stability,
    and extended lifespan
  • Flexible communication
    options

X8 G2New-Generation Integrated Drone
Propulsion System

  • The brand-new generation X8 G2 is originated from the mature X8 integrated propulsion system
  • refined through years of market experience. It not only builds on the reliable experience
  • accumulated from extensive practical agricultural applications, but also incorporates
  • cutting-edge technologies to meet the evolving needs of industries such as logistics, training
  • and education, delivering a comprehensive upgrade in both functionality and performance.
  • Specifically designed
    for small and
    medium-sized drones
  • Ensures high-speed
    cruising, superior stability,
    and extended lifespan
  • More lightweight
    design
  • Flexible communication
    options
Powerful Thrust &
High-speed Flight

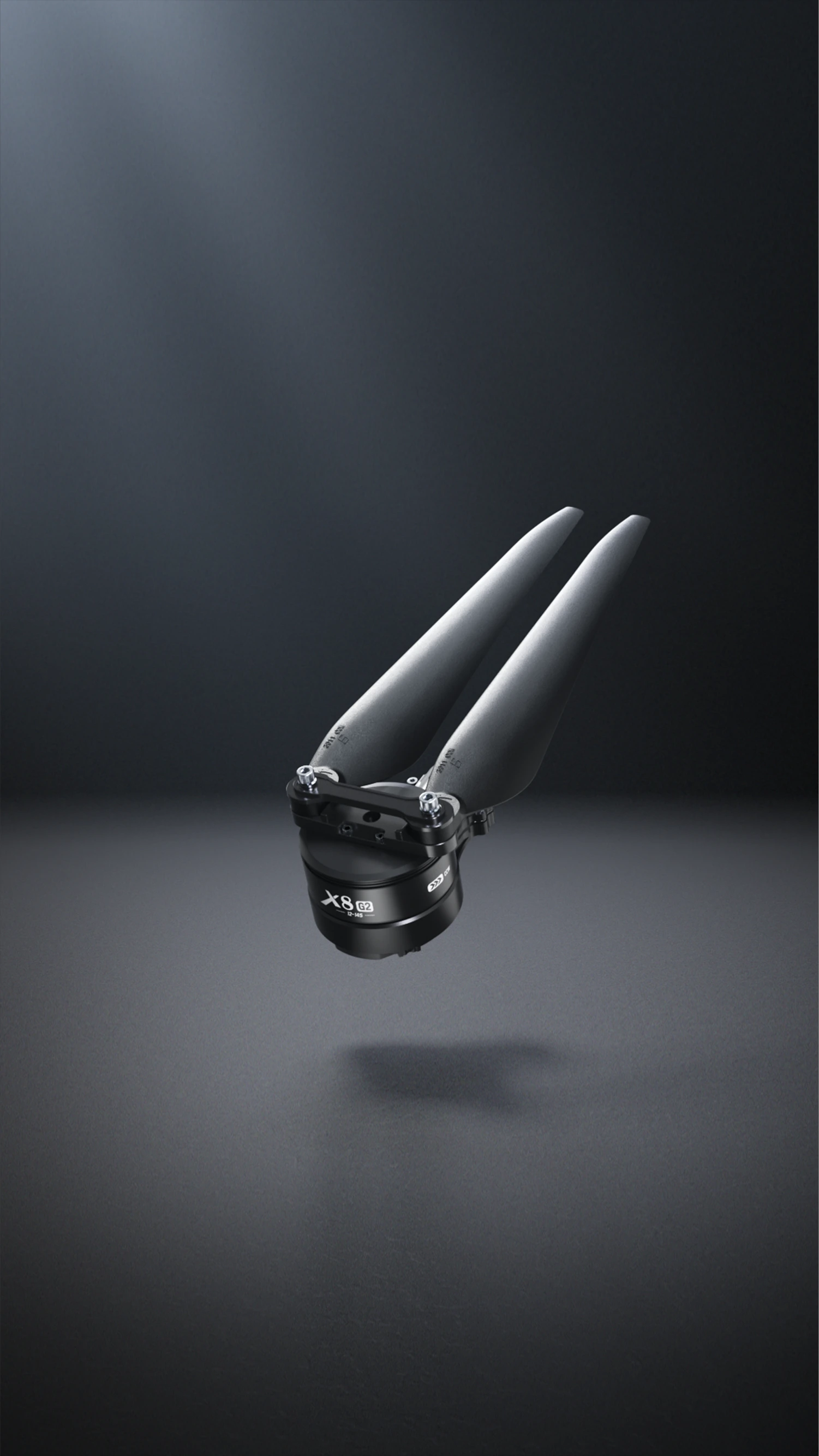

HOBBYWING UAV Propulsion Solution
A single-axis
rated thrust of
5-7.5kg
The maximum flight
speed reaches up to
20m/s
The maximum flight
speed has increased by
40%

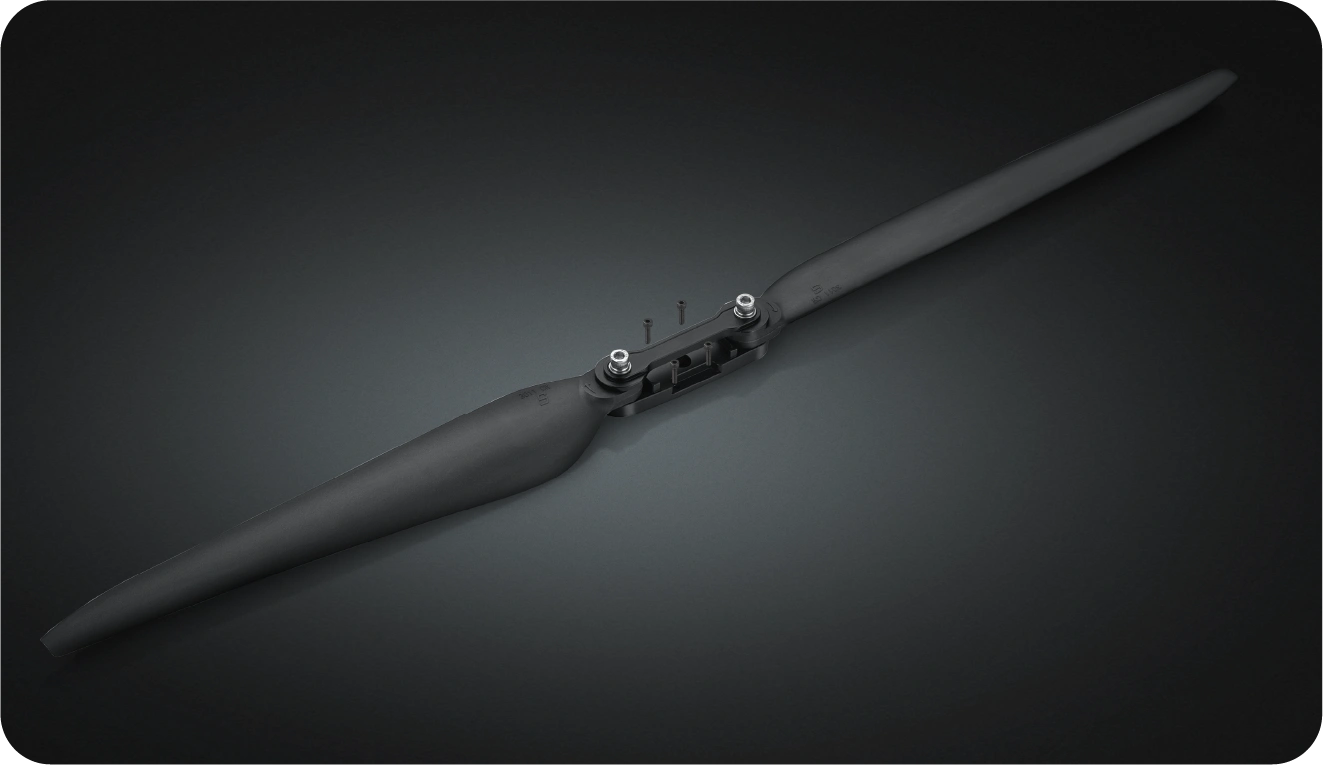

HOBBYWING 3011S Drone Folding Propeller
Paired with the all-new
3011Sfolding propeller
Drone Motor and ESC

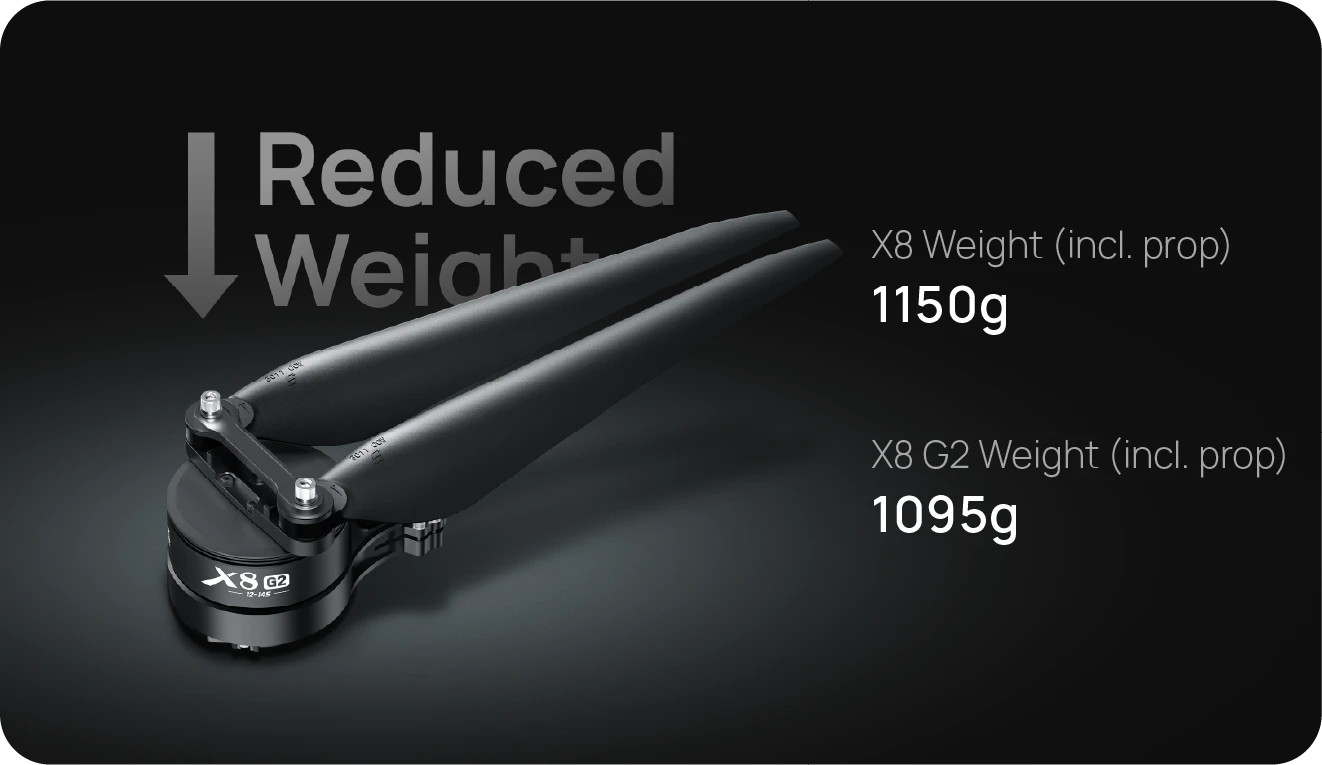

The X8 G2
reduces weight by 5%
while retaining the X8’s
maximum thrust advantage

(*Based on internal test data from HOBBYWING, comparative calculation of battery capacity consumption over the same flight distance was obtained at forward flight speeds of 12 m/s and 20 m/s on a quadcopter flying at sea level in 34 °C ambient temperature, both no-load and at rated payload. Actual results may vary with different airframe configurations, battery models, and test conditions, for reference only.)

Long Endurance Propulsion System For Industrial Drone
A high-speed flight of
20m/s can increase
the drone's flight
endurance by
approximately
without changing the
battery capacity of the
entire drone.
10%*
Seamless
Upgrade from
Previous
Products
  • The X8 propulsion system has been trusted by a
  • vast number of users for years since its
  • introduction. The new-generation X8 G2 requires no
  • structural modifications to upgrade. Existing X8
  • users can complete the transition easily with
  • minimal tuning, including overall device installation,
  • flight controller matching, and flight operation
  • settings—while achieving a brand-new experience.
  • New customers can immediately benefit from the
  • outstanding performance of X8 G2.

  • Both the 3011S (with propeller adapter) and the 3011 (with propeller adapter) are fully compatible with the installation structures of the two generations of X8 and can be directly interchanged for installation (only one combination is allowed on one drone).

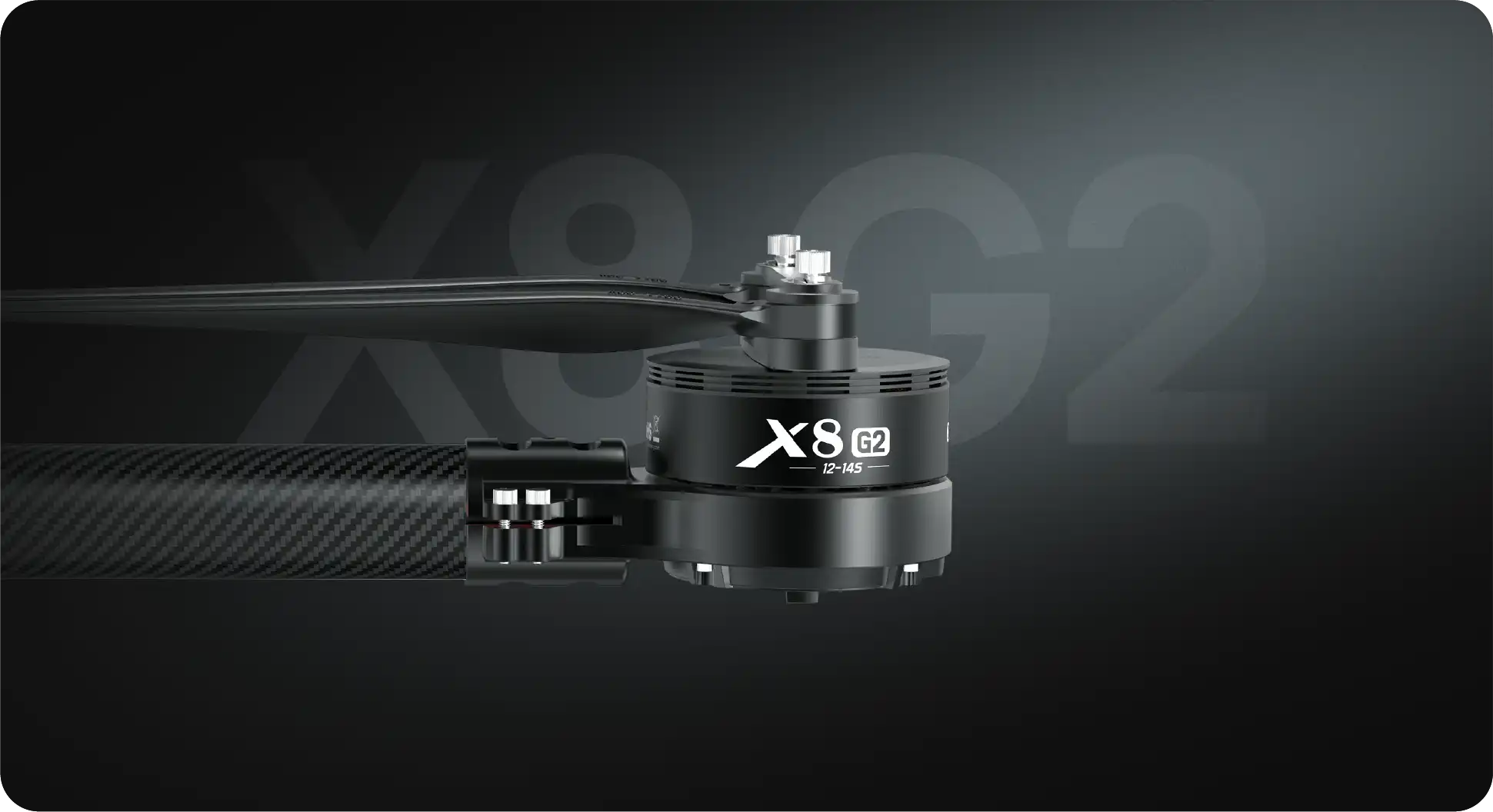

HOBBYWING X8 G2 Drone Propulsion System
Overall Device Installation

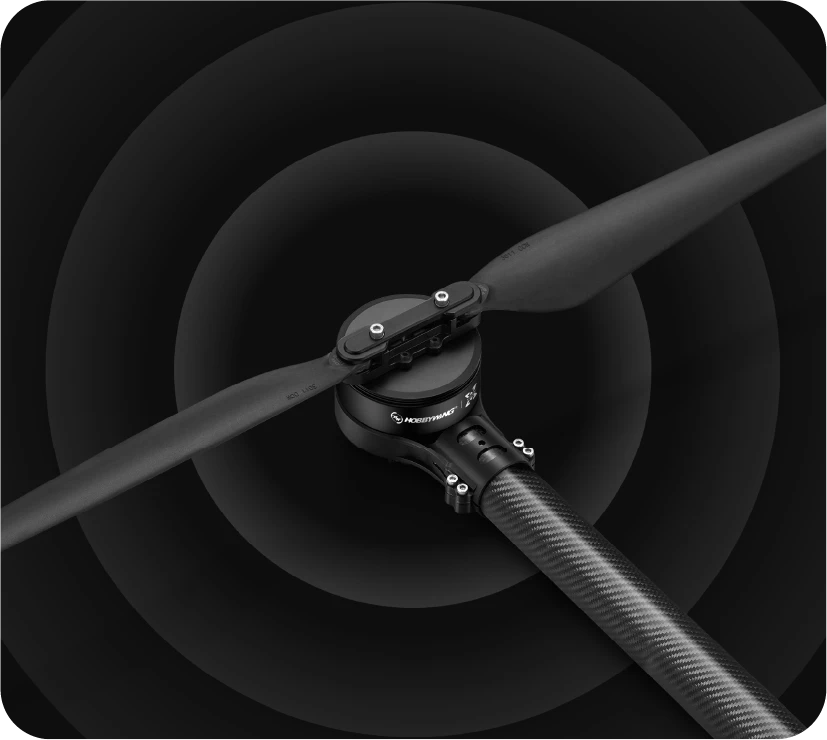

Long-Endurance UAV Integrated Propulsion System KitFlight Controller Matching
Industrial Drone Propulsion SystemFlight Operation Settings

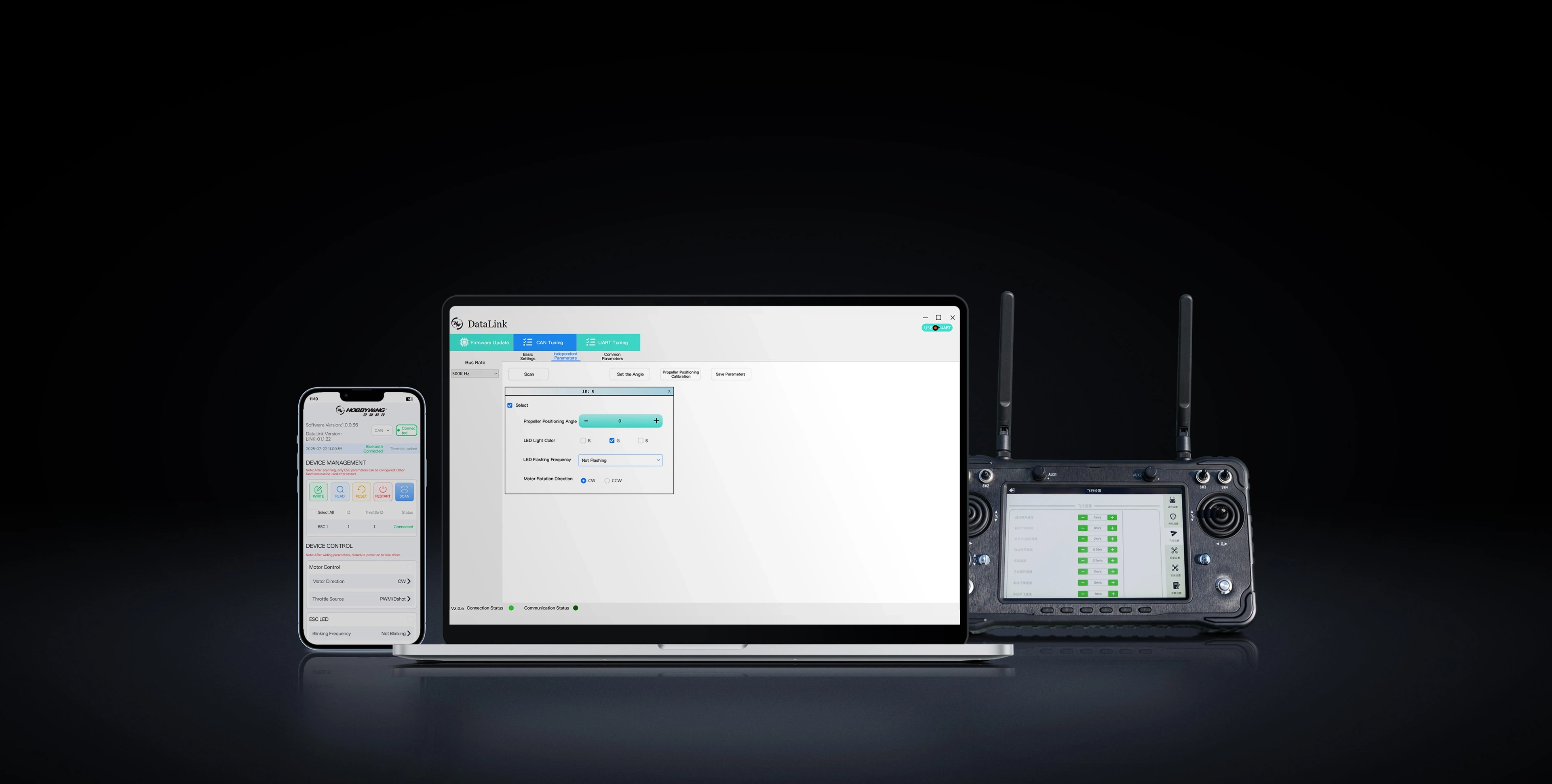

Multiple Parameter
Adjustment Modes
for Easy Use
  • Users can adjust the drive parameters, motor rotation direction, LED color, and other
  • settings via the remote controller or DataLink software, optimizing flight performance
  • based on application needs. Additionally, the dedicated OTA function of the DataLink
  • host computer software facilitates efficient multi-ESC firmware upgrades in one drone.
Multiple Parameter Adjustment Modes
Real-time Data
Interaction &
Dual Throttle
Redundancy
Control

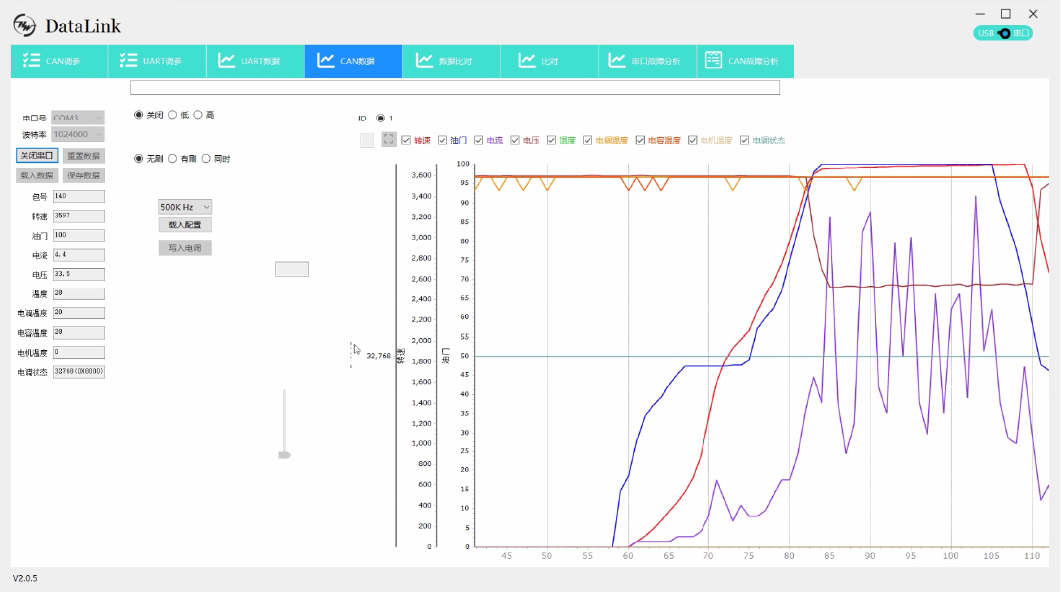

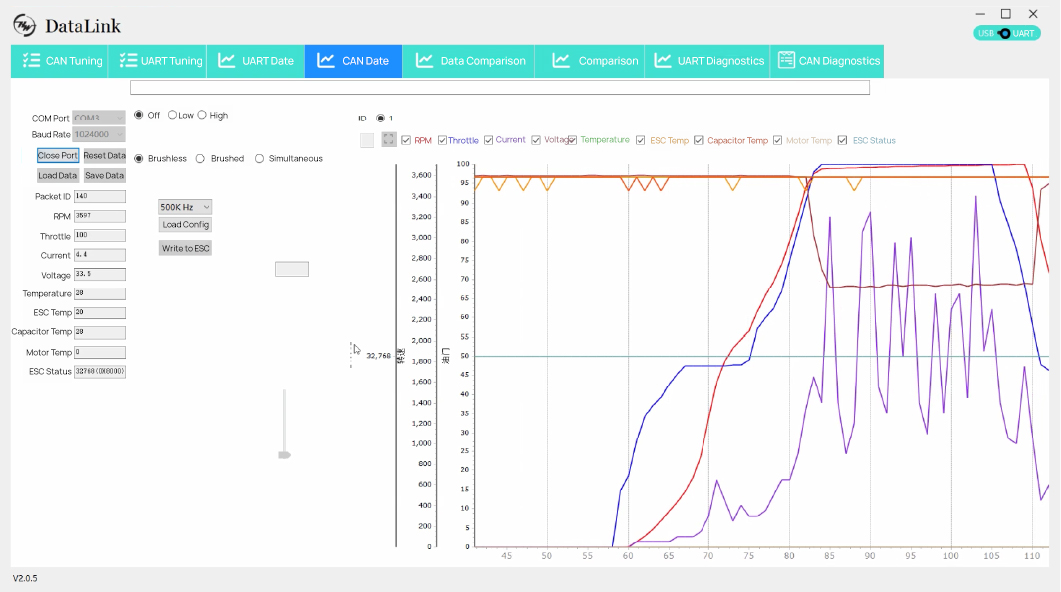

Drone Real-time Data Interaction
The newly added CAN interface enables real-time data exchange with the flight controller system, allowing users to monitor critical flight parameters (such as speed, throttle, current, voltage, temperature) for rapid data analysis and response, enhancing flight safety.
Hybrid CAN Bus & PWM dual-throttle control
The dual throttle control solution integrates CAN bus digital signals and PWM analog signals, improving real-time response and anti-interference capabilities to further enhance flight safety.

Note: The system is reserved for customized DShot digital throttle and corresponding protocol compatibility, meeting the demand for FPV adapting to larger drone frame, and enabling rapid building of the drone system.

DroneCAN and HWCAN support
The product supports DroneCAN and HWCAN (default) protocols. It also enables intercommunication with multiple mainstream flight controller systems, such as ArduPilot open source ecosystem, VK, Byaero, Jiyi, and Borui to build an intelligent flight ecosystem through CAN communication.
Independent Black Box
  • The X8 G2 comes with a new log feature and supports up to 48 hours of operation data
  • storage. In case of abnormal conditions, users can access the data via the host
  • computer software (DataLink) for fast fault diagnosis and troubleshooting.
UAV Propulsion System Black Box

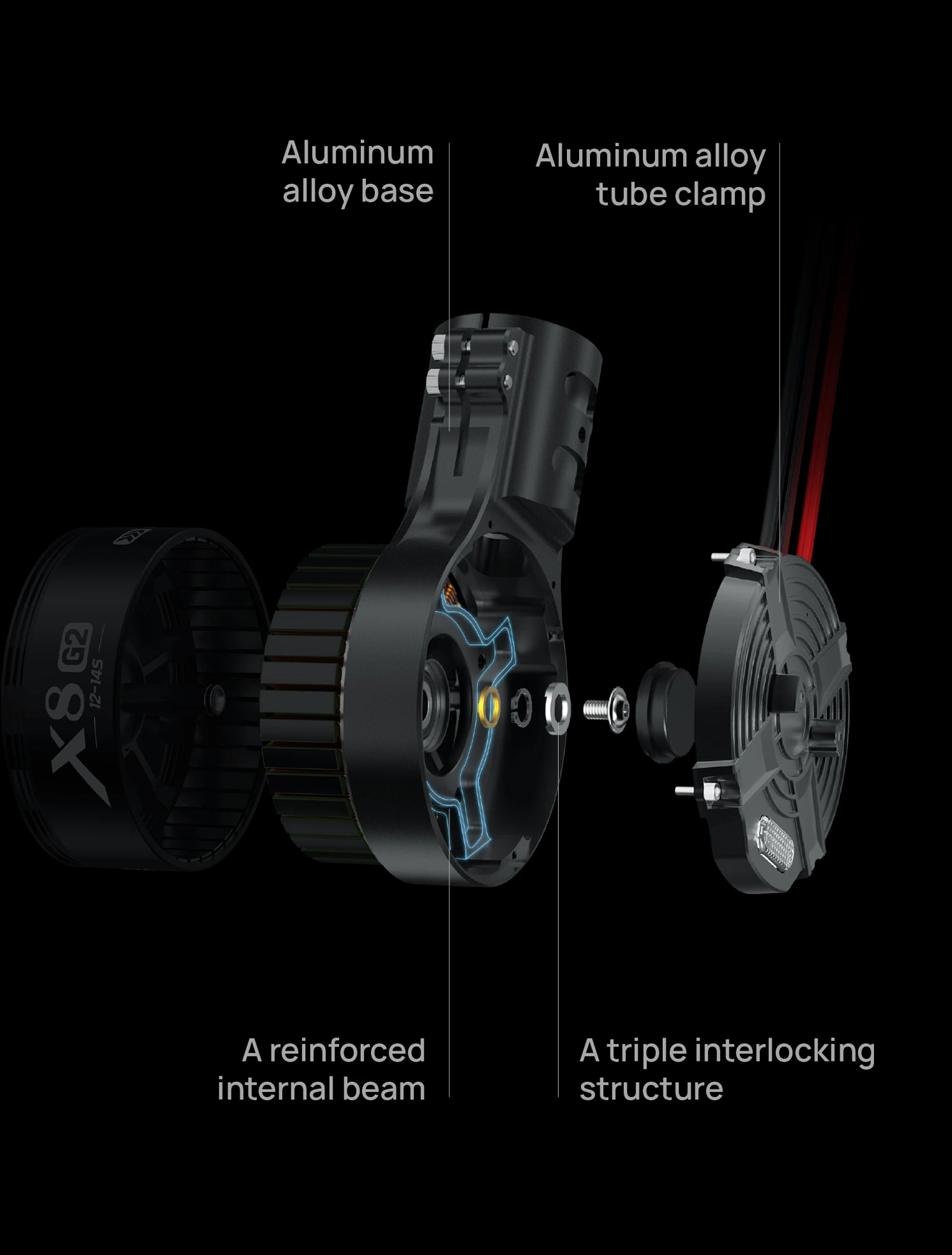

Reliable Structural Design for
Consistent Performance
  • Building on the X8’s optimized structural design, the X8 G2 incorporates aluminum alloy
  • tube clamp and base, a reinforced internal beam, and a triple interlocking structure. This
  • robust design reduces weight while enhancing protection for motor components,
  • ensuring exceptional resistance to drops and impacts for the overall propulsion system,
  • without worrying about intense vibrations during high-speed flights.
Aluminum alloy tube clamp
Aluminum alloy base
A reinforced internal beam
A triple interlocking structure
Reliable Structural
Design for Consistent
Performance
  • Building on the X8’s optimized structural design, the X8 G2 incorporates aluminum alloy
  • tube clamp and base, a reinforced internal beam, and a triple interlocking structure. This
  • robust design reduces weight while enhancing protection for motor components,
  • ensuring exceptional resistance to drops and impacts for the overall propulsion system,
  • without worrying about intense vibrations during high-speed flights.
Ultra-Strong Protection
for
Effortlessly Conquering
Harsh
Environments

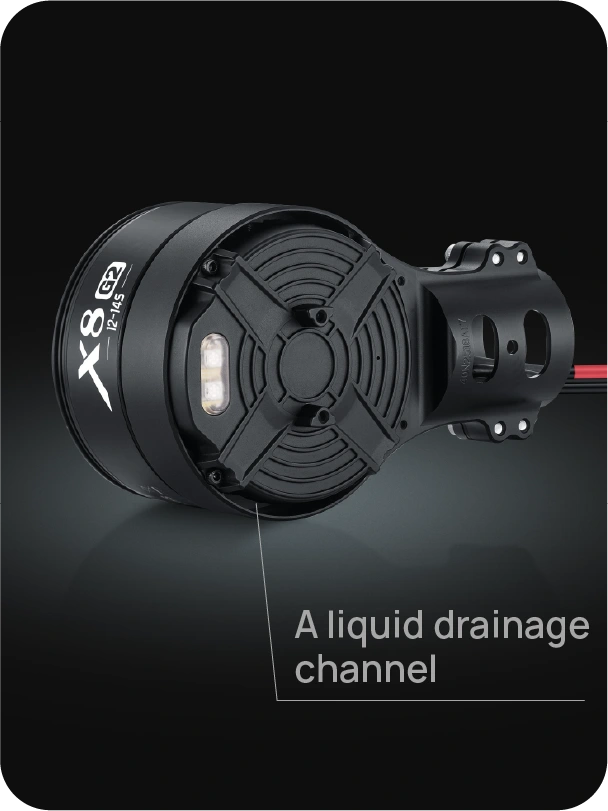

  • The X8 G2 motor is coated with high-temperature resistant enamel wire, capable of
  • withstanding temperatures up to 200℃. With an ingress protection rating of IPX6 and a
  • liquid drainage channel design, it ensures stable performance even during high-speed
  • operations. After use, the motor can be rinsed with water, making it ideal for harsh
  • operating environments commonly encountered in drone applications, such as rain,
  • pesticide mist, high temperatures, and dust.

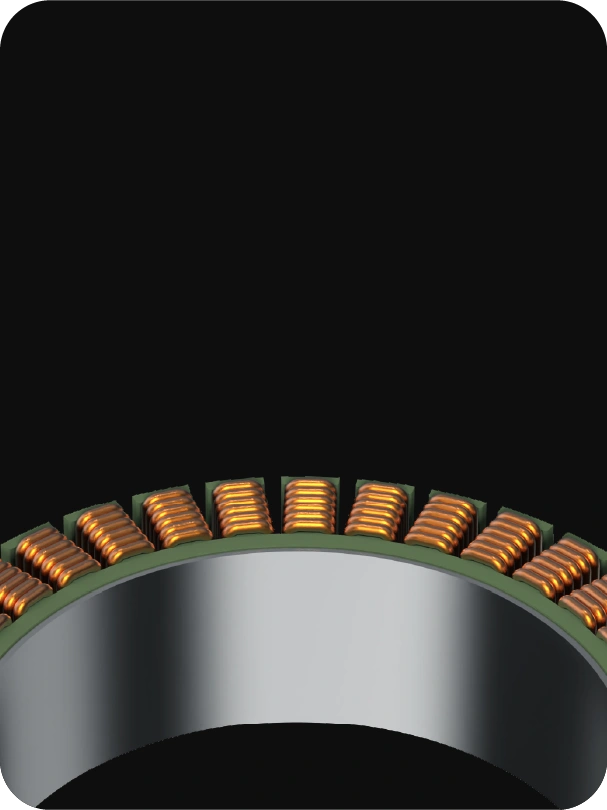

High-temperature Resistant Motor

High-temperature resistant enamel wire, which is capable of withstanding temperatures up to 200℃

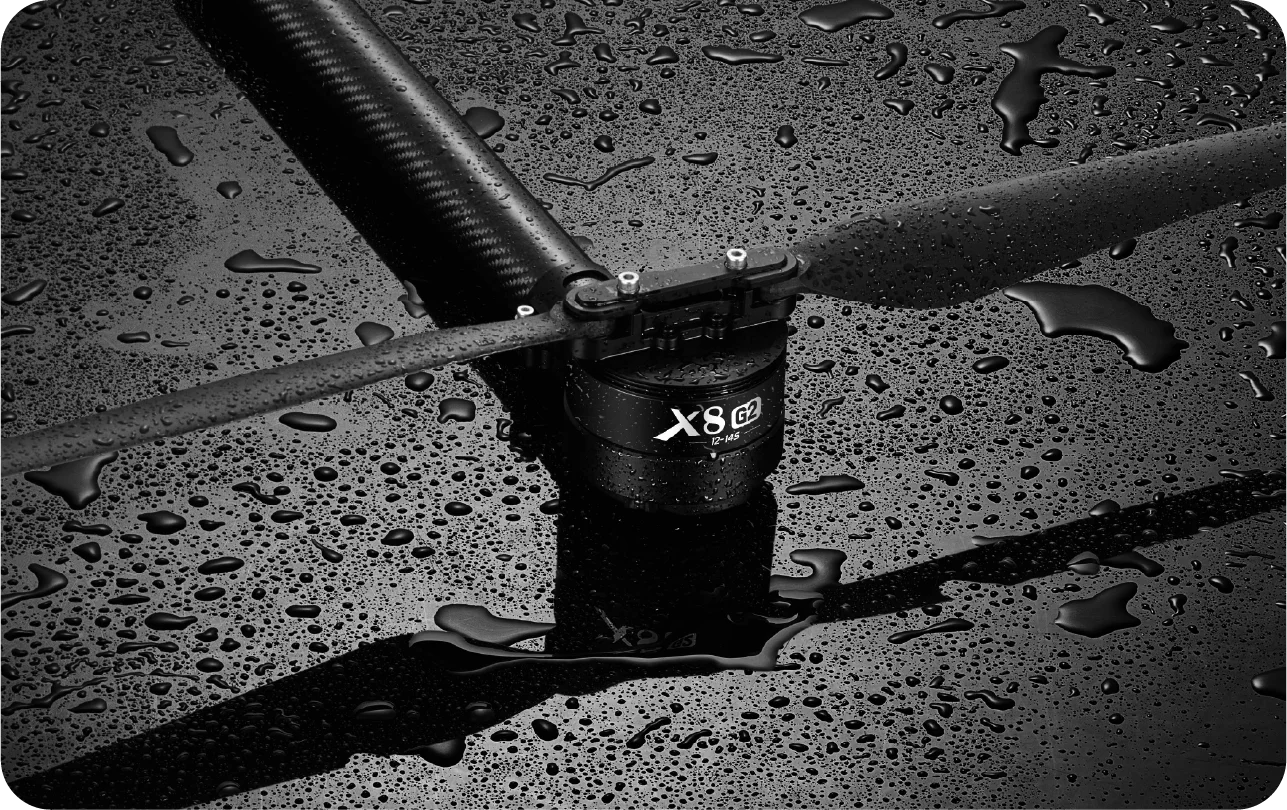

HOBBYWING X8 G2 Integrated Propulsion System

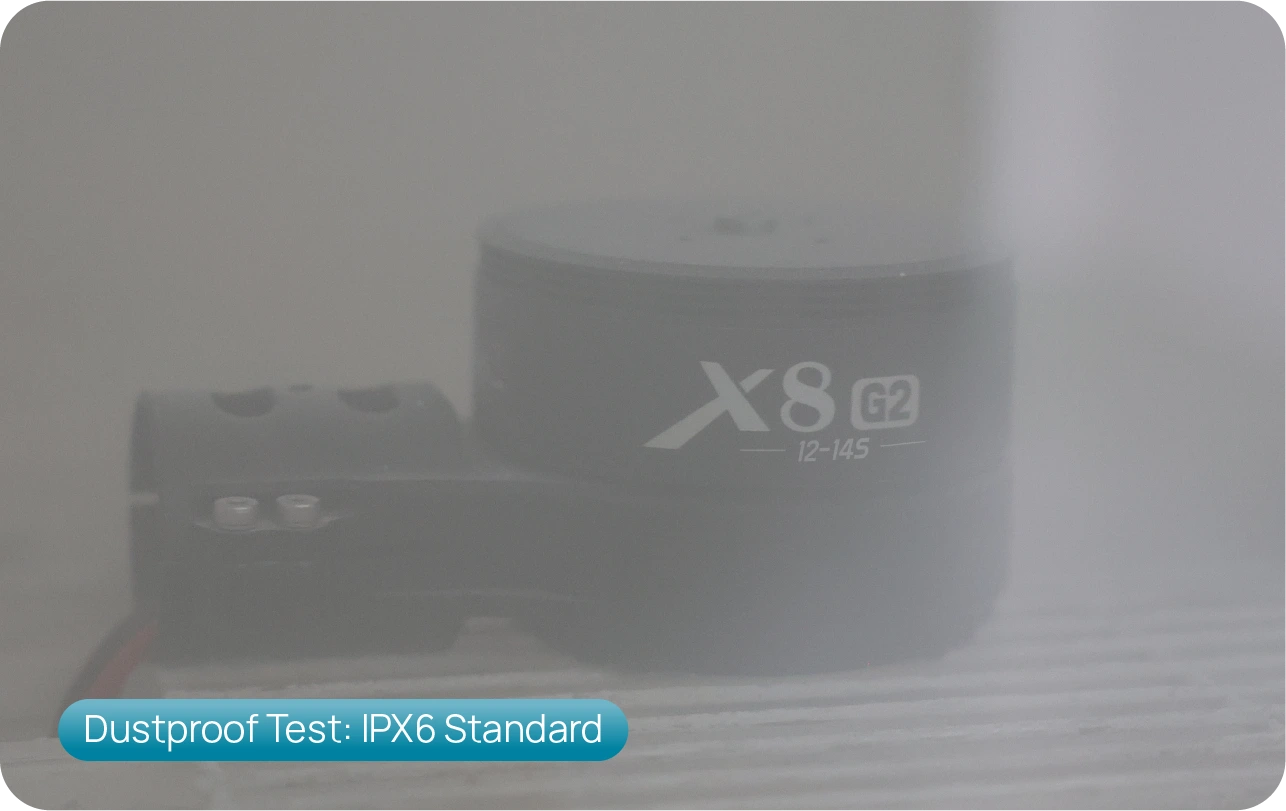

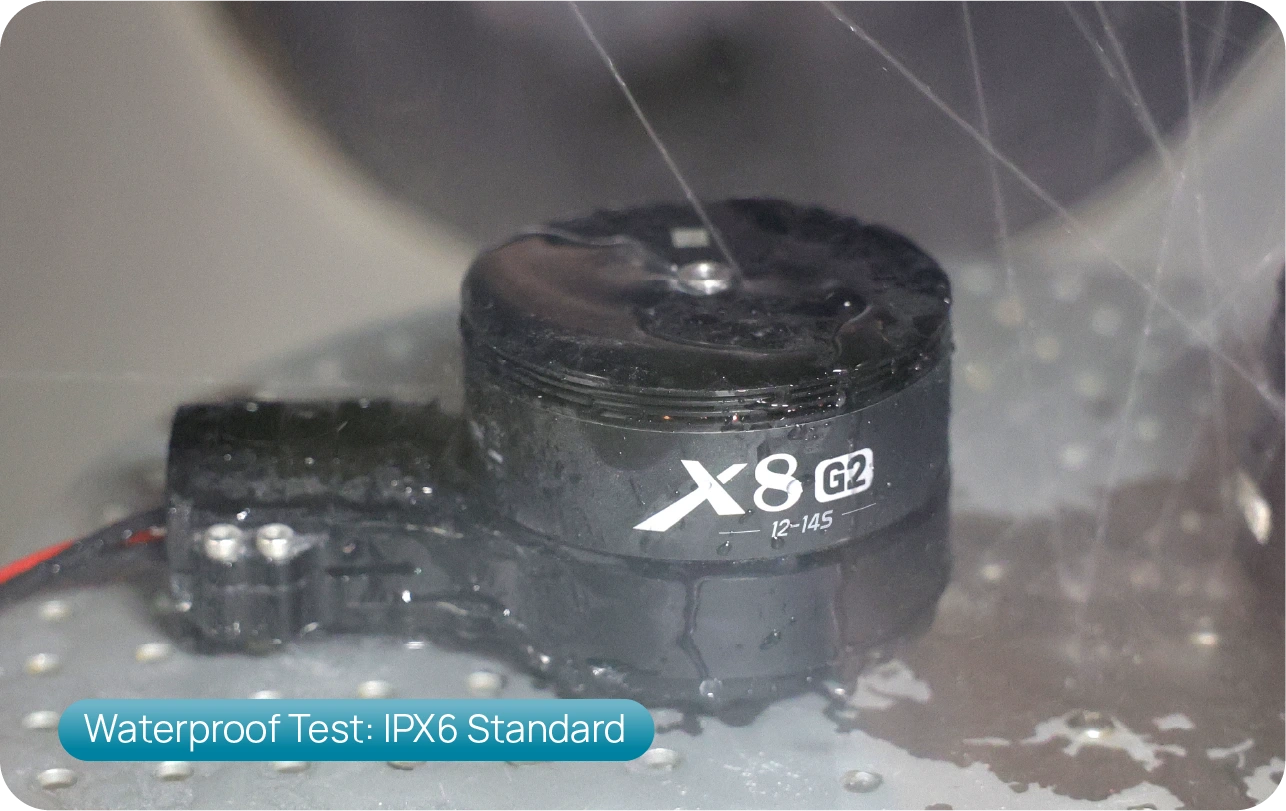

The ingress protection is IPX6

Waterproof Drone ESC Dustproof Drone ESC High-Temperature Drone ESC

Ideal for harsh operating environments commonly encountered in drone applications, such as rain, pesticide mist, high temperatures, and dust.

HOBBYWING Motor and ESC

High-temperature Resistant Motor

High-temperature resistant enamel wire, which is capable of withstanding temperatures up to 200℃

HOBBYWING Motor and ESC

HOBBYWING X8 G2 Integrated Propulsion System

The ingress protection is IPX6

Waterproof Drone ESC Dustproof Drone ESC High-Temperature Drone ESC

Ideal for harsh operating environments commonly encountered in drone applications, such as rain, pesticide mist, high temperatures, and dust.

Multiple Protection
Mechanisms for
Secure Flights
  • The system integrates various software and hardware protection mechanisms,
  • including over-current, motor stall, throttle loss, temperature anomaly monitoring,
  • and over/under-voltage protection, ensuring comprehensive safety during flight.
  • (This protection function can be enabled or disabled as needed, allowing flexible
  • configuration based on the requirements of the overall system.)

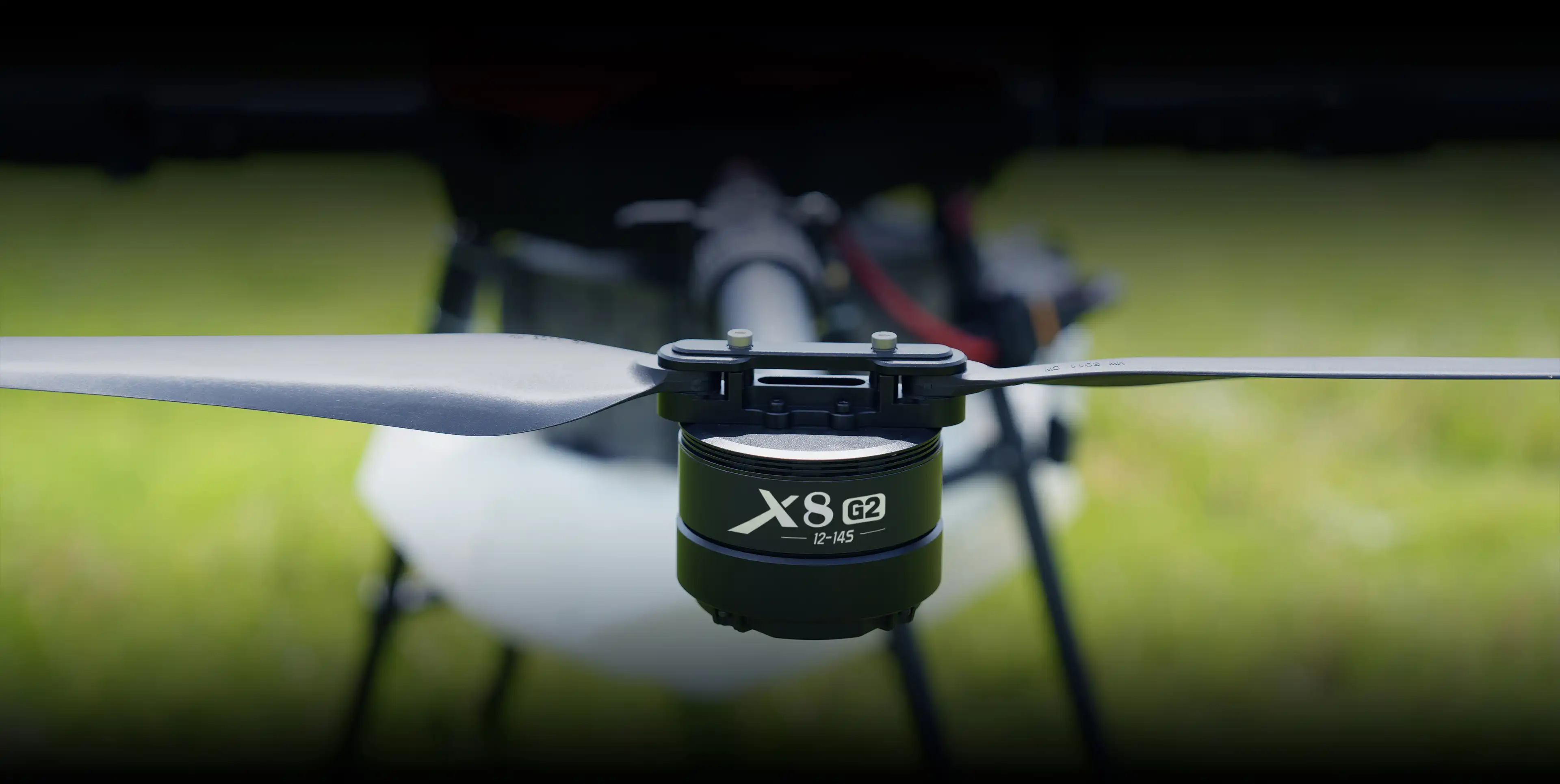

Long-Endurance UAV motor and esc
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team

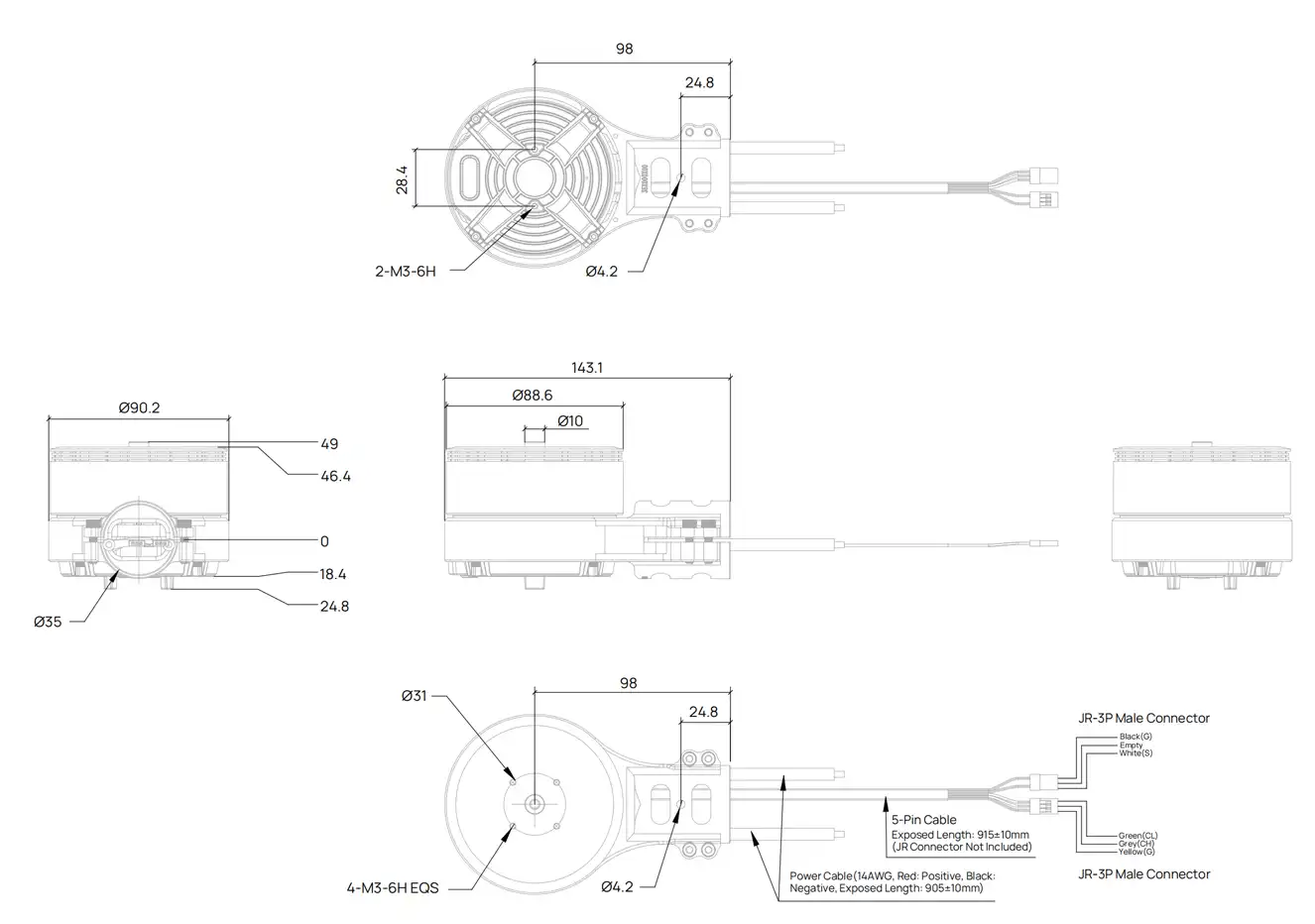

X8-G2 Propulsion System-D35 CAD
HOBBYWING X8 G2 D35

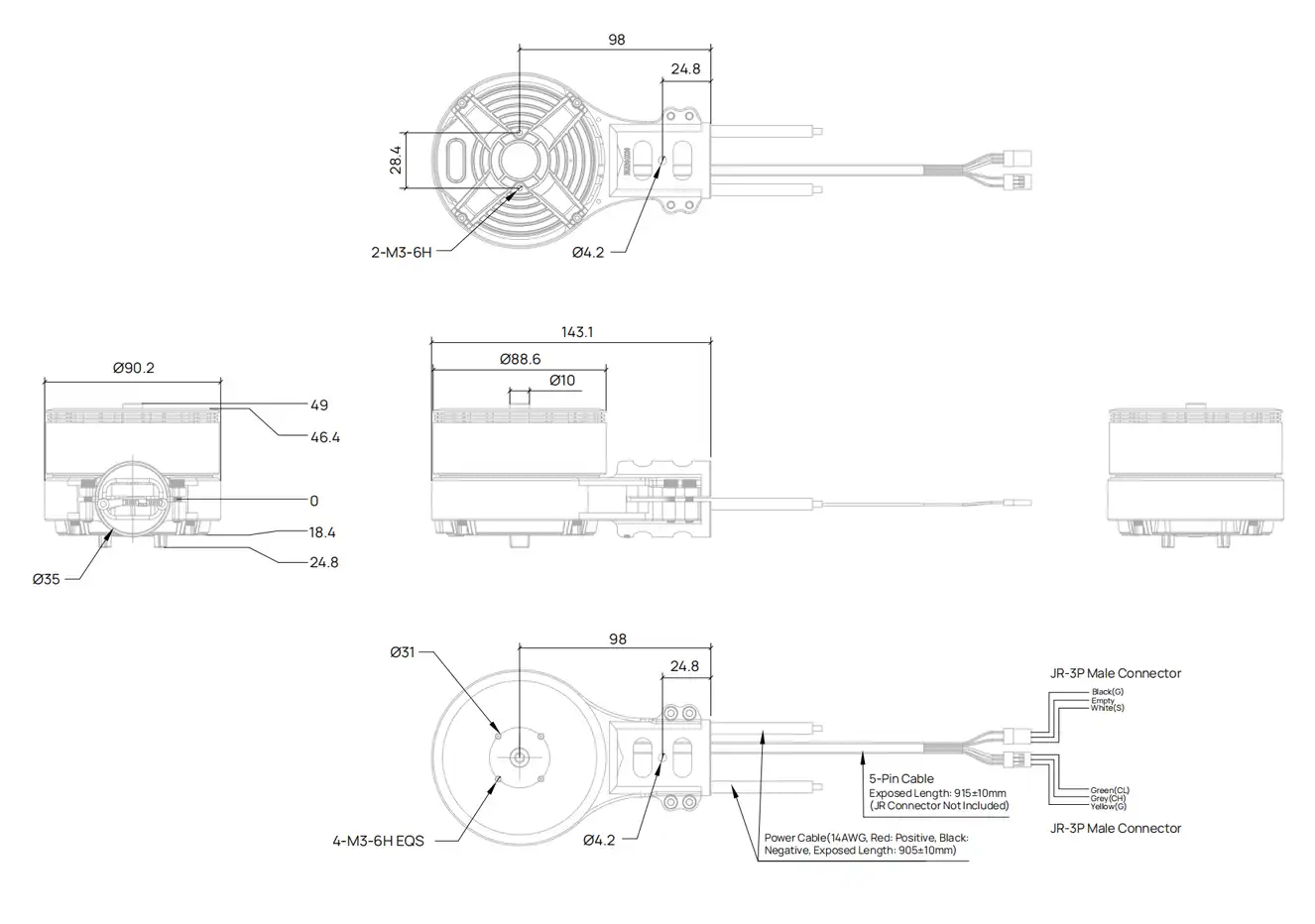

X8-G2 Propulsion System-D40 CAD
HOBBYWING X8 G2 D40
Product NameX8-G2 Propulsion System
Specifications
  • Model
  • Max thrust
  • Recommended takeoff weight per axis
  • Efficiency of recommended takeoff weight
  • Input voltage
  • Rated voltage
  • Lithium compatible
  • Tube outer diameter
  • Weight(with cable and Props)
  • Cable specification
  • Operating temperature
  • Ingress Protection
  • Rated power input
  • Rated power output
  • Pinout
  • X8-G2
  • 17.5kg(54V,Sea level)
  • 5-7 kg(Sea level)
  • 9.7-8.4g/W
  • 18-63V
  • 12S-46V
  • 12S-14S(LiPo)
  • 35/40mm
  • 1095g*
  • Power cable:905mm Signal cable:1150mm
  • -20~50℃
  • IPX6
  • 830W
  • 730W
  • Black-GND, White-PWM & Yellowe-GND, Gray-CH, Green-CL
ESC specification
  • Model
  • Communication protocol
  • Peak current (3 seconds)
  • Continuous current
  • Throttle travel calibration
  • Double throttle signal
  • Operating pulse width
  • Failure storage & Log
  • XRotor 80A-FOC
  • Cyphal(UAVCAN)
  • 80A(3s)
  • 20A
  • Nonsupport
  • PWM+CAN
  • 1050-1950μs
  • Support
Motor specification
  • Model
  • Slot& Pole
  • Motor diameter
  • 8120-100KV
  • 36N40P
  • 88.6 mm
Propeller specification
  • Product Name
  • Model
  • Total Weight
  • Material of Props
  • Single Weight
  • 3011S High speed propeller
  • 30*11"S
  • 193g*
  • Carbon fiber reinforced plastics
  • 54.5g*
Optional Propeller specification
  • Product Name
  • Model
  • Total Weight
  • Material of Props
  • Single Weight
  • 3011 propeller
  • 30*11"
  • 188g*
  • Carbon fiber reinforced plastics
  • 51.6g*
*Subject to the actual product.

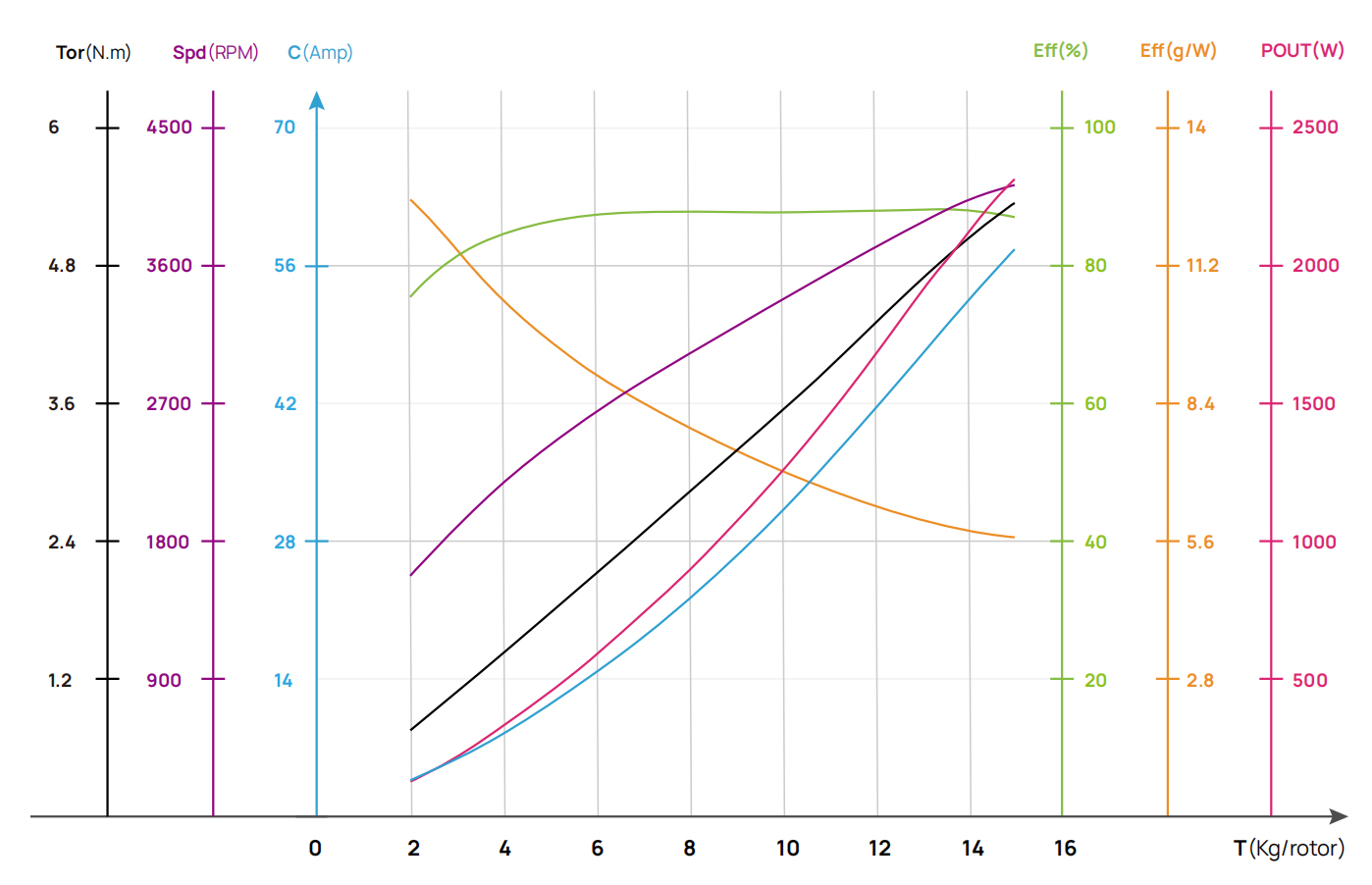

X8 G2 12S & 30*11"-S Load performance parameters
X8 G2 12S & 30*11"-S Technical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

46V(12S LiPo)

30*11"-S

33%

2021

3.5

161.2

1571

12.5

0.74

121.7

/

35%

2021

3.5

161.2

1571

12.5

0.74

121.7

37%

2472

4.4

204.0

1721

12.1

0.89

160.4

39%

2472

4.4

204.0

1721

12.1

0.89

160.4

42%

2968

5.6

256.5

1877

11.6

1.06

208.3

45%

3493

6.9

317.3

2032

11.0

1.24

263.8

48%

3999

8.3

380.4

2171

10.5

1.41

320.5

51%

4476

9.6

443.5

2294

10.1

1.58

379.5

54%

4994

11.2

515.8

2419

9.7

1.76

445.8

57%

5456

12.7

583.9

2524

9.3

1.92

507.4

60%

6043

14.6

674.2

2650

9.0

2.12

588.3

63%

6452

16.1

740.0

2733

8.7

2.26

646.8

66%

6977

18.0

828.9

2836

8.4

2.45

727.6

69%

7951

21.8

1004.4

3017

7.9

2.79

881.4

72%

8500

24.1

1110.3

3115

7.7

2.99

975.3

75%

9050

26.5

1221.7

3212

7.4

3.18

1069.5

78%

10034

31.2

1434.5

3384

7.0

3.55

1257.9

81%

10467

33.3

1533.5

3459

6.8

3.71

1343.8

84%

11007

36.1

1660.6

3553

6.6

3.92

1458.4

87%

11548

38.9

1792.3

3646

6.4

4.13

1576.8

90%

12542

44.4

2042.8

3813

6.1

4.51

1800.7

100%

15006

57.7

2658.5

4132

5.6

5.35

2314.8

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment.Two propeller tests have the same thrust.
X8 G2 14S & 30*11"-S Load performance parameters
X8 G2 14S & 30*11"-S Technical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

54V(14S LiPo)

30*11"-S

33%

3836

6.8

368.7

2094

10.4

1.37

300.4

/

35%

4459

8.4

451.4

2250

9.9

1.58

372.3

37%

4965

9.7

524.4

2371

9.5

1.75

434.5

39%

4965

9.7

524.4

2371

9.5

1.75

434.5

42%

6007

12.7

688.6

2602

8.7

2.12

577.6

45%

6450

14.1

763.2

2694

8.5

2.28

643.2

48%

7031

16.0

864.8

2810

8.1

2.48

729.7

51%

8026

19.4

1048.4

2995

7.7

2.83

887.5

54%

8552

21.3

1149.4

3088

7.4

3.02

976.5

57%

9509

24.8

1342.4

3248

7.1

3.35

1139.4

60%

10495

28.7

1552.8

3403

6.8

3.70

1318.4

63%

11062

31.1

1680.3

3489

6.6

3.89

1421.2

66%

12045

35.4

1912.8

3633

6.3

4.24

1613.0

69%

12992

39.9

2152.8

3766

6.0

4.57

1802.2

72%

13506

42.4

2290.0

3836

5.9

4.76

1912.0

75%

14456

47.3

2555.3

3962

5.7

5.10

2115.8

78%

14984

50.2

2710.3

4031

5.5

5.29

2232.9

81%

15544

53.3

2879.3

4101

5.4

5.49

2357.5

84%

16017

56.0

3025.6

4160

5.3

5.67

2469.9

87%

16518

59.0

3184.3

4219

5.2

5.85

2584.4

90%

17005

61.9

3340.3

4276

5.1

6.02

2695.6

100%

17464

64.7

3489.8

4326

5.0

6.18

2799.4

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment.Two propeller tests have the same thrust.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

FAQ

XRotor X8 G2

X8 G2New-Generation Integrated Drone Propulsion System

  • The brand-new generation X8 G2 is originated from the mature X8 integrated propulsion system
  • refined through years of market experience. It not only builds on the reliable experience
  • accumulated from extensive practical agricultural applications, but also incorporates
  • cutting-edge technologies to meet the evolving needs of industries such as logistics, training
  • and education, delivering a comprehensive upgrade in both functionality and performance.
  • Specifically designed
    for small and
    medium-sized drones
  • More lightweight
    design
  • Ensures high-speed
    cruising, superior stability,
    and extended lifespan
  • Flexible communication
    options

X8 G2New-Generation Integrated Drone
Propulsion System

  • The brand-new generation X8 G2 is originated from the mature X8 integrated propulsion system
  • refined through years of market experience. It not only builds on the reliable experience
  • accumulated from extensive practical agricultural applications, but also incorporates
  • cutting-edge technologies to meet the evolving needs of industries such as logistics, training
  • and education, delivering a comprehensive upgrade in both functionality and performance.
  • Specifically designed
    for small and
    medium-sized drones
  • Ensures high-speed
    cruising, superior stability,
    and extended lifespan
  • More lightweight
    design
  • Flexible communication
    options
Powerful Thrust &
High-speed Flight

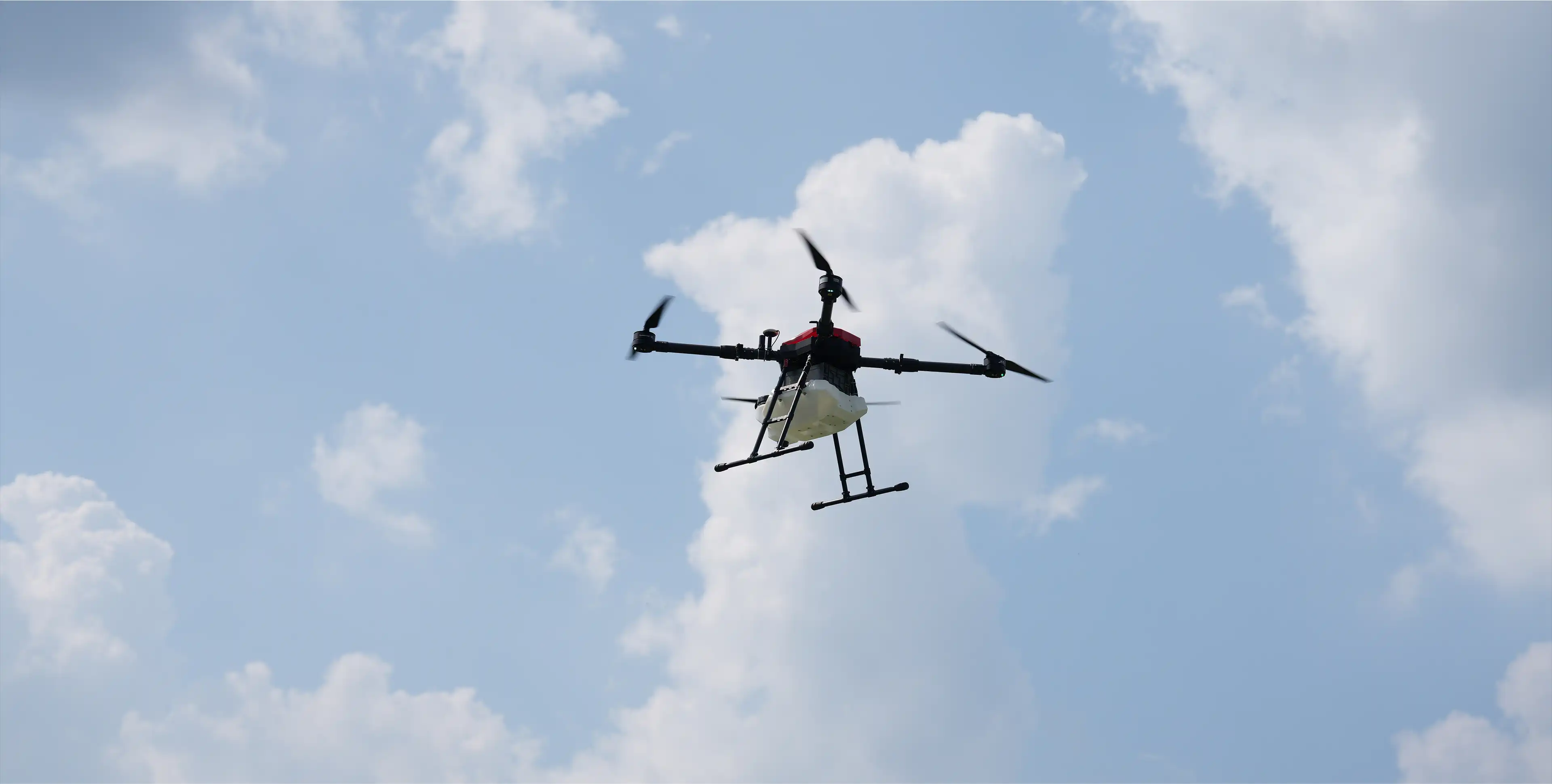

HOBBYWING UAV Propulsion Solution
A single-axis
rated thrust of
5-7.5kg
The maximum flight
speed reaches up to
20m/s
The maximum flight
speed has increased by
40%
HOBBYWING 3011S Drone Folding Propeller
Paired with the all-new
3011Sfolding propeller
Drone Motor and ESC
The X8 G2
reduces weight by 5%
while retaining the X8’s
maximum thrust advantage

(*Based on internal test data from HOBBYWING, comparative calculation of battery capacity consumption over the same flight distance was obtained at forward flight speeds of 12 m/s and 20 m/s on a quadcopter flying at sea level in 34 °C ambient temperature, both no-load and at rated payload. Actual results may vary with different airframe configurations, battery models, and test conditions, for reference only.)

Long Endurance Propulsion System For Industrial Drone
A high-speed flight of
20m/s can increase
the drone's flight
endurance by
approximately
without changing the
battery capacity of the
entire drone.
10%*
Seamless
Upgrade from
Previous
Products
  • The X8 propulsion system has been trusted by a
  • vast number of users for years since its
  • introduction. The new-generation X8 G2 requires no
  • structural modifications to upgrade. Existing X8
  • users can complete the transition easily with
  • minimal tuning, including overall device installation,
  • flight controller matching, and flight operation
  • settings—while achieving a brand-new experience.
  • New customers can immediately benefit from the
  • outstanding performance of X8 G2.

  • Both the 3011S (with propeller adapter) and the 3011 (with propeller adapter) are fully compatible with the installation structures of the two generations of X8 and can be directly interchanged for installation (only one combination is allowed on one drone).
HOBBYWING X8 G2 Drone Propulsion System
Overall Device Installation
Long-Endurance UAV Integrated Propulsion System KitFlight Controller Matching
Industrial Drone Propulsion SystemFlight Operation Settings
Multiple Parameter
Adjustment Modes
for Easy Use
  • Users can adjust the drive parameters, motor rotation direction, LED color, and other
  • settings via the remote controller or DataLink software, optimizing flight performance
  • based on application needs. Additionally, the dedicated OTA function of the DataLink
  • host computer software facilitates efficient multi-ESC firmware upgrades in one drone.
Multiple Parameter Adjustment Modes
Real-time Data
Interaction &
Dual Throttle
Redundancy
Control
Drone Real-time Data Interaction
The newly added CAN interface enables real-time data exchange with the flight controller system, allowing users to monitor critical flight parameters (such as speed, throttle, current, voltage, temperature) for rapid data analysis and response, enhancing flight safety.
Hybrid CAN Bus & PWM dual-throttle control
The dual throttle control solution integrates CAN bus digital signals and PWM analog signals, improving real-time response and anti-interference capabilities to further enhance flight safety.

Note: The system is reserved for customized DShot digital throttle and corresponding protocol compatibility, meeting the demand for FPV adapting to larger drone frame, and enabling rapid building of the drone system.

DroneCAN and HWCAN support
The product supports DroneCAN and HWCAN (default) protocols. It also enables intercommunication with multiple mainstream flight controller systems, such as ArduPilot open source ecosystem, VK, Byaero, Jiyi, and Borui to build an intelligent flight ecosystem through CAN communication.
Independent Black Box
  • The X8 G2 comes with a new log feature and supports up to 48 hours of operation data
  • storage. In case of abnormal conditions, users can access the data via the host
  • computer software (DataLink) for fast fault diagnosis and troubleshooting.
UAV Propulsion System Black Box
Reliable Structural Design for
Consistent Performance
  • Building on the X8’s optimized structural design, the X8 G2 incorporates aluminum alloy
  • tube clamp and base, a reinforced internal beam, and a triple interlocking structure. This
  • robust design reduces weight while enhancing protection for motor components,
  • ensuring exceptional resistance to drops and impacts for the overall propulsion system,
  • without worrying about intense vibrations during high-speed flights.
Aluminum alloy tube clamp
Aluminum alloy base
A reinforced internal beam
A triple interlocking structure
Reliable Structural
Design for Consistent
Performance
  • Building on the X8’s optimized structural design, the X8 G2 incorporates aluminum alloy
  • tube clamp and base, a reinforced internal beam, and a triple interlocking structure. This
  • robust design reduces weight while enhancing protection for motor components,
  • ensuring exceptional resistance to drops and impacts for the overall propulsion system,
  • without worrying about intense vibrations during high-speed flights.
Ultra-Strong Protection
for
Effortlessly Conquering
Harsh
Environments
  • The X8 G2 motor is coated with high-temperature resistant enamel wire, capable of
  • withstanding temperatures up to 200℃. With an ingress protection rating of IPX6 and a
  • liquid drainage channel design, it ensures stable performance even during high-speed
  • operations. After use, the motor can be rinsed with water, making it ideal for harsh
  • operating environments commonly encountered in drone applications, such as rain,
  • pesticide mist, high temperatures, and dust.
High-temperature Resistant Motor

High-temperature resistant enamel wire, which is capable of withstanding temperatures up to 200℃

HOBBYWING X8 G2 Integrated Propulsion System

The ingress protection is IPX6

Waterproof Drone ESC Dustproof Drone ESC High-Temperature Drone ESC

Ideal for harsh operating environments commonly encountered in drone applications, such as rain, pesticide mist, high temperatures, and dust.

HOBBYWING Motor and ESC

High-temperature Resistant Motor

High-temperature resistant enamel wire, which is capable of withstanding temperatures up to 200℃

HOBBYWING Motor and ESC

HOBBYWING X8 G2 Integrated Propulsion System

The ingress protection is IPX6

Waterproof Drone ESC Dustproof Drone ESC High-Temperature Drone ESC

Ideal for harsh operating environments commonly encountered in drone applications, such as rain, pesticide mist, high temperatures, and dust.

Multiple Protection
Mechanisms for
Secure Flights
  • The system integrates various software and hardware protection mechanisms,
  • including over-current, motor stall, throttle loss, temperature anomaly monitoring,
  • and over/under-voltage protection, ensuring comprehensive safety during flight.
  • (This protection function can be enabled or disabled as needed, allowing flexible
  • configuration based on the requirements of the overall system.)
Long-Endurance UAV motor and esc
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
X8-G2 Propulsion System-D35 CAD
HOBBYWING X8 G2 D35
X8-G2 Propulsion System-D40 CAD
HOBBYWING X8 G2 D40
Product NameX8-G2 Propulsion System
Specifications
  • Model
  • Max thrust
  • Recommended takeoff weight per axis
  • Efficiency of recommended takeoff weight
  • Input voltage
  • Rated voltage
  • Lithium compatible
  • Tube outer diameter
  • Weight(with cable and Props)
  • Cable specification
  • Operating temperature
  • Ingress Protection
  • Rated power input
  • Rated power output
  • Pinout
  • X8-G2
  • 17.5kg(54V,Sea level)
  • 5-7 kg(Sea level)
  • 9.7-8.4g/W
  • 18-63V
  • 12S-46V
  • 12S-14S(LiPo)
  • 35/40mm
  • 1095g*
  • Power cable:905mm Signal cable:1150mm
  • -20~50℃
  • IPX6
  • 830W
  • 730W
  • Black-GND, White-PWM & Yellowe-GND, Gray-CH, Green-CL
ESC specification
  • Model
  • Communication protocol
  • Peak current (3 seconds)
  • Continuous current
  • Throttle travel calibration
  • Double throttle signal
  • Operating pulse width
  • Failure storage & Log
  • XRotor 80A-FOC
  • Cyphal(UAVCAN)
  • 80A(3s)
  • 20A
  • Nonsupport
  • PWM+CAN
  • 1050-1950μs
  • Support
Motor specification
  • Model
  • Slot& Pole
  • Motor diameter
  • 8120-100KV
  • 36N40P
  • 88.6 mm
Propeller specification
  • Product Name
  • Model
  • Total Weight
  • Material of Props
  • Single Weight
  • 3011S High speed propeller
  • 30*11"S
  • 193g*
  • Carbon fiber reinforced plastics
  • 54.5g*
Optional Propeller specification
  • Product Name
  • Model
  • Total Weight
  • Material of Props
  • Single Weight
  • 3011 propeller
  • 30*11"
  • 188g*
  • Carbon fiber reinforced plastics
  • 51.6g*
*Subject to the actual product.
X8 G2 12S & 30*11"-S Load performance parameters
X8 G2 12S & 30*11"-S Technical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

46V(12S LiPo)

30*11"-S

33%

2021

3.5

161.2

1571

12.5

0.74

121.7

/

35%

2021

3.5

161.2

1571

12.5

0.74

121.7

37%

2472

4.4

204.0

1721

12.1

0.89

160.4

39%

2472

4.4

204.0

1721

12.1

0.89

160.4

42%

2968

5.6

256.5

1877

11.6

1.06

208.3

45%

3493

6.9

317.3

2032

11.0

1.24

263.8

48%

3999

8.3

380.4

2171

10.5

1.41

320.5

51%

4476

9.6

443.5

2294

10.1

1.58

379.5

54%

4994

11.2

515.8

2419

9.7

1.76

445.8

57%

5456

12.7

583.9

2524

9.3

1.92

507.4

60%

6043

14.6

674.2

2650

9.0

2.12

588.3

63%

6452

16.1

740.0

2733

8.7

2.26

646.8

66%

6977

18.0

828.9

2836

8.4

2.45

727.6

69%

7951

21.8

1004.4

3017

7.9

2.79

881.4

72%

8500

24.1

1110.3

3115

7.7

2.99

975.3

75%

9050

26.5

1221.7

3212

7.4

3.18

1069.5

78%

10034

31.2

1434.5

3384

7.0

3.55

1257.9

81%

10467

33.3

1533.5

3459

6.8

3.71

1343.8

84%

11007

36.1

1660.6

3553

6.6

3.92

1458.4

87%

11548

38.9

1792.3

3646

6.4

4.13

1576.8

90%

12542

44.4

2042.8

3813

6.1

4.51

1800.7

100%

15006

57.7

2658.5

4132

5.6

5.35

2314.8

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment.Two propeller tests have the same thrust.
X8 G2 14S & 30*11"-S Load performance parameters
X8 G2 14S & 30*11"-S Technical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

54V(14S LiPo)

30*11"-S

33%

3836

6.8

368.7

2094

10.4

1.37

300.4

/

35%

4459

8.4

451.4

2250

9.9

1.58

372.3

37%

4965

9.7

524.4

2371

9.5

1.75

434.5

39%

4965

9.7

524.4

2371

9.5

1.75

434.5

42%

6007

12.7

688.6

2602

8.7

2.12

577.6

45%

6450

14.1

763.2

2694

8.5

2.28

643.2

48%

7031

16.0

864.8

2810

8.1

2.48

729.7

51%

8026

19.4

1048.4

2995

7.7

2.83

887.5

54%

8552

21.3

1149.4

3088

7.4

3.02

976.5

57%

9509

24.8

1342.4

3248

7.1

3.35

1139.4

60%

10495

28.7

1552.8

3403

6.8

3.70

1318.4

63%

11062

31.1

1680.3

3489

6.6

3.89

1421.2

66%

12045

35.4

1912.8

3633

6.3

4.24

1613.0

69%

12992

39.9

2152.8

3766

6.0

4.57

1802.2

72%

13506

42.4

2290.0

3836

5.9

4.76

1912.0

75%

14456

47.3

2555.3

3962

5.7

5.10

2115.8

78%

14984

50.2

2710.3

4031

5.5

5.29

2232.9

81%

15544

53.3

2879.3

4101

5.4

5.49

2357.5

84%

16017

56.0

3025.6

4160

5.3

5.67

2469.9

87%

16518

59.0

3184.3

4219

5.2

5.85

2584.4

90%

17005

61.9

3340.3

4276

5.1

6.02

2695.6

100%

17464

64.7

3489.8

4326

5.0

6.18

2799.4

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment.Two propeller tests have the same thrust.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

FAQ
