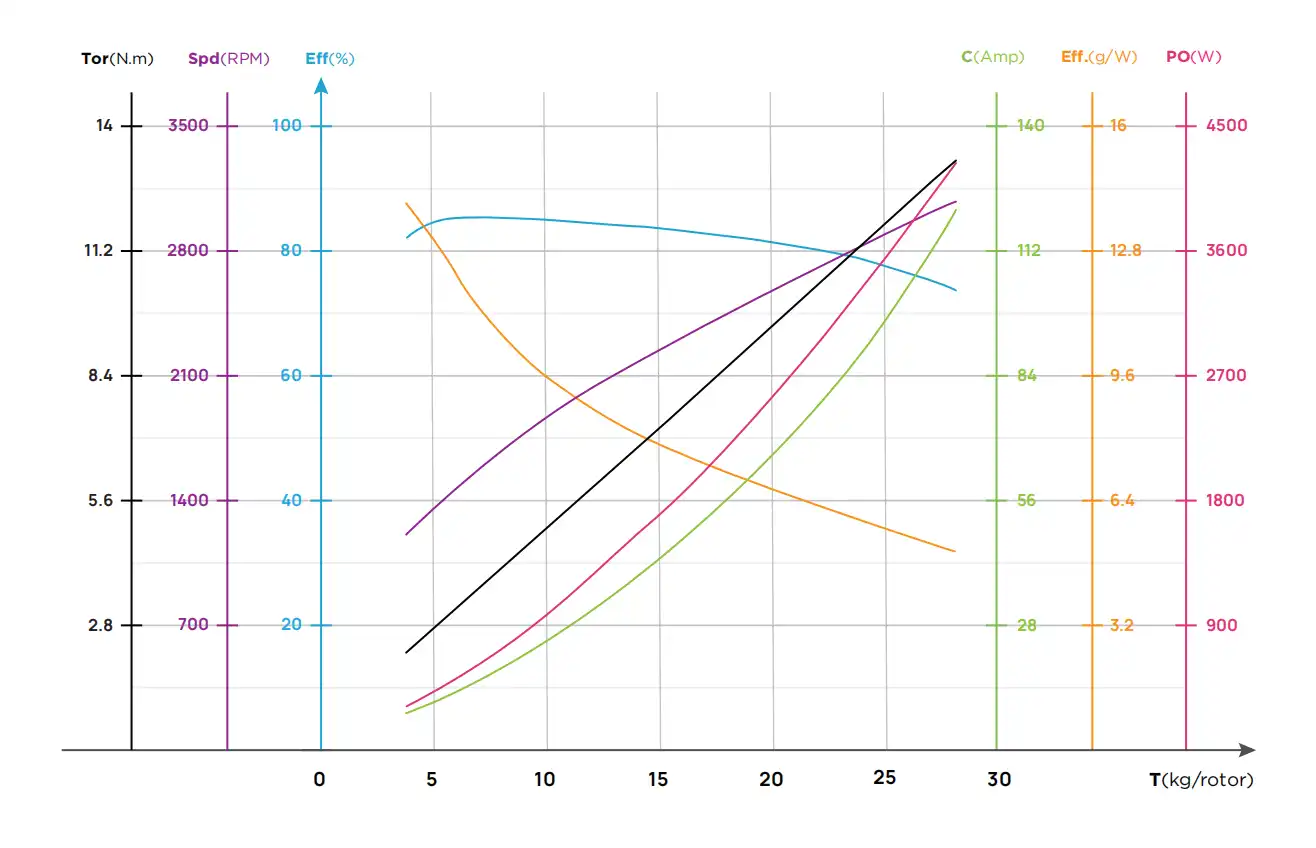

Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
MFP 43x14 |
37% |
4992 |
7.9 |
377.9 |
1278 |
13.2 |
2.36 |
315.8 |
/ |
|
39% |
5971 |
10.1 |
484.1 |
1395 |
12.3 |
2.80 |
409.0 |
|||
|
42% |
7019 |
12.8 |
613.4 |
1513 |
11.4 |
3.28 |
519.6 |
|||
|
45% |
7936 |
15.4 |
737.9 |
1610 |
10.8 |
3.71 |
625.5 |
|||
|
48% |
9079 |
18.8 |
905.0 |
1723 |
10.0 |
4.24 |
765.0 |
|||
|
51% |
11077 |
25.5 |
1226.5 |
1902 |
9.0 |
5.17 |
1029.7 |
|||
|
54% |
11906 |
28.5 |
1368.9 |
1971 |
8.7 |
5.56 |
1147.5 |
|||
|
57% |
12967 |
32.5 |
1559.2 |
2055 |
8.3 |
6.05 |
1301.9 |
|||
|
60% |
14054 |
36.7 |
1762.6 |
2137 |
8.0 |
6.56 |
1467.9 |
|||
|
63% |
16074 |
45.1 |
2166.6 |
2280 |
7.4 |
7.49 |
1788.2 |
|||
|
66% |
16995 |
49.2 |
2363.1 |
2343 |
7.2 |
7.92 |
1943.1 |
|||
|
69% |
19107 |
59.3 |
2847.1 |
2484 |
6.7 |
8.89 |
2312.3 |
|||
|
72% |
20055 |
64.2 |
3082.2 |
2546 |
6.5 |
9.33 |
2487.3 |
|||
|
75% |
21002 |
69.4 |
3330.5 |
2608 |
6.3 |
9.78 |
2670.8 |
|||
|
78% |
23089 |
81.9 |
3928.9 |
2745 |
5.9 |
10.76 |
3092.8 |
|||
|
81% |
23977 |
87.7 |
4208.3 |
2802 |
5.7 |
11.18 |
3280.2 |
|||
|
84% |
25027 |
95.1 |
4561.9 |
2869 |
5.5 |
11.68 |
3508.9 |
|||
|
87% |
25985 |
102.3 |
4906.9 |
2929 |
5.3 |
12.13 |
3720.3 |
|||
|
90% |
26967 |
110.2 |
5283.8 |
2989 |
5.1 |
12.59 |
3940.5 |
|||
|
100% |
28145 |
120.4 |
5771.7 |
3056 |
4.9 |
13.14 |
4204.8 |
-
Drone Propulsion Systems
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- X Series
- H Series
- P Series
-
-
-
- PROPELLER Superior efficiency, exceptional stability.
- Carbon Plastic Propeller
- Carbon Fiber Propeller
-
- CENTRIFUGAL NOZZLE Efficient atomizing, precise spraying.
- 9L
-
- WATER PUMP Minimal maintenance, long service life.
- 5L
- 8L
- 30L
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- P Series
-
-
-
- PROPELLER Powerful burst, high intensity.
- Carbon Fiber Propeller
-
- Fixed-Wing UAV Cruise Motor Convenient, efficient and stable.
- 72XX
- 80XX
-
-
RC Power Systems
RC Cars Power SystemRC Boat Power System
-
e-Vehicle Power Systems
Electric MotorcycleElectric SkateboardElectric Scooter
- Service and Support
- Rated thrust per axis
- 12-14kg
- Maximum thrust
- 28kg
- Compare with the previous version X9 Plus, the recommended takeoff weight has increased by
- 1kg
used with the
MFP 43x14propeller
Increased Efficiency
12%Within same thrust range of previous generation model
20L
agricultural drones
Class IV UAVs
Adjustment Modes
- Parameter Adjustment via Remote Controller
- Quickly adjust navigation light colors and motor
rotation directions via the remote controller,
without the need for a DataLinkBox .

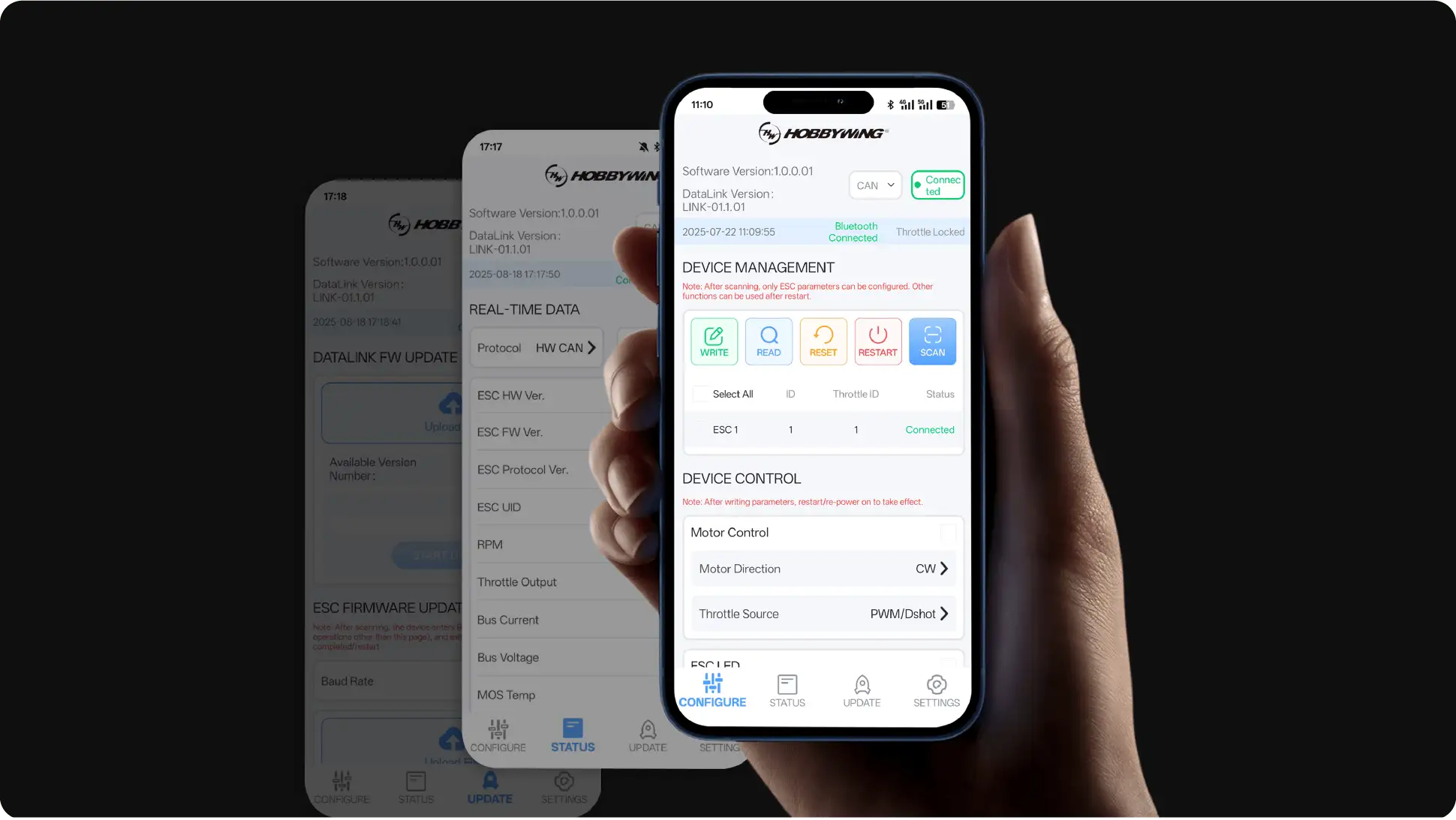

- Parameter Adjustment via Bluetooth in the Mobile APP
- Using the DataLinkBox G3 paired with the HOBBYWING DataLink V3 app
(compatible with Android and iOS; Huawei HarmonyOS currently not supported),
quickly configure 90% of ESC parameters via Bluetooth outdoors.

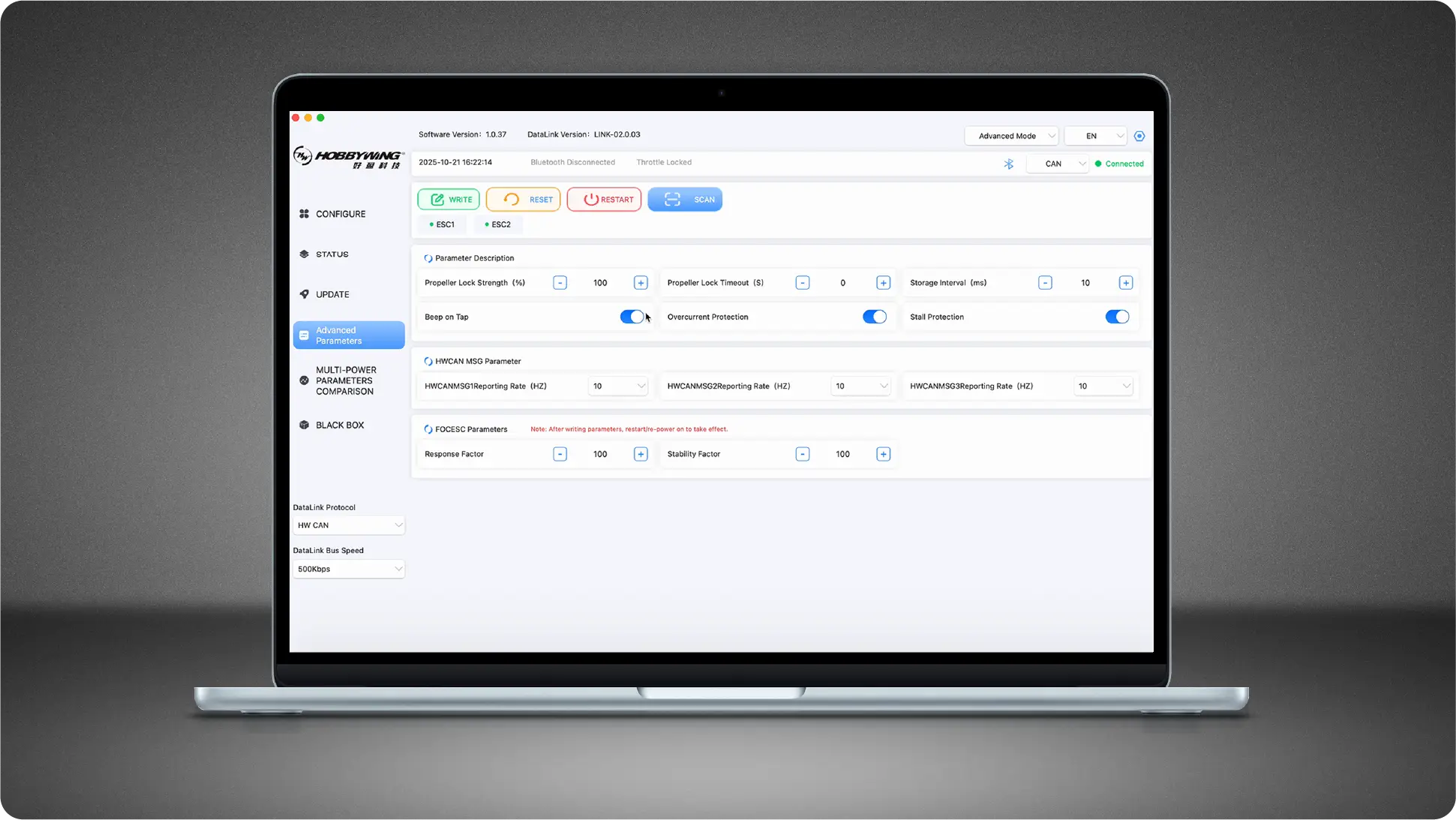

- Parameter Adjustment via PC Software
- Using the PC-side DataLink host software with the DataLinkBox,
supporting all open parameter settings (including advanced parameters) of the ESC.

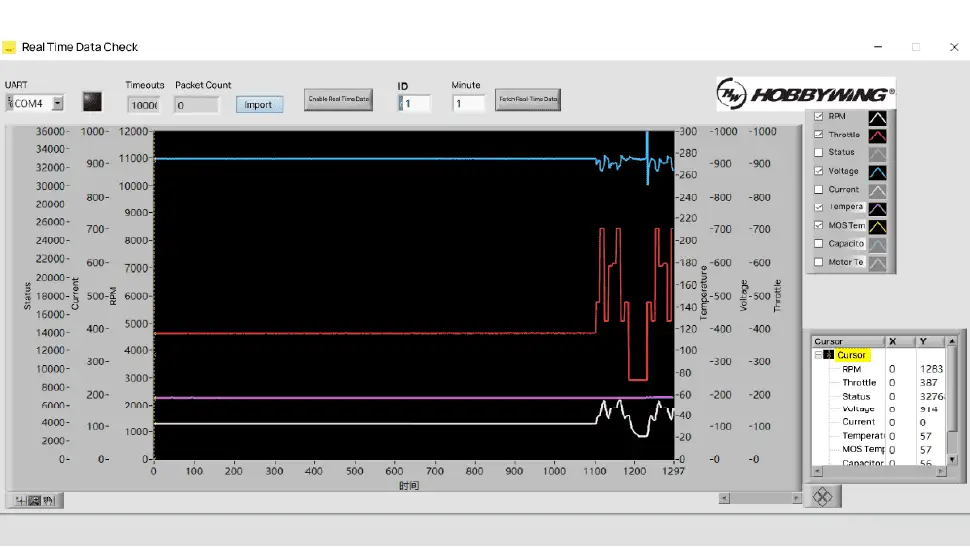

Storage Logic
- Fault Storage
- Precisely records fault data within
milliseconds for easier fault analysis and
ESC maintenance information logging.
- Log Black Box
- Records ESC operating data in real
time to trace flight process.
The default recording duration is
1 hours, up to 24 hours.
Control Architecture
- Flatland Mode
- Ideal for flat areas, offering stable motor
rotation speed output and precise speed
control within the operating voltage range.
- Highland Mode
- Suitable for high-altitude areas,
automatically adjusting motor rotation speeds
within a certain range as altitude increases
to adapt to high-altitude operations.
(Customizable on request)
- Flatland Mode
- Ideal for flat areas, offering stable motor
rotation speed output and precise speed
control within the operating voltage range.
- Highland Mode
- Suitable for high-altitude areas,
automatically adjusting motor rotation speeds
within a certain range as altitude increases
to adapt to high-altitude operations.
(Customizable on request)
Optimal Heat Dissipation
The newest rectangular vent design greatly
improves heat dissipation efficiency,
while still preventing dirt and impurities from entering the motor.
Redundancy Control
New dual throttle control scheme (PWM analog signal + CAN bus digital signal)
enhances real-time responsiveness and anti-interference performance,
ensuring precise throttle control and more reliable flight.
Analog throttle
Digital throttle
High-speed dynamic response, even under standalone GPS operation without RTK,
it can maintain stable position holding,
further enhancing flight safety and route precision.

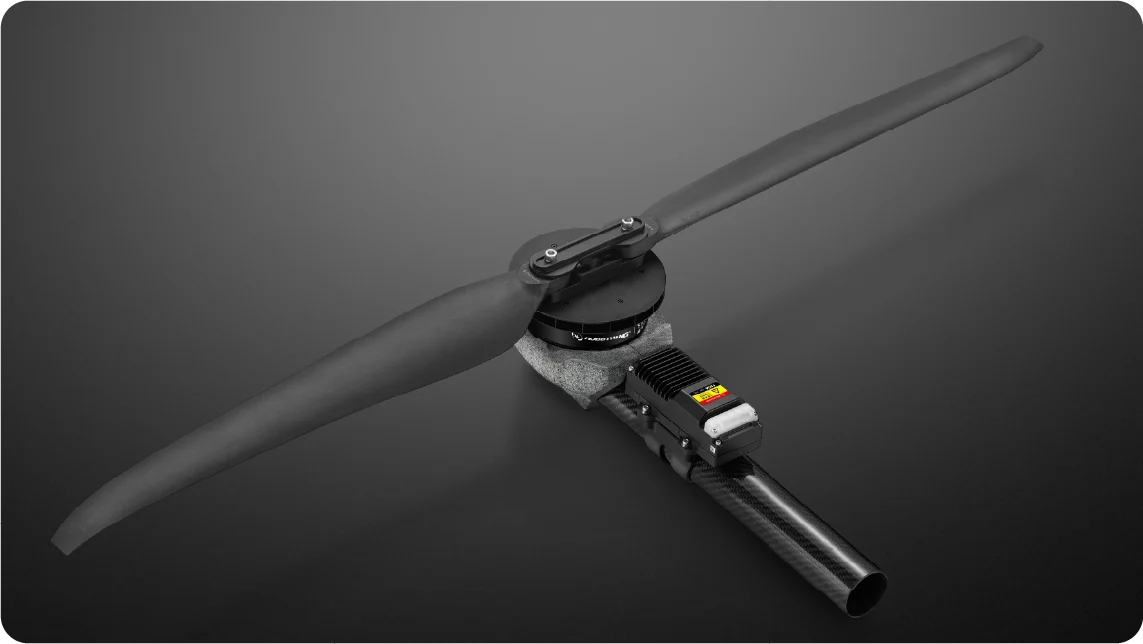

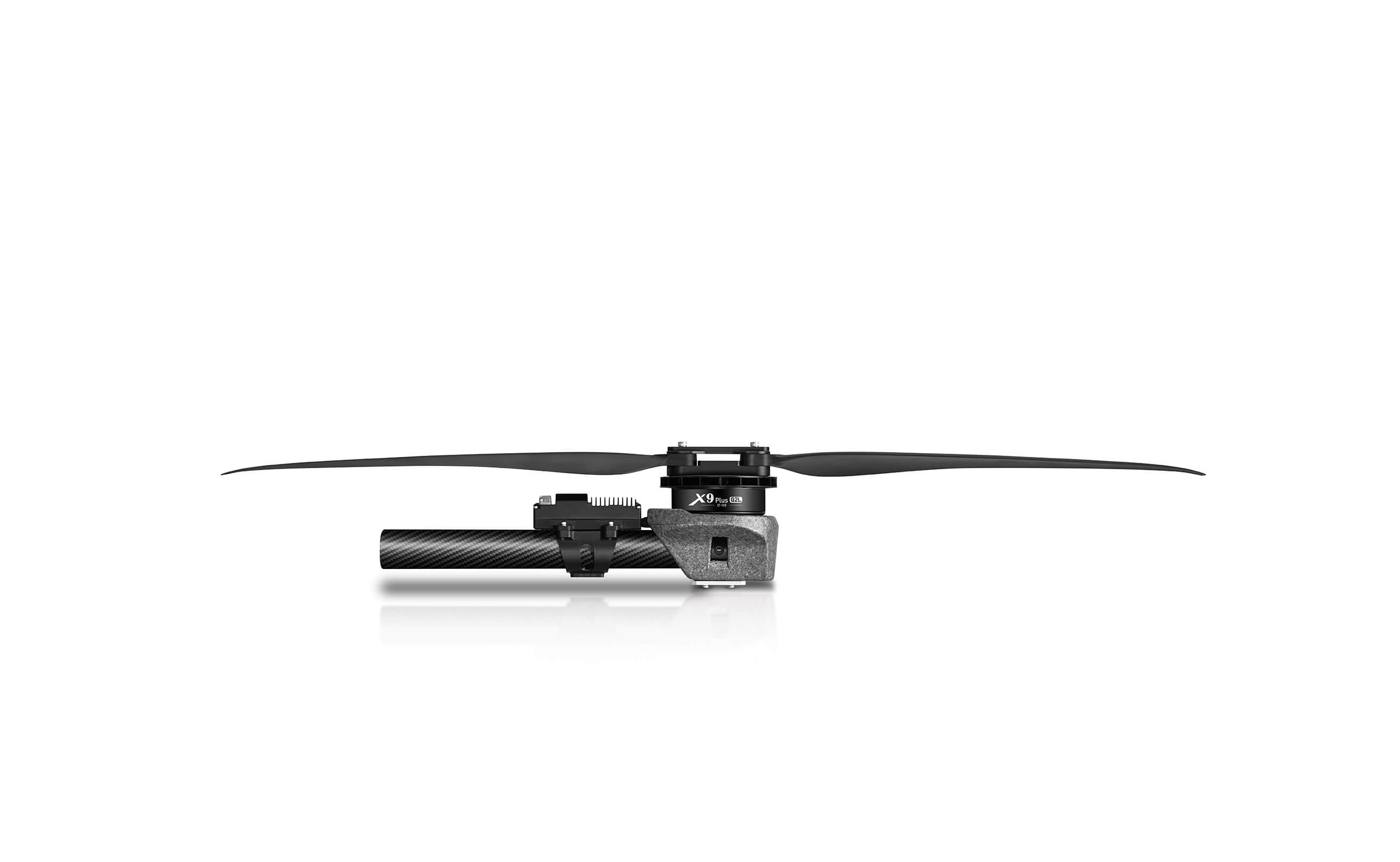

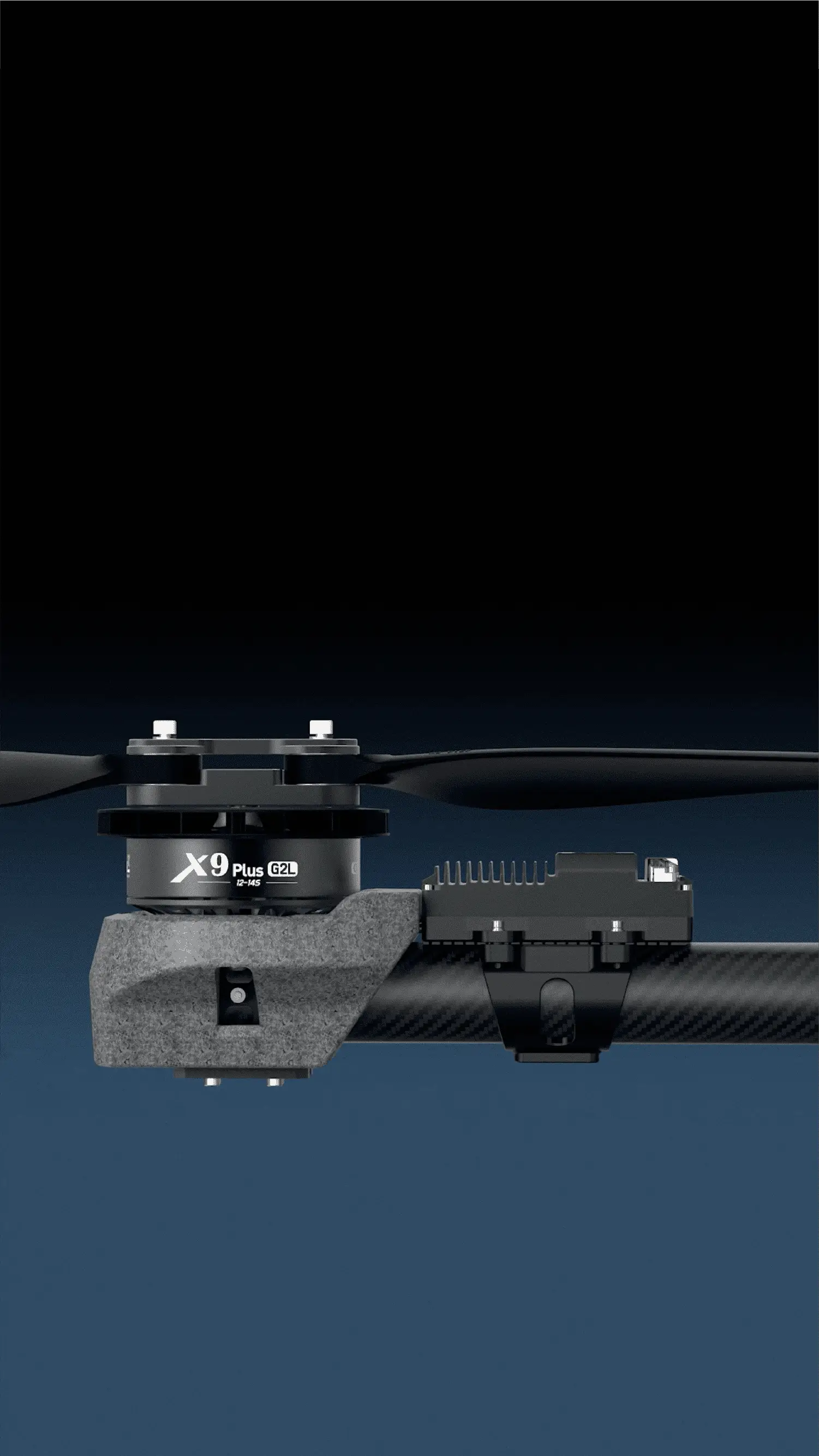

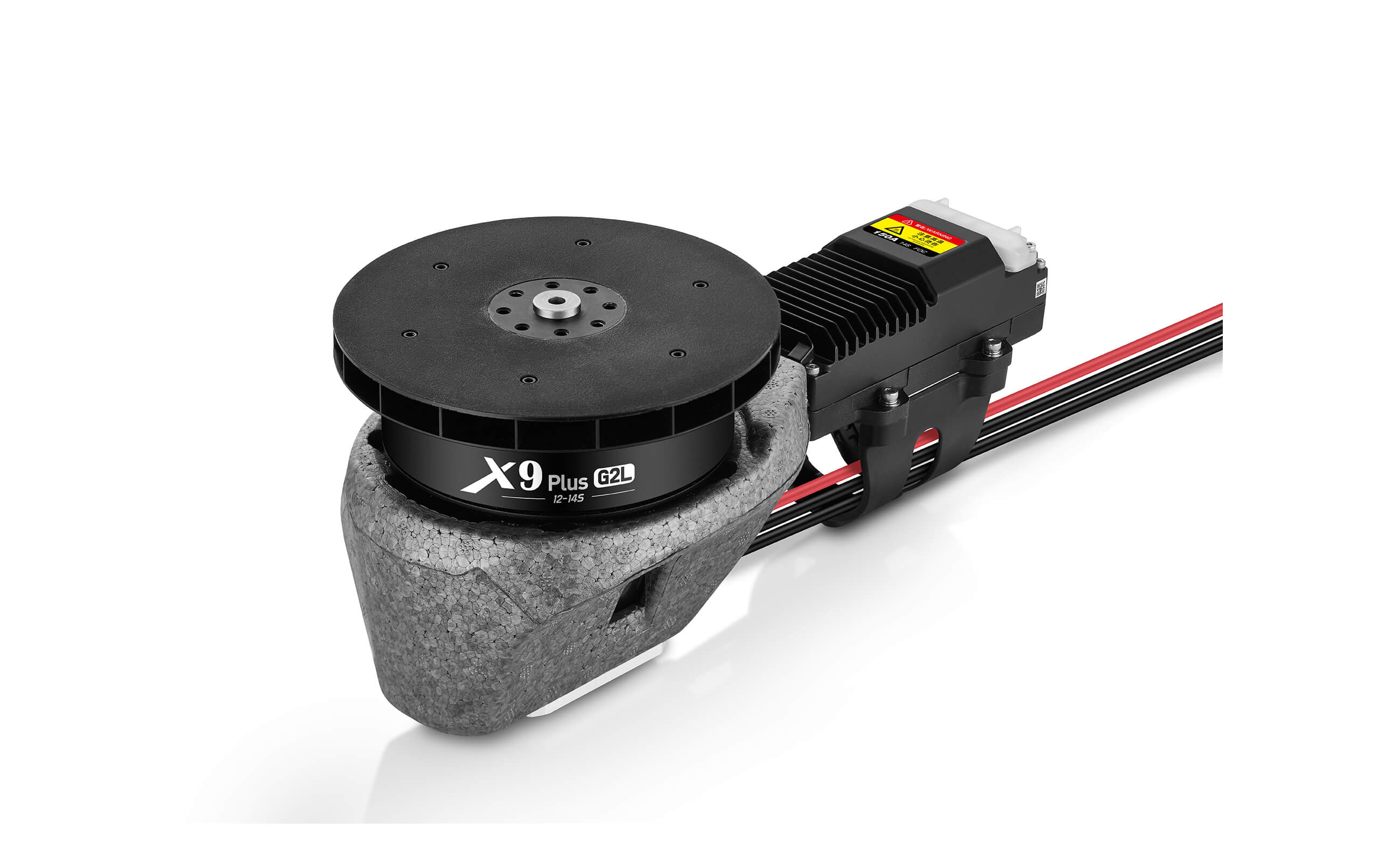

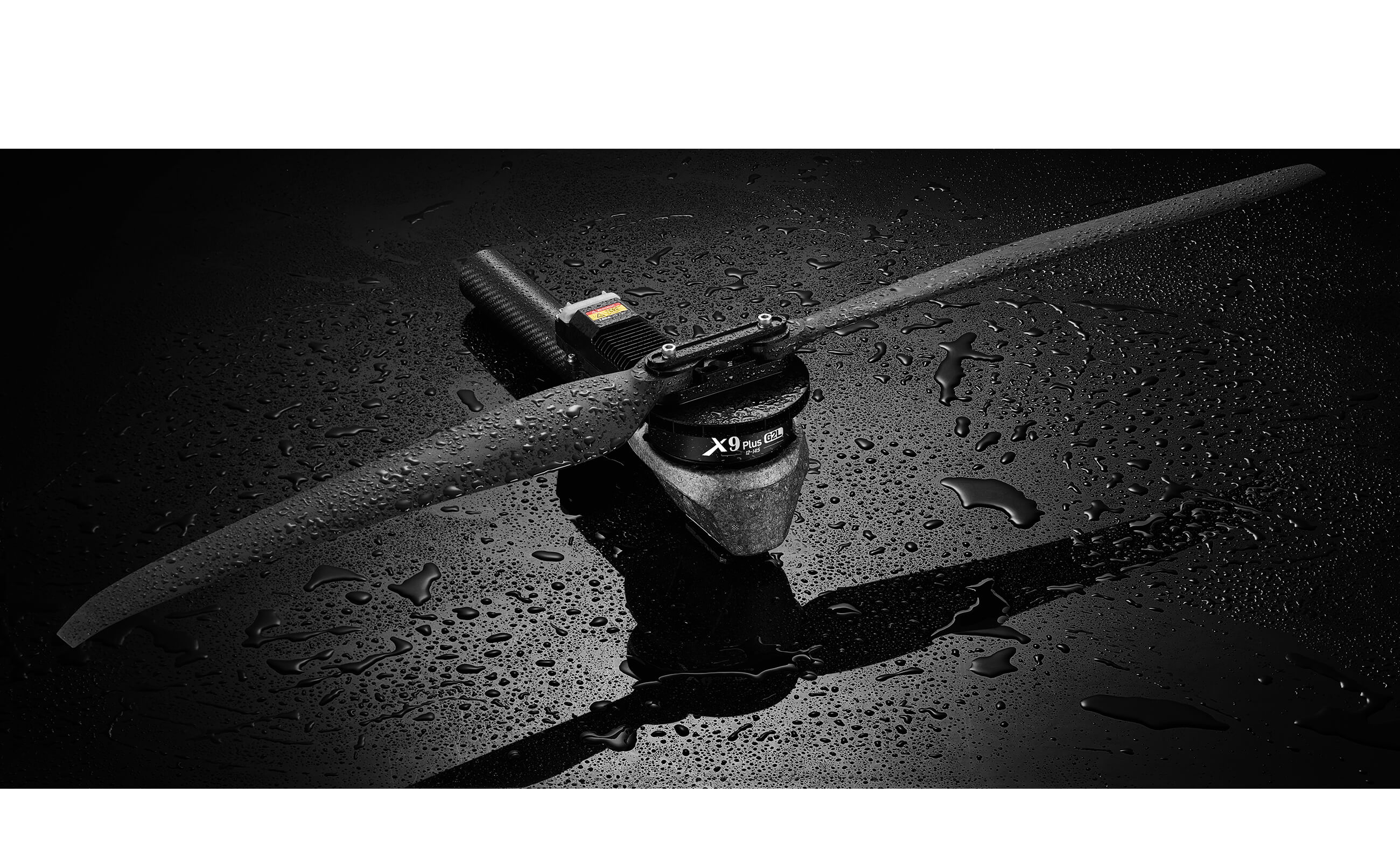

X9 Plus G2L UAV propulsion system supports DroneCAN and
HWCAN protocols (default: HWCAN).
It also enables intercommunication with multiple
mainstream flight controller systems,
such as ArduPilot open source ecosystem, VK, BOYING, JIYI,
and ACFLY to build an intelligent flight
ecosystem through CAN communication.

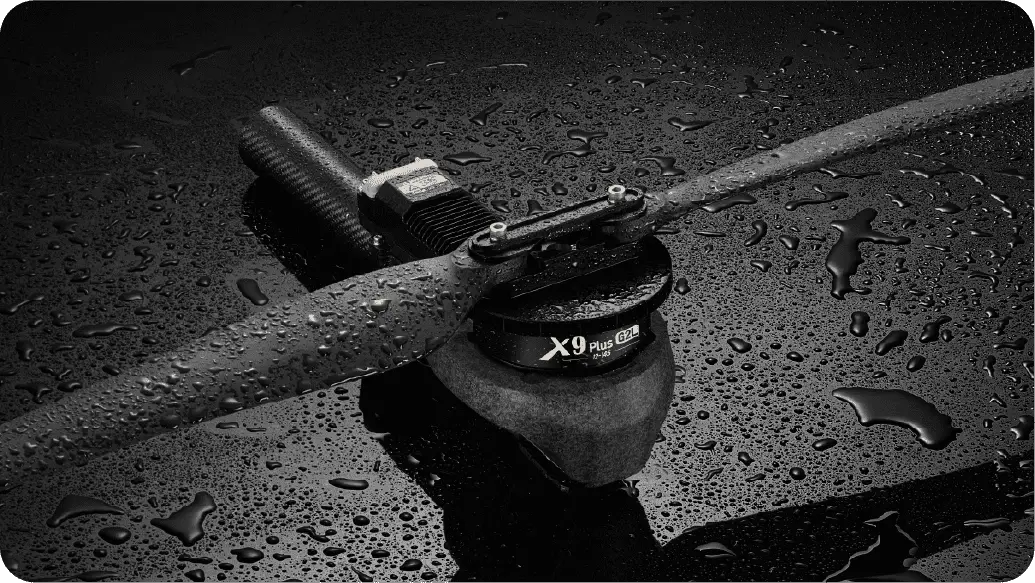

Effortlessly Conquering
Harsh Environments
With an ingress protection rating of
IPX6，
It can reliably be rinsed with water, making it ideal for
harsh agricultural environments,
that include exposure to rain, pesticide mist,
high temperatures, and dust.

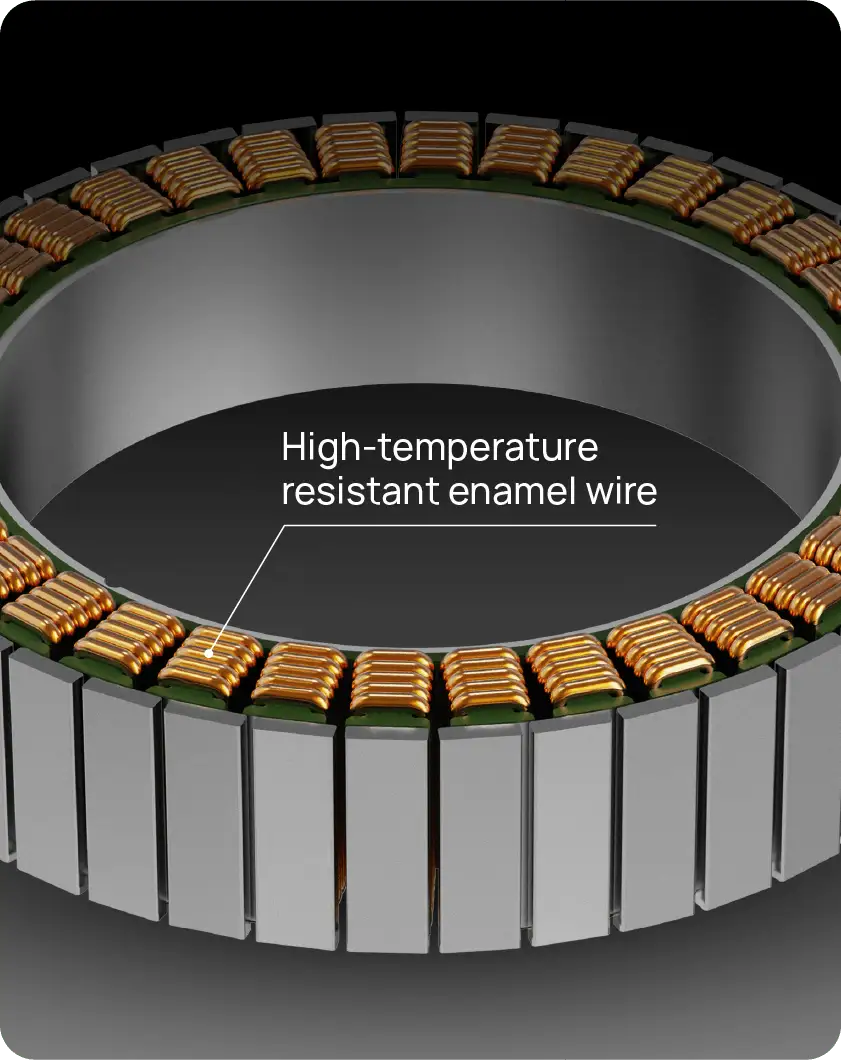

The X9 Plus G2L drone motor is coated with
high-temperature resistant enamel wire,
capable of withstanding temperatures
up to 200°C.
Protection for Secure Flights
Overvoltage warning
Undervoltage warning
Fail to resetthrottle to zero
Short-circuit fault
Disconnection fault
Overcurrent fault
Motor stall fault
Throttle loss warning
MOS over-temperaturewarning
Capacitor over-temperaturewarning
-
-
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
-
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage

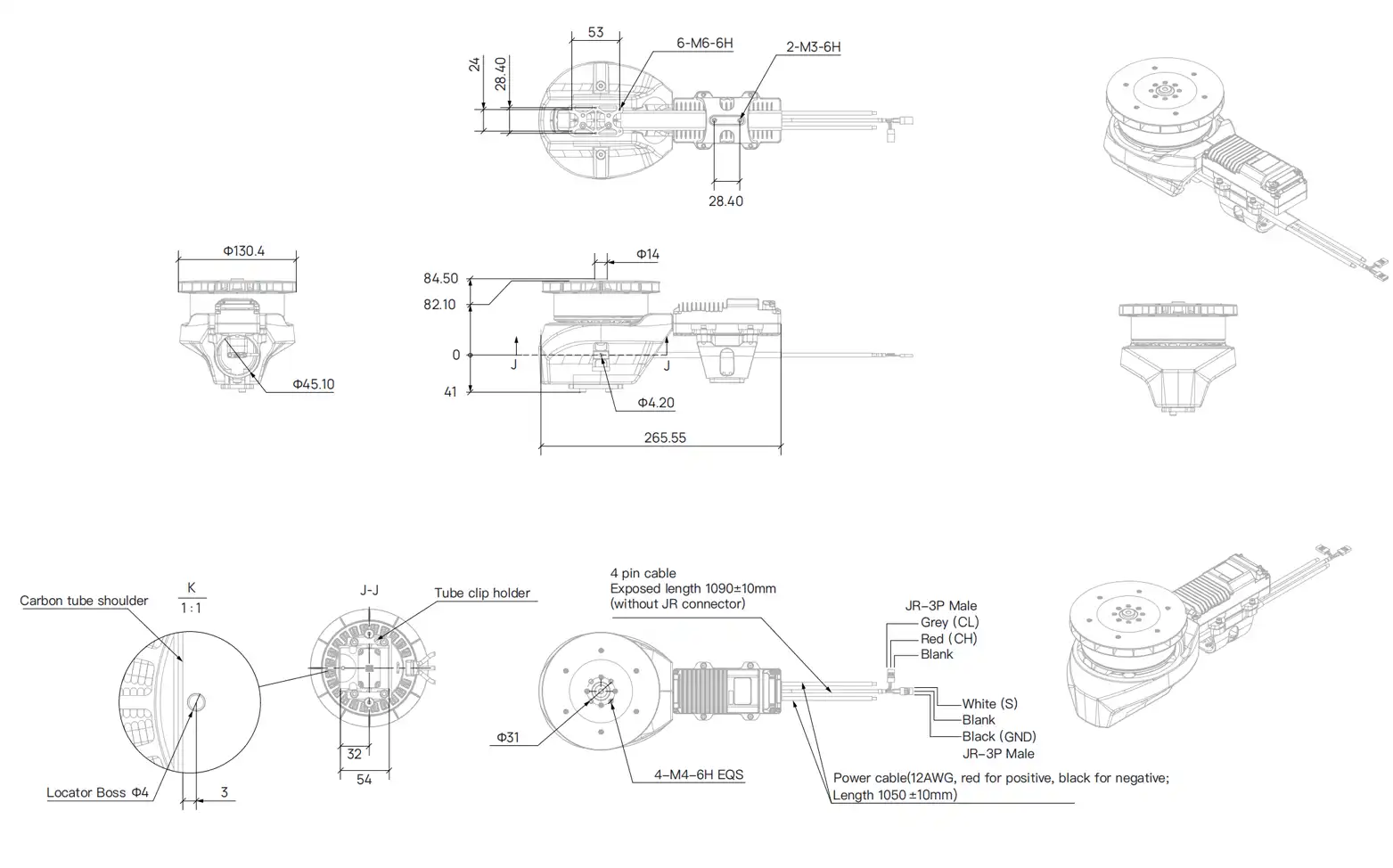

- Tube outer diameter
- Weight (with cable and propeller)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated power input
- Rated power output
- Pinout
-
- 28 kg (Sea level)
- 12~14 kg (Sea level)
- 8.6~8.0 g/W
- 12S~14S（LiPo）
- 14S-54V / 12S-48V
- 18~63 V
- D45 mm
- 1852 g*
- Power cable: 12AWG 1050 mm* Signal cable: 1090 mm*
- -20~50 ℃
- IPX6
- 1700 W
- 1440 W
- Black-GND, White-PWM & Red-CH, Gray-CL
-
- Rated voltage
- Communication protocol
- Peak current (3s)
- Continuous current
- Throttle range calibration
- Dual throttle control
- Operating pulse width
- Fault storage & Log
-
- 14 S / 12 S
- Cyphal（UAVCAN）
- 150 A（3s）
- 40 A
- Not supported
- PWM + CAN
- 1050~1950 μs
- Supported
-
- KV
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 80KV
- 36N40P
- 96x20 mm
- 104 mm (Fan 130 mm)
-
- Model
- Total Weight
- Material of Props
- Sigal Weight
- Subject to the actual product.
-

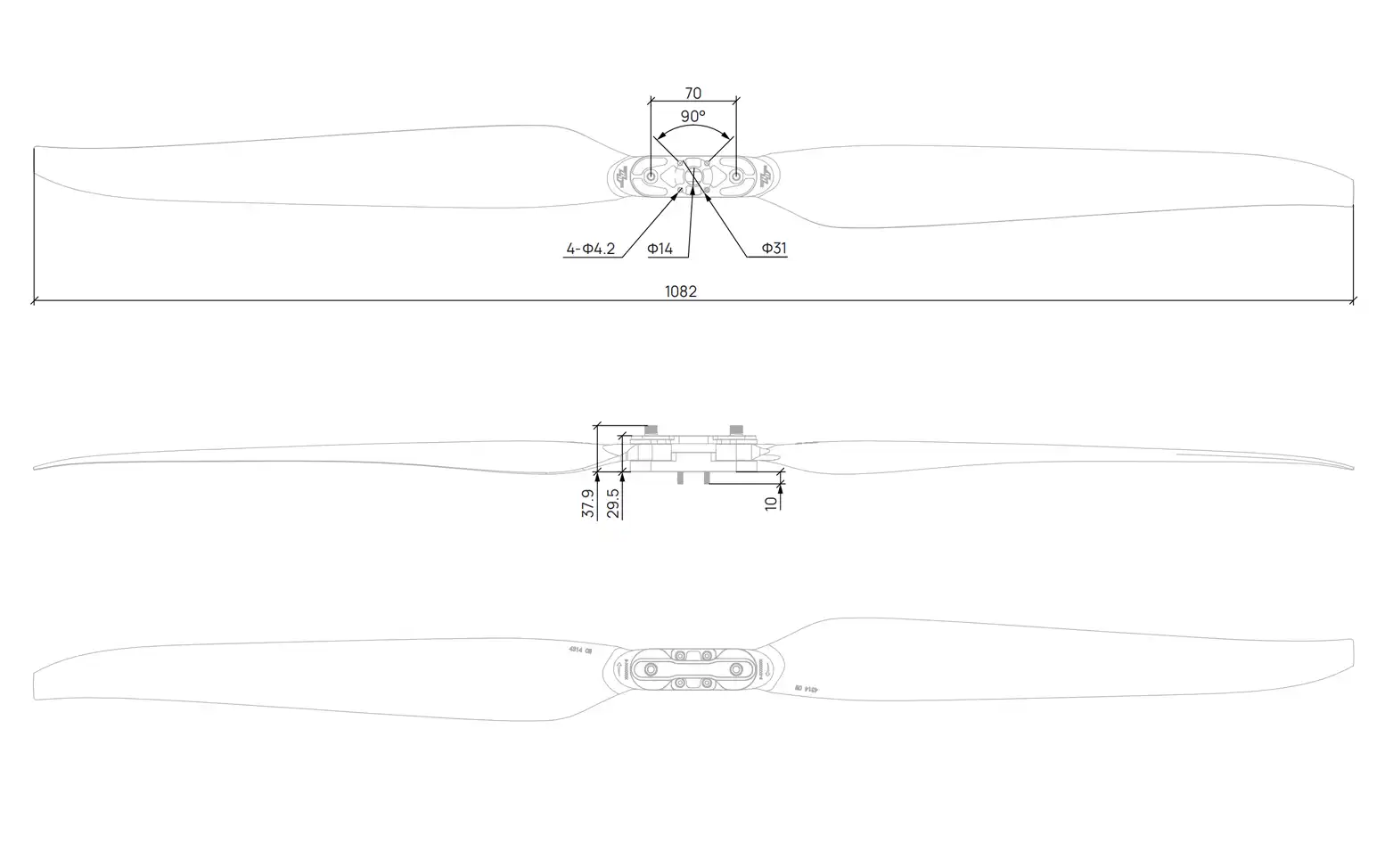

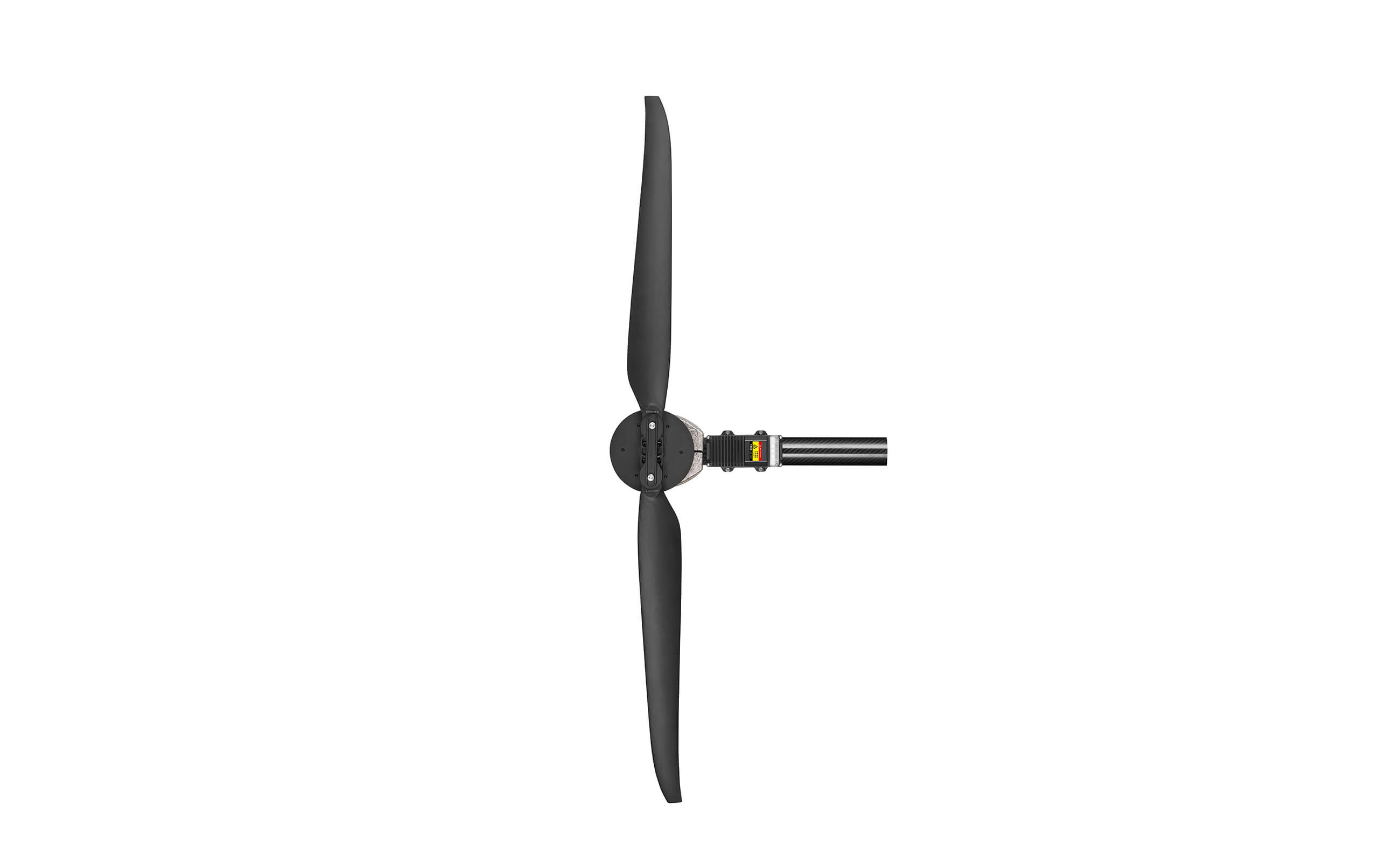

- MFP 43x14 (Folding propeller)
- 427 g*
- Carbon fibre-reinforced nylon composite material
- 146 g*
-
- *Subject to the actual product.
-
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|

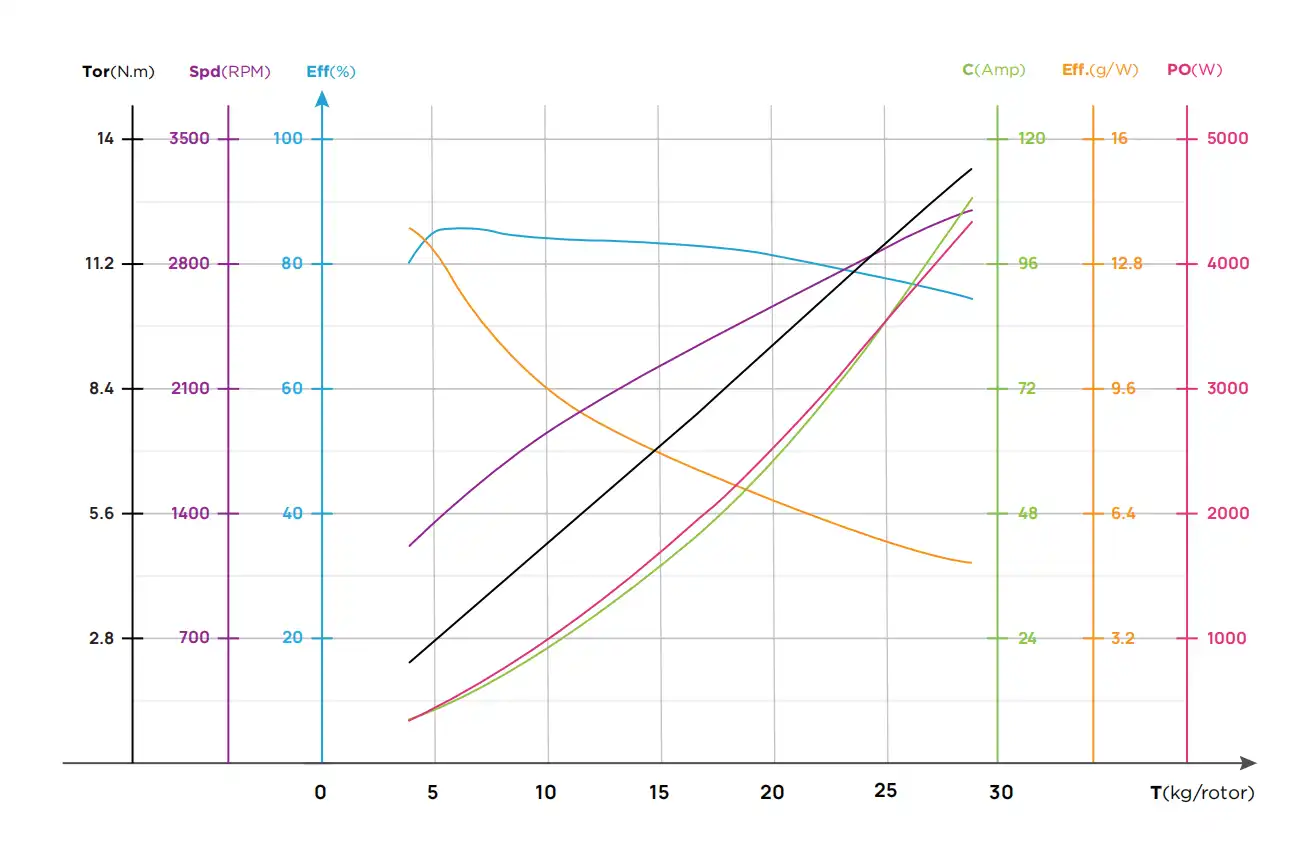

54V(14S LiPo) |
MFP 43x14 |
37% |
4989 |
7.0 |
377.9 |
1276 |
13.2 |
2.38 |
318.0 |
/ |
|
39% |
5961 |
8.9 |
483.3 |
1392 |
12.3 |
2.83 |
412.5 |
|||
|
42% |
7001 |
11.4 |
613.6 |
1510 |
11.4 |
3.31 |
523.4 |
|||
|
45% |
7912 |
13.7 |
739.5 |
1607 |
10.7 |
3.72 |
626.0 |
|||
|
48% |
9052 |
16.8 |
908.0 |
1721 |
10.0 |
4.24 |
764.1 |
|||
|
51% |
11048 |
22.7 |
1226.4 |
1901 |
9.0 |
5.14 |
1023.2 |
|||
|
54% |
12087 |
26.0 |
1402.3 |
1987 |
8.6 |
5.62 |
1169.3 |
|||
|
57% |
12936 |
28.7 |
1551.5 |
2054 |
8.3 |
6.01 |
1292.6 |
|||
|
60% |
14017 |
32.4 |
1749.8 |
2135 |
8.0 |
6.50 |
1453.1 |
|||
|
63% |
16016 |
39.7 |
2145.0 |
2277 |
7.5 |
7.44 |
1773.9 |
|||
|
66% |
16922 |
43.3 |
2339.5 |
2340 |
7.2 |
7.87 |
1928.4 |
|||
|
69% |
18066 |
48.1 |
2600.5 |
2418 |
7.0 |
8.41 |
2129.4 |
|||
|
72% |
19906 |
56.7 |
3062.9 |
2544 |
6.5 |
9.30 |
2477.4 |
|||
|
75% |
21051 |
62.6 |
3379.9 |
2623 |
6.2 |
9.85 |
2705.4 |
|||
|
78% |
23063 |
73.9 |
3989.0 |
2763 |
5.8 |
10.83 |
3133.3 |
|||
|
81% |
23919 |
79.0 |
4267.4 |
2822 |
5.6 |
11.24 |
3321.4 |
|||
|
84% |
24939 |
85.4 |
4612.4 |
2891 |
5.4 |
11.72 |
3547.9 |
|||
|
87% |
26060 |
92.7 |
5002.3 |
2963 |
5.2 |
12.24 |
3797.6 |
|||
|
90% |
27030 |
99.0 |
5344.6 |
3021 |
5.1 |
12.68 |
4011.1 |
|||
|
100% |
28482 |
108.5 |
5854.7 |
3096 |
4.9 |
13.32 |
4318.2 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
- Rated thrust per axis
- 12-14kg
- Maximum thrust
- 28kg
- Compare with the previous version X9 Plus, the recommended takeoff weight has increased by
- 1kg
used with the
MFP 43x14propeller
Increased Efficiency
12%Within same thrust range of previous generation model
20L
agricultural drones
Class IV UAVs
Adjustment Modes
- Parameter Adjustment via Remote Controller
- Quickly adjust navigation light colors and motor
rotation directions via the remote controller,
without the need for a DataLinkBox.
- Parameter Adjustment via Bluetooth in the Mobile APP
- Using the DataLinkBox G3 paired with the HOBBYWING DataLink V3 app
(compatible with Android and iOS; Huawei HarmonyOS currently not supported),
quickly configure 90% of ESC parameters via Bluetooth outdoors.
- Parameter Adjustment via PC Software
- Using the PC-side DataLink host software with the DataLinkBox,
supporting all open parameter settings (including advanced parameters) of the ESC.
Storage Logic
- Fault Storage
- Precisely records fault data within
milliseconds for easier fault analysis and
ESC maintenance information logging.
- Log Black Box
- Records ESC operating data in real
time to trace flight process.
The default recording duration is
1 hours, up to 24 hours.
Control Architecture
- Flatland Mode
- Ideal for flat areas, offering stable motor
rotation speed output and precise speed
control within the operating voltage range.
- Highland Mode
- Suitable for high-altitude areas,
automatically adjusting motor rotation speeds
within a certain range as altitude increases
to adapt to high-altitude operations.
(Customizable on request)
- Flatland Mode
- Ideal for flat areas, offering stable motor
rotation speed output and precise speed
control within the operating voltage range.
- Highland Mode
- Suitable for high-altitude areas,
automatically adjusting motor rotation speeds
within a certain range as altitude increases
to adapt to high-altitude operations.
(Customizable on request)
Optimal Heat Dissipation
The newest rectangular vent design greatly
improves heat dissipation efficiency,
while still preventing dirt and impurities from entering the motor.
Redundancy Control
New dual throttle control scheme (PWM analog signal + CAN bus digital signal)
enhances real-time responsiveness and anti-interference performance,
ensuring precise throttle control and more reliable flight.
Analog throttle
Digital throttle
High-speed dynamic response, even under standalone GPS operation without RTK,
it can maintain stable position holding,
further enhancing flight safety and route precision.

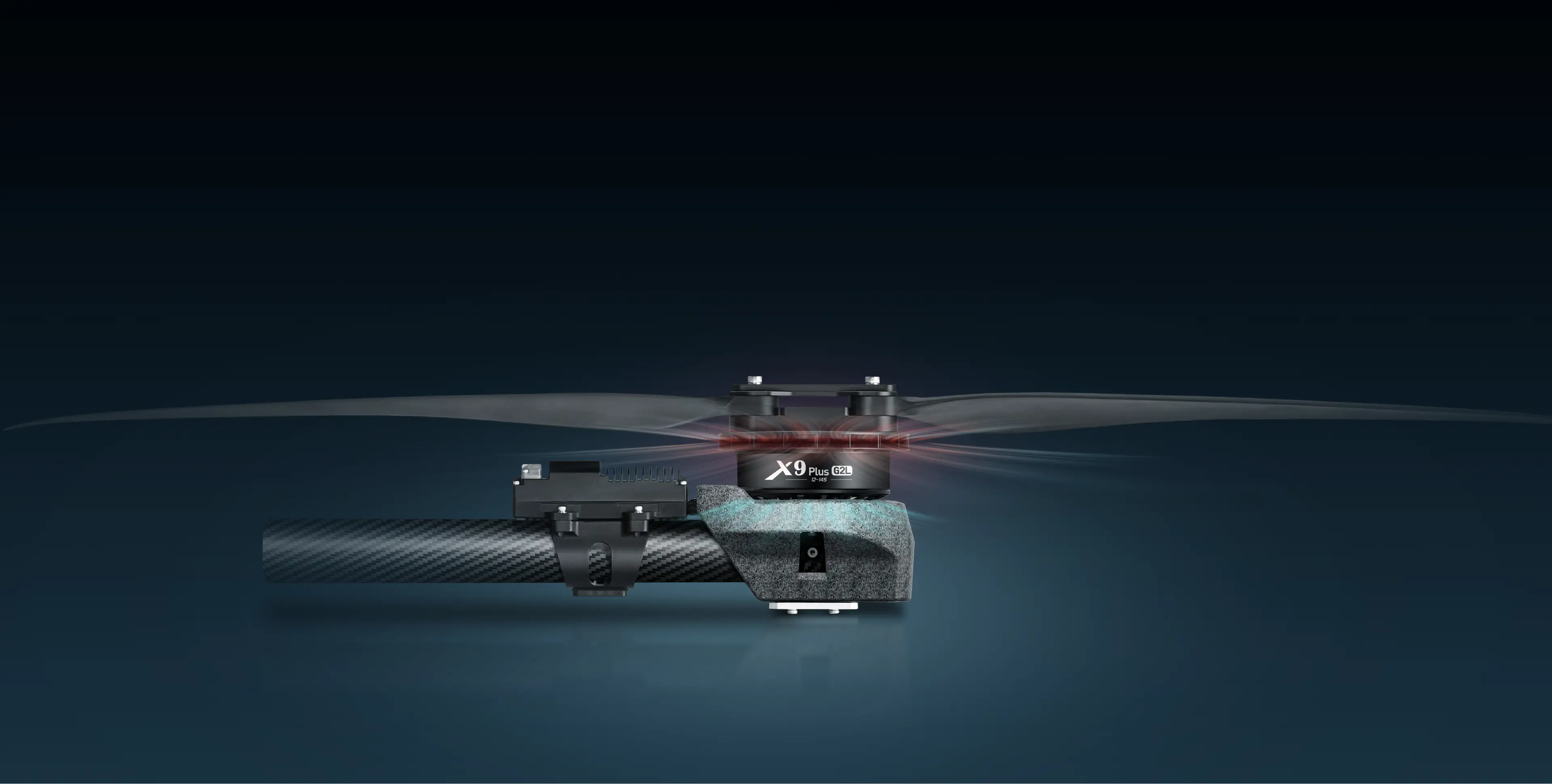

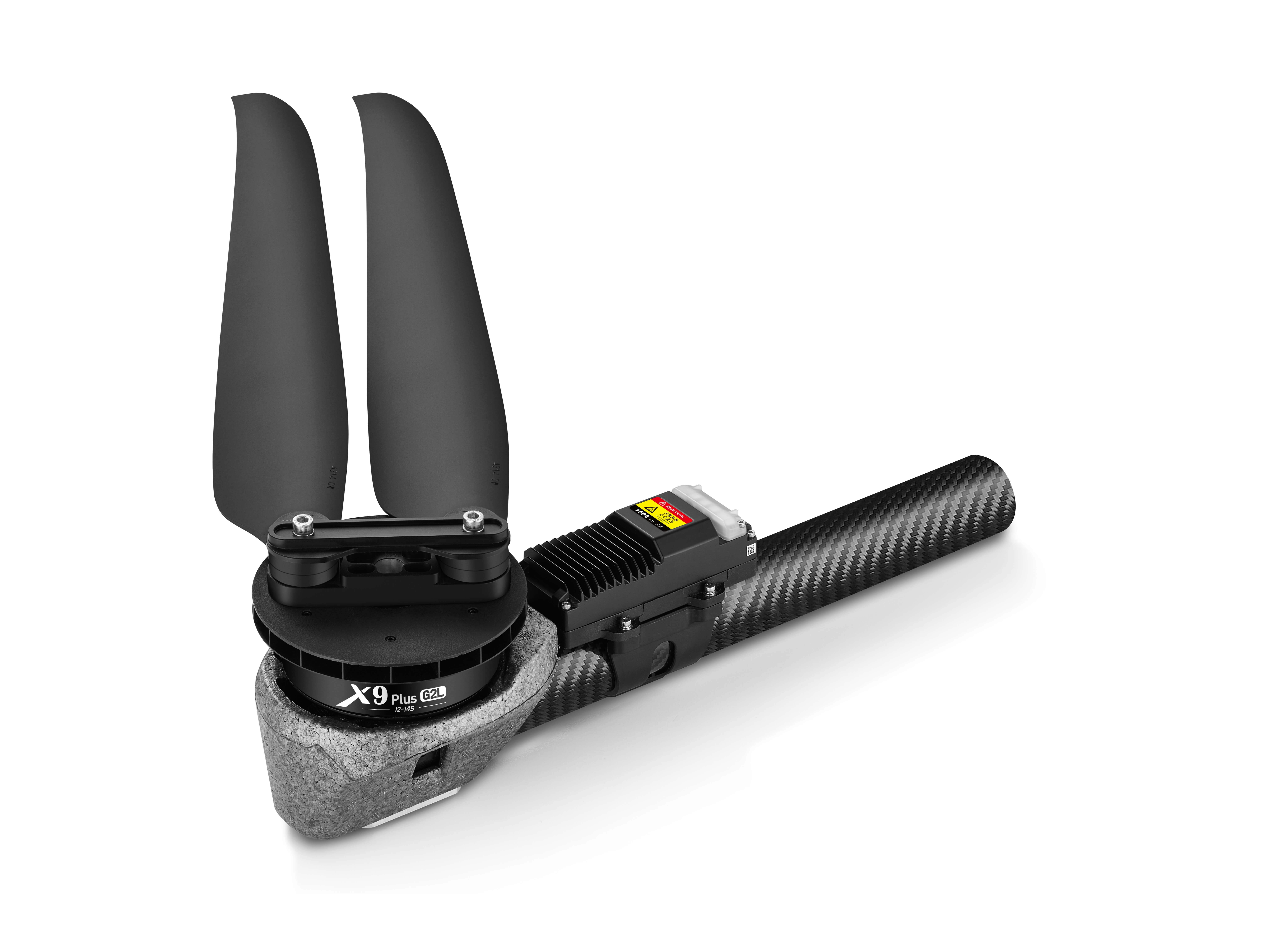

X9 Plus G2L UAV propulsion system supports DroneCAN and
HWCAN protocols (default: HWCAN).
It also enables intercommunication with multiple
mainstream flight controller systems,
such as ArduPilot open source ecosystem, VK, BOYING, JIYI,
and ACFLY to build an intelligent flight
ecosystem through CAN communication.
Effortlessly Conquering
Harsh Environments
With an ingress protection rating of
IPX6，
It can reliably be rinsed with water, making it ideal for
harsh agricultural environments,
that include exposure to rain, pesticide mist,
high temperatures, and dust.
The X9 Plus G2L drone motor is coated with
high-temperature resistant enamel wire,
capable of withstanding temperatures
up to 200°C.
Protection for Secure Flights
Overvoltage warningUndervoltage warningFail to resetthrottle to zero
Short-circuit faultDisconnection faultOvercurrent faultMotor stall faultThrottle loss warningMOS over-temperaturewarning
Capacitor over-temperaturewarning
-
- Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
-
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage
- Tube outer diameter
- Weight (with cable and propeller)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated power input
- Rated power output
- Pinout
-
- 28 kg (Sea level)
- 12~14 kg (Sea level)
- 8.6~8.0 g/W
- 12S~14S（LiPo）
- 14S-54V / 12S-48V
- 18~63 V
- D45 mm
- 1852 g*
- Power cable: 12AWG 1050 mm* Signal cable: 1090 mm*
- -20~50 ℃
- IPX6
- 1700 W
- 1440 W
- Black-GND, White-PWM & Red-CH, Gray-CL
-
- Rated voltage
- Communication protocol
- Peak current (3s)
- Continuous current
- Throttle range calibration
- Dual throttle control
- Operating pulse width
- Fault storage & Log
-
- 14 S / 12 S
- Cyphal（UAVCAN）
- 150 A（3s）
- 40 A
- Not supported
- PWM + CAN
- 1050~1950 μs
- Supported
-
- KV
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 80KV
- 36N40P
- 96x20 mm
- 104 mm (Fan 130 mm)
-
- Model
- Total Weight
- Material of Props
- Sigal Weight
- Subject to the actual product.
-
- MFP 43x14 (Folding propeller)
- 427 g*
- Carbon fibre-reinforced nylon composite material
- 146 g*
-
- *Subject to the actual product.
-
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
MFP 43x14 |
37% |
4992 |
7.9 |
377.9 |
1278 |
13.2 |
2.36 |
315.8 |
/ |
|
39% |
5971 |
10.1 |
484.1 |
1395 |
12.3 |
2.80 |
409.0 |
|||
|
42% |
7019 |
12.8 |
613.4 |
1513 |
11.4 |
3.28 |
519.6 |
|||
|
45% |
7936 |
15.4 |
737.9 |
1610 |
10.8 |
3.71 |
625.5 |
|||
|
48% |
9079 |
18.8 |
905.0 |
1723 |
10.0 |
4.24 |
765.0 |
|||
|
51% |
11077 |
25.5 |
1226.5 |
1902 |
9.0 |
5.17 |
1029.7 |
|||
|
54% |
11906 |
28.5 |
1368.9 |
1971 |
8.7 |
5.56 |
1147.5 |
|||
|
57% |
12967 |
32.5 |
1559.2 |
2055 |
8.3 |
6.05 |
1301.9 |
|||
|
60% |
14054 |
36.7 |
1762.6 |
2137 |
8.0 |
6.56 |
1467.9 |
|||
|
63% |
16074 |
45.1 |
2166.6 |
2280 |
7.4 |
7.49 |
1788.2 |
|||
|
66% |
16995 |
49.2 |
2363.1 |
2343 |
7.2 |
7.92 |
1943.1 |
|||
|
69% |
19107 |
59.3 |
2847.1 |
2484 |
6.7 |
8.89 |
2312.3 |
|||
|
72% |
20055 |
64.2 |
3082.2 |
2546 |
6.5 |
9.33 |
2487.3 |
|||
|
75% |
21002 |
69.4 |
3330.5 |
2608 |
6.3 |
9.78 |
2670.8 |
|||
|
78% |
23089 |
81.9 |
3928.9 |
2745 |
5.9 |
10.76 |
3092.8 |
|||
|
81% |
23977 |
87.7 |
4208.3 |
2802 |
5.7 |
11.18 |
3280.2 |
|||
|
84% |
25027 |
95.1 |
4561.9 |
2869 |
5.5 |
11.68 |
3508.9 |
|||
|
87% |
25985 |
102.3 |
4906.9 |
2929 |
5.3 |
12.13 |
3720.3 |
|||
|
90% |
26967 |
110.2 |
5283.8 |
2989 |
5.1 |
12.59 |
3940.5 |
|||
|
100% |
28145 |
120.4 |
5771.7 |
3056 |
4.9 |
13.14 |
4204.8 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
54V(14S LiPo) |
MFP 43x14 |
37% |
4989 |
7.0 |
377.9 |
1276 |
13.2 |
2.38 |
318.0 |
/ |
|
39% |
5961 |
8.9 |
483.3 |
1392 |
12.3 |
2.83 |
412.5 |
|||
|
42% |
7001 |
11.4 |
613.6 |
1510 |
11.4 |
3.31 |
523.4 |
|||
|
45% |
7912 |
13.7 |
739.5 |
1607 |
10.7 |
3.72 |
626.0 |
|||
|
48% |
9052 |
16.8 |
908.0 |
1721 |
10.0 |
4.24 |
764.1 |
|||
|
51% |
11048 |
22.7 |
1226.4 |
1901 |
9.0 |
5.14 |
1023.2 |
|||
|
54% |
12087 |
26.0 |
1402.3 |
1987 |
8.6 |
5.62 |
1169.3 |
|||
|
57% |
12936 |
28.7 |
1551.5 |
2054 |
8.3 |
6.01 |
1292.6 |
|||
|
60% |
14017 |
32.4 |
1749.8 |
2135 |
8.0 |
6.50 |
1453.1 |
|||
|
63% |
16016 |
39.7 |
2145.0 |
2277 |
7.5 |
7.44 |
1773.9 |
|||
|
66% |
16922 |
43.3 |
2339.5 |
2340 |
7.2 |
7.87 |
1928.4 |
|||
|
69% |
18066 |
48.1 |
2600.5 |
2418 |
7.0 |
8.41 |
2129.4 |
|||
|
72% |
19906 |
56.7 |
3062.9 |
2544 |
6.5 |
9.30 |
2477.4 |
|||
|
75% |
21051 |
62.6 |
3379.9 |
2623 |
6.2 |
9.85 |
2705.4 |
|||
|
78% |
23063 |
73.9 |
3989.0 |
2763 |
5.8 |
10.83 |
3133.3 |
|||
|
81% |
23919 |
79.0 |
4267.4 |
2822 |
5.6 |
11.24 |
3321.4 |
|||
|
84% |
24939 |
85.4 |
4612.4 |
2891 |
5.4 |
11.72 |
3547.9 |
|||
|
87% |
26060 |
92.7 |
5002.3 |
2963 |
5.2 |
12.24 |
3797.6 |
|||
|
90% |
27030 |
99.0 |
5344.6 |
3021 |
5.1 |
12.68 |
4011.1 |
|||
|
100% |
28482 |
108.5 |
5854.7 |
3096 |
4.9 |
13.32 |
4318.2 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
