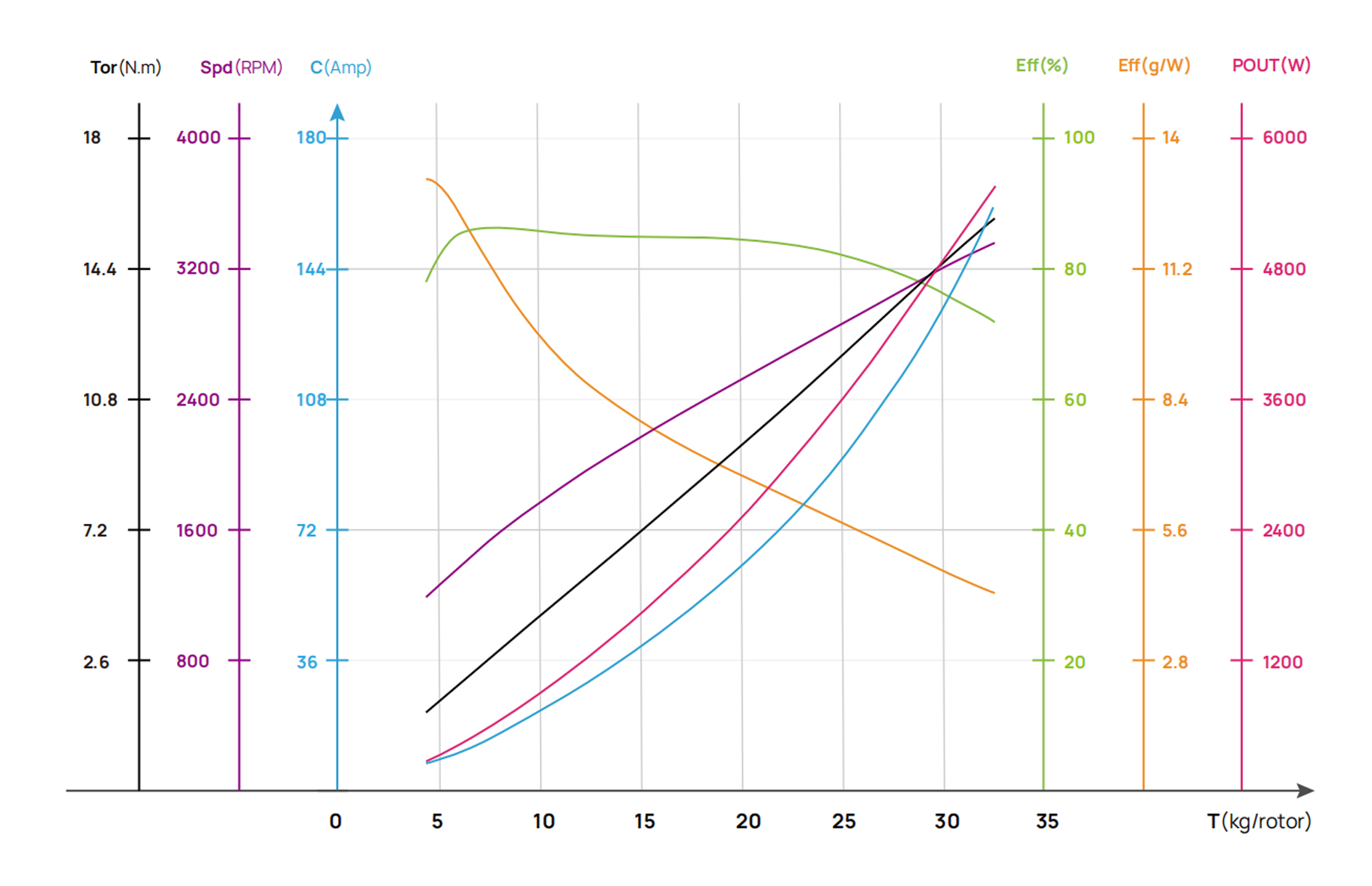

Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(14S LiPo) |
MFP 43x14 |
35% |
6310 |
10.8 |
517.7 |
1397 |
12.2 |
3.03 |
443.2 |
/ |
|
37% |
7185 |
13.0 |
623.0 |
1489 |
11.5 |
3.44 |
536.4 |
|||
|
39% |
8105 |
15.5 |
744.6 |
1582 |
10.9 |
3.88 |
642.7 |
|||
|
42% |
9545 |
19.9 |
955.2 |
1718 |
10.0 |
4.56 |
820.3 |
|||
|
45% |
11034 |
24.8 |
1191.7 |
1849 |
9.3 |
5.25 |
1016.5 |
|||
|
48% |
12549 |
30.2 |
1449.3 |
1974 |
8.7 |
5.96 |
1231.9 |
|||
|
51% |
14075 |
35.9 |
1723.8 |
2093 |
8.2 |
6.68 |
1464.0 |
|||
|
54% |
15601 |
41.9 |
2013.7 |
2206 |
7.7 |
7.39 |
1707.1 |
|||
|
57% |
17122 |
48.3 |
2320.3 |
2315 |
7.4 |
8.11 |
1965.9 |
|||
|
60% |
18632 |
55.0 |
2645.8 |
2420 |
7.0 |
8.84 |
2240.1 |
|||
|
63% |
20130 |
62.3 |
2993.8 |
2523 |
6.7 |
9.56 |
2525.6 |
|||
|
66% |
21612 |
70.1 |
3369.2 |
2625 |
6.4 |
10.29 |
2828.4 |
|||
|
69% |
23075 |
78.6 |
3775.9 |
2725 |
6.1 |
11.02 |
3144.5 |
|||
|
72% |
24512 |
87.7 |
4216.7 |
2824 |
5.8 |
11.75 |
3474.6 |
|||
|
75% |
25914 |
97.6 |
4692.6 |
2920 |
5.5 |
12.46 |
3809.8 |
|||
|
78% |
27265 |
108.2 |
5199.3 |
3013 |
5.2 |
13.15 |
4148.8 |
|||
|
81% |
28545 |
119.2 |
5727.5 |
3100 |
5.0 |
13.80 |
4479.6 |
|||
|
84% |
29725 |
130.2 |
6260.6 |
3179 |
4.7 |
14.40 |
4793.5 |
|||
|
87% |
30769 |
140.8 |
6768.8 |
3247 |
4.5 |
14.92 |
5072.8 |
|||
|
90% |
31629 |
150.2 |
7217.7 |
3301 |
4.4 |
15.34 |
5302.3 |
|||
|
93% |
32247 |
157.2 |
7557.0 |
3339 |
4.3 |
15.63 |
5464.8 |
|||
|
100% |
32571 |
161.1 |
7740.1 |
3358 |
4.2 |
15.78 |
5548.6 |
-
Drone Propulsion Systems
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- X Series
- H Series
- P Series
-
-
-
- PROPELLER Superior efficiency, exceptional stability.
- Carbon Plastic Propeller
- Carbon Fiber Propeller
-
- CENTRIFUGAL NOZZLE Efficient atomizing, precise spraying.
- 9L
-
- WATER PUMP Minimal maintenance, long service life.
- 5L
- 8L
- 30L
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- P Series
-
-
-
- PROPELLER Powerful burst, high intensity.
- Carbon Fiber Propeller
-
- Fixed-Wing UAV Cruise Motor Convenient, efficient and stable.
- 72XX
- 80XX
-
-
RC Power Systems
RC Cars Power SystemRC Boat Power System
-
e-Vehicle Power Systems
Electric MotorcycleElectric SkateboardElectric Scooter
- Service and Support
- Recommended
takeoff weight
per axis

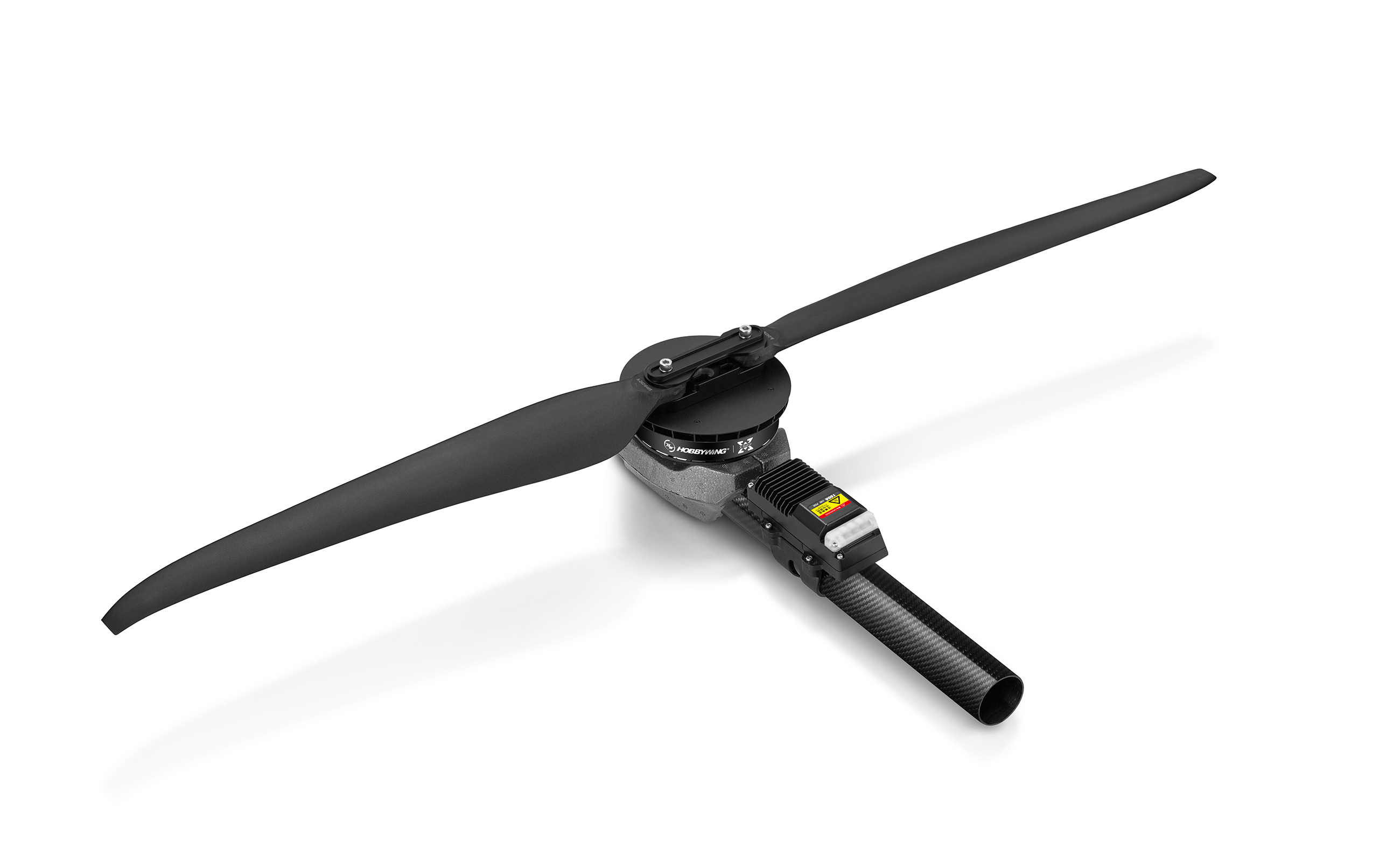

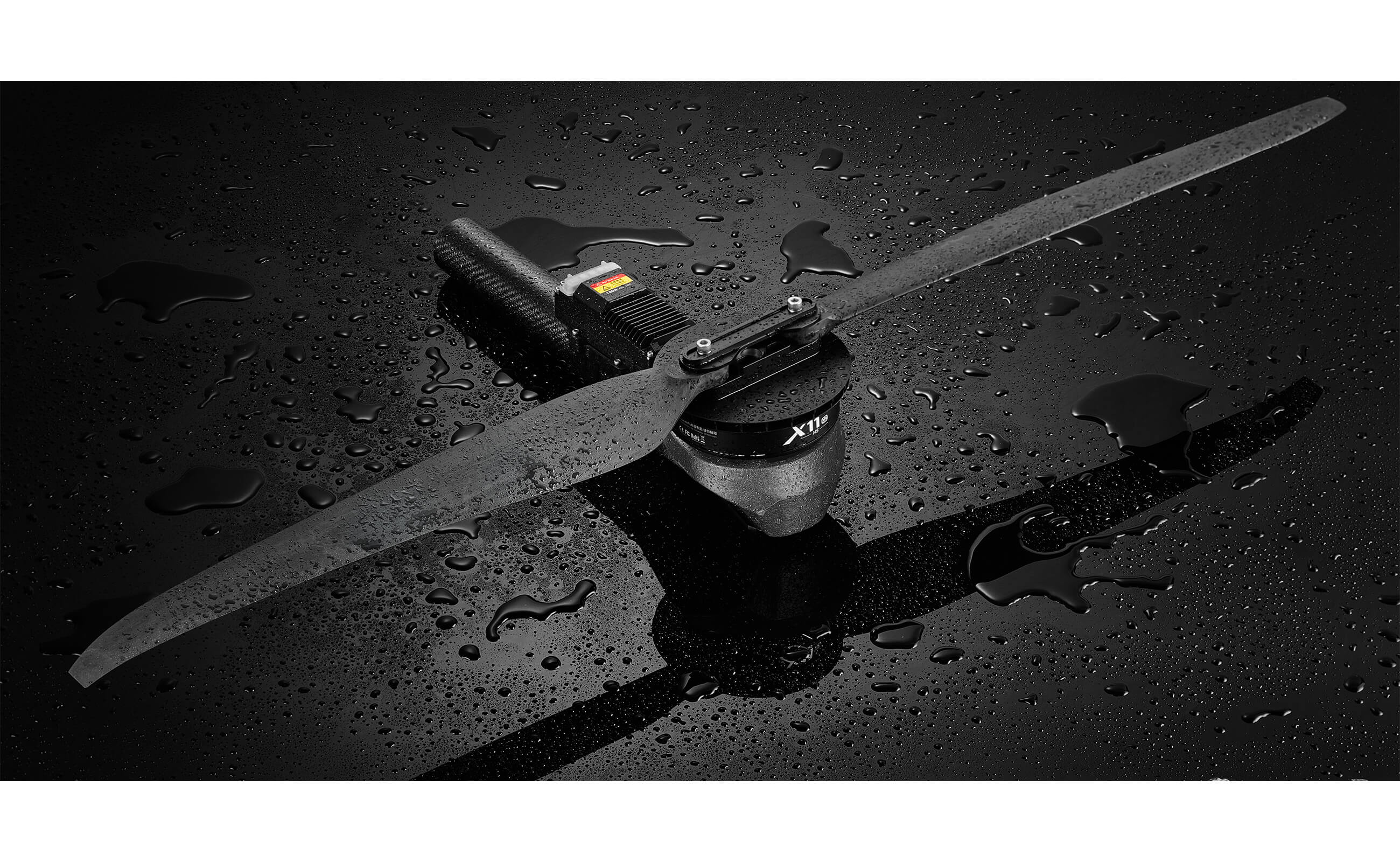

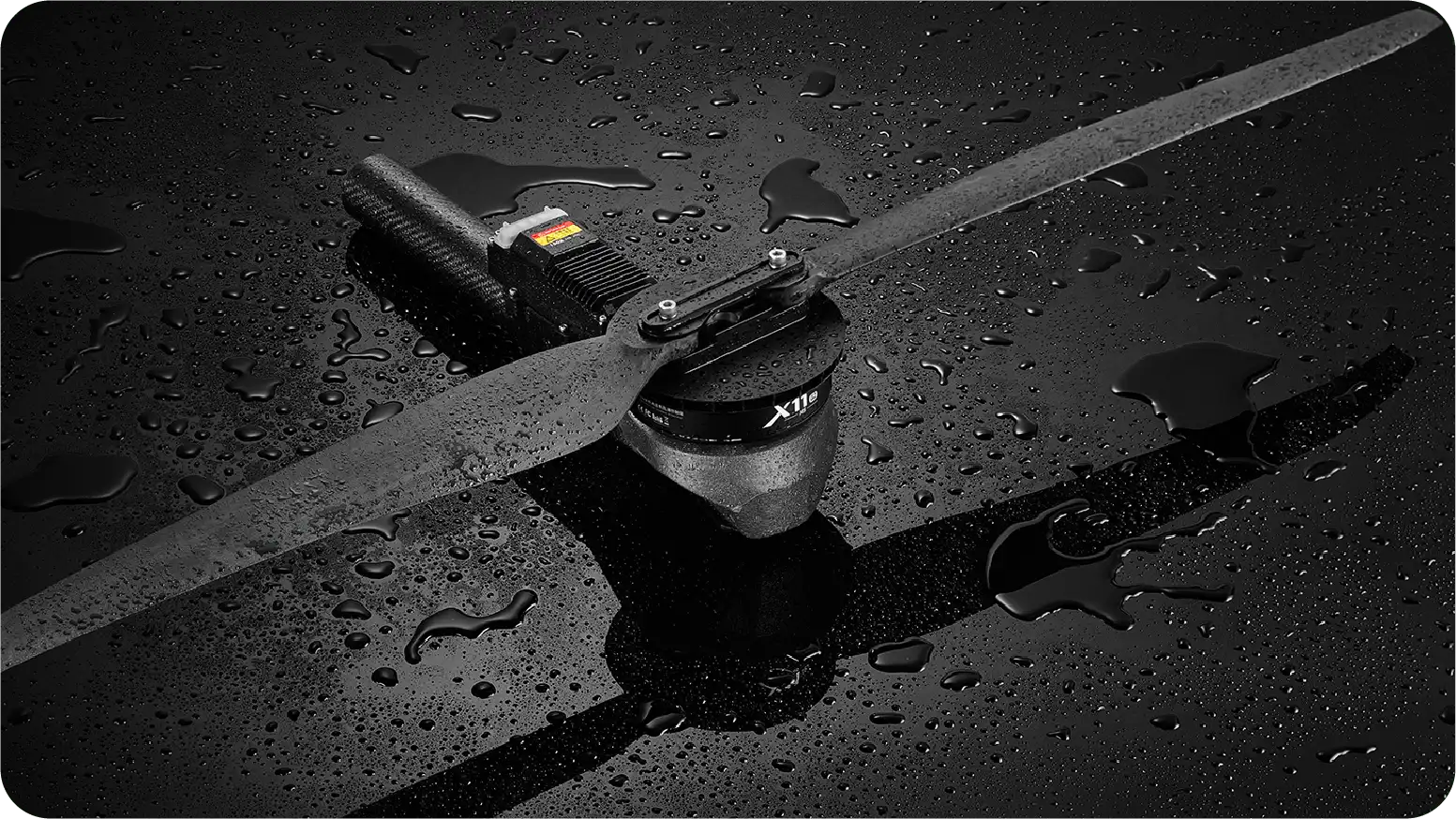

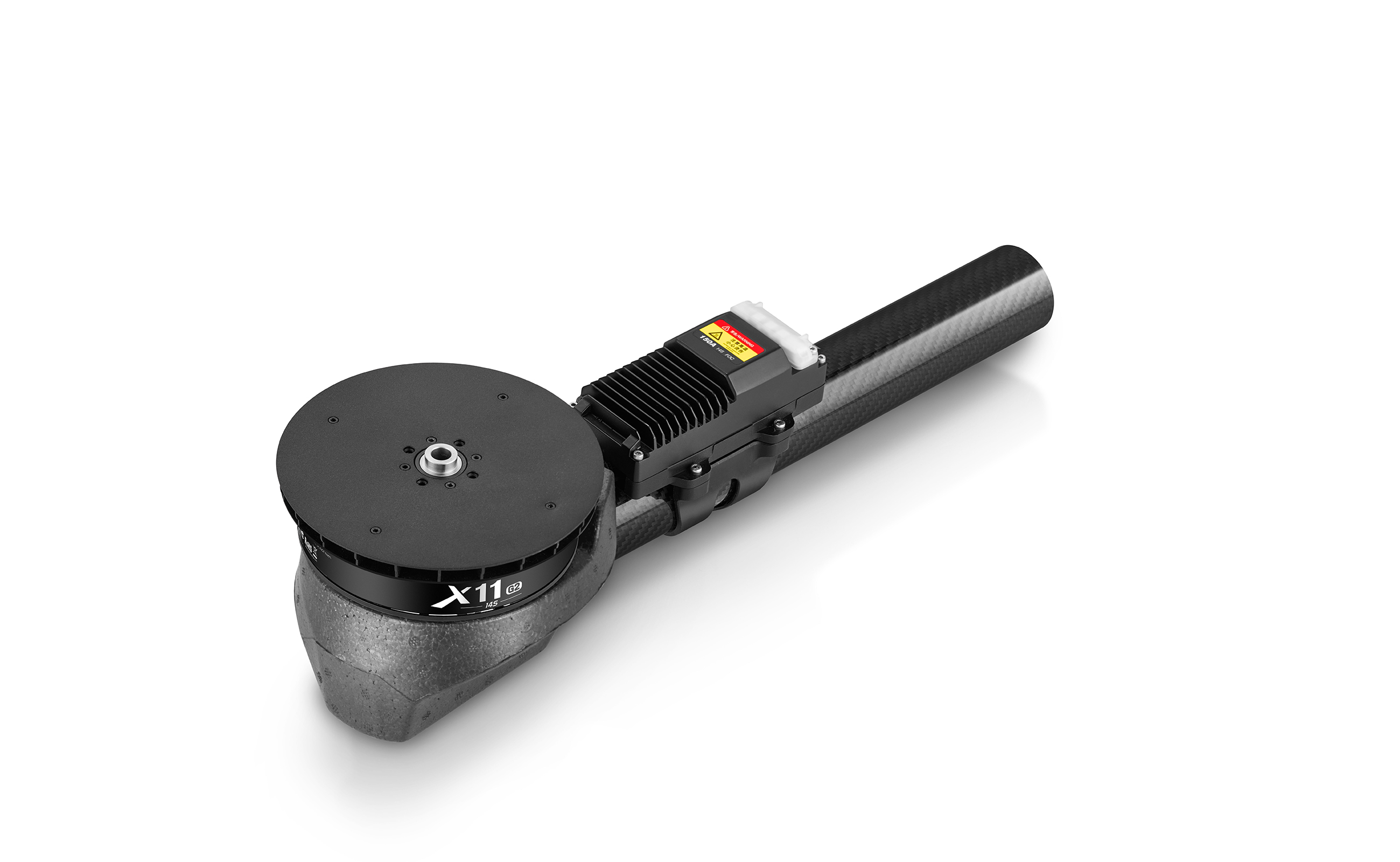

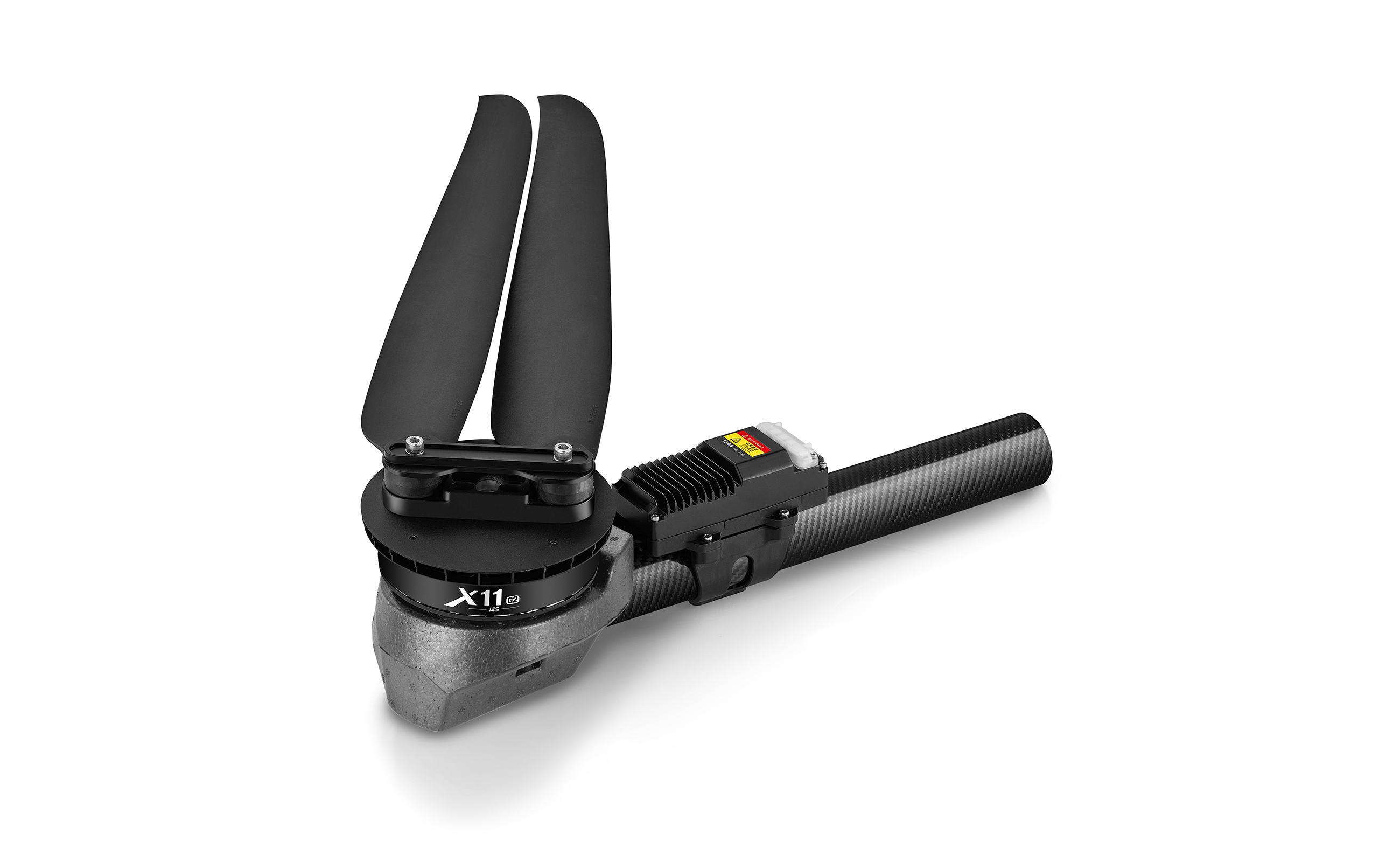

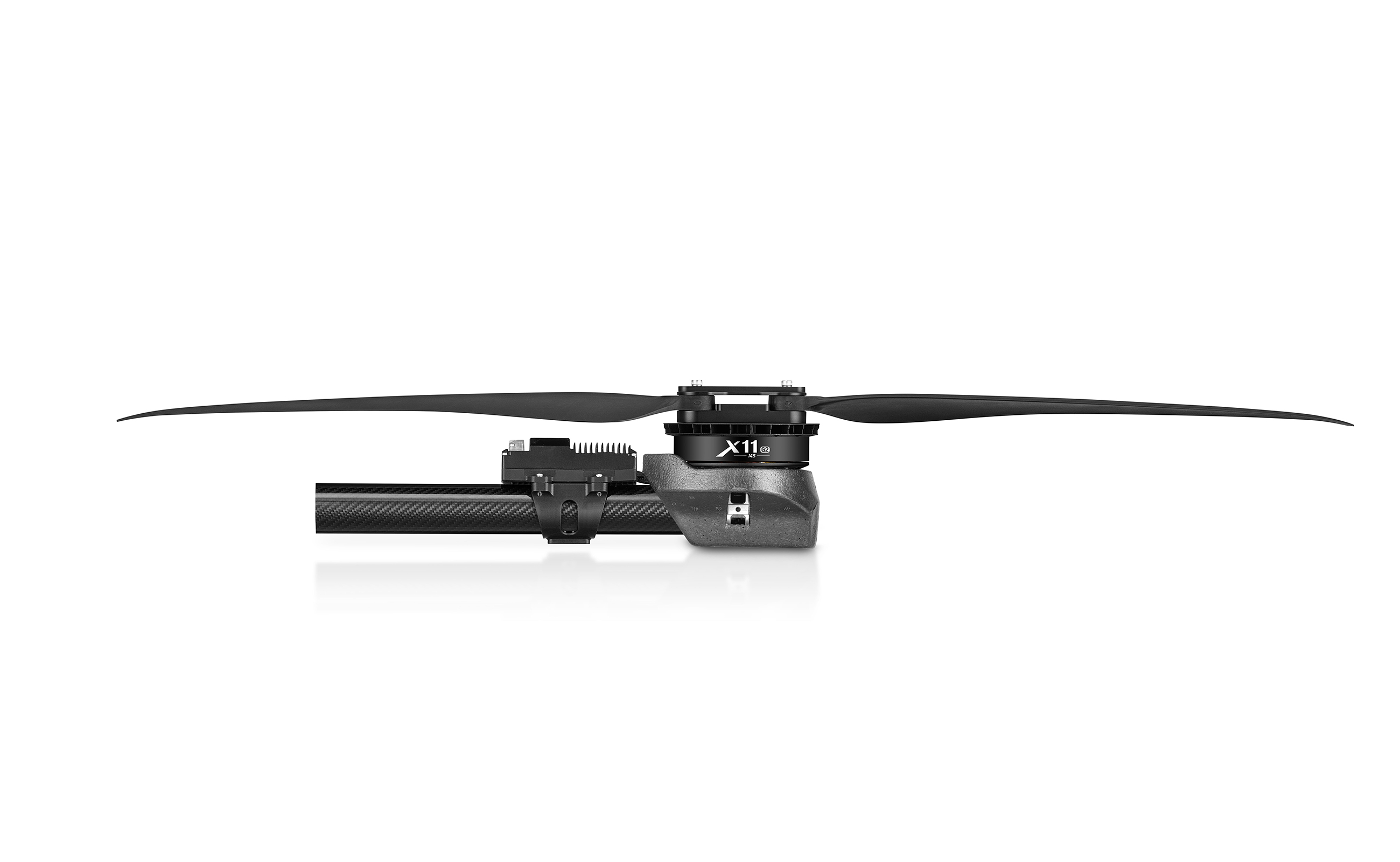

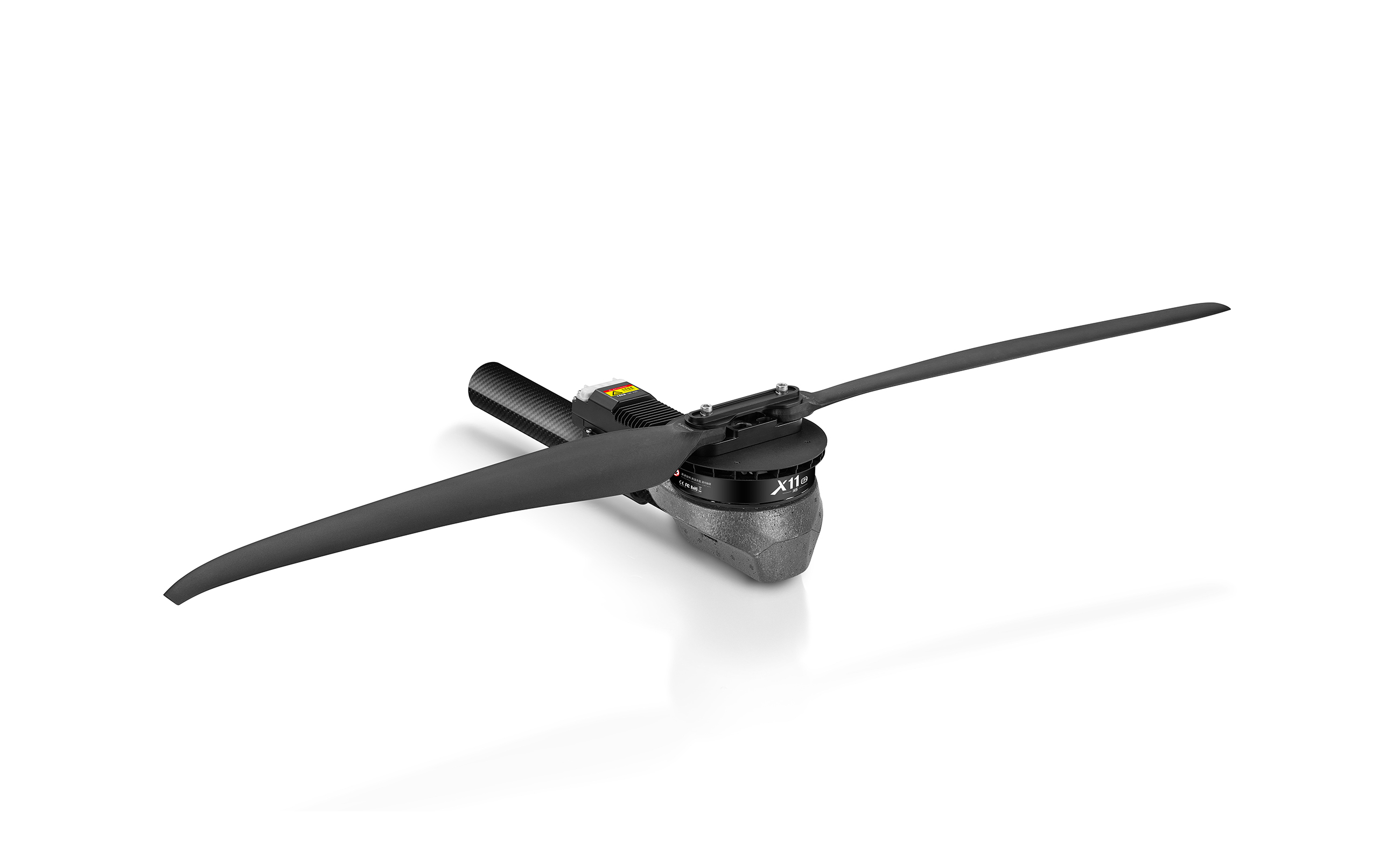

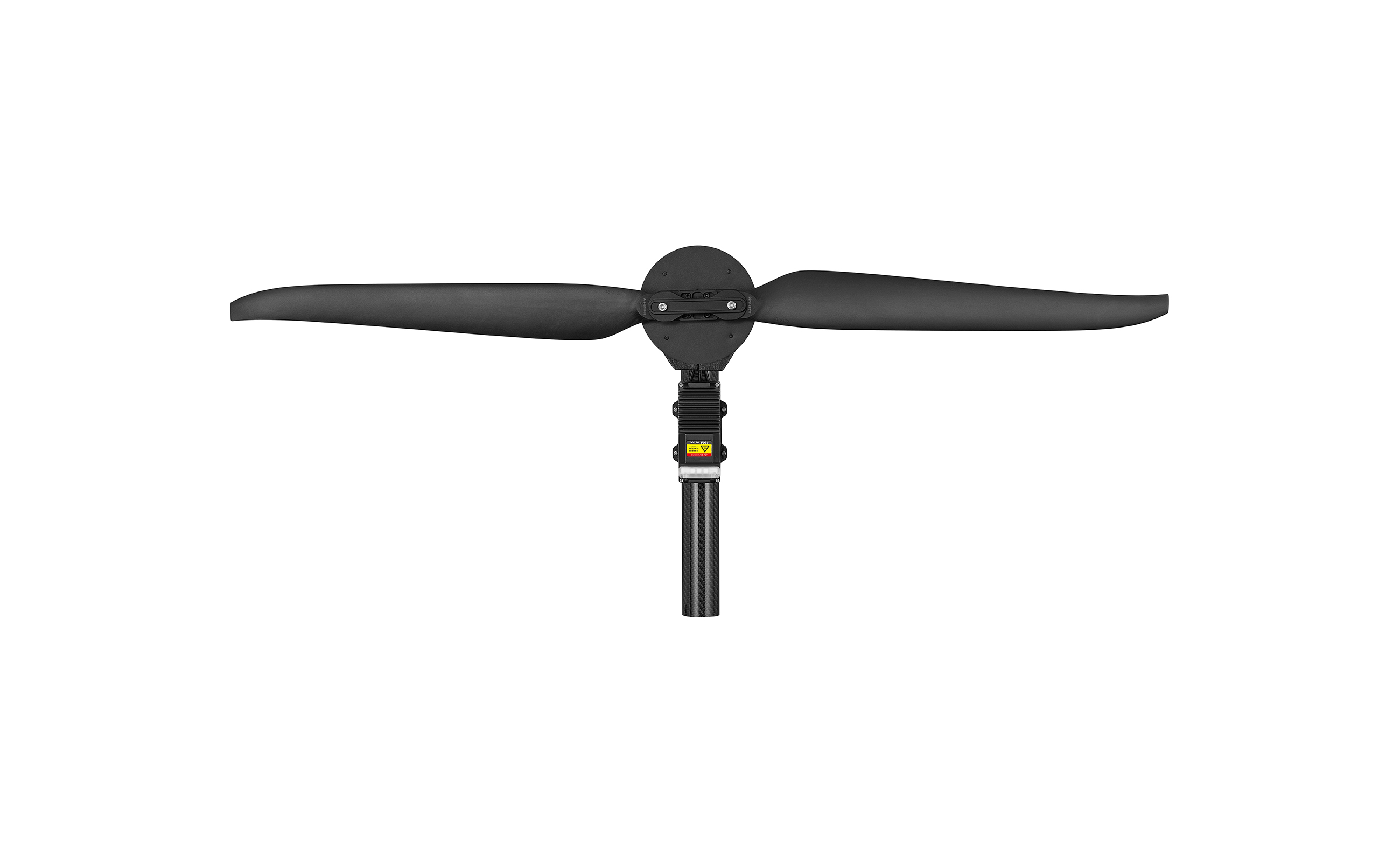

17kg - Compared with the previous version X11, the X11 G2 adopts a brand-new 11115 motor paired with a larger MFP 43x14 carbon plastic propeller, reducing the overall weight by 15% and enhacing flight efficiency.

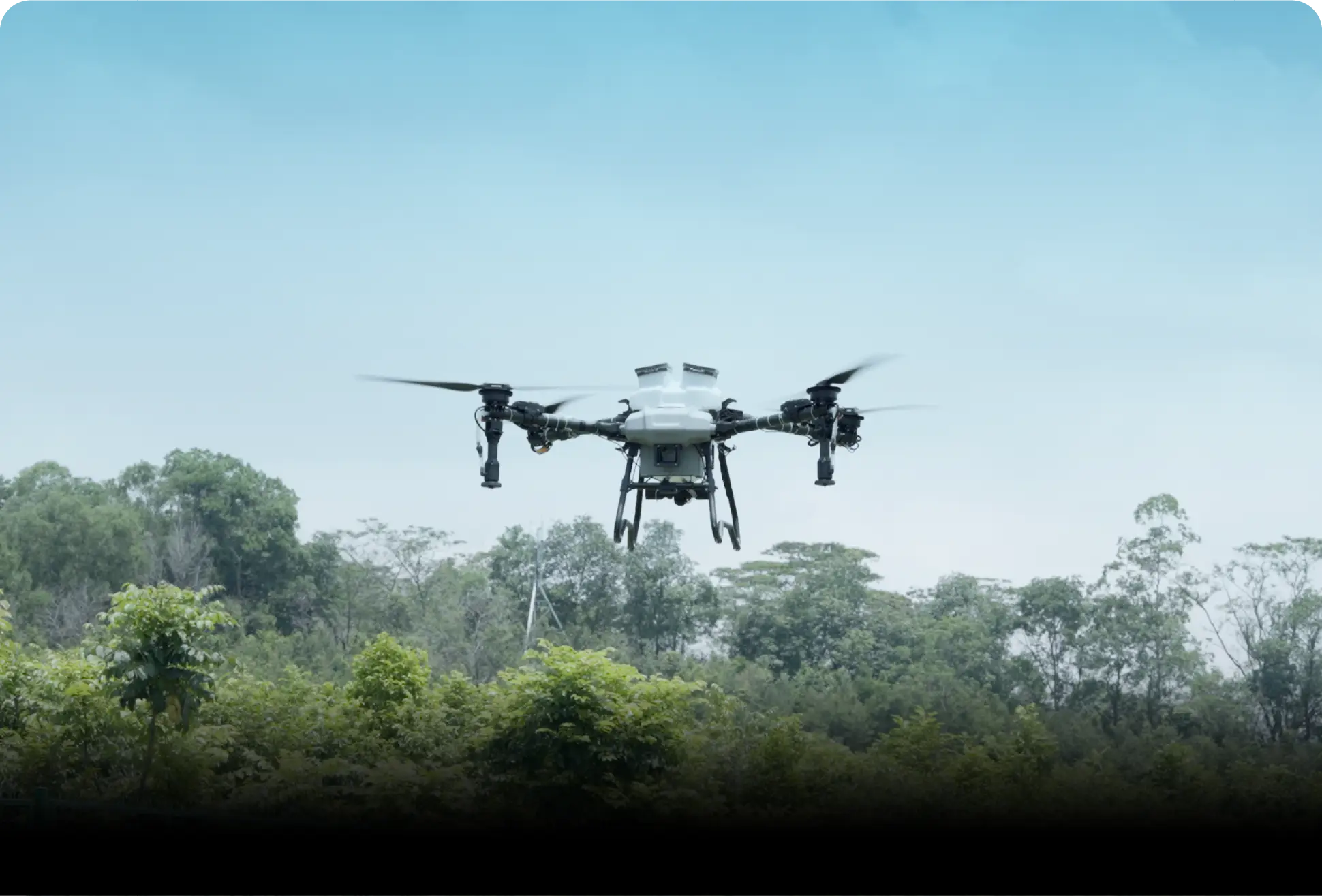

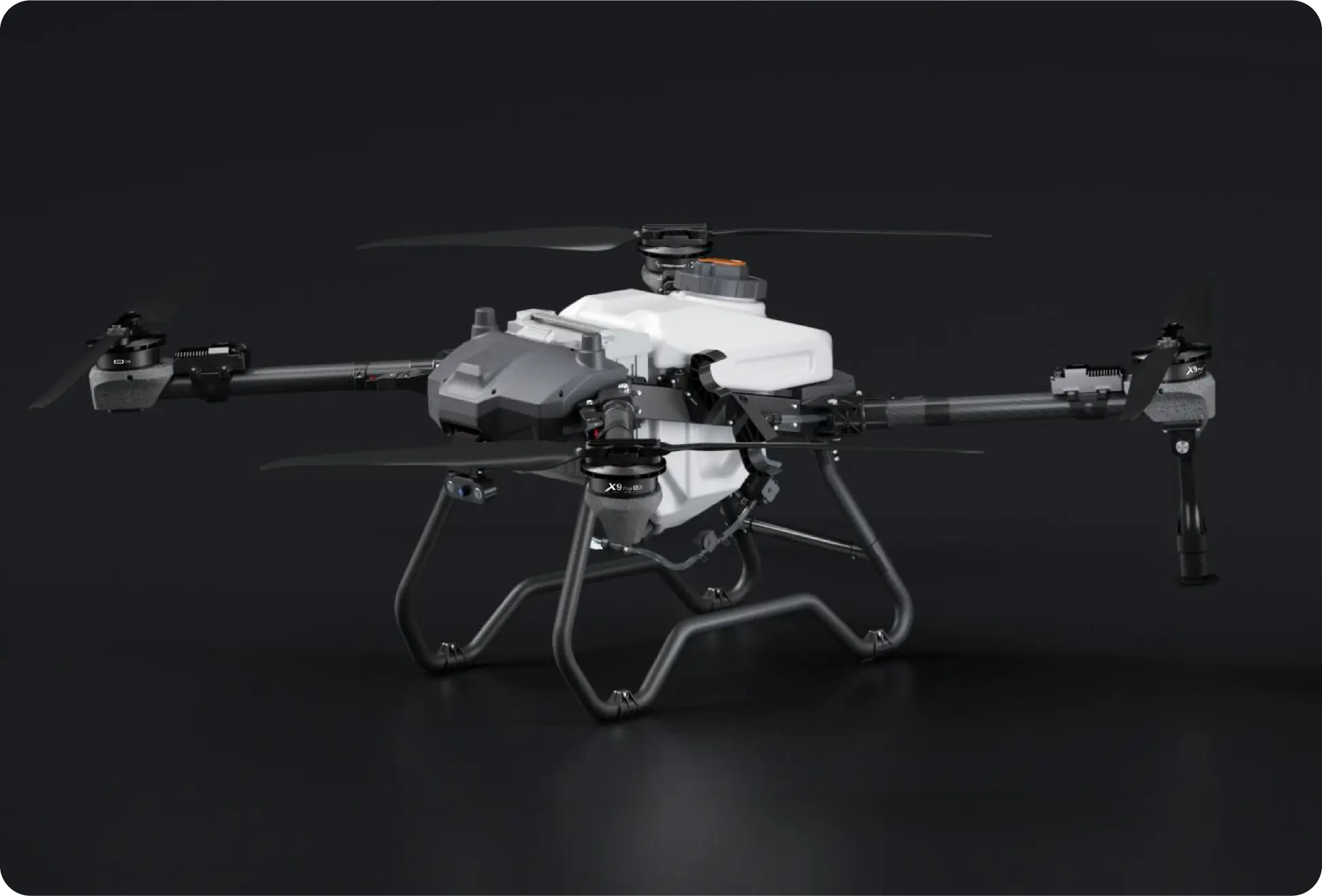

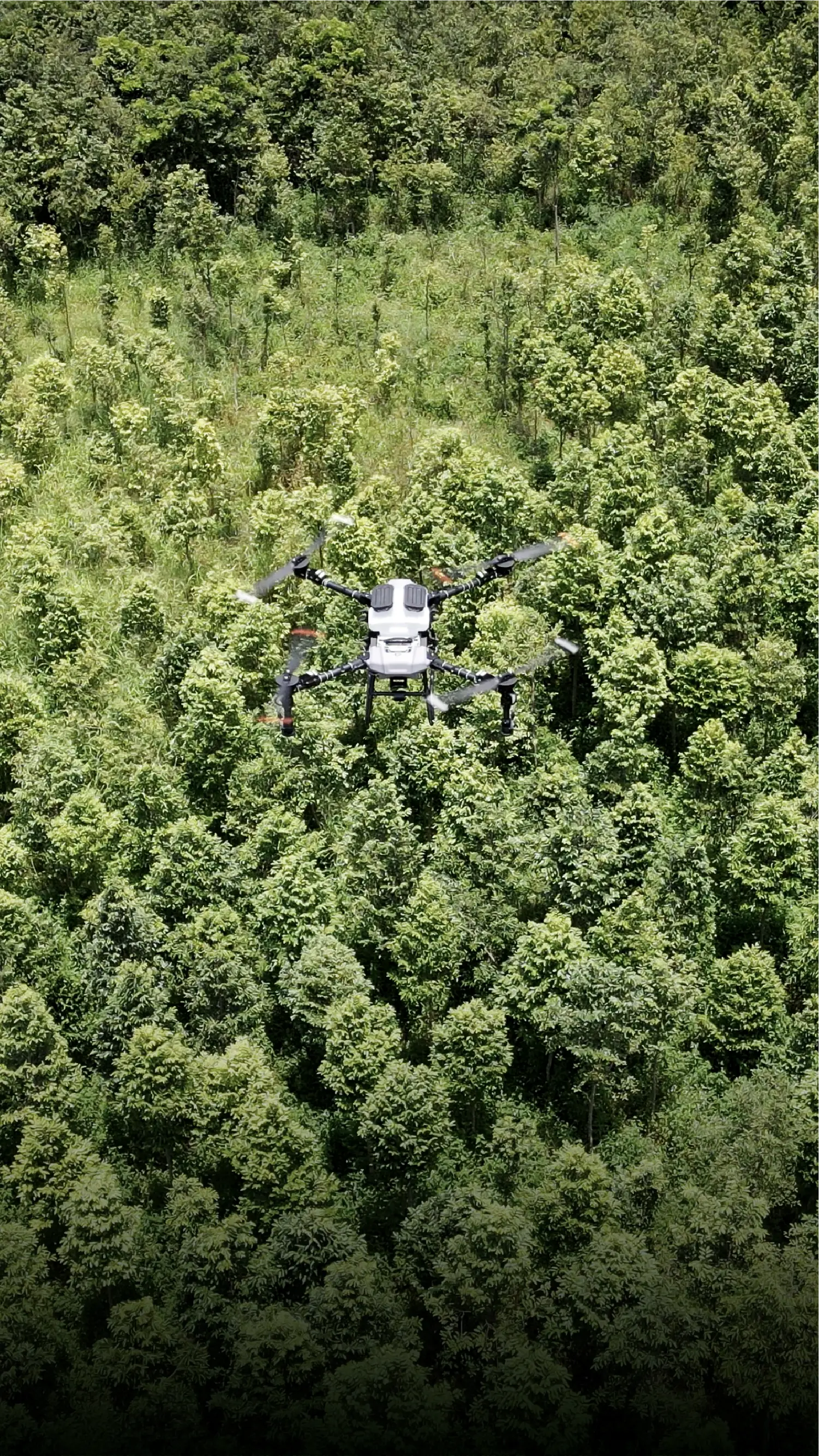

- Suitable for various
30L agricultural
drones and Class IV
UAVs.
- New Parameter Adjustment via Remote Controller
- If DataLinkBox is not available, users can adjust motor rotation
- direction and navigation light colors directly via the remote controller
- based on a case by case basis for any emergency needs.

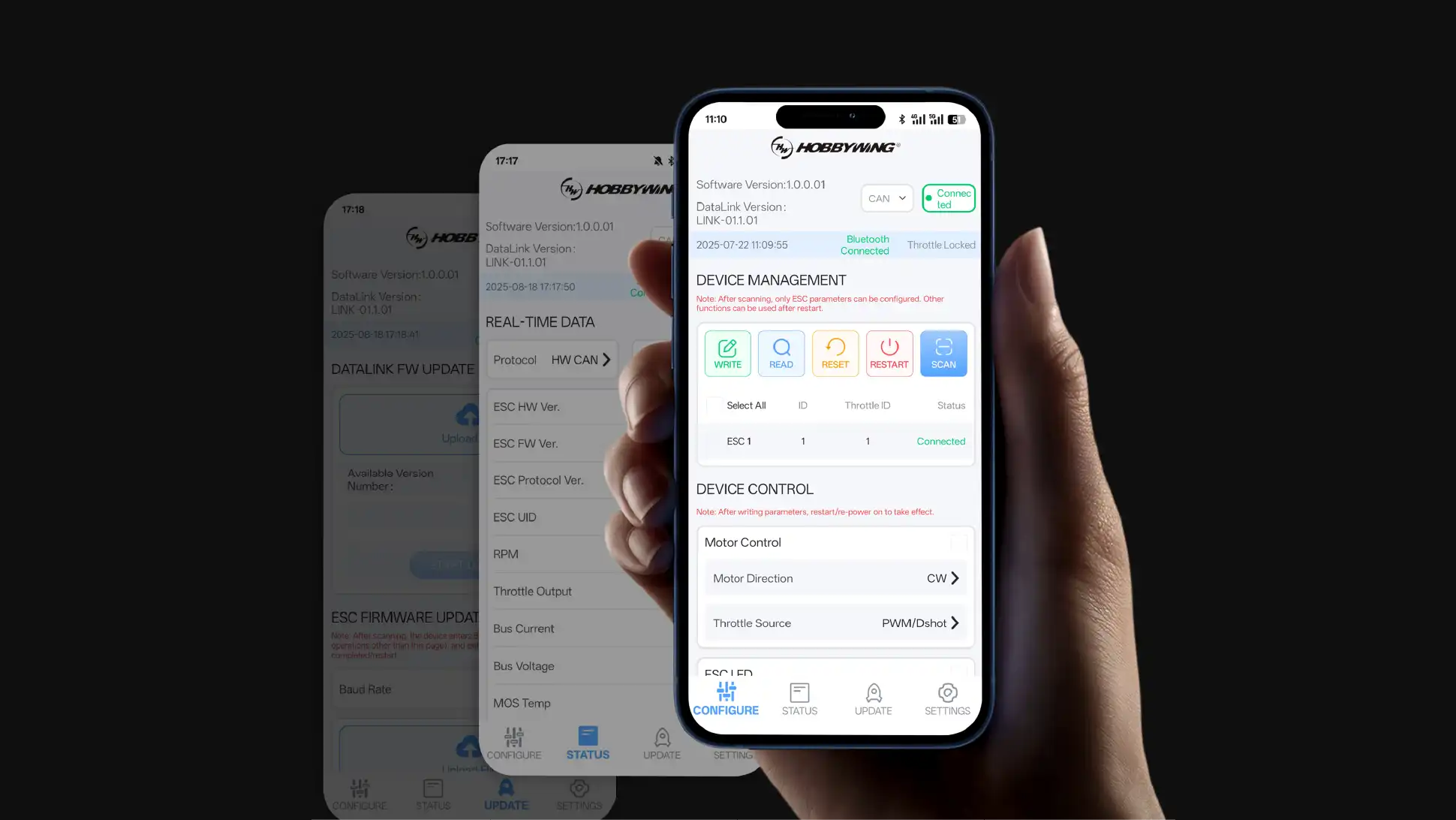

- New Parameter Adjustment via Bluetooth in the Mobile APP
- Using the DataLinkBox G3 paired with the HOBBYWING DataLink V3 app (compatible with Android and iOS;
- Huawei HarmonyOS currently not supported), the user is able to configure 90% of ESC parameters outdoors via Bluetooth.
- Parameter Adjustment via PC Software
- Additionally, the OTA function of the PC DataLink host computer software
- enables efficient and convenient upgrades of multiple ESC firmware within the same drone.
- Parameter Adjustment via Remote ControllerNew
- If DataLinkBox is not available, users can adjust motor rotation
- direction and navigation light colors directly via the remote controller
- based on a case by case basis for any emergency needs.
- Parameter Adjustment via Bluetooth in the Mobile APPNew
- Using the DataLinkBox G3 paired with the HOBBYWING DataLink V3 app (compatible with Android and iOS;
- Huawei HarmonyOS currently not supported), the user is able to configure 90% of ESC parameters outdoors via Bluetooth.
- Parameter Adjustment via PC Software
- Additionally, the OTA function of the PC DataLink host computer software
- enables efficient and convenient upgrades of multiple ESC firmware within the same drone.

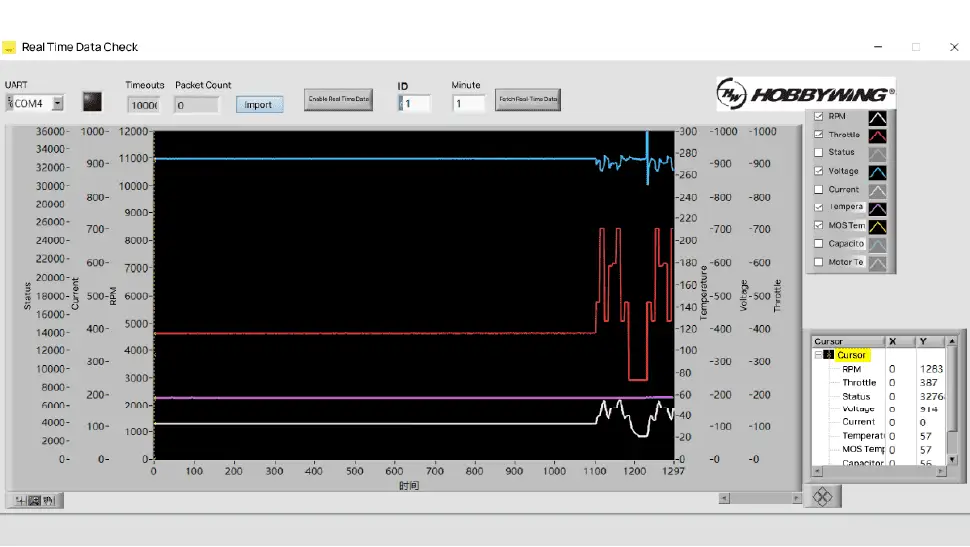

Storage Logic
- Fault Storage
- Precisely records fault data within
milliseconds for easier fault analysis and
ESC maintenance information logging.
- Log Black Box
- Records ESC operating data in real
time to trace the flight process.
The default recording duration is
1 hours, up to 24 hours.
Control Architecture
- Flatland Mode
- Ideal for flat areas, offering stable motor
rotation speed output and precise speed
control within operating voltage range.
- Highland Mode
- Suitable for high-altitude areas,
the system is able to systematically adjust motor
rotation speeds when encountering higher-altitude
operations. (Customizable on request)
- Flatland Mode
- Ideal for flat areas, offering stable motor
rotation speed output and precise speed
control within operating voltage range.
- Highland Mode
- Suitable for high-altitude areas,
the system is able to systematically adjust motor
rotation speeds when encountering higher-altitude
operations. (Customizable on request)

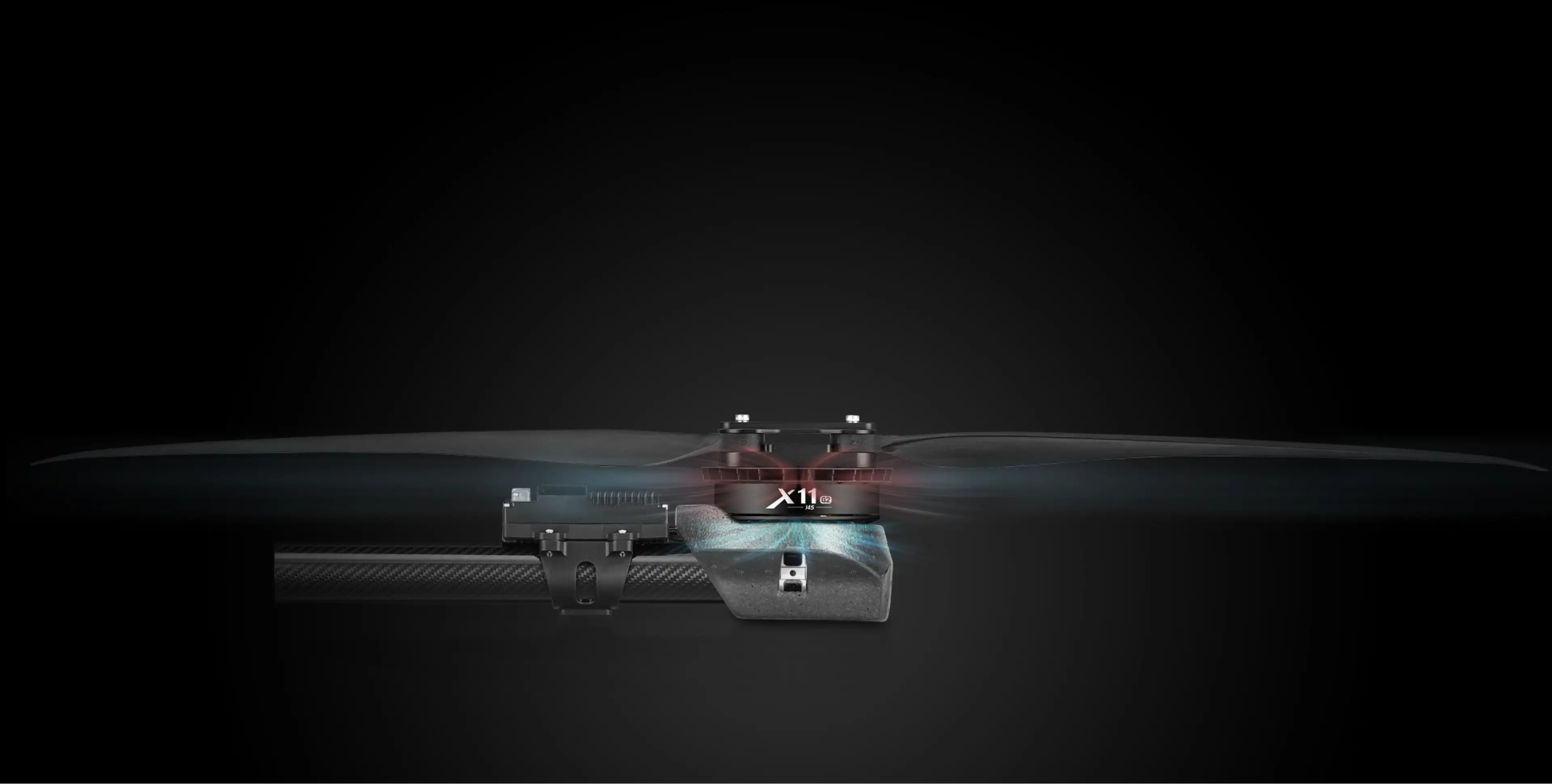

Optimal Heat Dissipation
The motor features a new rectangular vent,
reducing weight by 4% while effectively preventing impurity ingress.
This design significantly enhances heat dissipation efficiency,
improving the motor’s overall performance.
Redundancy Control
Analog throttle
New dual throttle control scheme
(PWM analog signal + CAN bus digital signal)
enhances real-time responsiveness and
anti-interference performance,
ensuring precise throttle control
and more reliable flight.
Digital throttle
even under standalone GPS operation without RTK,
it can maintain stable position holding,
further enhancing flight safety and route precision.
Note: X11 G2 UAV propulsion system supports DroneCAN and HWCAN protocols (default: HWCAN).
It also enables intercommunication with multiple mainstream flight controller systems,
such as ArduPilot open source ecosystem, VK, BOYING, JIYI,
and ACFLY to build an intelligent flight ecosystem through CAN communication.
Effortlessly Conquering
Harsh Environments
With an ingress protection rating of
IPX6,
the motor can be pressure washed with water,
making it the ideal option for those in harsh operating
agricultural environments, that include, rain,
pesticides, high temperatures and dust.

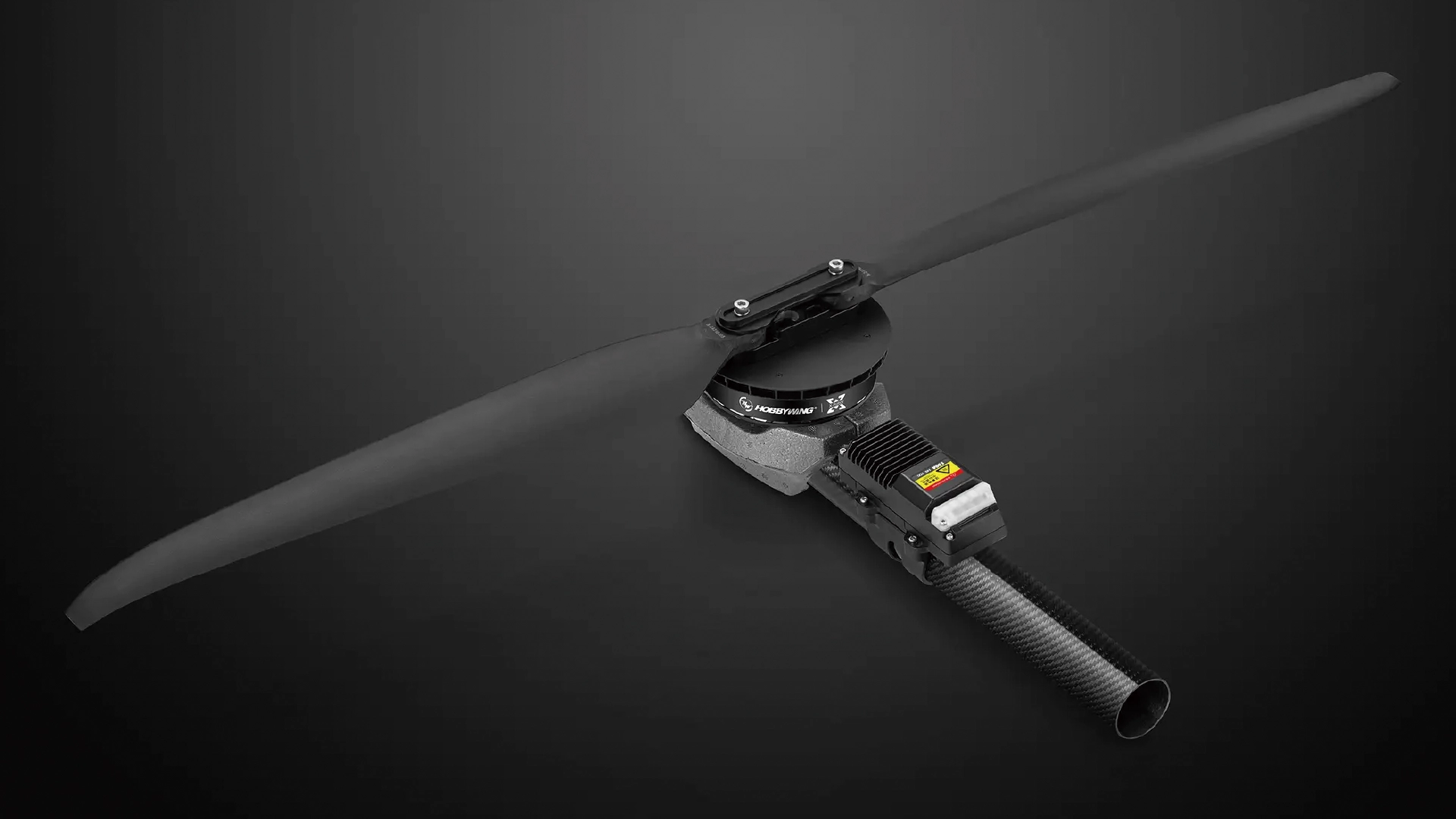

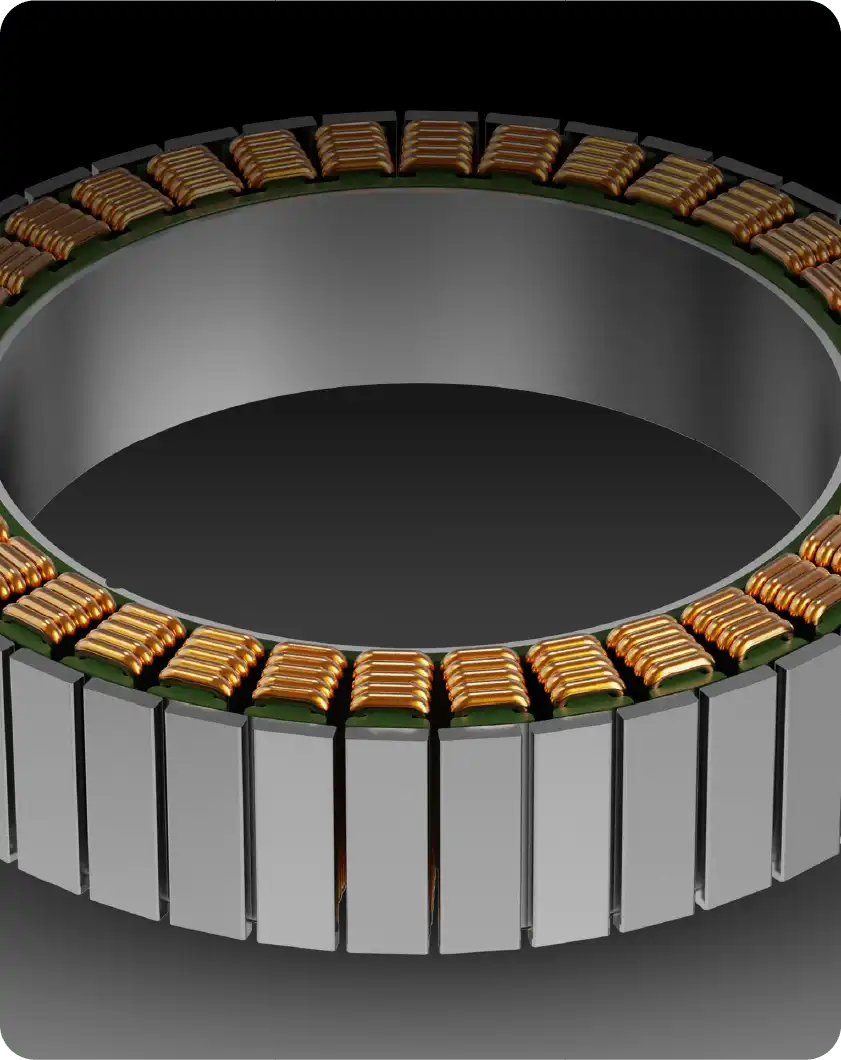

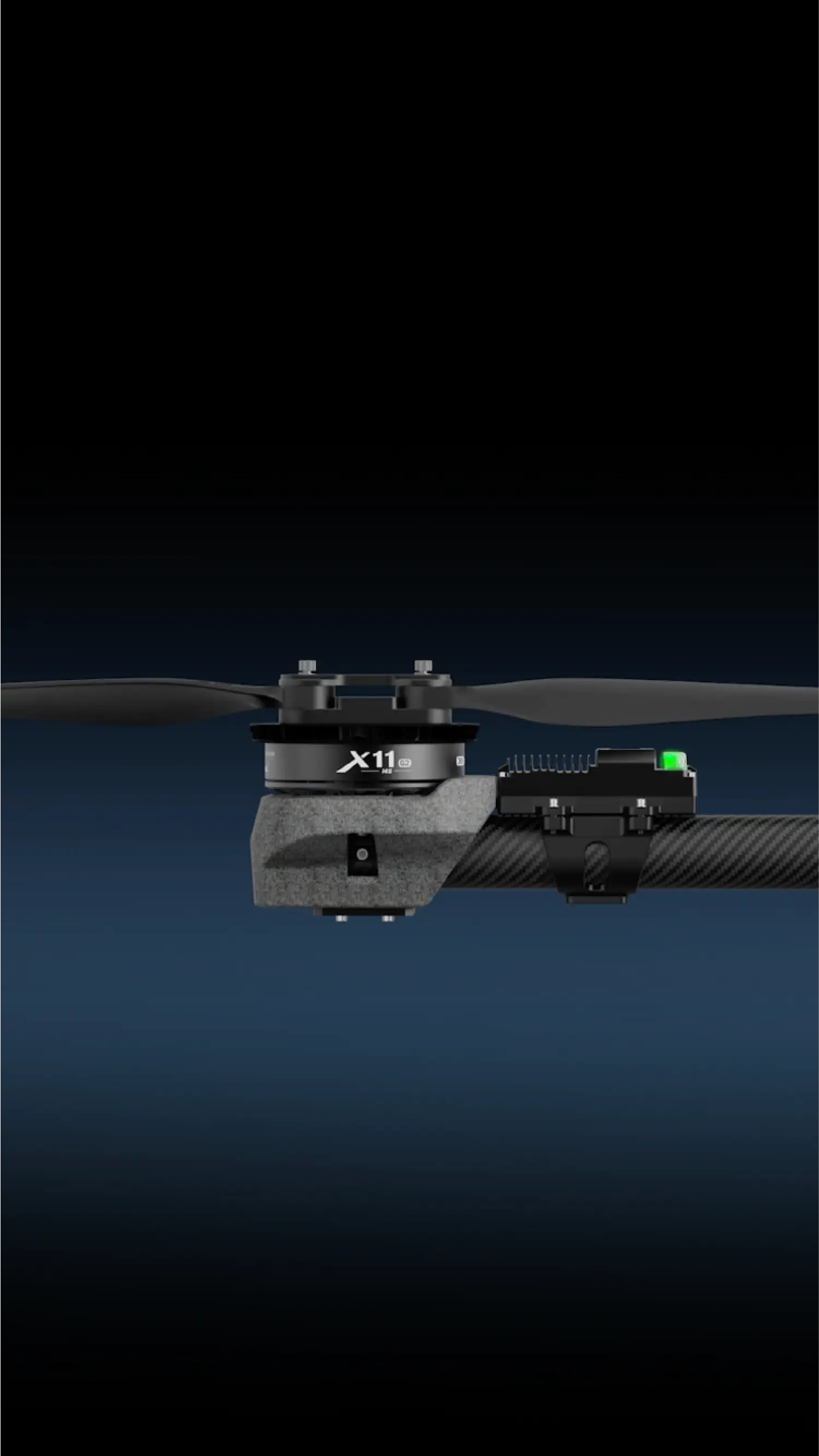

The X11 G2L drone motor is coated with
high-temperature resistant enamel wire,
capable of withstanding temperatures
up to 200°C.
Protection for Secure Flights
Overvoltage warning
Undervoltage warning
Fail to resetthrottle to zero
Short-circuit fault
Disconnection fault
Overcurrent fault
Motor stall fault
Throttle loss warning
MOS over-temperaturewarning
Capacitor over-temperaturewarning
-
-
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
-
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage

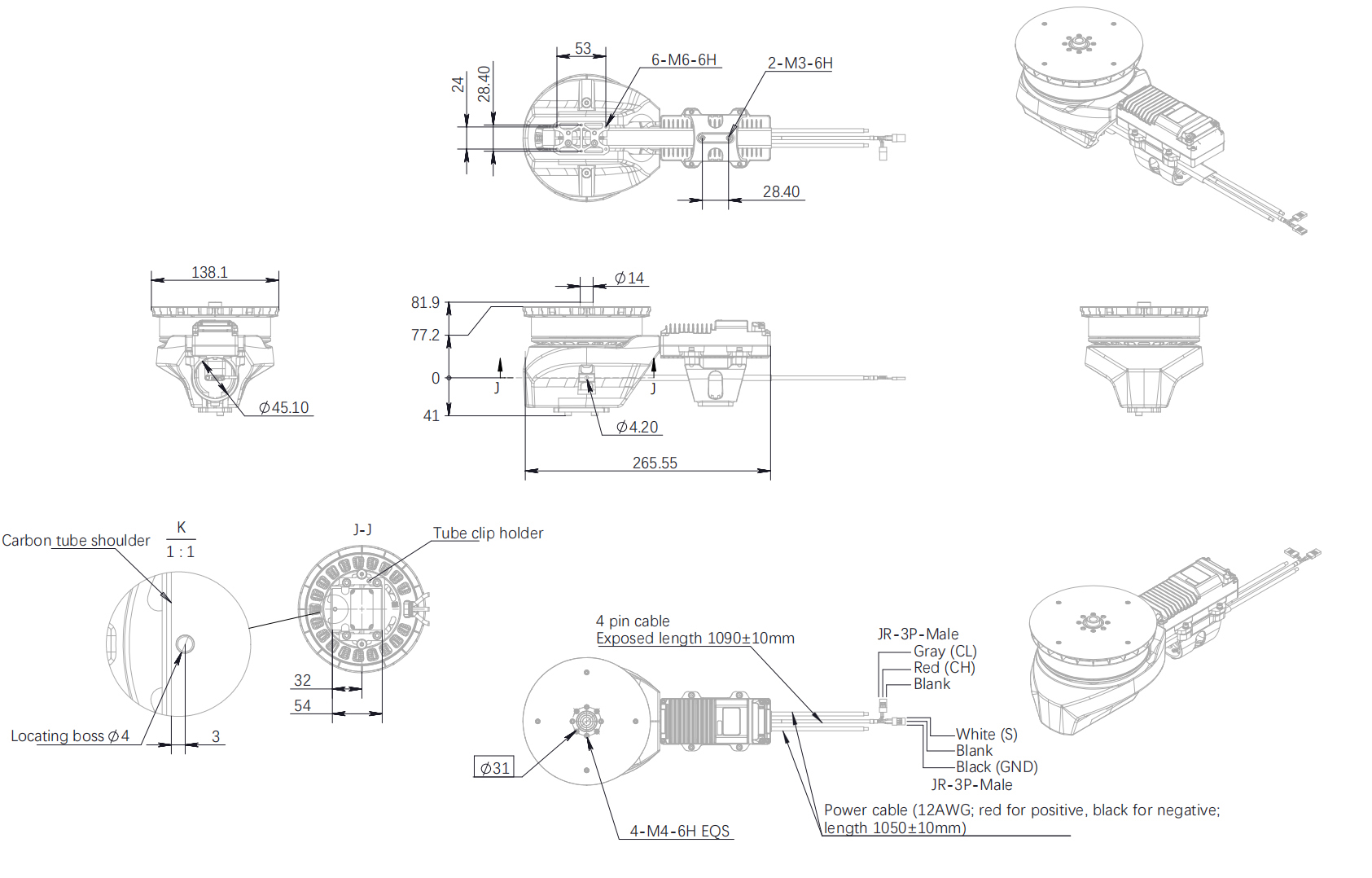

- Tube outer diameter
- Weight (with cable and propeller)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated power input
- Rated power output
- Pinout
-
- 32 kg (at sea level)
- 17 kg (at sea level)
- 7.5 g/W
- 14S（LiPo）
- 14S-54 V
- 18~63 V
- D45 mm
- 1980 g*
- Power cable: 12AWG 1050 mm* Signal cable: 1090 mm*
- -20~50 ℃
- IPX6
- 2200 W
- 1870 W
- Black-GND, White-PWM & Red-CH, Gray-CL
-
- Rated voltage
- Communication protocol
- Peak current (3s)
- Continuous current
- Throttle range calibration
- Throttle Source
- Operating pulse width
- Fault storage & Log
-
- 14 S
- Cyphal（UAVCAN）
- 150 A（3s）
- 60 A
- Not supported
- PWM + CAN
- 1050~1950 μs
- Supported
-
- KV
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 95KV
- 36N40P
- 111x15 mm
- 120.1 mm (Fan 138 mm)
-

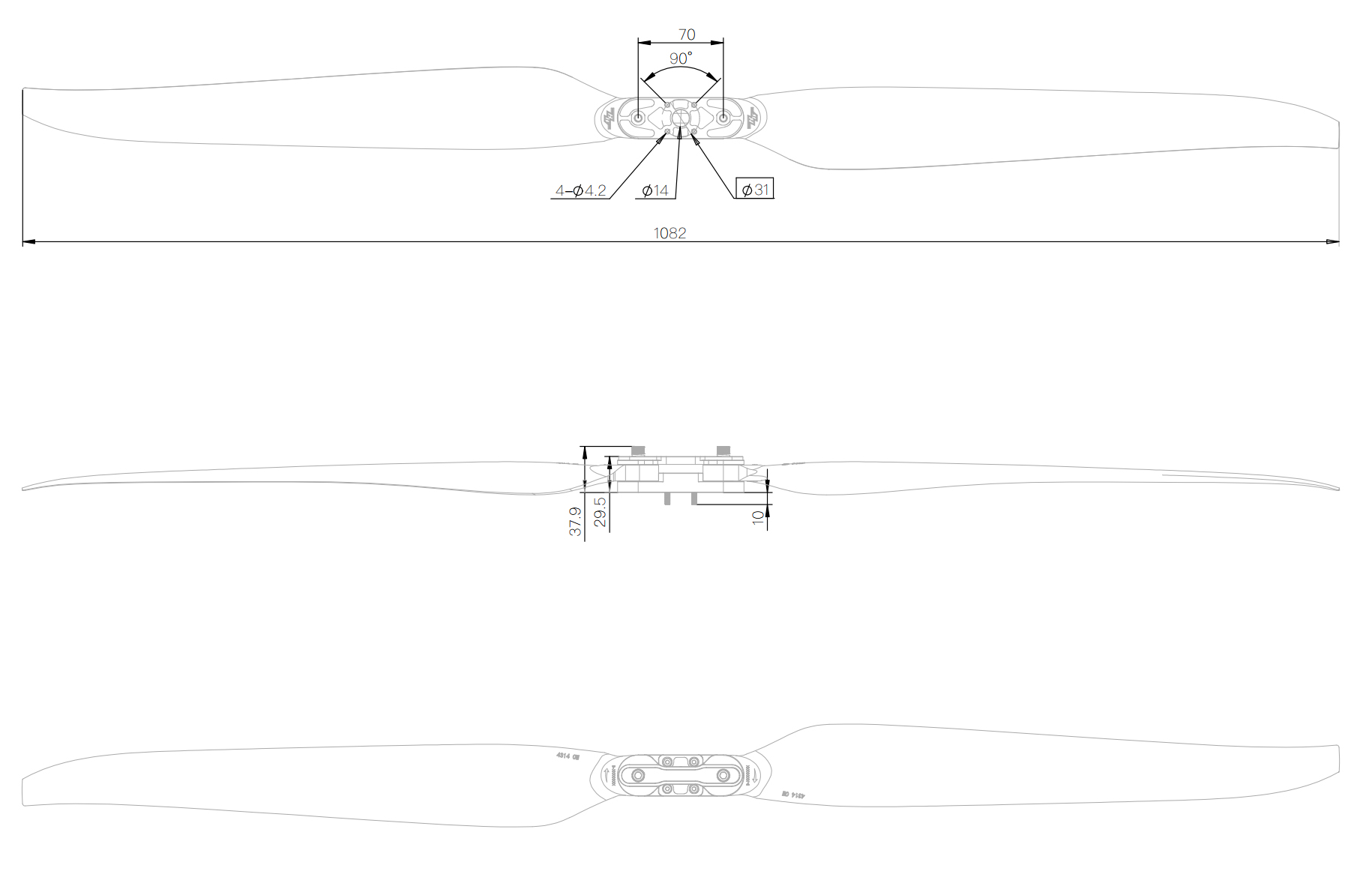

- Model
- Total Weight
- Material of Props
- Sigal Weight
-
- MFP 43x14 (Folding propeller)
- 427 g*
- Carbon fibre-reinforced nylon composite material
- 146 g*
-
- *Subject to the actual product.
-
|

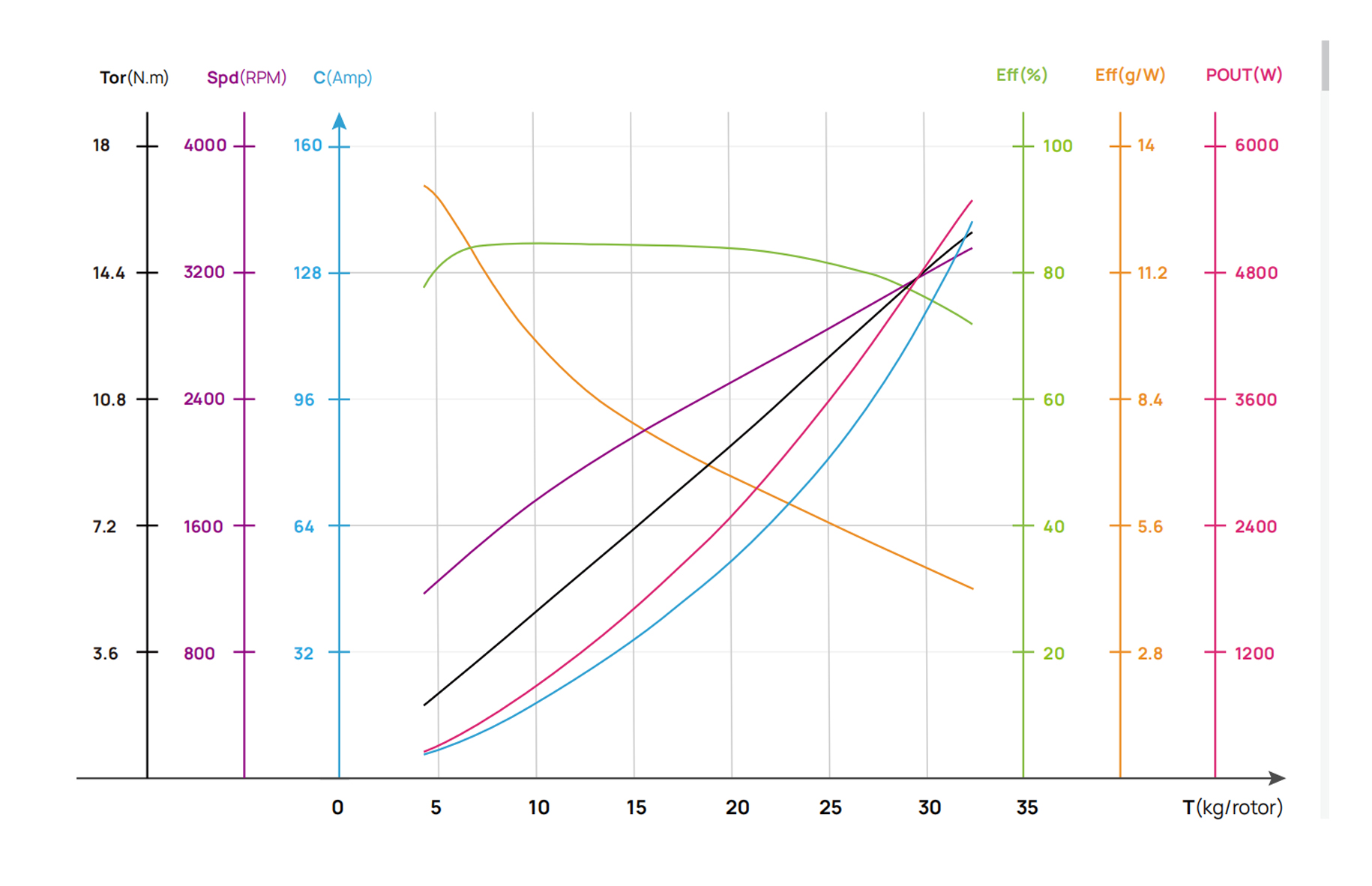

Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
54V(14S LiPo) |
MFP 43x14 |
35% |
6376 |
9.8 |
529.1 |
1398 |
12.0 |
3.03 |
443.6 |
56.9 |
|
37% |
7239 |
11.7 |
633.5 |
1490 |
11.4 |
3.43 |
535.2 |
|||
|
39% |
8132 |
13.9 |
751.3 |
1581 |
10.8 |
3.85 |
637.4 |
|||
|
42% |
9521 |
17.6 |
951.3 |
1714 |
10.0 |
4.51 |
809.4 |
|||
|
45% |
10962 |
21.8 |
1177.7 |
1844 |
9.3 |
5.19 |
1002.1 |
|||
|
48% |
12443 |
26.4 |
1427.5 |
1968 |
8.7 |
5.89 |
1213.8 |
|||
|
51% |
13955 |
31.4 |
1698.8 |
2087 |
8.2 |
6.60 |
1442.3 |
|||
|
54% |
15488 |
36.8 |
1991.2 |
2201 |
7.8 |
7.33 |
1689.4 |
|||
|
57% |
17034 |
42.6 |
2304.2 |
2310 |
7.4 |
8.06 |
1949.6 |
|||
|
60% |
18581 |
48.8 |
2639.3 |
2417 |
7.0 |
8.81 |
2229.7 |
|||
|
63% |
20120 |
55.5 |
2999.2 |
2521 |
6.7 |
9.55 |
2521.0 |
|||
|
66% |
21639 |
62.6 |
3385.8 |
2624 |
6.4 |
10.31 |
2832.8 |
|||
|
69% |
23126 |
70.3 |
3799.3 |
2725 |
6.1 |
11.05 |
3153.0 |
|||
|
72% |
24568 |
78.4 |
4240.5 |
2825 |
5.8 |
11.78 |
3484.7 |
|||
|
75% |
25949 |
87.1 |
4707.0 |
2921 |
5.5 |
12.49 |
3820.2 |
|||
|
78% |
27253 |
96.1 |
5192.5 |
3013 |
5.2 |
13.16 |
4151.9 |
|||
|
81% |
28462 |
105.2 |
5686.0 |
3099 |
5.0 |
13.77 |
4468.4 |
|||
|
84% |
29555 |
114.2 |
6173.7 |
3176 |
4.8 |
14.31 |
4759.0 |
|||
|
87% |
30509 |
122.7 |
6633.7 |
3243 |
4.6 |
14.77 |
5015.6 |
|||
|
90% |
31300 |
130.2 |
7040.8 |
3296 |
4.4 |
15.14 |
5225.3 |
|||
|
93% |
31898 |
136.3 |
7365.7 |
3336 |
4.3 |
15.41 |
5383.0 |
|||
|
100% |
32393 |
141.4 |
7645.7 |
3368 |
4.2 |
15.62 |
5508.7 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
- Recommended
takeoff weight
per axis
17kg - Compared with the previous version X11, the X11 G2 adopts a brand-new 11115 motor paired with a larger MFP 43x14 carbon plastic propeller, reducing the overall weight by 15% and enhacing flight efficiency.
- Suitable for various
30L agricultural
drones and Class IV
UAVs.
- New Parameter Adjustment via Remote Controller
- If DataLinkBox is not available, users can adjust motor rotation
- direction and navigation light colors directly via the remote controller
- based on a case by case basis for any emergency needs.
- New Parameter Adjustment via Bluetooth in the Mobile APP
- Using the DataLinkBox G3 paired with the HOBBYWING DataLink V3 app (compatible with Android and iOS;
- Huawei HarmonyOS currently not supported), the user is able to configure 90% of ESC parameters outdoors via Bluetooth.
- Parameter Adjustment via PC Software
- Additionally, the OTA function of the PC DataLink host computer software
- enables efficient and convenient upgrades of multiple ESC firmware within the same drone.
- Parameter Adjustment via Remote ControllerNew
- If DataLinkBox is not available, users can adjust motor rotation
- direction and navigation light colors directly via the remote controller
- based on a case by case basis for any emergency needs.
- Parameter Adjustment via Bluetooth in the Mobile APPNew
- Using the DataLinkBox G3 paired with the HOBBYWING DataLink V3 app (compatible with Android and iOS;
- Huawei HarmonyOS currently not supported), the user is able to configure 90% of ESC parameters outdoors via Bluetooth.
- Parameter Adjustment via PC Software
- Additionally, the OTA function of the PC DataLink host computer software
- enables efficient and convenient upgrades of multiple ESC firmware within the same drone.
Storage Logic
- Fault Storage
- Precisely records fault data within
milliseconds for easier fault analysis and
ESC maintenance information logging.
- Log Black Box
- Records ESC operating data in real
time to trace the flight process.
The default recording duration is
1 hours, up to 24 hours.
Control Architecture
- Flatland Mode
- Ideal for flat areas, offering stable motor
rotation speed output and precise speed
control within operating voltage range.
- Highland Mode
- Suitable for high-altitude areas,
the system is able to systematically adjust motor
rotation speeds when encountering higher-altitude
operations. (Customizable on request)
- Flatland Mode
- Ideal for flat areas, offering stable motor
rotation speed output and precise speed
control within operating voltage range.
- Highland Mode
- Suitable for high-altitude areas,
the system is able to systematically adjust motor
rotation speeds when encountering higher-altitude
operations. (Customizable on request)
Optimal Heat Dissipation
The motor features a new rectangular vent,
reducing weight by 4% while effectively preventing impurity ingress.
This design significantly enhances heat dissipation efficiency,
improving the motor’s overall performance.
Redundancy Control
Analog throttle
New dual throttle control scheme
(PWM analog signal + CAN bus digital signal)
enhances real-time responsiveness and
anti-interference performance,
ensuring precise throttle control
and more reliable flight.
Digital throttle
even under standalone GPS operation without RTK,
it can maintain stable position holding,
further enhancing flight safety and route precision.
Note: X11 G2 UAV propulsion system supports DroneCAN and HWCAN protocols (default: HWCAN).
It also enables intercommunication with multiple mainstream flight controller systems,
such as ArduPilot open source ecosystem, VK, BOYING, JIYI,
and ACFLY to build an intelligent flight ecosystem through CAN communication.
Effortlessly Conquering
Harsh Environments
With an ingress protection rating of
IPX6,
the motor can be pressure washed with water,
making it the ideal option for those in harsh operating
agricultural environments, that include, rain,
pesticides, high temperatures and dust.
The X11 G2L drone motor is coated with
high-temperature resistant enamel wire,
capable of withstanding temperatures
up to 200°C.
Protection for Secure Flights
Overvoltage warningUndervoltage warningFail to resetthrottle to zero
Short-circuit faultDisconnection faultOvercurrent faultMotor stall faultThrottle loss warningMOS over-temperaturewarning
Capacitor over-temperaturewarning
-
- Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
-
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage
- Tube outer diameter
- Weight (with cable and propeller)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated power input
- Rated power output
- Pinout
-
- 32 kg (at sea level)
- 17 kg (at sea level)
- 7.5 g/W
- 14S（LiPo）
- 14S-54 V
- 18~63 V
- D45 mm
- 1980 g*
- Power cable: 12AWG 1050 mm* Signal cable: 1090 mm*
- -20~50 ℃
- IPX6
- 2200 W
- 1870 W
- Black-GND, White-PWM & Red-CH, Gray-CL
-
- Rated voltage
- Communication protocol
- Peak current (3s)
- Continuous current
- Throttle range calibration
- Throttle Source
- Operating pulse width
- Fault storage & Log
-
- 14 S
- Cyphal（UAVCAN）
- 150 A（3s）
- 60 A
- Not supported
- PWM + CAN
- 1050~1950 μs
- Supported
-
- KV
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 95KV
- 36N40P
- 111x15 mm
- 120.1 mm (Fan 138 mm)
-
- Model
- Total Weight
- Material of Props
- Sigal Weight
-
- MFP 43x14 (Folding propeller)
- 427 g*
- Carbon fibre-reinforced nylon composite material
- 146 g*
-
- *Subject to the actual product.
-
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(14S LiPo) |
MFP 43x14 |
35% |
6310 |
10.8 |
517.7 |
1397 |
12.2 |
3.03 |
443.2 |
/ |
|
37% |
7185 |
13.0 |
623.0 |
1489 |
11.5 |
3.44 |
536.4 |
|||
|
39% |
8105 |
15.5 |
744.6 |
1582 |
10.9 |
3.88 |
642.7 |
|||
|
42% |
9545 |
19.9 |
955.2 |
1718 |
10.0 |
4.56 |
820.3 |
|||
|
45% |
11034 |
24.8 |
1191.7 |
1849 |
9.3 |
5.25 |
1016.5 |
|||
|
48% |
12549 |
30.2 |
1449.3 |
1974 |
8.7 |
5.96 |
1231.9 |
|||
|
51% |
14075 |
35.9 |
1723.8 |
2093 |
8.2 |
6.68 |
1464.0 |
|||
|
54% |
15601 |
41.9 |
2013.7 |
2206 |
7.7 |
7.39 |
1707.1 |
|||
|
57% |
17122 |
48.3 |
2320.3 |
2315 |
7.4 |
8.11 |
1965.9 |
|||
|
60% |
18632 |
55.0 |
2645.8 |
2420 |
7.0 |
8.84 |
2240.1 |
|||
|
63% |
20130 |
62.3 |
2993.8 |
2523 |
6.7 |
9.56 |
2525.6 |
|||
|
66% |
21612 |
70.1 |
3369.2 |
2625 |
6.4 |
10.29 |
2828.4 |
|||
|
69% |
23075 |
78.6 |
3775.9 |
2725 |
6.1 |
11.02 |
3144.5 |
|||
|
72% |
24512 |
87.7 |
4216.7 |
2824 |
5.8 |
11.75 |
3474.6 |
|||
|
75% |
25914 |
97.6 |
4692.6 |
2920 |
5.5 |
12.46 |
3809.8 |
|||
|
78% |
27265 |
108.2 |
5199.3 |
3013 |
5.2 |
13.15 |
4148.8 |
|||
|
81% |
28545 |
119.2 |
5727.5 |
3100 |
5.0 |
13.80 |
4479.6 |
|||
|
84% |
29725 |
130.2 |
6260.6 |
3179 |
4.7 |
14.40 |
4793.5 |
|||
|
87% |
30769 |
140.8 |
6768.8 |
3247 |
4.5 |
14.92 |
5072.8 |
|||
|
90% |
31629 |
150.2 |
7217.7 |
3301 |
4.4 |
15.34 |
5302.3 |
|||
|
93% |
32247 |
157.2 |
7557.0 |
3339 |
4.3 |
15.63 |
5464.8 |
|||
|
100% |
32571 |
161.1 |
7740.1 |
3358 |
4.2 |
15.78 |
5548.6 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
54V(14S LiPo) |
MFP 43x14 |
35% |
6376 |
9.8 |
529.1 |
1398 |
12.0 |
3.03 |
443.6 |
56.9 |
|
37% |
7239 |
11.7 |
633.5 |
1490 |
11.4 |
3.43 |
535.2 |
|||
|
39% |
8132 |
13.9 |
751.3 |
1581 |
10.8 |
3.85 |
637.4 |
|||
|
42% |
9521 |
17.6 |
951.3 |
1714 |
10.0 |
4.51 |
809.4 |
|||
|
45% |
10962 |
21.8 |
1177.7 |
1844 |
9.3 |
5.19 |
1002.1 |
|||
|
48% |
12443 |
26.4 |
1427.5 |
1968 |
8.7 |
5.89 |
1213.8 |
|||
|
51% |
13955 |
31.4 |
1698.8 |
2087 |
8.2 |
6.60 |
1442.3 |
|||
|
54% |
15488 |
36.8 |
1991.2 |
2201 |
7.8 |
7.33 |
1689.4 |
|||
|
57% |
17034 |
42.6 |
2304.2 |
2310 |
7.4 |
8.06 |
1949.6 |
|||
|
60% |
18581 |
48.8 |
2639.3 |
2417 |
7.0 |
8.81 |
2229.7 |
|||
|
63% |
20120 |
55.5 |
2999.2 |
2521 |
6.7 |
9.55 |
2521.0 |
|||
|
66% |
21639 |
62.6 |
3385.8 |
2624 |
6.4 |
10.31 |
2832.8 |
|||
|
69% |
23126 |
70.3 |
3799.3 |
2725 |
6.1 |
11.05 |
3153.0 |
|||
|
72% |
24568 |
78.4 |
4240.5 |
2825 |
5.8 |
11.78 |
3484.7 |
|||
|
75% |
25949 |
87.1 |
4707.0 |
2921 |
5.5 |
12.49 |
3820.2 |
|||
|
78% |
27253 |
96.1 |
5192.5 |
3013 |
5.2 |
13.16 |
4151.9 |
|||
|
81% |
28462 |
105.2 |
5686.0 |
3099 |
5.0 |
13.77 |
4468.4 |
|||
|
84% |
29555 |
114.2 |
6173.7 |
3176 |
4.8 |
14.31 |
4759.0 |
|||
|
87% |
30509 |
122.7 |
6633.7 |
3243 |
4.6 |
14.77 |
5015.6 |
|||
|
90% |
31300 |
130.2 |
7040.8 |
3296 |
4.4 |
15.14 |
5225.3 |
|||
|
93% |
31898 |
136.3 |
7365.7 |
3336 |
4.3 |
15.41 |
5383.0 |
|||
|
100% |
32393 |
141.4 |
7645.7 |
3368 |
4.2 |
15.62 |
5508.7 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
