Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
69V |
MFP 56x20 |
33% |
9552 |
10.3 |
709.9 |
994 |
13.5 |
5.48 |
570.2 |
63℃ |
|
35% |
10360 |
11.4 |
788.1 |
1032 |
13.1 |
5.92 |
639.8 |
|||
|
37% |
11559 |
13.2 |
912.3 |
1086 |
12.7 |
6.59 |
749.2 |
|||
|
39% |
12865 |
15.3 |
1058.0 |
1143 |
12.2 |
7.33 |
877.1 |
|||
|
42% |
14968 |
19.0 |
1313.0 |
1231 |
11.4 |
8.54 |
1100.7 |
|||
|
45% |
17186 |
23.3 |
1606.2 |
1317 |
10.7 |
9.83 |
1355.9 |
|||
|
48% |
19476 |
28.0 |
1932.1 |
1402 |
10.1 |
11.17 |
1640.4 |
|||
|
51% |
21819 |
33.2 |
2287.4 |
1483 |
9.5 |
12.55 |
1948.4 |
|||
|
54% |
24212 |
38.7 |
2671.2 |
1562 |
9.1 |
13.94 |
2280.6 |
|||
|
57% |
26664 |
44.7 |
3085.1 |
1638 |
8.6 |
15.37 |
2635.5 |
|||
|
60% |
29192 |
51.2 |
3533.2 |
1714 |
8.3 |
16.82 |
3019.3 |
|||
|
63% |
31812 |
58.3 |
4021.2 |
1788 |
7.9 |
18.33 |
3431.3 |
|||
|
66% |
34542 |
66.0 |
4556.2 |
1862 |
7.6 |
19.89 |
3878.3 |
|||
|
69% |
37389 |
74.6 |
5145.6 |
1936 |
7.3 |
21.53 |
4364.2 |
|||
|
72% |
40351 |
84.0 |
5795.8 |
2010 |
7.0 |
23.24 |
4891.7 |
|||
|
75% |
43409 |
94.4 |
6511.1 |
2084 |
6.7 |
25.03 |
5461.9 |
|||
|
78% |
46519 |
105.7 |
7289.9 |
2157 |
6.4 |
26.87 |
6069.3 |
|||
|
81% |
49615 |
117.7 |
8121.9 |
2229 |
6.1 |
28.73 |
6704.8 |
|||
|
84% |
52597 |
130.2 |
8981.9 |
2297 |
5.9 |
30.52 |
7341.6 |
|||
|
87% |
55332 |
142.4 |
9824.6 |
2362 |
5.6 |
32.17 |
7955.5 |
|||
|
90% |
57643 |
153.3 |
10579.6 |
2417 |
5.4 |
33.53 |
8486.9 |
|||
|
100% |
60077 |
165.5 |
11418.8 |
2478 |
5.3 |
34.93 |
9064.4 |
-
Drone Propulsion Systems
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- X Series
- H Series
- P Series
-
-
-
- PROPELLER Superior efficiency, exceptional stability.
- Carbon Plastic Propeller
- Carbon Fiber Propeller
-
- CENTRIFUGAL NOZZLE Efficient atomizing, precise spraying.
- 9L
-
- WATER PUMP Minimal maintenance, long service life.
- 5L
- 8L
- 30L
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- P Series
-
-
-
- PROPELLER Powerful burst, high intensity.
- Carbon Fiber Propeller
-
-
RC Power Systems
RC Cars Power SystemRC Boat Power System
-
e-Vehicle Power Systems
Electric MotorcycleElectric SkateboardElectric Scooter
- Service and Support
Engineered to Efficiently Drive Heavy-Load Agriculture
Maximizing Payload Capacity, Flight Efficiency, and Operational Performance
Modes for Easy Use
- New Parameter Adjustment via Remote Controller
- Without a DataLinkBox, users can quickly adjust motor rotation direction
- and navigation light colors directly through the remote controller to
- meet on-site application needs in emergency scenarios.
- New Parameter Adjustment via Bluetooth in the Mobile APP
- Pair the DataLinkBox G3 with the HOBBYWING DataLink V3 app
- (Android & iOS compatible; Huawei HarmonyOS currently not supported)
- to swiftly adjust over 90% of ESC parameters outdoors via Bluetooth.
- Parameter Adjustment via PC Software
- Using the PC DataLink V3 Configurator paired with the DataLinkBox G3,
- simultaneously upgrade firmware across multiple ESCs
- on a single drone: Fast, Effortless OTA.
- New Parameter Adjustment via Remote Controller
- Without a DataLinkBox, users can quickly adjust motor rotation direction
- and navigation light colors directly through the remote controller to
- meet on-site application needs in emergency scenarios.
- New Parameter Adjustment via Bluetooth in the Mobile APP
- Pair the DataLinkBox G3 with the HOBBYWING DataLink V3 app
- (Android & iOS compatible; Huawei HarmonyOS currently not supported)
- to swiftly adjust over 90% of ESC parameters outdoors via Bluetooth.
- Parameter Adjustment via PC Software
- Using the PC DataLink V3 Configurator paired with the DataLinkBox G3,
- simultaneously upgrade firmware across multiple ESCs
- on a single drone: Fast, Effortless OTA.
Storage Logic
Fault Storage- Precisely records fault
data within milliseconds for
easier fault analysis.
Log Black Box- Real-time recording of ESC operating data for complete flight process tracing.
Default: 2 hours - expandable up to 48 hours.
Control Architecture
- （Default）
Flatland Mode - Ideal for flat areas, offering stable motor rotation speed output and precise speed control within the operating voltage range.
- (Customizable on request)
Highland Mode - Suitable for high-altitude areas, automatically adjusting motor rotation speeds within a certain range as altitude increases to adapt to high-altitude operations.
Optimal Heat Dissipation
Equipped with a large soft silicone fan and modular flat-layout architecture
to effectively resist impurity ingress and enable fast disassembly/maintenance.
The enlarged air outlet significantly improves
heat dissipation, ensuring reliable motor performance even in tough conditions.
Optimal Heat Dissipation
Analog throttle
Maintains dual throttle input via
PWM analog signal and CAN bus digital signal
to boost real-time responsiveness
and anti-interference performance,
delivering precise control
and greater flight reliability.
Digital throttle
Upgraded Protocol Support
Compared with the X13, the X13 G2 adds DroneCAN protocol support
(default: HWCAN) for compatibility with a wider range of flight controllers.
It enables intercommunication with leading systems such as
ArduPilot, VK, BOYING, JIYI, and ACFLY, creating a smarter CAN-based flight ecosystem.
Conquering Harsh Environments

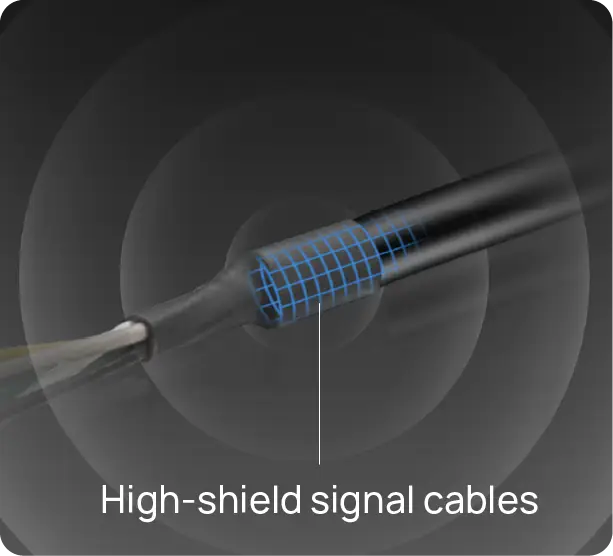

high-shield signal cables,
ensuring stable and
reliable signal transmission
even in complex and harsh
operating conditions.

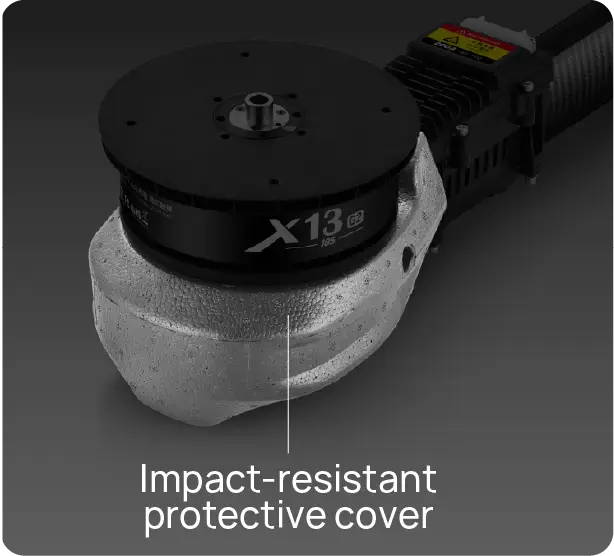

protective cover is made of
high-temperature-resistant,
flame-retardant material,
enhancing durability while
providing robust protection for
the entire propulsion system.

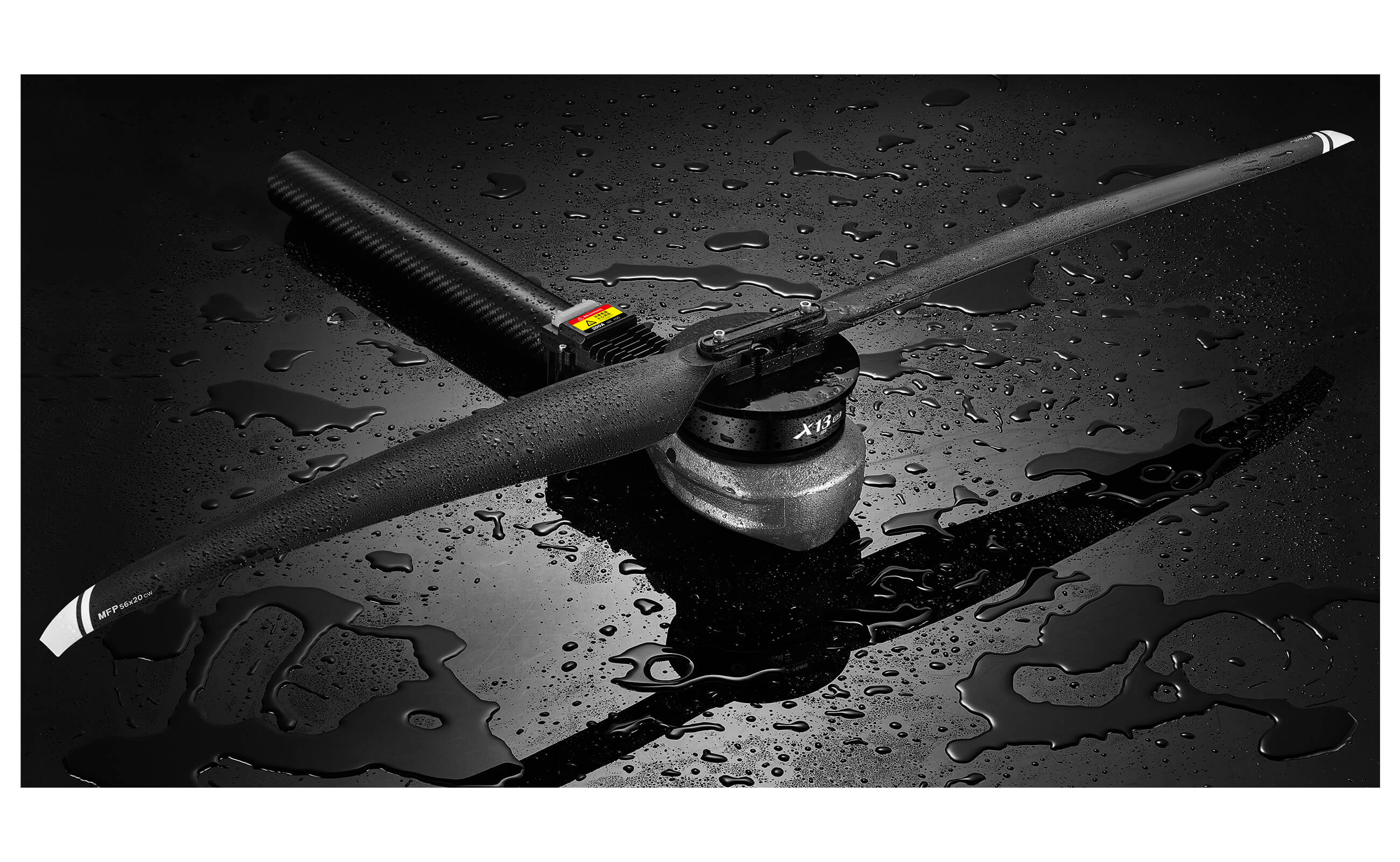

Water-Resistant Design
Equipped with IPX6 ingress protection,
the motor can be pressure washed,
delivering reliable performance in
challenging agricultural settings
with rain, pesticides,
high temperatures, and dust.
Protection for Secure Flights
Overvoltagewarning
Undervoltagewarning
Fail to resetthrottle to zero
Short-circuitfault
Disconnectionfault
Overcurrentfault
Motor stallfault
Throttle losswarning
MOS over-temperature warning
Capacitor over-temperature warning
-
-
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
-
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage

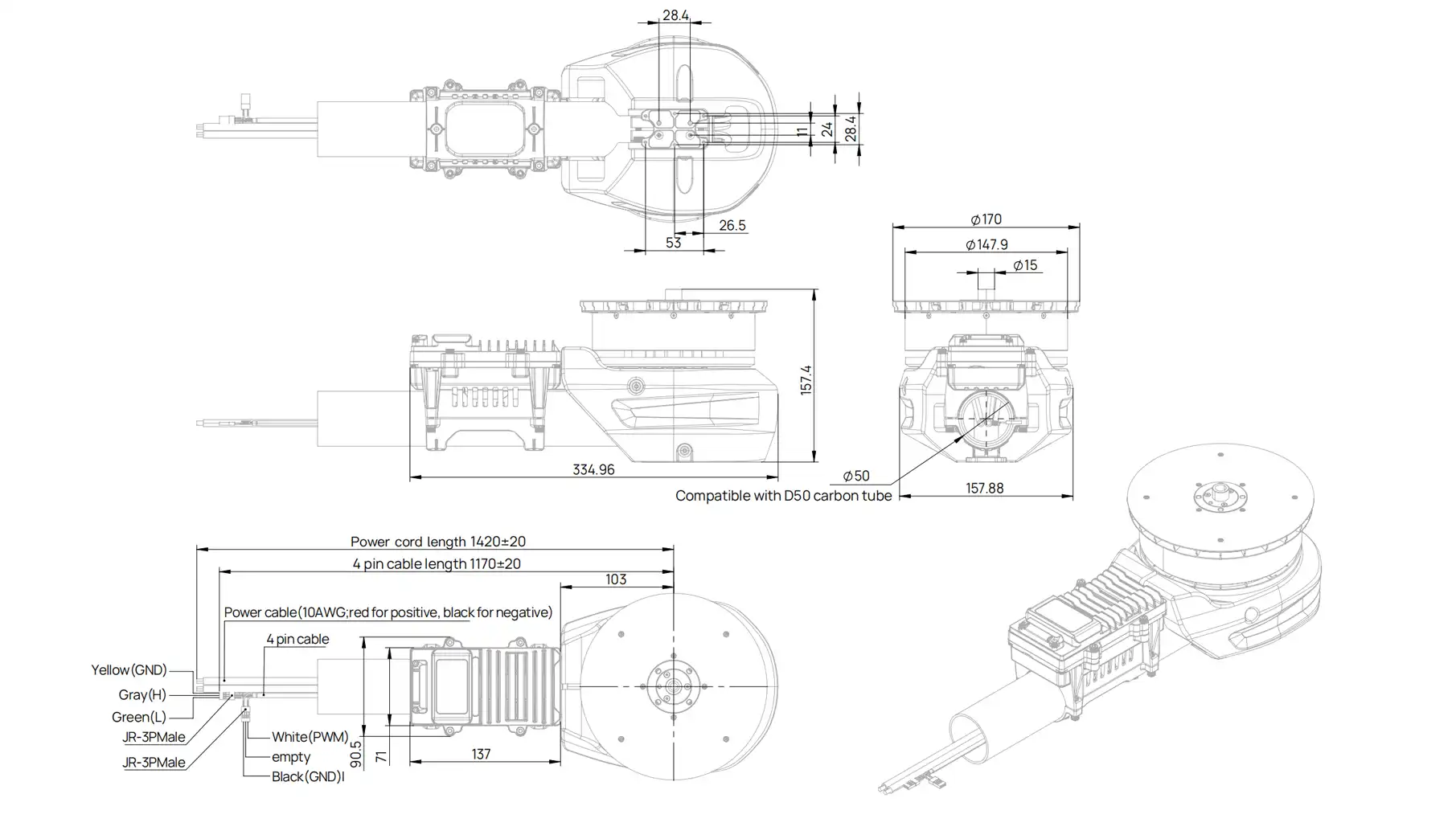

- Tube outer diameter
- Weight (with cable and propeller)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated power input
- Rated power output
- Pinout
-
- 60kg (at sea level)）
- 27kg (at sea level)
- 8.6g/W（MFP 56x20）
- 18S（LiPo）
- 18S-69V
- 25~80V
- D50mm
- 4185g*
- Power cable: 10AWG 1355mm* Signal cable: 1120 mm*
- -20~50℃
- IPX6
- 3160W
- 2700W
- Black-GND, White-PWM & Yellow-GND, Gray-CH, Green-CL
-
- Rated voltage
- Communication protocol
- Peak current (3s）
- Continuous current
- Throttle range calibration
- Throttle Source
- Operating pulse width
- Fault storage & Log
-
- 18S (LiPo)
- Cyphal（UAVCAN）
- 200A
- 70A
- 不支持
- PWM + CAN
- 1050-1950μs
- 支持
-
- KV
- Slot & Pole
- Stator size
- Motor diameter
-
- 45KV
- 36N42P
- 138*25mm
- 148mm
-

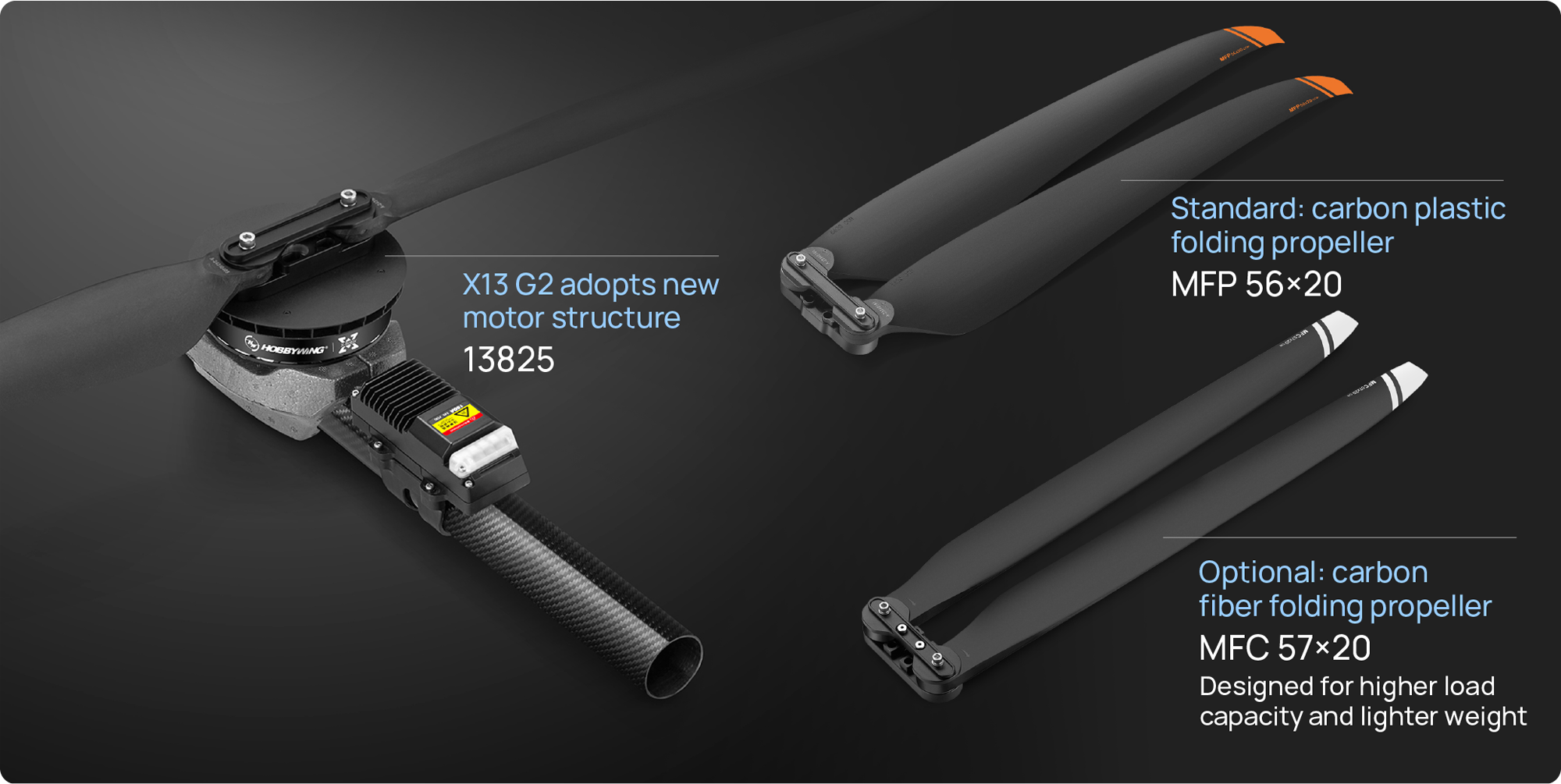

- Model
- Total Weight
- Material of blades
- Single blade weight
-
- MFP 56x20 (Folding propeller)
- 811g*
- Carbon fibre-reinforced nylon composite material
- 293g*
-
- Model
- Total Weight
- Material of blades
- Single blade weight
-
- MFC 57x20 (Folding propeller)
- 805g*
- Carbon fibre composite material
- 250g*
-
- *Subject to the actual product.
-
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
69V |
MFC 57x20 |
33% |
9215 |
9.8 |
677.1 |
995 |
13.6 |
5.20 |
542.1 |
/ |
|
35% |
9915 |
10.9 |
750.6 |
1031 |
13.2 |
5.60 |
604.7 |
|||
|
37% |
11002 |
12.6 |
869.0 |
1084 |
12.7 |
6.22 |
706.3 |
|||
|
39% |
12223 |
14.6 |
1007.9 |
1142 |
12.1 |
6.92 |
827.8 |
|||
|
42% |
14224 |
18.1 |
1249.6 |
1231 |
11.4 |
8.07 |
1040.6 |
|||
|
45% |
16348 |
22.1 |
1525.2 |
1319 |
10.7 |
9.30 |
1284.1 |
|||
|
48% |
18536 |
26.5 |
1829.4 |
1404 |
10.1 |
10.56 |
1552.5 |
|||
|
51% |
20759 |
31.3 |
2159.4 |
1485 |
9.6 |
11.84 |
1841.6 |
|||
|
54% |
23013 |
36.4 |
2514.8 |
1564 |
9.2 |
13.14 |
2152.5 |
|||
|
57% |
25309 |
42.0 |
2898.0 |
1639 |
8.7 |
14.47 |
2482.9 |
|||
|
60% |
27673 |
48.0 |
3314.0 |
1713 |
8.4 |
15.83 |
2839.1 |
|||
|
63% |
30134 |
54.6 |
3769.4 |
1787 |
8.0 |
17.24 |
3226.7 |
|||
|
66% |
32722 |
61.9 |
4272.4 |
1861 |
7.7 |
18.73 |
3650.3 |
|||
|
69% |
35460 |
70.0 |
4830.9 |
1935 |
7.3 |
20.31 |
4114.6 |
|||
|
72% |
38360 |
79.0 |
5451.9 |
2010 |
7.0 |
21.98 |
4625.6 |
|||
|
75% |
41414 |
89.0 |
6139.8 |
2084 |
6.7 |
23.74 |
5180.7 |
|||
|
78% |
44590 |
99.9 |
6894.7 |
2158 |
6.5 |
25.58 |
5780.6 |
|||
|
81% |
47825 |
111.7 |
7710.1 |
2229 |
6.2 |
27.47 |
6410.6 |
|||
|
84% |
51022 |
124.2 |
8568.9 |
2297 |
6.0 |
29.34 |
7056.2 |
|||
|
87% |
54039 |
136.8 |
9436.8 |
2361 |
5.7 |
31.11 |
7691.3 |
|||
|
90% |
56686 |
148.6 |
10253.0 |
2419 |
5.5 |
32.67 |
8275.6 |
|||
|
100% |
59937 |
164.3 |
11340.0 |
2494 |
5.3 |
34.59 |
9033.4 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
61V |
MFP 56x20 |
33% |
13019 |
21.6 |
1038.5 |
993 |
12.5 |
8.10 |
842.5 |
/ |
|
35% |
13916 |
23.5 |
1126.9 |
1026 |
12.3 |
8.62 |
926.5 |
|||
|
37% |
15557 |
27.2 |
1305.7 |
1084 |
11.9 |
9.60 |
1089.8 |
|||
|
39% |
17058 |
30.9 |
1485.8 |
1134 |
11.5 |
10.51 |
1248.4 |
|||
|
42% |
19192 |
36.7 |
1764.3 |
1203 |
10.9 |
11.83 |
1490.6 |
|||
|
45% |
21345 |
43.0 |
2066.9 |
1268 |
10.3 |
13.18 |
1750.1 |
|||
|
48% |
23652 |
50.2 |
2410.2 |
1334 |
9.8 |
14.63 |
2043.9 |
|||
|
51% |
26205 |
58.5 |
2808.3 |
1402 |
9.3 |
16.24 |
2383.8 |
|||
|
54% |
29054 |
68.1 |
3271.9 |
1474 |
8.9 |
18.02 |
2781.7 |
|||
|
57% |
32214 |
79.3 |
3808.1 |
1548 |
8.5 |
19.99 |
3240.0 |
|||
|
60% |
35667 |
92.1 |
4422.1 |
1624 |
8.1 |
22.12 |
3762.1 |
|||
|
63% |
39367 |
106.6 |
5118.7 |
1701 |
7.7 |
24.41 |
4347.1 |
|||
|
66% |
43247 |
122.9 |
5901.7 |
1778 |
7.3 |
26.81 |
4991.5 |
|||
|
69% |
47217 |
141.0 |
6770.4 |
1854 |
7.0 |
29.30 |
5688.4 |
|||
|
72% |
51176 |
160.7 |
7714.5 |
1927 |
6.6 |
31.83 |
6422.1 |
|||
|
75% |
55009 |
181.3 |
8707.4 |
1997 |
6.3 |
34.31 |
7175.4 |
|||
|
78% |
58597 |
202.1 |
9704.6 |
2059 |
6.0 |
36.66 |
7904.3 |
|||
|
81% |
61816 |
221.7 |
10647.4 |
2113 |
5.8 |
38.76 |
8575.7 |
|||
|
84% |
64547 |
238.9 |
11472.5 |
2156 |
5.6 |
40.50 |
9143.7 |
|||
|
87% |
66675 |
252.5 |
12123.6 |
2187 |
5.5 |
41.82 |
9576.2 |
|||
|
90% |
68097 |
261.5 |
12558.4 |
2207 |
5.4 |
42.66 |
9859.2 |
|||
|
100% |
68745 |
265.6 |
12755.7 |
2215 |
5.4 |
43.04 |
9981.9 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
61V |
MFC 57x20 |
33% |
14042 |
18.1 |
1102.1 |
988 |
12.7 |
8.76 |
906.6 |
/ |
|
35% |
15141 |
19.9 |
1211.6 |
1025 |
12.5 |
9.43 |
1012.2 |
|||
|
37% |
16642 |
22.6 |
1376.9 |
1074 |
12.1 |
10.36 |
1164.7 |
|||
|
39% |
18183 |
25.6 |
1563.3 |
1123 |
11.6 |
11.32 |
1331.3 |
|||
|
42% |
20570 |
30.8 |
1879.9 |
1196 |
10.9 |
12.84 |
1607.6 |
|||
|
45% |
23058 |
36.7 |
2239.3 |
1268 |
10.3 |
14.44 |
1916.6 |
|||
|
48% |
25666 |
43.3 |
2641.6 |
1340 |
9.7 |
16.12 |
2262.1 |
|||
|
51% |
28413 |
50.6 |
3088.6 |
1412 |
9.2 |
17.90 |
2647.3 |
|||
|
54% |
31324 |
58.7 |
3584.2 |
1484 |
8.7 |
19.79 |
3075.8 |
|||
|
57% |
34416 |
67.7 |
4134.0 |
1555 |
8.3 |
21.80 |
3549.4 |
|||
|
60% |
37703 |
77.8 |
4745.6 |
1627 |
7.9 |
23.93 |
4076.1 |
|||
|
63% |
41189 |
88.9 |
5428.2 |
1700 |
7.6 |
26.18 |
4659.9 |
|||
|
66% |
44865 |
101.5 |
6192.1 |
1773 |
7.2 |
28.55 |
5300.8 |
|||
|
69% |
48706 |
115.5 |
7047.1 |
1847 |
6.9 |
31.04 |
6002.8 |
|||
|
72% |
52667 |
131.0 |
7998.3 |
1920 |
6.6 |
33.61 |
6756.9 |
|||
|
75% |
56681 |
148.1 |
9040.3 |
1993 |
6.3 |
36.22 |
7558.8 |
|||
|
78% |
60655 |
166.3 |
10150.5 |
2063 |
6.0 |
38.80 |
8382.2 |
|||
|
81% |
64466 |
184.9 |
11282.7 |
2128 |
5.7 |
41.26 |
9193.2 |
|||
|
84% |
67959 |
202.6 |
12366.3 |
2185 |
5.5 |
43.46 |
9944.1 |
|||
|
87% |
70941 |
218.1 |
13312.7 |
2230 |
5.3 |
45.29 |
10575.0 |
|||
|
90% |
73182 |
229.8 |
14026.5 |
2262 |
5.2 |
46.61 |
11039.0 |
|||
|
100% |
74544 |
236.9 |
14457.0 |
2279 |
5.2 |
47.38 |
11306.2 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
Engineered to Efficiently Drive Heavy-Load Agriculture
Maximizing Payload Capacity, Flight Efficiency, and Operational Performance
Modes for Easy Use
- New Parameter Adjustment via Remote Controller
- Without a DataLinkBox, users can quickly adjust motor rotation direction
- and navigation light colors directly through the remote controller to
- meet on-site application needs in emergency scenarios.
- New Parameter Adjustment via Bluetooth in the Mobile APP
- Pair the DataLinkBox G3 with the HOBBYWING DataLink V3 app
- (Android & iOS compatible; Huawei HarmonyOS currently not supported)
- to swiftly adjust over 90% of ESC parameters outdoors via Bluetooth.
- Parameter Adjustment via PC Software
- Using the PC DataLink V3 Configurator paired with the DataLinkBox G3,
- simultaneously upgrade firmware across multiple ESCs
- on a single drone: Fast, Effortless OTA.
- New Parameter Adjustment via Remote Controller
- Without a DataLinkBox, users can quickly adjust motor rotation direction
- and navigation light colors directly through the remote controller to
- meet on-site application needs in emergency scenarios.
- New Parameter Adjustment via Bluetooth in the Mobile APP
- Pair the DataLinkBox G3 with the HOBBYWING DataLink V3 app
- (Android & iOS compatible; Huawei HarmonyOS currently not supported)
- to swiftly adjust over 90% of ESC parameters outdoors via Bluetooth.
- Parameter Adjustment via PC Software
- Using the PC DataLink V3 Configurator paired with the DataLinkBox G3,
- simultaneously upgrade firmware across multiple ESCs
- on a single drone: Fast, Effortless OTA.
Storage Logic
- Fault Storage
- Precisely records fault
data within milliseconds for
easier fault analysis.
- Log Black Box
- Real-time recording of ESC operating data for complete flight process tracing.
Default: 2 hours - expandable up to 48 hours.
Control Architecture
- （Default）
Flatland Mode - Ideal for flat areas, offering stable motor rotation speed output and precise speed control within the operating voltage range.
- (Customizable on request)
Highland Mode - Suitable for high-altitude areas, automatically adjusting motor rotation speeds within a certain range as altitude increases to adapt to high-altitude operations.
Optimal Heat Dissipation
Equipped with a large soft silicone fan and modular flat-layout architecture
to effectively resist impurity ingress and enable fast disassembly/maintenance.
The enlarged air outlet significantly improves
heat dissipation, ensuring reliable motor performance even in tough conditions.
Optimal Heat Dissipation
Analog throttle
Maintains dual throttle input via
PWM analog signal and CAN bus digital signal
to boost real-time responsiveness
and anti-interference performance,
delivering precise control
and greater flight reliability.
Digital throttle
Upgraded Protocol Support
Compared with the X13, the X13 G2 adds DroneCAN protocol support
(default: HWCAN) for compatibility with a wider range of flight controllers.
It enables intercommunication with leading systems such as
ArduPilot, VK, BOYING, JIYI, and ACFLY, creating a smarter CAN-based flight ecosystem.
Conquering Harsh Environments
high-shield signal cables,
ensuring stable and
reliable signal transmission
even in complex and harsh
operating conditions.
protective cover is made of
high-temperature-resistant,
flame-retardant material,
enhancing durability while
providing robust protection for
the entire propulsion system.
Water-Resistant Design
Equipped with IPX6 ingress protection,
the motor can be pressure washed,
delivering reliable performance in
challenging agricultural settings
with rain, pesticides,
high temperatures, and dust.
Protection for Secure Flights
Overvoltagewarning
Undervoltagewarning
Fail to resetthrottle to zero
Short-circuitfault
Disconnectionfault
Overcurrentfault
Motor stallfault
Throttle losswarning
MOS over-temperature warning
Capacitor over-temperature warning
-
- Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
-
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage
- Tube outer diameter
- Weight (with cable and propeller)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated power input
- Rated power output
- Pinout
-
- 60kg (at sea level)）
- 27kg (at sea level)
- 8.6g/W（MFP 56x20）
- 18S（LiPo）
- 18S-69V
- 25~80V
- D50mm
- 4185g*
- Power cable: 10AWG 1355mm* Signal cable: 1120 mm*
- -20~50℃
- IPX6
- 3160W
- 2700W
- Black-GND, White-PWM & Yellow-GND, Gray-CH, Green-CL
-
- Rated voltage
- Communication protocol
- Peak current (3s）
- Continuous current
- Throttle range calibration
- Throttle Source
- Operating pulse width
- Fault storage & Log
-
- 18S (LiPo)
- Cyphal（UAVCAN）
- 200A
- 70A
- 不支持
- PWM + CAN
- 1050-1950μs
- 支持
-
- KV
- Slot & Pole
- Stator size
- Motor diameter
-
- 45KV
- 36N42P
- 138*25mm
- 148mm
-
- Model
- Total Weight
- Material of blades
- Single blade weight
-
- MFP 56x20 (Folding propeller)
- 811g*
- Carbon fibre-reinforced nylon composite material
- 293g*
-
- Model
- Total Weight
- Material of blades
- Single blade weight
-
- MFC 57x20 (Folding propeller)
- 805g*
- Carbon fibre composite material
- 250g*
-
- *Subject to the actual product.
-
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
69V |
MFP 56x20 |
33% |
9552 |
10.3 |
709.9 |
994 |
13.5 |
5.48 |
570.2 |
63℃ |
|
35% |
10360 |
11.4 |
788.1 |
1032 |
13.1 |
5.92 |
639.8 |
|||
|
37% |
11559 |
13.2 |
912.3 |
1086 |
12.7 |
6.59 |
749.2 |
|||
|
39% |
12865 |
15.3 |
1058.0 |
1143 |
12.2 |
7.33 |
877.1 |
|||
|
42% |
14968 |
19.0 |
1313.0 |
1231 |
11.4 |
8.54 |
1100.7 |
|||
|
45% |
17186 |
23.3 |
1606.2 |
1317 |
10.7 |
9.83 |
1355.9 |
|||
|
48% |
19476 |
28.0 |
1932.1 |
1402 |
10.1 |
11.17 |
1640.4 |
|||
|
51% |
21819 |
33.2 |
2287.4 |
1483 |
9.5 |
12.55 |
1948.4 |
|||
|
54% |
24212 |
38.7 |
2671.2 |
1562 |
9.1 |
13.94 |
2280.6 |
|||
|
57% |
26664 |
44.7 |
3085.1 |
1638 |
8.6 |
15.37 |
2635.5 |
|||
|
60% |
29192 |
51.2 |
3533.2 |
1714 |
8.3 |
16.82 |
3019.3 |
|||
|
63% |
31812 |
58.3 |
4021.2 |
1788 |
7.9 |
18.33 |
3431.3 |
|||
|
66% |
34542 |
66.0 |
4556.2 |
1862 |
7.6 |
19.89 |
3878.3 |
|||
|
69% |
37389 |
74.6 |
5145.6 |
1936 |
7.3 |
21.53 |
4364.2 |
|||
|
72% |
40351 |
84.0 |
5795.8 |
2010 |
7.0 |
23.24 |
4891.7 |
|||
|
75% |
43409 |
94.4 |
6511.1 |
2084 |
6.7 |
25.03 |
5461.9 |
|||
|
78% |
46519 |
105.7 |
7289.9 |
2157 |
6.4 |
26.87 |
6069.3 |
|||
|
81% |
49615 |
117.7 |
8121.9 |
2229 |
6.1 |
28.73 |
6704.8 |
|||
|
84% |
52597 |
130.2 |
8981.9 |
2297 |
5.9 |
30.52 |
7341.6 |
|||
|
87% |
55332 |
142.4 |
9824.6 |
2362 |
5.6 |
32.17 |
7955.5 |
|||
|
90% |
57643 |
153.3 |
10579.6 |
2417 |
5.4 |
33.53 |
8486.9 |
|||
|
100% |
60077 |
165.5 |
11418.8 |
2478 |
5.3 |
34.93 |
9064.4 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
69V |
MFC 57x20 |
33% |
9215 |
9.8 |
677.1 |
995 |
13.6 |
5.20 |
542.1 |
/ |
|
35% |
9915 |
10.9 |
750.6 |
1031 |
13.2 |
5.60 |
604.7 |
|||
|
37% |
11002 |
12.6 |
869.0 |
1084 |
12.7 |
6.22 |
706.3 |
|||
|
39% |
12223 |
14.6 |
1007.9 |
1142 |
12.1 |
6.92 |
827.8 |
|||
|
42% |
14224 |
18.1 |
1249.6 |
1231 |
11.4 |
8.07 |
1040.6 |
|||
|
45% |
16348 |
22.1 |
1525.2 |
1319 |
10.7 |
9.30 |
1284.1 |
|||
|
48% |
18536 |
26.5 |
1829.4 |
1404 |
10.1 |
10.56 |
1552.5 |
|||
|
51% |
20759 |
31.3 |
2159.4 |
1485 |
9.6 |
11.84 |
1841.6 |
|||
|
54% |
23013 |
36.4 |
2514.8 |
1564 |
9.2 |
13.14 |
2152.5 |
|||
|
57% |
25309 |
42.0 |
2898.0 |
1639 |
8.7 |
14.47 |
2482.9 |
|||
|
60% |
27673 |
48.0 |
3314.0 |
1713 |
8.4 |
15.83 |
2839.1 |
|||
|
63% |
30134 |
54.6 |
3769.4 |
1787 |
8.0 |
17.24 |
3226.7 |
|||
|
66% |
32722 |
61.9 |
4272.4 |
1861 |
7.7 |
18.73 |
3650.3 |
|||
|
69% |
35460 |
70.0 |
4830.9 |
1935 |
7.3 |
20.31 |
4114.6 |
|||
|
72% |
38360 |
79.0 |
5451.9 |
2010 |
7.0 |
21.98 |
4625.6 |
|||
|
75% |
41414 |
89.0 |
6139.8 |
2084 |
6.7 |
23.74 |
5180.7 |
|||
|
78% |
44590 |
99.9 |
6894.7 |
2158 |
6.5 |
25.58 |
5780.6 |
|||
|
81% |
47825 |
111.7 |
7710.1 |
2229 |
6.2 |
27.47 |
6410.6 |
|||
|
84% |
51022 |
124.2 |
8568.9 |
2297 |
6.0 |
29.34 |
7056.2 |
|||
|
87% |
54039 |
136.8 |
9436.8 |
2361 |
5.7 |
31.11 |
7691.3 |
|||
|
90% |
56686 |
148.6 |
10253.0 |
2419 |
5.5 |
32.67 |
8275.6 |
|||
|
100% |
59937 |
164.3 |
11340.0 |
2494 |
5.3 |
34.59 |
9033.4 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
61V |
MFP 56x20 |
33% |
13019 |
21.6 |
1038.5 |
993 |
12.5 |
8.10 |
842.5 |
/ |
|
35% |
13916 |
23.5 |
1126.9 |
1026 |
12.3 |
8.62 |
926.5 |
|||
|
37% |
15557 |
27.2 |
1305.7 |
1084 |
11.9 |
9.60 |
1089.8 |
|||
|
39% |
17058 |
30.9 |
1485.8 |
1134 |
11.5 |
10.51 |
1248.4 |
|||
|
42% |
19192 |
36.7 |
1764.3 |
1203 |
10.9 |
11.83 |
1490.6 |
|||
|
45% |
21345 |
43.0 |
2066.9 |
1268 |
10.3 |
13.18 |
1750.1 |
|||
|
48% |
23652 |
50.2 |
2410.2 |
1334 |
9.8 |
14.63 |
2043.9 |
|||
|
51% |
26205 |
58.5 |
2808.3 |
1402 |
9.3 |
16.24 |
2383.8 |
|||
|
54% |
29054 |
68.1 |
3271.9 |
1474 |
8.9 |
18.02 |
2781.7 |
|||
|
57% |
32214 |
79.3 |
3808.1 |
1548 |
8.5 |
19.99 |
3240.0 |
|||
|
60% |
35667 |
92.1 |
4422.1 |
1624 |
8.1 |
22.12 |
3762.1 |
|||
|
63% |
39367 |
106.6 |
5118.7 |
1701 |
7.7 |
24.41 |
4347.1 |
|||
|
66% |
43247 |
122.9 |
5901.7 |
1778 |
7.3 |
26.81 |
4991.5 |
|||
|
69% |
47217 |
141.0 |
6770.4 |
1854 |
7.0 |
29.30 |
5688.4 |
|||
|
72% |
51176 |
160.7 |
7714.5 |
1927 |
6.6 |
31.83 |
6422.1 |
|||
|
75% |
55009 |
181.3 |
8707.4 |
1997 |
6.3 |
34.31 |
7175.4 |
|||
|
78% |
58597 |
202.1 |
9704.6 |
2059 |
6.0 |
36.66 |
7904.3 |
|||
|
81% |
61816 |
221.7 |
10647.4 |
2113 |
5.8 |
38.76 |
8575.7 |
|||
|
84% |
64547 |
238.9 |
11472.5 |
2156 |
5.6 |
40.50 |
9143.7 |
|||
|
87% |
66675 |
252.5 |
12123.6 |
2187 |
5.5 |
41.82 |
9576.2 |
|||
|
90% |
68097 |
261.5 |
12558.4 |
2207 |
5.4 |
42.66 |
9859.2 |
|||
|
100% |
68745 |
265.6 |
12755.7 |
2215 |
5.4 |
43.04 |
9981.9 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
61V |
MFC 57x20 |
33% |
14042 |
18.1 |
1102.1 |
988 |
12.7 |
8.76 |
906.6 |
/ |
|
35% |
15141 |
19.9 |
1211.6 |
1025 |
12.5 |
9.43 |
1012.2 |
|||
|
37% |
16642 |
22.6 |
1376.9 |
1074 |
12.1 |
10.36 |
1164.7 |
|||
|
39% |
18183 |
25.6 |
1563.3 |
1123 |
11.6 |
11.32 |
1331.3 |
|||
|
42% |
20570 |
30.8 |
1879.9 |
1196 |
10.9 |
12.84 |
1607.6 |
|||
|
45% |
23058 |
36.7 |
2239.3 |
1268 |
10.3 |
14.44 |
1916.6 |
|||
|
48% |
25666 |
43.3 |
2641.6 |
1340 |
9.7 |
16.12 |
2262.1 |
|||
|
51% |
28413 |
50.6 |
3088.6 |
1412 |
9.2 |
17.90 |
2647.3 |
|||
|
54% |
31324 |
58.7 |
3584.2 |
1484 |
8.7 |
19.79 |
3075.8 |
|||
|
57% |
34416 |
67.7 |
4134.0 |
1555 |
8.3 |
21.80 |
3549.4 |
|||
|
60% |
37703 |
77.8 |
4745.6 |
1627 |
7.9 |
23.93 |
4076.1 |
|||
|
63% |
41189 |
88.9 |
5428.2 |
1700 |
7.6 |
26.18 |
4659.9 |
|||
|
66% |
44865 |
101.5 |
6192.1 |
1773 |
7.2 |
28.55 |
5300.8 |
|||
|
69% |
48706 |
115.5 |
7047.1 |
1847 |
6.9 |
31.04 |
6002.8 |
|||
|
72% |
52667 |
131.0 |
7998.3 |
1920 |
6.6 |
33.61 |
6756.9 |
|||
|
75% |
56681 |
148.1 |
9040.3 |
1993 |
6.3 |
36.22 |
7558.8 |
|||
|
78% |
60655 |
166.3 |
10150.5 |
2063 |
6.0 |
38.80 |
8382.2 |
|||
|
81% |
64466 |
184.9 |
11282.7 |
2128 |
5.7 |
41.26 |
9193.2 |
|||
|
84% |
67959 |
202.6 |
12366.3 |
2185 |
5.5 |
43.46 |
9944.1 |
|||
|
87% |
70941 |
218.1 |
13312.7 |
2230 |
5.3 |
45.29 |
10575.0 |
|||
|
90% |
73182 |
229.8 |
14026.5 |
2262 |
5.2 |
46.61 |
11039.0 |
|||
|
100% |
74544 |
236.9 |
14457.0 |
2279 |
5.2 |
47.38 |
11306.2 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
