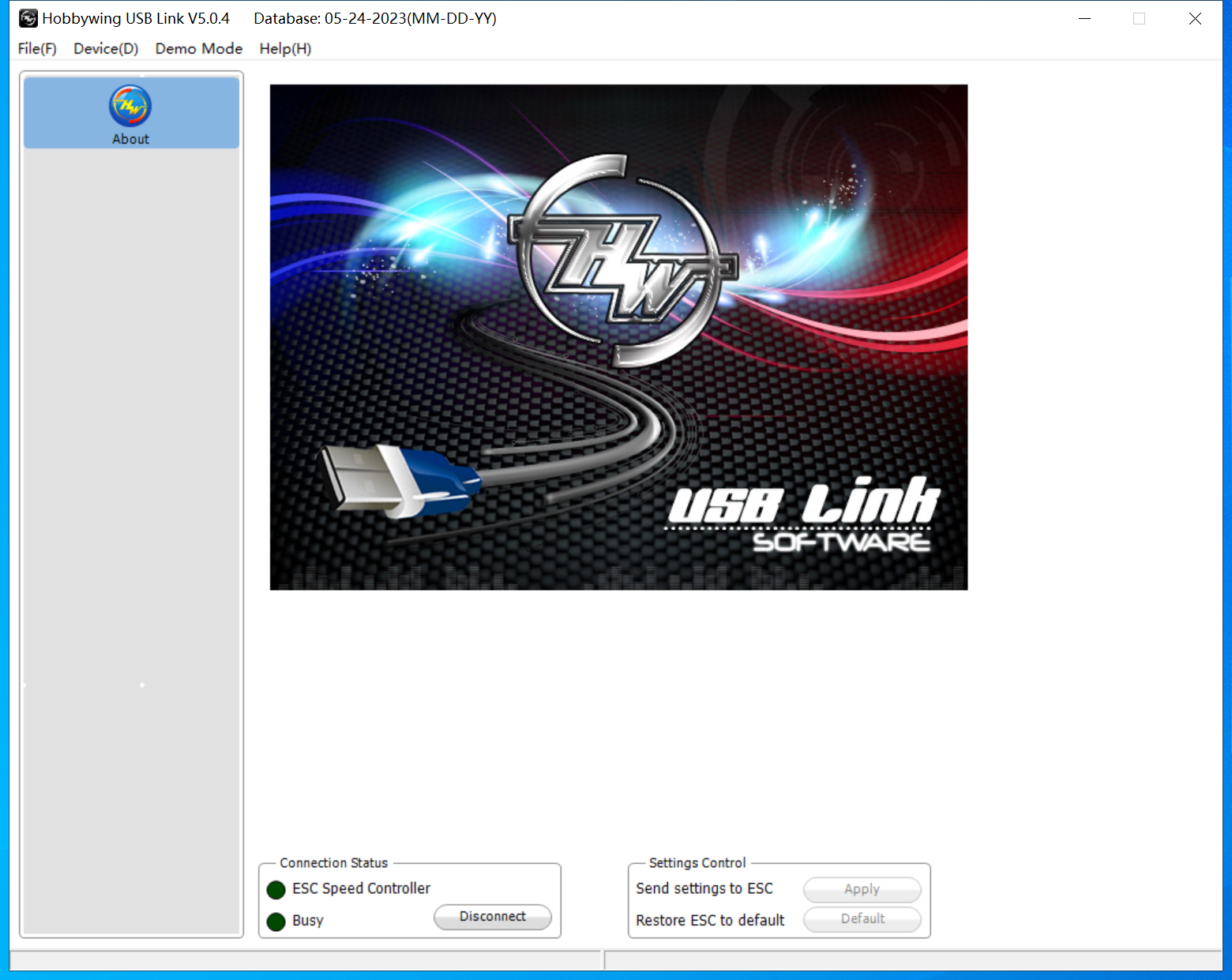

USB Link Software (USB Link V5.0.3)

Specifications

1. Functions

The USB LINK SOFTWARE is a PC program working together with the LCD Program Box, it has the following functions:

  • 1) Precisely sets the programmable items of the ESC.
  • 2) Upgrades the firmware of the ESC.
  • 3) Upgrades the firmware of the Professional LCD Program Box.
  • 4) Analyses the "Governor mode" parameters for RC helicopter
  • (This is the function of a subprogram named "Speed Calculator")
2. USB Link Software is suitable for the following ESC:
  • XeRun Series Car ESC (Version 2.0/2.1/3.0/3.1 and later)
  • EZRUN Series Car ESC (Version 2.0 and later)
  • PLATINUM Series helicopter/airplane ESC
  • Seaking Pro Series Boat ESC

Hobbywing USB Link V5.0.3

1. Fix some bugs for USB LINK Software.

Database Version:  02-23-2023

For Car ESCs :

For Aircraft ESCs :

  • 1.Add new firmware PL-04.1.00-VBar for Platinum HV 200A V4.1 SBEC, Added support for parameter adjustment via Mikado VBar-Control. Optimized Current data ,Soft start and VBar Governor start. fix some bug.
  • 2.Add new firmware PL-OPTO04100VBar for Platinum HV 200A V4.1 OPTO, Added support for parameter adjustment via Mikado VBar-Control. Optimized Current data ,Soft start and VBar Governor start. fix some bug.
  • 3.Add new firmware PL-04.1.00-VBar for Platinum HV 150A V5, Added support for parameter adjustment via Mikado VBar-Control. Optimized Current data and VBar Governor start. fix some bug.
  • 4.Add new firmware PL-04.1.00-VBar for Platinum HV 130A V4, Added support for parameter adjustment via Mikado VBar-Control. Optimized Current data and VBar Governor start. fix some bug.
  • 5.Add new firmware PL-OPTO04100VBar for Platinum HV 130A V4 OPTO, Added support for parameter adjustment via Mikado VBar-Control. Optimized Current data and VBar Governor start. fix some bug.
  • 6.Add new firmware PL-04.1.00-VBar for Platinum 120A V4, Added support for parameter adjustment via Mikado VBar-Control. Optimized Current data and VBar Governor start. fix some bug.
  • 7.Add new firmware PL-04.1.00-VBar for Platinum 80A V4, Added support for parameter adjustment via Mikado VBar-Control. Optimized Current data and VBar Governor start. fix some bug.
  • 8.Add new firmware PL-04.1.00-VBar for Platinum 60A V4, Added support for parameter adjustment via Mikado VBar-Control. Optimized VBar Governor start. fix some bug.
  • 9.Add new firmware PL-04.1.00-VBar for Platinum 25A V4, Added support for parameter adjustment via Mikado VBar-Control. Optimized VBar Governor start. fix some bug.

For Boat ESCs :

For LCD Program Box :

3. USB Link Software History
4. Download

Hobbywing_USB_Link_V5.0.3.zip (MS Windows Version)

Hobbywing_USB_Link_V5.0.3.zip
NOTE 1:
Some users cannot download the file of “USB LINK SOFTWARE” in the browser, in such a case, please follow the operations below:
1) Move the cursor at the red characters linked to the file.
2) Right click the mouse, select “Save target as...” in the floating menu.
3) Select the suitable file director to save the USB LINK SOFTWARE file in your PC.
NOTE 2:
When installing the USB Link Software in Windows Vista and Windows 7, please follow the operations below:
1) Unpack the ZIP file.
2) Right click the "Hobbywing_USB_Link_******.exe" file, then left click on "Run as Administrator".

Accessories

The USB Link Software must be used together with the Multifunction LCD Program Box

Manuals

A PDF reader is needed to open the user manuals. Please click the icon to download it.
