New Benchmark in Industrial-Grade VTOL Rotor Propulsion

HOBBYWING’s brand-new V13823 and V13828 VTOL motors meet the requirements of long-endurance flights, heavy payload operations, and complex environments, providing continuous and stable power support for a wide range of applications, including forest inspection, coastal patrol, border surveillance, land surveying and mapping, satellite communications, hydrological monitoring, emergency rescue, and logistics transportation.

Powerful Output with Exceptional Thrust-to-Weight Ratio

Balancing lightweight design with high-power output, the V13823 and V13828 drone motors deliver optimized performance for efficient takeoff, rapid response, and stable hovering in medium-to-large VTOL aircraft.

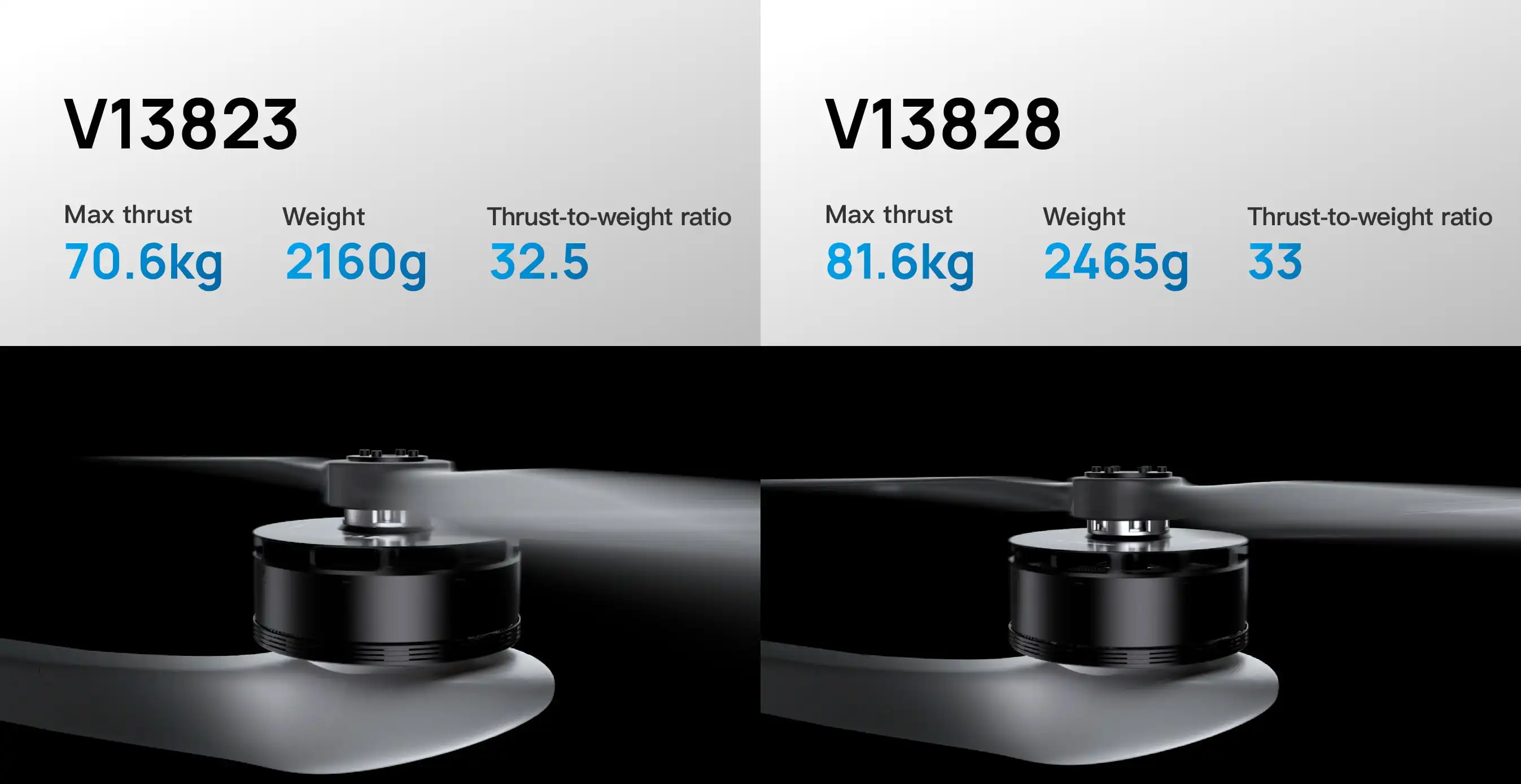

V13823

Max Thrust: 70.6 kg
Weight: 2,160 g
Thrust-to-Weight Ratio: 32.5

V13828

Max Thrust: 81.6 kg
Weight: 2,465 g
Thrust-to-Weight Ratio: 33

IPC function for Improved Flight Efficiency

HOBBYWING V13823 & V13828 VTOL motors feature Intelligent Propeller Control (IPC) functionality, ensuring low power consumption and precise propeller positioning. When paired with XRotor Pro H300A 24S BLDC IPC G3 ESC, propeller stop positions can be customized with precision and flexibility, significantly reducing aerodynamic drag and energy consumption during cruise flight to extend flight endurance.

Premium Quality & Enhanced Protection for Reliable Operation

The V13823 & V13828 UAV motor is engineered with high-quality materials and advanced manufacturing processes, such as:
0.2 mm low-loss silicon steel sheet: The punched high-performance iron core reduces energy loss and enhances motor efficiency, balancing propulsion output with extended endurance.
220°C high-temperature enameled wire: Resistant to high temperature and aging under harsh climbing conditions, maintaining stable performance during prolonged high-load operations.
High-grade magnets with arc-shaped magnet structure, delivering strong torque output and reliable propulsion for heavy-lift climbing conditions.

Besides, a dual-layer steel mesh protection structure on the motor bracket and bottom cover, combined with large air outlets and a high-efficiency centrifugal cooling fan, improves heat dissipation while effectively blocking dust and grit, significantly extending motor service life.

Rigorous Validation, Trusted Performance, Under All Flight Conditions

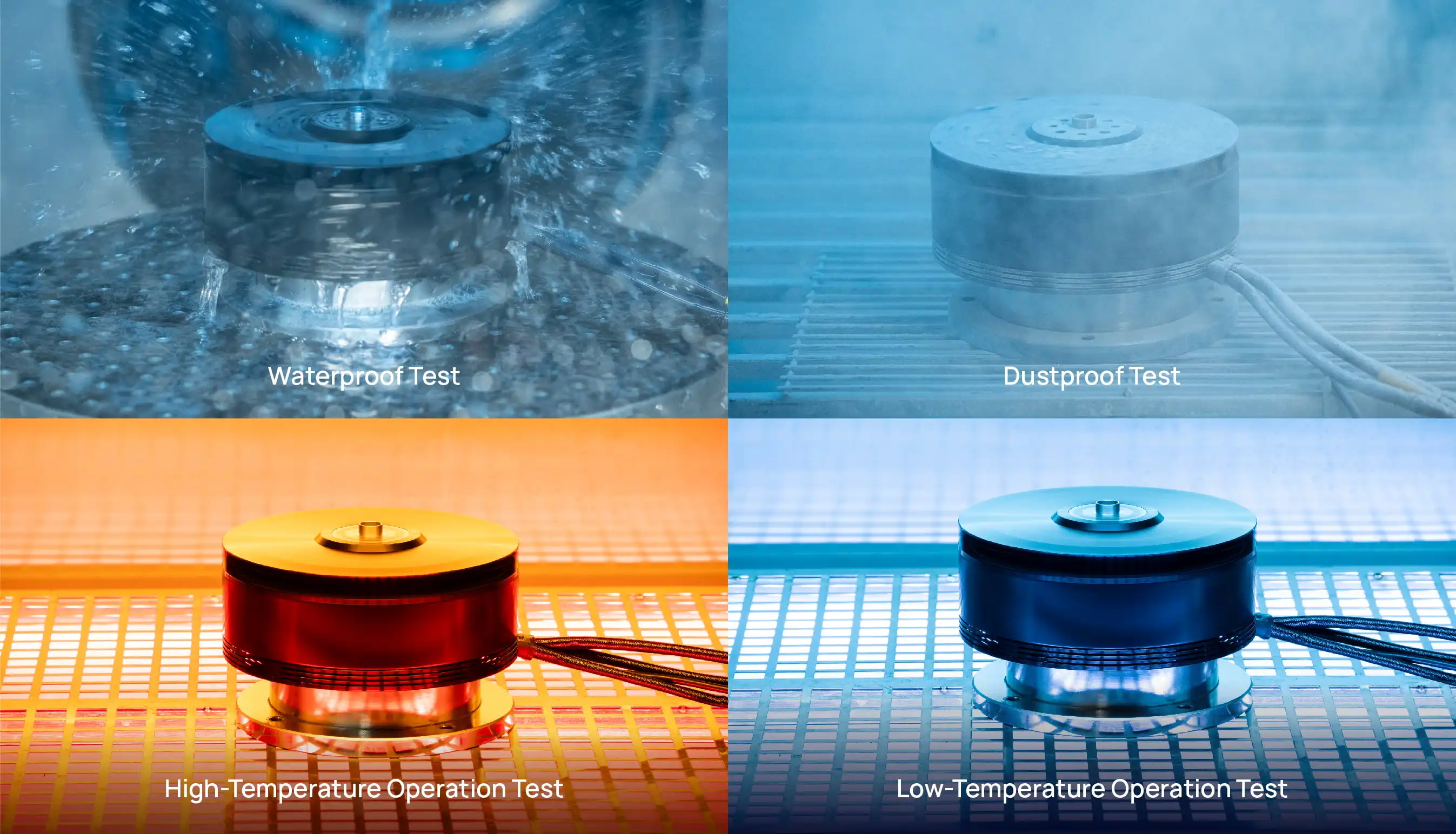

HOBBYWING’s new-released V13823 & V13828 heavy-lift drone motor undergoes stringent industry-standard testing, including drive compatibility, dustproof test, and waterproof test (IP45), extreme voltage and temperature resistance tests, mechanical stress testing, temperature/humidity combined vibration tests, and a 1000-hour laboratory fatigue life test, ensuring stable and durable operation in complex environments.

Additionally, the motors have passed a 48-hour neutral salt spray test, providing enhanced corrosion resistance in high-salinity and high-humidity environments, ideal for demanding UAV operating scenarios such as maritime inspection, offshore wind farm maintenance, and marine search and rescue.

Designed for Customized Demands

These VTOL motors employ standardized installation interfaces and dedicated propeller adapters ensure compatibility with a wide range of conventional propellers, meeting various payload capacities and configuration needs while enabling convenient installation and customized configurations.

One-Stop VTOL Propulsion Solution
