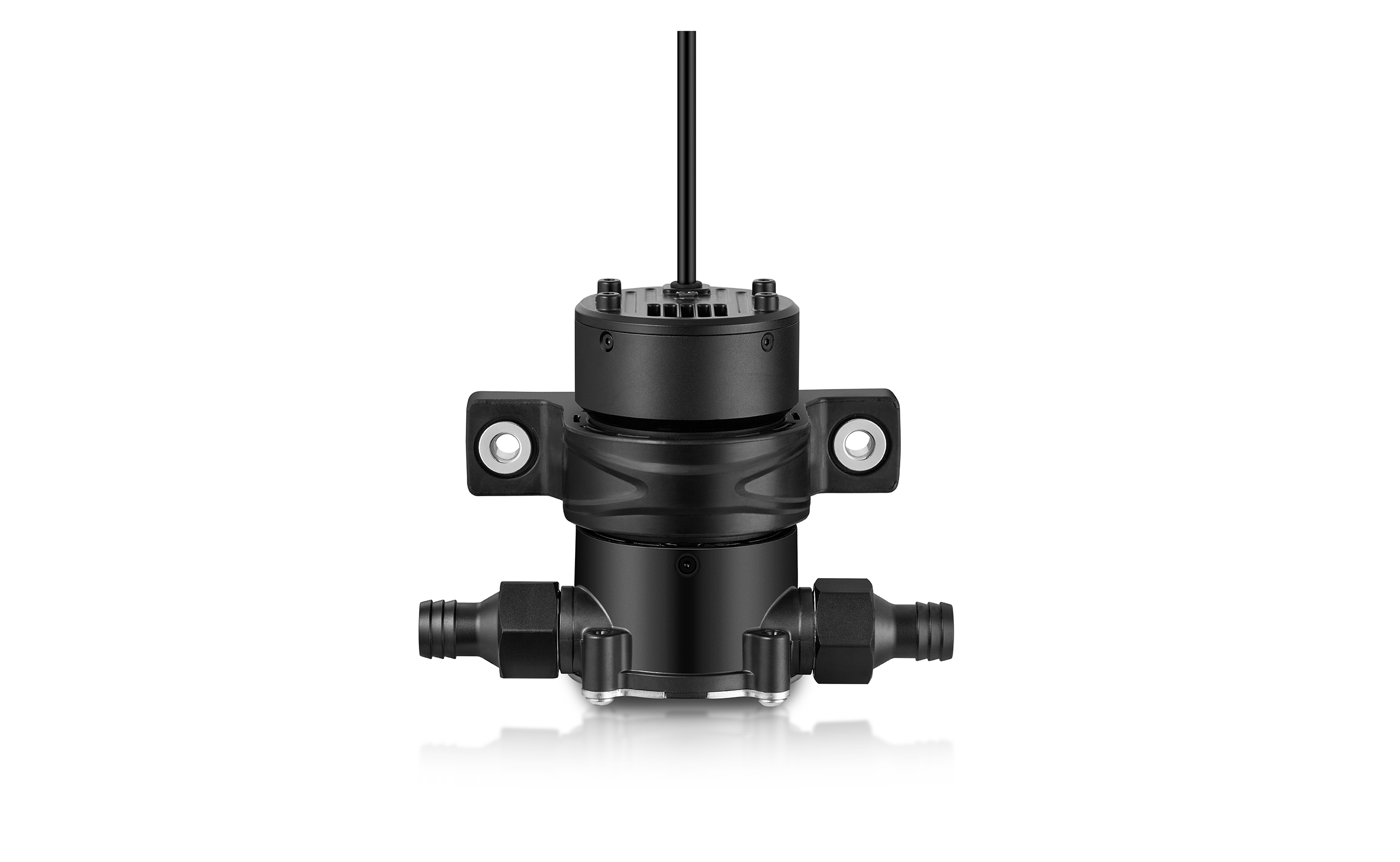

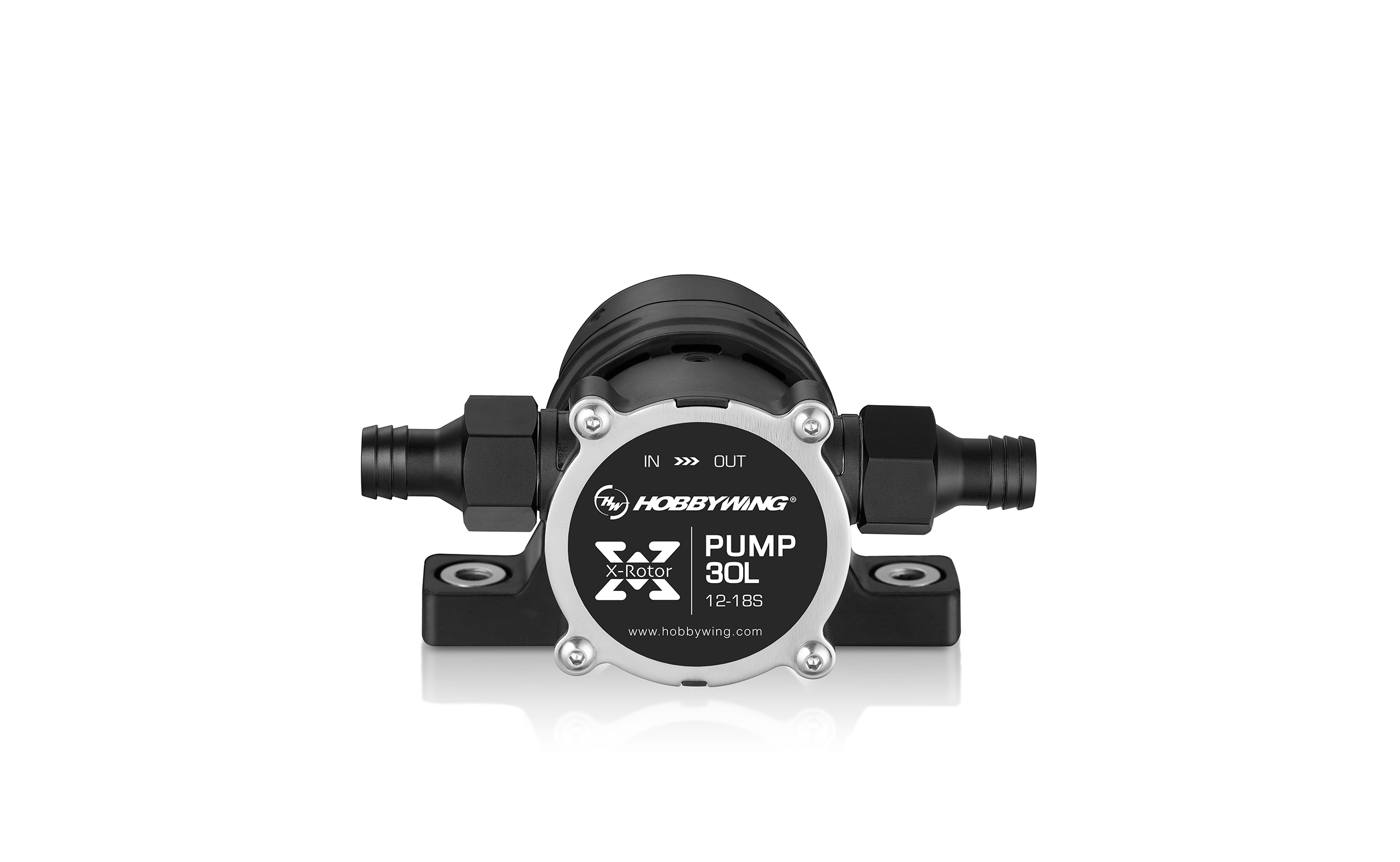

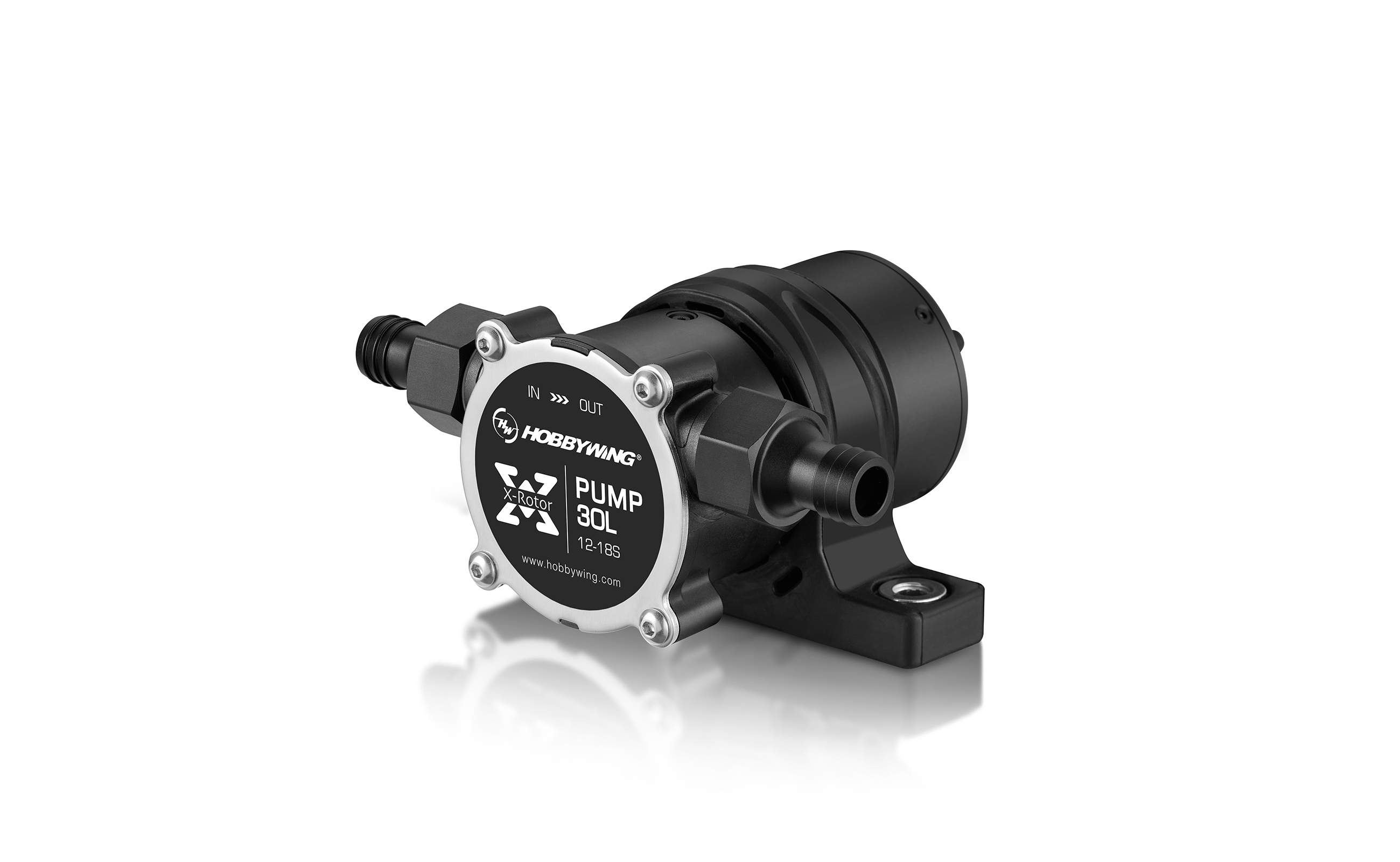

HW 30L Flexible Impeller Pump
HW 30L Flexible Impeller Pump

High-Effective Pump Operation

Powerful Flow Output
Maximum Flow Rate:
30L/min*
  • Caters to the needs of large-area farmland spraying
  • operations and high-volume fruit tree spray irrigation.
  • This significantly enhances operational efficiency and alleviates
  • concerns about flow by resolving issues related to insufficient flow.
Throttle-Flow Curve
Self-Priming Capability
  • The flexible impeller pump boasts exceptional self-priming performance*.
  • It is compatible with various pesticide tank configurations with flexible installation locations.

* The pump can be used under the condition of below the 10 cm liquid level.

Wide Range of Pesticide
Compatibility
  • Regardless of aqueous solutions, emulsifiable concentrates, or suspension concentrates,
  • the flexible impeller pump can effectively handle them effectively and
  • is suitable for spraying with diverse pesticide types.
Aqueous
Solutions
Pentazole prochloraz
Pyraclostrobin
Thiamethoxam
Tebuconazole
Profenofos
Prochloraz
Amino acid-containing water-soluble fertilizer
Brassinolide
Emulsifiable
Concentrate
Pyraclostrobin
Profenofos
Adjuvant
Suspension
Concentrate
Emamectin benzoate
Proclaim
Pyraclostrobin
Mancozeb
Thiamethoxam
Tebuconazole
Prochloraz
Reliable and Durable
Easy Maintenance
  • Made of corrosion-resistant materials,
  • the pump features a simple structure that allows for easy
  • maintenance and reduces long-term operational costs.
Energy Saving and High Efficiency
Low Vibration and Noise
The operation generates
minimal vibration
that is almost imperceptible
The low-noise design
reduces interference with
the surrounding environment
High efficiency
significantly enhances work productivity while
saving energy and contributing
to environmental protection.
  • The impeller pump should be used with a centrifugal nozzle.
  • Being a non-pressurized pump,
  • it is not compatible with pressure nozzles.
Product NameHW 30L Flexible Impeller Pump
Specification
  • Product
  • Configuration
  • Size(mm)
  • Total weight(g)
  • Recommended battery
  • Rated flow (L/min)
  • Rated power
  • Maximum flow (L/min)
  • Maximum power (W)
  • Cable
  • Inlet & outlet outer diameter
  • *For reference only, subject to practice.
  • HW 30L Flexible Impeller Pump
  • SPR4517-300KV+HW5116
  • 91x110x67
  • 516*
  • 12-18S (LiPo)
  • 20
  • 80
  • 30
  • 110
  • 180mm Teflon-6 cable and male connector (GND-yellow, S(PWM)-purple, CH-blue, CL-green, + -red, GND-black)
  • 20.53mm ( Recommend water pipe inner diameter 19mm)
ESC specification
  • ESC model
  • PWM high level
  • Throttle (μs)
  • Throttle calibration
  • Frequency
  • Communication method
  • Control mode
  • Continuous current (A)
  • Instantaneous current (A)
  • Controller CAN resistance (Ω)
  • ESC CAN communication version
  • CAN Communication Protocol
  • XRotor-10A-FOC
  • 3.3V/5V
  • Fixed 1050-1950
  • Nonsupport
  • 50-500Hz
  • CAN
  • PWM+CAN
  • 4
  • 10
  • No
  • CAN-04.1.13
  • UAVCAN(HWCAN)
Environmental adaptability & lifespan requirements
  • NSS salt spray test (h)
  • Ingress protection
  • Operating temperature (℃)
  • Operating humidity (RH)
  • Storage temperature (℃)
  • Storage humidity (RH)
  • 72
  • IP66
  • 0~50
  • 5%~95%
  • -10~50
  • ≤85%
