3D Propeller

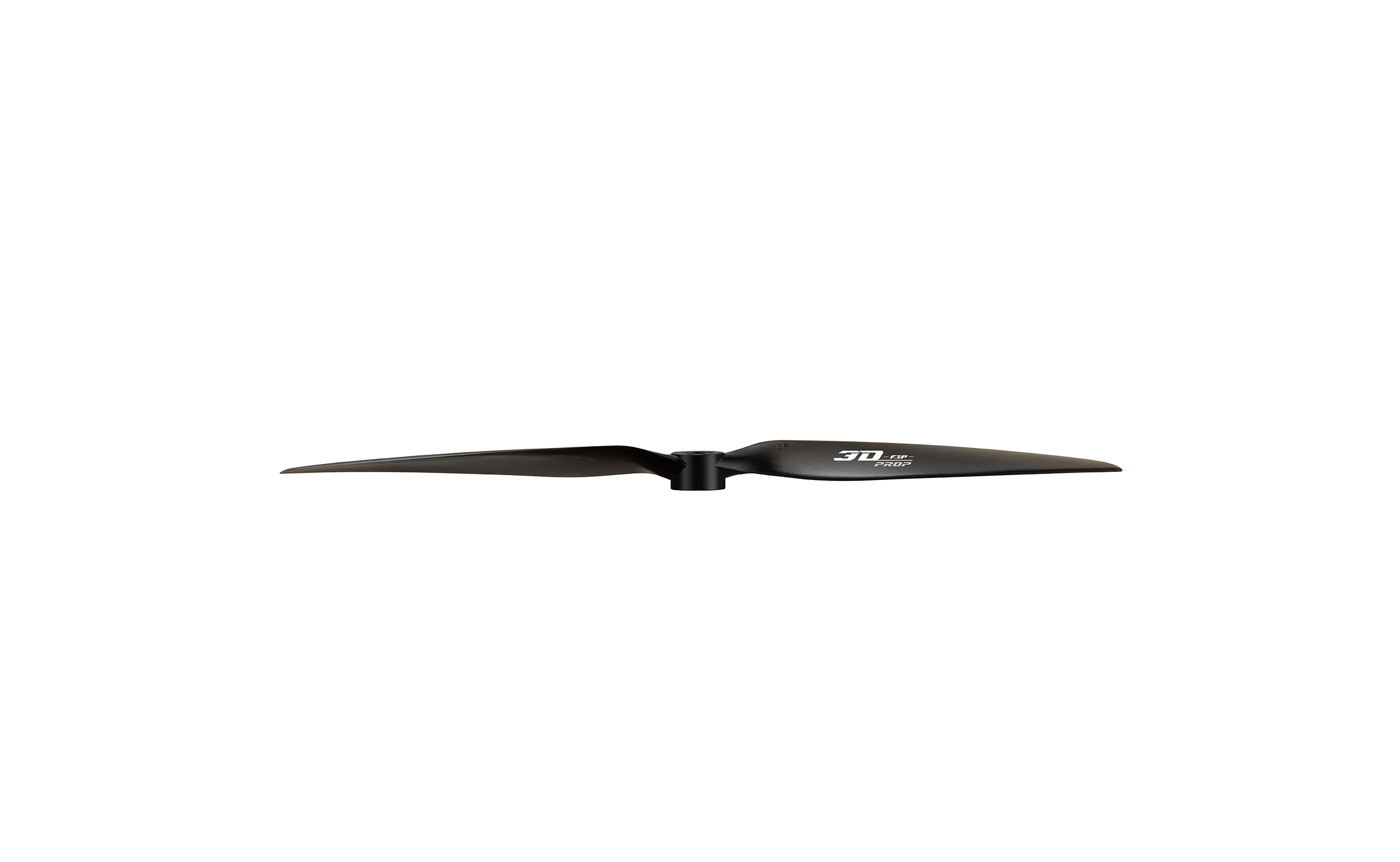

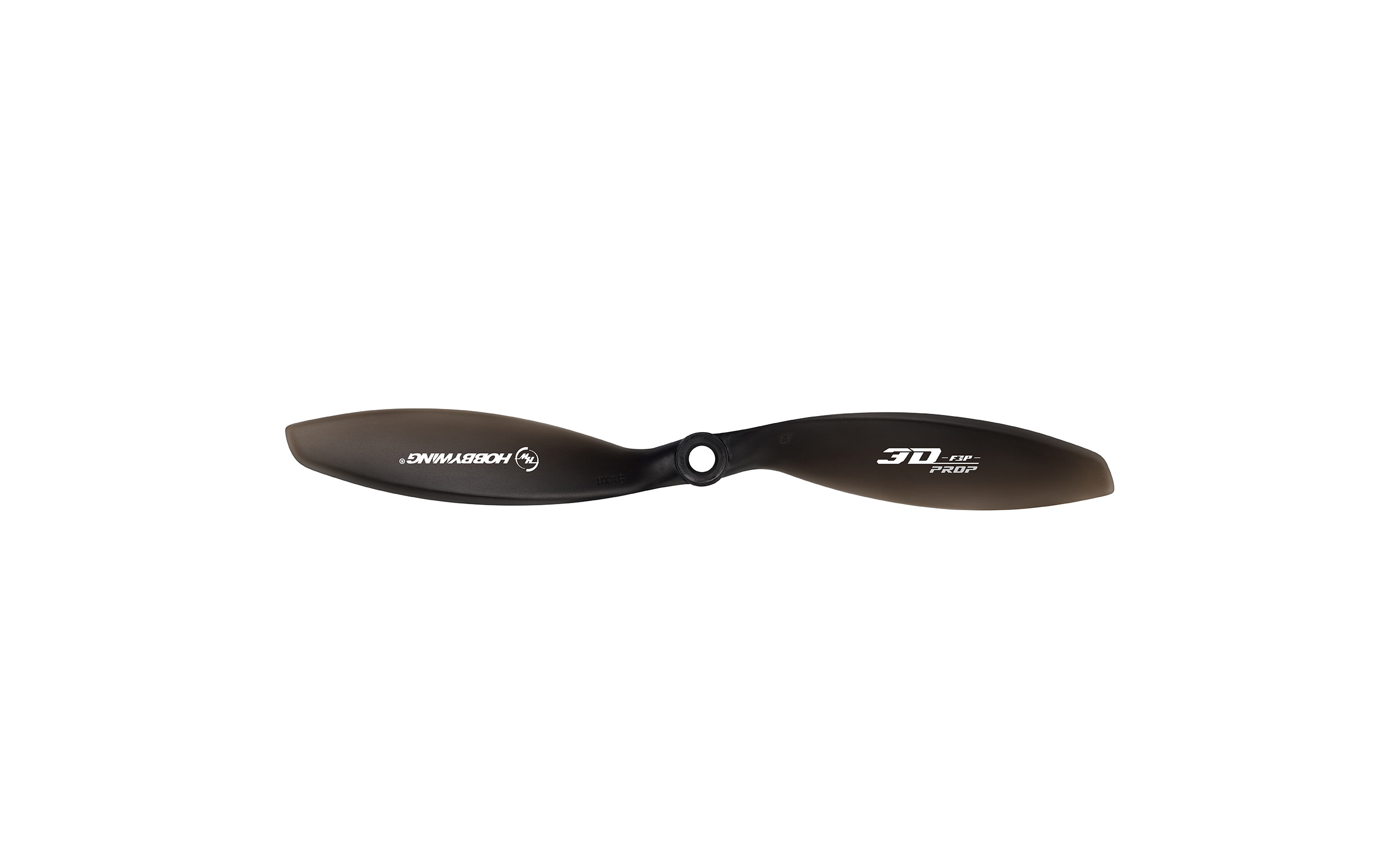

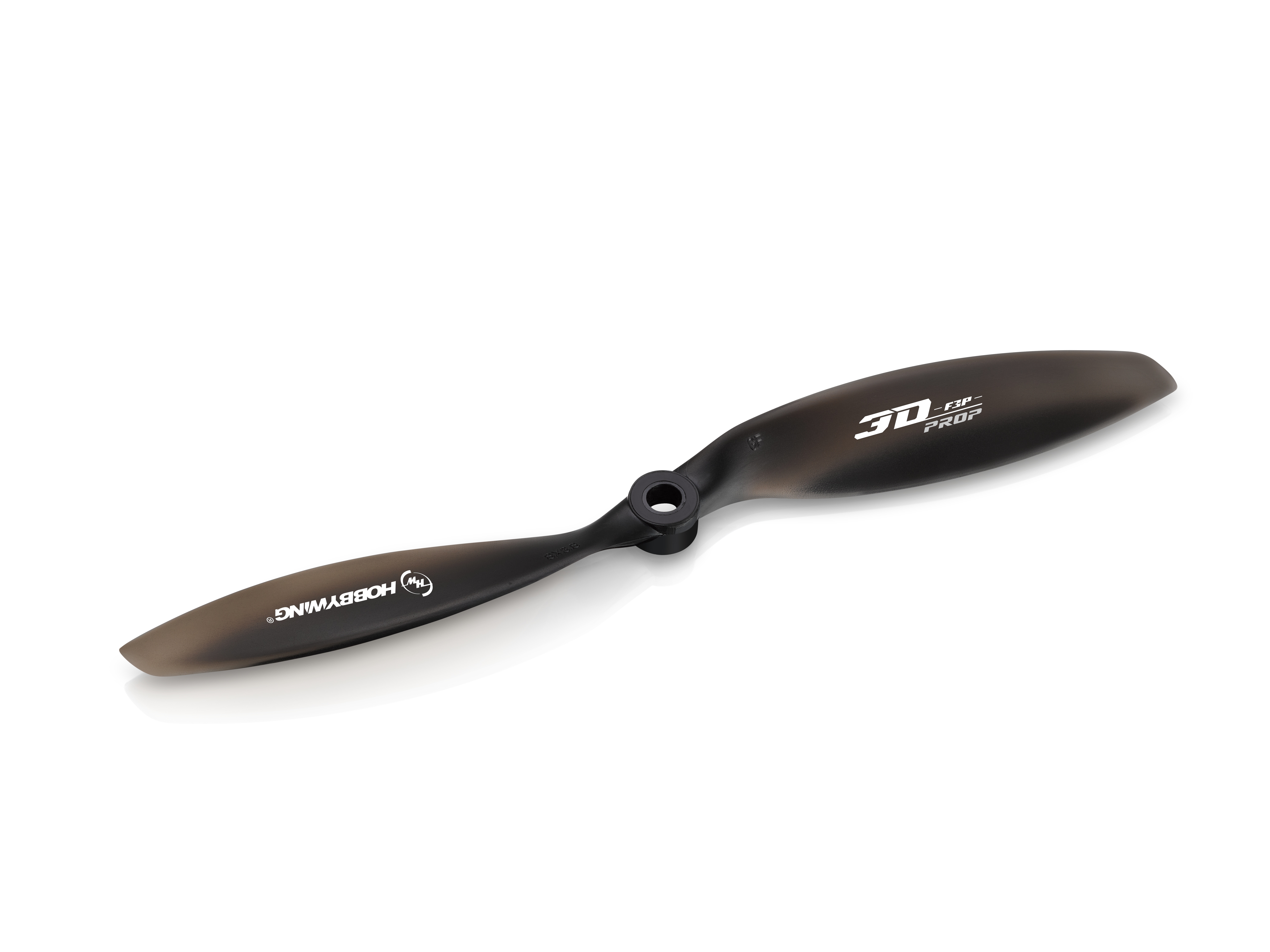

TP8038 3D Propeller

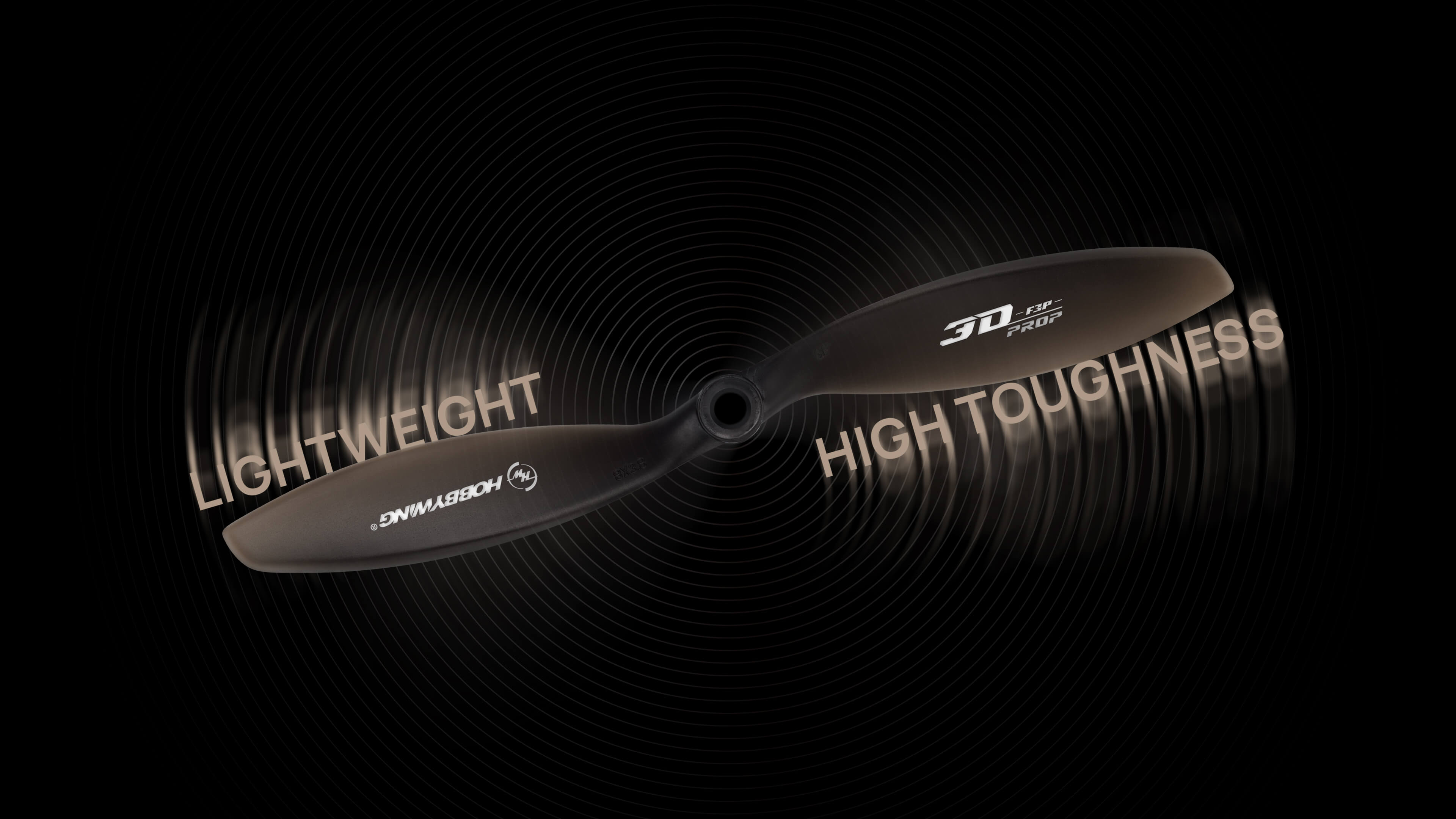

High Toughness,
Ultra-lightweight
  • Made from PC composite materials,
  • this propeller balances a lightweight design with high toughness,
  • minimizing the risk of damage after the crash.
Large Thrust,
Robust Power
When used with Platinum 2604 motor
maximum thrust reaches870g
Delivering ample power and
making every maneuver effortlessly
controlled.
Visual Identity
  • The custom semi-transparent black material
  • produces a deep streamer effect in sunlight,
  • making your plane easily recognizable during flight
Proven Performance
  • Tested and verified by extensive test flights conducted
  • by professional pilots around the world,
  • ensuring consistently stability and reliability.
Perfect Matching for F3P
This propeller is optimally
compatible with
Platinum 18A V5 F3P ESC and
Platinum 2604 motor.
Propeller
TP8038
ESC
Platinum 18A V5 F3P
Motor
Platinum 2604
TP8038 CAD
Product NameTP8038
Specification
  • Weight
  • Material of Props
  • Center Bore Compatibility
  • Storage temperature
  • Operating Temperature
  • Recommended RPM range
  • Storage humidness
  • Ultimate tension
  • Recommended thrust
  • Folding/unfolding
  • Recommended motors of hobbywing
  • 5.6g
  • PC
  • 3mm,4mm,5mm,6mm,8mm
  • -10℃~35℃
  • -40℃~65℃
  • 8000~13000r/min
  • ≤85%
  • 1100g
  • 400~900g
  • unfolding
  • PLATINUM-2604
