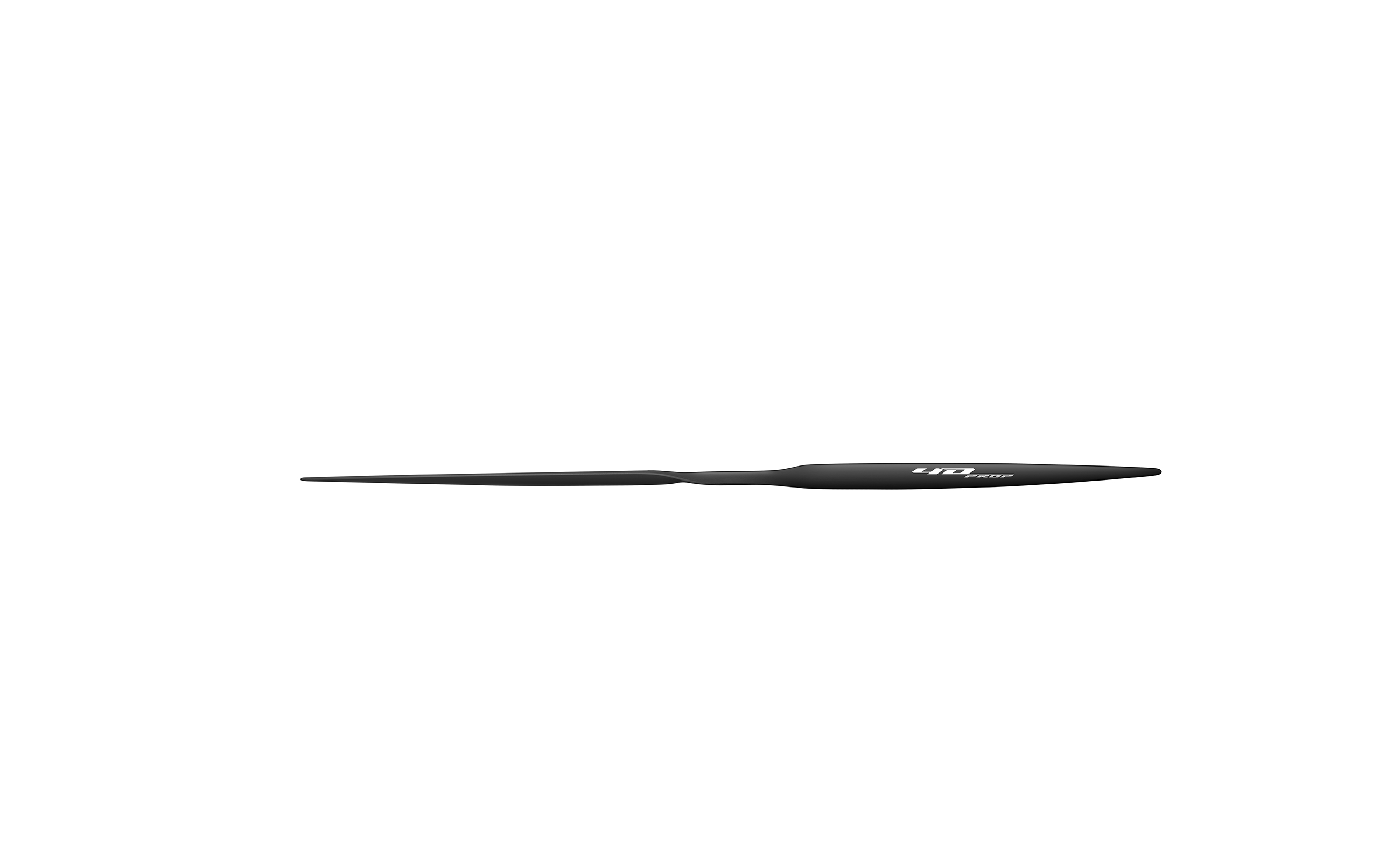

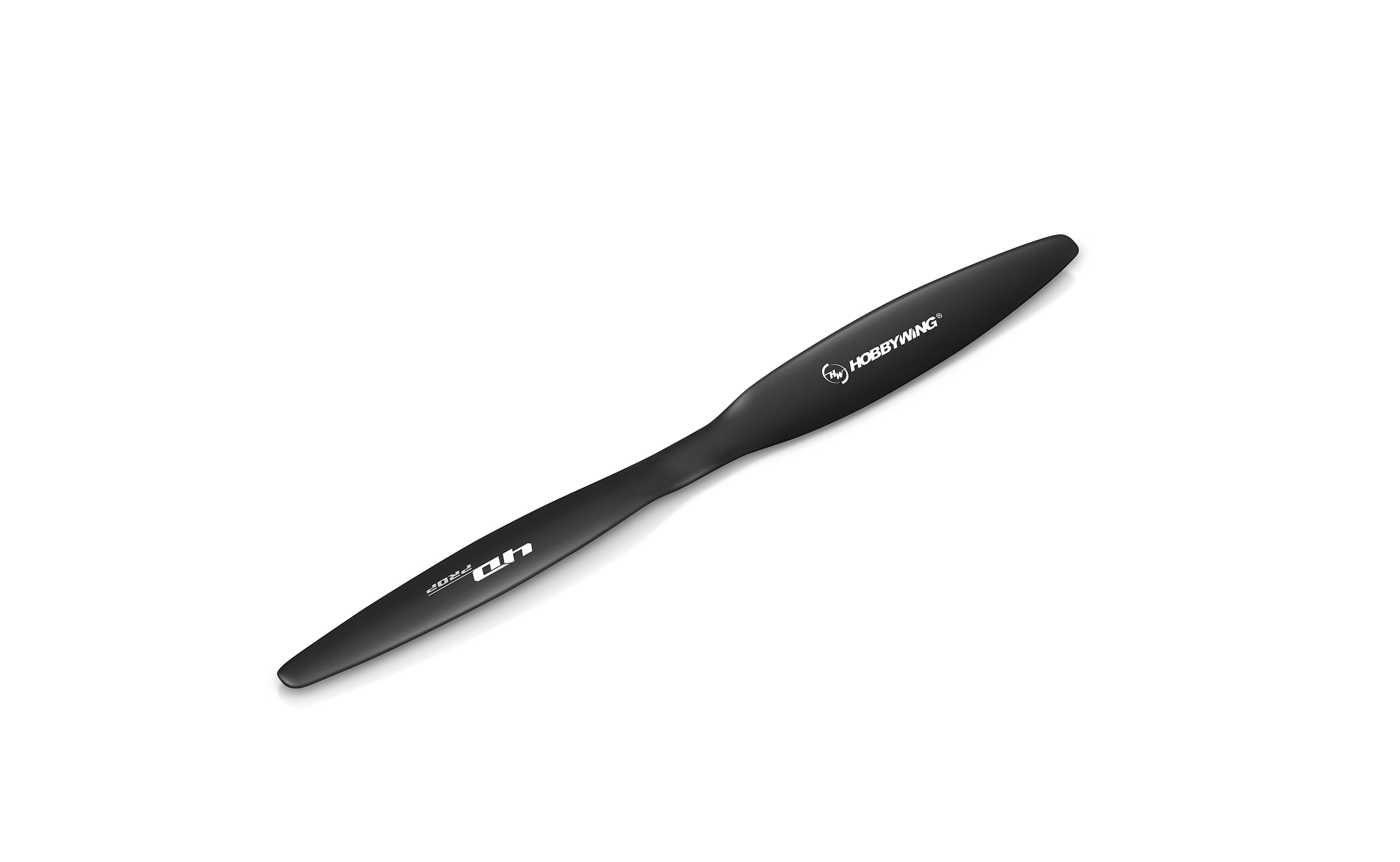

4D Propeller
UP8338
4D Propeller
Feather-light, Instant Switch
  • Made from lightweight carbon fiber materials, UP8338 weighs only about 1g,
  • This ultra-light design allows for the instant switch of propellers’ rotation direction.
Versatile Propellers, Smooth Flight
  • The meticulously crafted propeller incorporates flight experience of world-class pilots, inheriting essential 3D flight performance while meeting 4D flight requirements. It effectively eliminates the sudden power surges in conventional 4D propellers during forward 3D flight, ensuring smoother 3D forward maneuvers throughout the entire 4D flight.
Enjoy Quiet Flights
  • The low-noise propeller operation allows pilots to
  • concentrate on their flight without distractions.
Precise Matching for F3P
  • When paired with Platinum 18A V5 F3P ESC and Platinum 2603 motor, this propeller delivers high
  • efficiency and robust thrust on demand, seamlessly meeting the requirements of F3P-AFM.
Choices of Champions
  • Developed in collaboration with national champions and
  • validated through extensive flight tests by global professional pilots,
  • this propeller guarantees exceptional stability and reliability.
UP8338 CAD
Product NameUP8338
Specification
  • Weight
  • Material of Props
  • Surface technics
  • Storage temperature
  • Operating Temperature
  • Recommended RPM range
  • Storage humidness
  • Ultimate tension
  • Recommended thrust
  • Folding/unfolding
  • Recommended motors of hobbywing
  • 1g
  • Lightweight composite carbon fiber material
  • Glossy Finish
  • -10℃~35℃
  • -40℃~65℃
  • 12000~15000r/min
  • ≤85%
  • 750g
  • 400~700g
  • Unfolding
  • Platinum-2603
