Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V(12S LiPo) |
20x10 |
35% |
1783 |
5.3 |
212.9 |
2914 |
8.4 |
0.48 |
147.5 |
/ |
|
37% |
1957 |
6.0 |
240.2 |
3059 |
8.1 |
0.53 |
170.0 |
|||
|
39% |
2142 |
6.7 |
269.7 |
3205 |
7.9 |
0.58 |
195.0 |
|||
|
42% |
2438 |
7.9 |
317.6 |
3420 |
7.7 |
0.66 |
236.6 |
|||
|
45% |
2750 |
9.2 |
369.9 |
3629 |
7.4 |
0.74 |
282.9 |
|||
|
48% |
3074 |
10.6 |
426.4 |
3830 |
7.2 |
0.83 |
333.6 |
|||
|
51% |
3411 |
12.2 |
487.7 |
4026 |
7.0 |
0.92 |
389.1 |
|||
|
54% |
3760 |
13.8 |
554.3 |
4218 |
6.8 |
1.02 |
449.6 |
|||
|
57% |
4123 |
15.7 |
627.2 |
4409 |
6.6 |
1.12 |
516.0 |
|||
|
60% |
4502 |
17.7 |
707.4 |
4602 |
6.4 |
1.22 |
589.2 |
|||
|
63% |
4900 |
19.9 |
796.1 |
4799 |
6.2 |
1.33 |
670.2 |
|||
|
66% |
5318 |
22.3 |
894.5 |
5000 |
5.9 |
1.45 |
759.8 |
|||
|
69% |
5759 |
25.1 |
1003.6 |
5206 |
5.7 |
1.58 |
858.8 |
|||
|
72% |
6222 |
28.1 |
1123.9 |
5415 |
5.5 |
1.71 |
967.3 |
|||
|
75% |
6707 |
31.3 |
1255.6 |
5624 |
5.3 |
1.84 |
1084.9 |
|||
|
78% |
7210 |
34.9 |
1397.7 |
5829 |
5.2 |
1.98 |
1210.4 |
|||
|
81% |
7725 |
38.7 |
1548.5 |
6024 |
5.0 |
2.13 |
1341.3 |
|||
|
84% |
8244 |
42.6 |
1704.6 |
6205 |
4.8 |
2.27 |
1475.2 |
|||
|
87% |
8756 |
46.5 |
1861.6 |
6369 |
4.7 |
2.41 |
1609.2 |
|||
|
90% |
9244 |
50.3 |
2013.4 |
6517 |
4.6 |
2.55 |
1740.9 |
|||
|
100% |
10410 |
59.4 |
2380.1 |
6878 |
4.4 |
2.91 |
2092.8 |
-
Drone Propulsion Systems
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- X Series
- H Series
- P Series
-
-
-
- PROPELLER Superior efficiency, exceptional stability.
- Carbon Plastic Propeller
- Carbon Fiber Propeller
-
- CENTRIFUGAL NOZZLE Efficient atomizing, precise spraying.
- 9L
-
- WATER PUMP Minimal maintenance, long service life.
- 5L
- 8L
- 30L
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- P Series
-
-
-
- PROPELLER Powerful burst, high intensity.
- Carbon Fiber Propeller
-
- Fixed-Wing UAV Cruise Motor Convenient, efficient and stable.
- 62XX
- 72XX
- 80XX
-
-
RC Power Systems
RC Cars Power SystemRC Boat Power System
-
e-Vehicle Power Systems
Electric MotorcycleElectric SkateboardElectric Scooter
- Service and Support
Perfectly suited for both fixed-wing cruise and vertical take-off and landing (VTOL) drones
21-inch propellers
a maximum thrust of
14.8kg at 48V
needs during rapid maneuvers and
sudden payload changes
centrifugal fan design reduce
resistance and turbulence,
dramatically improving
heat dissipation
significantly reduced compared
tomotors of other brands with
similar specifications, ensuring
stable and long-term operation
even in high-load flight conditions
Superior Reliability
upper and
lower steel
mesh structure
ingress of particles
1 mm and larger
in diameter.
flight environments
such as dust and rain
Convenient Application
- The stator base is compatible with an IPC
- (Intelligent Propeller Control) component,
- allowing for flexible selection.
- Paired with an IPC ESC, users can customize
- the propeller stopping position to minimize
- the risk of colliding with the ground.
- The rotor bracket adopts a boss clearance design that effectively prevents
- interference with the propeller root edge structure, ensuring seamless compatibility
- and secure installation for both non-folding and folding propellers.
- Supports multiple mounting configurations
- for quick adaptation, to meet the demands of diverse applications.
Design for a Safer Flight
- Anti-Loosening Design
- The rotor shaft end is fixed by copper washers, circlips, and screws to enhance motor reliability.
- Triple-Bearing
Architecture - The triple-bearing architecture optimizes dynamic balance, enhancing impact resistance and durability of the motor to ensure safe flights.
- Silicon Steel and
Enameled Wires - t is designed with industry-leading 0.2mm low-loss silicon steel cores and high-grade 220°C temperature-resistant enameled wires.
- Magnet Segment
- High-grade, strong magnetic arc-shaped magnets boost magnetic energy density for superior torque during climbs and heavy lifts. Cruise efficiency gains of 2–4% over comparable motors ensure longer flight times and lower energy consumption.
- Silicone Rubber Cable Sleeves
- The motor’s three-phase wire outlet comes with a custom silicone rubber cable sleeve, combining aesthetic appeal with superior insulation.
Brand-new, highly optimized magnetic circuit matches drive requirements exactly. Providing quicker thrust
response and enhanced dynamic performance under all flight conditions.
1000+ Hour Testing
Rigorous suite of industrial tests (compatibility, waterproof, salt spray, stress,combined env/vibration,
long-term fatigue) ensures the motor maintains peak performance and reliability throughout its extended lifecycle.
-
- Model
- Protection level
- Motor Size
- Slot& Pole
- Stator Size
- Dynamic balance
- Stator process
- Bearing
- Enamelled wire
- Motor axle diameter
- Magnet
- Props mounting dimensions
- Isolation test
- Motor mounting dimensions
- Rated power input
- Rated power output
-

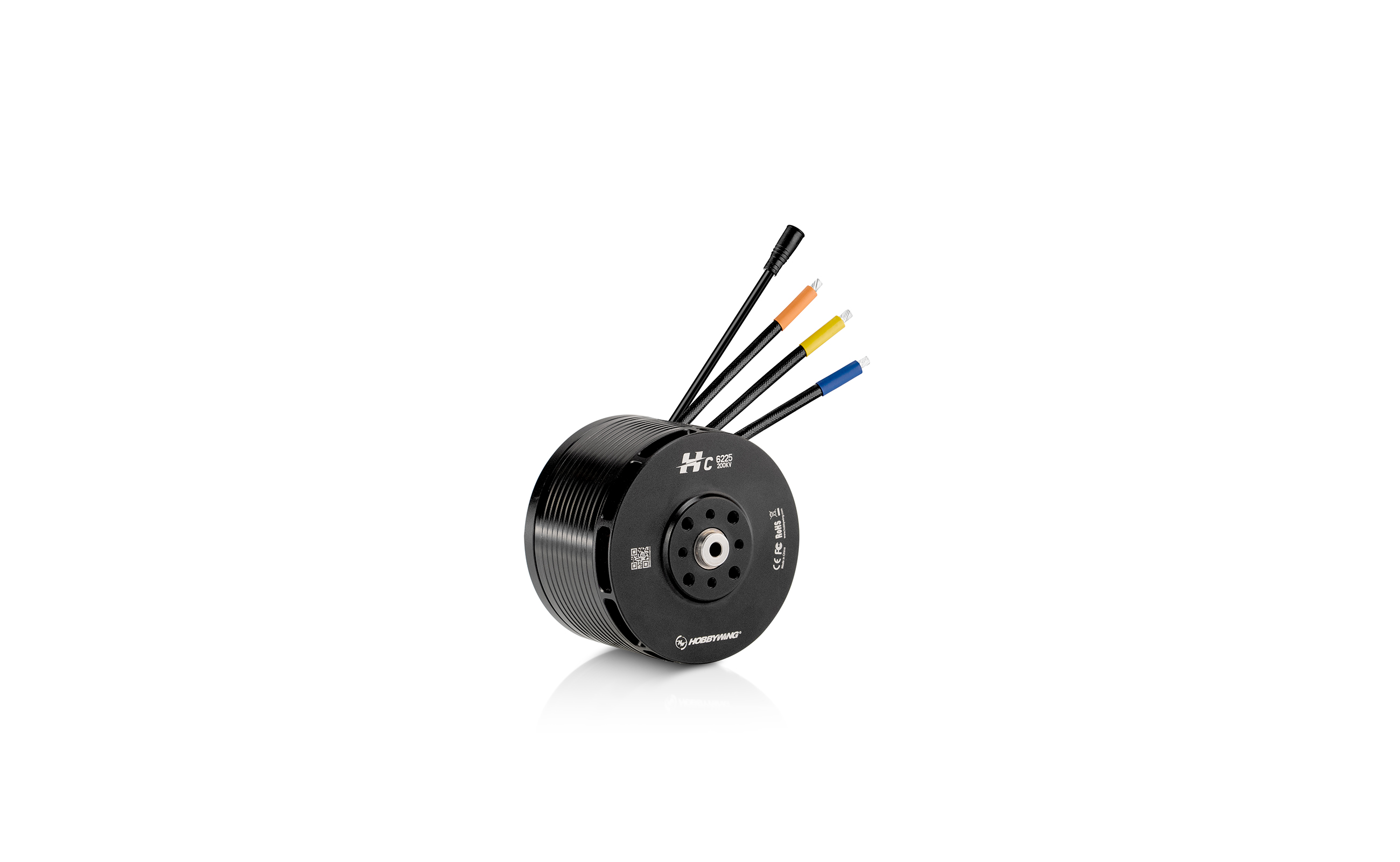

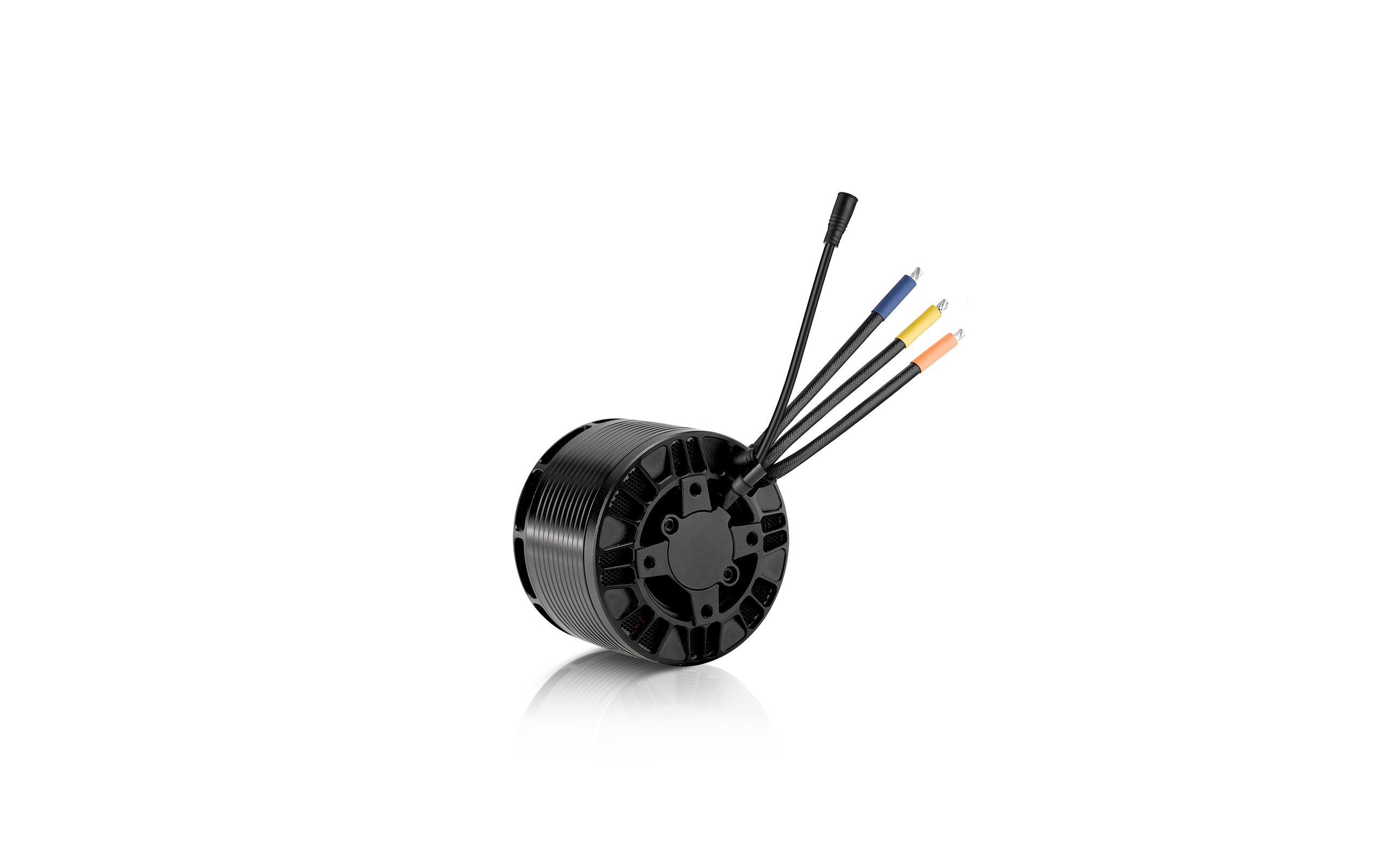

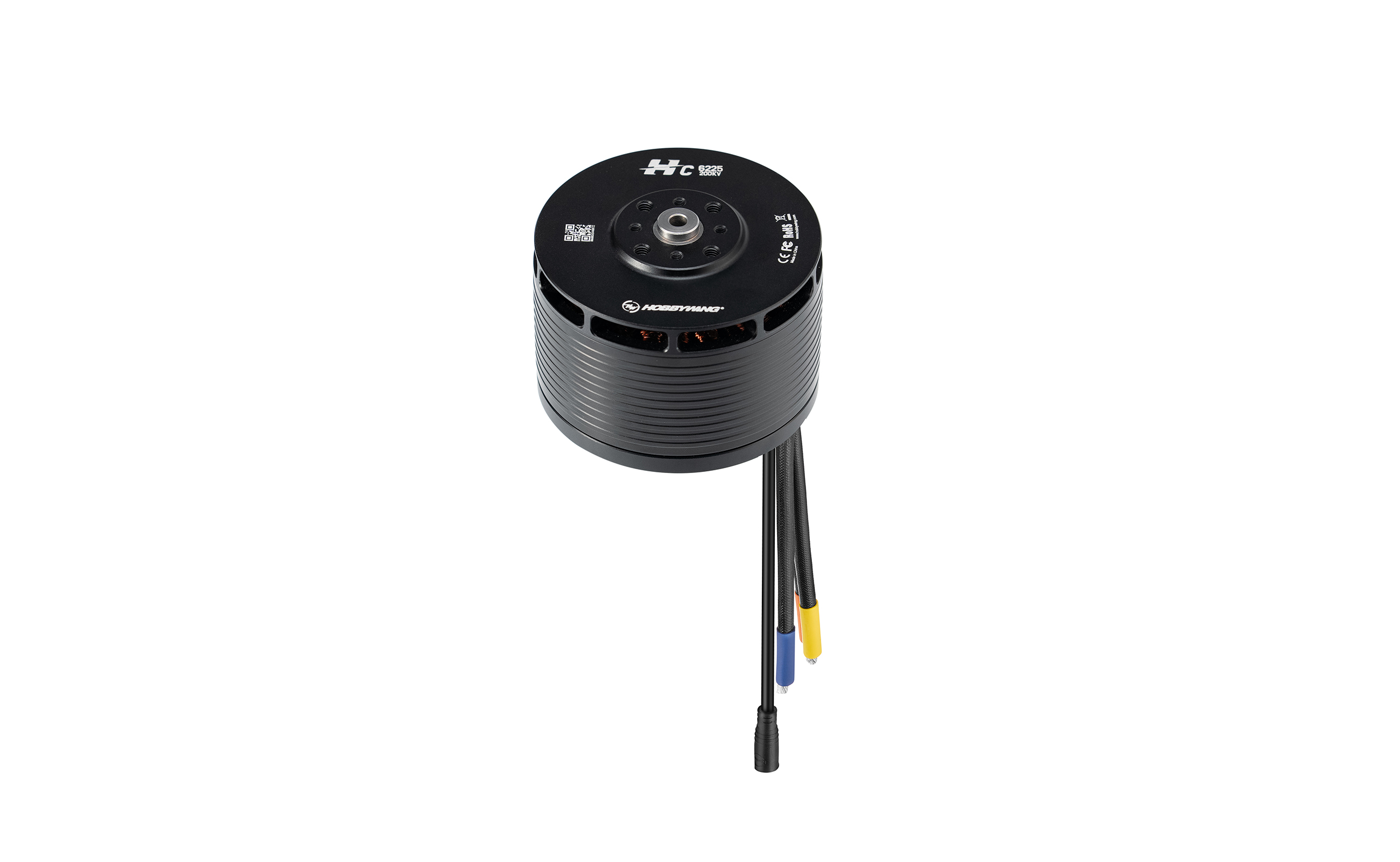

- C6225-200KV
- IPX5
- Φ69*H50.9mm
- 24N28P
- 62x25mm
- ≤15mg
- High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
- Water proof bearing
- 220℃
- Φ10mm
- 160℃
- 4*M3@D20mm&4*M4@D23mm
- 500V AC high voltage resistance test
- 4*M4@D36mm
- 710W
- 580W
-
- KV
- Battery(LiPo)
- No-load current
- Maximum current (non-hermetic ambient temperature ≤ 25℃）
- Rated thrust
- Max thrust
- Resistance
- Wire Size
- Three-phase wires length
- Magnetic encoder cable length
- Weight（with wires）
-
- 200KV
- LiPo-12S (48V)
- 3.4A
- 86A
- 4.5kg（48V@21×10）
- 14.8kg（48V@21×10）
- 23.5mΩ
- enameled wire direct lead-out
- 100mm
- 130mm
- 530g
-
- Motor
- Propeller
- ESC
- Battery
- Takeoff weight of Single motor
-
- C6225-200KV
- 20×10/21×10
- XRotor Pro H130A 14S BLDC IPC
- 12S LiPo
- 20~25kg
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo) |
20x10 |
35% |
2084 |
6.0 |
263.6 |
3158 |
7.9 |
0.56 |
186.2 |
/ |
|
37% |
2293 |
6.7 |
296.4 |
3309 |
7.7 |
0.62 |
214.7 |
|||
|
39% |
2514 |
7.5 |
332.4 |
3463 |
7.6 |
0.68 |
246.3 |
|||
|
42% |
2864 |
8.9 |
392.1 |
3692 |
7.3 |
0.77 |
298.9 |
|||
|
45% |
3233 |
10.4 |
458.6 |
3919 |
7.1 |
0.87 |
357.8 |
|||
|
48% |
3618 |
12.1 |
532.0 |
4140 |
6.8 |
0.98 |
422.7 |
|||
|
51% |
4019 |
13.9 |
612.7 |
4357 |
6.6 |
1.08 |
494.1 |
|||
|
54% |
4436 |
15.9 |
701.5 |
4570 |
6.3 |
1.20 |
572.6 |
|||
|
57% |
4872 |
18.1 |
799.2 |
4780 |
6.1 |
1.32 |
658.8 |
|||
|
60% |
5328 |
20.6 |
906.7 |
4990 |
5.9 |
1.44 |
753.8 |
|||
|
63% |
5805 |
23.3 |
1025.3 |
5201 |
5.7 |
1.58 |
858.7 |
|||
|
66% |
6306 |
26.2 |
1155.9 |
5414 |
5.5 |
1.72 |
974.5 |
|||
|
69% |
6831 |
29.5 |
1299.4 |
5629 |
5.3 |
1.87 |
1102.0 |
|||
|
72% |
7378 |
33.0 |
1456.3 |
5847 |
5.1 |
2.03 |
1242.0 |
|||
|
75% |
7946 |
36.9 |
1626.5 |
6066 |
4.9 |
2.19 |
1393.9 |
|||
|
78% |
8528 |
41.0 |
1809.3 |
6285 |
4.7 |
2.37 |
1557.4 |
|||
|
81% |
9118 |
45.4 |
2002.8 |
6500 |
4.6 |
2.54 |
1730.4 |
|||
|
84% |
9703 |
50.0 |
2204.1 |
6706 |
4.4 |
2.72 |
1909.5 |
|||
|
87% |
10270 |
54.6 |
2408.2 |
6897 |
4.3 |
2.89 |
2089.9 |
|||
|
90% |
10800 |
59.2 |
2607.8 |
7068 |
4.1 |
3.06 |
2265.3 |
|||
|
100% |
11960 |
69.9 |
3081.3 |
7409 |
3.9 |
3.45 |
2675.8 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
20x10 |
35% |
2421 |
6.8 |
326.5 |
3401 |
7.4 |
0.66 |
235.4 |
85℃ |
|
37% |
2669 |
7.7 |
370.2 |
3567 |
7.2 |
0.73 |
272.0 |
|||
|
39% |
2931 |
8.7 |
416.8 |
3734 |
7.0 |
0.80 |
312.5 |
|||
|
42% |
3342 |
10.2 |
491.9 |
3980 |
6.8 |
0.91 |
379.7 |
|||
|
45% |
3768 |
11.9 |
574.1 |
4221 |
6.6 |
1.03 |
454.3 |
|||
|
48% |
4207 |
13.8 |
664.1 |
4455 |
6.3 |
1.15 |
536.1 |
|||
|
51% |
4658 |
15.9 |
763.2 |
4683 |
6.1 |
1.28 |
625.3 |
|||
|
54% |
5124 |
18.2 |
872.7 |
4909 |
5.9 |
1.41 |
722.8 |
|||
|
57% |
5607 |
20.7 |
994.1 |
5134 |
5.6 |
1.54 |
829.9 |
|||
|
60% |
6113 |
23.5 |
1128.9 |
5361 |
5.4 |
1.69 |
948.0 |
|||
|
63% |
6646 |
26.6 |
1278.5 |
5591 |
5.2 |
1.84 |
1078.9 |
|||
|
66% |
7208 |
30.0 |
1444.0 |
5824 |
5.0 |
2.01 |
1223.8 |
|||
|
69% |
7804 |
33.8 |
1625.8 |
6059 |
4.8 |
2.18 |
1383.9 |
|||
|
72% |
8431 |
37.9 |
1823.8 |
6293 |
4.6 |
2.37 |
1559.5 |
|||
|
75% |
9087 |
42.4 |
2037.5 |
6525 |
4.5 |
2.56 |
1751.1 |
|||
|
78% |
9765 |
47.2 |
2267.1 |
6749 |
4.3 |
2.77 |
1956.8 |
|||
|
81% |
10452 |
52.3 |
2513.6 |
6965 |
4.2 |
2.98 |
2176.1 |
|||
|
84% |
11131 |
57.8 |
2778.8 |
7171 |
4.0 |
3.21 |
2406.7 |
|||
|
87% |
11779 |
63.7 |
3063.0 |
7370 |
3.8 |
3.43 |
2646.0 |
|||
|
90% |
12366 |
69.9 |
3358.7 |
7562 |
3.7 |
3.65 |
2886.8 |
|||
|
100% |
13329 |
82.5 |
3964.4 |
7932 |
3.4 |
4.05 |
3359.9 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V(12S LiPo) |
21x10 |
35% |
1905 |
5.2 |
207.7 |
2894 |
9.2 |
0.51 |
155.2 |
/ |
|
37% |
2100 |
6.0 |
239.2 |
3036 |
8.8 |
0.56 |
178.8 |
|||
|
39% |
2302 |
6.8 |
272.6 |
3177 |
8.4 |
0.62 |
204.7 |
|||
|
42% |
2617 |
8.1 |
326.3 |
3388 |
8.0 |
0.70 |
248.1 |
|||
|
45% |
2945 |
9.6 |
384.2 |
3595 |
7.7 |
0.79 |
296.8 |
|||
|
48% |
3287 |
11.1 |
446.5 |
3798 |
7.4 |
0.88 |
350.7 |
|||
|
51% |
3644 |
12.8 |
513.7 |
3997 |
7.1 |
0.98 |
410.2 |
|||
|
54% |
4019 |
14.6 |
586.6 |
4195 |
6.9 |
1.08 |
475.7 |
|||
|
57% |
4414 |
16.6 |
666.0 |
4391 |
6.6 |
1.19 |
547.7 |
|||
|
60% |
4831 |
18.8 |
753.0 |
4586 |
6.4 |
1.30 |
626.6 |
|||
|
63% |
5273 |
21.2 |
848.6 |
4781 |
6.2 |
1.42 |
713.1 |
|||
|
66% |
5742 |
23.8 |
953.9 |
4977 |
6.0 |
1.55 |
808.2 |
|||
|
69% |
6237 |
26.7 |
1069.8 |
5174 |
5.8 |
1.68 |
912.3 |
|||
|
72% |
6756 |
29.9 |
1197.0 |
5373 |
5.6 |
1.82 |
1026.2 |
|||
|
75% |
7298 |
33.3 |
1335.7 |
5572 |
5.5 |
1.97 |
1149.9 |
|||
|
78% |
7855 |
37.1 |
1485.1 |
5770 |
5.3 |
2.12 |
1283.0 |
|||
|
81% |
8419 |
41.0 |
1643.4 |
5966 |
5.1 |
2.28 |
1424.3 |
|||
|
84% |
8979 |
45.1 |
1807.4 |
6156 |
5.0 |
2.44 |
1570.5 |
|||
|
87% |
9519 |
49.2 |
1971.8 |
6336 |
4.8 |
2.59 |
1716.7 |
|||
|
90% |
10020 |
53.2 |
2129.2 |
6498 |
4.7 |
2.73 |
1854.8 |
|||
|
100% |
11076 |
61.7 |
2472.8 |
6821 |
4.5 |
3.00 |
2142.7 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo) |
21x10 |
35% |
2174 |
6.2 |
273.2 |
3124 |
8.0 |
0.59 |
192.6 |
/ |
|
37% |
2407 |
7.0 |
309.9 |
3279 |
7.8 |
0.65 |
222.9 |
|||
|
39% |
2658 |
7.9 |
350.3 |
3436 |
7.6 |
0.71 |
257.2 |
|||
|
42% |
3056 |
9.5 |
416.9 |
3670 |
7.3 |
0.82 |
315.2 |
|||
|
45% |
3472 |
11.1 |
490.0 |
3897 |
7.1 |
0.93 |
380.0 |
|||
|
48% |
3898 |
12.9 |
569.4 |
4116 |
6.8 |
1.05 |
450.8 |
|||
|
51% |
4332 |
14.9 |
655.3 |
4327 |
6.6 |
1.16 |
527.1 |
|||
|
54% |
4776 |
17.0 |
748.2 |
4535 |
6.4 |
1.28 |
609.6 |
|||
|
57% |
5233 |
19.3 |
849.4 |
4741 |
6.2 |
1.41 |
698.9 |
|||
|
60% |
5709 |
21.8 |
960.3 |
4948 |
5.9 |
1.54 |
796.3 |
|||
|
63% |
6209 |
24.6 |
1082.4 |
5158 |
5.7 |
1.67 |
903.4 |
|||
|
66% |
6738 |
27.6 |
1217.5 |
5373 |
5.5 |
1.82 |
1022.0 |
|||
|
69% |
7302 |
31.0 |
1366.7 |
5592 |
5.3 |
1.97 |
1153.5 |
|||
|
72% |
7900 |
34.7 |
1530.8 |
5814 |
5.2 |
2.13 |
1299.1 |
|||
|
75% |
8533 |
38.8 |
1709.6 |
6033 |
5.0 |
2.31 |
1458.4 |
|||
|
78% |
9196 |
43.1 |
1901.9 |
6247 |
4.8 |
2.49 |
1631.1 |
|||
|
81% |
9877 |
47.8 |
2105.7 |
6451 |
4.7 |
2.69 |
1814.7 |
|||
|
84% |
10561 |
52.6 |
2318.2 |
6642 |
4.6 |
2.88 |
2005.5 |
|||
|
87% |
11225 |
57.5 |
2535.0 |
6823 |
4.4 |
3.08 |
2199.1 |
|||
|
90% |
11838 |
62.4 |
2748.7 |
6997 |
4.3 |
3.26 |
2388.9 |
|||
|
100% |
12940 |
72.2 |
3183.0 |
7372 |
4.1 |
3.59 |
2774.0 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
21x10 |
35% |
2625 |
7.1 |
339.1 |
3385 |
7.7 |
0.72 |
253.7 |
87℃ |
|
37% |
2876 |
7.9 |
381.1 |
3544 |
7.5 |
0.79 |
291.4 |
|||
|
39% |
3139 |
8.9 |
427.8 |
3704 |
7.3 |
0.86 |
332.5 |
|||
|
42% |
3554 |
10.5 |
506.5 |
3945 |
7.0 |
0.97 |
400.8 |
|||
|
45% |
3995 |
12.4 |
595.7 |
4185 |
6.7 |
1.09 |
477.5 |
|||
|
48% |
4465 |
14.5 |
695.4 |
4423 |
6.4 |
1.22 |
563.0 |
|||
|
51% |
4963 |
16.8 |
805.8 |
4659 |
6.2 |
1.35 |
658.1 |
|||
|
54% |
5492 |
19.3 |
926.9 |
4891 |
5.9 |
1.49 |
763.1 |
|||
|
57% |
6052 |
22.0 |
1059.3 |
5120 |
5.7 |
1.64 |
879.0 |
|||
|
60% |
6643 |
25.0 |
1203.4 |
5345 |
5.5 |
1.80 |
1006.4 |
|||
|
63% |
7264 |
28.3 |
1360.3 |
5568 |
5.3 |
1.97 |
1146.2 |
|||
|
66% |
7914 |
31.9 |
1531.3 |
5790 |
5.2 |
2.14 |
1299.5 |
|||
|
69% |
8590 |
35.7 |
1718.1 |
6012 |
5.0 |
2.33 |
1467.2 |
|||
|
72% |
9288 |
40.0 |
1922.4 |
6236 |
4.8 |
2.53 |
1650.2 |
|||
|
75% |
10000 |
44.6 |
2145.9 |
6463 |
4.7 |
2.73 |
1848.9 |
|||
|
78% |
10719 |
49.7 |
2388.9 |
6692 |
4.5 |
2.94 |
2063.0 |
|||
|
81% |
11435 |
55.1 |
2650.2 |
6919 |
4.3 |
3.16 |
2290.1 |
|||
|
84% |
12134 |
60.9 |
2925.7 |
7139 |
4.1 |
3.38 |
2526.1 |
|||
|
87% |
12801 |
66.7 |
3207.5 |
7343 |
4.0 |
3.59 |
2763.5 |
|||
|
90% |
13417 |
72.5 |
3484.2 |
7520 |
3.9 |
3.80 |
2991.7 |
|||
|
100% |
14809 |
86.5 |
4157.4 |
7845 |
3.6 |
4.29 |
3522.8 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
Perfectly suited for both fixed-wing cruise and vertical take-off and landing (VTOL) drones
21-inch propellers
a maximum thrust of
14.8kg at 48V
needs during rapid maneuvers and
sudden payload changes
centrifugal fan design reduce
resistance and turbulence,
dramatically improving
heat dissipation
significantly reduced compared
tomotors of other brands with
similar specifications, ensuring
stable and long-term operation
even in high-load flight conditions
Superior Reliability
upper and
lower steel
mesh structure
ingress of particles
1 mm and larger
in diameter.
flight environments
such as dust and rain
Convenient Application
- The stator base is compatible with an IPC
- (Intelligent Propeller Control) component,
- allowing for flexible selection.
- Paired with an IPC ESC, users can customize
- the propeller stopping position to minimize
- the risk of colliding with the ground.
- The rotor bracket adopts a boss clearance design that effectively prevents
- interference with the propeller root edge structure, ensuring seamless compatibility
- and secure installation for both non-folding and folding propellers.
- Supports multiple mounting configurations
- for quick adaptation, to meet the demands of diverse applications.
Design for a Safer Flight
- Anti-Loosening Design
- The rotor shaft end is fixed by copper washers, circlips, and screws to enhance motor reliability.
- Triple-Bearing
Architecture - The triple-bearing architecture optimizes dynamic balance, enhancing impact resistance and durability of the motor to ensure safe flights.
- Silicon Steel and
Enameled Wires - t is designed with industry-leading 0.2mm low-loss silicon steel cores and high-grade 220°C temperature-resistant enameled wires.
- Magnet Segment
- High-grade, strong magnetic arc-shaped magnets boost magnetic energy density for superior torque during climbs and heavy lifts. Cruise efficiency gains of 2–4% over comparable motors ensure longer flight times and lower energy consumption.
- Silicone Rubber Cable Sleeves
- The motor’s three-phase wire outlet comes with a custom silicone rubber cable sleeve, combining aesthetic appeal with superior insulation.
Brand-new, highly optimized magnetic circuit matches drive requirements exactly. Providing quicker thrust
response and enhanced dynamic performance under all flight conditions.
1000+ Hour Testing
Rigorous suite of industrial tests (compatibility, waterproof, salt spray, stress,combined env/vibration,
long-term fatigue) ensures the motor maintains peak performance and reliability throughout its extended lifecycle.
-
- Model
- Protection level
- Motor Size
- Slot& Pole
- Stator Size
- Dynamic balance
- Stator process
- Bearing
- Enamelled wire
- Motor axle diameter
- Magnet
- Props mounting dimensions
- Isolation test
- Motor mounting dimensions
- Rated power input
- Rated power output
-

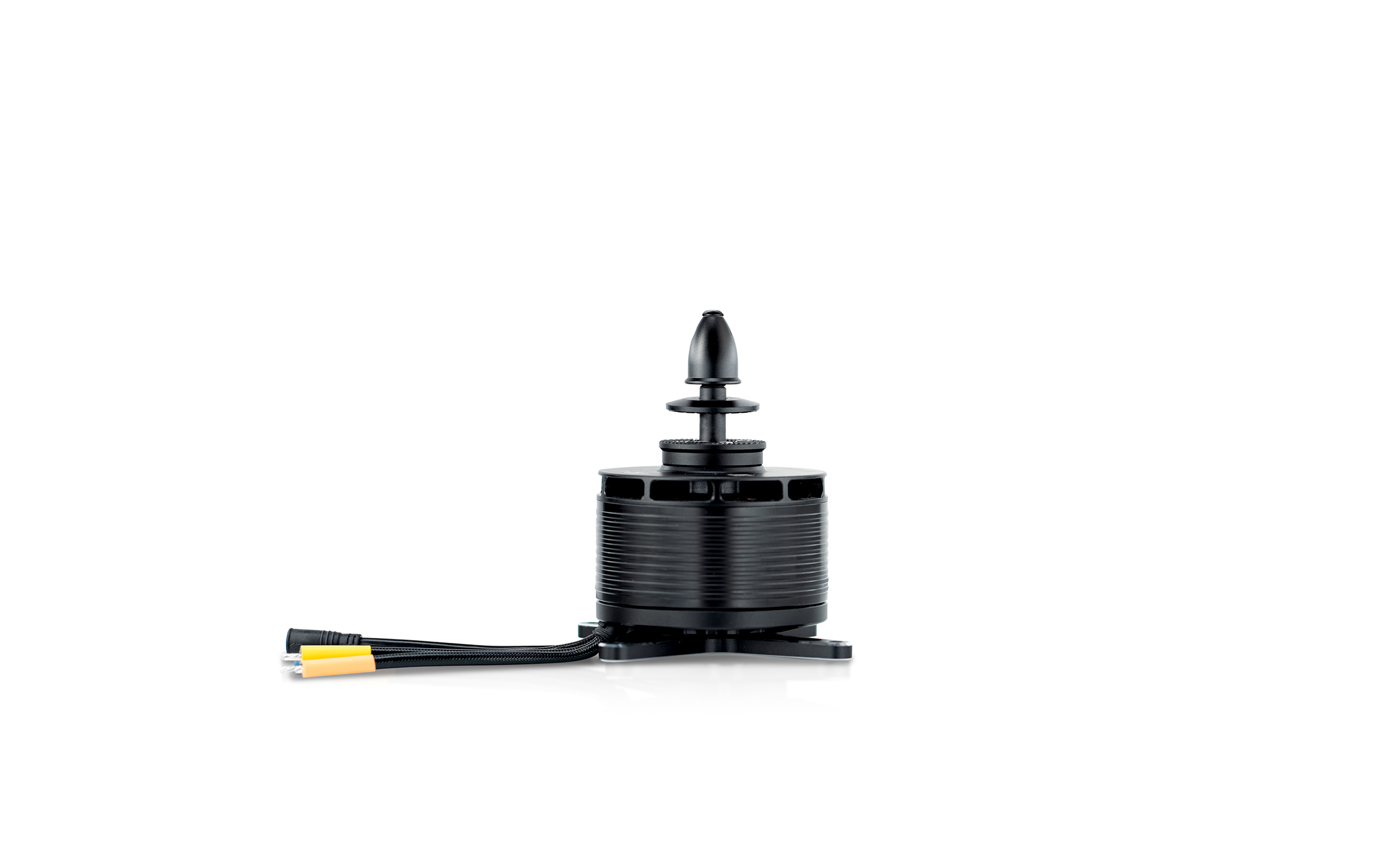

- C6225-200KV
- IPX5
- Φ69*H50.9mm
- 24N28P
- 62x25mm
- ≤15mg
- High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
- Water proof bearing
- 220℃
- Φ10mm
- 160℃
- 4*M3@D20mm&4*M4@D23mm
- 500V AC high voltage resistance test
- 4*M4@D36mm
- 710W
- 580W
-
- KV
- Battery(LiPo)
- No-load current
- Maximum current (non-hermetic ambient temperature ≤ 25℃）
- Rated thrust
- Max thrust
- Resistance
- Wire Size
- Three-phase wires length
- Magnetic encoder cable length
- Weight（with wires）
-
- 200KV
- LiPo-12S (48V)
- 3.4A
- 86A
- 4.5kg（48V@21×10）
- 14.8kg（48V@21×10）
- 23.5mΩ
- enameled wire direct lead-out
- 100mm
- 130mm
- 530g
-
- Motor
- Propeller
- ESC
- Battery
- Takeoff weight of Single motor
-
- C6225-200KV
- 20×10/21×10
- XRotor Pro H130A 14S BLDC IPC
- 12S LiPo
- 20~25kg
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V(12S LiPo) |
20x10 |
35% |
1783 |
5.3 |
212.9 |
2914 |
8.4 |
0.48 |
147.5 |
/ |
|
37% |
1957 |
6.0 |
240.2 |
3059 |
8.1 |
0.53 |
170.0 |
|||
|
39% |
2142 |
6.7 |
269.7 |
3205 |
7.9 |
0.58 |
195.0 |
|||
|
42% |
2438 |
7.9 |
317.6 |
3420 |
7.7 |
0.66 |
236.6 |
|||
|
45% |
2750 |
9.2 |
369.9 |
3629 |
7.4 |
0.74 |
282.9 |
|||
|
48% |
3074 |
10.6 |
426.4 |
3830 |
7.2 |
0.83 |
333.6 |
|||
|
51% |
3411 |
12.2 |
487.7 |
4026 |
7.0 |
0.92 |
389.1 |
|||
|
54% |
3760 |
13.8 |
554.3 |
4218 |
6.8 |
1.02 |
449.6 |
|||
|
57% |
4123 |
15.7 |
627.2 |
4409 |
6.6 |
1.12 |
516.0 |
|||
|
60% |
4502 |
17.7 |
707.4 |
4602 |
6.4 |
1.22 |
589.2 |
|||
|
63% |
4900 |
19.9 |
796.1 |
4799 |
6.2 |
1.33 |
670.2 |
|||
|
66% |
5318 |
22.3 |
894.5 |
5000 |
5.9 |
1.45 |
759.8 |
|||
|
69% |
5759 |
25.1 |
1003.6 |
5206 |
5.7 |
1.58 |
858.8 |
|||
|
72% |
6222 |
28.1 |
1123.9 |
5415 |
5.5 |
1.71 |
967.3 |
|||
|
75% |
6707 |
31.3 |
1255.6 |
5624 |
5.3 |
1.84 |
1084.9 |
|||
|
78% |
7210 |
34.9 |
1397.7 |
5829 |
5.2 |
1.98 |
1210.4 |
|||
|
81% |
7725 |
38.7 |
1548.5 |
6024 |
5.0 |
2.13 |
1341.3 |
|||
|
84% |
8244 |
42.6 |
1704.6 |
6205 |
4.8 |
2.27 |
1475.2 |
|||
|
87% |
8756 |
46.5 |
1861.6 |
6369 |
4.7 |
2.41 |
1609.2 |
|||
|
90% |
9244 |
50.3 |
2013.4 |
6517 |
4.6 |
2.55 |
1740.9 |
|||
|
100% |
10410 |
59.4 |
2380.1 |
6878 |
4.4 |
2.91 |
2092.8 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo) |
20x10 |
35% |
2084 |
6.0 |
263.6 |
3158 |
7.9 |
0.56 |
186.2 |
/ |
|
37% |
2293 |
6.7 |
296.4 |
3309 |
7.7 |
0.62 |
214.7 |
|||
|
39% |
2514 |
7.5 |
332.4 |
3463 |
7.6 |
0.68 |
246.3 |
|||
|
42% |
2864 |
8.9 |
392.1 |
3692 |
7.3 |
0.77 |
298.9 |
|||
|
45% |
3233 |
10.4 |
458.6 |
3919 |
7.1 |
0.87 |
357.8 |
|||
|
48% |
3618 |
12.1 |
532.0 |
4140 |
6.8 |
0.98 |
422.7 |
|||
|
51% |
4019 |
13.9 |
612.7 |
4357 |
6.6 |
1.08 |
494.1 |
|||
|
54% |
4436 |
15.9 |
701.5 |
4570 |
6.3 |
1.20 |
572.6 |
|||
|
57% |
4872 |
18.1 |
799.2 |
4780 |
6.1 |
1.32 |
658.8 |
|||
|
60% |
5328 |
20.6 |
906.7 |
4990 |
5.9 |
1.44 |
753.8 |
|||
|
63% |
5805 |
23.3 |
1025.3 |
5201 |
5.7 |
1.58 |
858.7 |
|||
|
66% |
6306 |
26.2 |
1155.9 |
5414 |
5.5 |
1.72 |
974.5 |
|||
|
69% |
6831 |
29.5 |
1299.4 |
5629 |
5.3 |
1.87 |
1102.0 |
|||
|
72% |
7378 |
33.0 |
1456.3 |
5847 |
5.1 |
2.03 |
1242.0 |
|||
|
75% |
7946 |
36.9 |
1626.5 |
6066 |
4.9 |
2.19 |
1393.9 |
|||
|
78% |
8528 |
41.0 |
1809.3 |
6285 |
4.7 |
2.37 |
1557.4 |
|||
|
81% |
9118 |
45.4 |
2002.8 |
6500 |
4.6 |
2.54 |
1730.4 |
|||
|
84% |
9703 |
50.0 |
2204.1 |
6706 |
4.4 |
2.72 |
1909.5 |
|||
|
87% |
10270 |
54.6 |
2408.2 |
6897 |
4.3 |
2.89 |
2089.9 |
|||
|
90% |
10800 |
59.2 |
2607.8 |
7068 |
4.1 |
3.06 |
2265.3 |
|||
|
100% |
11960 |
69.9 |
3081.3 |
7409 |
3.9 |
3.45 |
2675.8 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
20x10 |
35% |
2421 |
6.8 |
326.5 |
3401 |
7.4 |
0.66 |
235.4 |
85℃ |
|
37% |
2669 |
7.7 |
370.2 |
3567 |
7.2 |
0.73 |
272.0 |
|||
|
39% |
2931 |
8.7 |
416.8 |
3734 |
7.0 |
0.80 |
312.5 |
|||
|
42% |
3342 |
10.2 |
491.9 |
3980 |
6.8 |
0.91 |
379.7 |
|||
|
45% |
3768 |
11.9 |
574.1 |
4221 |
6.6 |
1.03 |
454.3 |
|||
|
48% |
4207 |
13.8 |
664.1 |
4455 |
6.3 |
1.15 |
536.1 |
|||
|
51% |
4658 |
15.9 |
763.2 |
4683 |
6.1 |
1.28 |
625.3 |
|||
|
54% |
5124 |
18.2 |
872.7 |
4909 |
5.9 |
1.41 |
722.8 |
|||
|
57% |
5607 |
20.7 |
994.1 |
5134 |
5.6 |
1.54 |
829.9 |
|||
|
60% |
6113 |
23.5 |
1128.9 |
5361 |
5.4 |
1.69 |
948.0 |
|||
|
63% |
6646 |
26.6 |
1278.5 |
5591 |
5.2 |
1.84 |
1078.9 |
|||
|
66% |
7208 |
30.0 |
1444.0 |
5824 |
5.0 |
2.01 |
1223.8 |
|||
|
69% |
7804 |
33.8 |
1625.8 |
6059 |
4.8 |
2.18 |
1383.9 |
|||
|
72% |
8431 |
37.9 |
1823.8 |
6293 |
4.6 |
2.37 |
1559.5 |
|||
|
75% |
9087 |
42.4 |
2037.5 |
6525 |
4.5 |
2.56 |
1751.1 |
|||
|
78% |
9765 |
47.2 |
2267.1 |
6749 |
4.3 |
2.77 |
1956.8 |
|||
|
81% |
10452 |
52.3 |
2513.6 |
6965 |
4.2 |
2.98 |
2176.1 |
|||
|
84% |
11131 |
57.8 |
2778.8 |
7171 |
4.0 |
3.21 |
2406.7 |
|||
|
87% |
11779 |
63.7 |
3063.0 |
7370 |
3.8 |
3.43 |
2646.0 |
|||
|
90% |
12366 |
69.9 |
3358.7 |
7562 |
3.7 |
3.65 |
2886.8 |
|||
|
100% |
13329 |
82.5 |
3964.4 |
7932 |
3.4 |
4.05 |
3359.9 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V(12S LiPo) |
21x10 |
35% |
1905 |
5.2 |
207.7 |
2894 |
9.2 |
0.51 |
155.2 |
/ |
|
37% |
2100 |
6.0 |
239.2 |
3036 |
8.8 |
0.56 |
178.8 |
|||
|
39% |
2302 |
6.8 |
272.6 |
3177 |
8.4 |
0.62 |
204.7 |
|||
|
42% |
2617 |
8.1 |
326.3 |
3388 |
8.0 |
0.70 |
248.1 |
|||
|
45% |
2945 |
9.6 |
384.2 |
3595 |
7.7 |
0.79 |
296.8 |
|||
|
48% |
3287 |
11.1 |
446.5 |
3798 |
7.4 |
0.88 |
350.7 |
|||
|
51% |
3644 |
12.8 |
513.7 |
3997 |
7.1 |
0.98 |
410.2 |
|||
|
54% |
4019 |
14.6 |
586.6 |
4195 |
6.9 |
1.08 |
475.7 |
|||
|
57% |
4414 |
16.6 |
666.0 |
4391 |
6.6 |
1.19 |
547.7 |
|||
|
60% |
4831 |
18.8 |
753.0 |
4586 |
6.4 |
1.30 |
626.6 |
|||
|
63% |
5273 |
21.2 |
848.6 |
4781 |
6.2 |
1.42 |
713.1 |
|||
|
66% |
5742 |
23.8 |
953.9 |
4977 |
6.0 |
1.55 |
808.2 |
|||
|
69% |
6237 |
26.7 |
1069.8 |
5174 |
5.8 |
1.68 |
912.3 |
|||
|
72% |
6756 |
29.9 |
1197.0 |
5373 |
5.6 |
1.82 |
1026.2 |
|||
|
75% |
7298 |
33.3 |
1335.7 |
5572 |
5.5 |
1.97 |
1149.9 |
|||
|
78% |
7855 |
37.1 |
1485.1 |
5770 |
5.3 |
2.12 |
1283.0 |
|||
|
81% |
8419 |
41.0 |
1643.4 |
5966 |
5.1 |
2.28 |
1424.3 |
|||
|
84% |
8979 |
45.1 |
1807.4 |
6156 |
5.0 |
2.44 |
1570.5 |
|||
|
87% |
9519 |
49.2 |
1971.8 |
6336 |
4.8 |
2.59 |
1716.7 |
|||
|
90% |
10020 |
53.2 |
2129.2 |
6498 |
4.7 |
2.73 |
1854.8 |
|||
|
100% |
11076 |
61.7 |
2472.8 |
6821 |
4.5 |
3.00 |
2142.7 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo) |
21x10 |
35% |
2174 |
6.2 |
273.2 |
3124 |
8.0 |
0.59 |
192.6 |
/ |
|
37% |
2407 |
7.0 |
309.9 |
3279 |
7.8 |
0.65 |
222.9 |
|||
|
39% |
2658 |
7.9 |
350.3 |
3436 |
7.6 |
0.71 |
257.2 |
|||
|
42% |
3056 |
9.5 |
416.9 |
3670 |
7.3 |
0.82 |
315.2 |
|||
|
45% |
3472 |
11.1 |
490.0 |
3897 |
7.1 |
0.93 |
380.0 |
|||
|
48% |
3898 |
12.9 |
569.4 |
4116 |
6.8 |
1.05 |
450.8 |
|||
|
51% |
4332 |
14.9 |
655.3 |
4327 |
6.6 |
1.16 |
527.1 |
|||
|
54% |
4776 |
17.0 |
748.2 |
4535 |
6.4 |
1.28 |
609.6 |
|||
|
57% |
5233 |
19.3 |
849.4 |
4741 |
6.2 |
1.41 |
698.9 |
|||
|
60% |
5709 |
21.8 |
960.3 |
4948 |
5.9 |
1.54 |
796.3 |
|||
|
63% |
6209 |
24.6 |
1082.4 |
5158 |
5.7 |
1.67 |
903.4 |
|||
|
66% |
6738 |
27.6 |
1217.5 |
5373 |
5.5 |
1.82 |
1022.0 |
|||
|
69% |
7302 |
31.0 |
1366.7 |
5592 |
5.3 |
1.97 |
1153.5 |
|||
|
72% |
7900 |
34.7 |
1530.8 |
5814 |
5.2 |
2.13 |
1299.1 |
|||
|
75% |
8533 |
38.8 |
1709.6 |
6033 |
5.0 |
2.31 |
1458.4 |
|||
|
78% |
9196 |
43.1 |
1901.9 |
6247 |
4.8 |
2.49 |
1631.1 |
|||
|
81% |
9877 |
47.8 |
2105.7 |
6451 |
4.7 |
2.69 |
1814.7 |
|||
|
84% |
10561 |
52.6 |
2318.2 |
6642 |
4.6 |
2.88 |
2005.5 |
|||
|
87% |
11225 |
57.5 |
2535.0 |
6823 |
4.4 |
3.08 |
2199.1 |
|||
|
90% |
11838 |
62.4 |
2748.7 |
6997 |
4.3 |
3.26 |
2388.9 |
|||
|
100% |
12940 |
72.2 |
3183.0 |
7372 |
4.1 |
3.59 |
2774.0 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
21x10 |
35% |
2625 |
7.1 |
339.1 |
3385 |
7.7 |
0.72 |
253.7 |
87℃ |
|
37% |
2876 |
7.9 |
381.1 |
3544 |
7.5 |
0.79 |
291.4 |
|||
|
39% |
3139 |
8.9 |
427.8 |
3704 |
7.3 |
0.86 |
332.5 |
|||
|
42% |
3554 |
10.5 |
506.5 |
3945 |
7.0 |
0.97 |
400.8 |
|||
|
45% |
3995 |
12.4 |
595.7 |
4185 |
6.7 |
1.09 |
477.5 |
|||
|
48% |
4465 |
14.5 |
695.4 |
4423 |
6.4 |
1.22 |
563.0 |
|||
|
51% |
4963 |
16.8 |
805.8 |
4659 |
6.2 |
1.35 |
658.1 |
|||
|
54% |
5492 |
19.3 |
926.9 |
4891 |
5.9 |
1.49 |
763.1 |
|||
|
57% |
6052 |
22.0 |
1059.3 |
5120 |
5.7 |
1.64 |
879.0 |
|||
|
60% |
6643 |
25.0 |
1203.4 |
5345 |
5.5 |
1.80 |
1006.4 |
|||
|
63% |
7264 |
28.3 |
1360.3 |
5568 |
5.3 |
1.97 |
1146.2 |
|||
|
66% |
7914 |
31.9 |
1531.3 |
5790 |
5.2 |
2.14 |
1299.5 |
|||
|
69% |
8590 |
35.7 |
1718.1 |
6012 |
5.0 |
2.33 |
1467.2 |
|||
|
72% |
9288 |
40.0 |
1922.4 |
6236 |
4.8 |
2.53 |
1650.2 |
|||
|
75% |
10000 |
44.6 |
2145.9 |
6463 |
4.7 |
2.73 |
1848.9 |
|||
|
78% |
10719 |
49.7 |
2388.9 |
6692 |
4.5 |
2.94 |
2063.0 |
|||
|
81% |
11435 |
55.1 |
2650.2 |
6919 |
4.3 |
3.16 |
2290.1 |
|||
|
84% |
12134 |
60.9 |
2925.7 |
7139 |
4.1 |
3.38 |
2526.1 |
|||
|
87% |
12801 |
66.7 |
3207.5 |
7343 |
4.0 |
3.59 |
2763.5 |
|||
|
90% |
13417 |
72.5 |
3484.2 |
7520 |
3.9 |
3.80 |
2991.7 |
|||
|
100% |
14809 |
86.5 |
4157.4 |
7845 |
3.6 |
4.29 |
3522.8 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
