Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V(12S LiPo) |
25x10 |
35% |
2483 |
7.1 |
282.8 |
2477 |
8.8 |
0.78 |
202.3 |
/ |
|
37% |
2766 |
8.0 |
320.9 |
2605 |
8.6 |
0.87 |
237.3 |
|||
|
39% |
3081 |
9.2 |
366.5 |
2742 |
8.4 |
0.97 |
278.5 |
|||
|
42% |
3591 |
11.2 |
446.7 |
2952 |
8.0 |
1.13 |
349.3 |
|||
|
45% |
4129 |
13.4 |
538.4 |
3158 |
7.7 |
1.29 |
426.6 |
|||
|
48% |
4681 |
15.9 |
638.2 |
3355 |
7.3 |
1.47 |
516.4 |
|||
|
51% |
5241 |
18.6 |
744.3 |
3542 |
7.0 |
1.65 |
612.0 |
|||
|
54% |
5811 |
21.4 |
856.1 |
3719 |
6.8 |
1.83 |
712.6 |
|||
|
57% |
6394 |
24.3 |
974.7 |
3890 |
6.6 |
2.01 |
818.7 |
|||
|
60% |
6998 |
27.5 |
1101.2 |
4056 |
6.4 |
2.20 |
934.4 |
|||
|
63% |
7634 |
30.9 |
1239.1 |
4221 |
6.2 |
2.40 |
1060.8 |
|||
|
66% |
8311 |
34.7 |
1391.3 |
4389 |
6.0 |
2.61 |
1199.5 |
|||
|
69% |
9038 |
39.0 |
1561.5 |
4560 |
5.8 |
2.84 |
1356.1 |
|||
|
72% |
9820 |
43.8 |
1754.2 |
4737 |
5.6 |
3.09 |
1532.7 |
|||
|
75% |
10658 |
49.3 |
1973.0 |
4921 |
5.4 |
3.36 |
1731.4 |
|||
|
78% |
11549 |
55.4 |
2220.1 |
5110 |
5.2 |
3.66 |
1958.4 |
|||
|
81% |
12482 |
62.3 |
2493.9 |
5301 |
5.0 |
3.97 |
2203.7 |
|||
|
84% |
13435 |
69.7 |
2790.3 |
5489 |
4.8 |
4.30 |
2471.5 |
|||
|
87% |
14379 |
77.3 |
3093.9 |
5663 |
4.6 |
4.63 |
2745.5 |
|||
|
90% |
15272 |
84.5 |
3382.6 |
5812 |
4.5 |
4.93 |
3000.3 |
|||
|
100% |
17064 |
97.9 |
3920.5 |
6036 |
4.4 |
5.49 |
3469.9 |
-
Drone Propulsion Systems
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- X Series
- H Series
- P Series
-
-
-
- PROPELLER Superior efficiency, exceptional stability.
- Carbon Plastic Propeller
- Carbon Fiber Propeller
-
- CENTRIFUGAL NOZZLE Efficient atomizing, precise spraying.
- 9L
-
- WATER PUMP Minimal maintenance, long service life.
- 5L
- 8L
- 30L
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- P Series
-
-
-
- PROPELLER Powerful burst, high intensity.
- Carbon Fiber Propeller
-
- Fixed-Wing UAV Cruise Motor Convenient, efficient and stable.
- 72XX
- 80XX
-
-
RC Power Systems
RC Cars Power SystemRC Boat Power System
-
e-Vehicle Power Systems
Electric MotorcycleElectric SkateboardElectric Scooter
- Service and Support
Universally versatile for both fixed-wing and
vertical take-off and landing (VTOL) drones.
Meant to seamlessly replace 70CC combustion engines.
the motor delivers up to a
maximum thrust of
24.7kg at 48V
rapid transitions
in diverse
flight conditions
rectangular exhaust outlet
with a centrifugal fan design,
reducing airflow resistance
and turbulence, enhancing
heat exhaust efficiency
significantly reduced compared
tomotors of other brands with
similar specifications, ensuring
stable and long-term operation
even in high-load flight conditions.
Superior Reliability

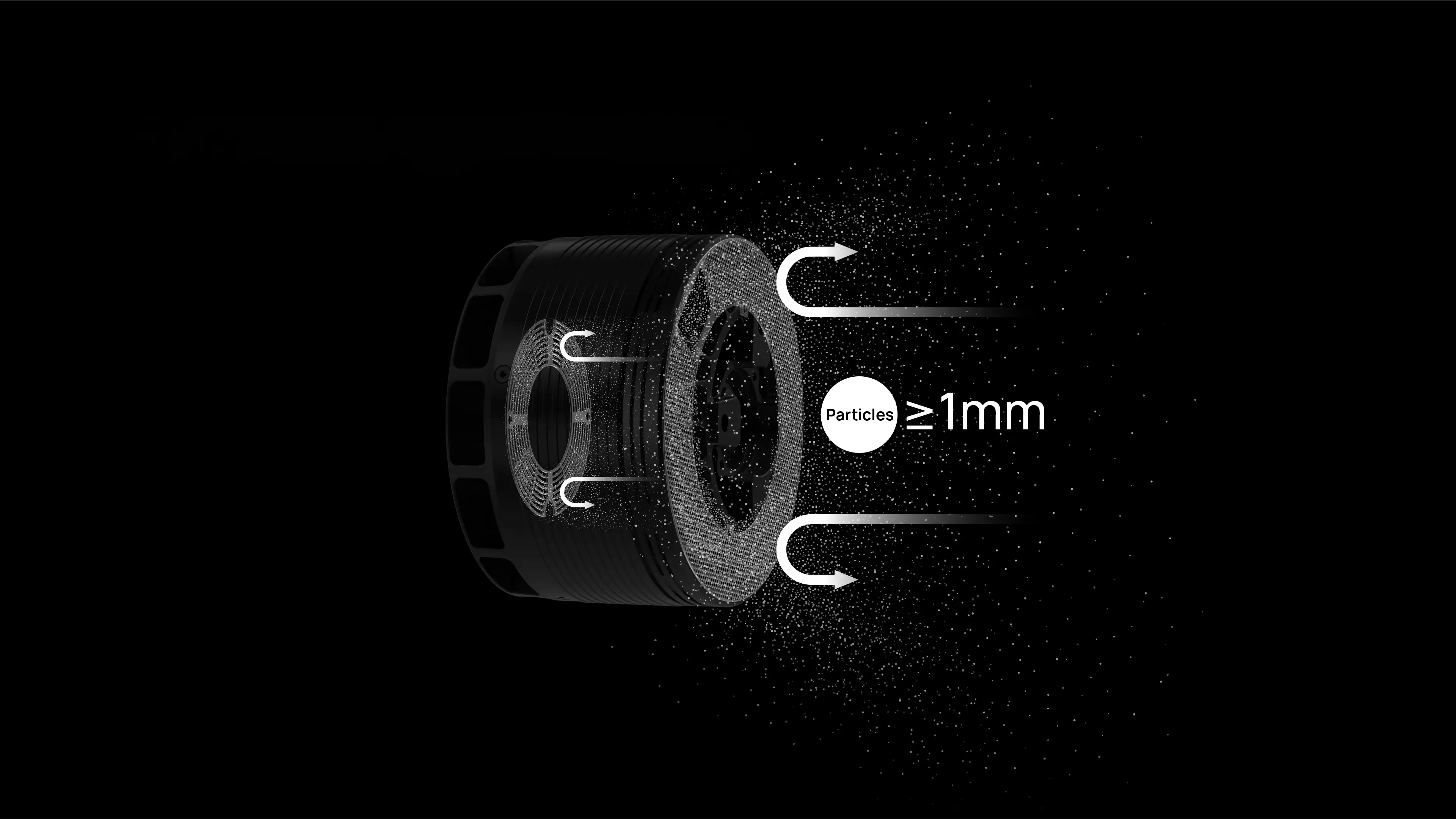

The bottom of the motor is designed with upper and lower steel mesh structure,
effectively preventing particles ≥1mm in diameter,
allowing the motor to adapt to harsh flight environments, such as dust and rain.
Convenient Application

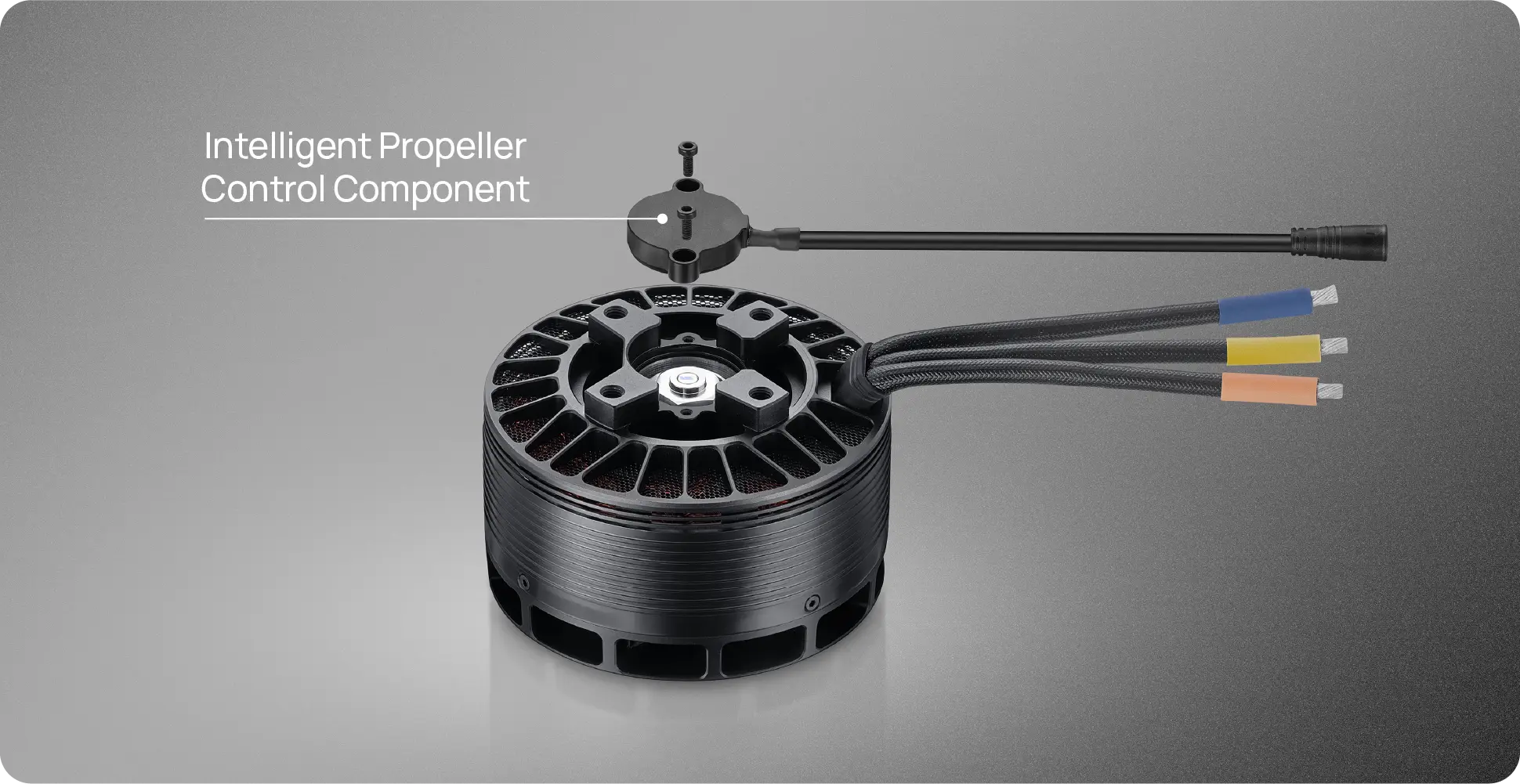

- The stator base is compatible with an IPC
- (Intelligent Propeller Control) component,
- allowing for flexible selection.
- Paired with an IPC ESC,
- users can customize the propeller stopping position
- to minimize the risk of colliding with the ground.
- The rotor bracket adopts a boss clearance design that effectively
- prevents interference with the edge structure of propeller roots,
- accommodating the installation for both non-folding and folding propellers.
- Supports multiple mounting configurations for quick adaptation,
- to meet the demands of diverse applications.
Design for a Safer Flight
- Detachable Propeller
Mounting Base - The anti-loosening propeller adapter structure
features a double-nut and dual-rotation design
to achieve skid resistance and interlocking,
preventing the propeller from detachment due
to nut loosen, thereby enhancing flight safety. - Patented design certification [Patent No.: 202311210278.7]
- Knurled Design
- The innovative knurled
shaft-to-bracket fitting with
side set screw locking ensures
dual redundant security
and prevents looseness.
- Anti-Loosening
Design - The rotor shaft end is
fixed by copper washers,
circlips, and screws to
enhance motor reliability.
- Silicon Steel and
Enameled Wires - It is designed with
industry-leading
0.2mm low-loss silicon steel
cores and high-grade 240°C
temperature-resistant enameled wires.
- Triple-Bearing
Architecture - The triple-bearing architecture
optimizes dynamic balance,
enhancing impact resistance
and durability of the motor
to ensure safe flights.
- Silicone Rubber
Cable Sleeves - The motor’s three-phase wire outlet
comes with a custom silicone rubber
cable sleeve, combining aesthetic
appeal with superior insulation.

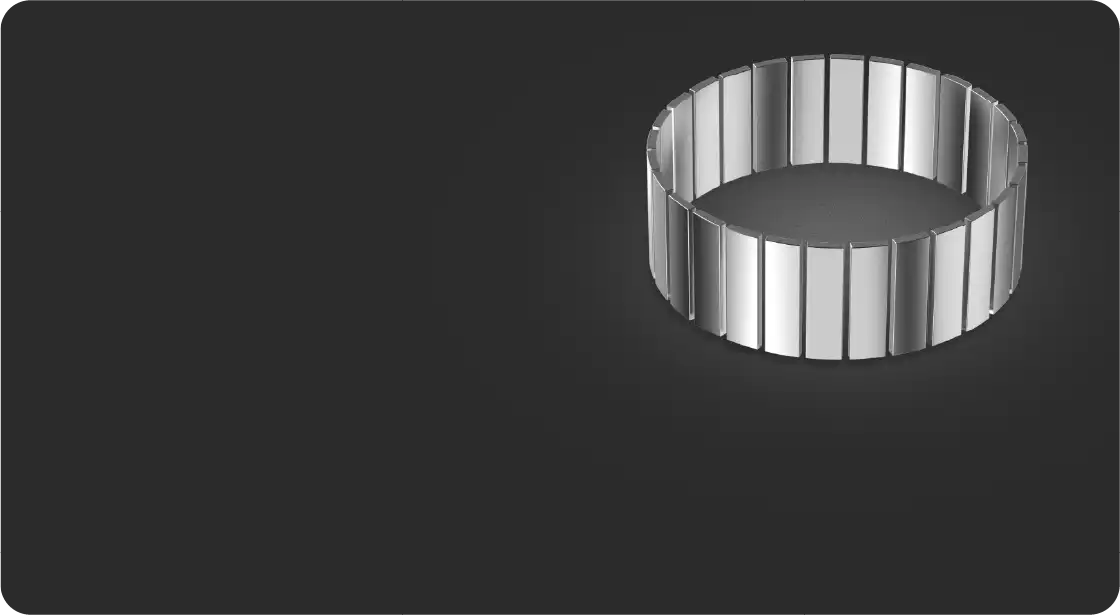

- Magnet Segment
- The high-grade, strong
magnetic arc-shaped magnets
enhance the magnetic energy
density, delivering powerful
torque for the motor.
This meets large-thrust needs during climbing,
while maintaining high efficiency during cruise,
improving cruise flight efficiency by 2-4%
compared to motors of similar grades.
Optimized Design
The newly designed magnetic circuit highly
matches the driving parameter requirements,
ensuring a more rapid propulsion output response.
and Extended Lifespan
The motor undergoes stringent industrial tests,
including drive compatibility, water proof test, salt spray test,
mechanical stress test, temperature/humidity combined vibration test,
and 1000 hours of laboratory fatigue life test,
ensuring sustained stable performance in challenging environments.
Operation Test
Operation Test
- 160KV
- 190KV
-
- Model
- Protection level
- Motor Size
- Slot& Pole
- Stator Size
- Dynamic balance
- Stator process
- Bearing
- Enamelled wire
- Motor axle diameter
- Magnet

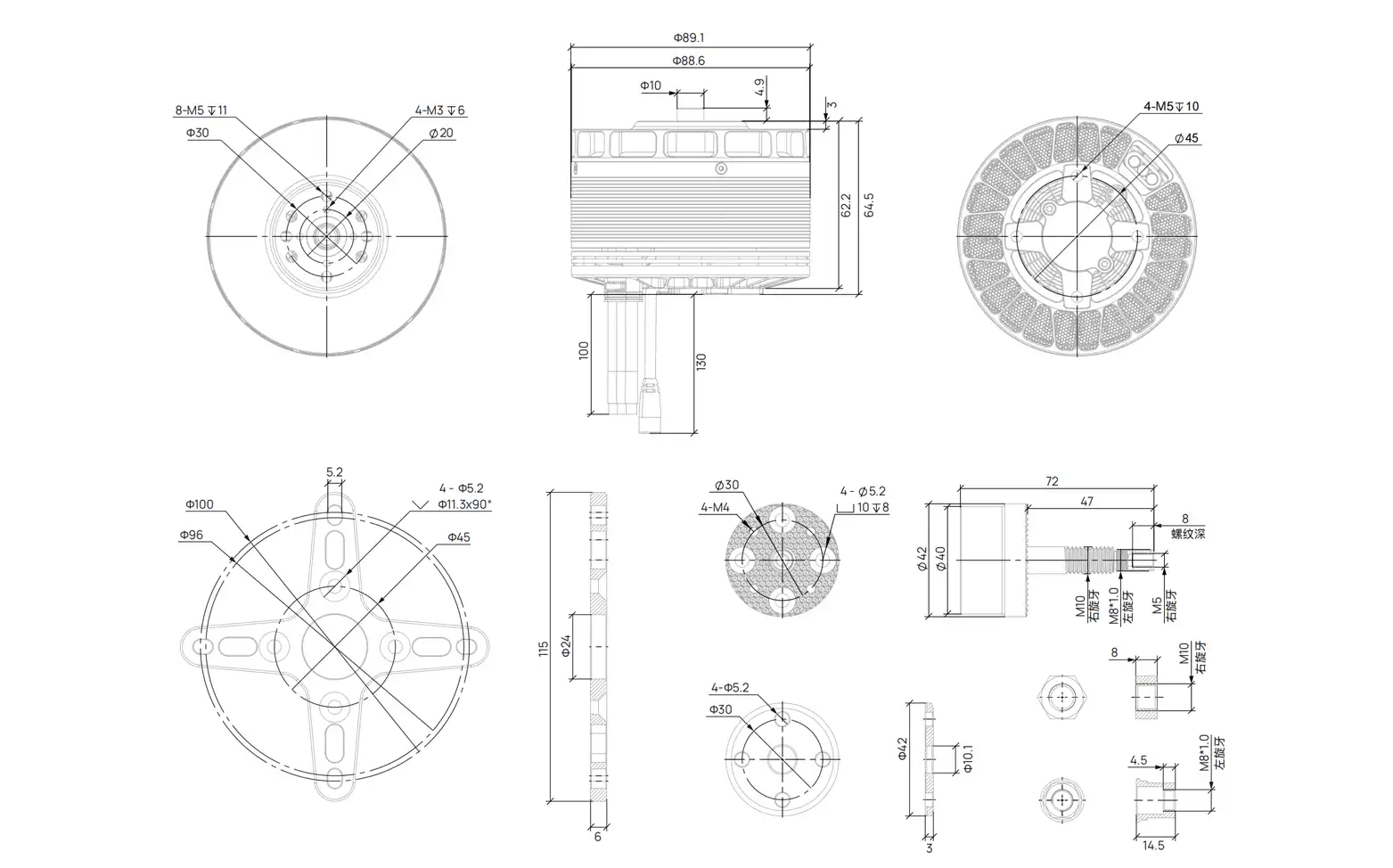

- Props mounting dimensions
- Isolation test
- Motor mounting dimensions
- Rated power input
- Rated power output
-
- C8025-160KV
- IPX5
- Φ89.1*H64.5mm
- 24N28P
- 80x25 mm
- ≤20mg
- High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
- Water proof bearing
- 240℃
- Φ10mm
- 180℃
- 4×M3@D20mm & 8×M5@D30mm
- 500V AC high voltage resistance test
- 4×M5@D45mm
- 1410W
- 1190W
- C8025-190KV
- IPX5
- Φ89.1*H64.5mm
- 24N28P
- 80x25 mm
- ≤20mg
- High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
- Water proof bearing
- 240℃
- Φ10mm
- 180℃
- 4×M3@D20mm & 8×M5@D30mm
- 500V AC high voltage resistance test
- 4×M5@D45mm
- 1650W
- 1370W
-
- KV
- Battery(LiPo)
- No-load current
- Maximum current (non-hermetic ambient temperature ≤ 25℃）
- Rated thrust
- Max thrust
- Resistance
- Wire Size
- Three-phase wires length
- Magnetic encoder cable length
- Weight（with wires）
-
- 160KV
- LiPo-12S (48V)
- 5A
- 155A
- 8.5kg（48V@26x12）
- 24.8kg（48V@26x12）
- 10.5mΩ
- enameled wire direct lead-out
- 100mm
- 130mm
- 966g
- 190KV
- LiPo-12S (48V)
- 6A
- 144A
- 8.5kg（48V@24x10）
- 21.3kg（48V@24x10）
- 8.2mΩ
- enameled wire direct lead-out
- 100mm
- 130mm
- 969g
-
- Motor
- Propeller
- ESC
- Battery
- Takeoff weight of Single motor
-
- C8025-160KV
- 24x10/25x10/26x12
- XRotor Pro H200A 14S BLDC IPC
- 12S LiPo
- 40~45kg
- C8025-190KV
- 23x10/24x10
- XRotor Pro H130A/200A 14S BLDC IPC
- 12S LiPo
- 40~45kg
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo) |
25x10 |
35% |
3019 |
8.3 |
364.5 |
2714 |
8.3 |
0.95 |
270.0 |
/ |
|
37% |
3354 |
9.4 |
413.0 |
2851 |
8.1 |
1.05 |
313.5 |
|||
|
39% |
3710 |
10.6 |
469.0 |
2991 |
7.9 |
1.16 |
363.3 |
|||
|
42% |
4277 |
12.9 |
566.4 |
3204 |
7.6 |
1.34 |
449.6 |
|||
|
45% |
4874 |
15.4 |
677.1 |
3415 |
7.2 |
1.53 |
547.1 |
|||
|
48% |
5496 |
18.2 |
800.1 |
3621 |
6.9 |
1.73 |
656.0 |
|||
|
51% |
6146 |
21.2 |
934.9 |
3822 |
6.6 |
1.94 |
776.4 |
|||
|
54% |
6826 |
24.5 |
1081.3 |
4018 |
6.3 |
2.15 |
904.6 |
|||
|
57% |
7542 |
28.2 |
1240.9 |
4209 |
6.1 |
2.38 |
1048.9 |
|||
|
60% |
8302 |
32.1 |
1415.4 |
4397 |
5.9 |
2.62 |
1206.3 |
|||
|
63% |
9113 |
36.5 |
1606.7 |
4583 |
5.7 |
2.88 |
1382.1 |
|||
|
66% |
9980 |
41.3 |
1818.7 |
4768 |
5.5 |
3.15 |
1572.7 |
|||
|
69% |
10905 |
46.6 |
2054.6 |
4954 |
5.3 |
3.44 |
1784.5 |
|||
|
72% |
11889 |
52.6 |
2318.2 |
5141 |
5.1 |
3.75 |
2018.7 |
|||
|
75% |
12924 |
59.3 |
2613.5 |
5332 |
4.9 |
4.08 |
2278.0 |
|||
|
78% |
14000 |
66.8 |
2943.2 |
5526 |
4.8 |
4.44 |
2569.2 |
|||
|
81% |
15097 |
75.0 |
3305.6 |
5722 |
4.6 |
4.82 |
2888.0 |
|||
|
84% |
16188 |
83.8 |
3693.0 |
5916 |
4.4 |
5.22 |
3233.7 |
|||
|
87% |
17235 |
92.8 |
4090.2 |
6099 |
4.2 |
5.62 |
3589.1 |
|||
|
90% |
18189 |
101.4 |
4470.6 |
6260 |
4.1 |
5.99 |
3926.4 |
|||
|
100% |
19841 |
116.9 |
5153.0 |
6507 |
3.9 |
6.65 |
4531.1 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
25x10 |
35% |
3595 |
9.8 |
468.7 |
2959 |
7.7 |
1.14 |
353.2 |
87°C |
|
37% |
3992 |
11.1 |
533.1 |
3106 |
7.5 |
1.26 |
409.8 |
|||
|
39% |
4403 |
12.5 |
602.3 |
3253 |
7.3 |
1.39 |
473.5 |
|||
|
42% |
5046 |
14.9 |
716.2 |
3470 |
7.0 |
1.58 |
574.1 |
|||
|
45% |
5725 |
17.6 |
845.1 |
3685 |
6.8 |
1.79 |
690.7 |
|||
|
48% |
6443 |
20.6 |
991.2 |
3897 |
6.5 |
2.02 |
824.3 |
|||
|
51% |
7205 |
24.1 |
1157.5 |
4108 |
6.2 |
2.26 |
972.2 |
|||
|
54% |
8015 |
28.0 |
1346.4 |
4318 |
6.0 |
2.52 |
1139.4 |
|||
|
57% |
8878 |
32.5 |
1559.9 |
4527 |
5.7 |
2.80 |
1327.3 |
|||
|
60% |
9796 |
37.4 |
1798.3 |
4736 |
5.4 |
3.11 |
1542.3 |
|||
|
63% |
10770 |
42.9 |
2061.7 |
4943 |
5.2 |
3.43 |
1775.3 |
|||
|
66% |
11799 |
48.9 |
2349.2 |
5150 |
5.0 |
3.77 |
2033.0 |
|||
|
69% |
12878 |
55.3 |
2659.7 |
5354 |
4.8 |
4.13 |
2315.4 |
|||
|
72% |
13997 |
62.3 |
2992.8 |
5556 |
4.7 |
4.50 |
2618.0 |
|||
|
75% |
15142 |
69.7 |
3352.4 |
5755 |
4.5 |
4.88 |
2940.8 |
|||
|
78% |
16295 |
77.9 |
3746.1 |
5952 |
4.4 |
5.27 |
3284.5 |
|||
|
81% |
17430 |
87.1 |
4185.5 |
6147 |
4.2 |
5.70 |
3668.9 |
|||
|
84% |
18515 |
97.4 |
4680.1 |
6341 |
4.0 |
6.15 |
4083.5 |
|||
|
87% |
19510 |
108.8 |
5228.1 |
6532 |
3.7 |
6.64 |
4541.6 |
|||
|
90% |
20367 |
120.6 |
5798.7 |
6710 |
3.5 |
7.14 |
5016.7 |
|||
|
100% |
21516 |
140.5 |
6755.8 |
6980 |
3.2 |
7.97 |
5825.2 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V (12S LiPo) |
26x12 |
35% |
2878 |
7.7 |
310.1 |
2440 |
9.3 |
0.91 |
232.5 |
/ |
|
37% |
3200 |
8.8 |
353.3 |
2568 |
9.1 |
1.01 |
271.6 |
|||
|
39% |
3561 |
10.1 |
406.2 |
2707 |
8.8 |
1.12 |
317.5 |
|||
|
42% |
4148 |
12.5 |
500.3 |
2921 |
8.3 |
1.31 |
400.7 |
|||
|
45% |
4766 |
15.2 |
608.1 |
3132 |
7.8 |
1.50 |
491.9 |
|||
|
48% |
5394 |
18.1 |
724.3 |
3332 |
7.4 |
1.71 |
596.6 |
|||
|
51% |
6026 |
21.1 |
846.9 |
3520 |
7.1 |
1.91 |
704.0 |
|||
|
54% |
6661 |
24.3 |
973.9 |
3696 |
6.8 |
2.11 |
816.6 |
|||
|
57% |
7305 |
27.6 |
1106.1 |
3863 |
6.6 |
2.32 |
938.4 |
|||
|
60% |
7968 |
31.1 |
1246.3 |
4025 |
6.4 |
2.53 |
1066.3 |
|||
|
63% |
8663 |
34.9 |
1397.3 |
4184 |
6.2 |
2.74 |
1200.4 |
|||
|
66% |
9403 |
39.0 |
1563.5 |
4346 |
6.0 |
2.98 |
1356.1 |
|||
|
69% |
10198 |
43.7 |
1749.8 |
4511 |
5.8 |
3.23 |
1525.7 |
|||
|
72% |
11057 |
49.0 |
1961.3 |
4682 |
5.6 |
3.50 |
1715.9 |
|||
|
75% |
11981 |
55.0 |
2202.9 |
4861 |
5.4 |
3.80 |
1934.2 |
|||
|
78% |
12963 |
61.9 |
2478.1 |
5048 |
5.2 |
4.12 |
2177.8 |
|||
|
81% |
13988 |
69.6 |
2785.5 |
5240 |
5.0 |
4.46 |
2447.2 |
|||
|
84% |
15029 |
77.9 |
3117.9 |
5431 |
4.8 |
4.82 |
2741.1 |
|||
|
87% |
16045 |
86.3 |
3456.7 |
5609 |
4.6 |
5.17 |
3036.5 |
|||
|
90% |
16980 |
94.2 |
3773.5 |
5760 |
4.5 |
5.50 |
3317.3 |
|||
|
100% |
18457 |
106.3 |
4256.1 |
5956 |
4.3 |
6.02 |
3754.5 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo)) |
26x12 |
35% |
3449 |
9.1 |
401.5 |
2673 |
8.6 |
1.09 |
305.1 |
/ |
|
37% |
3846 |
10.4 |
459.2 |
2813 |
8.4 |
1.22 |
359.4 |
|||
|
39% |
4277 |
12.0 |
527.1 |
2960 |
8.1 |
1.35 |
418.4 |
|||
|
42% |
4965 |
14.6 |
644.7 |
3182 |
7.7 |
1.57 |
523.1 |
|||
|
45% |
5682 |
17.7 |
778.3 |
3400 |
7.3 |
1.80 |
640.8 |
|||
|
48% |
6414 |
21.0 |
923.3 |
3609 |
6.9 |
2.03 |
767.1 |
|||
|
51% |
7156 |
24.5 |
1078.0 |
3808 |
6.6 |
2.27 |
905.1 |
|||
|
54% |
7909 |
28.2 |
1241.7 |
3998 |
6.4 |
2.51 |
1050.8 |
|||
|
57% |
8679 |
32.1 |
1415.4 |
4180 |
6.1 |
2.75 |
1203.7 |
|||
|
60% |
9478 |
36.3 |
1601.9 |
4359 |
5.9 |
3.01 |
1373.9 |
|||
|
63% |
10315 |
40.9 |
1804.6 |
4537 |
5.7 |
3.28 |
1558.3 |
|||
|
66% |
11203 |
46.0 |
2027.7 |
4716 |
5.5 |
3.57 |
1762.9 |
|||
|
69% |
12151 |
51.6 |
2276.3 |
4898 |
5.3 |
3.87 |
1984.8 |
|||
|
72% |
13165 |
58.0 |
2555.8 |
5084 |
5.2 |
4.21 |
2241.2 |
|||
|
75% |
14244 |
65.1 |
2870.9 |
5275 |
5.0 |
4.56 |
2518.7 |
|||
|
78% |
15380 |
73.2 |
3224.9 |
5469 |
4.8 |
4.95 |
2834.7 |
|||
|
81% |
16557 |
82.1 |
3616.8 |
5665 |
4.6 |
5.36 |
3179.5 |
|||
|
84% |
17748 |
91.6 |
4039.5 |
5855 |
4.4 |
5.78 |
3543.7 |
|||
|
87% |
18912 |
101.6 |
4477.6 |
6033 |
4.2 |
6.20 |
3916.7 |
|||
|
90% |
19993 |
111.2 |
4902.6 |
6189 |
4.1 |
6.61 |
4283.7 |
|||
|
100% |
21953 |
129.2 |
5696.0 |
6433 |
3.9 |
7.35 |
4951.1 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
26x12 |
35% |
4073 |
10.3 |
493.7 |
2895 |
8.3 |
1.28 |
388.0 |
100℃ |
|
37% |
4531 |
11.7 |
563.9 |
3044 |
8.0 |
1.42 |
452.6 |
|||
|
39% |
5020 |
13.5 |
647.5 |
3198 |
7.8 |
1.57 |
525.7 |
|||
|
42% |
5794 |
16.5 |
793.6 |
3431 |
7.3 |
1.81 |
650.3 |
|||
|
45% |
6602 |
20.0 |
960.9 |
3659 |
6.9 |
2.08 |
796.9 |
|||
|
48% |
7434 |
23.8 |
1144.5 |
3880 |
6.5 |
2.35 |
954.8 |
|||
|
51% |
8288 |
27.9 |
1342.1 |
4093 |
6.2 |
2.63 |
1127.2 |
|||
|
54% |
9167 |
32.3 |
1552.7 |
4298 |
5.9 |
2.91 |
1309.7 |
|||
|
57% |
10077 |
37.0 |
1776.7 |
4498 |
5.7 |
3.21 |
1511.9 |
|||
|
60% |
11028 |
42.0 |
2017.0 |
4695 |
5.5 |
3.51 |
1725.6 |
|||
|
63% |
12030 |
47.4 |
2277.1 |
4890 |
5.3 |
3.83 |
1961.1 |
|||
|
66% |
13090 |
53.3 |
2562.6 |
5085 |
5.1 |
4.17 |
2220.4 |
|||
|
69% |
14213 |
59.9 |
2880.4 |
5282 |
4.9 |
4.54 |
2511.0 |
|||
|
72% |
15402 |
67.4 |
3238.0 |
5480 |
4.8 |
4.93 |
2828.9 |
|||
|
75% |
16650 |
75.8 |
3644.7 |
5681 |
4.6 |
5.35 |
3182.5 |
|||
|
78% |
17944 |
85.5 |
4108.1 |
5883 |
4.4 |
5.82 |
3585.2 |
|||
|
81% |
19262 |
96.3 |
4630.6 |
6084 |
4.2 |
6.32 |
4026.3 |
|||
|
84% |
20571 |
108.3 |
5206.0 |
6280 |
4.0 |
6.85 |
4504.5 |
|||
|
87% |
21822 |
120.9 |
5812.1 |
6464 |
3.8 |
7.38 |
4995.2 |
|||
|
90% |
22957 |
133.3 |
6408.7 |
6626 |
3.6 |
7.89 |
5474.3 |
|||
|
100% |
24794 |
155.2 |
7459.0 |
6875 |
3.3 |
8.75 |
6299.1 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V(12S LiPo) |
23x10 |
35% |
2232 |
7.3 |
292.8 |
2868 |
7.6 |
0.64 |
192.2 |
/ |
|
37% |
2473 |
8.2 |
328.8 |
3014 |
7.5 |
0.71 |
224.1 |
|||
|
39% |
2735 |
9.3 |
370.5 |
3166 |
7.4 |
0.78 |
258.6 |
|||
|
42% |
3152 |
11.0 |
442.2 |
3397 |
7.1 |
0.90 |
320.1 |
|||
|
45% |
3590 |
13.1 |
522.7 |
3623 |
6.9 |
1.03 |
390.8 |
|||
|
48% |
4040 |
15.2 |
610.0 |
3841 |
6.6 |
1.16 |
466.6 |
|||
|
51% |
4502 |
17.6 |
703.3 |
4050 |
6.4 |
1.30 |
551.3 |
|||
|
54% |
4978 |
20.0 |
802.2 |
4252 |
6.2 |
1.44 |
641.1 |
|||
|
57% |
5473 |
22.7 |
907.9 |
4449 |
6.0 |
1.58 |
736.1 |
|||
|
60% |
5994 |
25.5 |
1022.5 |
4645 |
5.9 |
1.73 |
841.5 |
|||
|
63% |
6548 |
28.6 |
1147.0 |
4841 |
5.7 |
1.88 |
953.0 |
|||
|
66% |
7143 |
32.1 |
1285.2 |
5040 |
5.6 |
2.05 |
1081.9 |
|||
|
69% |
7785 |
36.0 |
1439.8 |
5245 |
5.4 |
2.23 |
1224.7 |
|||
|
72% |
8475 |
40.3 |
1614.8 |
5457 |
5.2 |
2.43 |
1388.5 |
|||
|
75% |
9212 |
45.3 |
1812.7 |
5676 |
5.1 |
2.64 |
1569.1 |
|||
|
78% |
9991 |
50.8 |
2036.1 |
5901 |
4.9 |
2.87 |
1773.4 |
|||
|
81% |
10800 |
57.0 |
2283.7 |
6129 |
4.7 |
3.11 |
1995.9 |
|||
|
84% |
11618 |
63.7 |
2549.2 |
6353 |
4.6 |
3.37 |
2241.8 |
|||
|
87% |
12419 |
70.4 |
2819.9 |
6563 |
4.4 |
3.62 |
2487.8 |
|||
|
90% |
13164 |
76.8 |
3075.0 |
6746 |
4.3 |
3.85 |
2719.6 |
|||
|
100% |
14556 |
88.0 |
3524.4 |
7031 |
4.1 |
4.23 |
3114.3 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo) |
23x10 |
35% |
2595 |
8.2 |
360.9 |
3085 |
7.2 |
0.74 |
239.0 |
/ |
|
37% |
2872 |
9.2 |
406.3 |
3246 |
7.1 |
0.82 |
278.7 |
|||
|
39% |
3184 |
10.4 |
460.1 |
3418 |
6.9 |
0.91 |
325.7 |
|||
|
42% |
3699 |
12.6 |
554.4 |
3681 |
6.7 |
1.06 |
408.6 |
|||
|
45% |
4246 |
15.0 |
661.1 |
3937 |
6.4 |
1.22 |
502.9 |
|||
|
48% |
4810 |
17.6 |
776.5 |
4179 |
6.2 |
1.37 |
599.5 |
|||
|
51% |
5382 |
20.4 |
899.5 |
4407 |
6.0 |
1.54 |
710.7 |
|||
|
54% |
5961 |
23.3 |
1028.6 |
4623 |
5.8 |
1.70 |
822.9 |
|||
|
57% |
6552 |
26.4 |
1165.2 |
4832 |
5.6 |
1.87 |
946.2 |
|||
|
60% |
7162 |
29.8 |
1311.5 |
5038 |
5.5 |
2.04 |
1076.2 |
|||
|
63% |
7801 |
33.4 |
1471.1 |
5245 |
5.3 |
2.23 |
1224.7 |
|||
|
66% |
8480 |
37.4 |
1647.3 |
5458 |
5.1 |
2.42 |
1383.1 |
|||
|
69% |
9207 |
41.9 |
1846.1 |
5680 |
5.0 |
2.64 |
1570.2 |
|||
|
72% |
9989 |
47.0 |
2071.3 |
5913 |
4.8 |
2.88 |
1783.2 |
|||
|
75% |
10829 |
52.8 |
2327.8 |
6157 |
4.7 |
3.13 |
2017.9 |
|||
|
78% |
11723 |
59.4 |
2618.2 |
6407 |
4.5 |
3.41 |
2287.7 |
|||
|
81% |
12661 |
66.7 |
2941.2 |
6659 |
4.3 |
3.70 |
2579.9 |
|||
|
84% |
13624 |
74.7 |
3290.3 |
6901 |
4.1 |
4.01 |
2897.7 |
|||
|
87% |
14582 |
82.8 |
3649.4 |
7122 |
4.0 |
4.31 |
3214.2 |
|||
|
90% |
15492 |
90.6 |
3993.2 |
7312 |
3.9 |
4.60 |
3522.0 |
|||
|
100% |
17360 |
105.6 |
4653.8 |
7630 |
3.7 |
5.15 |
4114.6 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
23x10" |
35% |
3140 |
9.3 |
446.0 |
3365 |
7.0 |
0.89 |
313.6 |
70℃ |
|
37% |
3476 |
10.4 |
499.8 |
3532 |
7.0 |
0.98 |
362.4 |
|||
|
39% |
3831 |
11.7 |
564.2 |
3705 |
6.8 |
1.08 |
419.0 |
|||
|
42% |
4386 |
14.1 |
677.2 |
3968 |
6.5 |
1.24 |
515.2 |
|||
|
45% |
4961 |
16.8 |
806.4 |
4227 |
6.2 |
1.41 |
624.1 |
|||
|
48% |
5552 |
19.7 |
948.7 |
4480 |
5.9 |
1.59 |
745.9 |
|||
|
51% |
6161 |
22.9 |
1102.0 |
4727 |
5.6 |
1.77 |
876.1 |
|||
|
54% |
6794 |
26.4 |
1266.4 |
4967 |
5.4 |
1.96 |
1019.4 |
|||
|
57% |
7460 |
30.0 |
1442.3 |
5203 |
5.2 |
2.16 |
1176.8 |
|||
|
60% |
8170 |
34.0 |
1633.1 |
5438 |
5.0 |
2.38 |
1355.2 |
|||
|
63% |
8935 |
38.3 |
1840.7 |
5672 |
4.9 |
2.60 |
1544.2 |
|||
|
66% |
9765 |
43.1 |
2069.5 |
5907 |
4.7 |
2.84 |
1756.6 |
|||
|
69% |
10665 |
48.4 |
2325.1 |
6144 |
4.6 |
3.10 |
1994.4 |
|||
|
72% |
11639 |
54.4 |
2614.0 |
6385 |
4.5 |
3.39 |
2266.5 |
|||
|
75% |
12682 |
61.3 |
2944.2 |
6632 |
4.3 |
3.69 |
2562.5 |
|||
|
78% |
13785 |
69.1 |
3322.9 |
6887 |
4.1 |
4.03 |
2906.2 |
|||
|
81% |
14929 |
78.1 |
3753.5 |
7149 |
4.0 |
4.39 |
3286.3 |
|||
|
84% |
16085 |
88.0 |
4229.8 |
7412 |
3.8 |
4.77 |
3702.1 |
|||
|
87% |
17212 |
98.4 |
4729.1 |
7664 |
3.6 |
5.16 |
4141.0 |
|||
|
90% |
18257 |
108.5 |
5212.6 |
7884 |
3.5 |
5.53 |
4565.3 |
|||
|
100% |
20173 |
126.6 |
6082.5 |
8202 |
3.3 |
6.20 |
5324.9 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V(12S LiPo) |
24x10" |
35% |
2427 |
7.7 |
307.2 |
2843 |
7.9 |
0.69 |
205.4 |
/ |
|
37% |
2696 |
8.6 |
346.0 |
2988 |
7.8 |
0.77 |
240.9 |
|||
|
39% |
2987 |
9.8 |
391.3 |
3139 |
7.6 |
0.85 |
279.4 |
|||
|
42% |
3451 |
11.8 |
470.6 |
3370 |
7.3 |
0.98 |
345.8 |
|||
|
45% |
3934 |
14.0 |
559.5 |
3597 |
7.0 |
1.12 |
421.8 |
|||
|
48% |
4429 |
16.4 |
656.0 |
3816 |
6.7 |
1.27 |
507.5 |
|||
|
51% |
4935 |
19.0 |
758.9 |
4026 |
6.5 |
1.42 |
598.6 |
|||
|
54% |
5454 |
21.7 |
867.5 |
4227 |
6.3 |
1.57 |
694.9 |
|||
|
57% |
5993 |
24.5 |
982.8 |
4423 |
6.1 |
1.73 |
801.2 |
|||
|
60% |
6561 |
27.6 |
1107.0 |
4616 |
5.9 |
1.89 |
913.5 |
|||
|
63% |
7167 |
31.0 |
1242.8 |
4809 |
5.8 |
2.06 |
1037.3 |
|||
|
66% |
7820 |
34.8 |
1392.9 |
5005 |
5.6 |
2.25 |
1179.2 |
|||
|
69% |
8527 |
39.0 |
1562.4 |
5205 |
5.5 |
2.45 |
1335.3 |
|||
|
72% |
9290 |
43.8 |
1755.0 |
5411 |
5.3 |
2.67 |
1512.8 |
|||
|
75% |
10109 |
49.3 |
1975.3 |
5625 |
5.1 |
2.91 |
1714.0 |
|||
|
78% |
10976 |
55.6 |
2226.8 |
5848 |
4.9 |
3.16 |
1935.0 |
|||
|
81% |
11876 |
62.6 |
2508.7 |
6076 |
4.7 |
3.44 |
2188.6 |
|||
|
84% |
12785 |
70.3 |
2813.5 |
6303 |
4.5 |
3.73 |
2461.8 |
|||
|
87% |
13670 |
78.0 |
3123.5 |
6516 |
4.4 |
4.02 |
2742.9 |
|||
|
90% |
14484 |
85.2 |
3412.7 |
6701 |
4.2 |
4.28 |
3003.2 |
|||
|
100% |
15852 |
96.6 |
3869.2 |
6954 |
4.1 |
4.70 |
3422.4 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo) |
24x10" |
35% |
2876 |
8.8 |
387.4 |
3098 |
7.4 |
0.83 |
269.3 |
/ |
|
37% |
3186 |
9.9 |
436.3 |
3255 |
7.3 |
0.91 |
310.2 |
|||
|
39% |
3523 |
11.2 |
493.1 |
3418 |
7.1 |
1.01 |
361.5 |
|||
|
42% |
4065 |
13.4 |
591.9 |
3665 |
6.9 |
1.16 |
445.2 |
|||
|
45% |
4636 |
16.0 |
703.8 |
3906 |
6.6 |
1.33 |
544.0 |
|||
|
48% |
5228 |
18.8 |
826.8 |
4140 |
6.3 |
1.50 |
650.3 |
|||
|
51% |
5839 |
21.8 |
959.0 |
4364 |
6.1 |
1.68 |
767.7 |
|||
|
54% |
6472 |
25.0 |
1100.9 |
4581 |
5.9 |
1.86 |
892.2 |
|||
|
57% |
7131 |
28.4 |
1252.9 |
4794 |
5.7 |
2.05 |
1029.1 |
|||
|
60% |
7824 |
32.2 |
1417.7 |
5004 |
5.5 |
2.25 |
1179.0 |
|||
|
63% |
8559 |
36.3 |
1598.0 |
5216 |
5.4 |
2.46 |
1343.6 |
|||
|
66% |
9344 |
40.8 |
1797.6 |
5431 |
5.2 |
2.69 |
1529.8 |
|||
|
69% |
10184 |
45.9 |
2021.5 |
5651 |
5.0 |
2.94 |
1739.7 |
|||
|
72% |
11080 |
51.6 |
2274.5 |
5878 |
4.9 |
3.21 |
1975.7 |
|||
|
75% |
12031 |
58.1 |
2561.8 |
6111 |
4.7 |
3.49 |
2233.2 |
|||
|
78% |
13028 |
65.5 |
2887.5 |
6348 |
4.5 |
3.80 |
2525.9 |
|||
|
81% |
14054 |
73.8 |
3251.5 |
6585 |
4.3 |
4.14 |
2854.6 |
|||
|
84% |
15086 |
82.8 |
3648.6 |
6817 |
4.1 |
4.48 |
3197.9 |
|||
|
87% |
16088 |
92.2 |
4061.9 |
7033 |
4.0 |
4.83 |
3557.0 |
|||
|
90% |
17016 |
101.3 |
4465.2 |
7224 |
3.8 |
5.18 |
3918.4 |
|||
|
100% |
18711 |
118.6 |
5228.0 |
7542 |
3.6 |
5.84 |
4612.1 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
24x10" |
35% |
3347 |
9.7 |
467.6 |
3334 |
7.2 |
0.95 |
331.7 |
75℃ |
|
37% |
3693 |
10.9 |
522.4 |
3499 |
7.1 |
1.05 |
384.7 |
|||
|
39% |
4073 |
12.3 |
589.7 |
3672 |
6.9 |
1.16 |
446.0 |
|||
|
42% |
4689 |
14.8 |
712.7 |
3937 |
6.6 |
1.34 |
552.4 |
|||
|
45% |
5345 |
17.9 |
857.9 |
4200 |
6.2 |
1.54 |
677.3 |
|||
|
48% |
6032 |
21.2 |
1019.8 |
4455 |
5.9 |
1.75 |
816.4 |
|||
|
51% |
6747 |
24.9 |
1194.8 |
4701 |
5.6 |
1.96 |
964.8 |
|||
|
54% |
7490 |
28.7 |
1381.2 |
4939 |
5.4 |
2.19 |
1132.6 |
|||
|
57% |
8266 |
32.9 |
1578.8 |
5171 |
5.2 |
2.42 |
1310.3 |
|||
|
60% |
9081 |
37.2 |
1789.3 |
5399 |
5.1 |
2.66 |
1503.8 |
|||
|
63% |
9942 |
42.0 |
2016.1 |
5628 |
4.9 |
2.91 |
1714.9 |
|||
|
66% |
10856 |
47.1 |
2265.1 |
5858 |
4.8 |
3.17 |
1944.5 |
|||
|
69% |
11826 |
52.9 |
2543.8 |
6093 |
4.6 |
3.45 |
2201.1 |
|||
|
72% |
12854 |
59.6 |
2862.5 |
6334 |
4.5 |
3.76 |
2493.8 |
|||
|
75% |
13935 |
67.3 |
3233.0 |
6582 |
4.3 |
4.11 |
2832.7 |
|||
|
78% |
15058 |
76.3 |
3665.1 |
6835 |
4.1 |
4.49 |
3213.5 |
|||
|
81% |
16206 |
86.6 |
4163.0 |
7089 |
3.9 |
4.91 |
3644.7 |
|||
|
84% |
17351 |
98.2 |
4718.5 |
7337 |
3.7 |
5.36 |
4117.9 |
|||
|
87% |
18456 |
110.4 |
5305.8 |
7569 |
3.5 |
5.83 |
4620.7 |
|||
|
90% |
19472 |
122.3 |
5878.7 |
7772 |
3.3 |
6.28 |
5110.8 |
|||
|
100% |
21297 |
144.2 |
6931.7 |
8096 |
3.1 |
7.11 |
6027.5 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
Universally versatile for both fixed-wing and
vertical take-off and landing (VTOL) drones.
Meant to seamlessly replace 70CC combustion engines.
the motor delivers up to a
maximum thrust of
24.7kg at 48V
rapid transitions
in diverse
flight conditions
rectangular exhaust outlet
with a centrifugal fan design,
reducing airflow resistance
and turbulence, enhancing
heat exhaust efficiency
significantly reduced compared
tomotors of other brands with
similar specifications, ensuring
stable and long-term operation
even in high-load flight conditions.
Superior Reliability
The bottom of the motor is designed with upper and lower steel mesh structure,
effectively preventing particles ≥1mm in diameter,
allowing the motor to adapt to harsh flight environments, such as dust and rain.
Convenient Application
- The stator base is compatible with an IPC
- (Intelligent Propeller Control) component,
- allowing for flexible selection.
- Paired with an IPC ESC,
- users can customize the propeller stopping position
- to minimize the risk of colliding with the ground.
- The rotor bracket adopts a boss clearance design that effectively
- prevents interference with the edge structure of propeller roots,
- accommodating the installation for both non-folding and folding propellers.
- Supports multiple mounting configurations for quick adaptation,
- to meet the demands of diverse applications.

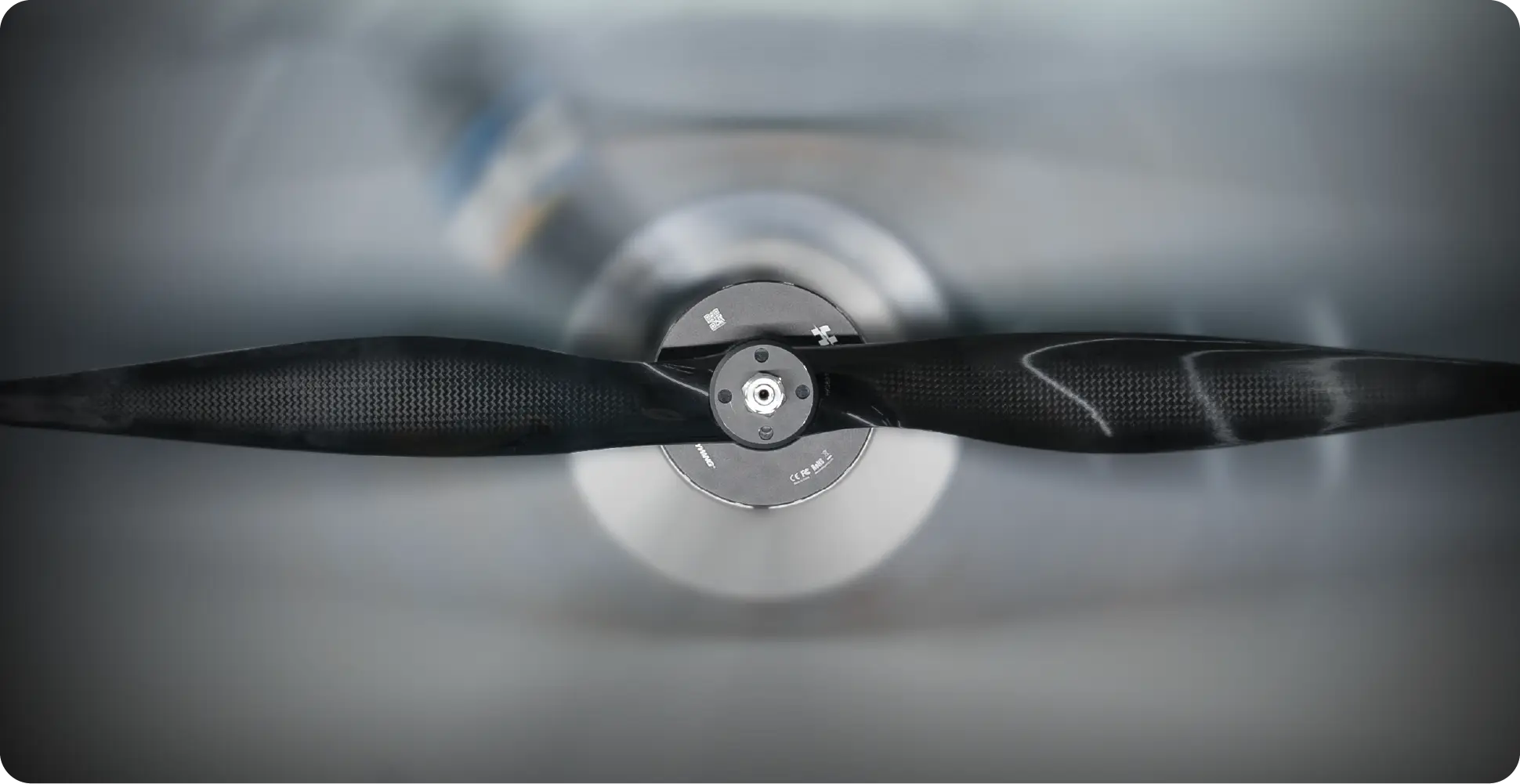

Design for a Safer Flight
- Detachable Propeller
Mounting Base - The anti-loosening propeller adapter structure
features a double-nut and dual-rotation design
to achieve skid resistance and interlocking,
preventing the propeller from detachment due
to nut loosen, thereby enhancing flight safety. - Patented design certification [Patent No.: 202311210278.7]
- Knurled Design
- The innovative knurled
shaft-to-bracket fitting with
side set screw locking ensures
dual redundant security
and prevents looseness.
- Anti-Loosening
Design - The rotor shaft end is
fixed by copper washers,
circlips, and screws to
enhance motor reliability.
- Silicon Steel and
Enameled Wires - It is designed with
industry-leading
0.2mm low-loss silicon steel
cores and high-grade 240°C
temperature-resistant enameled wires.
- Triple-Bearing
Architecture - The triple-bearing architecture
optimizes dynamic balance,
enhancing impact resistance
and durability of the motor
to ensure safe flights.
- Silicone Rubber
Cable Sleeves - The motor’s three-phase wire outlet
comes with a custom silicone rubber
cable sleeve, combining aesthetic
appeal with superior insulation.
- Magnet Segment
- The high-grade, strong
magnetic arc-shaped magnets
enhance the magnetic energy
density, delivering powerful
torque for the motor.
This meets large-thrust needs during climbing,
while maintaining high efficiency during cruise,
improving cruise flight efficiency by 2-4%
compared to motors of similar grades.
Optimized Design
The newly designed magnetic circuit highly
matches the driving parameter requirements,
ensuring a more rapid propulsion output response.
and Extended Lifespan
The motor undergoes stringent industrial tests,
including drive compatibility, water proof test, salt spray test,
mechanical stress test, temperature/humidity combined vibration test,
and 1000 hours of laboratory fatigue life test,
ensuring sustained stable performance in challenging environments.
Operation Test
Operation Test
- 160KV
- 190KV
-
- Model
- Protection level
- Motor Size
- Slot& Pole
- Stator Size
- Dynamic balance
- Stator process
- Bearing
- Enamelled wire
- Motor axle diameter
- Magnet
- Props mounting dimensions
- Isolation test
- Motor mounting dimensions
- Rated power input
- Rated power output
-
- C8025-160KV
- IPX5
- Φ89.1*H64.5mm
- 24N28P
- 80x25 mm
- ≤20mg
- High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
- Water proof bearing
- 240℃
- Φ10mm
- 180℃
- 4×M3@D20mm & 8×M5@D30mm
- 500V AC high voltage resistance test
- 4×M5@D45mm
- 1410W
- 1190W
- C8025-190KV
- IPX5
- Φ89.1*H64.5mm
- 24N28P
- 80x25 mm
- ≤20mg
- High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
- Water proof bearing
- 240℃
- Φ10mm
- 180℃
- 4×M3@D20mm & 8×M5@D30mm
- 500V AC high voltage resistance test
- 4×M5@D45mm
- 1650W
- 1370W
-
- KV
- Battery(LiPo)
- No-load current
- Maximum current (non-hermetic ambient temperature ≤ 25℃）
- Rated thrust
- Max thrust
- Resistance
- Wire Size
- Three-phase wires length
- Magnetic encoder cable length
- Weight（with wires）
-
- 160KV
- LiPo-12S (48V)
- 5A
- 155A
- 8.5kg（48V@26x12）
- 24.8kg（48V@26x12）
- 10.5mΩ
- enameled wire direct lead-out
- 100mm
- 130mm
- 966g
- 190KV
- LiPo-12S (48V)
- 6A
- 144A
- 8.5kg（48V@24x10）
- 21.3kg（48V@24x10）
- 8.2mΩ
- enameled wire direct lead-out
- 100mm
- 130mm
- 969g
-
- Motor
- Propeller
- ESC
- Battery
- Takeoff weight of Single motor
-
- C8025-160KV
- 24x10/25x10/26x12
- XRotor Pro H200A 14S BLDC IPC
- 12S LiPo
- 40~45kg
- C8025-190KV
- 23x10/24x10
- XRotor Pro H130A/200A 14S BLDC IPC
- 12S LiPo
- 40~45kg
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V(12S LiPo) |
25x10 |
35% |
2483 |
7.1 |
282.8 |
2477 |
8.8 |
0.78 |
202.3 |
/ |
|
37% |
2766 |
8.0 |
320.9 |
2605 |
8.6 |
0.87 |
237.3 |
|||
|
39% |
3081 |
9.2 |
366.5 |
2742 |
8.4 |
0.97 |
278.5 |
|||
|
42% |
3591 |
11.2 |
446.7 |
2952 |
8.0 |
1.13 |
349.3 |
|||
|
45% |
4129 |
13.4 |
538.4 |
3158 |
7.7 |
1.29 |
426.6 |
|||
|
48% |
4681 |
15.9 |
638.2 |
3355 |
7.3 |
1.47 |
516.4 |
|||
|
51% |
5241 |
18.6 |
744.3 |
3542 |
7.0 |
1.65 |
612.0 |
|||
|
54% |
5811 |
21.4 |
856.1 |
3719 |
6.8 |
1.83 |
712.6 |
|||
|
57% |
6394 |
24.3 |
974.7 |
3890 |
6.6 |
2.01 |
818.7 |
|||
|
60% |
6998 |
27.5 |
1101.2 |
4056 |
6.4 |
2.20 |
934.4 |
|||
|
63% |
7634 |
30.9 |
1239.1 |
4221 |
6.2 |
2.40 |
1060.8 |
|||
|
66% |
8311 |
34.7 |
1391.3 |
4389 |
6.0 |
2.61 |
1199.5 |
|||
|
69% |
9038 |
39.0 |
1561.5 |
4560 |
5.8 |
2.84 |
1356.1 |
|||
|
72% |
9820 |
43.8 |
1754.2 |
4737 |
5.6 |
3.09 |
1532.7 |
|||
|
75% |
10658 |
49.3 |
1973.0 |
4921 |
5.4 |
3.36 |
1731.4 |
|||
|
78% |
11549 |
55.4 |
2220.1 |
5110 |
5.2 |
3.66 |
1958.4 |
|||
|
81% |
12482 |
62.3 |
2493.9 |
5301 |
5.0 |
3.97 |
2203.7 |
|||
|
84% |
13435 |
69.7 |
2790.3 |
5489 |
4.8 |
4.30 |
2471.5 |
|||
|
87% |
14379 |
77.3 |
3093.9 |
5663 |
4.6 |
4.63 |
2745.5 |
|||
|
90% |
15272 |
84.5 |
3382.6 |
5812 |
4.5 |
4.93 |
3000.3 |
|||
|
100% |
17064 |
97.9 |
3920.5 |
6036 |
4.4 |
5.49 |
3469.9 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo) |
25x10 |
35% |
3019 |
8.3 |
364.5 |
2714 |
8.3 |
0.95 |
270.0 |
/ |
|
37% |
3354 |
9.4 |
413.0 |
2851 |
8.1 |
1.05 |
313.5 |
|||
|
39% |
3710 |
10.6 |
469.0 |
2991 |
7.9 |
1.16 |
363.3 |
|||
|
42% |
4277 |
12.9 |
566.4 |
3204 |
7.6 |
1.34 |
449.6 |
|||
|
45% |
4874 |
15.4 |
677.1 |
3415 |
7.2 |
1.53 |
547.1 |
|||
|
48% |
5496 |
18.2 |
800.1 |
3621 |
6.9 |
1.73 |
656.0 |
|||
|
51% |
6146 |
21.2 |
934.9 |
3822 |
6.6 |
1.94 |
776.4 |
|||
|
54% |
6826 |
24.5 |
1081.3 |
4018 |
6.3 |
2.15 |
904.6 |
|||
|
57% |
7542 |
28.2 |
1240.9 |
4209 |
6.1 |
2.38 |
1048.9 |
|||
|
60% |
8302 |
32.1 |
1415.4 |
4397 |
5.9 |
2.62 |
1206.3 |
|||
|
63% |
9113 |
36.5 |
1606.7 |
4583 |
5.7 |
2.88 |
1382.1 |
|||
|
66% |
9980 |
41.3 |
1818.7 |
4768 |
5.5 |
3.15 |
1572.7 |
|||
|
69% |
10905 |
46.6 |
2054.6 |
4954 |
5.3 |
3.44 |
1784.5 |
|||
|
72% |
11889 |
52.6 |
2318.2 |
5141 |
5.1 |
3.75 |
2018.7 |
|||
|
75% |
12924 |
59.3 |
2613.5 |
5332 |
4.9 |
4.08 |
2278.0 |
|||
|
78% |
14000 |
66.8 |
2943.2 |
5526 |
4.8 |
4.44 |
2569.2 |
|||
|
81% |
15097 |
75.0 |
3305.6 |
5722 |
4.6 |
4.82 |
2888.0 |
|||
|
84% |
16188 |
83.8 |
3693.0 |
5916 |
4.4 |
5.22 |
3233.7 |
|||
|
87% |
17235 |
92.8 |
4090.2 |
6099 |
4.2 |
5.62 |
3589.1 |
|||
|
90% |
18189 |
101.4 |
4470.6 |
6260 |
4.1 |
5.99 |
3926.4 |
|||
|
100% |
19841 |
116.9 |
5153.0 |
6507 |
3.9 |
6.65 |
4531.1 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
25x10 |
35% |
3595 |
9.8 |
468.7 |
2959 |
7.7 |
1.14 |
353.2 |
87°C |
|
37% |
3992 |
11.1 |
533.1 |
3106 |
7.5 |
1.26 |
409.8 |
|||
|
39% |
4403 |
12.5 |
602.3 |
3253 |
7.3 |
1.39 |
473.5 |
|||
|
42% |
5046 |
14.9 |
716.2 |
3470 |
7.0 |
1.58 |
574.1 |
|||
|
45% |
5725 |
17.6 |
845.1 |
3685 |
6.8 |
1.79 |
690.7 |
|||
|
48% |
6443 |
20.6 |
991.2 |
3897 |
6.5 |
2.02 |
824.3 |
|||
|
51% |
7205 |
24.1 |
1157.5 |
4108 |
6.2 |
2.26 |
972.2 |
|||
|
54% |
8015 |
28.0 |
1346.4 |
4318 |
6.0 |
2.52 |
1139.4 |
|||
|
57% |
8878 |
32.5 |
1559.9 |
4527 |
5.7 |
2.80 |
1327.3 |
|||
|
60% |
9796 |
37.4 |
1798.3 |
4736 |
5.4 |
3.11 |
1542.3 |
|||
|
63% |
10770 |
42.9 |
2061.7 |
4943 |
5.2 |
3.43 |
1775.3 |
|||
|
66% |
11799 |
48.9 |
2349.2 |
5150 |
5.0 |
3.77 |
2033.0 |
|||
|
69% |
12878 |
55.3 |
2659.7 |
5354 |
4.8 |
4.13 |
2315.4 |
|||
|
72% |
13997 |
62.3 |
2992.8 |
5556 |
4.7 |
4.50 |
2618.0 |
|||
|
75% |
15142 |
69.7 |
3352.4 |
5755 |
4.5 |
4.88 |
2940.8 |
|||
|
78% |
16295 |
77.9 |
3746.1 |
5952 |
4.4 |
5.27 |
3284.5 |
|||
|
81% |
17430 |
87.1 |
4185.5 |
6147 |
4.2 |
5.70 |
3668.9 |
|||
|
84% |
18515 |
97.4 |
4680.1 |
6341 |
4.0 |
6.15 |
4083.5 |
|||
|
87% |
19510 |
108.8 |
5228.1 |
6532 |
3.7 |
6.64 |
4541.6 |
|||
|
90% |
20367 |
120.6 |
5798.7 |
6710 |
3.5 |
7.14 |
5016.7 |
|||
|
100% |
21516 |
140.5 |
6755.8 |
6980 |
3.2 |
7.97 |
5825.2 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V (12S LiPo) |
26x12 |
35% |
2878 |
7.7 |
310.1 |
2440 |
9.3 |
0.91 |
232.5 |
/ |
|
37% |
3200 |
8.8 |
353.3 |
2568 |
9.1 |
1.01 |
271.6 |
|||
|
39% |
3561 |
10.1 |
406.2 |
2707 |
8.8 |
1.12 |
317.5 |
|||
|
42% |
4148 |
12.5 |
500.3 |
2921 |
8.3 |
1.31 |
400.7 |
|||
|
45% |
4766 |
15.2 |
608.1 |
3132 |
7.8 |
1.50 |
491.9 |
|||
|
48% |
5394 |
18.1 |
724.3 |
3332 |
7.4 |
1.71 |
596.6 |
|||
|
51% |
6026 |
21.1 |
846.9 |
3520 |
7.1 |
1.91 |
704.0 |
|||
|
54% |
6661 |
24.3 |
973.9 |
3696 |
6.8 |
2.11 |
816.6 |
|||
|
57% |
7305 |
27.6 |
1106.1 |
3863 |
6.6 |
2.32 |
938.4 |
|||
|
60% |
7968 |
31.1 |
1246.3 |
4025 |
6.4 |
2.53 |
1066.3 |
|||
|
63% |
8663 |
34.9 |
1397.3 |
4184 |
6.2 |
2.74 |
1200.4 |
|||
|
66% |
9403 |
39.0 |
1563.5 |
4346 |
6.0 |
2.98 |
1356.1 |
|||
|
69% |
10198 |
43.7 |
1749.8 |
4511 |
5.8 |
3.23 |
1525.7 |
|||
|
72% |
11057 |
49.0 |
1961.3 |
4682 |
5.6 |
3.50 |
1715.9 |
|||
|
75% |
11981 |
55.0 |
2202.9 |
4861 |
5.4 |
3.80 |
1934.2 |
|||
|
78% |
12963 |
61.9 |
2478.1 |
5048 |
5.2 |
4.12 |
2177.8 |
|||
|
81% |
13988 |
69.6 |
2785.5 |
5240 |
5.0 |
4.46 |
2447.2 |
|||
|
84% |
15029 |
77.9 |
3117.9 |
5431 |
4.8 |
4.82 |
2741.1 |
|||
|
87% |
16045 |
86.3 |
3456.7 |
5609 |
4.6 |
5.17 |
3036.5 |
|||
|
90% |
16980 |
94.2 |
3773.5 |
5760 |
4.5 |
5.50 |
3317.3 |
|||
|
100% |
18457 |
106.3 |
4256.1 |
5956 |
4.3 |
6.02 |
3754.5 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo)) |
26x12 |
35% |
3449 |
9.1 |
401.5 |
2673 |
8.6 |
1.09 |
305.1 |
/ |
|
37% |
3846 |
10.4 |
459.2 |
2813 |
8.4 |
1.22 |
359.4 |
|||
|
39% |
4277 |
12.0 |
527.1 |
2960 |
8.1 |
1.35 |
418.4 |
|||
|
42% |
4965 |
14.6 |
644.7 |
3182 |
7.7 |
1.57 |
523.1 |
|||
|
45% |
5682 |
17.7 |
778.3 |
3400 |
7.3 |
1.80 |
640.8 |
|||
|
48% |
6414 |
21.0 |
923.3 |
3609 |
6.9 |
2.03 |
767.1 |
|||
|
51% |
7156 |
24.5 |
1078.0 |
3808 |
6.6 |
2.27 |
905.1 |
|||
|
54% |
7909 |
28.2 |
1241.7 |
3998 |
6.4 |
2.51 |
1050.8 |
|||
|
57% |
8679 |
32.1 |
1415.4 |
4180 |
6.1 |
2.75 |
1203.7 |
|||
|
60% |
9478 |
36.3 |
1601.9 |
4359 |
5.9 |
3.01 |
1373.9 |
|||
|
63% |
10315 |
40.9 |
1804.6 |
4537 |
5.7 |
3.28 |
1558.3 |
|||
|
66% |
11203 |
46.0 |
2027.7 |
4716 |
5.5 |
3.57 |
1762.9 |
|||
|
69% |
12151 |
51.6 |
2276.3 |
4898 |
5.3 |
3.87 |
1984.8 |
|||
|
72% |
13165 |
58.0 |
2555.8 |
5084 |
5.2 |
4.21 |
2241.2 |
|||
|
75% |
14244 |
65.1 |
2870.9 |
5275 |
5.0 |
4.56 |
2518.7 |
|||
|
78% |
15380 |
73.2 |
3224.9 |
5469 |
4.8 |
4.95 |
2834.7 |
|||
|
81% |
16557 |
82.1 |
3616.8 |
5665 |
4.6 |
5.36 |
3179.5 |
|||
|
84% |
17748 |
91.6 |
4039.5 |
5855 |
4.4 |
5.78 |
3543.7 |
|||
|
87% |
18912 |
101.6 |
4477.6 |
6033 |
4.2 |
6.20 |
3916.7 |
|||
|
90% |
19993 |
111.2 |
4902.6 |
6189 |
4.1 |
6.61 |
4283.7 |
|||
|
100% |
21953 |
129.2 |
5696.0 |
6433 |
3.9 |
7.35 |
4951.1 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
26x12 |
35% |
4073 |
10.3 |
493.7 |
2895 |
8.3 |
1.28 |
388.0 |
100℃ |
|
37% |
4531 |
11.7 |
563.9 |
3044 |
8.0 |
1.42 |
452.6 |
|||
|
39% |
5020 |
13.5 |
647.5 |
3198 |
7.8 |
1.57 |
525.7 |
|||
|
42% |
5794 |
16.5 |
793.6 |
3431 |
7.3 |
1.81 |
650.3 |
|||
|
45% |
6602 |
20.0 |
960.9 |
3659 |
6.9 |
2.08 |
796.9 |
|||
|
48% |
7434 |
23.8 |
1144.5 |
3880 |
6.5 |
2.35 |
954.8 |
|||
|
51% |
8288 |
27.9 |
1342.1 |
4093 |
6.2 |
2.63 |
1127.2 |
|||
|
54% |
9167 |
32.3 |
1552.7 |
4298 |
5.9 |
2.91 |
1309.7 |
|||
|
57% |
10077 |
37.0 |
1776.7 |
4498 |
5.7 |
3.21 |
1511.9 |
|||
|
60% |
11028 |
42.0 |
2017.0 |
4695 |
5.5 |
3.51 |
1725.6 |
|||
|
63% |
12030 |
47.4 |
2277.1 |
4890 |
5.3 |
3.83 |
1961.1 |
|||
|
66% |
13090 |
53.3 |
2562.6 |
5085 |
5.1 |
4.17 |
2220.4 |
|||
|
69% |
14213 |
59.9 |
2880.4 |
5282 |
4.9 |
4.54 |
2511.0 |
|||
|
72% |
15402 |
67.4 |
3238.0 |
5480 |
4.8 |
4.93 |
2828.9 |
|||
|
75% |
16650 |
75.8 |
3644.7 |
5681 |
4.6 |
5.35 |
3182.5 |
|||
|
78% |
17944 |
85.5 |
4108.1 |
5883 |
4.4 |
5.82 |
3585.2 |
|||
|
81% |
19262 |
96.3 |
4630.6 |
6084 |
4.2 |
6.32 |
4026.3 |
|||
|
84% |
20571 |
108.3 |
5206.0 |
6280 |
4.0 |
6.85 |
4504.5 |
|||
|
87% |
21822 |
120.9 |
5812.1 |
6464 |
3.8 |
7.38 |
4995.2 |
|||
|
90% |
22957 |
133.3 |
6408.7 |
6626 |
3.6 |
7.89 |
5474.3 |
|||
|
100% |
24794 |
155.2 |
7459.0 |
6875 |
3.3 |
8.75 |
6299.1 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V(12S LiPo) |
23x10 |
35% |
2232 |
7.3 |
292.8 |
2868 |
7.6 |
0.64 |
192.2 |
/ |
|
37% |
2473 |
8.2 |
328.8 |
3014 |
7.5 |
0.71 |
224.1 |
|||
|
39% |
2735 |
9.3 |
370.5 |
3166 |
7.4 |
0.78 |
258.6 |
|||
|
42% |
3152 |
11.0 |
442.2 |
3397 |
7.1 |
0.90 |
320.1 |
|||
|
45% |
3590 |
13.1 |
522.7 |
3623 |
6.9 |
1.03 |
390.8 |
|||
|
48% |
4040 |
15.2 |
610.0 |
3841 |
6.6 |
1.16 |
466.6 |
|||
|
51% |
4502 |
17.6 |
703.3 |
4050 |
6.4 |
1.30 |
551.3 |
|||
|
54% |
4978 |
20.0 |
802.2 |
4252 |
6.2 |
1.44 |
641.1 |
|||
|
57% |
5473 |
22.7 |
907.9 |
4449 |
6.0 |
1.58 |
736.1 |
|||
|
60% |
5994 |
25.5 |
1022.5 |
4645 |
5.9 |
1.73 |
841.5 |
|||
|
63% |
6548 |
28.6 |
1147.0 |
4841 |
5.7 |
1.88 |
953.0 |
|||
|
66% |
7143 |
32.1 |
1285.2 |
5040 |
5.6 |
2.05 |
1081.9 |
|||
|
69% |
7785 |
36.0 |
1439.8 |
5245 |
5.4 |
2.23 |
1224.7 |
|||
|
72% |
8475 |
40.3 |
1614.8 |
5457 |
5.2 |
2.43 |
1388.5 |
|||
|
75% |
9212 |
45.3 |
1812.7 |
5676 |
5.1 |
2.64 |
1569.1 |
|||
|
78% |
9991 |
50.8 |
2036.1 |
5901 |
4.9 |
2.87 |
1773.4 |
|||
|
81% |
10800 |
57.0 |
2283.7 |
6129 |
4.7 |
3.11 |
1995.9 |
|||
|
84% |
11618 |
63.7 |
2549.2 |
6353 |
4.6 |
3.37 |
2241.8 |
|||
|
87% |
12419 |
70.4 |
2819.9 |
6563 |
4.4 |
3.62 |
2487.8 |
|||
|
90% |
13164 |
76.8 |
3075.0 |
6746 |
4.3 |
3.85 |
2719.6 |
|||
|
100% |
14556 |
88.0 |
3524.4 |
7031 |
4.1 |
4.23 |
3114.3 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo) |
23x10 |
35% |
2595 |
8.2 |
360.9 |
3085 |
7.2 |
0.74 |
239.0 |
/ |
|
37% |
2872 |
9.2 |
406.3 |
3246 |
7.1 |
0.82 |
278.7 |
|||
|
39% |
3184 |
10.4 |
460.1 |
3418 |
6.9 |
0.91 |
325.7 |
|||
|
42% |
3699 |
12.6 |
554.4 |
3681 |
6.7 |
1.06 |
408.6 |
|||
|
45% |
4246 |
15.0 |
661.1 |
3937 |
6.4 |
1.22 |
502.9 |
|||
|
48% |
4810 |
17.6 |
776.5 |
4179 |
6.2 |
1.37 |
599.5 |
|||
|
51% |
5382 |
20.4 |
899.5 |
4407 |
6.0 |
1.54 |
710.7 |
|||
|
54% |
5961 |
23.3 |
1028.6 |
4623 |
5.8 |
1.70 |
822.9 |
|||
|
57% |
6552 |
26.4 |
1165.2 |
4832 |
5.6 |
1.87 |
946.2 |
|||
|
60% |
7162 |
29.8 |
1311.5 |
5038 |
5.5 |
2.04 |
1076.2 |
|||
|
63% |
7801 |
33.4 |
1471.1 |
5245 |
5.3 |
2.23 |
1224.7 |
|||
|
66% |
8480 |
37.4 |
1647.3 |
5458 |
5.1 |
2.42 |
1383.1 |
|||
|
69% |
9207 |
41.9 |
1846.1 |
5680 |
5.0 |
2.64 |
1570.2 |
|||
|
72% |
9989 |
47.0 |
2071.3 |
5913 |
4.8 |
2.88 |
1783.2 |
|||
|
75% |
10829 |
52.8 |
2327.8 |
6157 |
4.7 |
3.13 |
2017.9 |
|||
|
78% |
11723 |
59.4 |
2618.2 |
6407 |
4.5 |
3.41 |
2287.7 |
|||
|
81% |
12661 |
66.7 |
2941.2 |
6659 |
4.3 |
3.70 |
2579.9 |
|||
|
84% |
13624 |
74.7 |
3290.3 |
6901 |
4.1 |
4.01 |
2897.7 |
|||
|
87% |
14582 |
82.8 |
3649.4 |
7122 |
4.0 |
4.31 |
3214.2 |
|||
|
90% |
15492 |
90.6 |
3993.2 |
7312 |
3.9 |
4.60 |
3522.0 |
|||
|
100% |
17360 |
105.6 |
4653.8 |
7630 |
3.7 |
5.15 |
4114.6 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
23x10" |
35% |
3140 |
9.3 |
446.0 |
3365 |
7.0 |
0.89 |
313.6 |
70℃ |
|
37% |
3476 |
10.4 |
499.8 |
3532 |
7.0 |
0.98 |
362.4 |
|||
|
39% |
3831 |
11.7 |
564.2 |
3705 |
6.8 |
1.08 |
419.0 |
|||
|
42% |
4386 |
14.1 |
677.2 |
3968 |
6.5 |
1.24 |
515.2 |
|||
|
45% |
4961 |
16.8 |
806.4 |
4227 |
6.2 |
1.41 |
624.1 |
|||
|
48% |
5552 |
19.7 |
948.7 |
4480 |
5.9 |
1.59 |
745.9 |
|||
|
51% |
6161 |
22.9 |
1102.0 |
4727 |
5.6 |
1.77 |
876.1 |
|||
|
54% |
6794 |
26.4 |
1266.4 |
4967 |
5.4 |
1.96 |
1019.4 |
|||
|
57% |
7460 |
30.0 |
1442.3 |
5203 |
5.2 |
2.16 |
1176.8 |
|||
|
60% |
8170 |
34.0 |
1633.1 |
5438 |
5.0 |
2.38 |
1355.2 |
|||
|
63% |
8935 |
38.3 |
1840.7 |
5672 |
4.9 |
2.60 |
1544.2 |
|||
|
66% |
9765 |
43.1 |
2069.5 |
5907 |
4.7 |
2.84 |
1756.6 |
|||
|
69% |
10665 |
48.4 |
2325.1 |
6144 |
4.6 |
3.10 |
1994.4 |
|||
|
72% |
11639 |
54.4 |
2614.0 |
6385 |
4.5 |
3.39 |
2266.5 |
|||
|
75% |
12682 |
61.3 |
2944.2 |
6632 |
4.3 |
3.69 |
2562.5 |
|||
|
78% |
13785 |
69.1 |
3322.9 |
6887 |
4.1 |
4.03 |
2906.2 |
|||
|
81% |
14929 |
78.1 |
3753.5 |
7149 |
4.0 |
4.39 |
3286.3 |
|||
|
84% |
16085 |
88.0 |
4229.8 |
7412 |
3.8 |
4.77 |
3702.1 |
|||
|
87% |
17212 |
98.4 |
4729.1 |
7664 |
3.6 |
5.16 |
4141.0 |
|||
|
90% |
18257 |
108.5 |
5212.6 |
7884 |
3.5 |
5.53 |
4565.3 |
|||
|
100% |
20173 |
126.6 |
6082.5 |
8202 |
3.3 |
6.20 |
5324.9 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
40V(12S LiPo) |
24x10" |
35% |
2427 |
7.7 |
307.2 |
2843 |
7.9 |
0.69 |
205.4 |
/ |
|
37% |
2696 |
8.6 |
346.0 |
2988 |
7.8 |
0.77 |
240.9 |
|||
|
39% |
2987 |
9.8 |
391.3 |
3139 |
7.6 |
0.85 |
279.4 |
|||
|
42% |
3451 |
11.8 |
470.6 |
3370 |
7.3 |
0.98 |
345.8 |
|||
|
45% |
3934 |
14.0 |
559.5 |
3597 |
7.0 |
1.12 |
421.8 |
|||
|
48% |
4429 |
16.4 |
656.0 |
3816 |
6.7 |
1.27 |
507.5 |
|||
|
51% |
4935 |
19.0 |
758.9 |
4026 |
6.5 |
1.42 |
598.6 |
|||
|
54% |
5454 |
21.7 |
867.5 |
4227 |
6.3 |
1.57 |
694.9 |
|||
|
57% |
5993 |
24.5 |
982.8 |
4423 |
6.1 |
1.73 |
801.2 |
|||
|
60% |
6561 |
27.6 |
1107.0 |
4616 |
5.9 |
1.89 |
913.5 |
|||
|
63% |
7167 |
31.0 |
1242.8 |
4809 |
5.8 |
2.06 |
1037.3 |
|||
|
66% |
7820 |
34.8 |
1392.9 |
5005 |
5.6 |
2.25 |
1179.2 |
|||
|
69% |
8527 |
39.0 |
1562.4 |
5205 |
5.5 |
2.45 |
1335.3 |
|||
|
72% |
9290 |
43.8 |
1755.0 |
5411 |
5.3 |
2.67 |
1512.8 |
|||
|
75% |
10109 |
49.3 |
1975.3 |
5625 |
5.1 |
2.91 |
1714.0 |
|||
|
78% |
10976 |
55.6 |
2226.8 |
5848 |
4.9 |
3.16 |
1935.0 |
|||
|
81% |
11876 |
62.6 |
2508.7 |
6076 |
4.7 |
3.44 |
2188.6 |
|||
|
84% |
12785 |
70.3 |
2813.5 |
6303 |
4.5 |
3.73 |
2461.8 |
|||
|
87% |
13670 |
78.0 |
3123.5 |
6516 |
4.4 |
4.02 |
2742.9 |
|||
|
90% |
14484 |
85.2 |
3412.7 |
6701 |
4.2 |
4.28 |
3003.2 |
|||
|
100% |
15852 |
96.6 |
3869.2 |
6954 |
4.1 |
4.70 |
3422.4 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
44V(12S LiPo) |
24x10" |
35% |
2876 |
8.8 |
387.4 |
3098 |
7.4 |
0.83 |
269.3 |
/ |
|
37% |
3186 |
9.9 |
436.3 |
3255 |
7.3 |
0.91 |
310.2 |
|||
|
39% |
3523 |
11.2 |
493.1 |
3418 |
7.1 |
1.01 |
361.5 |
|||
|
42% |
4065 |
13.4 |
591.9 |
3665 |
6.9 |
1.16 |
445.2 |
|||
|
45% |
4636 |
16.0 |
703.8 |
3906 |
6.6 |
1.33 |
544.0 |
|||
|
48% |
5228 |
18.8 |
826.8 |
4140 |
6.3 |
1.50 |
650.3 |
|||
|
51% |
5839 |
21.8 |
959.0 |
4364 |
6.1 |
1.68 |
767.7 |
|||
|
54% |
6472 |
25.0 |
1100.9 |
4581 |
5.9 |
1.86 |
892.2 |
|||
|
57% |
7131 |
28.4 |
1252.9 |
4794 |
5.7 |
2.05 |
1029.1 |
|||
|
60% |
7824 |
32.2 |
1417.7 |
5004 |
5.5 |
2.25 |
1179.0 |
|||
|
63% |
8559 |
36.3 |
1598.0 |
5216 |
5.4 |
2.46 |
1343.6 |
|||
|
66% |
9344 |
40.8 |
1797.6 |
5431 |
5.2 |
2.69 |
1529.8 |
|||
|
69% |
10184 |
45.9 |
2021.5 |
5651 |
5.0 |
2.94 |
1739.7 |
|||
|
72% |
11080 |
51.6 |
2274.5 |
5878 |
4.9 |
3.21 |
1975.7 |
|||
|
75% |
12031 |
58.1 |
2561.8 |
6111 |
4.7 |
3.49 |
2233.2 |
|||
|
78% |
13028 |
65.5 |
2887.5 |
6348 |
4.5 |
3.80 |
2525.9 |
|||
|
81% |
14054 |
73.8 |
3251.5 |
6585 |
4.3 |
4.14 |
2854.6 |
|||
|
84% |
15086 |
82.8 |
3648.6 |
6817 |
4.1 |
4.48 |
3197.9 |
|||
|
87% |
16088 |
92.2 |
4061.9 |
7033 |
4.0 |
4.83 |
3557.0 |
|||
|
90% |
17016 |
101.3 |
4465.2 |
7224 |
3.8 |
5.18 |
3918.4 |
|||
|
100% |
18711 |
118.6 |
5228.0 |
7542 |
3.6 |
5.84 |
4612.1 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|---|
|
48V(12S LiPo) |
24x10" |
35% |
3347 |
9.7 |
467.6 |
3334 |
7.2 |
0.95 |
331.7 |
75℃ |
|
37% |
3693 |
10.9 |
522.4 |
3499 |
7.1 |
1.05 |
384.7 |
|||
|
39% |
4073 |
12.3 |
589.7 |
3672 |
6.9 |
1.16 |
446.0 |
|||
|
42% |
4689 |
14.8 |
712.7 |
3937 |
6.6 |
1.34 |
552.4 |
|||
|
45% |
5345 |
17.9 |
857.9 |
4200 |
6.2 |
1.54 |
677.3 |
|||
|
48% |
6032 |
21.2 |
1019.8 |
4455 |
5.9 |
1.75 |
816.4 |
|||
|
51% |
6747 |
24.9 |
1194.8 |
4701 |
5.6 |
1.96 |
964.8 |
|||
|
54% |
7490 |
28.7 |
1381.2 |
4939 |
5.4 |
2.19 |
1132.6 |
|||
|
57% |
8266 |
32.9 |
1578.8 |
5171 |
5.2 |
2.42 |
1310.3 |
|||
|
60% |
9081 |
37.2 |
1789.3 |
5399 |
5.1 |
2.66 |
1503.8 |
|||
|
63% |
9942 |
42.0 |
2016.1 |
5628 |
4.9 |
2.91 |
1714.9 |
|||
|
66% |
10856 |
47.1 |
2265.1 |
5858 |
4.8 |
3.17 |
1944.5 |
|||
|
69% |
11826 |
52.9 |
2543.8 |
6093 |
4.6 |
3.45 |
2201.1 |
|||
|
72% |
12854 |
59.6 |
2862.5 |
6334 |
4.5 |
3.76 |
2493.8 |
|||
|
75% |
13935 |
67.3 |
3233.0 |
6582 |
4.3 |
4.11 |
2832.7 |
|||
|
78% |
15058 |
76.3 |
3665.1 |
6835 |
4.1 |
4.49 |
3213.5 |
|||
|
81% |
16206 |
86.6 |
4163.0 |
7089 |
3.9 |
4.91 |
3644.7 |
|||
|
84% |
17351 |
98.2 |
4718.5 |
7337 |
3.7 |
5.36 |
4117.9 |
|||
|
87% |
18456 |
110.4 |
5305.8 |
7569 |
3.5 |
5.83 |
4620.7 |
|||
|
90% |
19472 |
122.3 |
5878.7 |
7772 |
3.3 |
6.28 |
5110.8 |
|||
|
100% |
21297 |
144.2 |
6931.7 |
8096 |
3.1 |
7.11 |
6027.5 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
