HOBBYWING: UAV Propulsion Systems, RC Motors & ESCs, e-Vehicle Power System
carbon plastic propellers

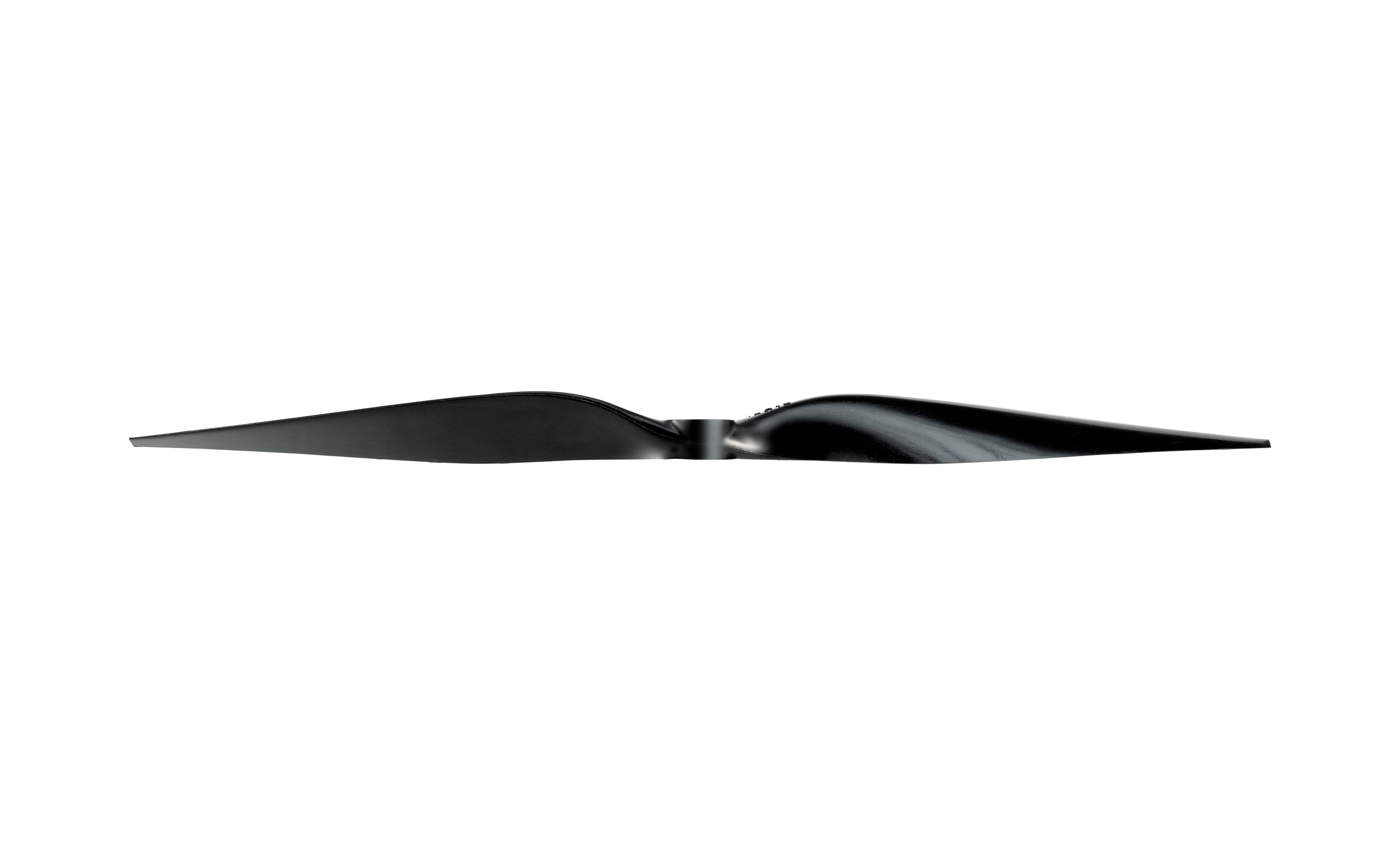

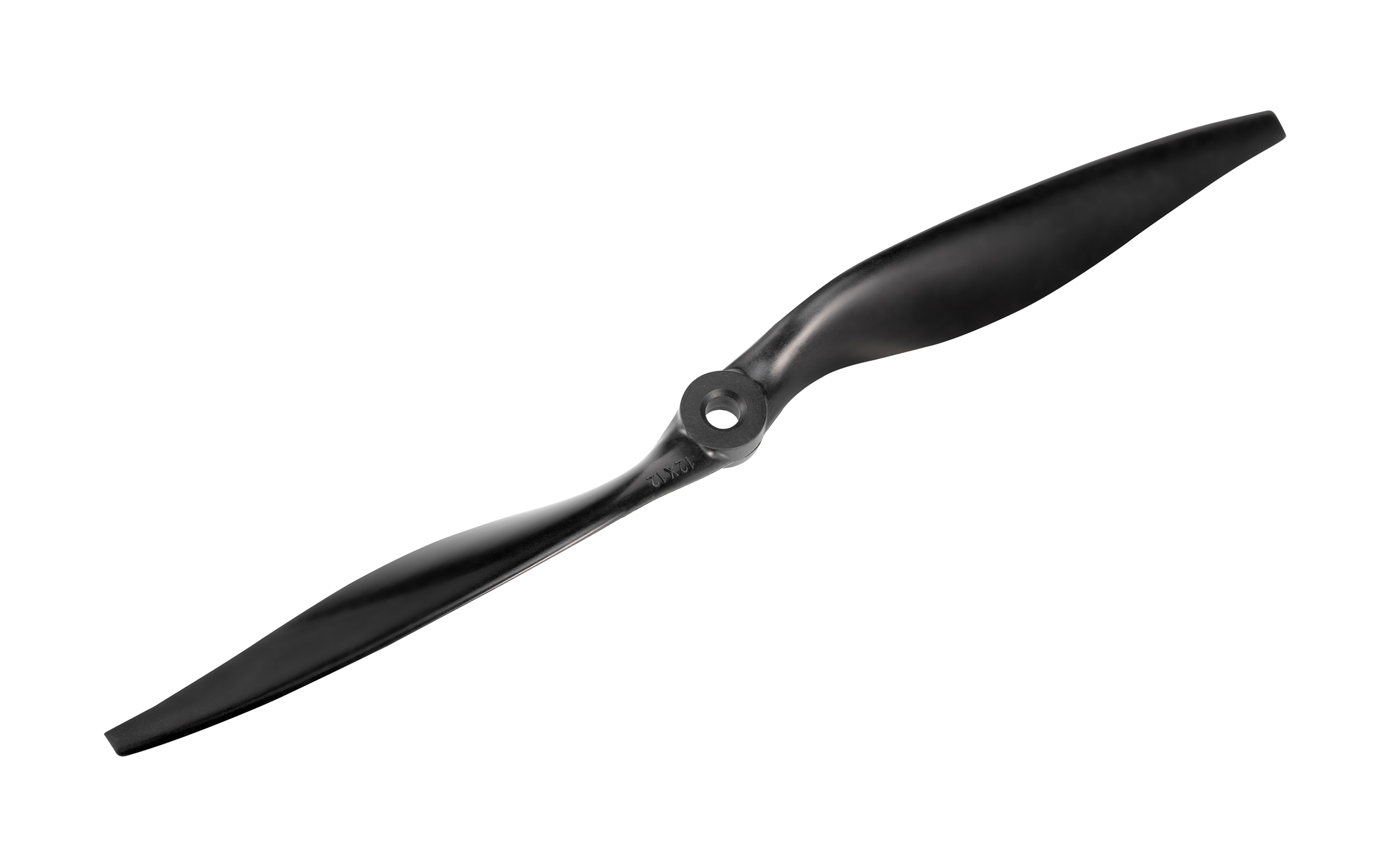

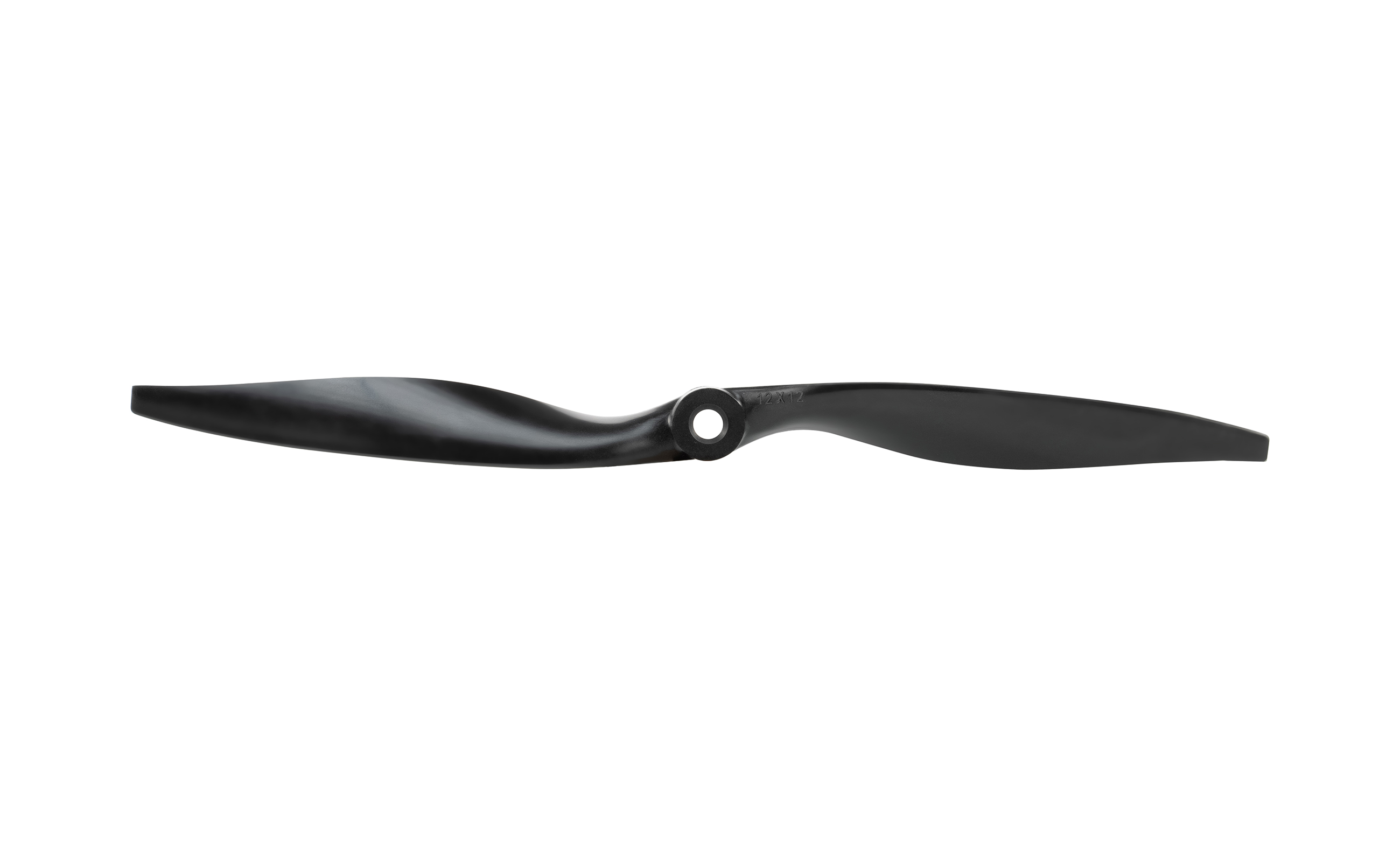

CSP 12x12 Cruising Propellers
Carbon Fiber Polymer: High-Performance Redefined

Faster Cruises
Smoother Rides
Longer-lasting
performance Hobbywing Drone propellers

Only 25g Per Propeller
Faster Flight Speeds
Carbon Fiber
Injection Molding
Ultra-Stable Operation
Carbon Fiber
Reinforced Matrix
Extended Service Life
quadcopter Drone propellers
Professional Airfoil Design,
Optimized for High-Speed Flight
Optimized Aerodynamic Airfoil Structure
Balances Maximum RPM & Thrust

Max. Speed: 14,000 RPM
Max. Thrust: 7kg

Max. Cruise Speed: 50m/s (~180km/h)
Max. Thrust:5kg
Drone folding propeller
Drone Motor propeller
Exceptional Quality Control,
Consistent Stability
Each propeller undergoesweight
balancing tests
Ensuring highly consistent
performance across
all propellers
Ensuring a morestable flight
Unwavering Reliability
Across All Scenarios,
Even in Harsh Environments

This propeller is corrosion-resistant and anti-aging, easily handling harsh environments like rain, salt fog, high

temperatures, and sandstorms, while ensuring stable flight in all weather conditions.

High Temperatures

Sandstorms

Rain

Salt Fog

CSP 12x12 CAD
Product Name
CSP 12x12
Specifications
Single blade weight 25±0.6 g
Material of Props Carbon fiber reinforced nylon
Non-folding/Folding Non-folding propeller
Recommended advance ratio(J) 0.7~0.95
Operating temperature -20~50 ℃
Storage temperature -10~40 ℃
Storage humidness ≤85%
Max RPM 14000 RPM
Max thrust 7 kg

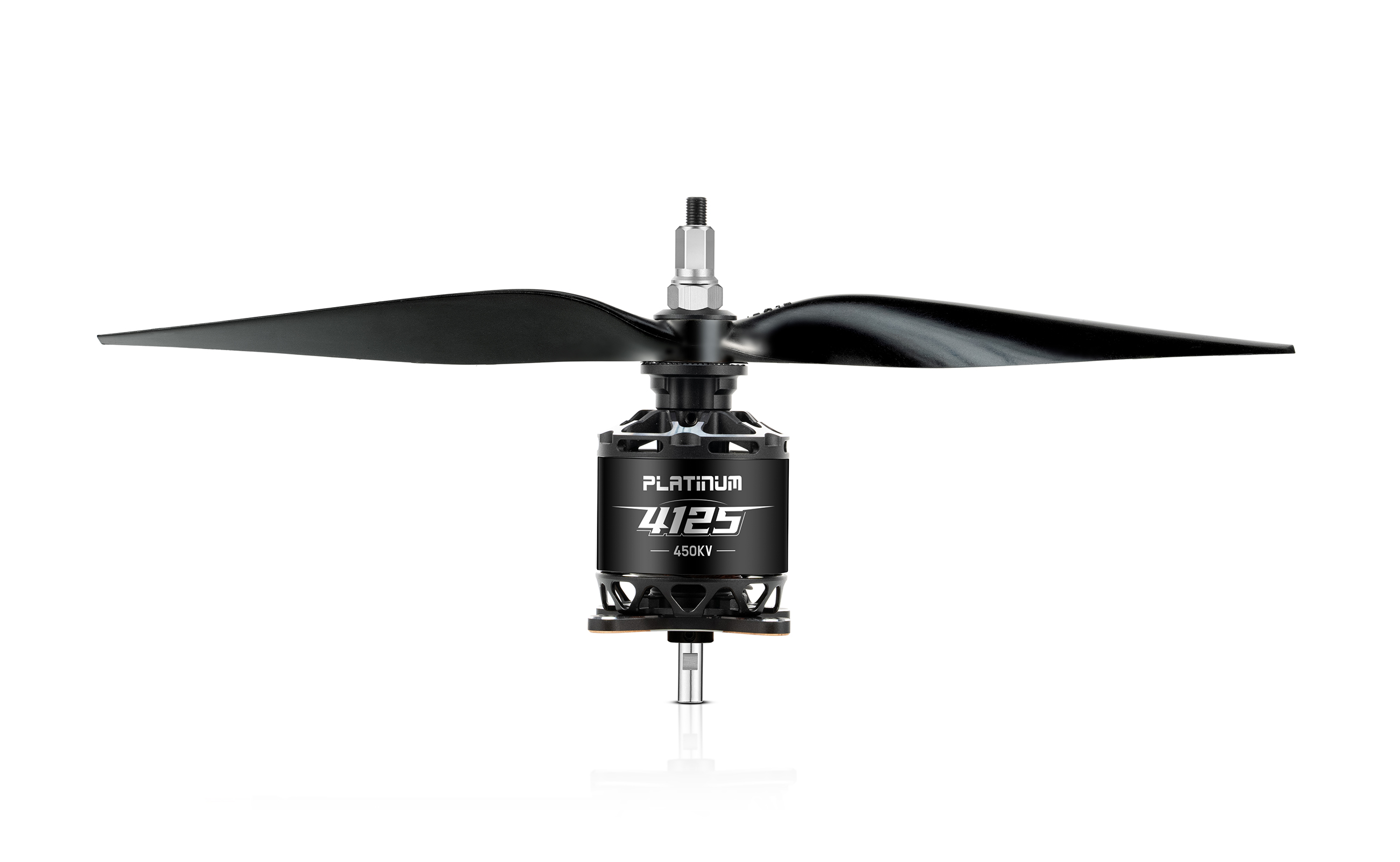

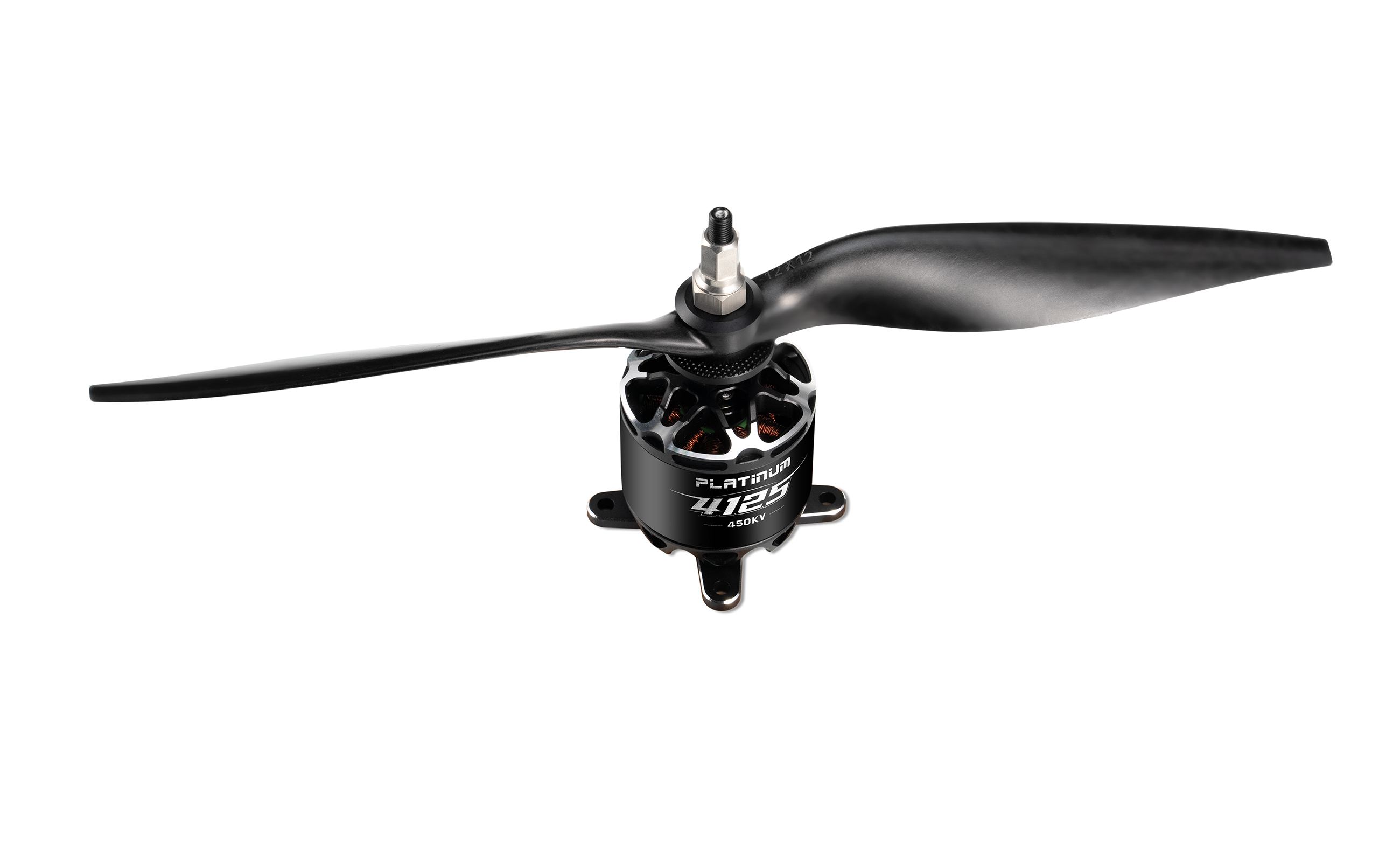

Recommended motors of HOBBYWING Platinum 4125
CSP 12x12 Speed, thrust and torque test data
