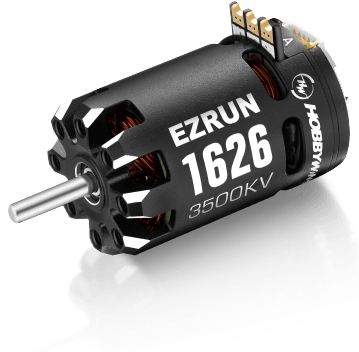

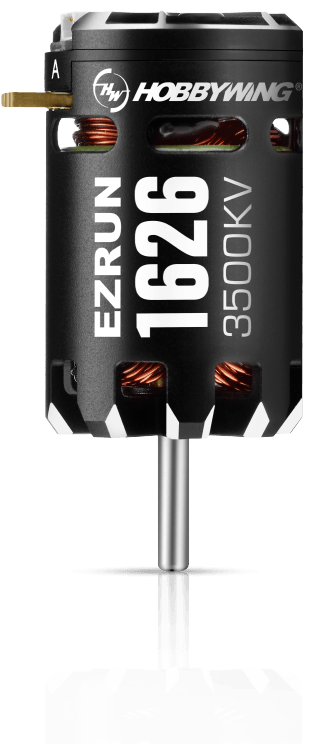

EZRUN 1626

The first motor from Hobbywing is specifically designed for high-power 1/28^th scale builders

Improved top speed
Precision response
High efficiency with the cool operation
Designed for the rigors of high performance
Easy to maintain with quality components

More Power!

When used with the EzRun Mini28 ESC,
timing advance can be used to increase top speeds drastically.
Small or large changes can be made for major on-demand power needs.

Precision Response

Zero cogging, consistent torque,
and excellent low-speed response
give an amazing feel and driveability.
The use of high-precision sensors ensures
the ESC will be able to provide the best feel for the drivers.

Higher Efficiency means cooler operation

The 1626 motor is extremely
efficient and has increased
power compared to
similar size motors.

Designed to ensure higher
power capabilities

High-density 4-layer PCB provide easy-to-solder connections.

Reliable Materials

High-quality
bearings
High-hardness
aluminum
CNC casing

high-strength
explosion-
proof rotor
high-
resistant
output
shaft

200°C

temperature-
resistant
copper wire

0.2mm

ultra-thin
silicon
steel sheet

Modular detachable structure,
convenient for daily cleaning and maintenance.

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Pole Count
Relevant Parameters	KV Rating LiPo Cells No-load Current(A)
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Bearing
Other Parameters	Applications

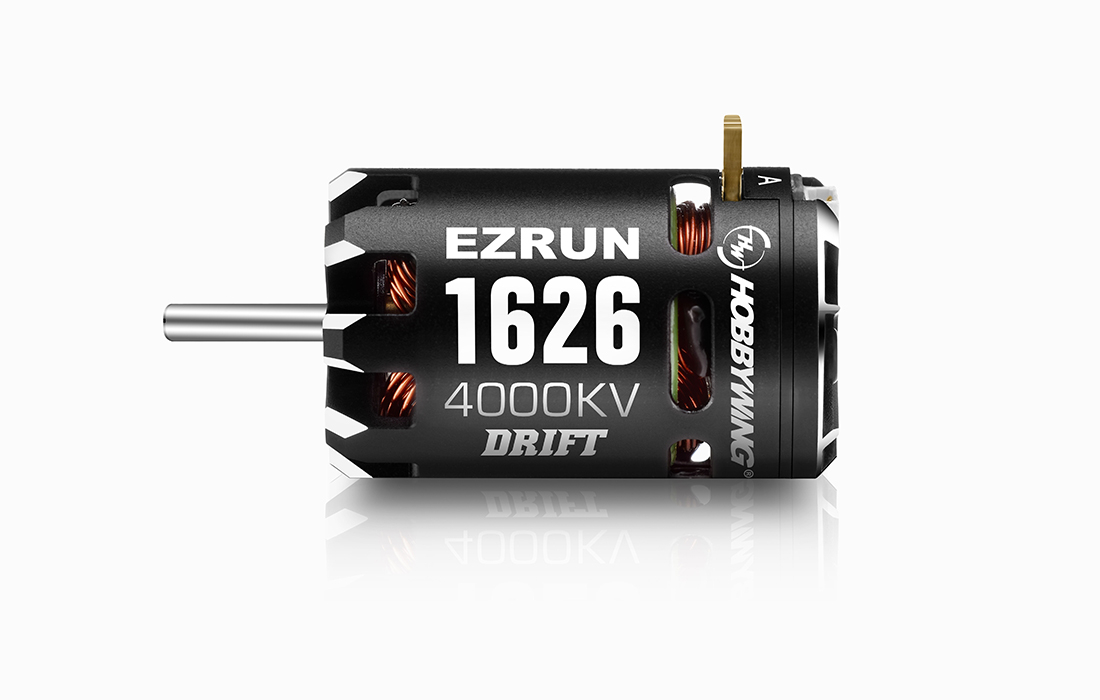

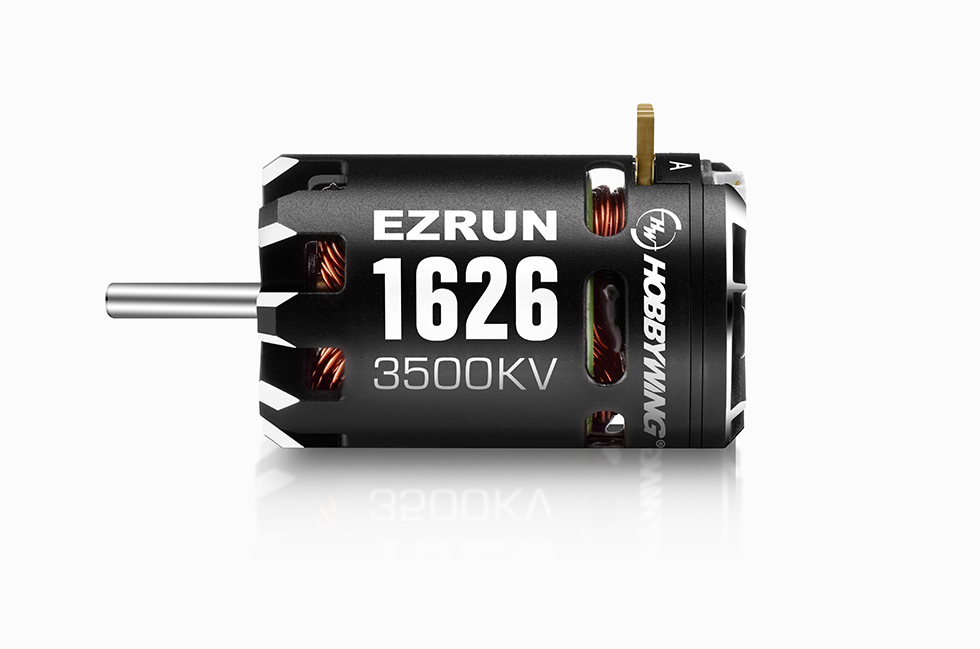

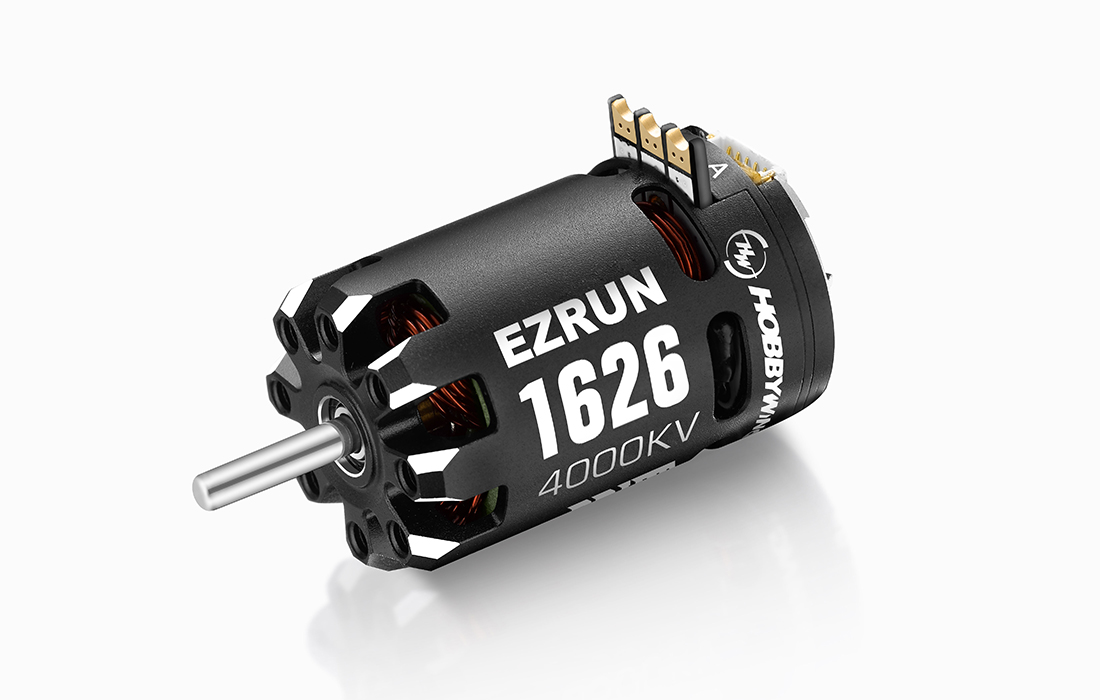

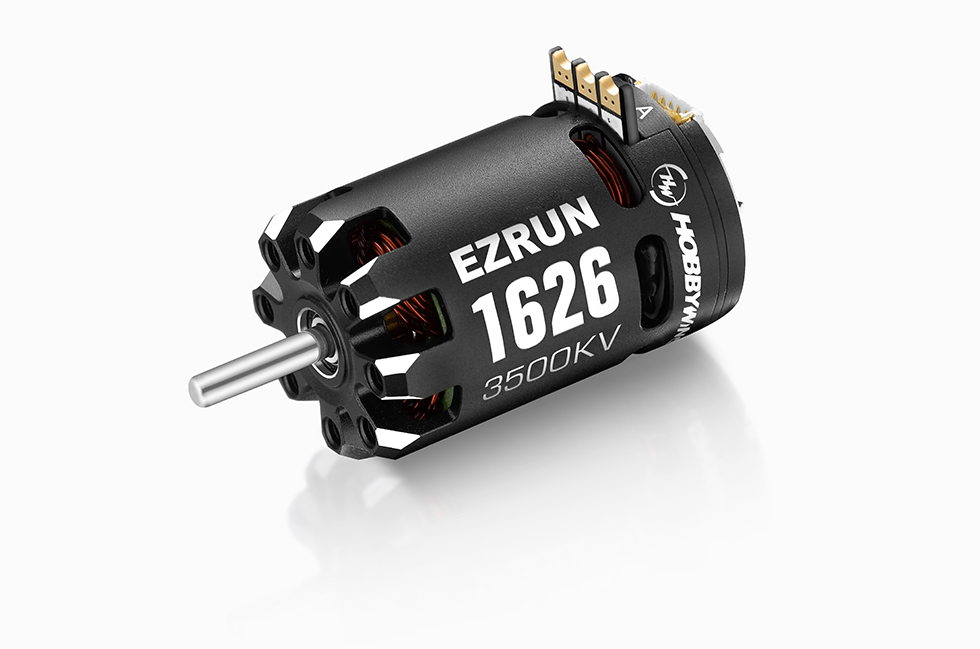

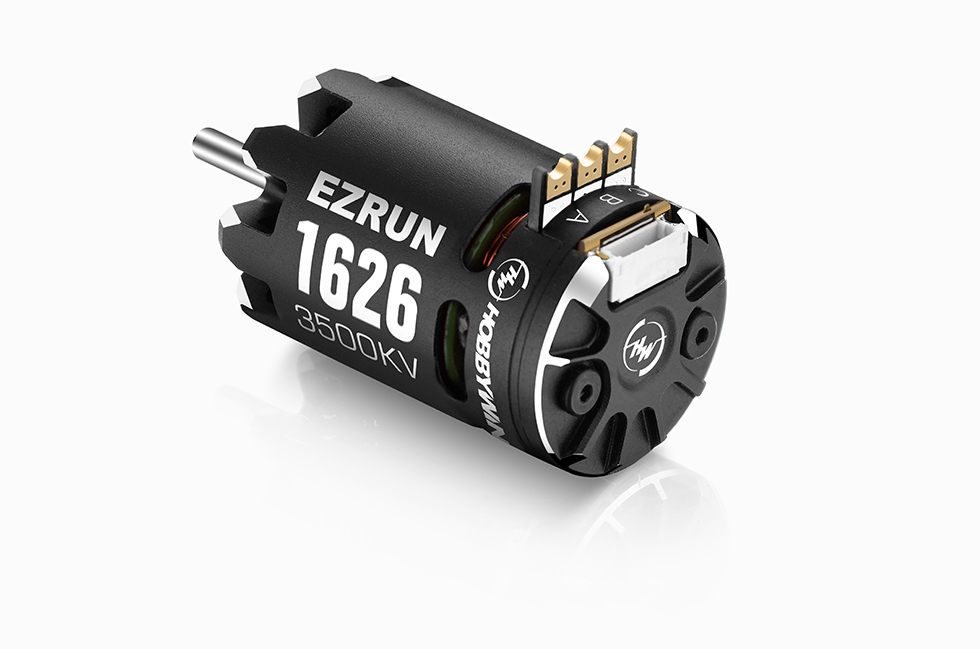

Product Name		EZRUN 1626SD 3500KV	EZRUN 1626SD 5000KV	EZRUN 1626SD 6500KV	EZRUN 1626SD Drift 4000KV
Product Number		30402653	30402654	30402655	30402150
Type	Scale Brushed/Brushless Sensored/Sensorless Pole Count	1/28^th BL SD 2	1/28^th BL SD 2	1/28^th BL SD 2	1/28^th BL SD 2
Relevant Parameters	KV Rating LiPo Cells No-load Current(A)	3500KV 2S 0.4A	5000KV 2S 0.5A	6500KV 2S 0.6A	4000KV 2S 0.4A
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Bearing	16 26 2 18g D5D2T2.5	16 26 2 18g D5D2T2.5	16 26 2 18g D5D2T2.5	16 26 2 18g D5D2T2.5
Other Parameters	Applications	1/28^th Mini	1/28^th Mini	1/28^th Mini	1/28^th Mini Drift

Support

Manuals & Documents

Manuals

Drone Propulsion Systems

MULTIROTOR

INTEGRATED PROPULSION SYSTEM

Innovation and Performance for a simplified assembly.

MOTOR

Endurance born from efficiency.

ESC

Accurate control, trusted performance.

PROPELLER

Superior efficiency, exceptional stability.

CENTRIFUGAL NOZZLE

Efficient atomizing, precise spraying.

WATER PUMP

Minimal maintenance, long service life.

ACCESSORIES

VTOL

INTEGRATED PROPULSION SYSTEM

Innovation and Performance for a simplified assembly.

P Series

MOTOR

Superior performance for unmatched flights.

ESC

Precise control, maximum performance.

PROPELLER

Powerful burst, high intensity.

Carbon Fiber Propeller

FIXED WING

MOTOR

Convenient, efficient and stable.

FPV

MOTOR

High efficiency, extended flight time.

RC Aircraft Power Systems

Platinum

Professional Competition, Extreme Flight

ESC
MOTOR

FlyFun

High-end Product, Comprehensive Performance

SkyWalker

Entry Level, Budget-friendly Product

ESC
MOTOR

FPV Racing

Racing Flight, The Choice of Flying

Propeller

RC Power Systems

RC Cars Power System

XeRun

Professional Competition Level, Extreme Performance and Craftsmanship

EzRun

High-end Product, Balanced Performance

QuicRun

Budget-friendly, Cost-effective

RC Boat Power System

SeaKing V4

High-end Product, Comprehensive Performance

SeaKing Pro

Built for Competition, Powerful Performance in Small Volumes

SeaKing V3

High-end Product, Comprehensive Performance

Accessories

RC Car

RC Boat

RC Aircraft

e-Vehicle Power Systems

Electric Motorcycle Power System

Electric Motorcycle Controllers

Safe & Stable, High Efficiency & Easy Operation

Electric Skateboard

Skateboard Controller

Controlled and Silky Smooth Operation

Skateboard Motor

Robust Power System With a Single Step

Electric Scooter

Scooter Controller

Transporting Each Trip in a Safe Manner

e-Vehicle Accessories

Skateboard Accessories

Scooter Accessories

Service and Support

Product Selection

EzRun 1626

Overview Specifications Support Accessories Detail

EZRUN 1626

The first 1/28^th motor for model cars
with powerful components
produced by Hobbywing

40% more top-speed
Accurate response;
High efficiency, low temperature rise;
Multiple designs ensure overcurrent capability;
Solid material and easy maintenance

40%more top-speed

In cooperation with the EZRUN MINI28 ESC,
the maximum speed is 40% more upon adjusting the advance timing on the ESC.
Achieve overtaking maneuver on another car in an instant.

40%more top-speed

In cooperation with
the EZRUN MINI28 ESC,
the maximum speed is 40% more upon
adjusting the advance timing on the ESC.
Achieve overtaking maneuver
on another car in an instant.

Accurate response

Low cogging design, small torque pulsation,
and almost zero delay running at low speed;
The addition of high-precision sensor board
is built with high accuracy in real-time in
order for users to understand and have
a great sense of their control intentions.

Low cogging design,
small torque pulsation,
and almost zero delay running at low speed;
The addition of high-precision
sensor board is built with
high accuracy in real-time
in order for users to understand
and have a great sense of
their control intentions.

High efficiency, low temperature rise

The 1626 motor is
approximately 5%
more efficient
6% more output power

lower in temperature rise

under the same load comparing
with other similar motors
on the market.

High

Efficiency

Low

Temperature

Rise

The 1626 motor

is approximately 5%

more efficient

6% more output power

lower in temperature rise under

the same load comparing with

other similar motors on the market.

Multiple designs ensure overcurrent capability

The outgoing PCB adopts the design
of 4-layer board to widen the soldering surface.
At the same time,
the board layer is punched and stabilized to effectively prevent
the solder joints from falling off and ensure the overcurrent capability.

Multiple designs ensure overcurrent capability

The outgoing PCB adopts the
design of 4-layer board to widen
the soldering surface.
At the same time,
the board layer is punched and
stabilized to effectively prevent
the solder joints from falling off and
ensure the overcurrent capability.

Reliable Materials

High-quality
bearings
High-hardness
aluminum
CNC casing

high-strength
explosion-
proof rotor
high-
resistant
output
shaft

200°C

temperature-
resistant
copper wire

0.2mm

ultra-thin
silicon
steel sheet

Reliable
Materials

High-quality
bearings

High-hardness
aluminum
CNC casing

high-strength
explosion-
proof rotor

200°C
temperature-
resistant
copper wire

high-resistant
output
shaft

0.2mm
ultra-thin
silicon steel sheet

Modular detachable structure,
convenient for daily cleaning and maintenance.

Easy to maintain

Modular detachable structure,
convenient for daily cleaning and
maintenance.

Product Name		EZRUN 1626SD 3500KV
Product Number		30402653
Type	Scale Brushed/Brushless Sensored/Sensorless Pole Count	1/28^th BL SD 2
Relevant Parameters	KV Rating LiPo Cells No-load Current(A)	3500KV 2S 0.4A
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Bearing	16 26 2 18g D5D2T2.5
Other Parameters	Applications	1/28^th Mini

Product Name		EZRUN 1626SD 3500KV	EZRUN 1626SD 5000KV	EZRUN 1626SD 6500KV	EZRUN 1626SD Drift 4000KV
Product Number		30402653	30402654	30402655	30402150
Type	Scale Brushed/Brushless Sensored/Sensorless Pole Count	1/28^th BL SD 2	1/28^th BL SD 2	1/28^th BL SD 2	1/28^th BL SD 2
Relevant Parameters	KV Rating LiPo Cells No-load Current(A)	3500KV 2S 0.4A	5000KV 2S 0.5A	6500KV 2S 0.6A	4000KV 2S 0.4A
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Bearing	16 26 2 18g D5D2T2.5	16 26 2 18g D5D2T2.5	16 26 2 18g D5D2T2.5	16 26 2 18g D5D2T2.5
Other Parameters	Applications	1/28^th Mini	1/28^th Mini	1/28^th Mini	1/28^th Mini Drift
