EzRun 5690 / 56118 SL G2

Exceptional Power for
High-Speed Applications

The motor delivers outstanding power and performance,
making it an excellent choice for high-speed 1/7^th and 1/8^th scale RC vehicles.

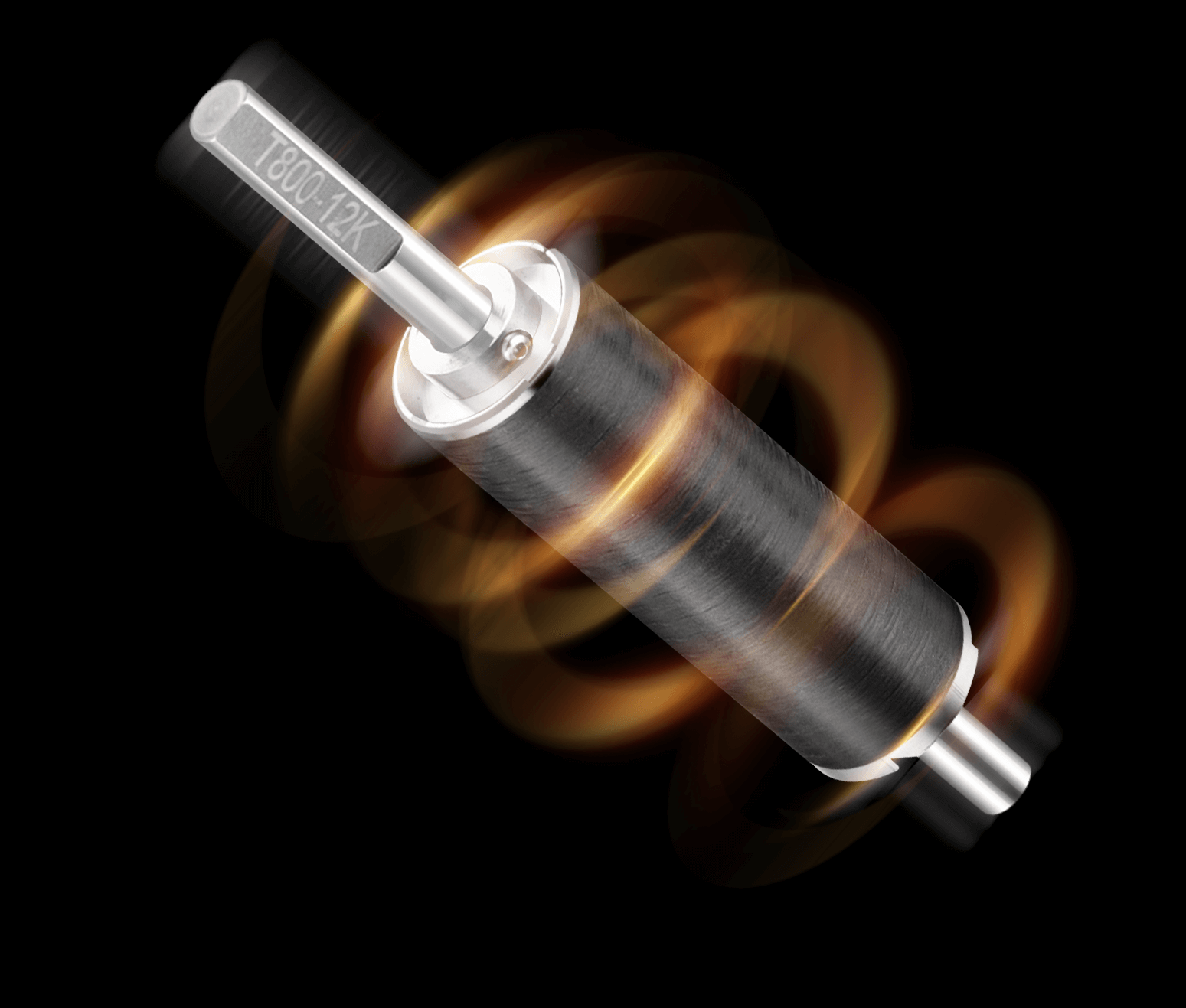

High Speed Design

The motor rotor has superior anti-explosion performance and supports a maximum speed of up to 78,000 RPM, which can meet the high rotational speed requirements of high-speed RC vehicles.

A maximum speed of up to: 78000RPM

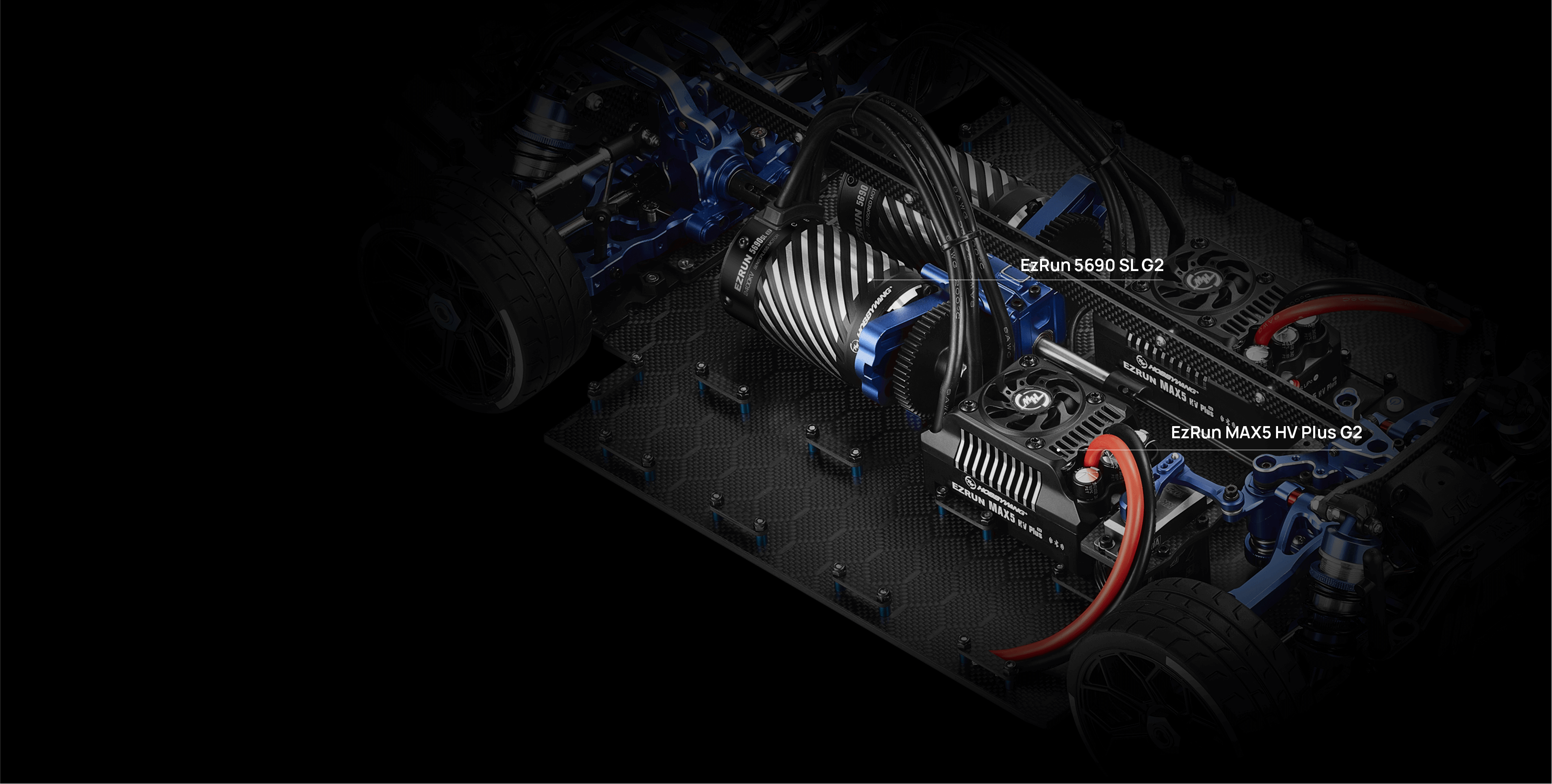

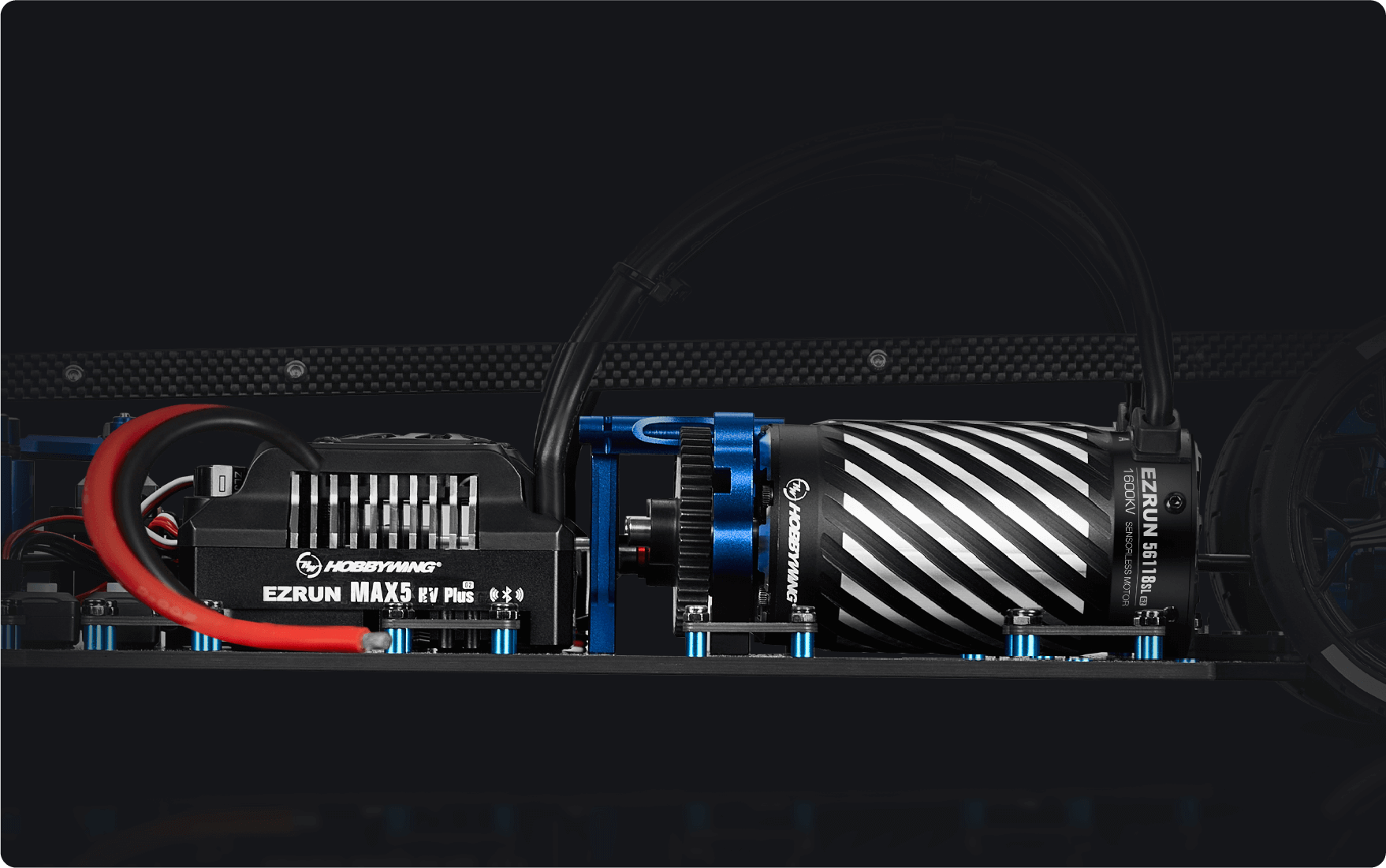

Optimized Pairing
with EzRun MAX5
HV Plus G2 ESC

The motor is engineered for seamless compatibility with the EzRun MAX5 HV Plus G2 ESC,
enabling higher speeds and greater power output for maximum performance.

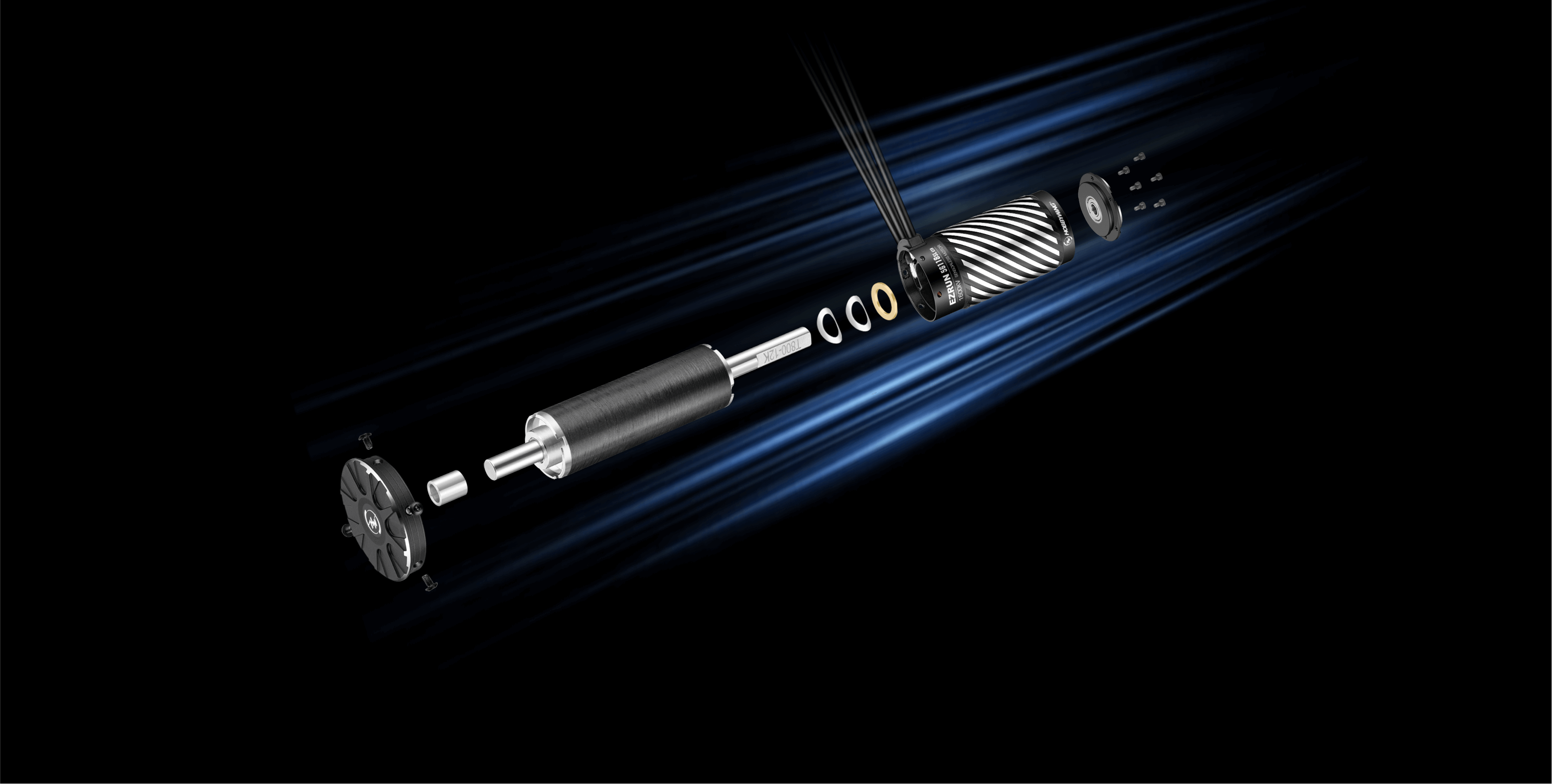

Modular Construction
for Easy Maintenance

Featuring a modular and detachable design, the motor is easy to clean and maintain,
significantly extending its operational lifespan while ensuring consistent performance.

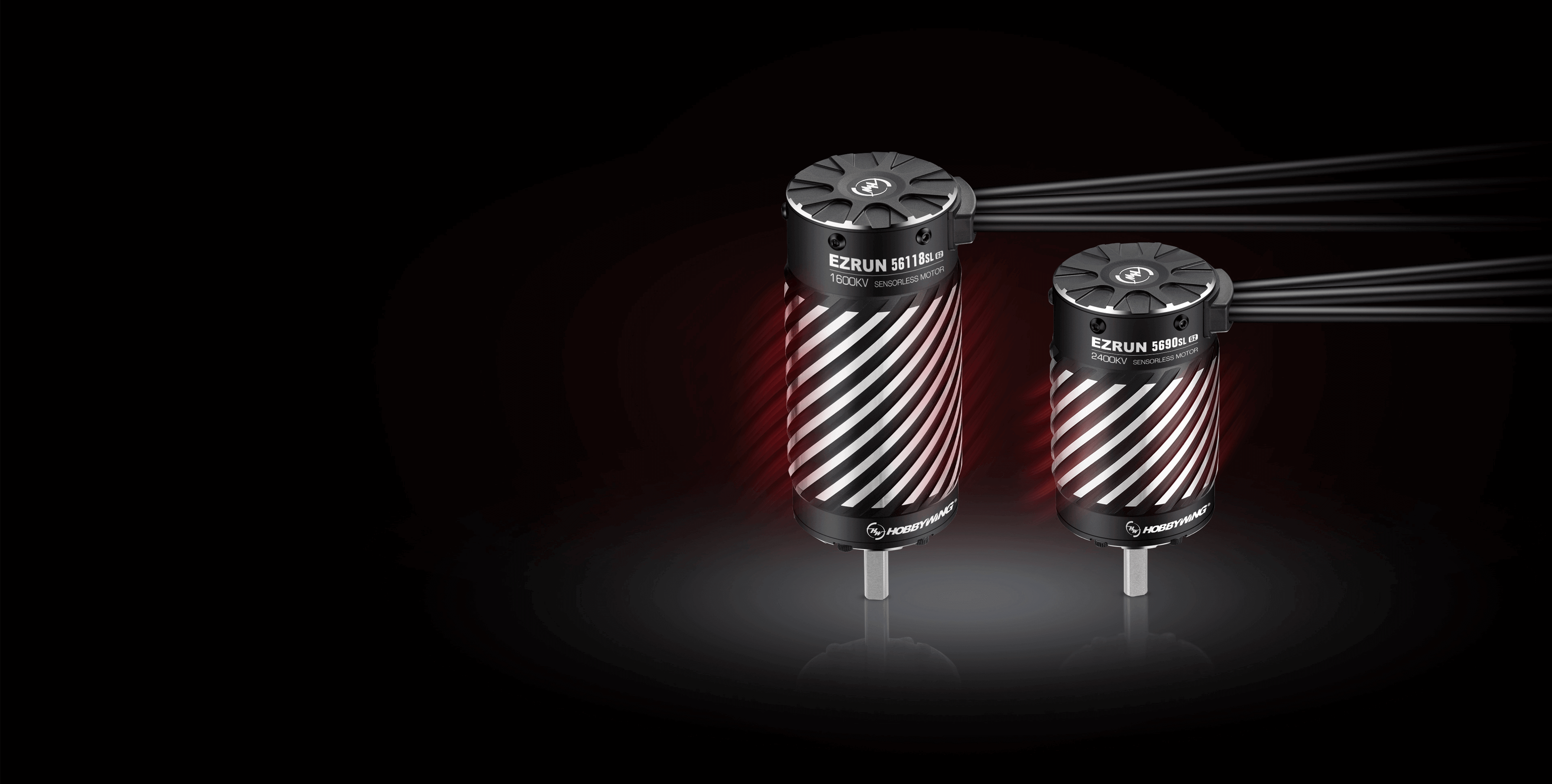

Dual Specifications to Suit Various Applications

The motor provides two options: 5690-2400KV and 56118-1600KV.

: 5690 Motor (2400KV)Optimized for dual-motor configurations.

: 56118 Motor (1600KV)Versatile for both single and dual-motor applications.

High-Quality Materials for Durability

Constructed using premium materials, the motor offers exceptional reliability and performance:
·CNC-machined Aluminum Housing for High Strength.
·Top-tier Bearings and Ultra-thin Silicon Steel Laminations.
·High-temperature-Resistant Oxygen-free Copper Wires.
·Carbon Fiber-wrapped Explosion-proof Rotor.
·High-toughness Alloy Output Shaft.

High hardness aluminum
CNC housing

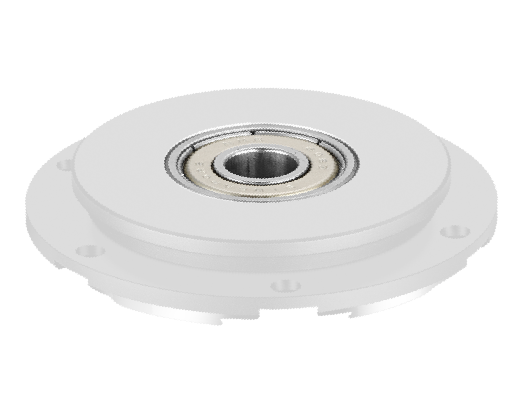

Top-tier
Bearings

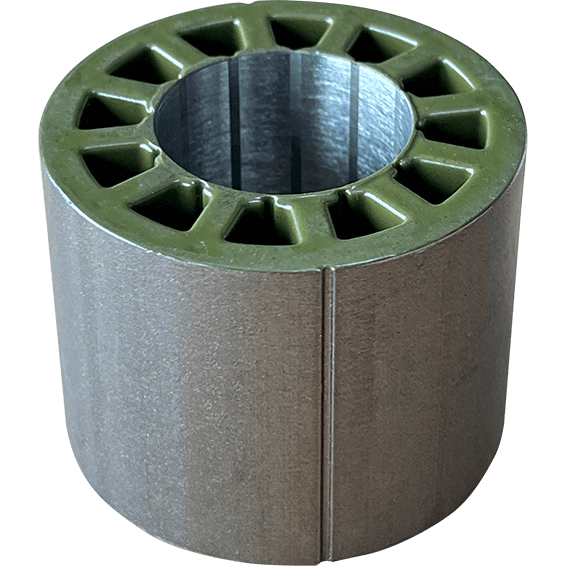

Ultra-thin
Silicon steel laminations

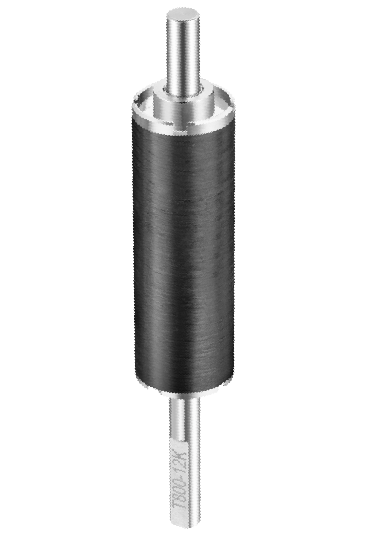

Carbon fiber-wrapped
explosion-proof rotor

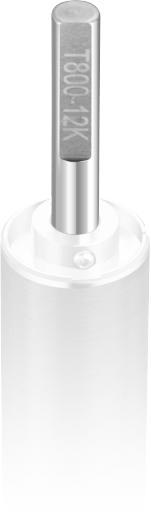

High-toughness alloy
output shaft

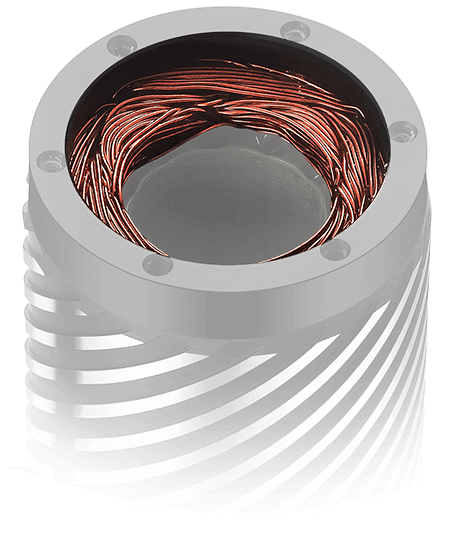

High-temperature-resistant oxygen-freeCopper wires

High-Quality Materials for Durability

Constructed using premium materials, the motor offers exceptional reliability and performance:
·CNC-machined Aluminum Housing for High Strength.
·Top-tier Bearings and Ultra-thin Silicon Steel Laminations.
·High-temperature-Resistant Oxygen-free Copper Wires.
·Carbon Fiber-wrapped Explosion-proof Rotor.
·High-toughness Alloy Output Shaft.

High hardness aluminumCNC housing

Top-tierBearings

Ultra-thinSilicon steel laminations

explosion-proof rotor explosion-proof rotor

High-toughness alloyoutput shaft

High-temperature-resistant oxygen-freeCopper wires

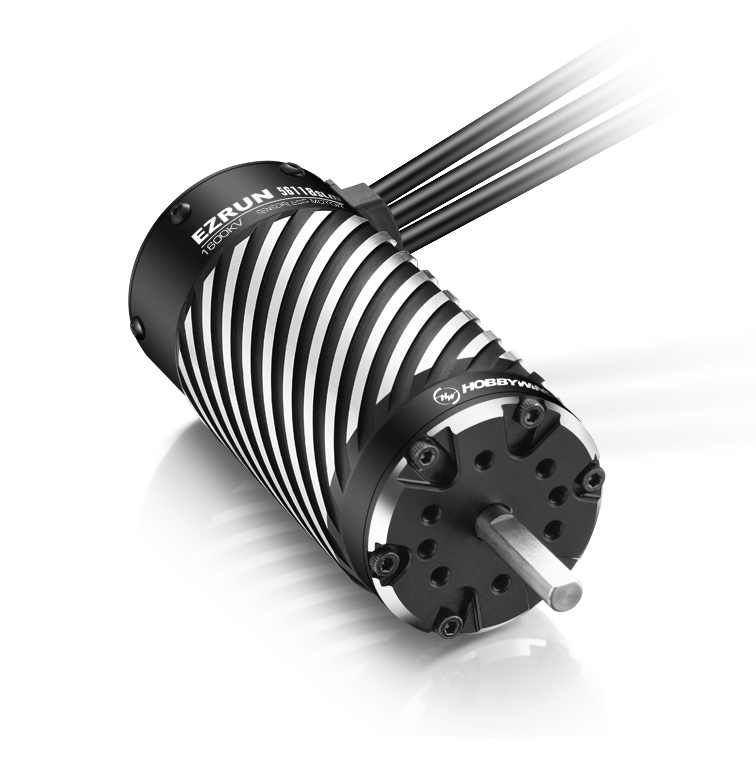

Innovative and
Stylish Design

The motor's innovative spiral groove heat sink design
not only enhances thermal performance but also provides a striking,
modern aesthetic.

: Spiral groove heat
sink design

Product NameEZRUN 5690SL G2

EZRUN 5690SL G2
EZRUN 56118SL G2

Product Number

30402904

30402905

Type

Scale Brushed/Brushless Sensored/Sensorless Pole

1/7^th、1/8^th
BL
SL
4

1/7^th、1/8^th
BL
SL
4

Relevant Parameters

KV Rating LiPo Cells No-load Current(A)

2400KV
6-8S
16A

1600KV
6-12S
16A

Size & Weight

O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing Rear Bearing

56
90.5
8
885g
D22*D8*T7
D19*D8*T6

56
118
8
1270g
D22*D8*T7
D19*D8*T6

Other Parameters

ESC Vehicles

EZRUN MAX5 HV PLUS G2
1/8^th, 1/7^th and other model cars for extreme speed applications

EZRUN MAX5 HV PLUS G2
1/8^th, 1/7^th and other model cars for extreme speed applications
