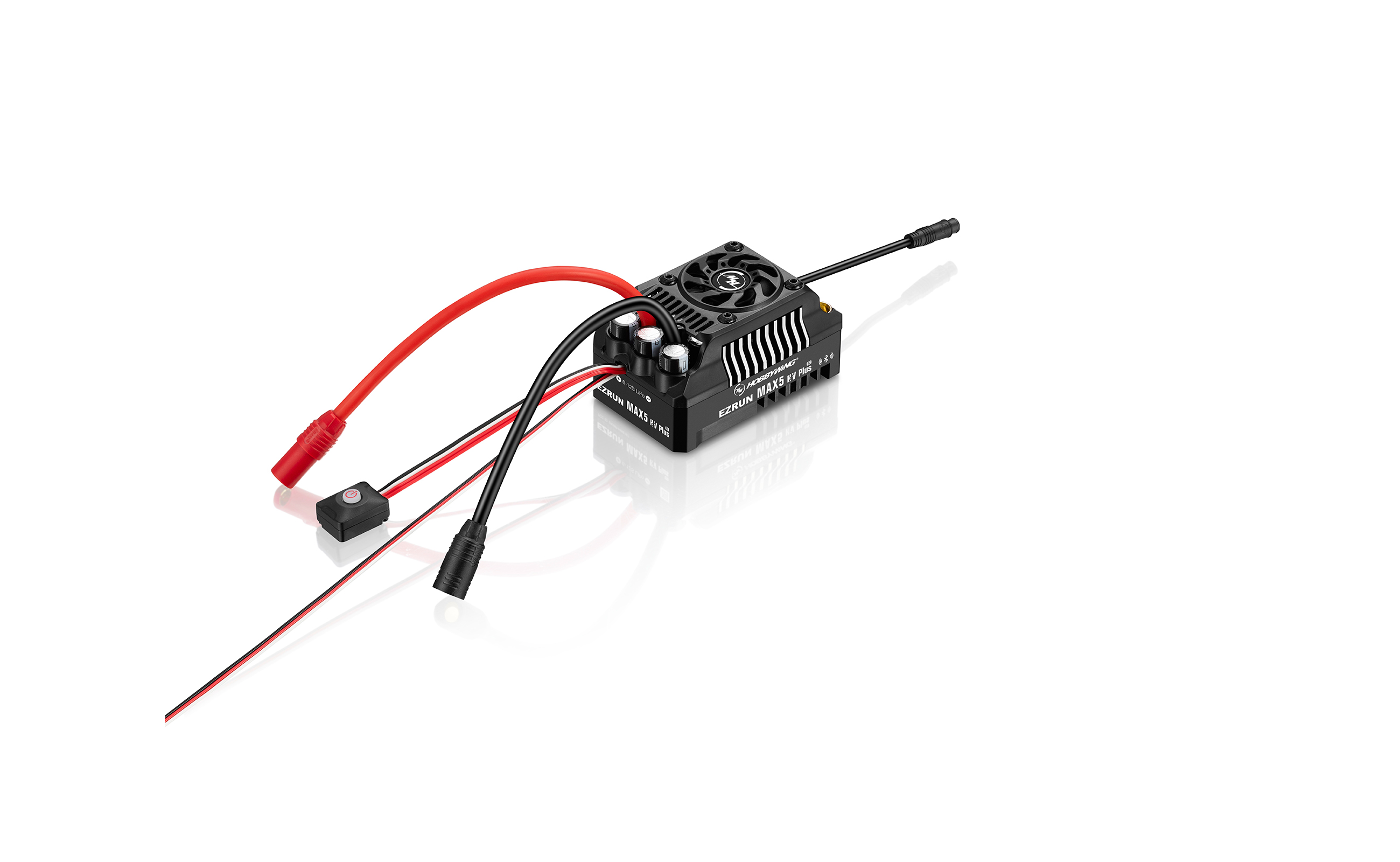

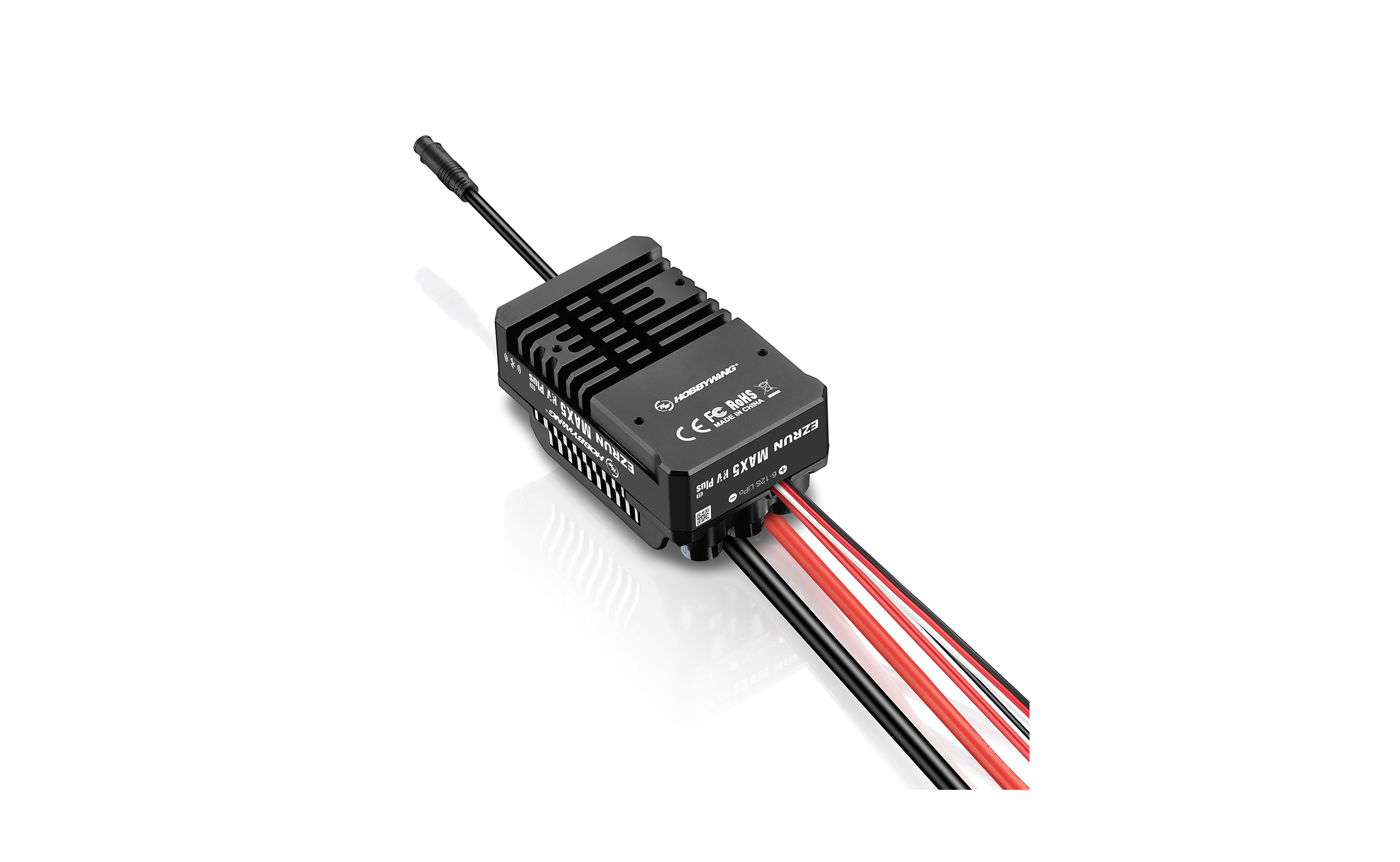

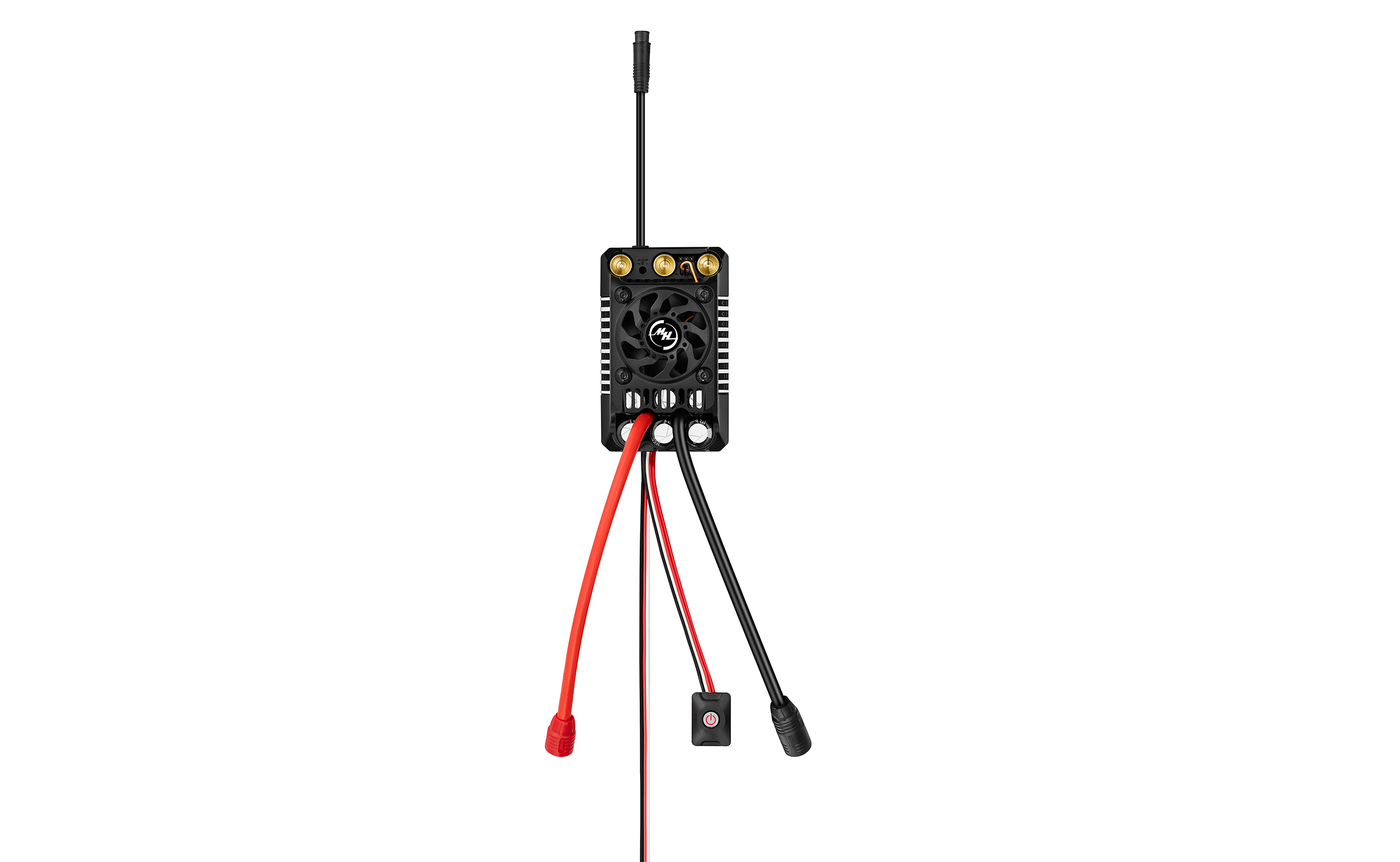

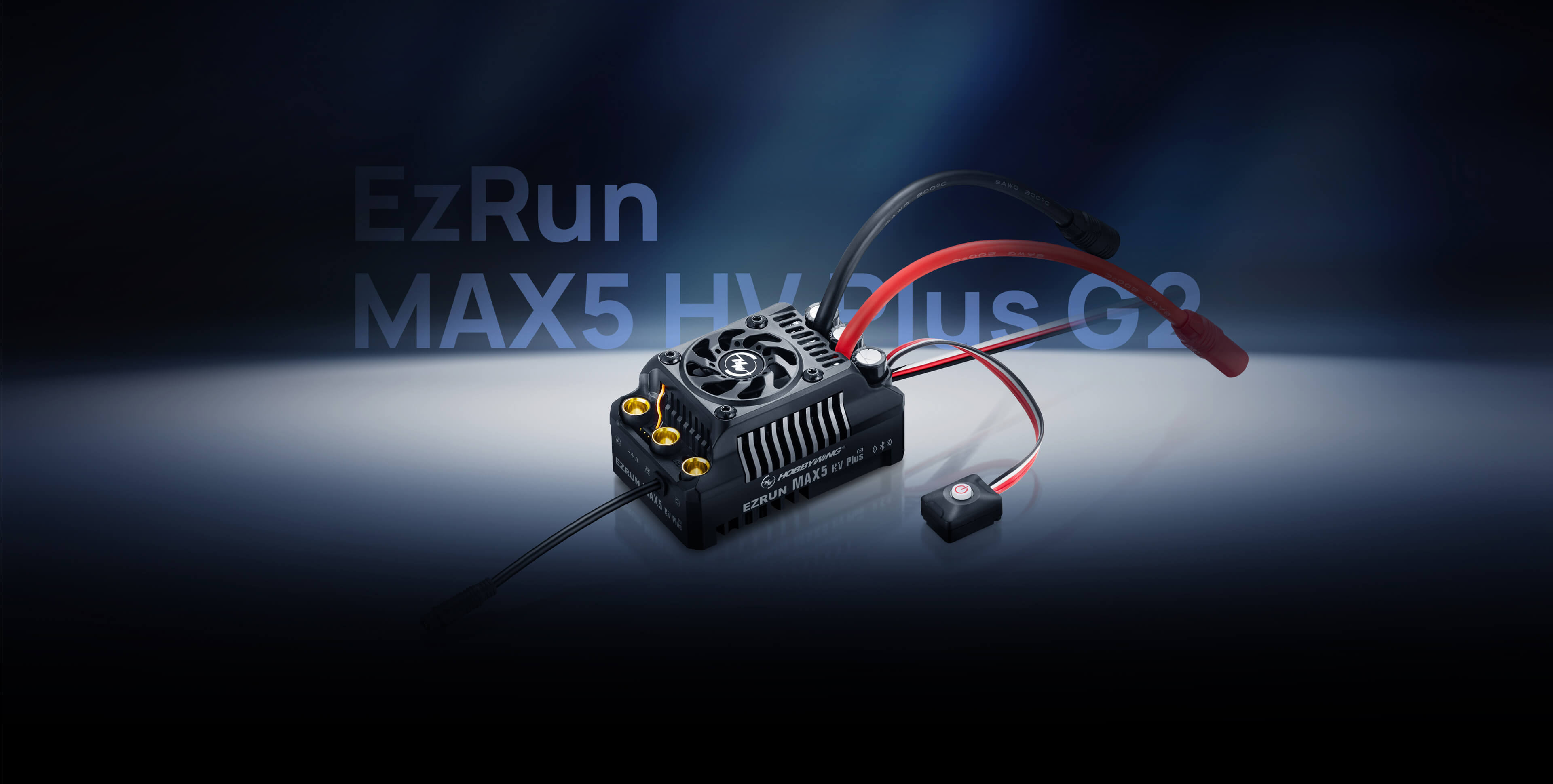

EzRun MAX5 HV Plus G2 | High-power RC Cars ESC
EzRun MAX5
HV Plus G2
Sensored and
High-power ESC for
Extreme-Speed
Applications
  • The ESC supports
    6-12S LiPo batteries.
  • Delivers up to 500A
    continuous current with 8S
  • Delivers up to 330A
    continuous current with 12S
  • It is powerful enough to handle
    1/7th、1/8th
    extreme speed applications with ease.

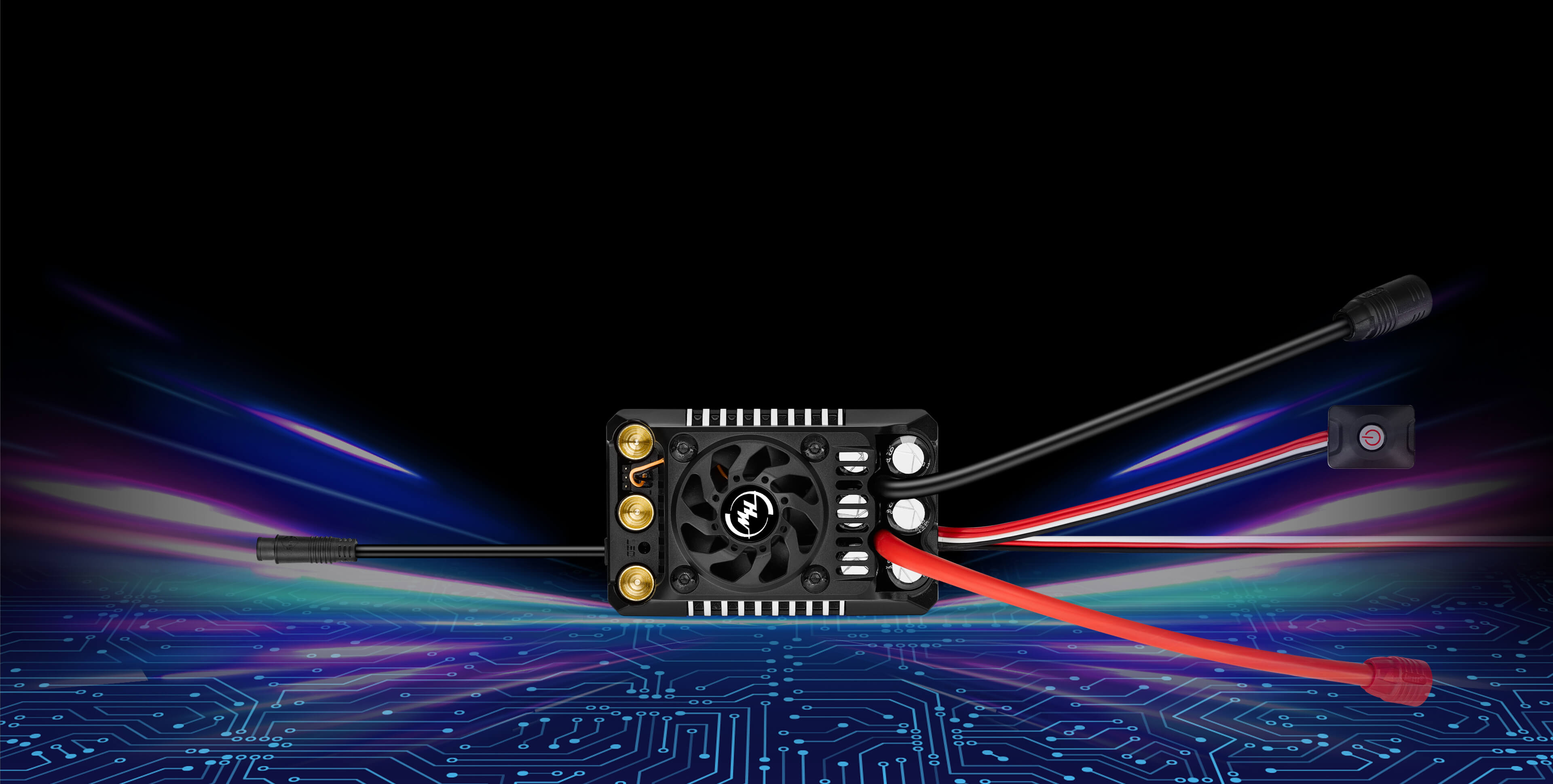

Intelligent Freewheeling,
Low Temperature Rise and
High Reliability
The advanced freewheeling technology increases driving efficiency
and reduces operating temperatures. The high-power design also
enhances the ESC's stability and reliability.
Intelligent Freewheeling

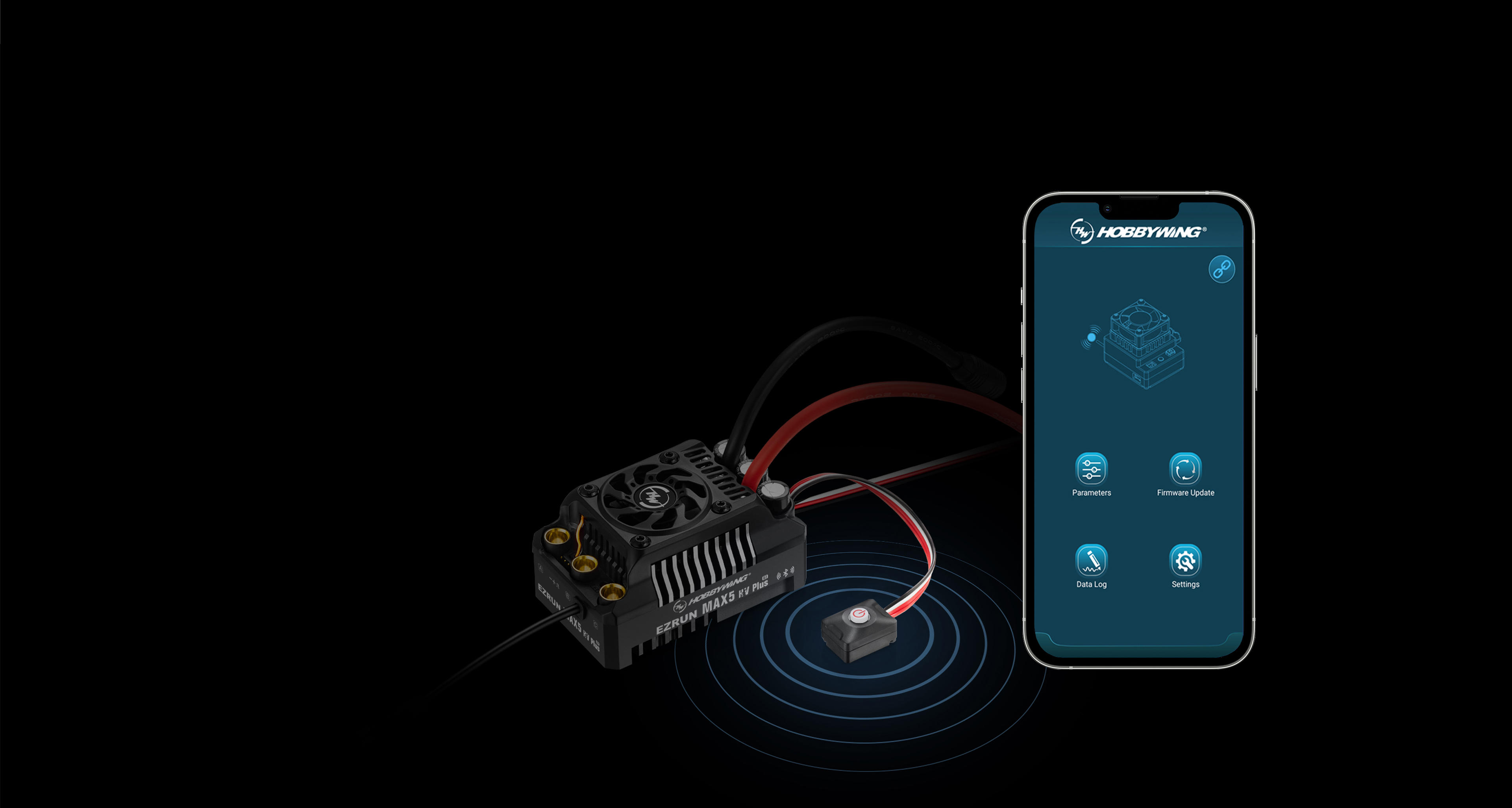

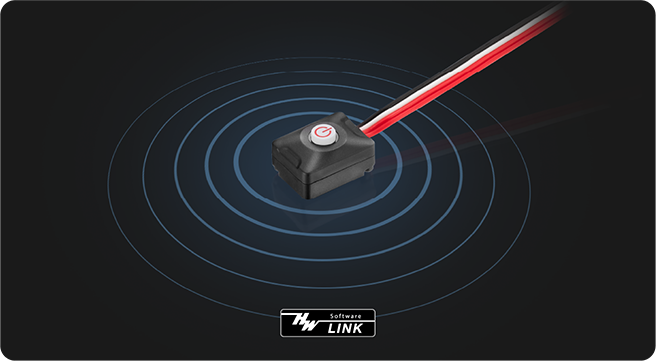

Built-in Bluetooth for
Direct Connectivity to
the Mobile APP
The ESC comes with a built-in Bluetooth module. It allows
users to connect directly to a mobile app to adjust settings,
check data, and update firmware with ease.

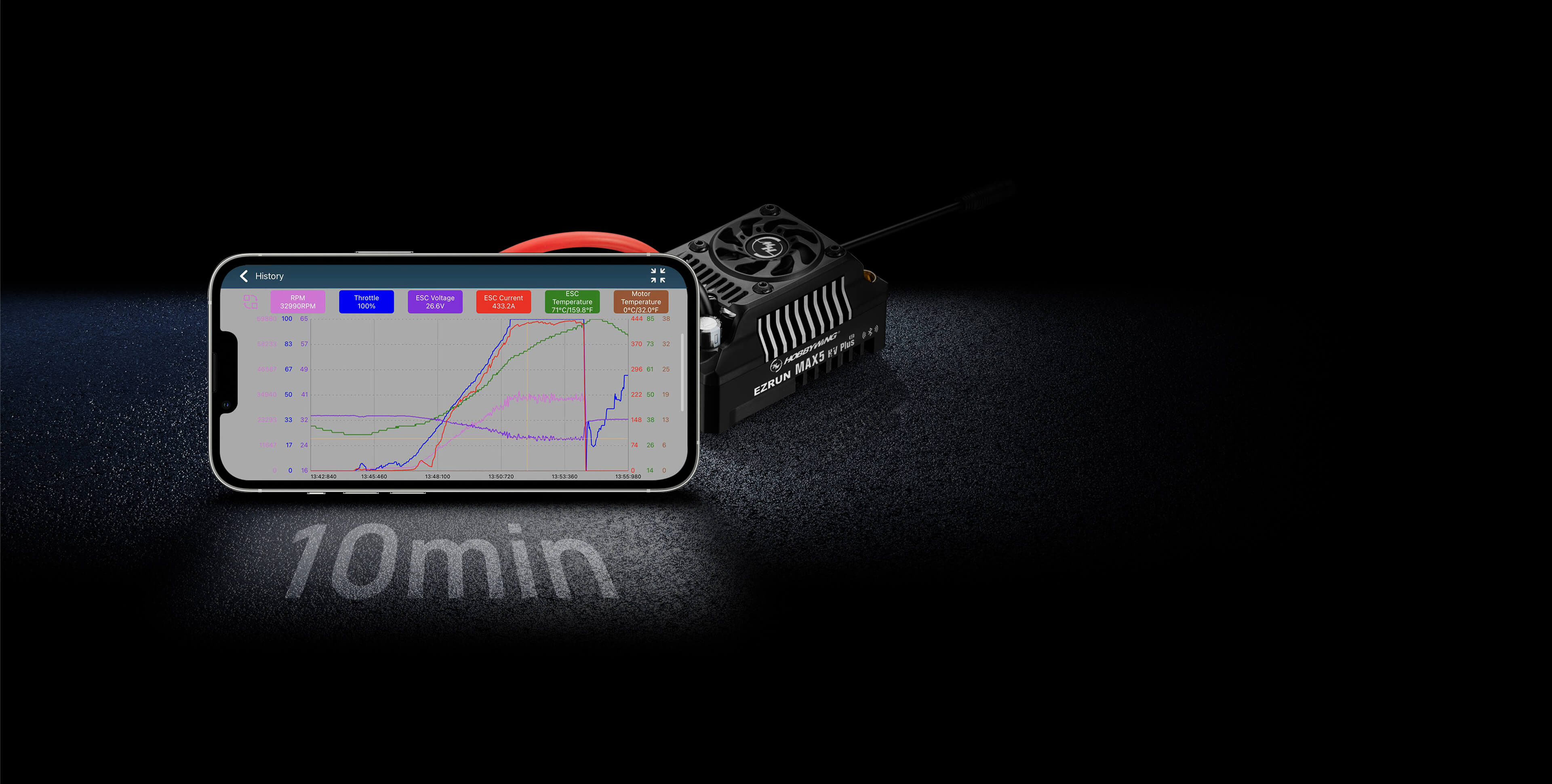

Built-in Data
Logging Function,
Obtain Operation
Status with Ease
The ESC has a built-in data recording module that stores up to
10 minutes of recent data. With the mobile app, you can view
curve graphs and historical records to easily monitor and
understand your ESC and motor performance.
Note: Due to transmission distance of bluetooth, the effective
distance is only about 5m!

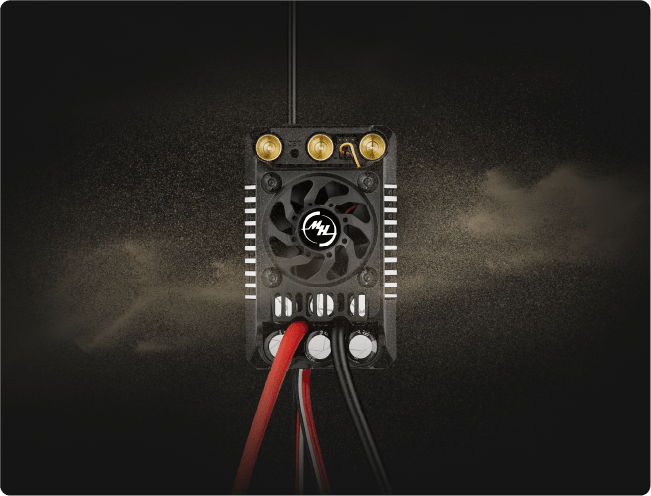

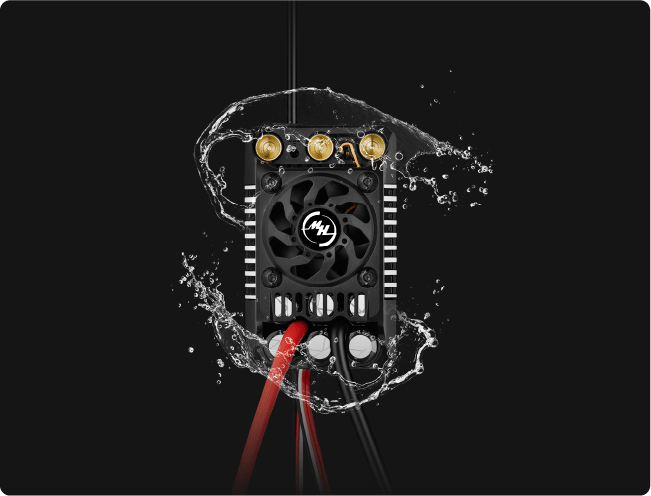

Applicable to All Weather Conditions
The ESC has an IP67 protection rating, offering excellent waterproof and dustproof
performance to handle different weather conditions and tough environments with ease.
Note: The IP67 protection level indicates the ESC is splashproof, water-resistant, and dustproof under normal use. It has been tested under
controlled laboratory conditions in accordance with GB/T 4208-2017 (China) and IEC 60529 (International) standards. However, these protective
features are not permanent and may diminish over time due to aging. Avoid prolonged submersion in water, as it may damage the product.

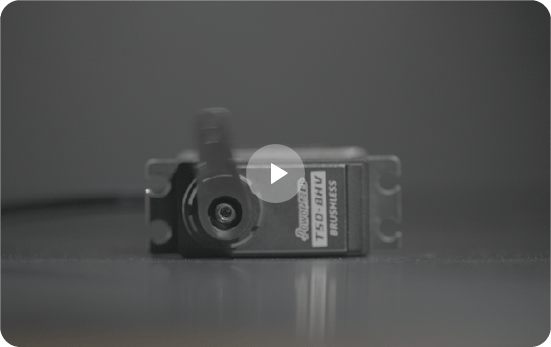

Super Built-in BEC
Super Built-in BEC
  • A maximum output of
    28A
  • Adjustable voltage options of
    6V/7.4V/8.4V
  • It effortlessly powers strong and high-voltage servos,
    giving players the freedom and control they need for
    an enhanced experience.

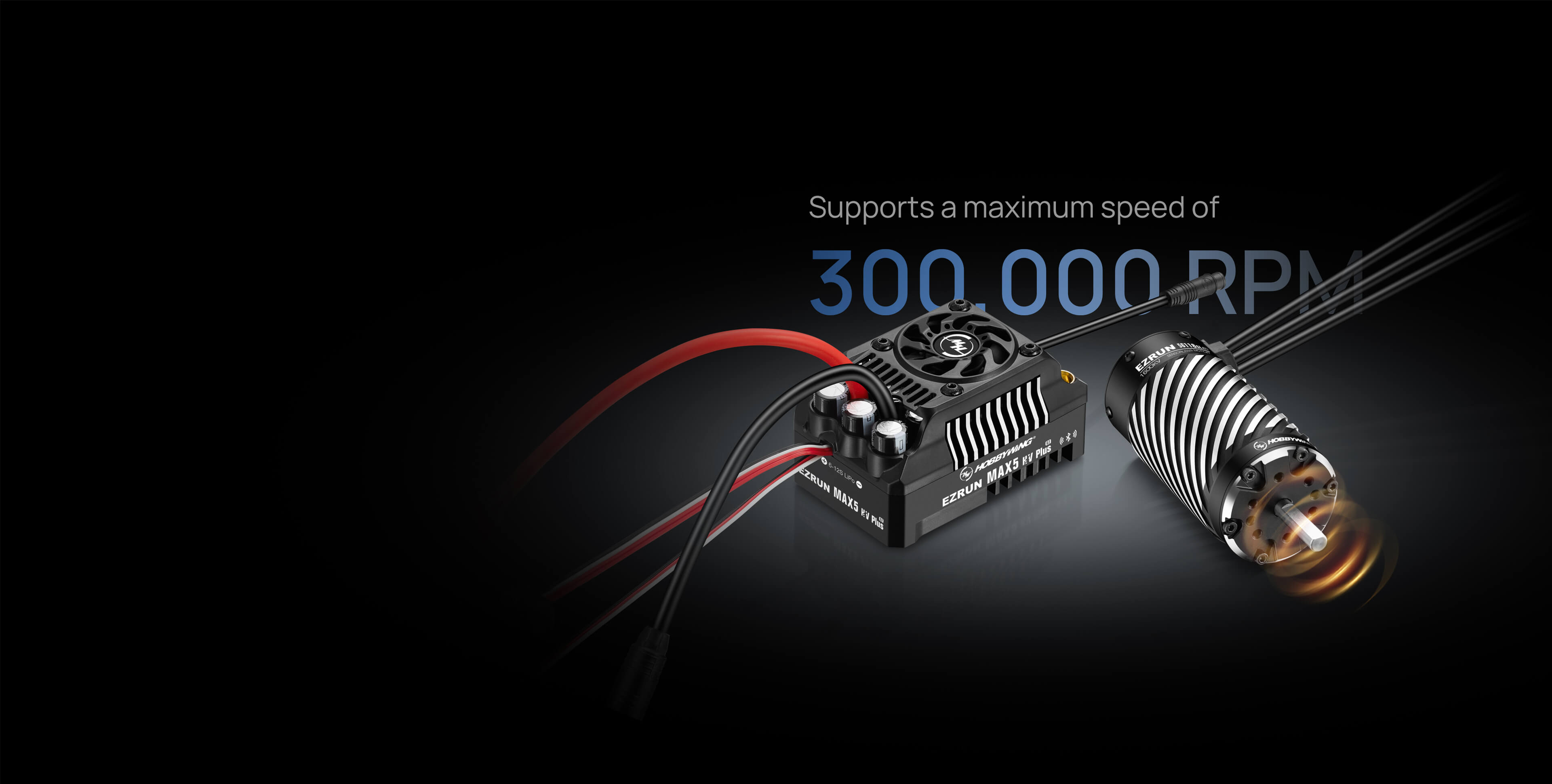

Supports Ultra-high
Speed Applications
The ESC supports a maximum speed of 300,000 RPM (2-pole),
easily meeting the demands of high-speed extreme
applications.
Note: The maximum supported speed varies depending on the
motor's pole pair configuration. The actual supported speed is
calculated as 300,000/pole pair. For example, a 4-pole motor
supports up to 150,000 RPM, while a 6-pole motor supports up
to 100,000 RPM.
Turbo Timing Technology
The ESC supports a maximum adjustable Turbo timing of 24 degrees.
Note: Turbo timing is only compatible with
Hobbywing EZRUN 5690/56118 G2 sensored
motors and cannot be enabled for other motors.
It can boost maximum speed by approximately 18%.
When paired with the Hobbywing EZRUN
5690/56118 SD G2 sensored motor, it can boost
maximum speed by approximately 18%.

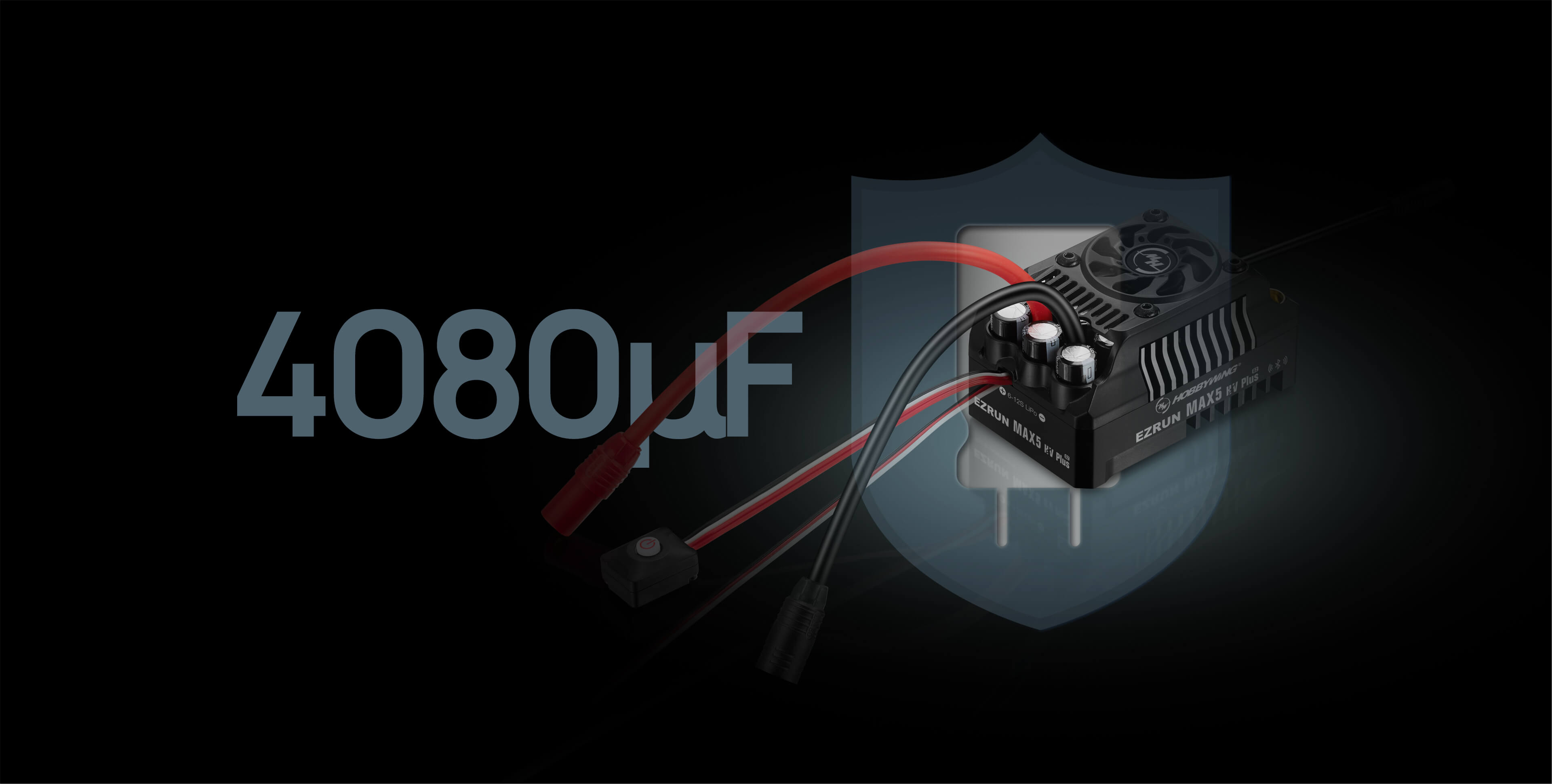

Large Built-in Capacitor
The ESC features a high-capacity 4080μF capacitor,
eliminating the need for external capacitors in 1/5th,
1/7th, and 1/8th high-speed models. Additionally, it
includes a capacitor temperature protection function
to always ensure safe and reliable operation.

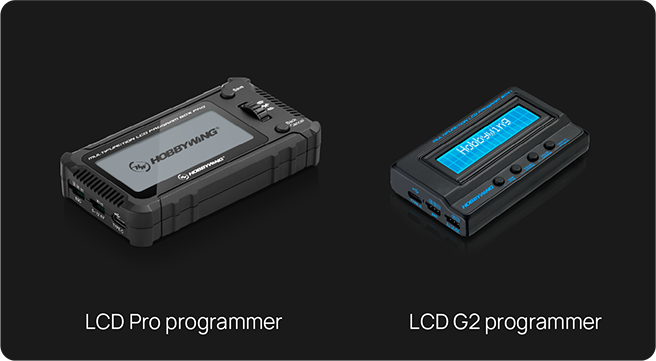

Dual Programming Method
The ESC supports parameter adjustments via the HW Link App
using Bluetooth.
Or through an LCD/LCD G2 programmer connected to the independent
programming port.

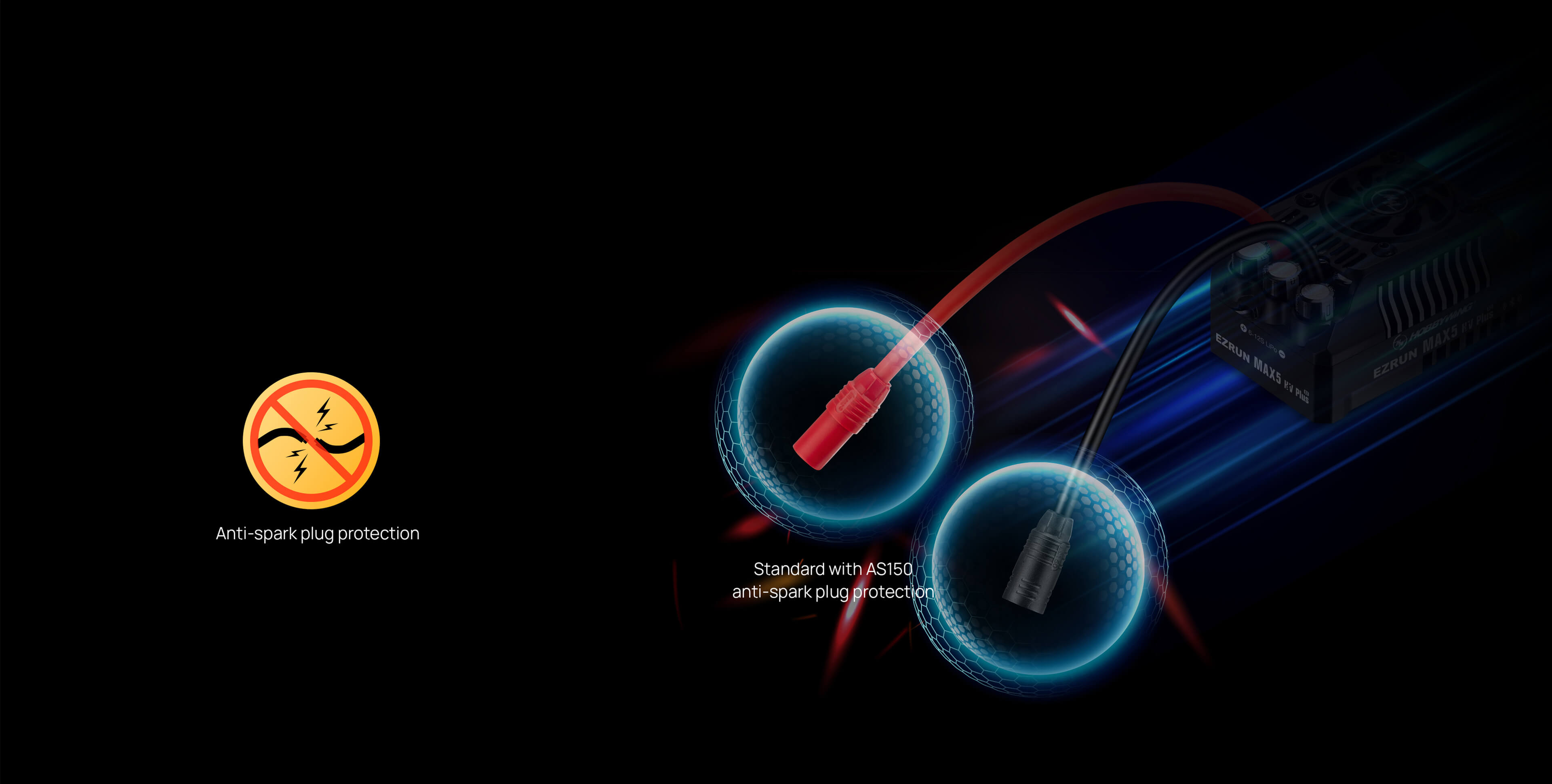

Equipped with
Anti-spark Connectors
The ESC's input line comes standard with AS150 anti-spark plug
protection, ensuring safety when using higher voltages (6-12S).
It effectively prevents damage to the battery plug and protects
against strong electric sparks that could harm fingers.
Product NameEZRUN MAX5 HV PLUS G2
Product Number
  •
  • 30104300
Type
  • Scale
  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • 1/5th、1/7th、1/8th
  • BL
  • SD
  • Yes
Specifications
  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • 330A/2000A
  • 6-12S Lipo
  • 6V/7.4V/8.4V adjustable, cont. current 8A (Switch regulator mode)
Wires & Connectors
  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Red-8AWG-200MM*1、Black-8AWG-200MM*1
  • NO
  • AS150-F plug - red shell, AS150-M plug - black shell
  • 8.0MM Gold female plug
ESC Programing via
  • SET Button on ESC
  • LED Program Box
  • LCD G2 Program Box
  • LCD PRO
  • OTA Programmer
  • Program Port
  • Not Supported
  • Not Supported
  • Supported
  • Supported
  • Supported
  • Bluetooth(directly connected by mobile phone APP)/ Independent Programming Port (connected by LCD/OTA)
Data Recording
  • Extreme value
  • Real-time Data
  • Historical data (Graph)
  • Supported
  • Supported
  • Supported
Firmware
  • Firmware Upgrade
  • Supported
Size & Weight
  • Size
  • Weight
  • 94.5*59.4*51.6mm
  • 450g(Including wires and plug)
Applications
  • Motors
  • Vehicles
  • Applicable Motor
  • Sensored Brushless motors & Sensorless Brushless motors
  • 1/8th, 1/7th and other model cars for extreme speed applications, 1/5th trucks/monsters trucks for violent applications
  • EZRUN 5690/56118SL G2
Support

Manuals & Documents

Manuals

Software Download

FAQ

Multifunction LCD Program Box
Multifunction LCD Program Box

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

+
OTA Programmer
OTA Programmer

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.

+
LCD Program Box Pro
LCD Program Box Pro

NEW

LCD Program Box Pro

Product Number: 30502002
Input Voltage: DC 5V~12.6V
Application: brushless ESC
Weight: 85g
Display:LCD

+
