FlyFun Series

Overview
Specifications
Support
Accessories
Detail

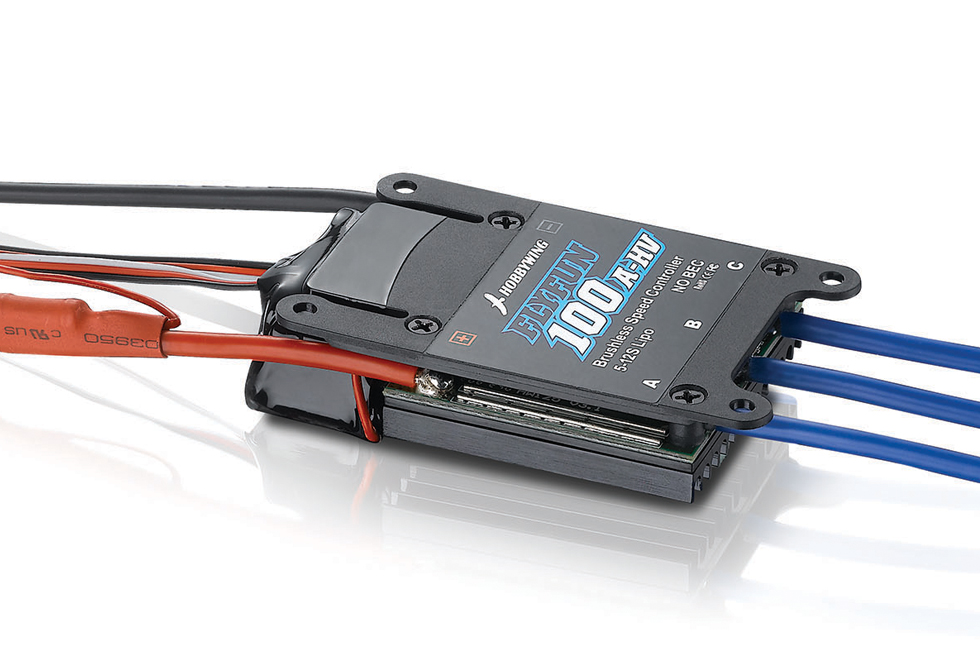

FlyFun HV 100A

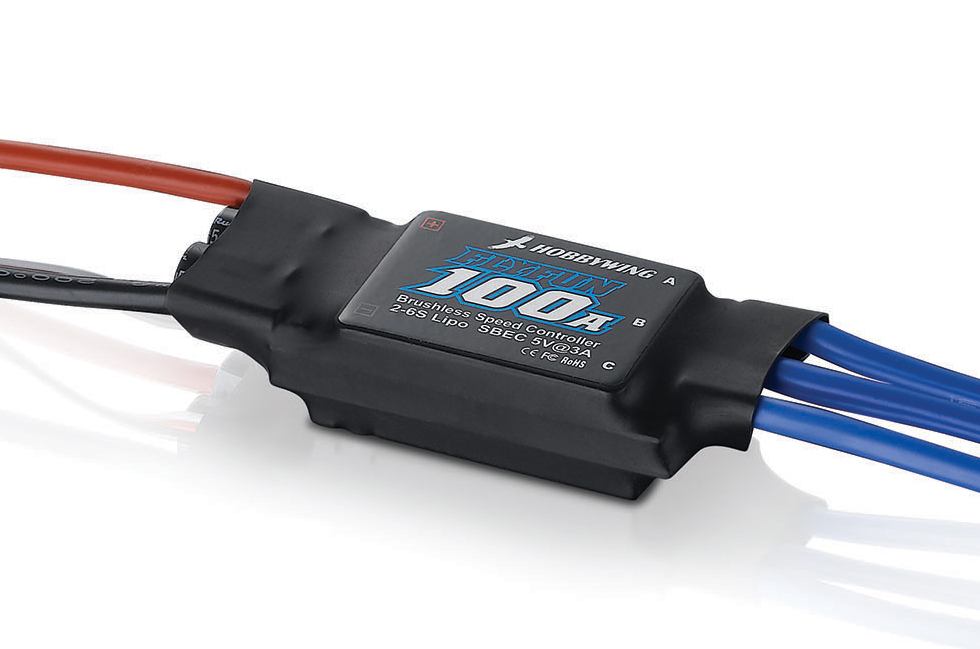

FlyFun 100A

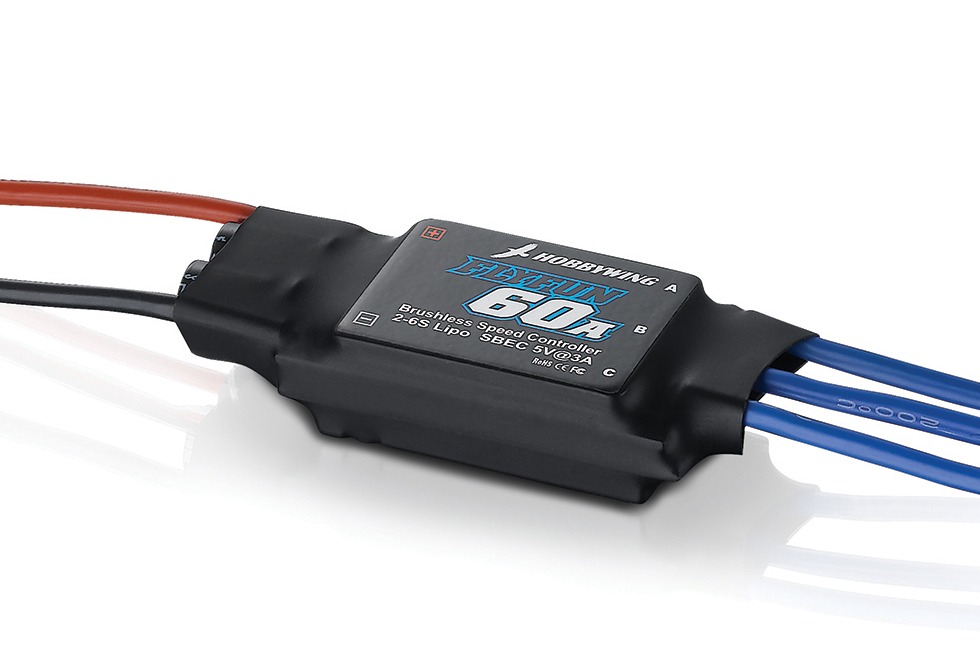

FlyFun 60A

FlyFun 40A

FlyFun 30A

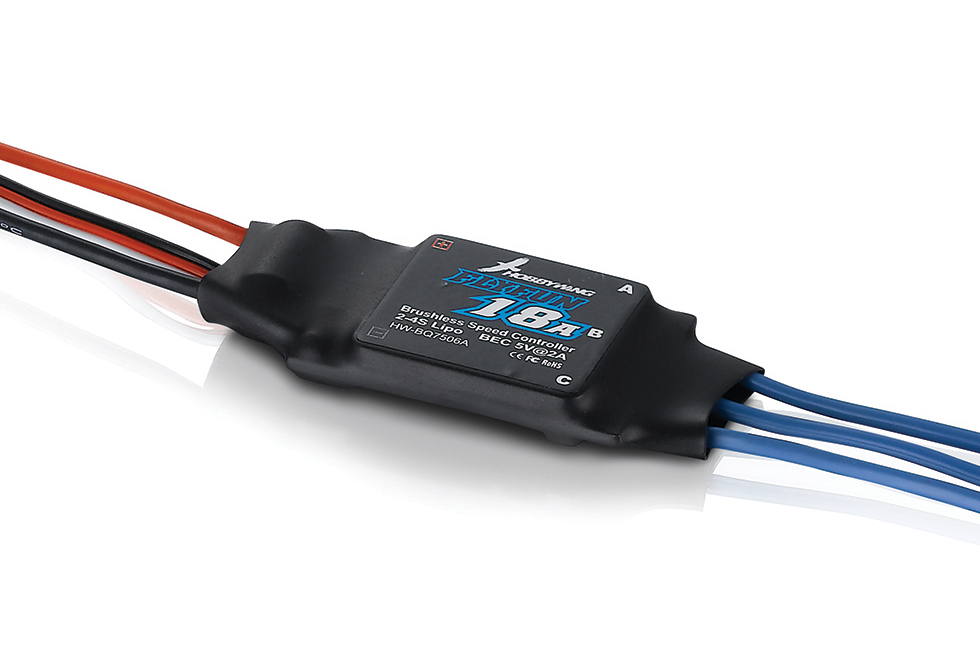

FlyFun 18A

FlyFun 12A

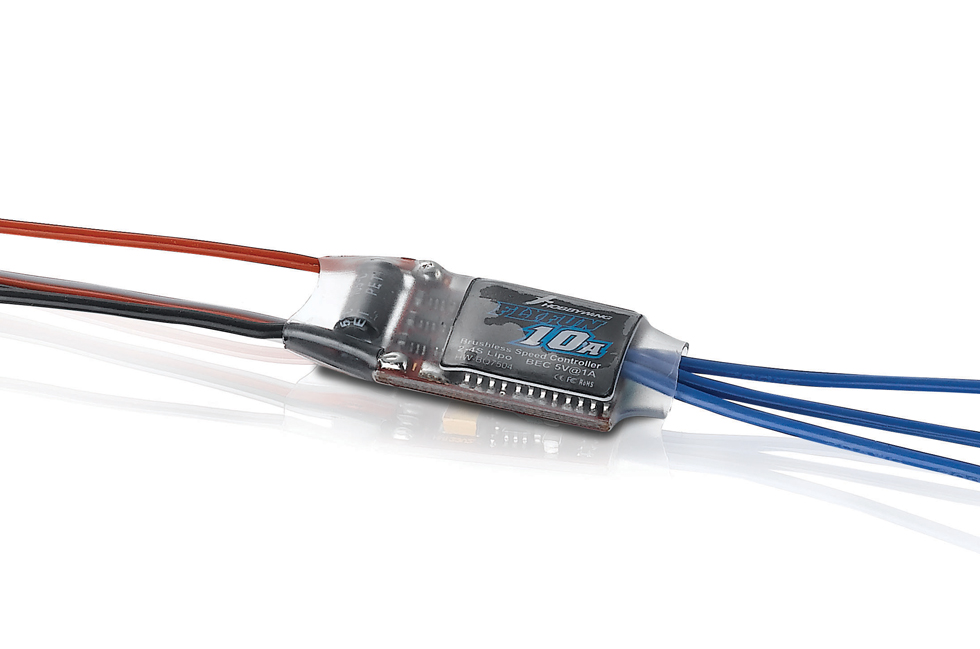

FlyFun 10A

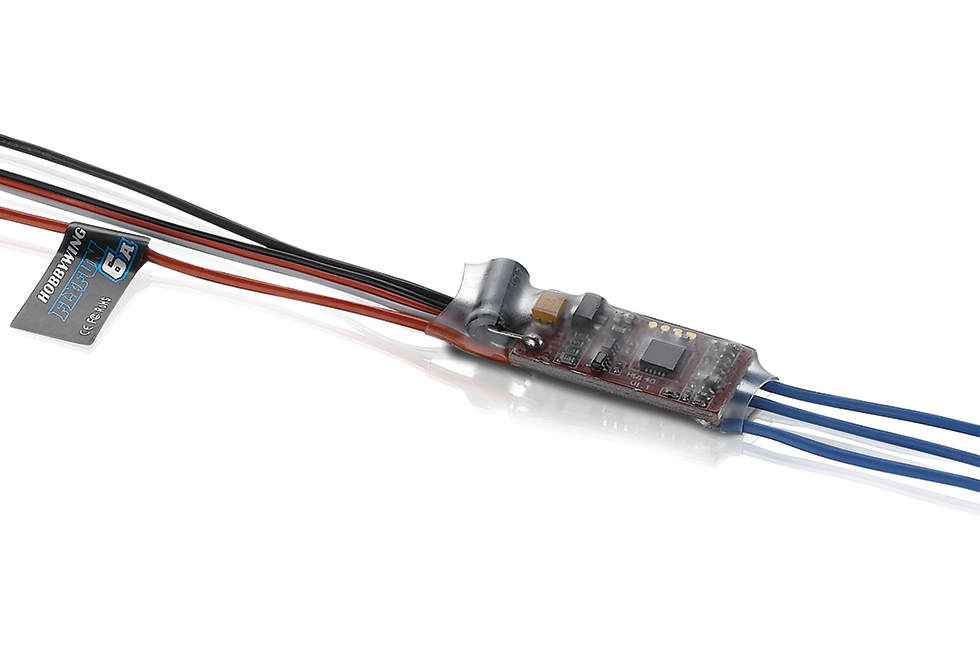

FlyFun 6A

Great Performance

Imported components and the PCB (printed circuit
board) with extremely low impedance adopted by FlyFun ESCs gurantee
great current endurance, good performance and high reliability.

Great Performance

Programmale Parameters

With a rich set of programmable parameters (via a LED program
card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Programmale Parameters

FlyFun 60A

Multiple Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage
cutoff effectively prolongs the service life of the ESC.

Multiple Protections

Product Name
Product Number
Type	Brushed/Brushless High Voltage/Regular
Specifications	Cont./Peak Current Input BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors
ESC Programing via	Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port
Firmware	Firmware Upgrade
Size & Weight	Size Weight

Product Name		FlyFun 100A OPTO V4	FlyFun 60A OPTO V4	FlyFun 40A OPTO V4	FlyFun 30A V4	FlyFun 18A V4.3	FlyFun 12AE V4	FlyFun 10A V4	FlyFun 6A V4
Product Number		80020660	80020632	80020622	80020610	30202150	80020591	80020580	80020570
Type	Brushed/Brushless High Voltage/Regular	BL Regular	BL Regular	BL Regular	BL Regular	BL Regular	BL Regular	BL Regular	BL Regular
Specifications	Cont./Peak Current Input BEC Output	100A/120A 2-6S LiPo No	60A/80A 2-6S LiPo No	40A/55A 2-6S LiPo No	30A/40A 2-4S LiPo Linear mode:5V,2A	18A/22A 2-4S LiPo Linear mode:5V,2A	12A/15A 2-4S LiPo Linear mode:5V,2A	10A/12A 2-4S LiPo Linear mode:5V,1A	6A/8A 2S LiPo Linear mode:5V,0.8A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors	Red-12AWG-150mm1 Black-12AWG-150mm1 Blue-12AWG-100mm*3 No 4.0 Gold Connectors (Female)	Red-14AWG-100mm1 Black-14AWG-100mm1 Blue-14AWG-100mm*3 No 4.0 Gold Connectors (Female)	Red-14AWG-100mm1 Black-14AWG-100mm1 Blue-16AWG-75mm*3 No 4.0 Gold Connectors (Female)	Red-16AWG-100mm1 Black-16WG-100mm1 Blue-16AWG-75mm*3 No 4.0 Gold Connectors (Female)	Red-18AWG-100mm1 Black-18AWG-100mm1 Blue-18AWG-75mm*3 No 4.0 Gold Connectors (Female)	Red-20AWG-100mm1 Black-20AWG-100mm1 Blue-20AWG-100mm*3 No No	Red-20AWG-100mm1 Black-20AWG-100mm1 Blue-20AWG-100mm*3 No No	Red-22AWG-100mm1 Black-22AWG-100mm1 Blue-22AWG-40mm*3 No No
ESC Programing via	Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port	Supported Supported Not Supported Not Supported Not Supported Not Supported Program/Throttle Wire	Supported Supported Not Supported Not Supported Not Supported Not Supported Program/Throttle Wire	Supported Supported Not Supported Not Supported Not Supported Not Supported Program/Throttle Wire	Supported Supported Not Supported Not Supported Not Supported Not Supported Program/Throttle Wire	Supported Supported Not Supported Not Supported Not Supported Not Supported Program/Throttle Wire	Supported Supported Not Supported Not Supported Not Supported Not Supported Program/Throttle Wire	Supported Supported Not Supported Not Supported Not Supported Not Supported Program/Throttle Wire	Supported Supported Not Supported Not Supported Not Supported Not Supported Program/Throttle Wire
Firmware	Firmware Upgrade	Not Supported	Not Supported	Not Supported	Not Supported	Not Supported	Not Supported	Not Supported	Not Supported
Size & Weight	Size Weight	83.0x31.0x14.0mm 73g	83.0x31.0x14.0mm 60g	60.0x28.0x12.0mm 35g	55.0x25.0x9.0mm 26g	48.0x22.5x6.0mm 19g	38.0x18.0x7.0mm 10g	38.0x18.0x6.0mm 10g	32.0x12.0x4.5mm 6g

Support

Manuals & Documents

User Manual for FlyFun Series of HV ESCs

User Manual for FlyFun Series of ESCs

S.BUS2 Telemetry Adapter for Futaba

Part Number: 30850500
Size: 25x13x6mm
Applications: Some of Platinum V4/V4.1/V5
series aircraft ESC ;
Some of XeRun series of car ESCs.
* For details, please refer to ESC manual to
ensure if the ESC can work with this device.

LED Program Card

Part Number: 86020041
Size: 88x58x14mm(LxWxH)
Applications: FlyFun series & SkyWalker
series of aircraft ESCs

UBEC 8A (2-3S)

Part Number: 86010030
Size: 42x39x9mm (LxWxH)
Applications: Nitro helicopters (30 class
above) & large scale fixed wing

UBEC 3A (2-6S)

Part Number: 86010010
Size: 43x17x7mm (LxWxH)
