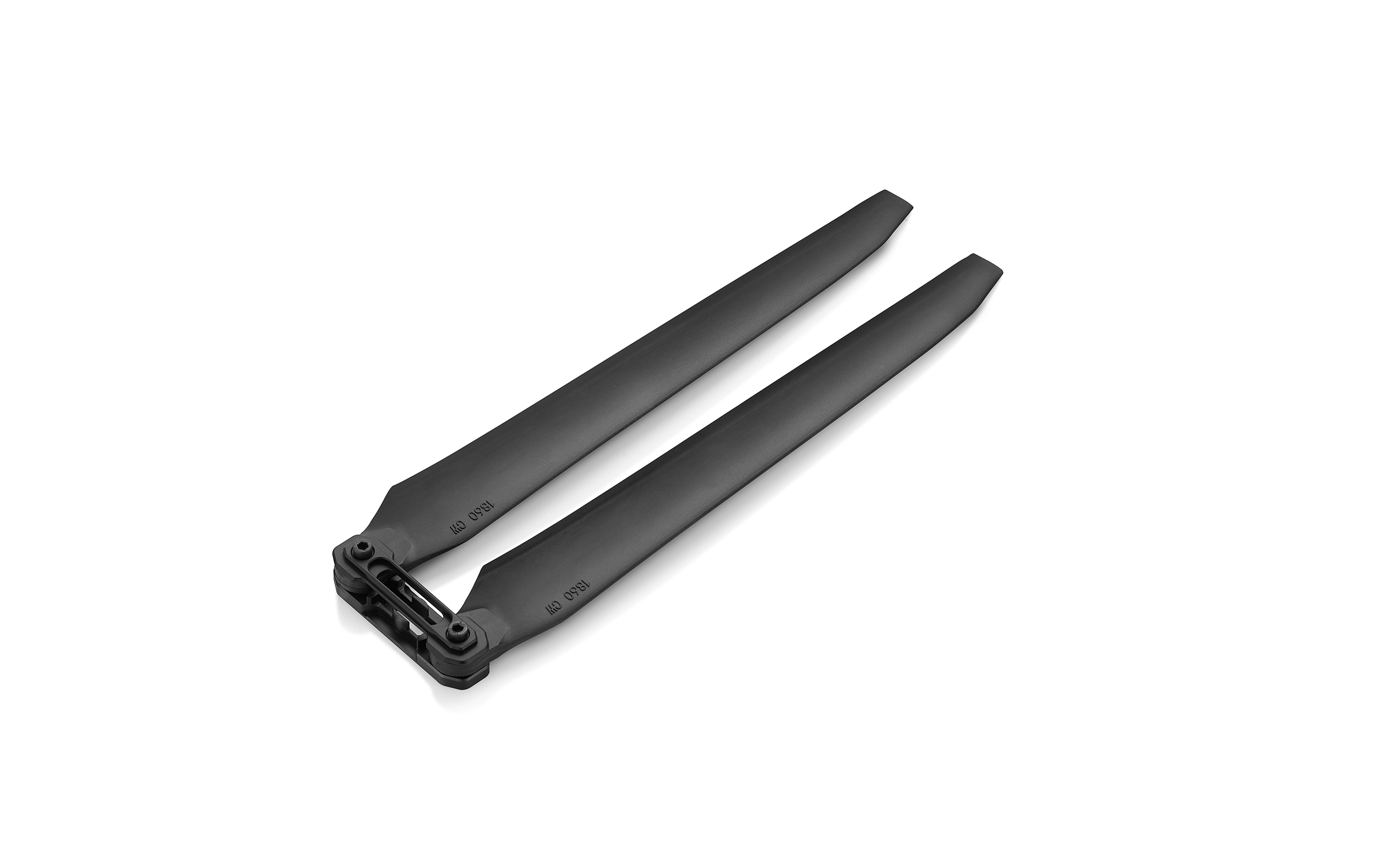

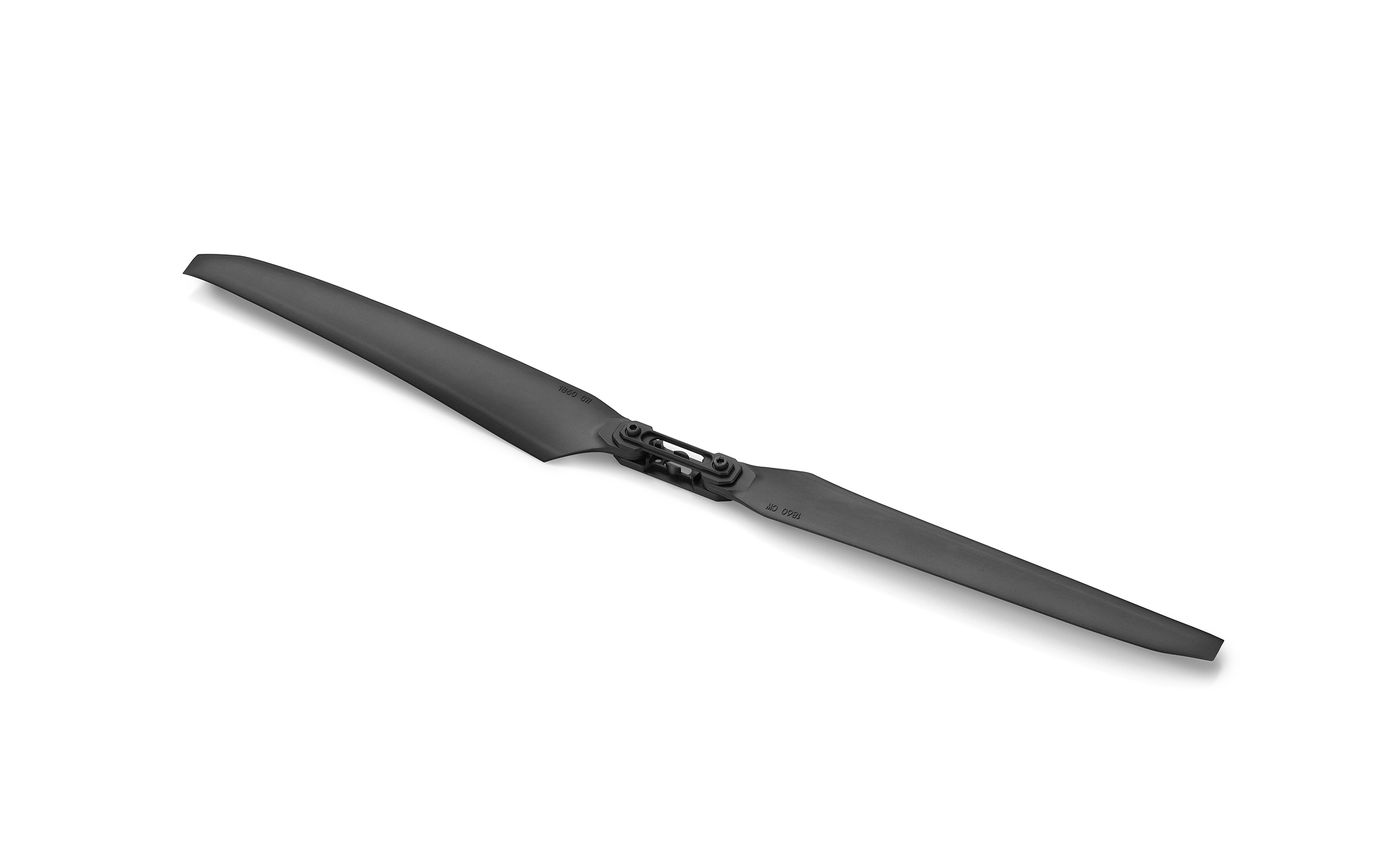

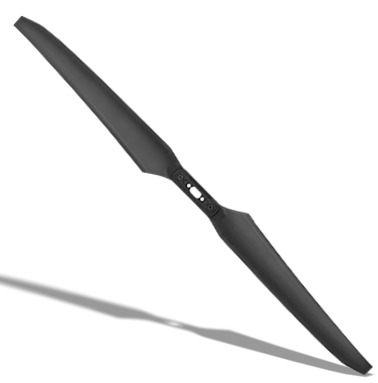

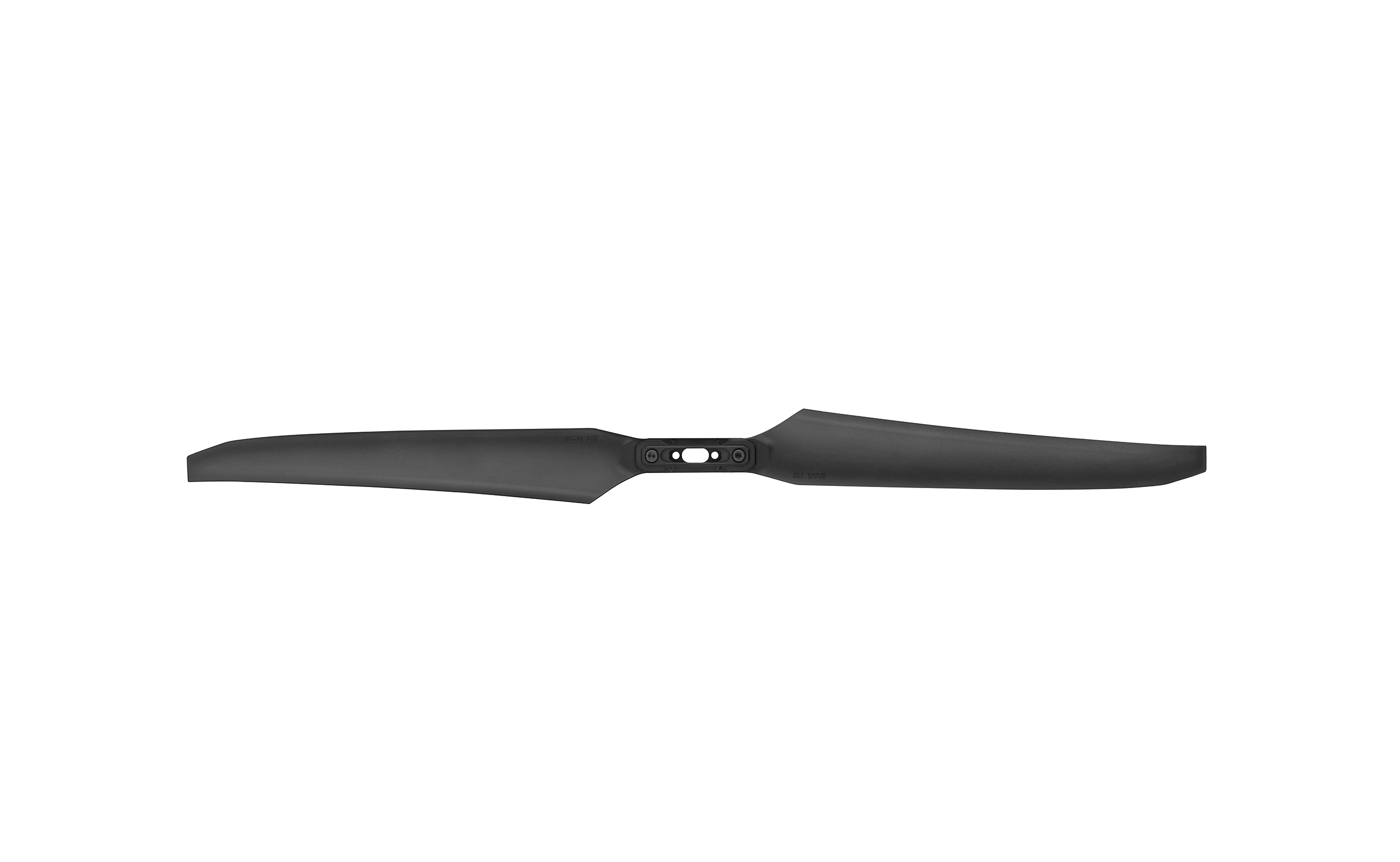

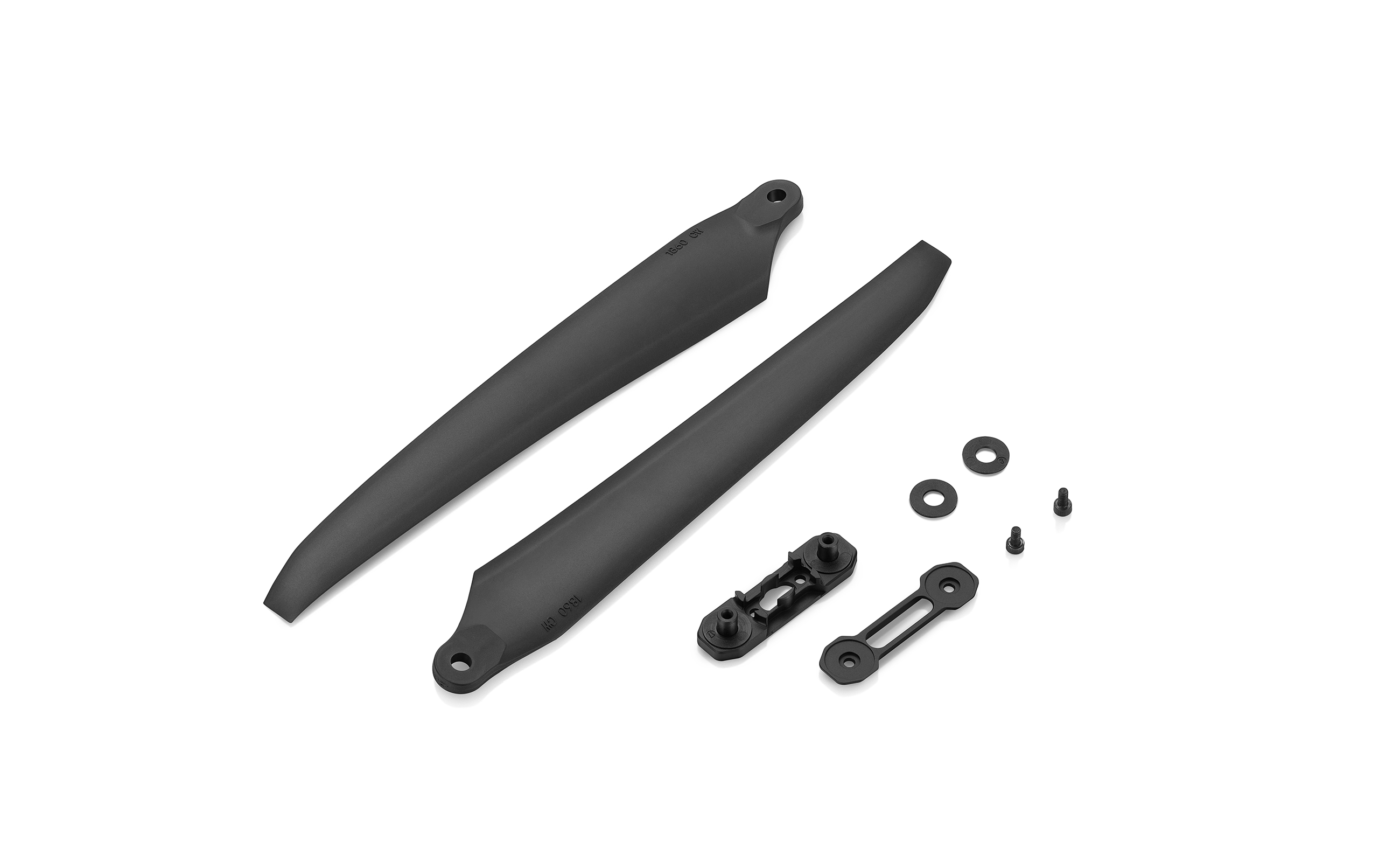

HF 18*6.0"
18*6.0"
INDUSTRIAL CARBON PLASTIC
FOLDING PROPELLER
Excellent Materials
Excellent Quality
High Performance
High Reliability
  • 39g
    Weighs only
  • 6.6kg
    Thrust at the max speed of 7600RPM

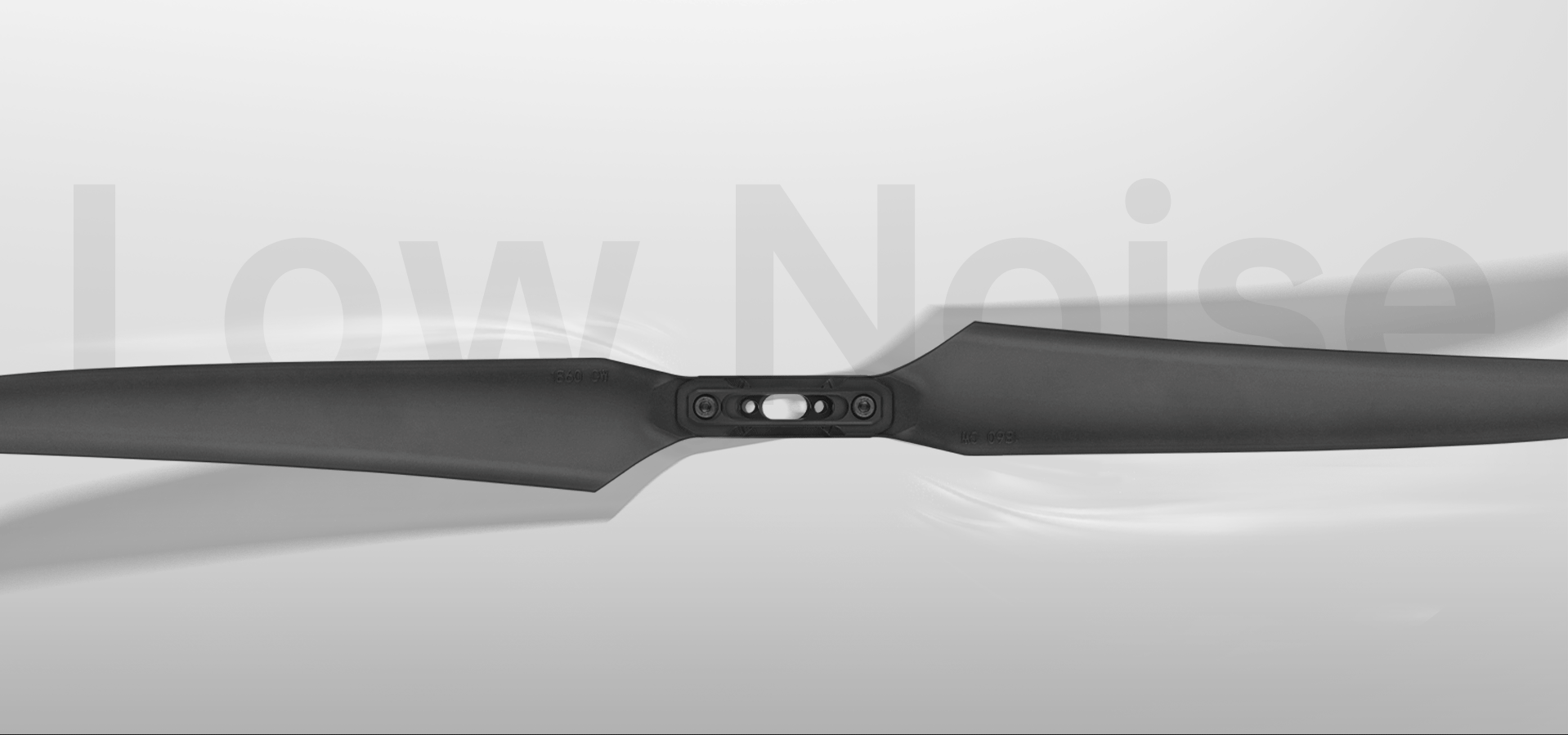

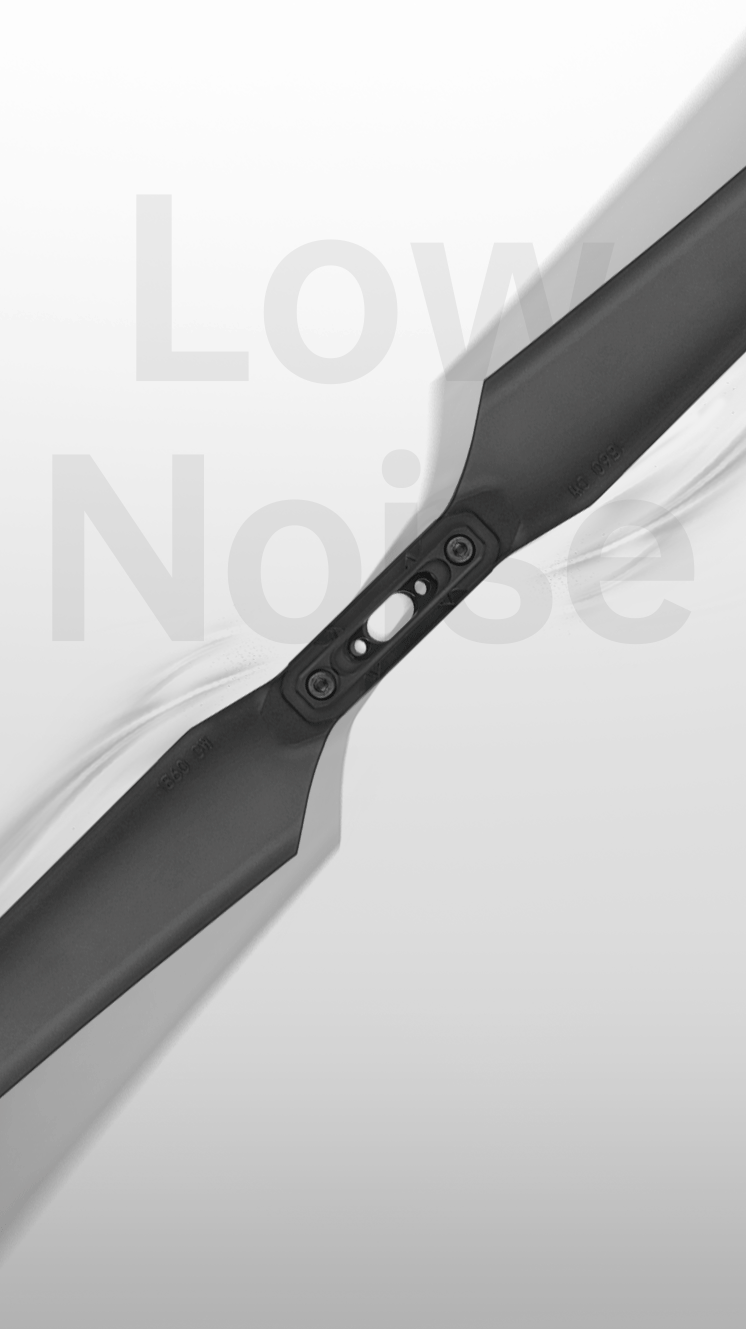

Optimize the aerodynamic performance of the rotor to
maintain strong thrust while reducing noise.
Strict Quality Control, Consistent Stability
Each propeller has undergone weight balancing tests
to ensure highly consistent performance, enabling a more stable flight.

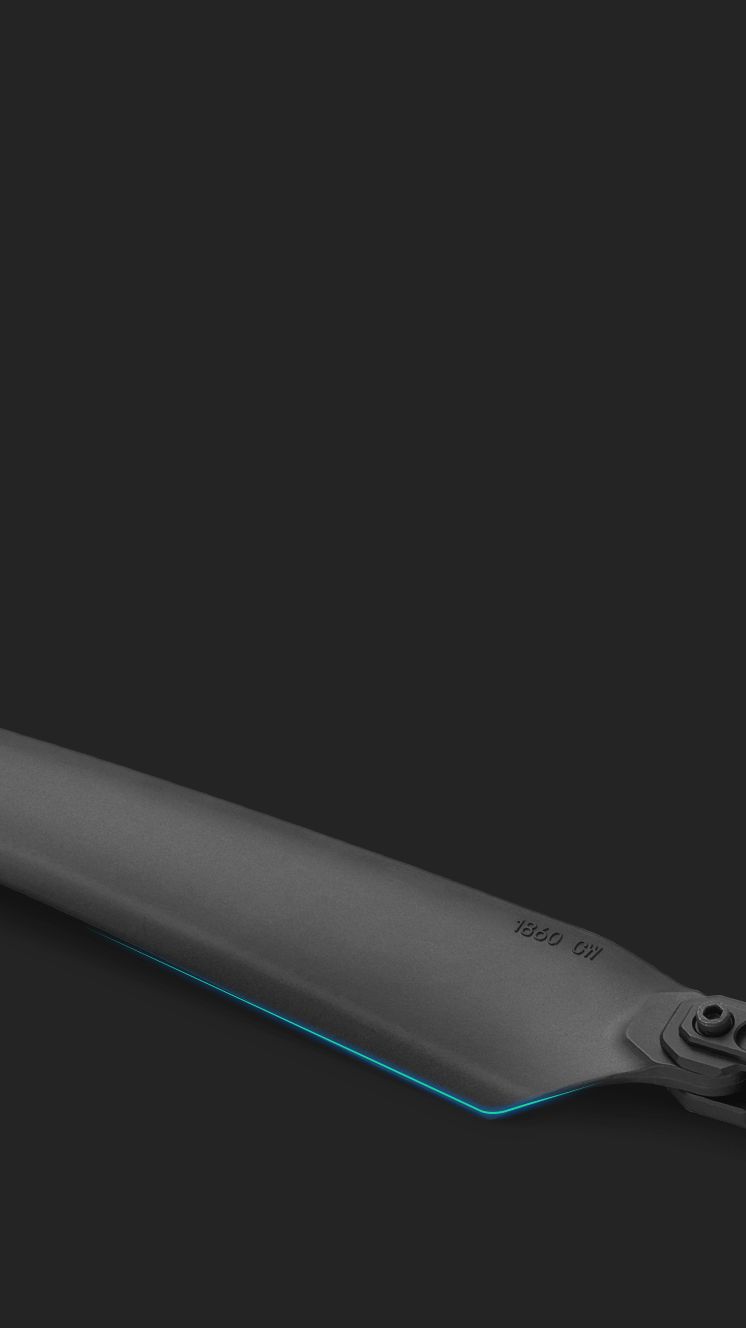

Excellent Aerodynamic Design
Brings High Propeller Efficiency
it adopts a uniaue airfoil desian with upturned blade, anhedral blade tip, and large aspect ratio, improving the vortex structure of the blade tip. lt also enhances the aerodynamic performance under heavy-load subsonic conditions, and ensure the aerodynamic performance and weight optimization based on high structural strength.
Strict Testing Standards
Ensure Reliability

More than 1000 hours of
strict fatique life tests

More than 200 hours of
fatigue testing in -40°C
low-temperature environments

Optimized Propeller Structure
and Material Matching
Composed of 40% carbon fiber, the propeller combines rigidity and toughness, meeting the requirements
of high strength, high toughness, water resistance and aging resistance, ensuring flight safety.
HF 18*6.0" CAD
Product Name
HF 18*6.0"
Specifications
Blade model HF 22*7.0" Carbon Plastic Folding Propeller
Single weight 39g
Main material Carbon fiber reinforced polymer
Surface Technology Matte frosted
Propeller Adapter Material Aluminum Alloy
Operating temperature -20℃~50℃
Storage temperature -10℃~35℃
Storage humidity <85%
Optimal speed range 3100~6300RPM
Commonly used thrust range 1~4.5kg
Max RPM 7650RPM
Max thrust 6.6kg
Non-folding/Folding Folding
Recommended motors of HOBBYWING M6208 / X6SE
HF 18*6.0" Speed, thrust and torque test data
