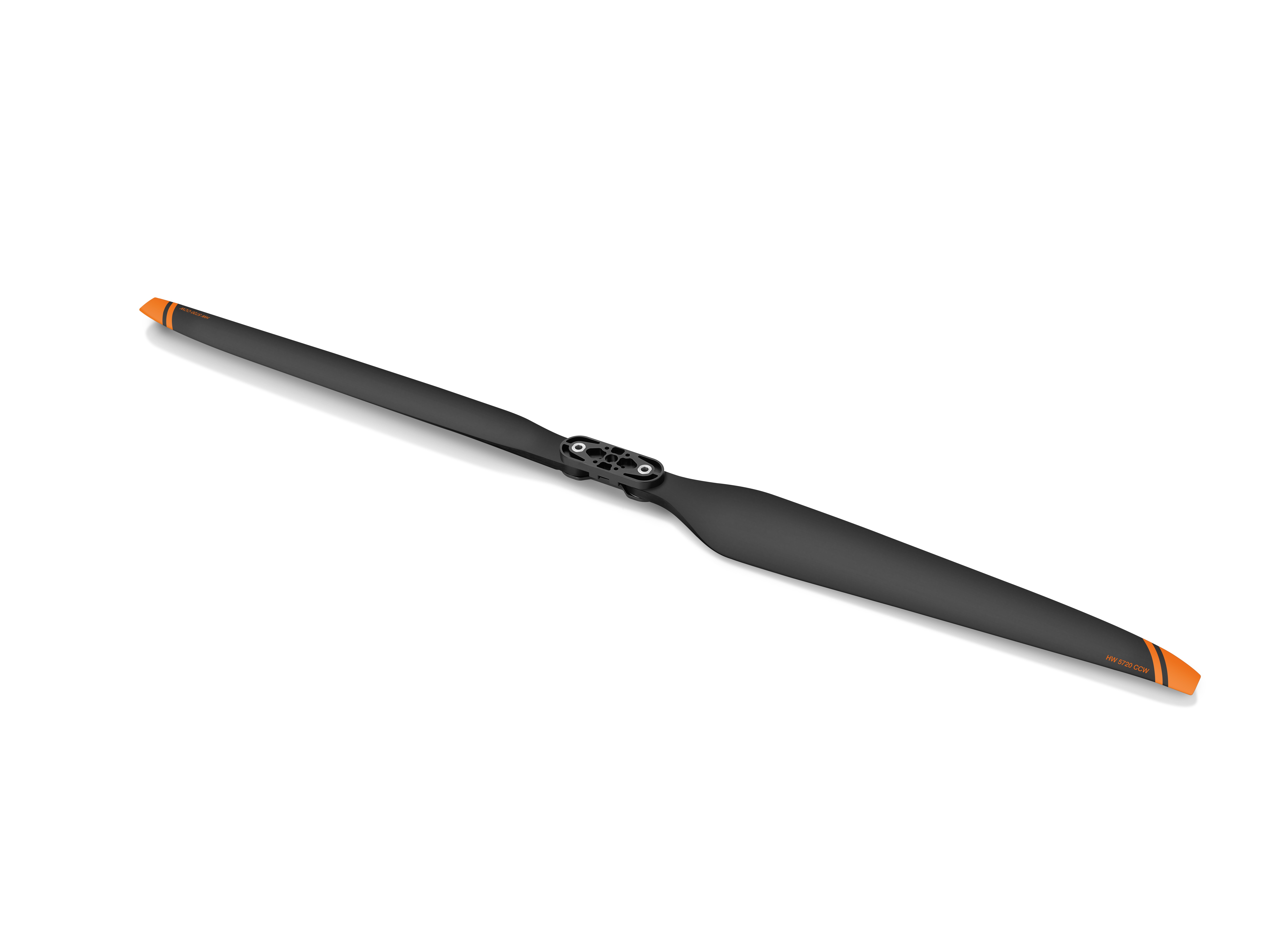

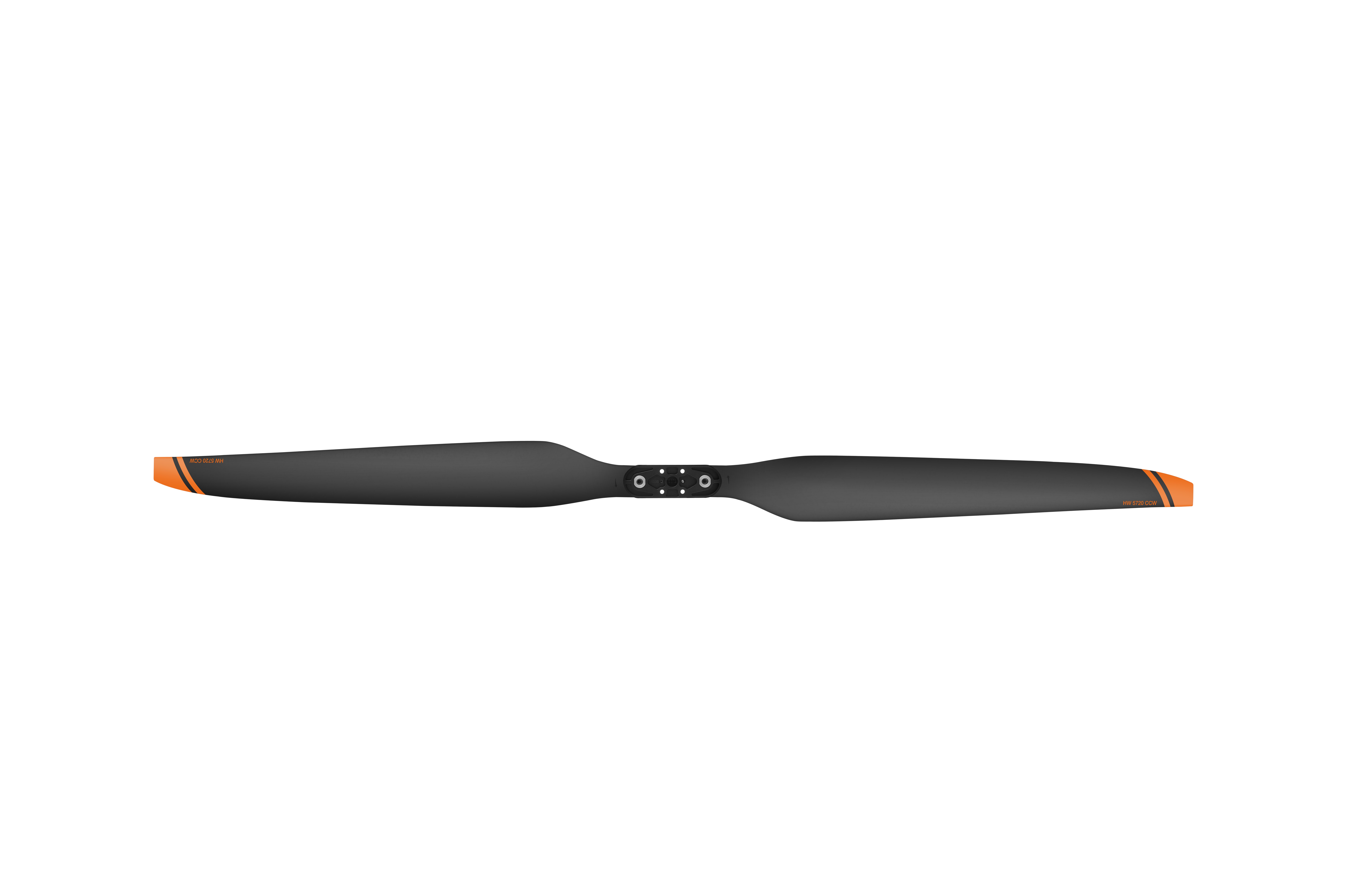

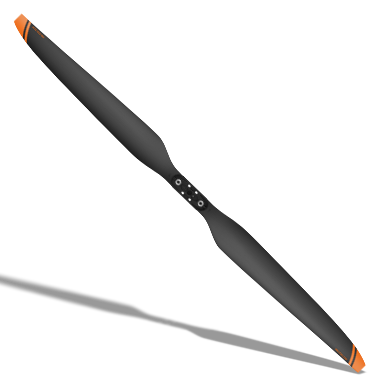

HF 57*20"
HF 57*20"

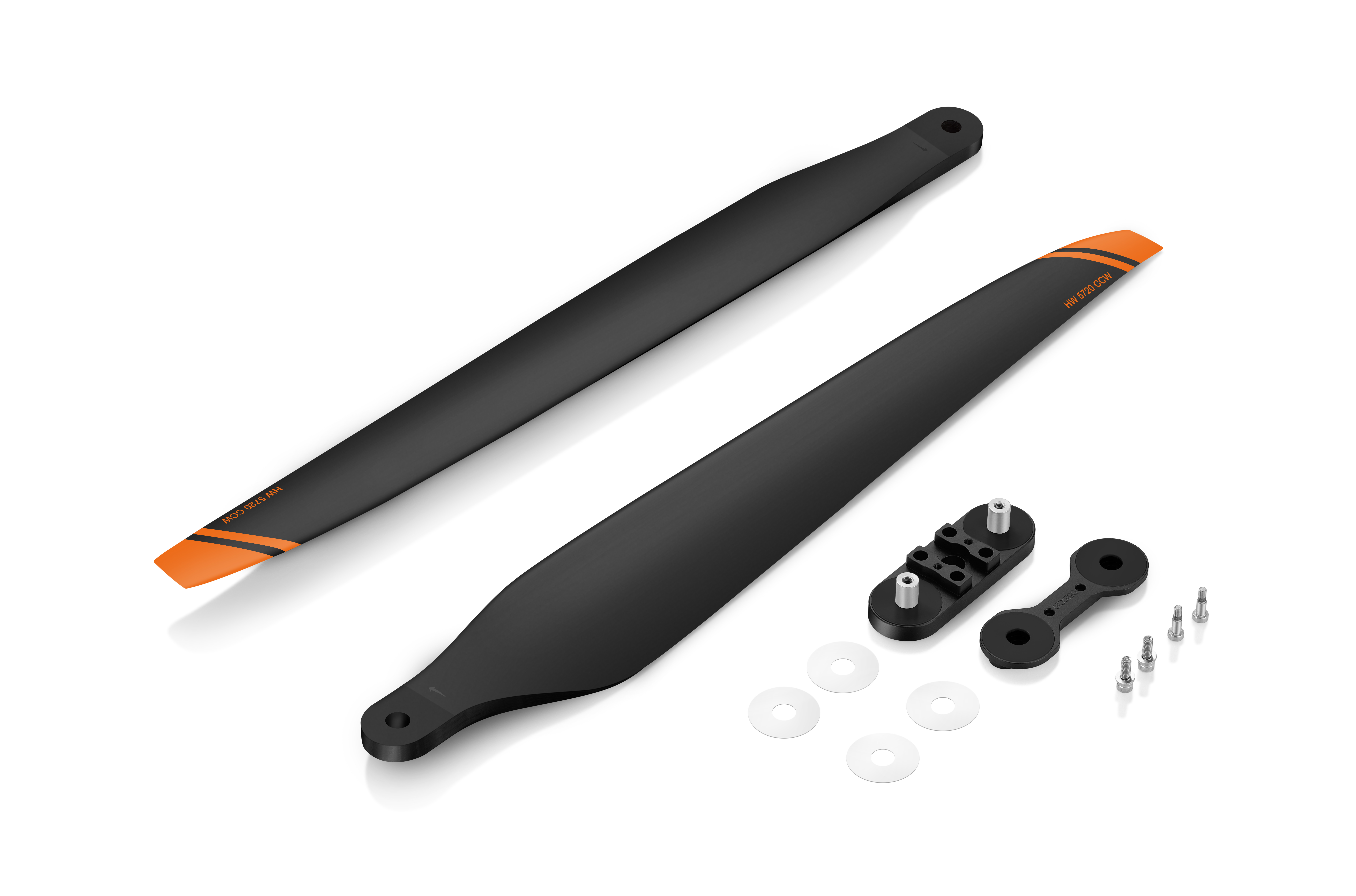

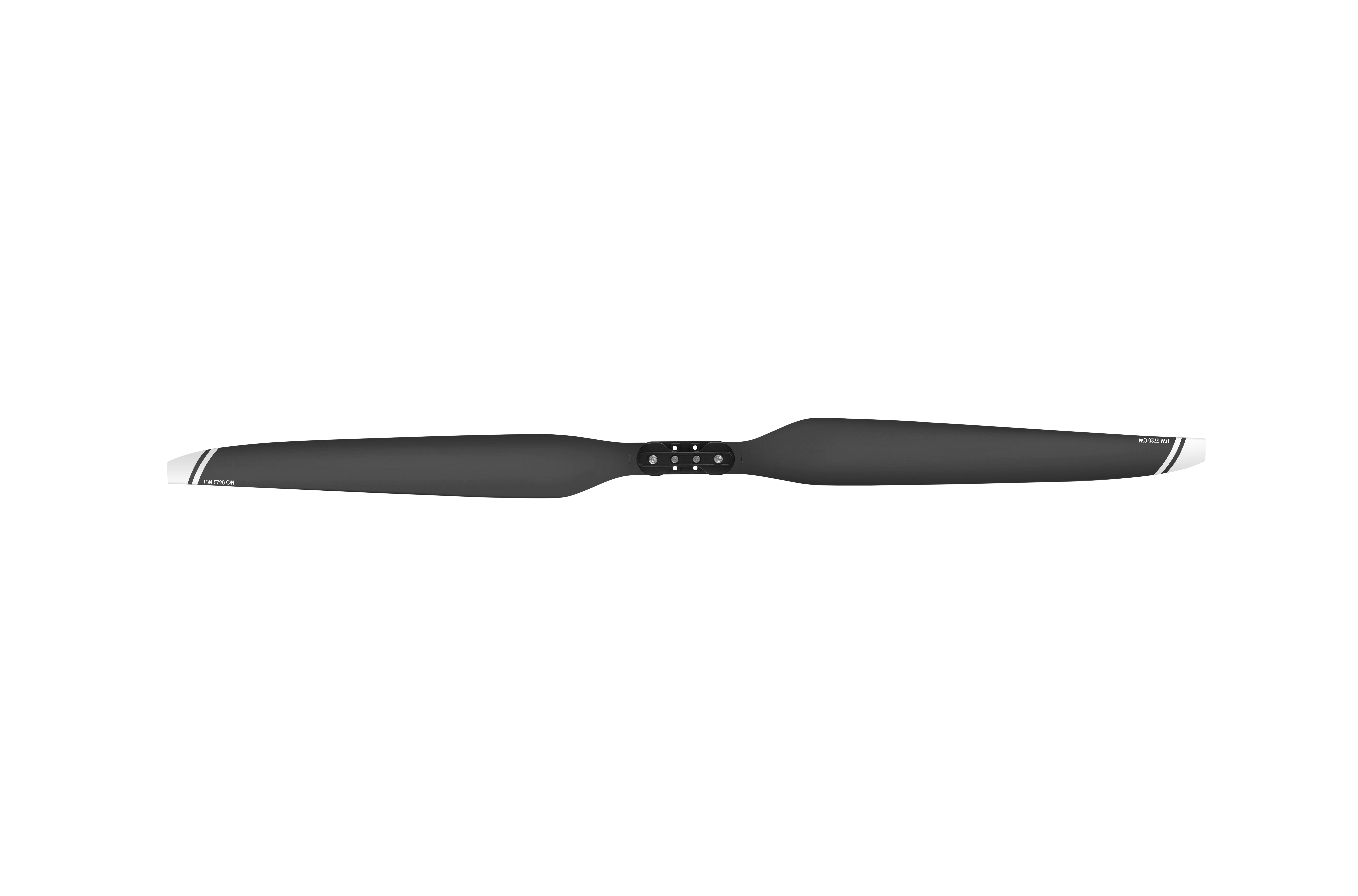

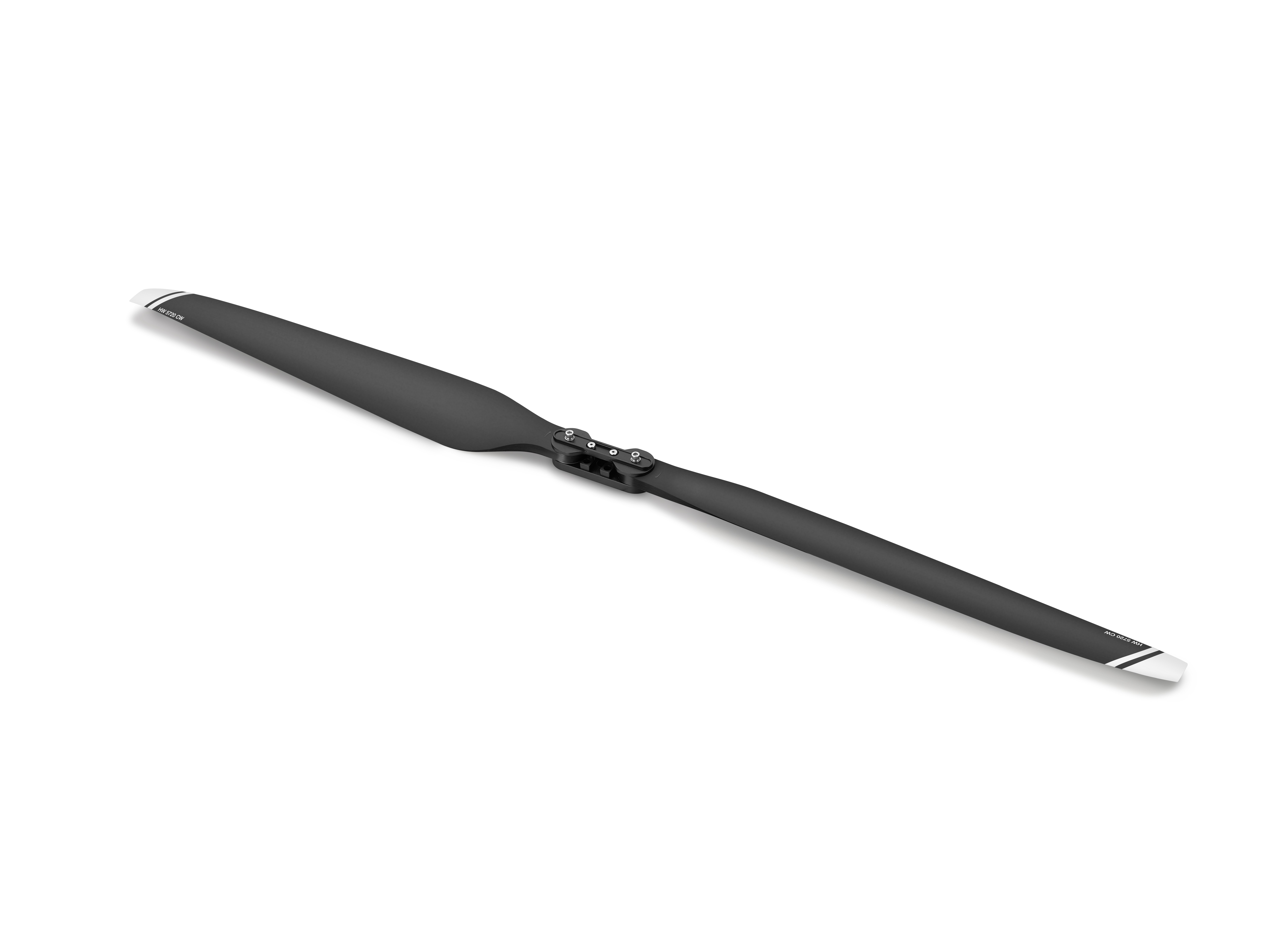

Carbon Fiber Folding
Propeller

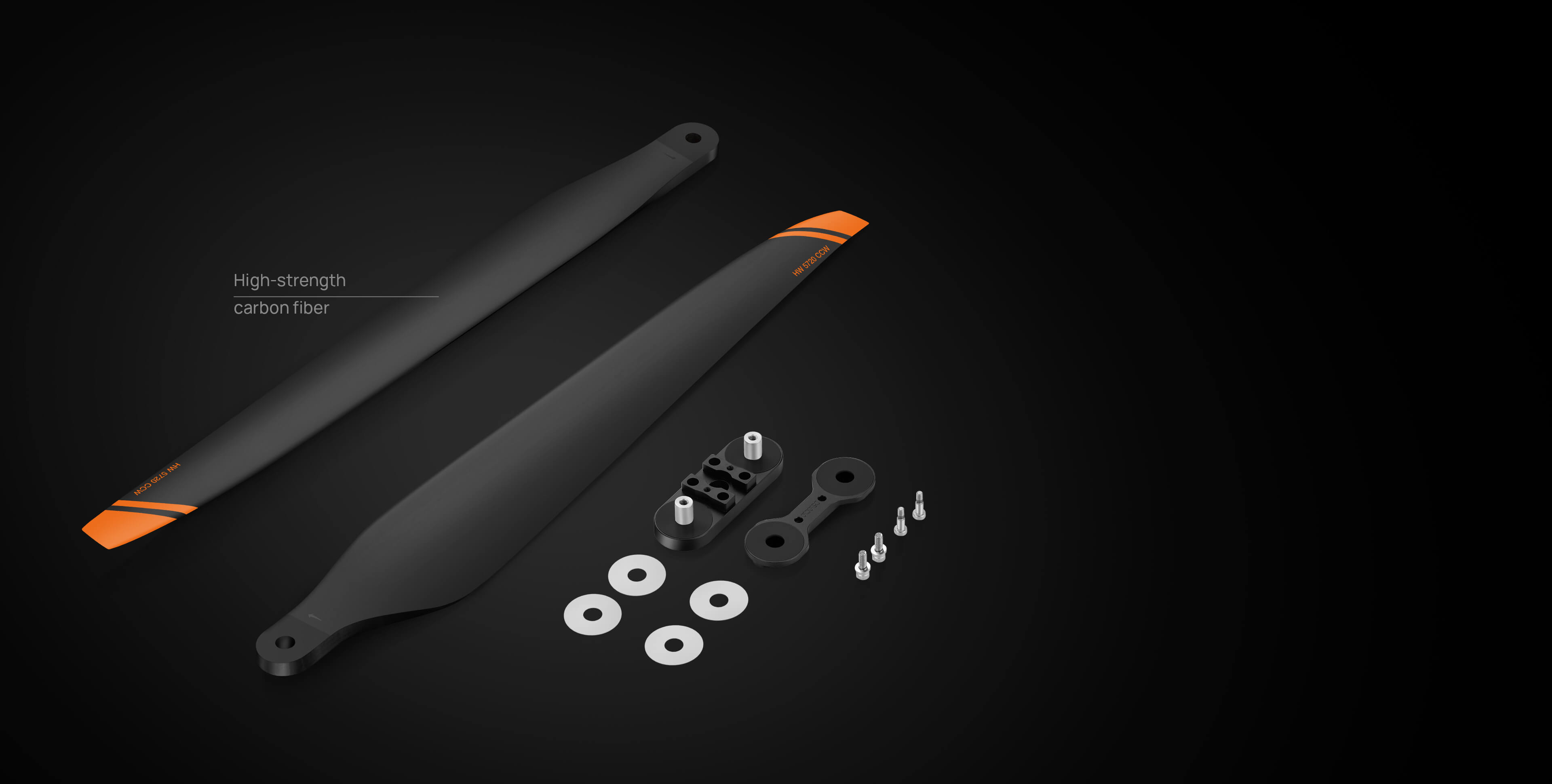

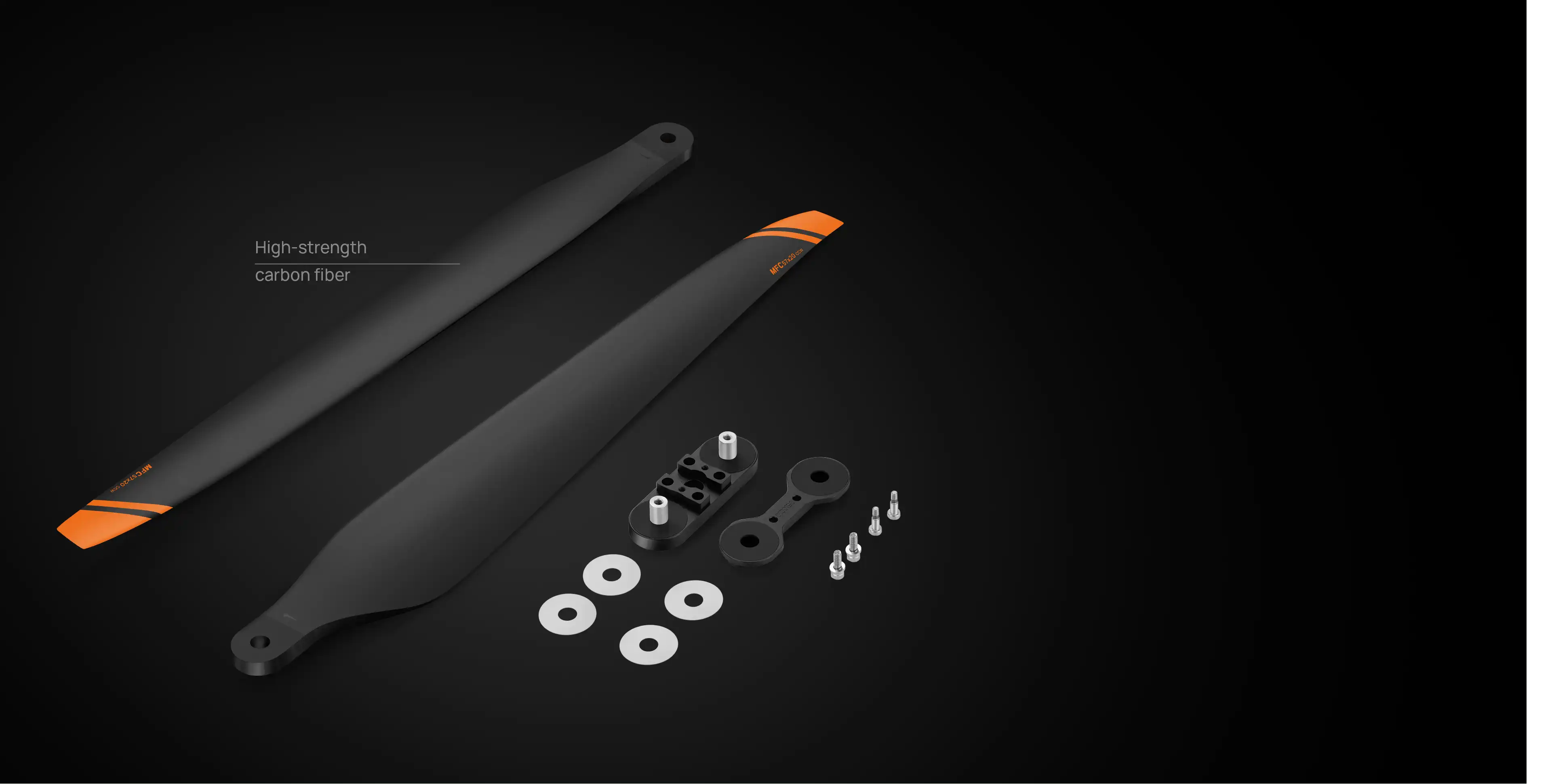

Premium Materials,
Exceptional Performance
  • Crafted from imported high-strength carbon fiber, the propeller
    offers remarkable advantages, capable of withstanding harsh
    environmental challenges.

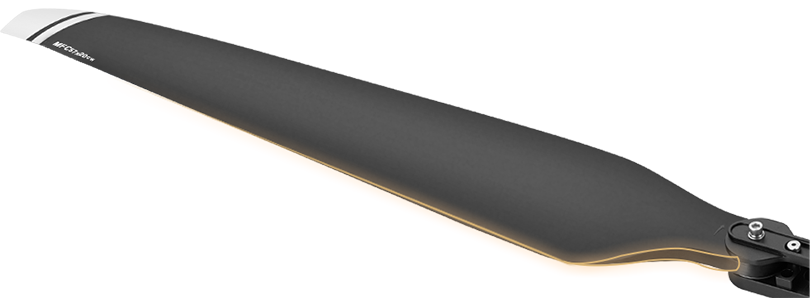

Lightweight Design, Unmatched Sensitivity
Mass Distribution Is Near the Rotor Shaft
By thickening the root and thinning the tip of the propeller, the mass distribution is concentrated in the rotating shaft area, effectively reducing the moment of inertia and enhancing the dynamic response.
Airfoil Optimization
Narrow chord design is adopted to shorten the propeller length, reduce the overall mass, and improve aerodynamic and endurance efficiency.

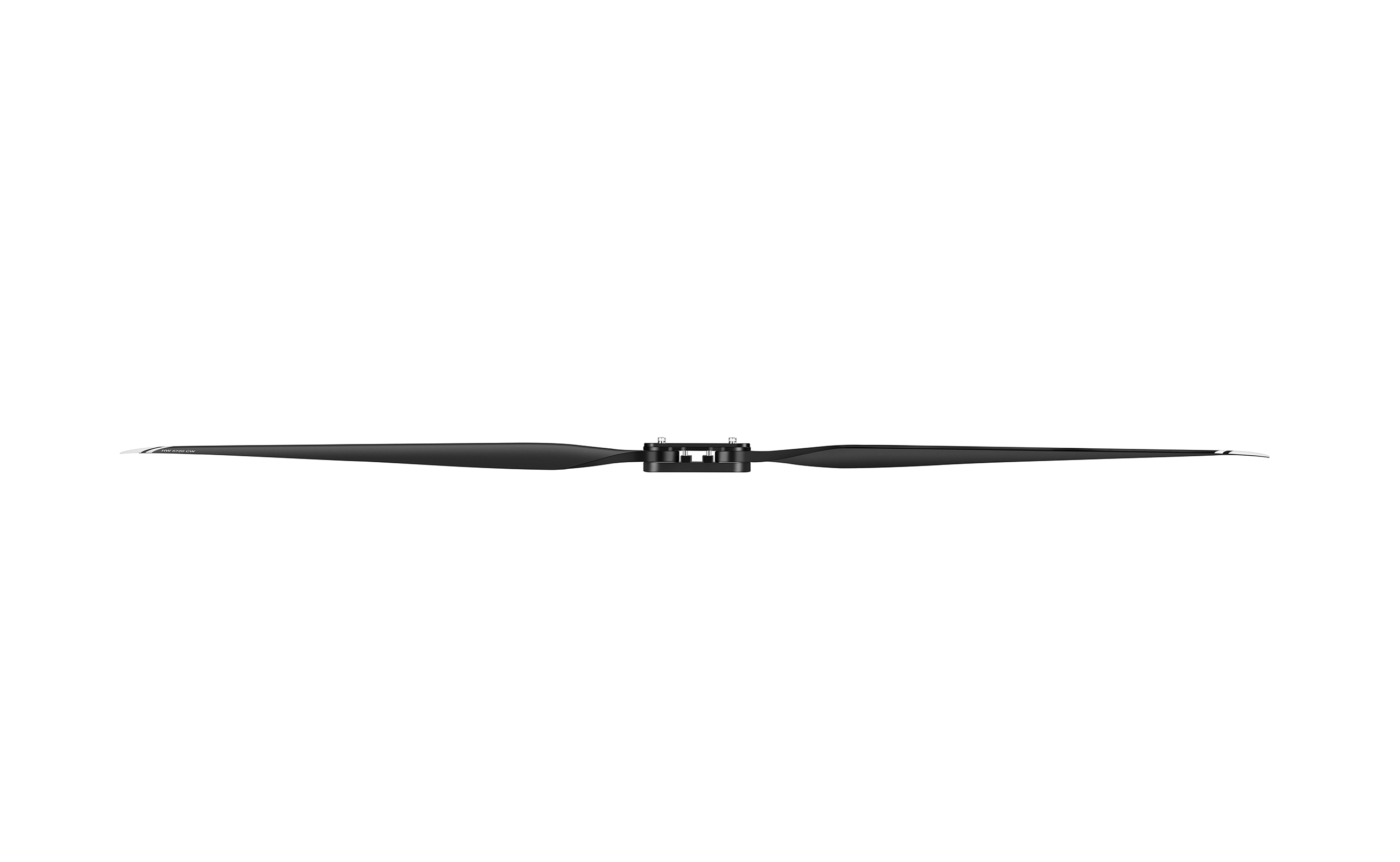

Thin-Walled Design
By reducing the propeller’s cross-sectional thickness, the material usage is reduced without compromising structural rigidity.
Aerodynamic Innovation,
Significant Efficiency
Improvement

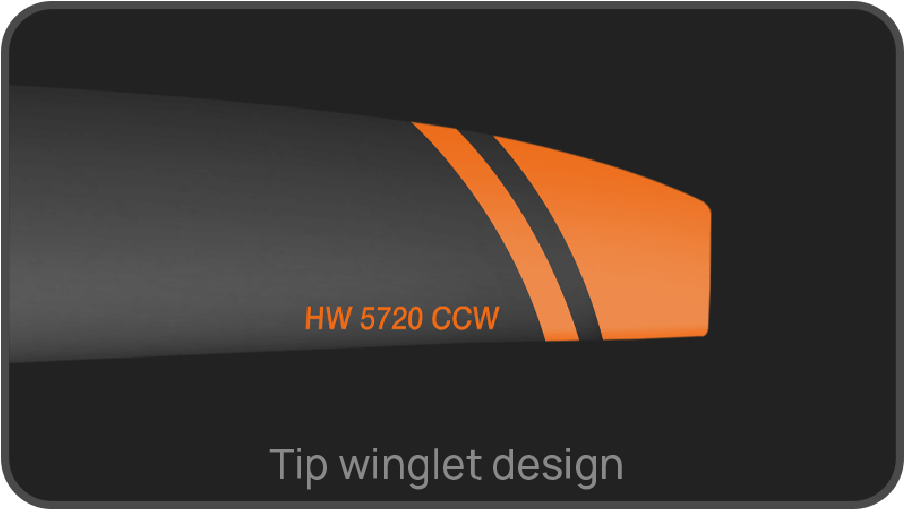

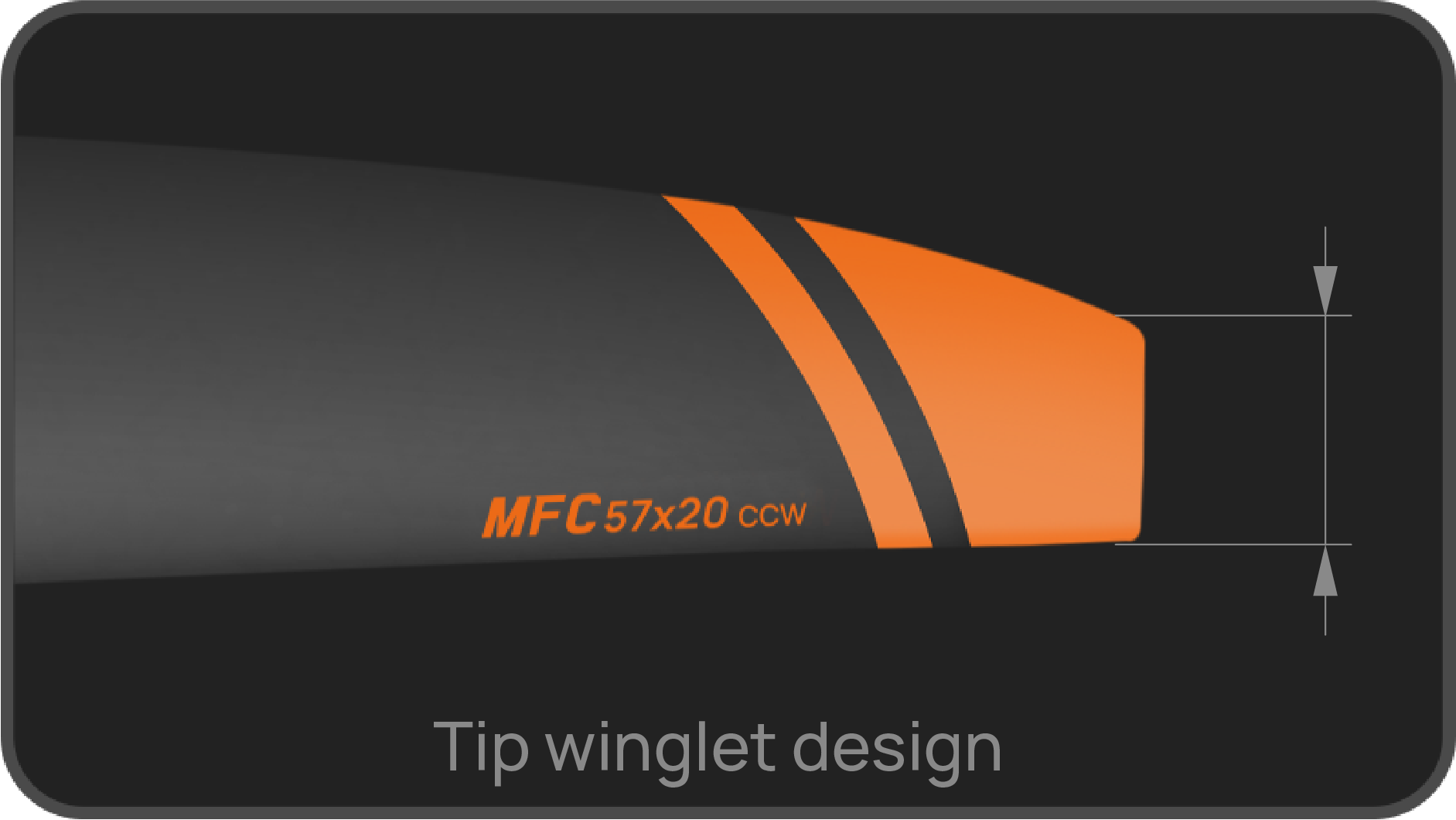

  • Advanced aerodynamic airfoil and tip winglet design
  • significantly reduce air drag, delay airflow separation,
  • and boost propeller efficiency by 3%-5%,compared
  • with the common propeller type.
High-Performance Across All Scenarios,
More Reliable in Harsh Environments
  • Made with imported carbon fiber featuring excellent resistance to corrosion and deformation, the propeller maintains stable
  • propulsion output even in extreme conditions such as high or low temperature and strong winds.This ensures flight safety and
  • mission continuity in demanding scenarios like lifting in mountainous terrain, field transportation, and emergency rescue missions.
High temperature
Low temperature
Strong winds
Rigorous Quality Control,
Consistent Performance
Each propeller undergoes
weight
balancing tests
Ensuring highly consistent performance across
all propellers
Ensuring a more
stable flight
Innovative Dual-Mode Drive,
Effortless Mode Switching

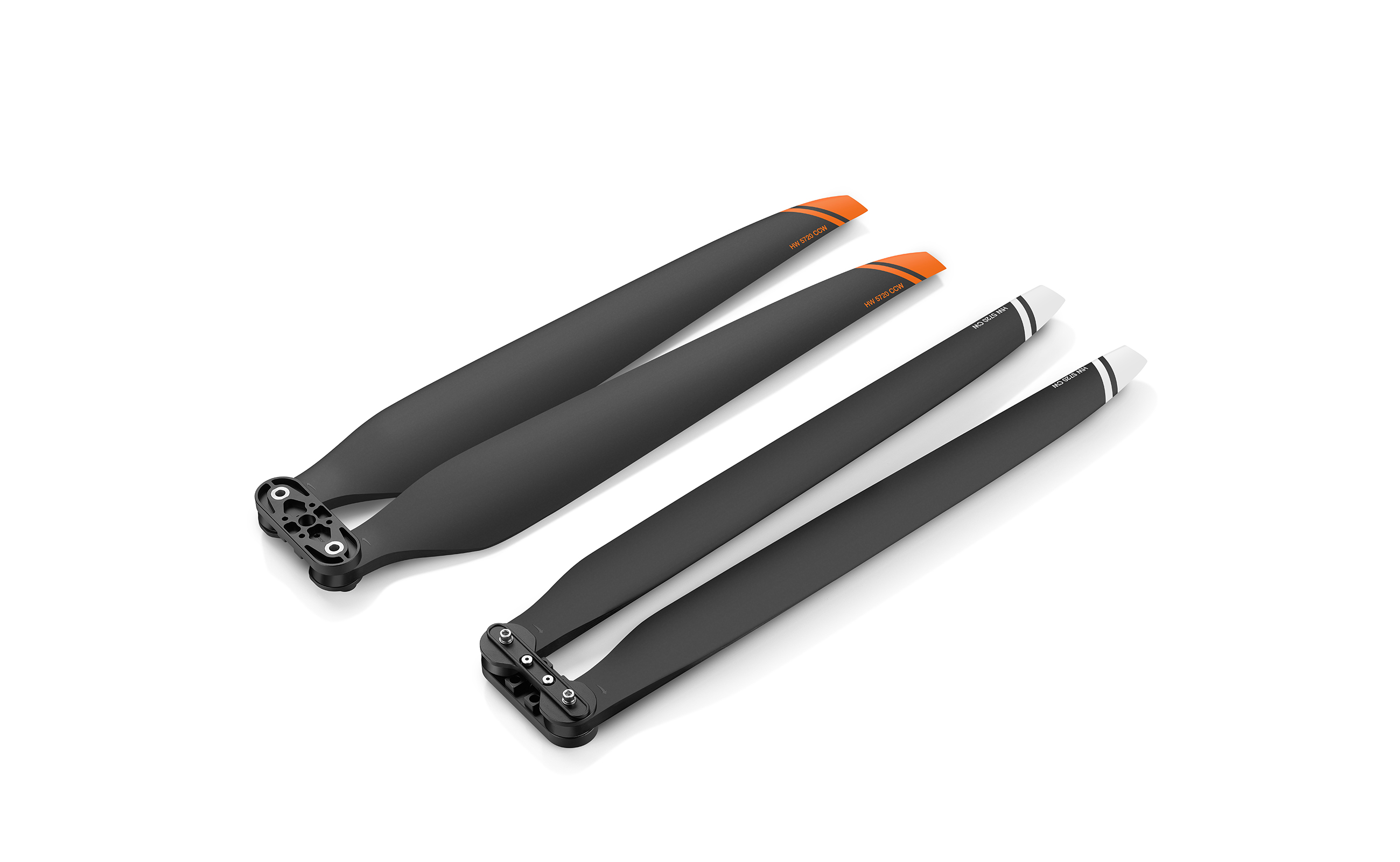

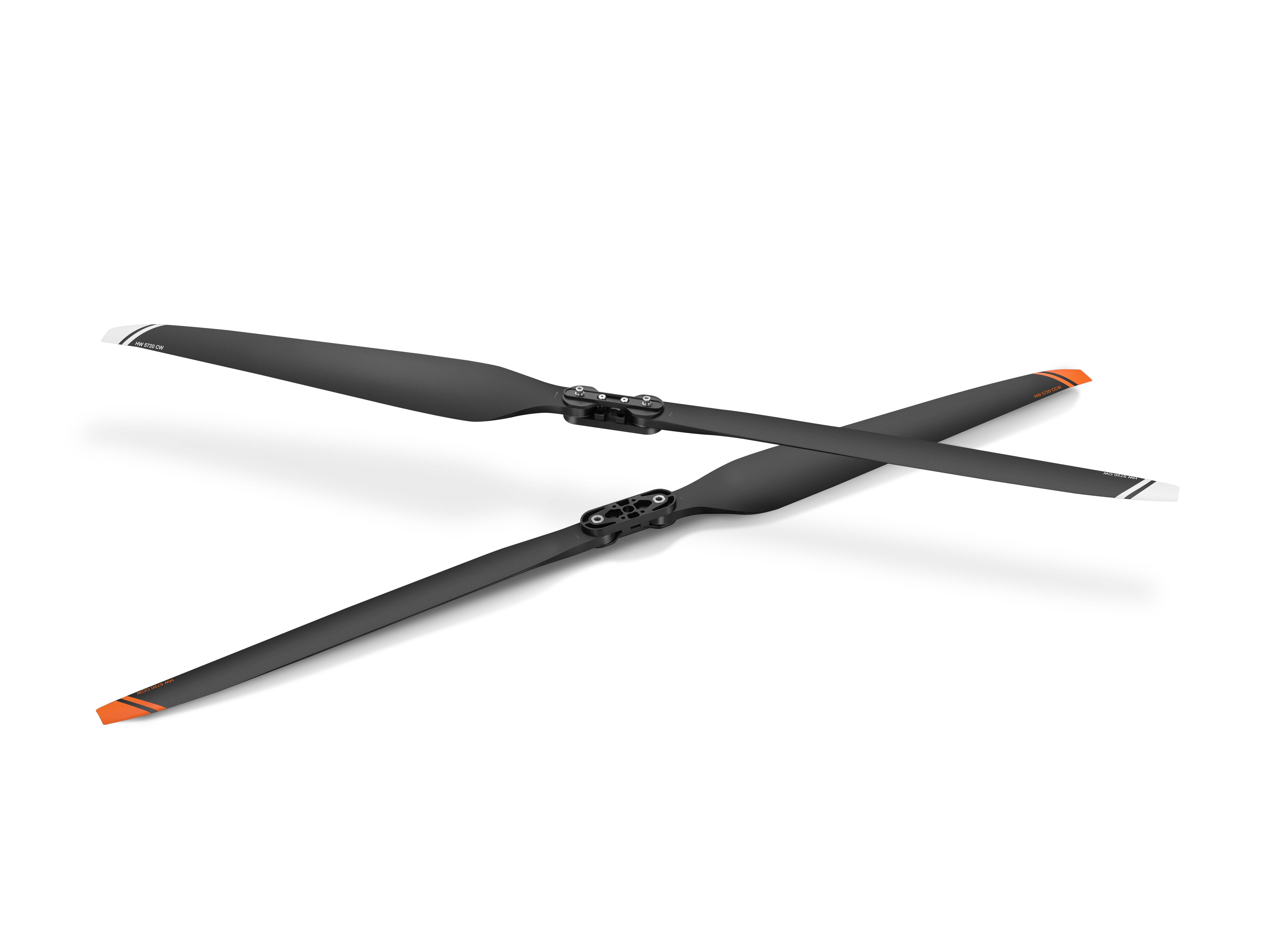

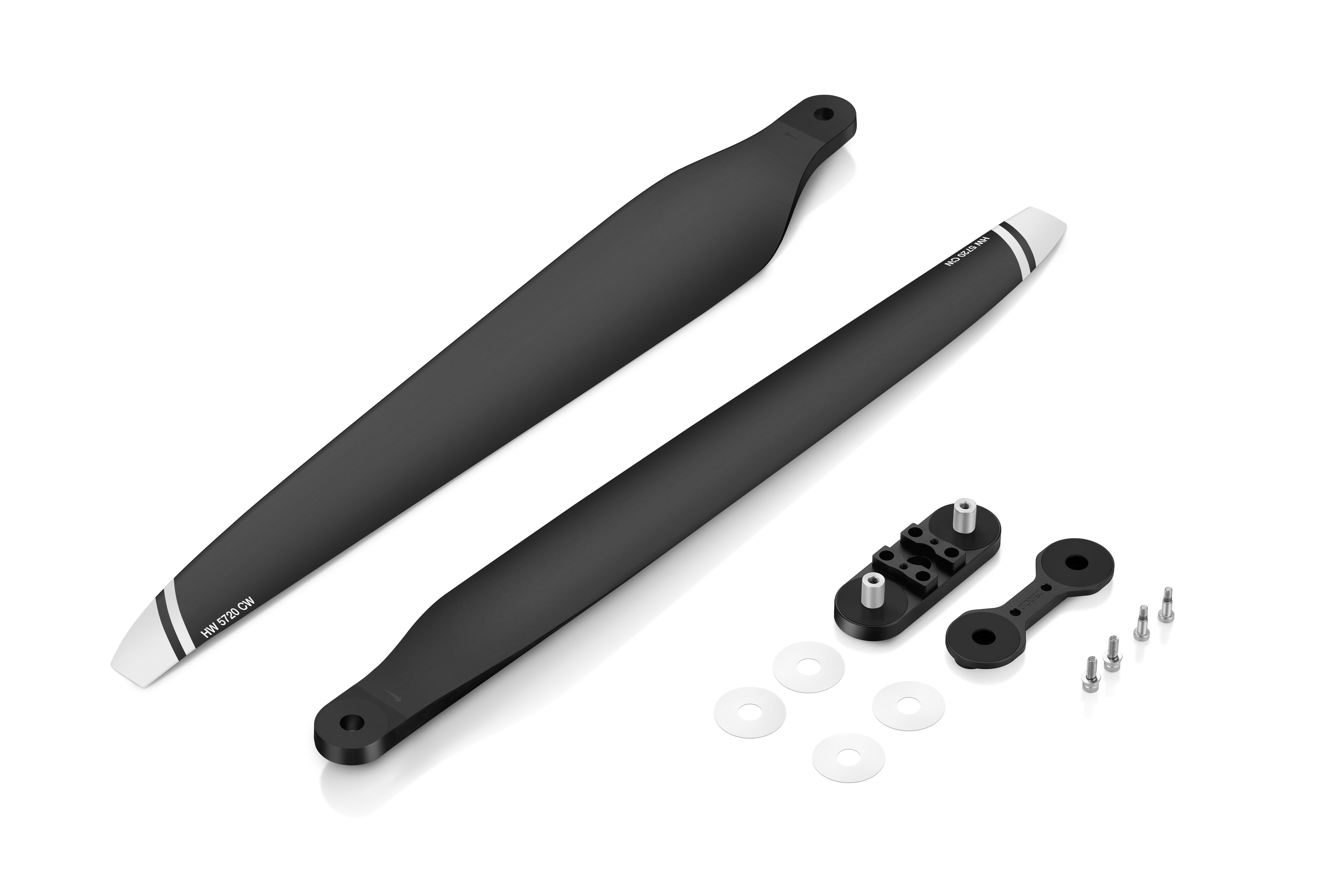

  • With the self-developed propeller and adapter adaptation technology and the adoption of a reversible propeller
  • mounting structure, a single set of propeller adapter can meet the installation requirements of both forward and
  • reverse propellers, and can support the rapid switching of the coaxial dual-rotor system.
Note:Propellers must be replaced and used in pairs. Each pair of propellers has a unique
laser serial number at the root. Please strictly follow the pairing requirements for use.

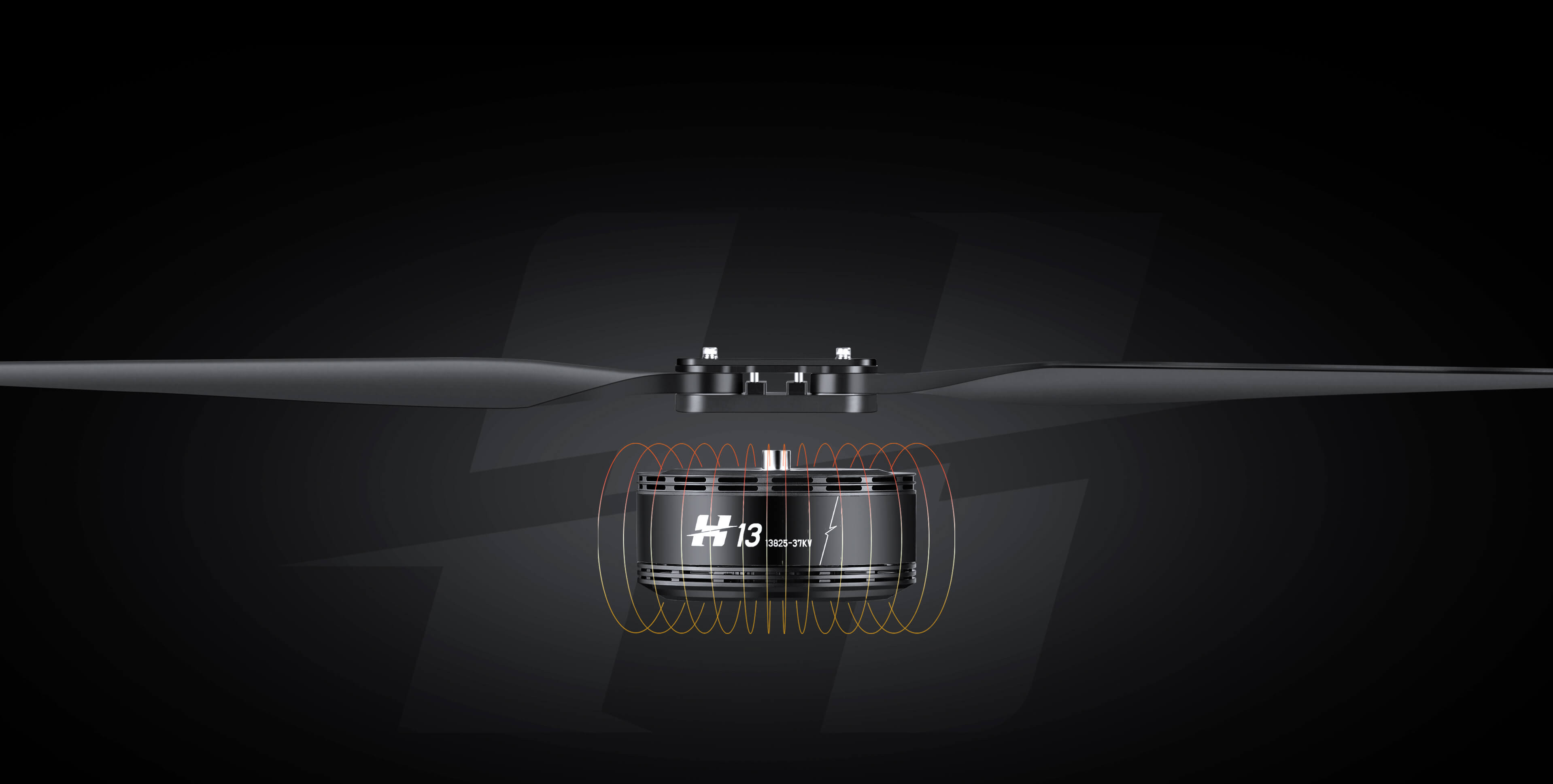

Optimized Propulsion Combination,
Enhanced Efficiency
  • Deeply tuned and matched with the HOBBYWING motors, an optimized magnetic circuit
  • design is used to ensure consistent torque in complicated airflows, providing enhanced
  • propulsion output during heavy-lift takeoff, landing, and flight.

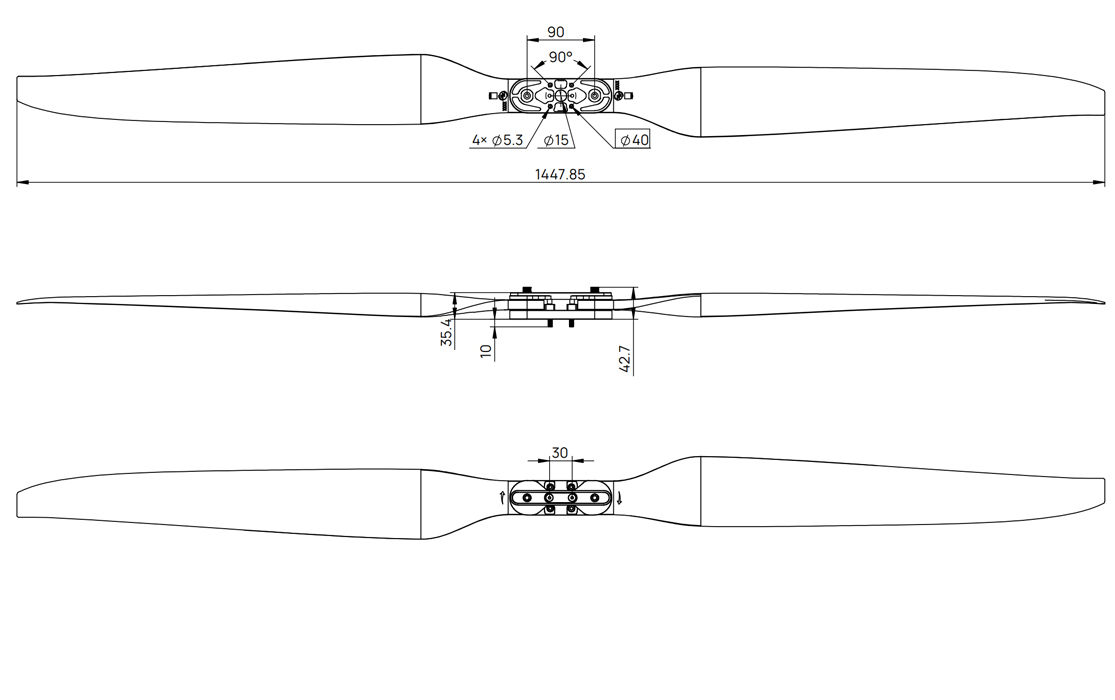

HF 57*20" CAD
Product Name
HF 57*20"
Specifications
model HF 57*27" Carbon Fiber Folding Propeller
Weight 805g
Material of Props Carbon fiber+Epoxy resin
Surface technics Matte frosted
Material of Props adapter Aluminium alloy
Operating temperature -40℃~65℃
Storage temperature -10℃~35℃
Storage humidness ≤85%
Recommended speed range 1200~2100RPM
Recommended thrust 14~45kg
Max RPM 2500RPM
Max thrust 60kg
Non-folding/Folding Folding
Recommended motors of HOBBYWING X13-13825 / H13-13825

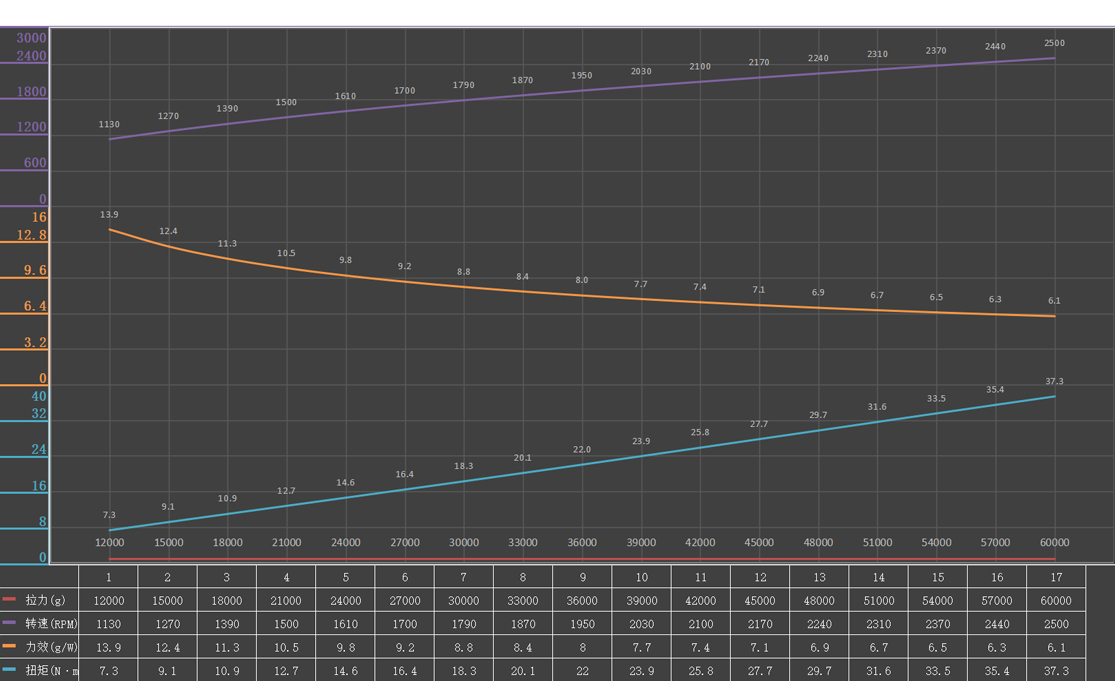

HF 57*20" Speed, thrust and torque test data
