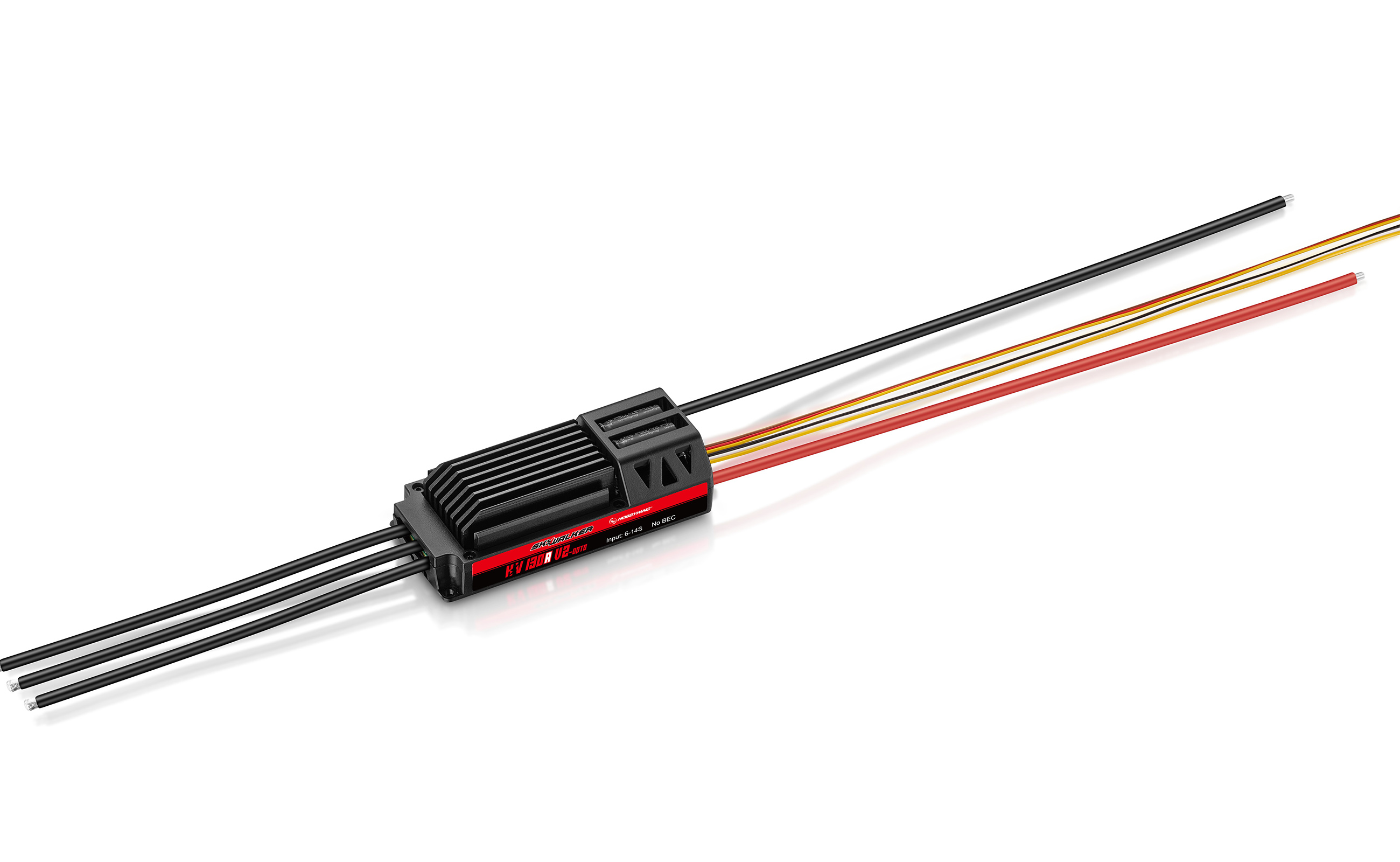

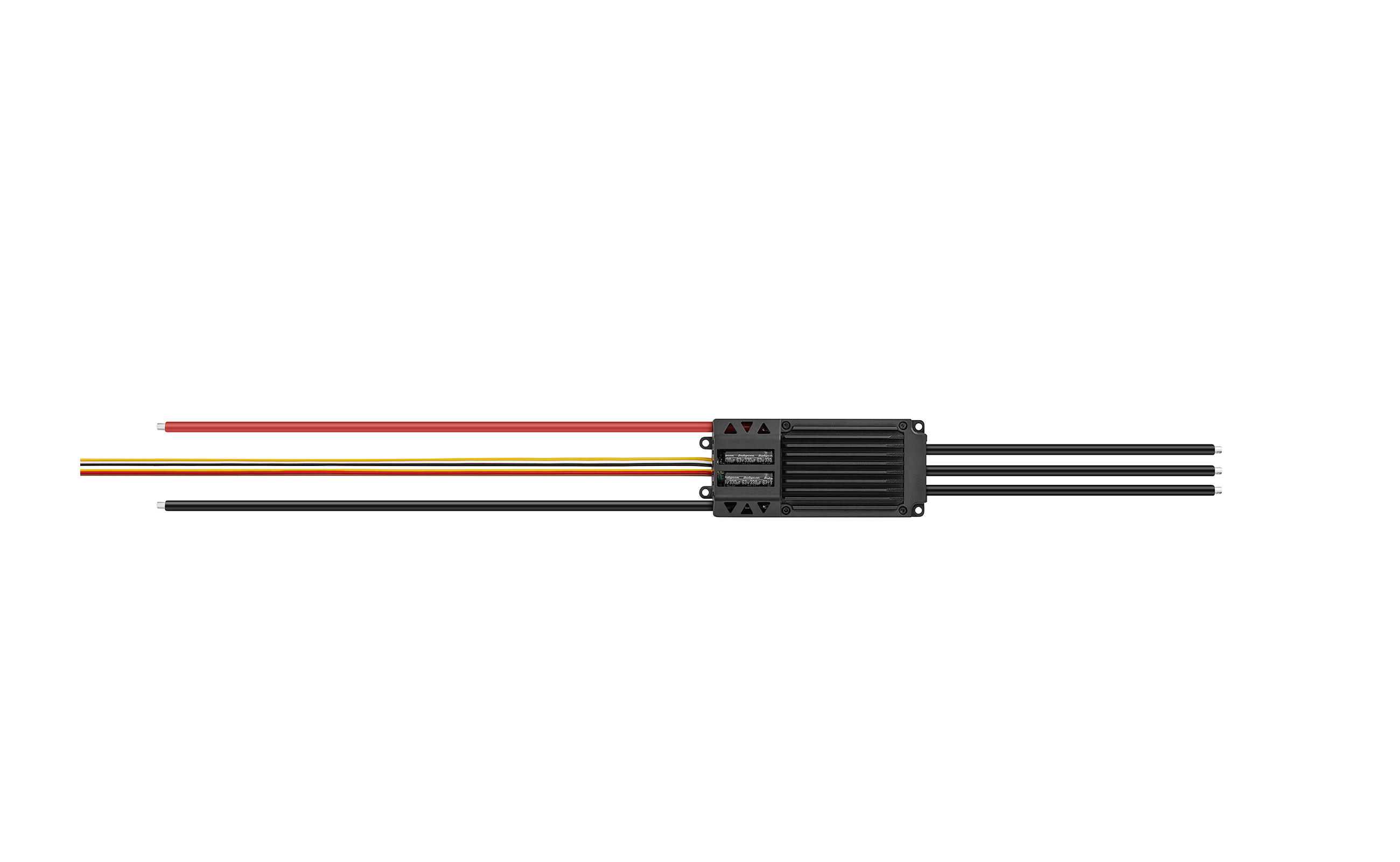

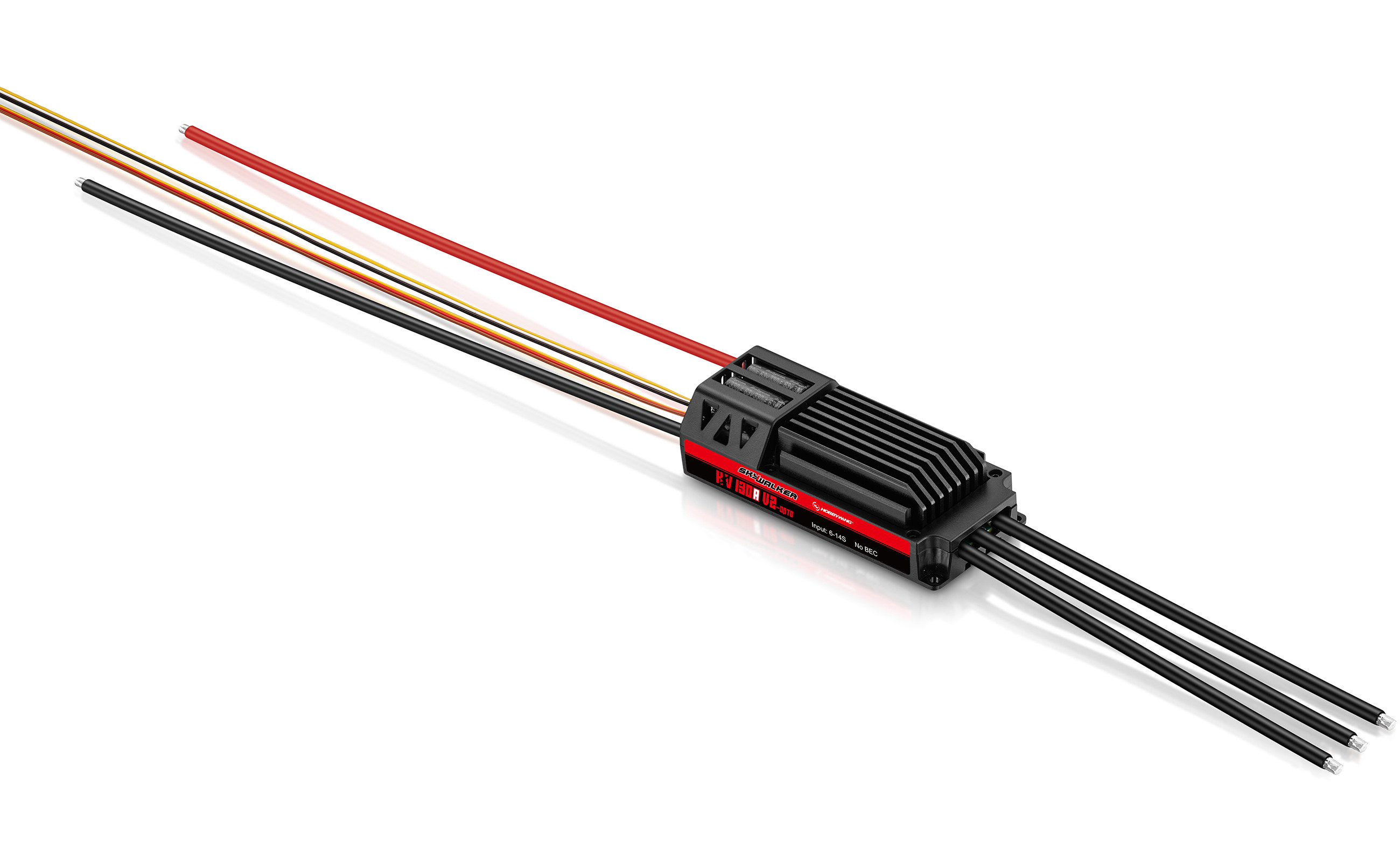

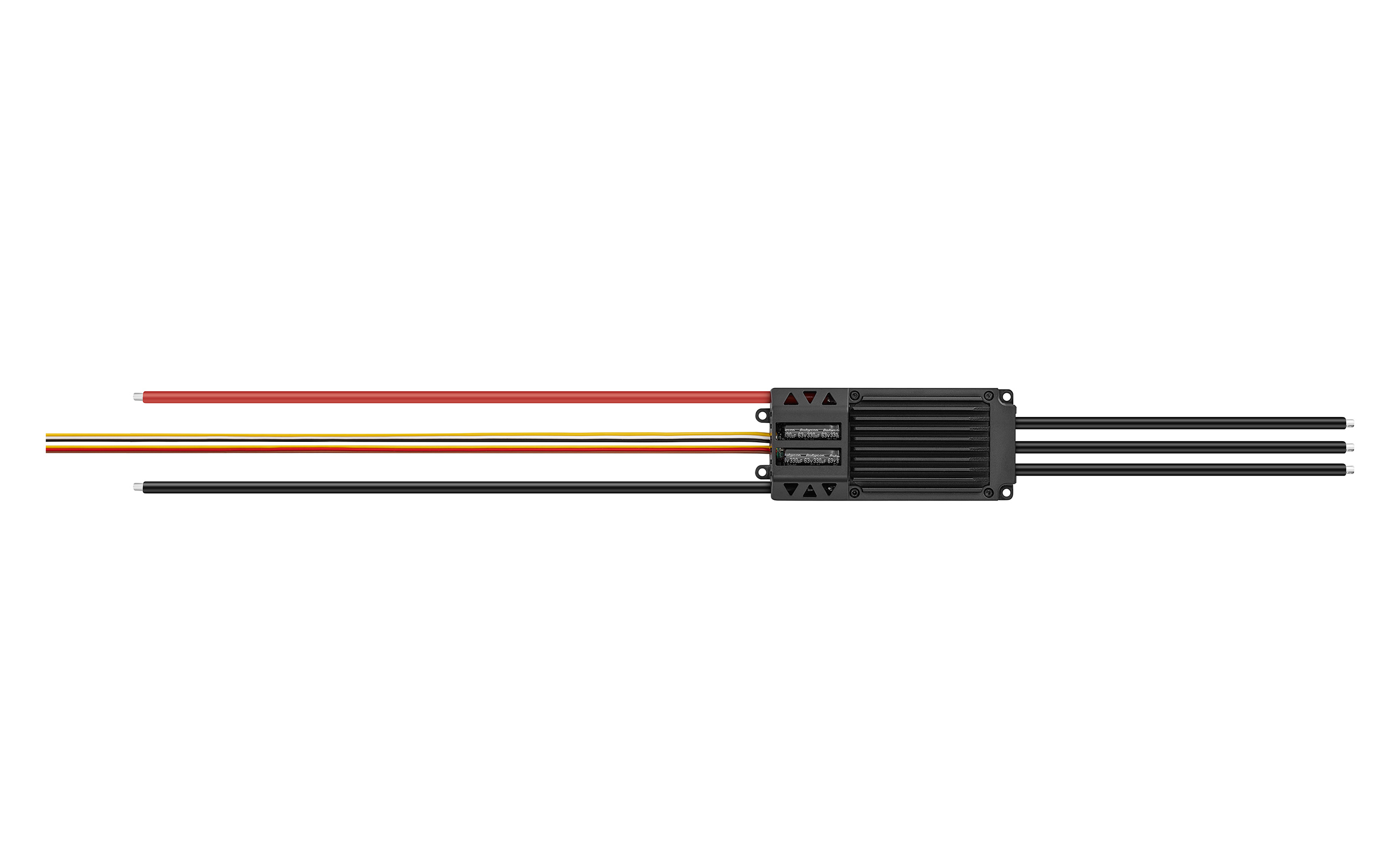

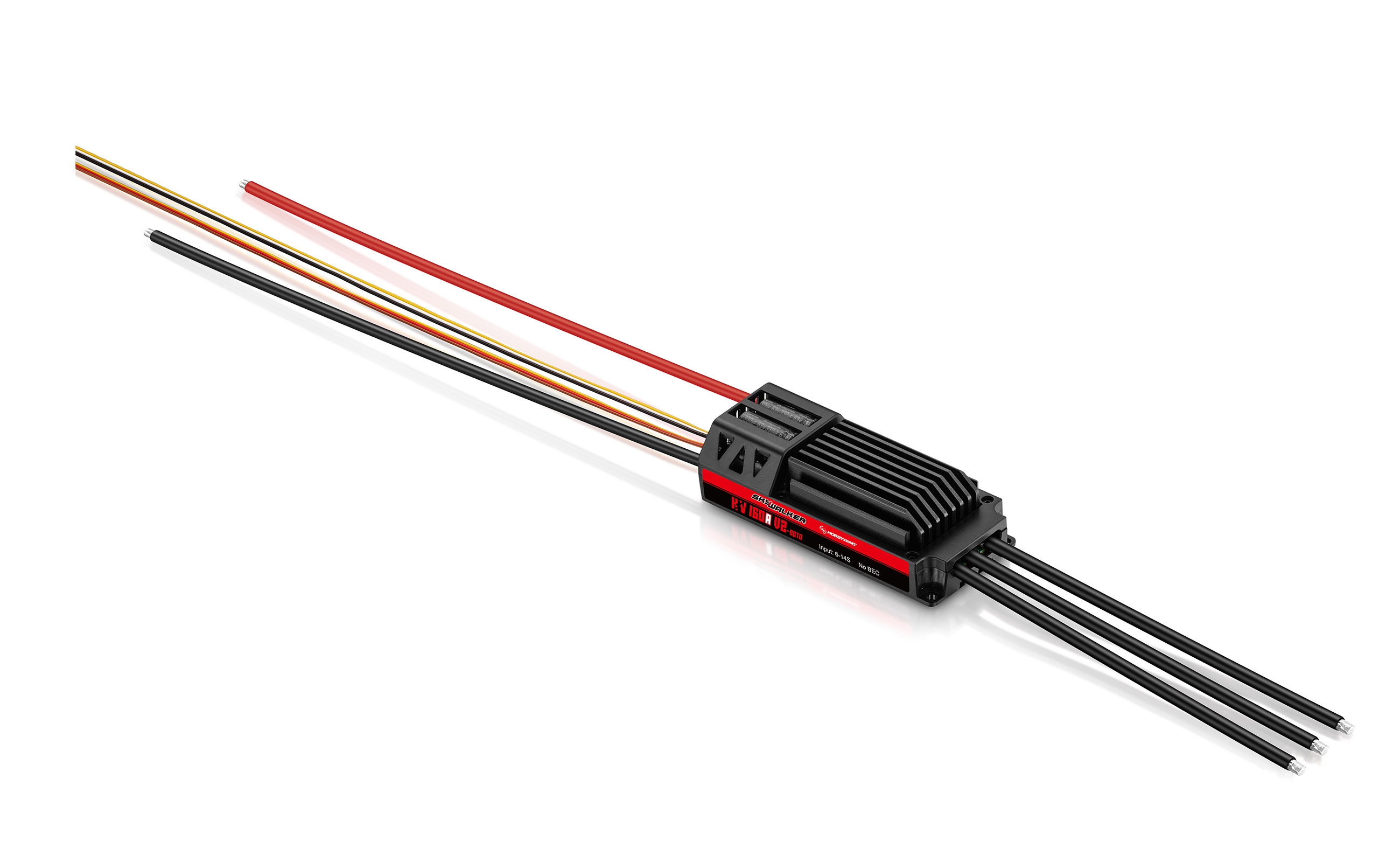

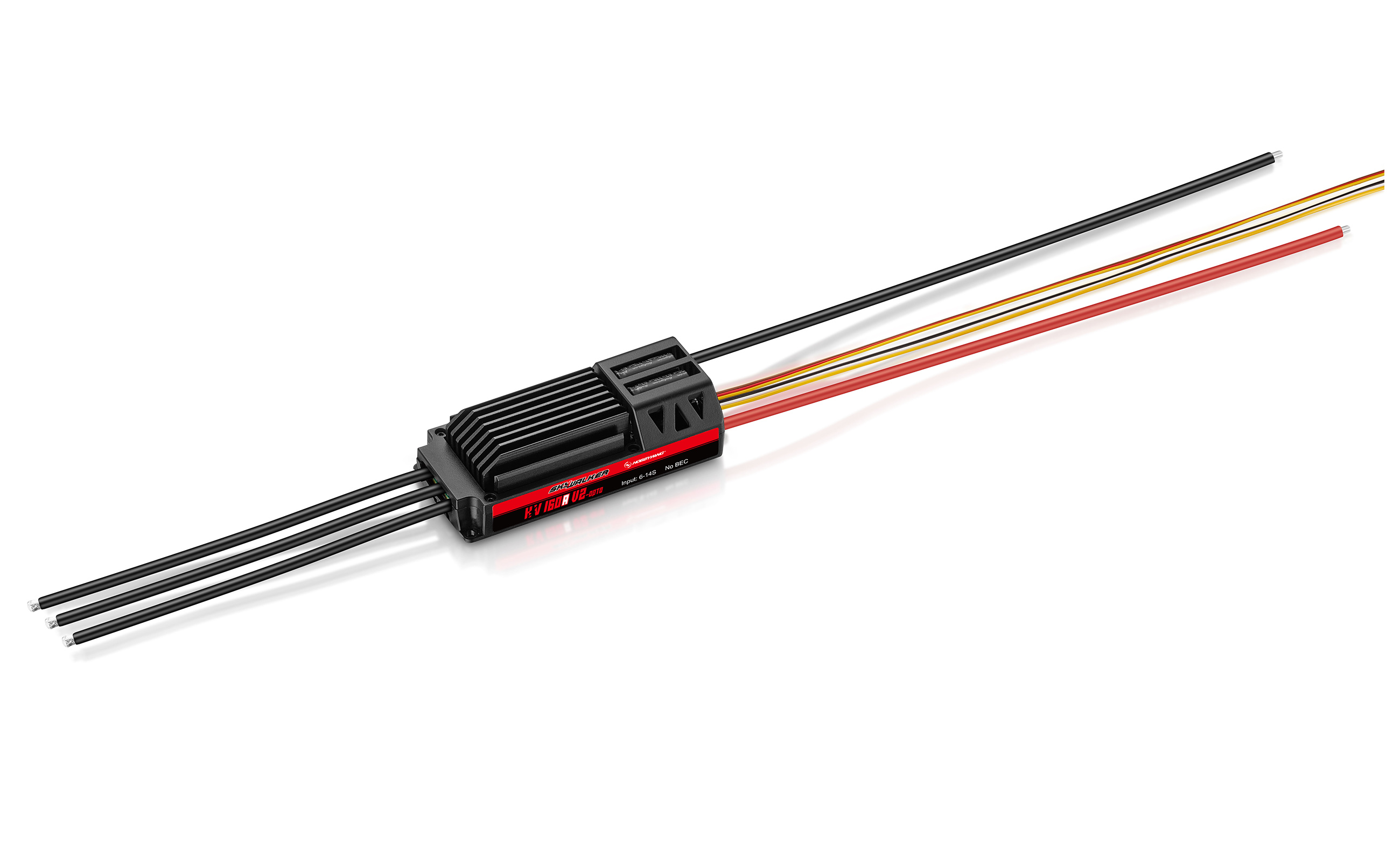

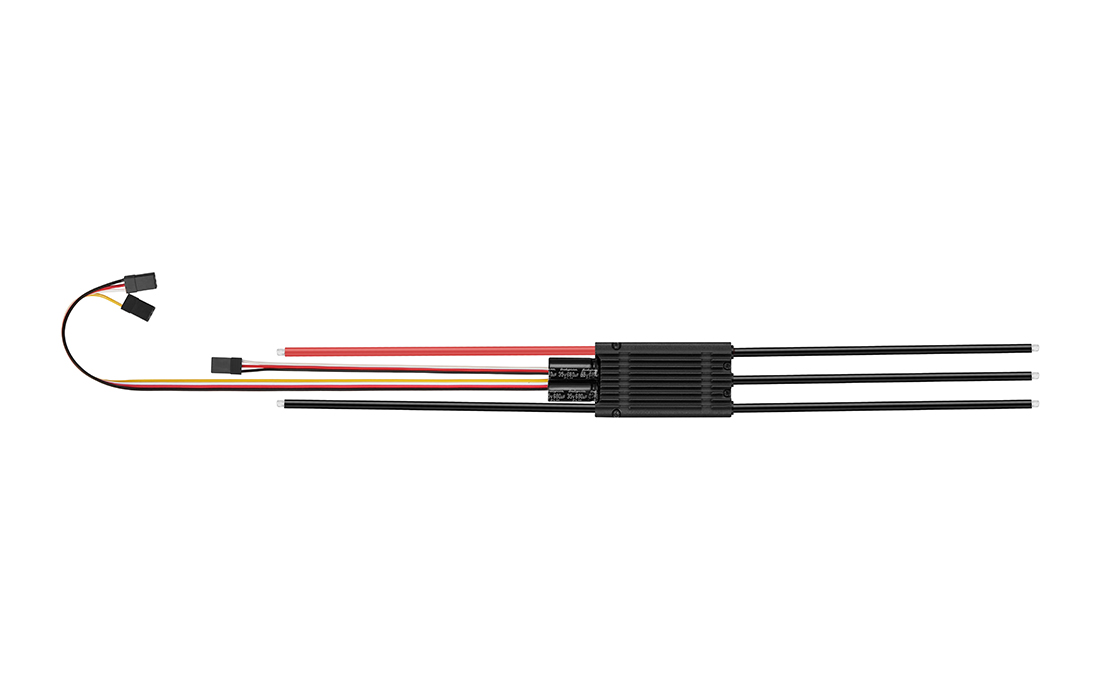

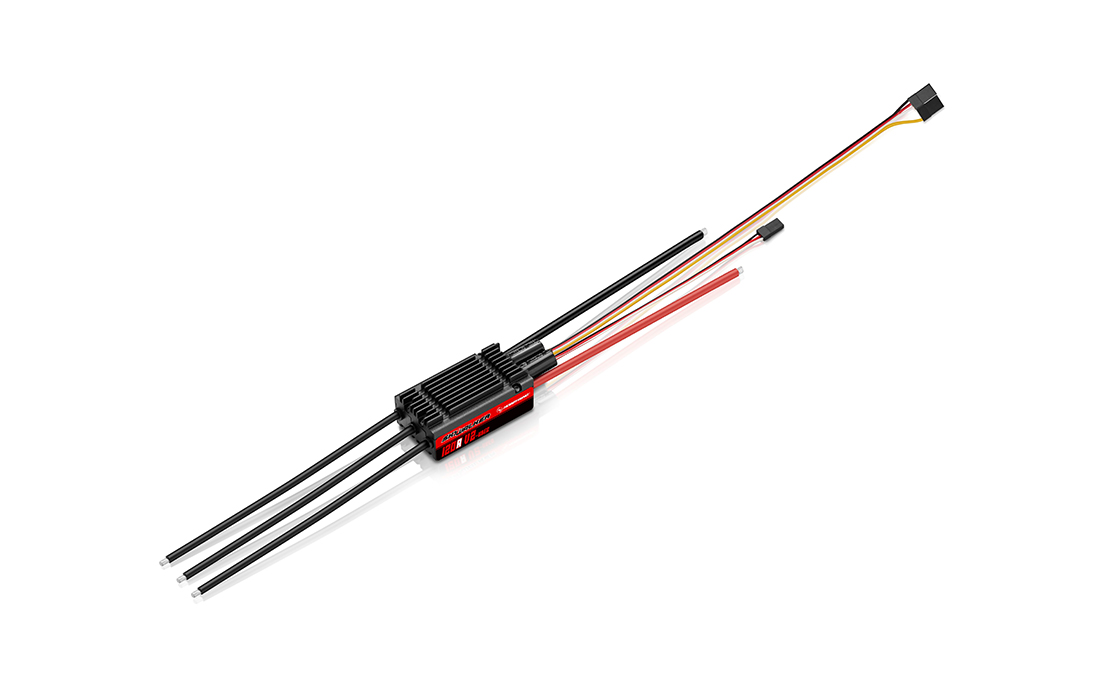

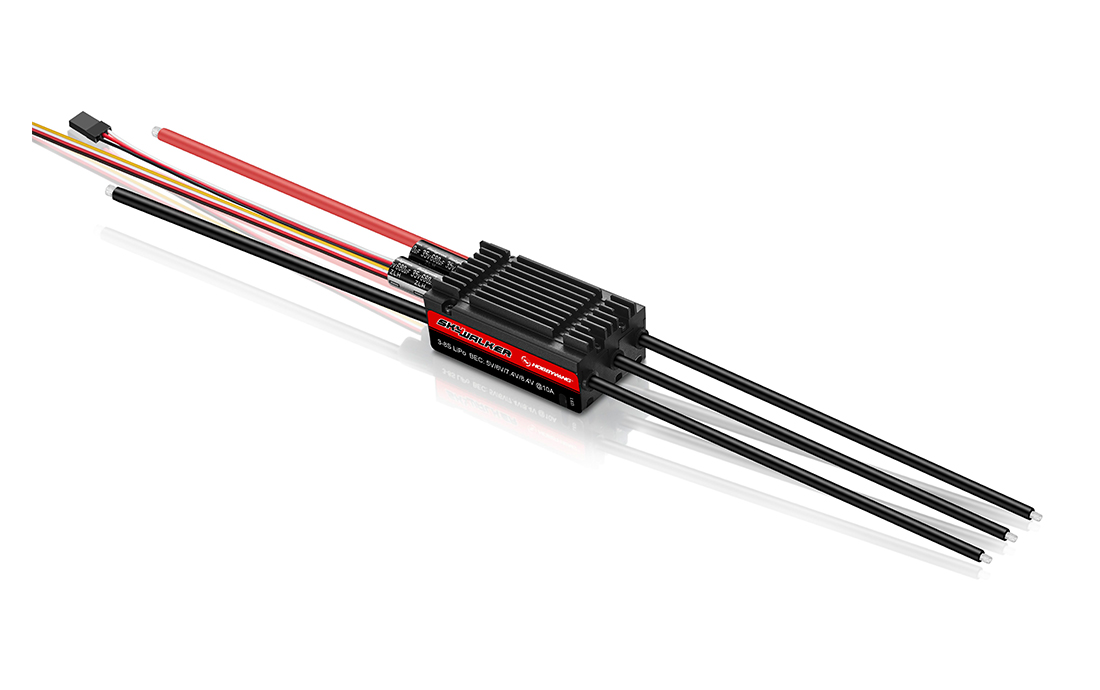

SkyWalker V2 Medium/High Voltage Series
Proven technology
The high performance 32-bit ARM M4 chip set allows
extremely high operational frequency and motor control.
Up to 120 MHz, and 300000 PRM (for 2 Pole motors).
Great flexibility for a 60-74 "3D fixed wing motor.
Powerful, and responsive.
DEO Technology / Active Freewheeling
  • Flexibility
    During flight

  • Lower ESC
    temperatures

  • Longer
    flight time

Drive Efficiency Optimization ,
DEO Technology has been implemented to provide the most control and precision possible.
Fast smooth throttle response with improved stability,
and efficiency means lower ESC operational temps and longer flight times.
( For 3D aerobatics, it is recommended to turn off this function)
Reverse Brake
Reverse brake, or linear brake modes allow shorter landing distances.
Normal and no brake modes are also available if required.
(This is HOBBYWING's registered patented)
Search Mode
This feature allows the pilot to activate the ESC to
emit an audible beeping tone from the motor.
This allows craft lost in hard to see areas a find me
beacon so the pilot can recover the craft.

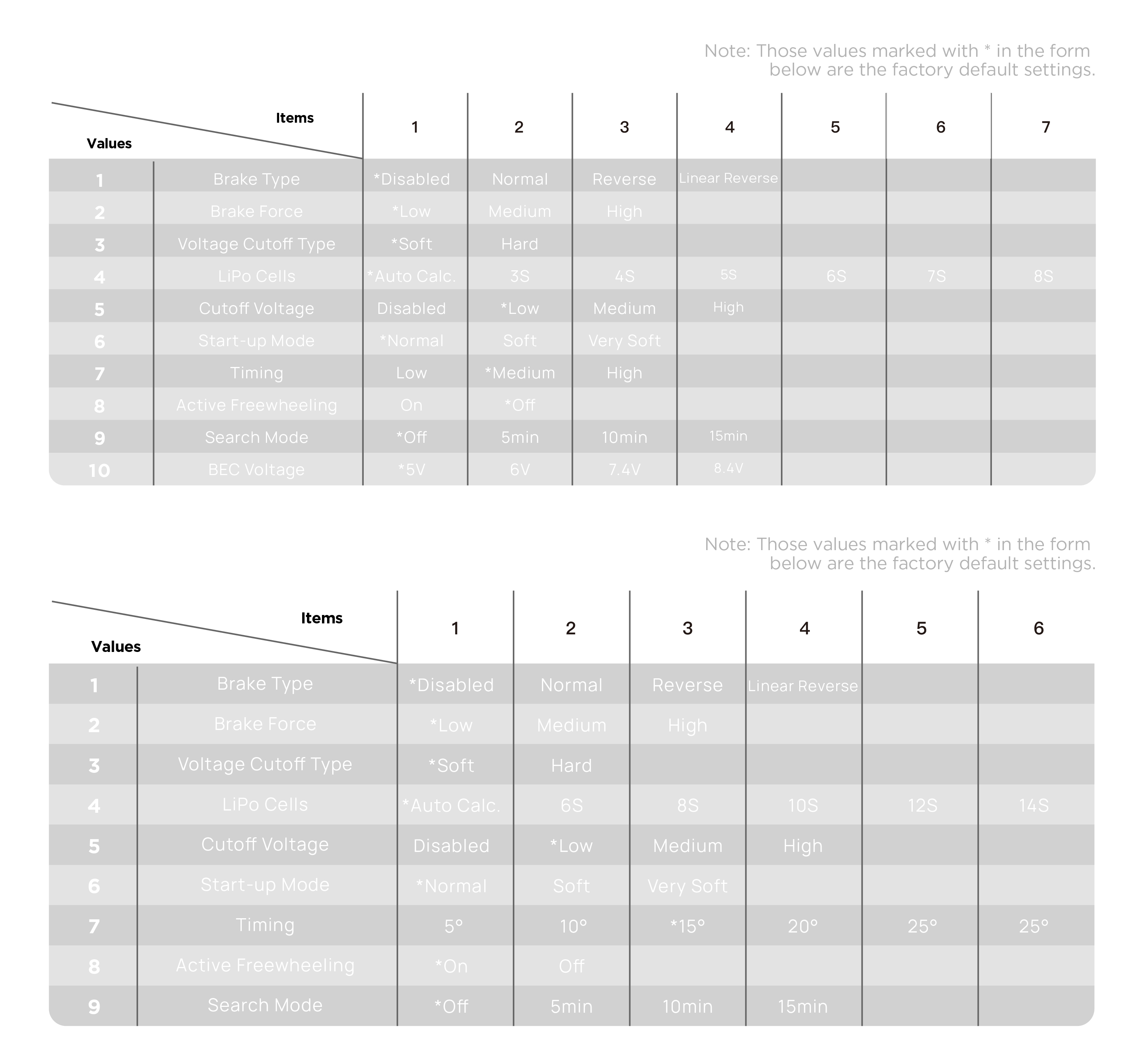

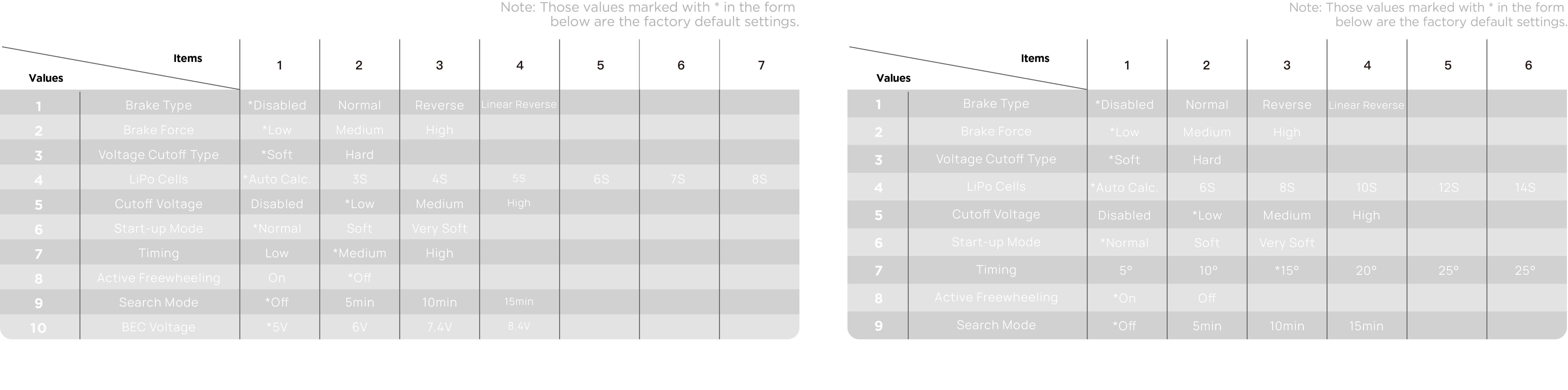

Programmable Parameters
Programmable with the LED Program Box, or transmitter.
Users can easily program the SKYWALKER V2 to their preference.
Multiple Protections
SkyWalker ESCs feature multiple protection functions,
including abnormal input voltage protection,
low-voltage cutoff, overheat protection,
and throttle signal loss protection.
  • Abnormal
    Input voltage

  • Low voltage
    Cutoff

  • ESC
    thermal

  • Throttle
    Signal loss

Product Name
Product Number
Type Brushed/Brushless

High Voltage/Regular
Specifications Cont./Peak Current

Input

BEC Output
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connecotors
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Firmware Firmware Upgrade
Size & Weight Size

Weight
Product Name Skywalker 120A V2 Skywalker HV 130A OPTO V2 Skywalker HV 160A OPTO V2
Product Number 30205450 30222300 30222301
Type Brushed/Brushless

High Voltage/Regular
BL

Regular
BL

High Voltage
BL

High Voltage
Specifications Cont./Peak Current

Input

BEC Output
120A/150A

3-8S LiPo

Switch Mode:5V/6V/7.4V/8.4V,10A/30A
130A/160A

6-14S LiPo

No BEC
160A/200A

6-14S LiPo

No BEC
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connecotors
Red-10AWG-150MMx1

Black-10AWG-150MMx1

Black-12AWG-100MMx3

No

4.0 Gold Connectors (Female)
Red-10AWG-300mm*1

Black-10AWG-300mm*1

Black-10AWG-150mm*3

No

No
Red-8AWG-300mm*1

Black-8AWG-300mm*1

Black-10AWG-150mm*3

No

No
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Program Wire Firmware
Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Program Wire
Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Program Wire
Firmware Firmware Upgrade Not Supported Not Supported Not Supported
Size & Weight Size

Weight
83x35x22mm

117g
104x48x29mm

253.2g
104x48x29mm

262.8g
