HOBBYWING: UAV Propulsion Systems, RC Motors & ESCs, e-Vehicle Power System
carbon plastic propellers

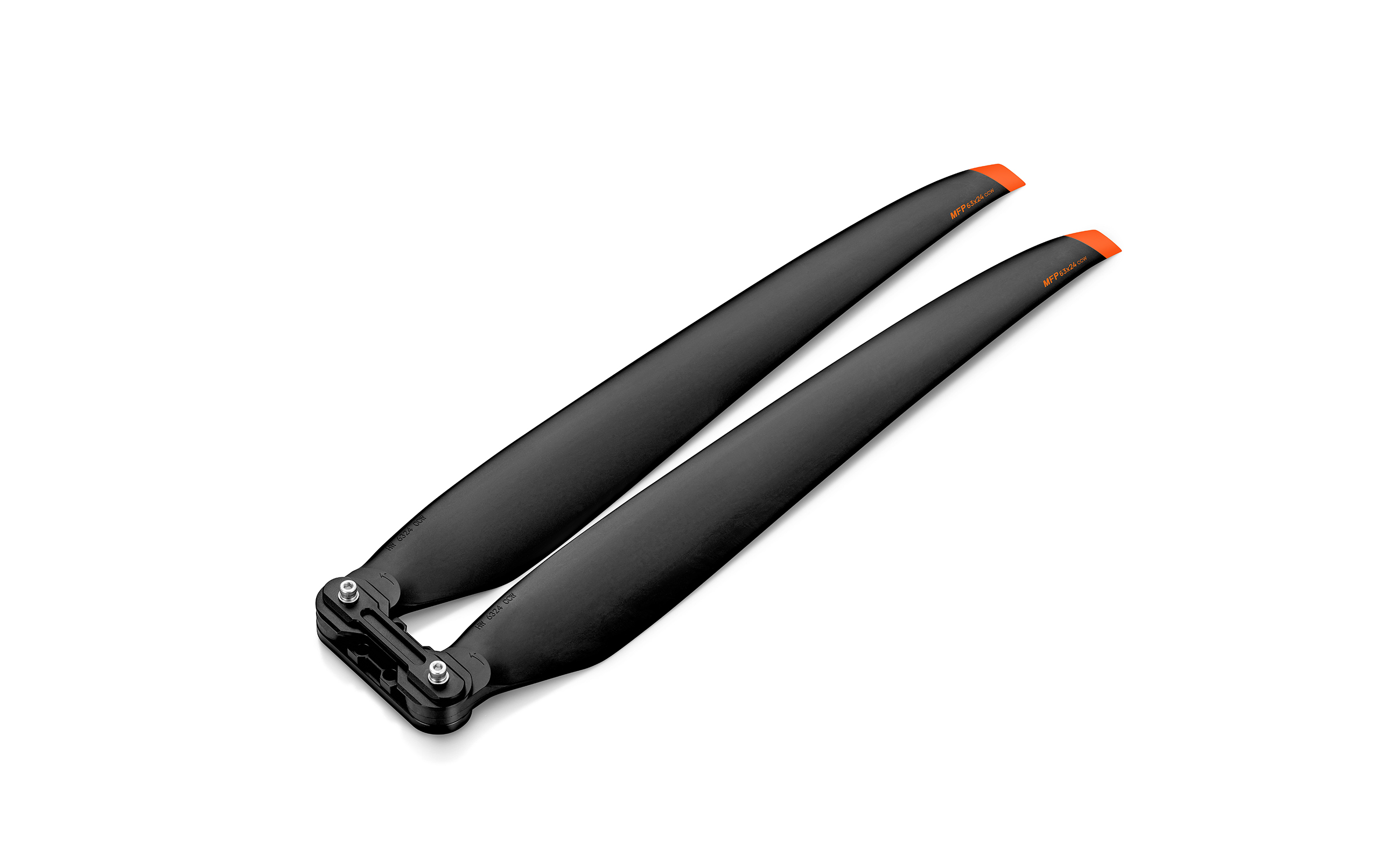

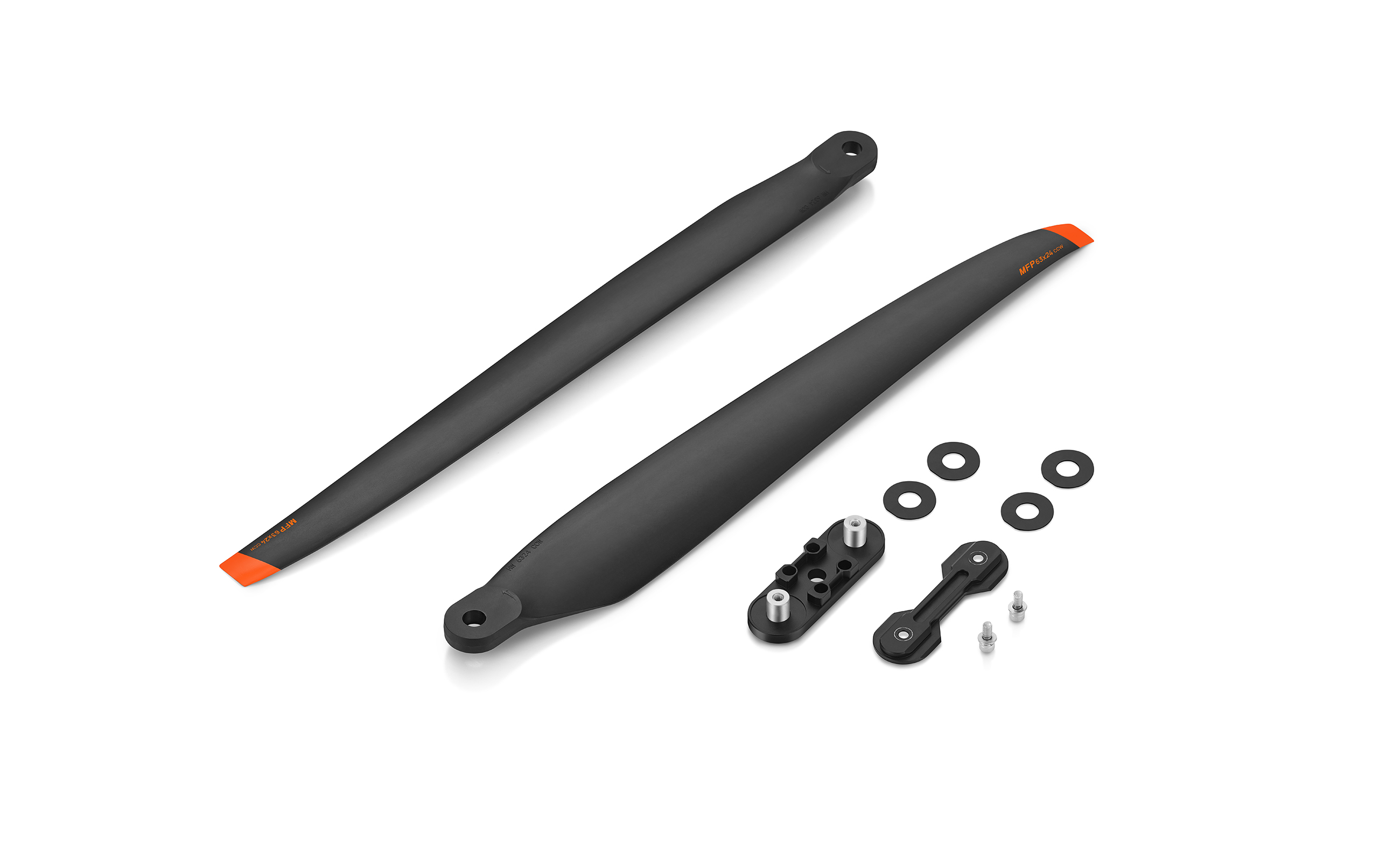

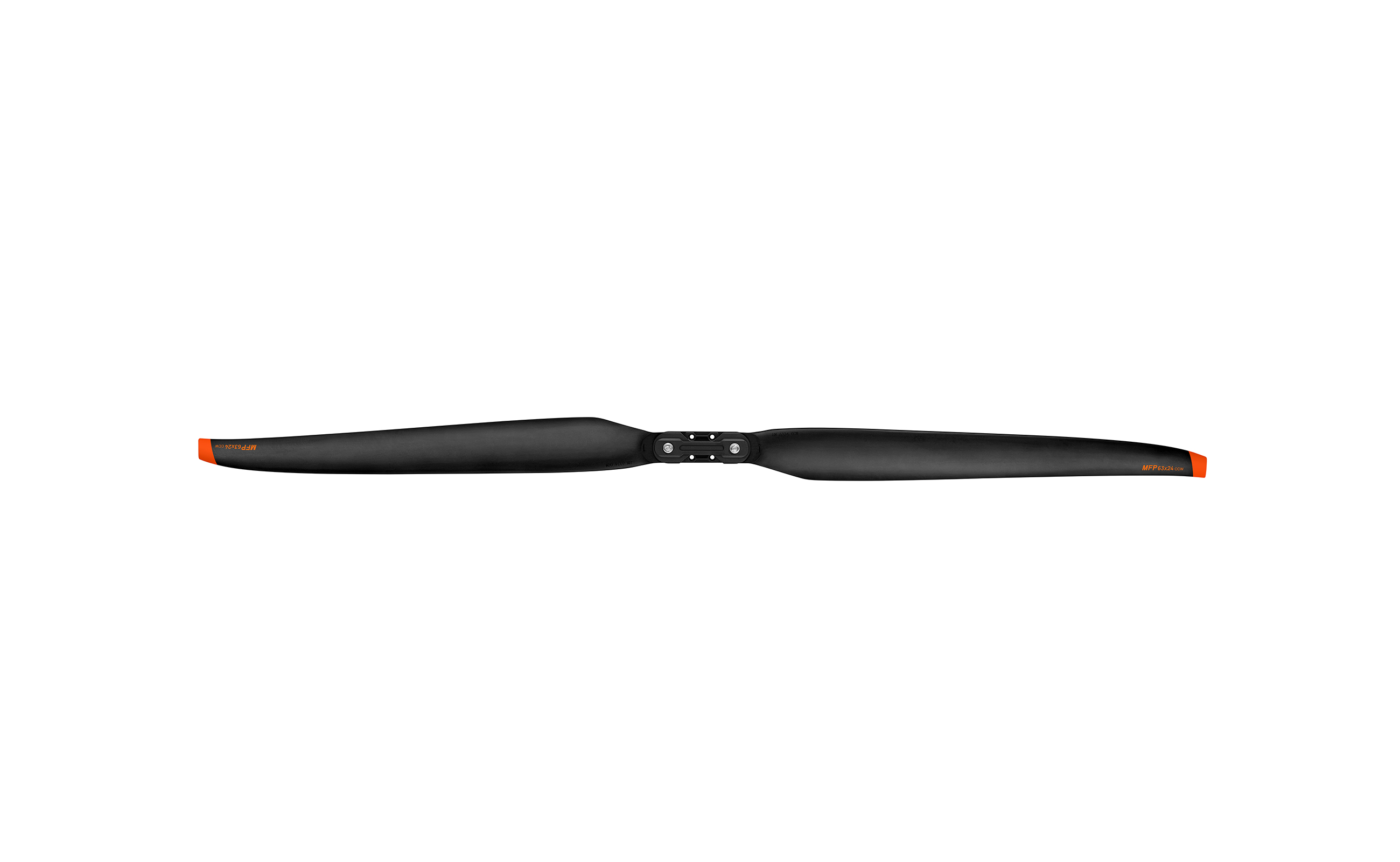

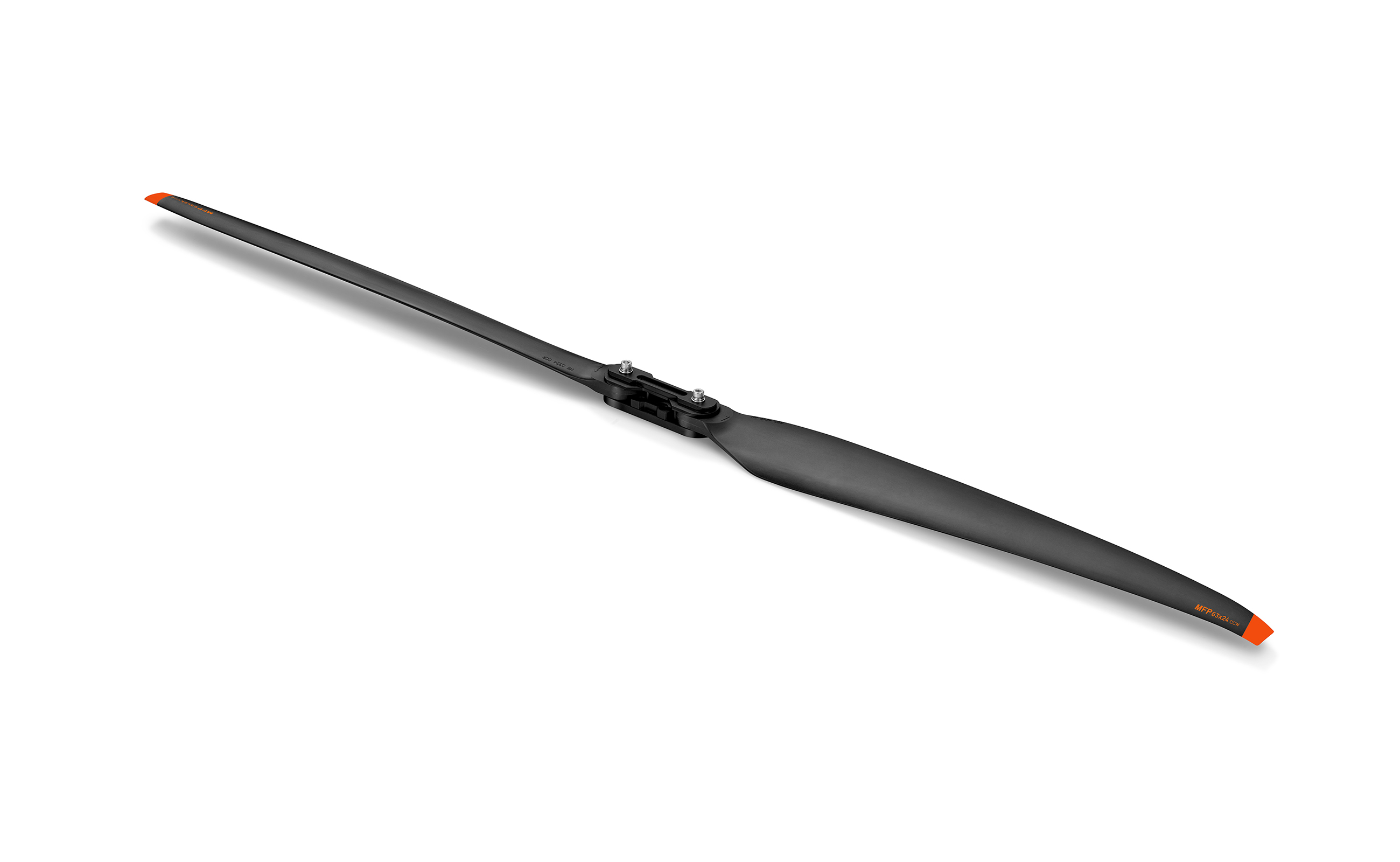

MFP 63x24Carbon-Nylon Folding Propeller

40% High-Strength
Special Carbon Fiber

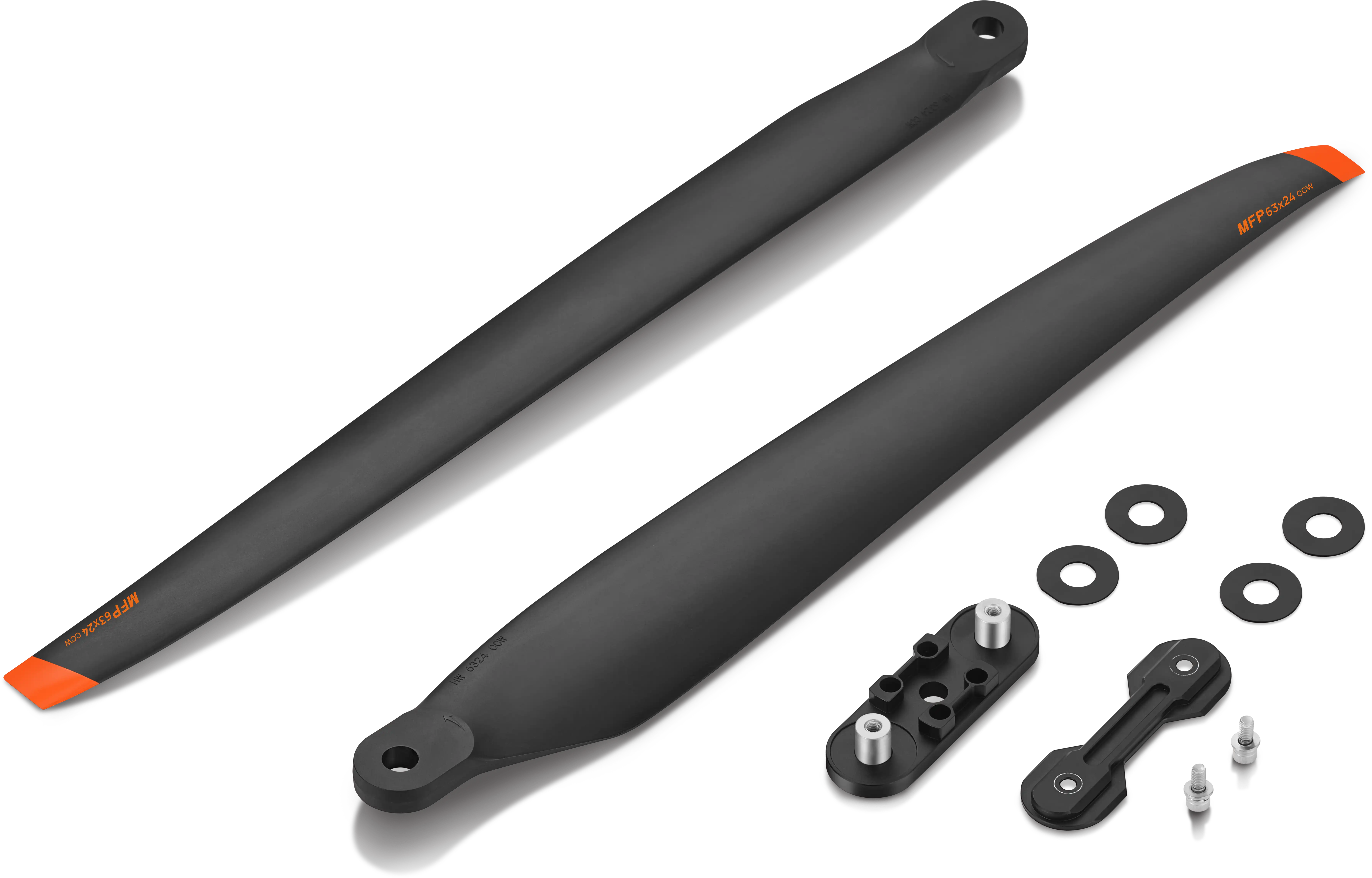

Reinforced Nylon Composite Hobbywing Drone propellers

Specially Designed for
High-Efficiency and
Heavy-Load Applications
Perfect Balance
Between Rigidity
and Toughness
Robust Propulsion
Powerful Performance
Reliable Quality
Highly Responsive Ensures the drone maintains agile,
efficient, and precise operation performance
even under heavy-lift conditions

40%High-Strength
Special Carbon Fiber
Reinforced Nylon CompositeHobbywing Drone propellers

Perfect Balance
Between Rigidity
and Toughness
Robust Propulsion
Powerful Performance
Reliable Quality
Specially Designed for
High-Efficiency and
Heavy-Load Applications
Highly Responsive Ensures the drone maintains agile,
efficient, and precise operation performance
even under heavy-lift conditions
Exceptional Structural Design,
Superior Efficiency
The aerodynamic arifoil and tip winglet design
effectively reduce air resistance and propeller
noise, boosting efficiency by
3%-5%
over common propeller type,
with noise reduced by up to
5 dB
Drone folding propeller

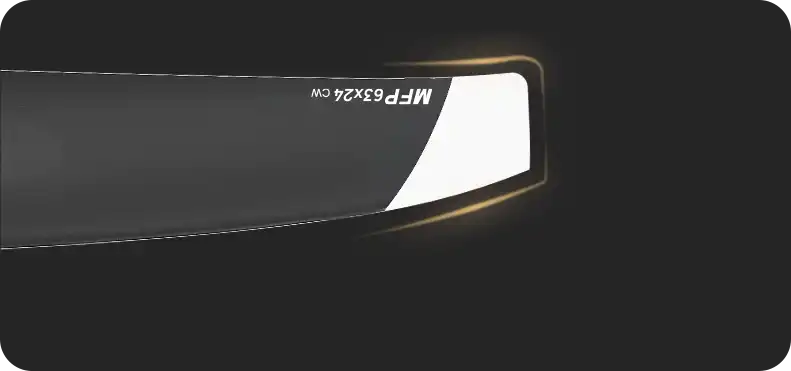

Tip winglet design
Drone folding propeller
Unwavering Reliability
Across All Scenarios,
Even in Harsh Environments
This propeller is corrosion-resistant and anti-aging, easily handling harsh environments like rain, salt fog, high
temperatures, and sandstorms, while ensuring stable flight in all weather conditions.

Rain

High Temperatures

Salt Fog

Sandstorms

Drone Motor propeller
Exceptional Quality Control,
Consistent Stability
Each propeller undergoesweight
balancing tests
Ensuring highly consistent performance across all propellers
Ensuring a morestable flight
Optimized Propulsion
Combination,Enhanced Efficiency
Deeply tuned and matched with the HOBBYWING motors, an optimized magnetic circuit
design is used to ensure consistent torque in complicated airflows, ensuring better output performance.
drone carbon plastic propellers

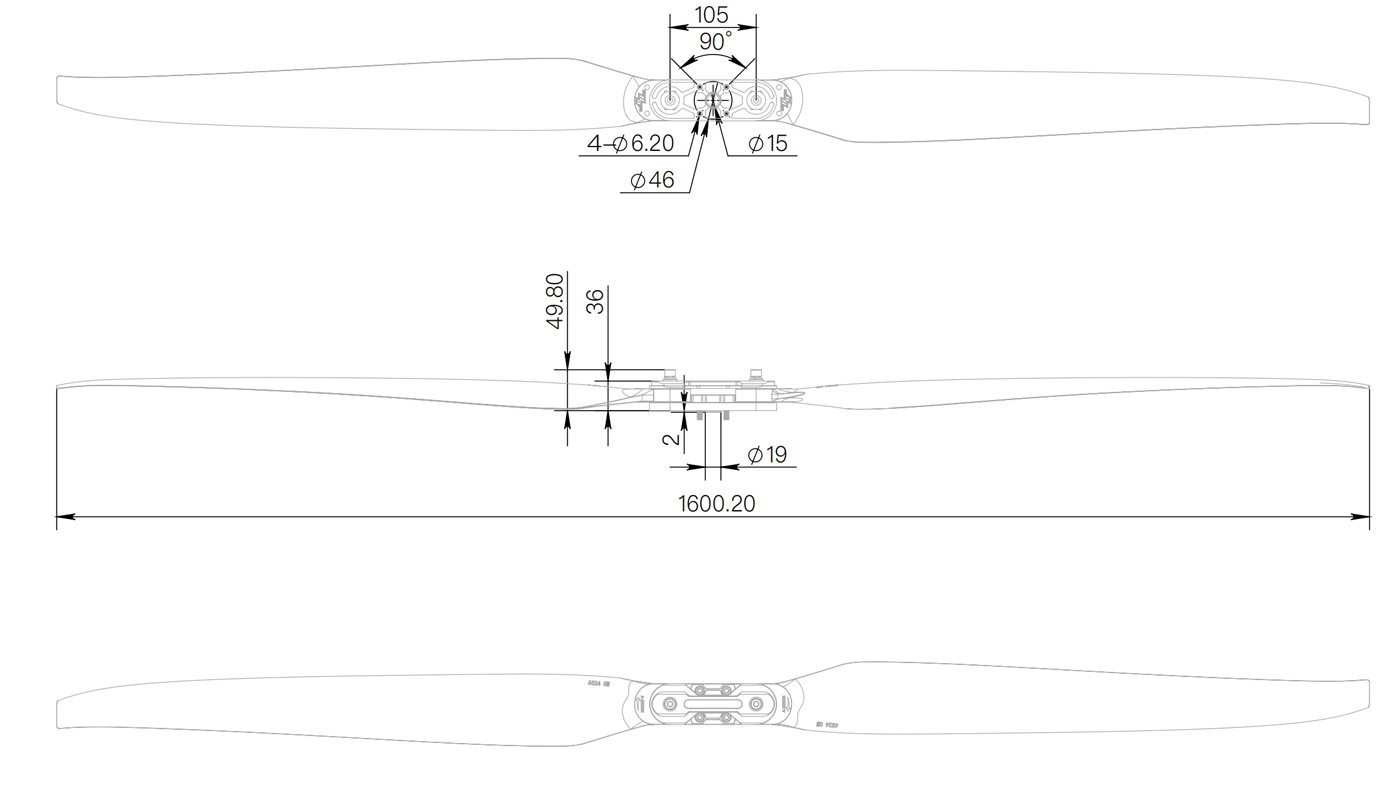

MFP 63x24 CAD
Product Name
MFP 63x24
Specifications
model MFP 63x24 Carbon-Nylon Folding Propeller
Single blade weight 400 g
Material of blades Carbon fiber reinforced nylon
Total weight (Including propeller adapter) 1190 g
Material of propeller adapter Aluminium alloy
Operating temperature -20~50 ℃
Storage temperature -10~40 ℃
Storage humidness ≤85%
Recommended RPM range 1000~1900 RPM
Recommended thrust 13~ 54 kg
Max RPM 2350 RPM
Max thrust 73 kg
Non-folding/Folding Folding propeller
Recommended motors of HOBBYWING 15623-45/60KV

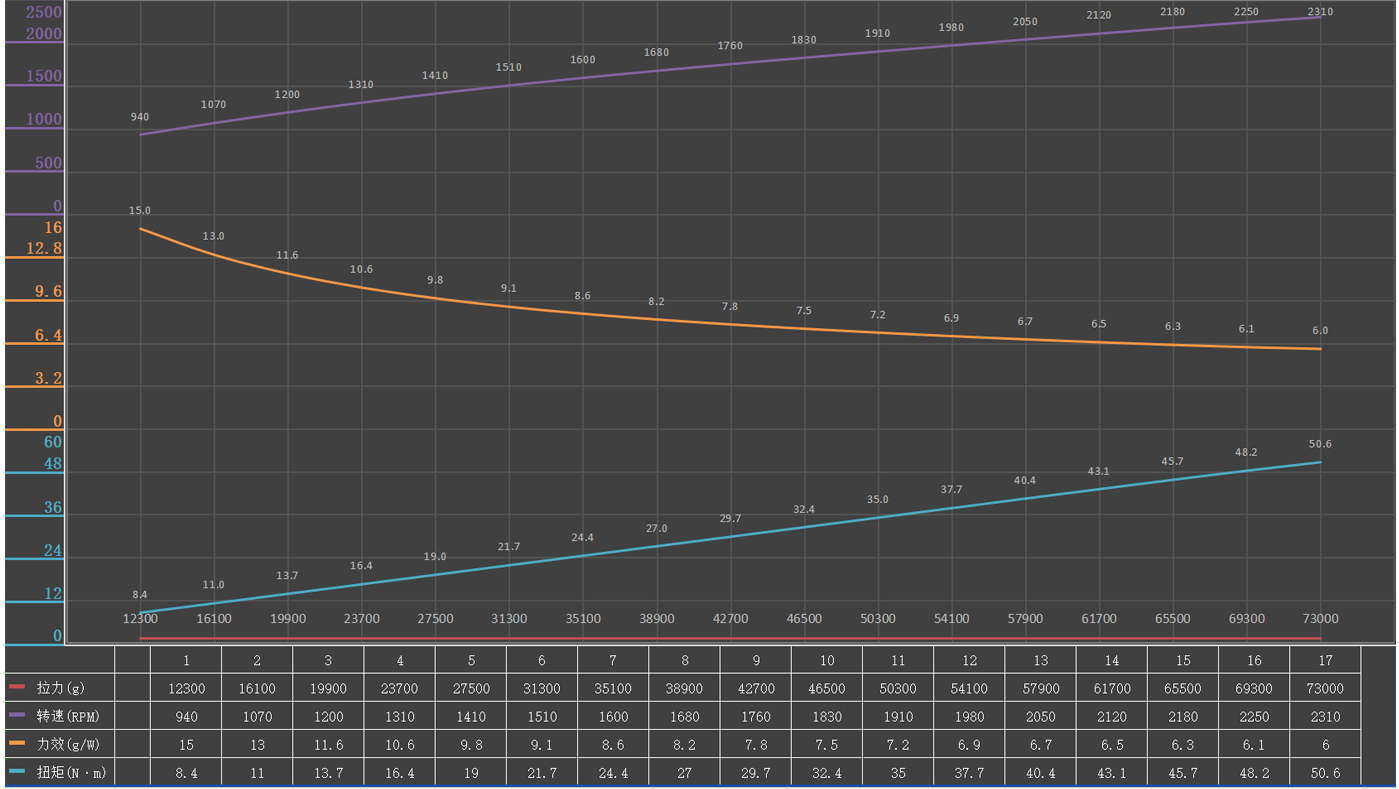

MFP 63x24 Speed, thrust and torque test data
