Excellent Structure Design

The wheel hub motor with square spline mounting hole (on
the stator) for easy and reliable installation. The U-type PU
tyre with spline structure (five slots) effectively prevent the
typre from sliding against the rotor to guarantee the output of
the motor power; the locating rings at the front & rear ends
guarantee the precise installation of magnets and improve
their shock resistance.

Excellent Design

Exploded View of the
4230SD 85KV Motor

Applicable to All Weather & Track
Conditions

The fully-sealed frame and two bearings with plastic covers are
waterproof to IP 55 standard, that guarantees the motor waterproof,
dustproof and shock-resistant.

Applicable to All
Weather Conditions

High Quality Components for Super
Reliability

The use of 6061-T6 high-strength aluminum-alloy shell, N52H heat (≤120℃)-resistant
magnets, 0.2mm silicon sheets, imported 80A high-rebound PU tyre, and high precision
heat (≤150℃)-resistant Hall sensor guarantees users high reliability, consistent stability
and long-term durability.

High Quality
Components

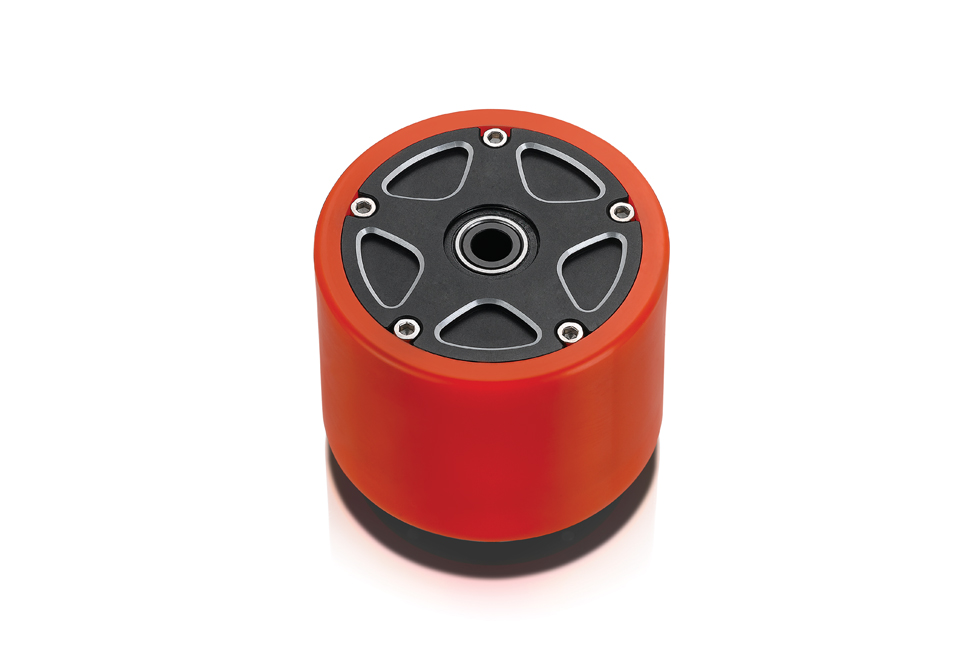

4230SD 85KV OrangeRed
SkateBoard Motor

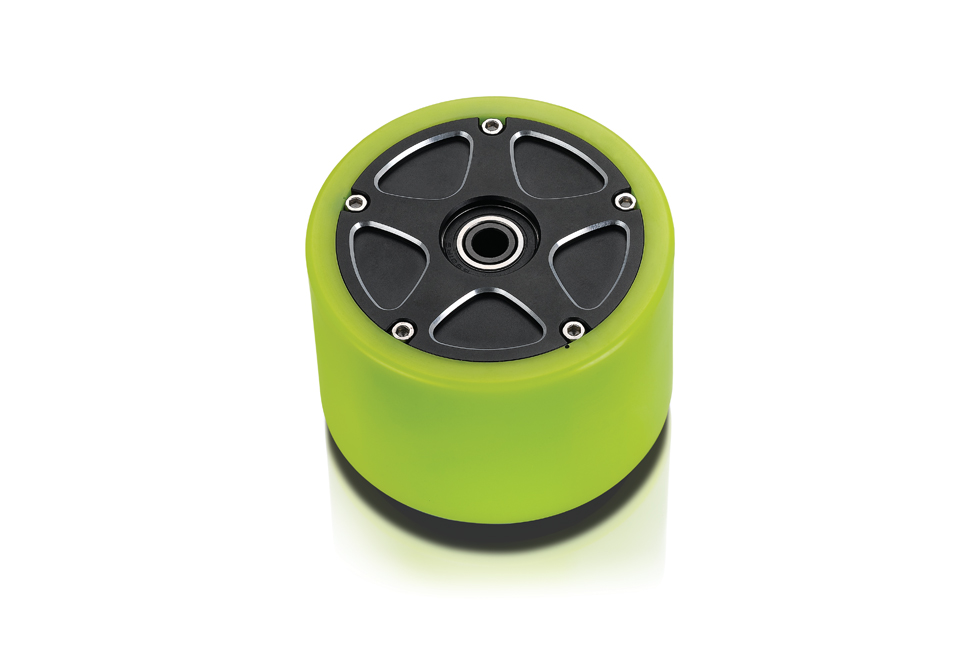

5230SD 70KV Yellowgreen
SkateBoard Motor

WeChat

Contact: Peng Li

QQ：2869608364

Tel: 13632592011

Email：sales-c@hobbywing.com

Product Name
Specifications 型号

外径

宽度

KV值

额定电压

额定功率

最大扭矩

重量

类型
Product Name 滑板电机
Specifications 型号

外径

宽度

KV值

额定电压

额定功率

最大扭矩

重量

类型





 5230SD-70KV-OrangeRed-SkateBoard Motor

83mm

54mm

70KV

36-44.4V

350W

4.2NM

815g

轮毂电机		 4230SD-85KV-OrangeRed-SkateBoard Motor

70mm

52mm

85KV

24V

150W

2.0NM

575g
