Excellent Motor Governing Speed
High-performance 32-bit processor with a running frequency of 72MHz
combined with advanced algorithm optimizes the speed governing.
Together with the adjustable governor parameters guarantees every
pilot a precise control experience
Excellent Motor
Governing speed
High Voltage Built-in BEC
The built-in switch mode BEC with an adjustable voltage (6V/7.4V for the Platinum
25A V4, 5V~8V with the step of 0.1V for the Platinum 40A V4), a continuous current
of over 3A/7A (3A for the Platinum 25A V4, 7A for the Platinum 40A V4) and a peak
current of 7A/18A (7A for the Platinum 25A V4, 18A for the Platinum 40A V4) can
supply enough power for your servos to operate efficiently.
High voltage
built-in BEC

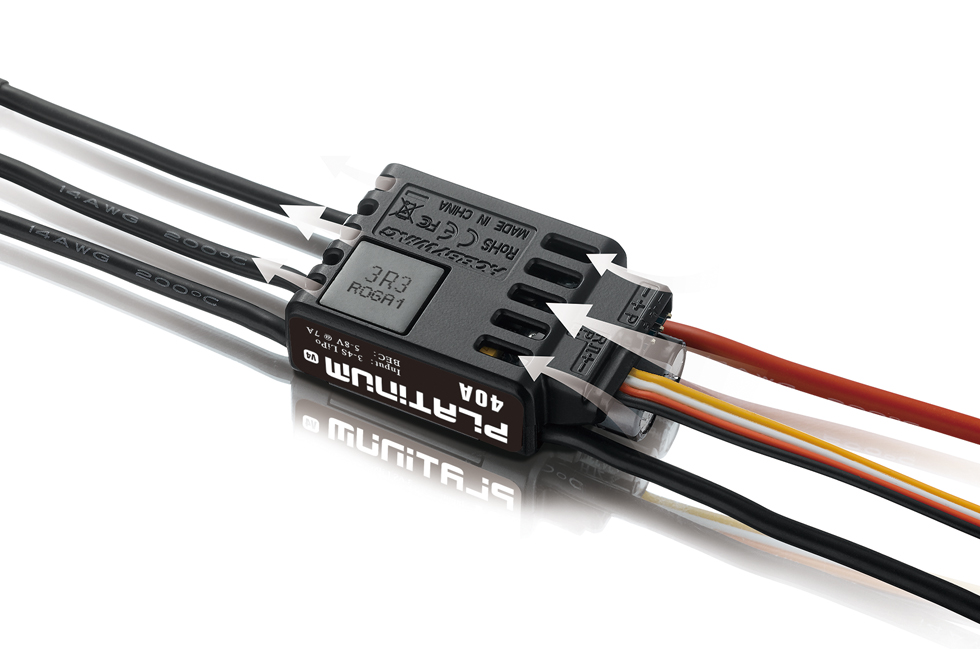

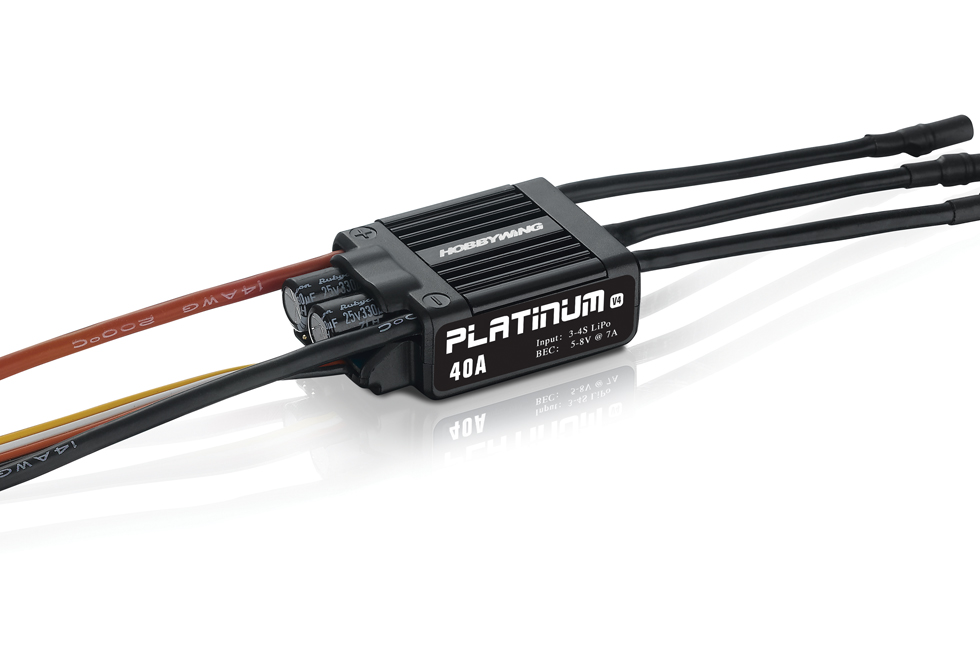

Platinum 40A V4
DEO Technology
The DEO (Driving Efficiency Optimization, or so called "Active Freewheeling")
technology implemented in the ESC has multiple advantages.
● Quicker response to the throttle change.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a more reliable operation.
Rapider throttle
response
Higher efficiency and
longer flight time
Lower
temperature rise

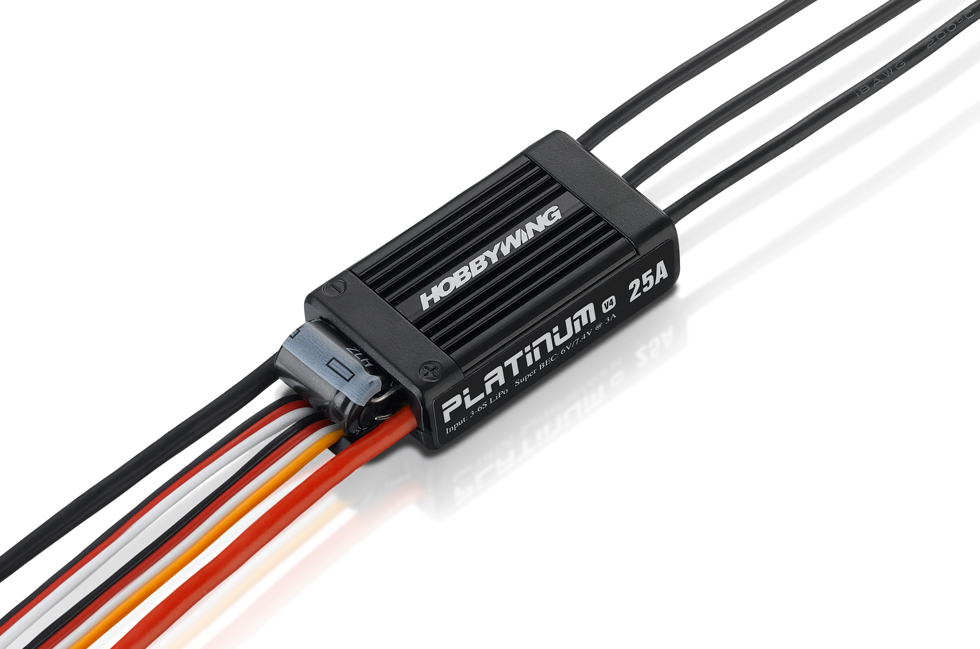

Platinum 25A V4
Reverse Brake
With the Reverse Brake mode enabled when landing can effectively
shorten the sliding distance of the fixed-wing aircraft to simulate the
landing of a real aircraft (within a super short distance). The Normal
Brake Mode, Proportional Brake mode, and Brake Disabled mode are
also available; the brake amount is adjustable in normal brake mode
while in proportional brake mode, the brake force will be automatically
allotted on the basis of the position of radio throttle stick.
Multiple Protections
Multiple protection features include, ESC thermal,
capacitor thermal (HOBBYWING-patented
technology), ESC overload, throttle signal loss
(or Fail Safe), and low voltage cutoff effectively
prolongs the service life of the ESC.
Multiple Protections
Start-up Protection
ESC Thermal
Protection
Overload
Protection
Overload Protection
Abnormal Input
Voltage Protection
Throttle Signal
Loss Protection
Other Features
A separate programming port for connecting the programmer on this ESC allows user to
● Program ESC,
● check flight data include minimum voltage, maximum temperature, standardized RPM
and speed curve (in Heli Governing Store mode) of the flight data recorded by the ESC,
● Upgrade ESC firmware With a multifunction LCD program box or a Wi-Fi Module & our
Apple/Android phone App.
Other Features

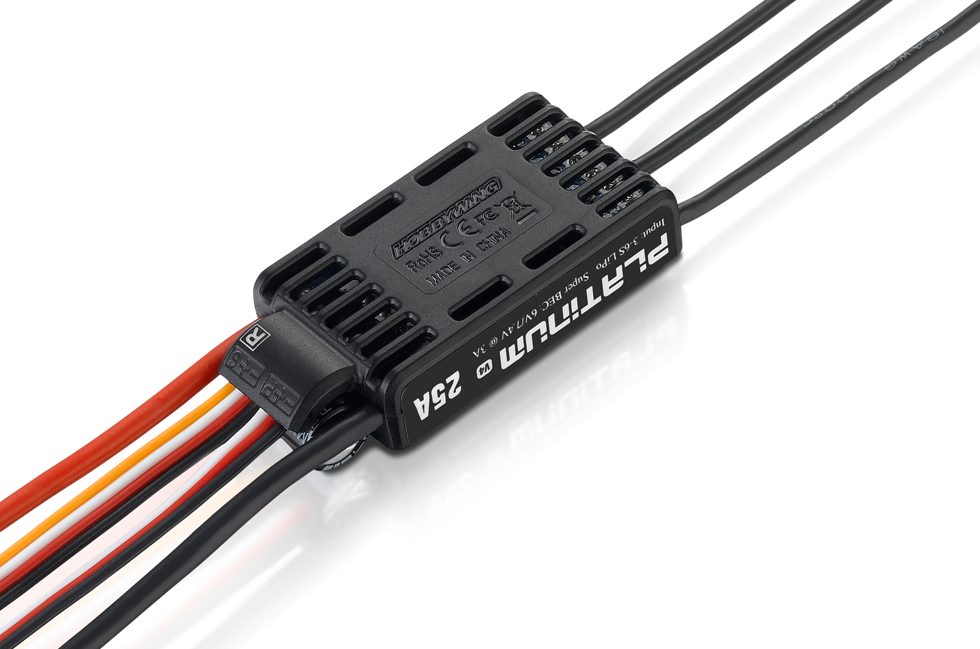

Platinum 25A V4
Product Name | |
Product Number | |
Type | Brushed/Brushless High Voltage/Regular |
Specifications | Cont./Peak Current Input BEC Output |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
ESC Programing via | Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port |
Firmware | Firmware Upgrade |
Size & Weight | Size Weight |
Product Name | Platinum 25A V4 | |
Product Number | 30204200 | |
Type | Brushed/Brushless High Voltage/Regular |
BL Regular |
Specifications | Cont./Peak Current Input BEC Output |
25A/40A 3-6S Lipo Switch Mode:6V/7.4V,3A |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
Red-16AWG-100mm*1/Black-16AWG-100mm*1 Black-18AWG-100mm*3 No 3.5mmGold Connectors (Female) |
ESC Programing via | Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port |
Not Supported Not Supported Not Supported Supported Supported Supported Individual Programming Lines |
Firmware | Firmware Upgrade | Supported |
Size & Weight | Size Weight |
47x22x10mm 27g |
