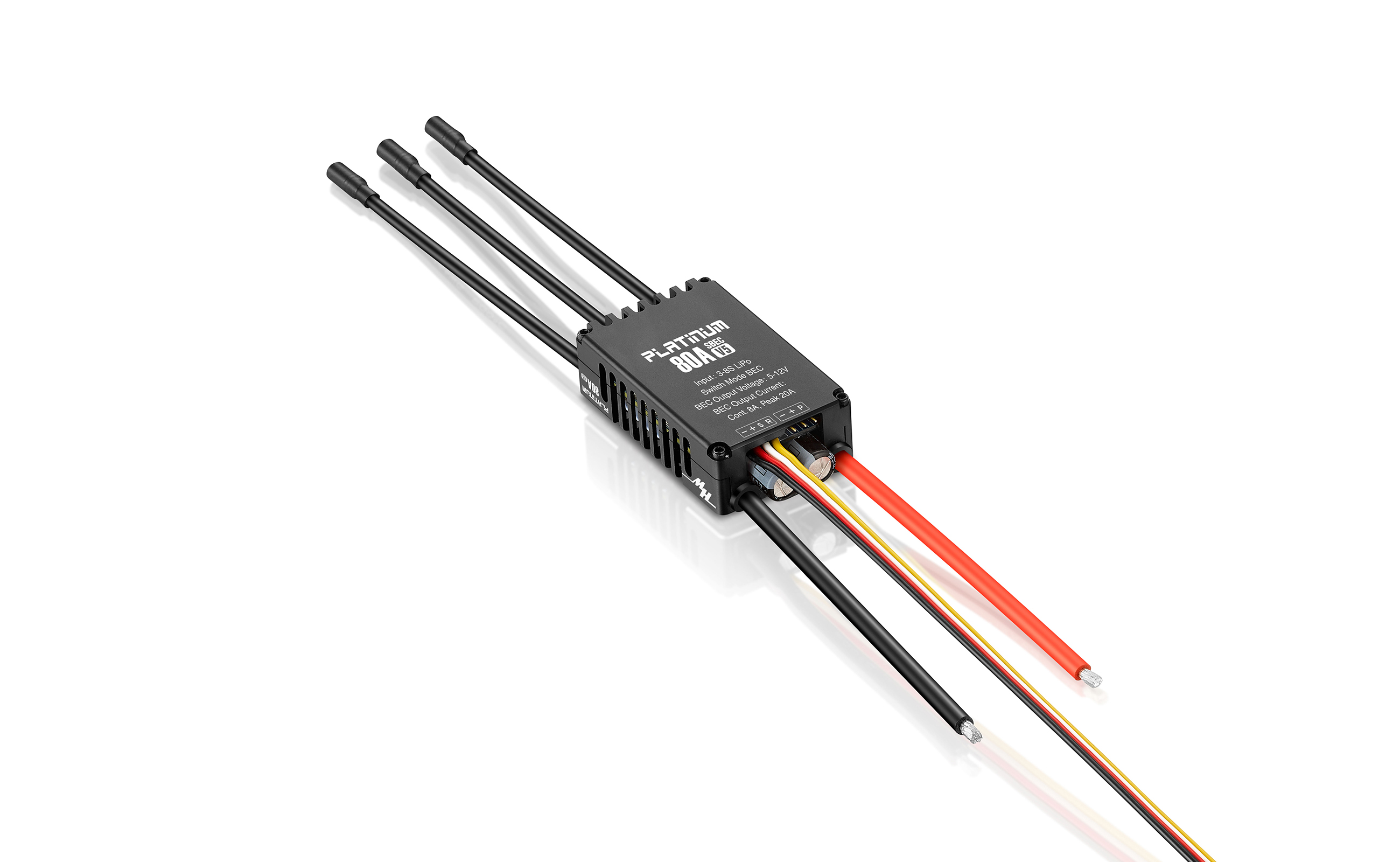

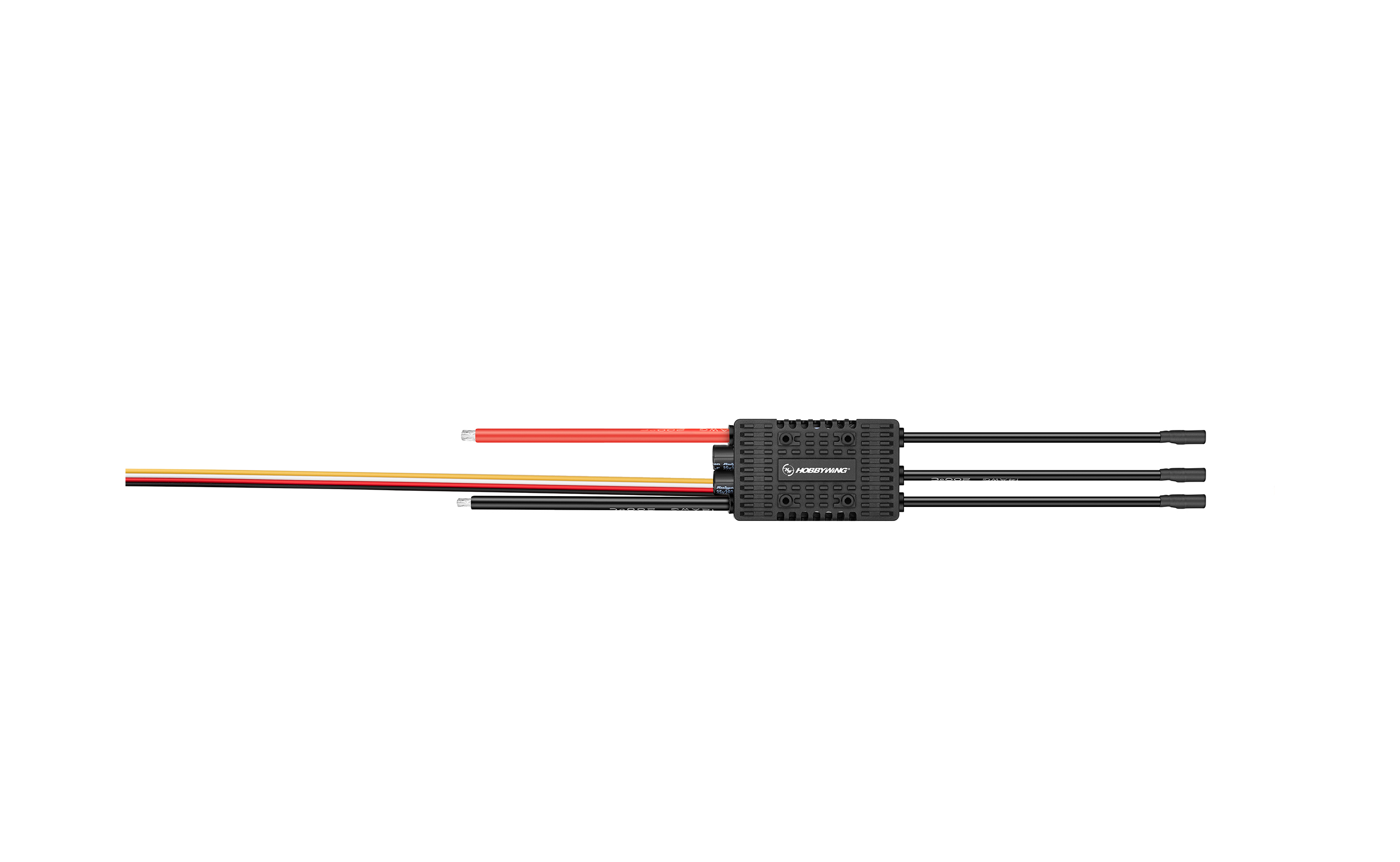

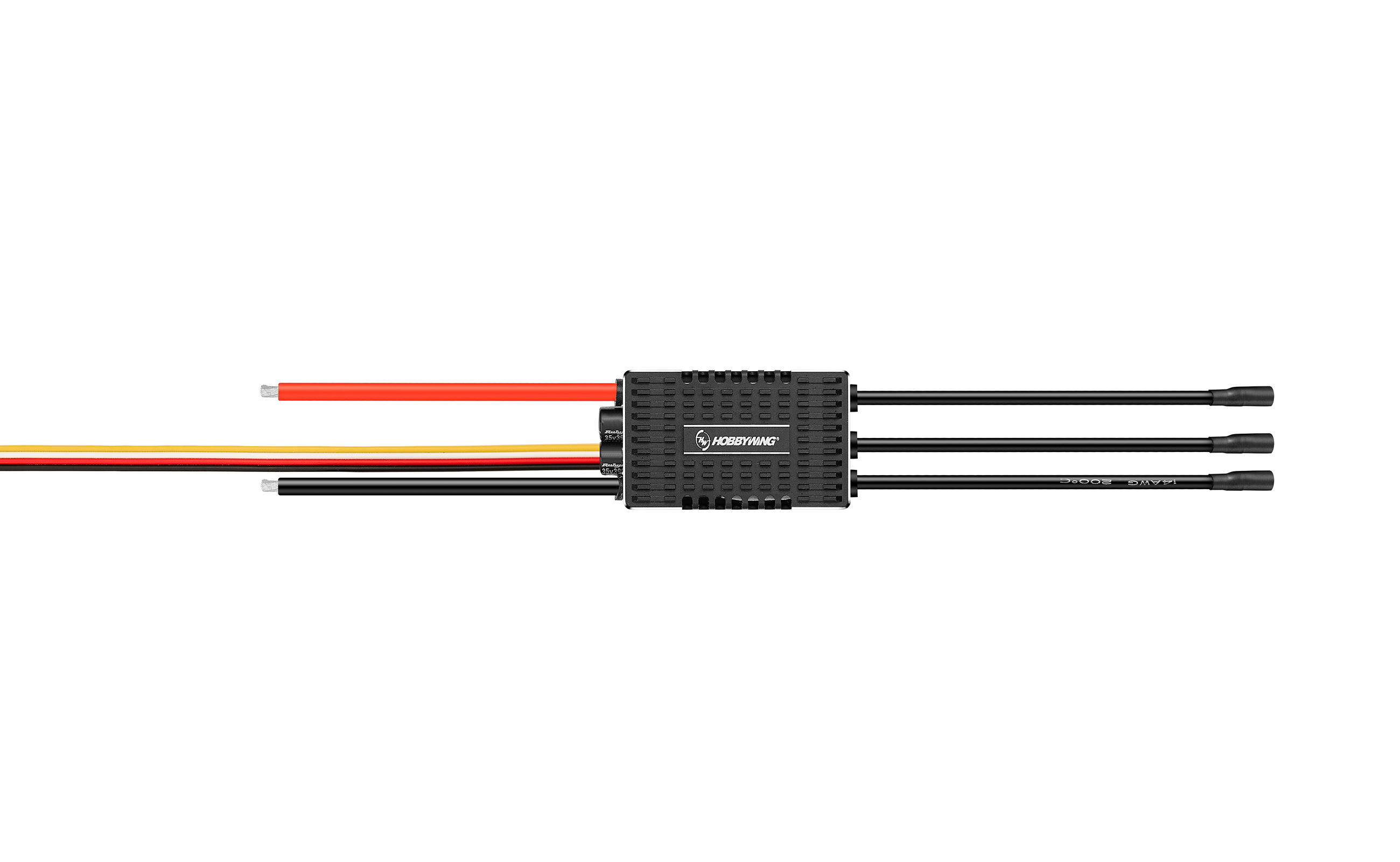

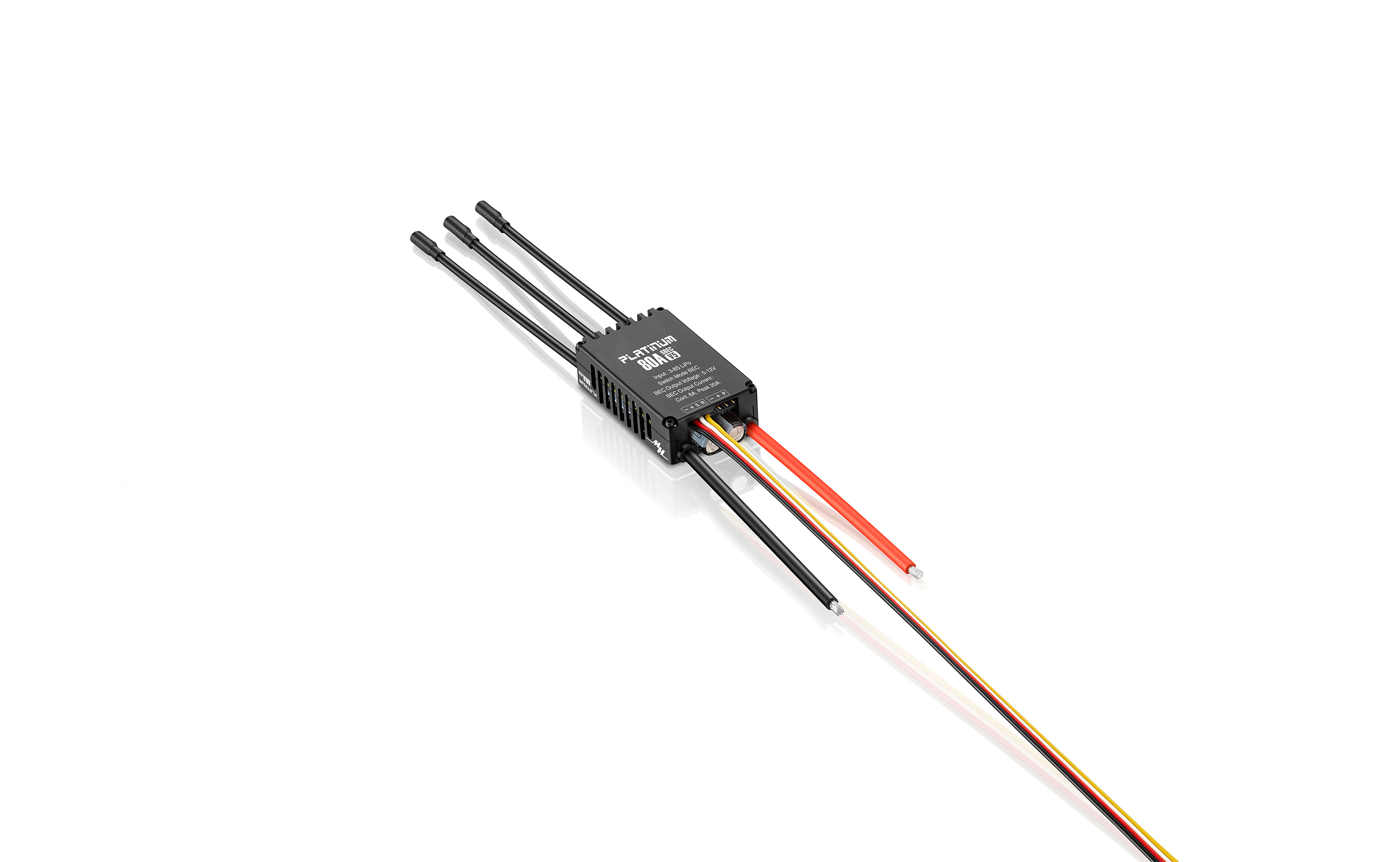

Platinum 80A V5
PLATINUM 80A V5 SBEC

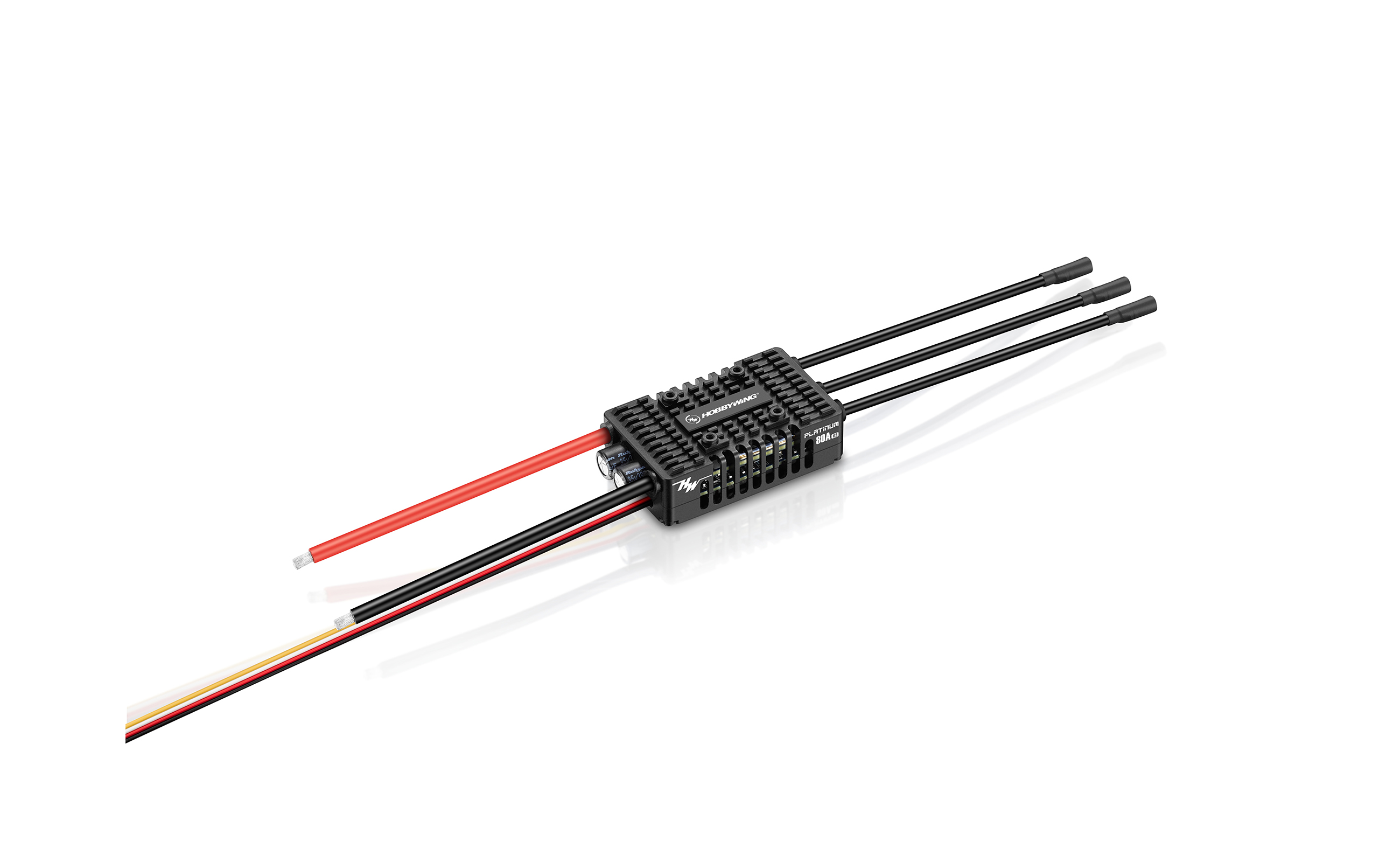

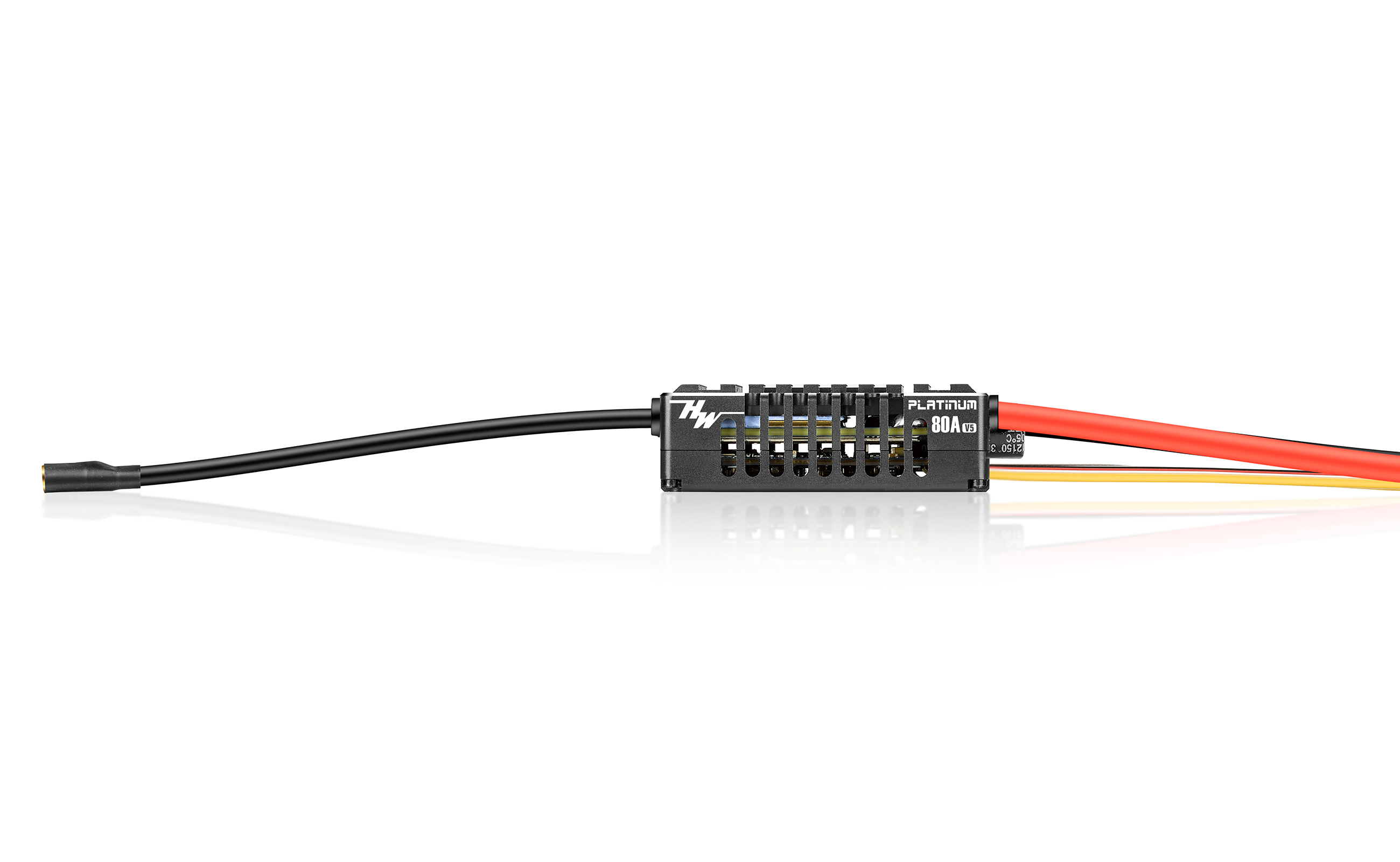

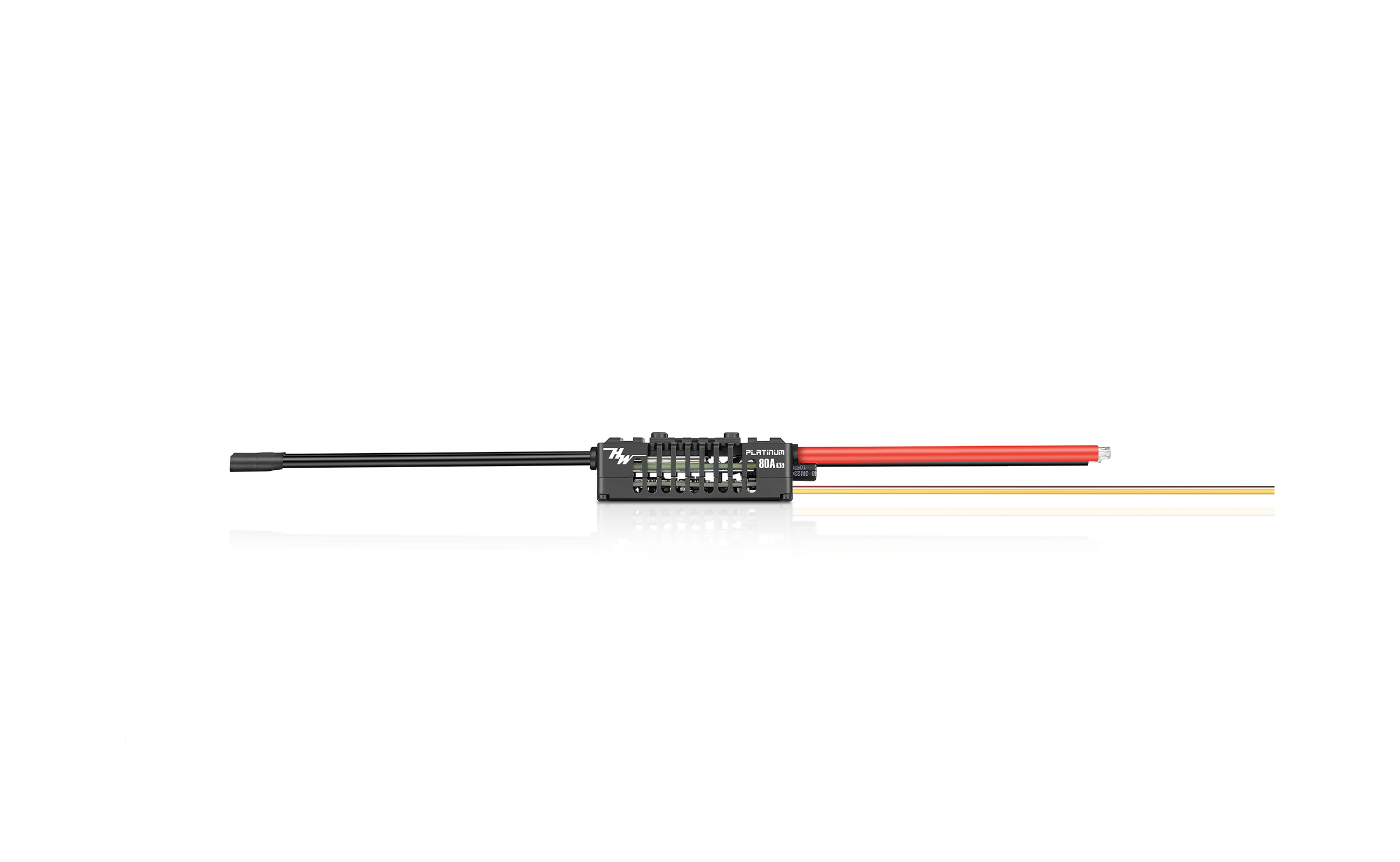

Compact size with
efficient heat sink design
The Platinum V5 series features the newly designed heat sink,
that will cool with the airflow generated by the movement of the craft.
This new design allows for external cooling of the ESC as well as internally.
NOTE
The double-sided hollow heat dissipation structure has applied for a patent,
please do not imitate it!
Built-in 12V Switch BEC for
greater output capability
  • 1
    Built-in Programmable Switch
    BEC
  • 2
    The maximum output voltage
    12V
    5-12V Adjustable
  • 3
    The maximum output current up to
    25A
Constant speed
performance upgrade,
Ultimate flight experience
The 32-bit processor combined with the
RPM accuracy algorithm makes the ESC
more powerful and more consistent.
Excellent speed control effects for
lightweight, small-sized electric helicopters.
Support multiple protocols,
versatile
SUPPORT
Mikado VBar System,Futaba S.BUS2 and other devices' data return protocols.
Users are able to adjust parameters on the remote-control device
(VBar protocol support) or check the working status of the ESC at any time.
Synchronous rectification technology,
multiple advantages
The ESC has synchronous rectification driving efficiency optimization technology
DEO — DRIVING EFFICIENCY OPTIMIZATION
which brings multiple advantages:

  • Faster throttle response,
    enhanced flight stability and flexibility

  • Higher driving efficiency
    and longer battery life-span

  • Lower ESC temperature rise,
    more reliable
Multiple protection,
double security
It has multiple protection functions,
to effectively prolonging the lifespan of the ESC.

  • Start-up
    protection

  • Current
    protection

  • Temperature
    protection

  • Overload
    protection

  • Throttle signal
    loss protection

  • Capacitor temperature
    protection

  • Input voltage
    abnormality protection
Product Name
Platinum 80A V5
Product Number
  30203201
Type
Brushed/Brushless BL
High Voltage/Regular Regular
Specifications
Cont./Peak Current 80A/120A
Input Voltage 3-8S Lipo
BEC Output Switch Mode:5-12V & Cont. 8A,Peak 20A
Wires & Connectors
Input Wires Red-12AWG-100mm*1/Black-12AWG-100mm*1
Output Wires Black-14AWG-100mm*3
Input Connectors No
Output Connecotors 3.5mm Gold Connectors (Female)
ESC Programing via
Transmitter Not Support
LED Program Card Not Support
LED Program Box Not Support
LCD Program Box Supported
OTA Programmer Supported
Program Port Separate Program Port
Firmware
Firmware Upgrade Supported
Telemetry Function
  Mikado VBar;Futaba S.Bus2;etc.
Size & Weight

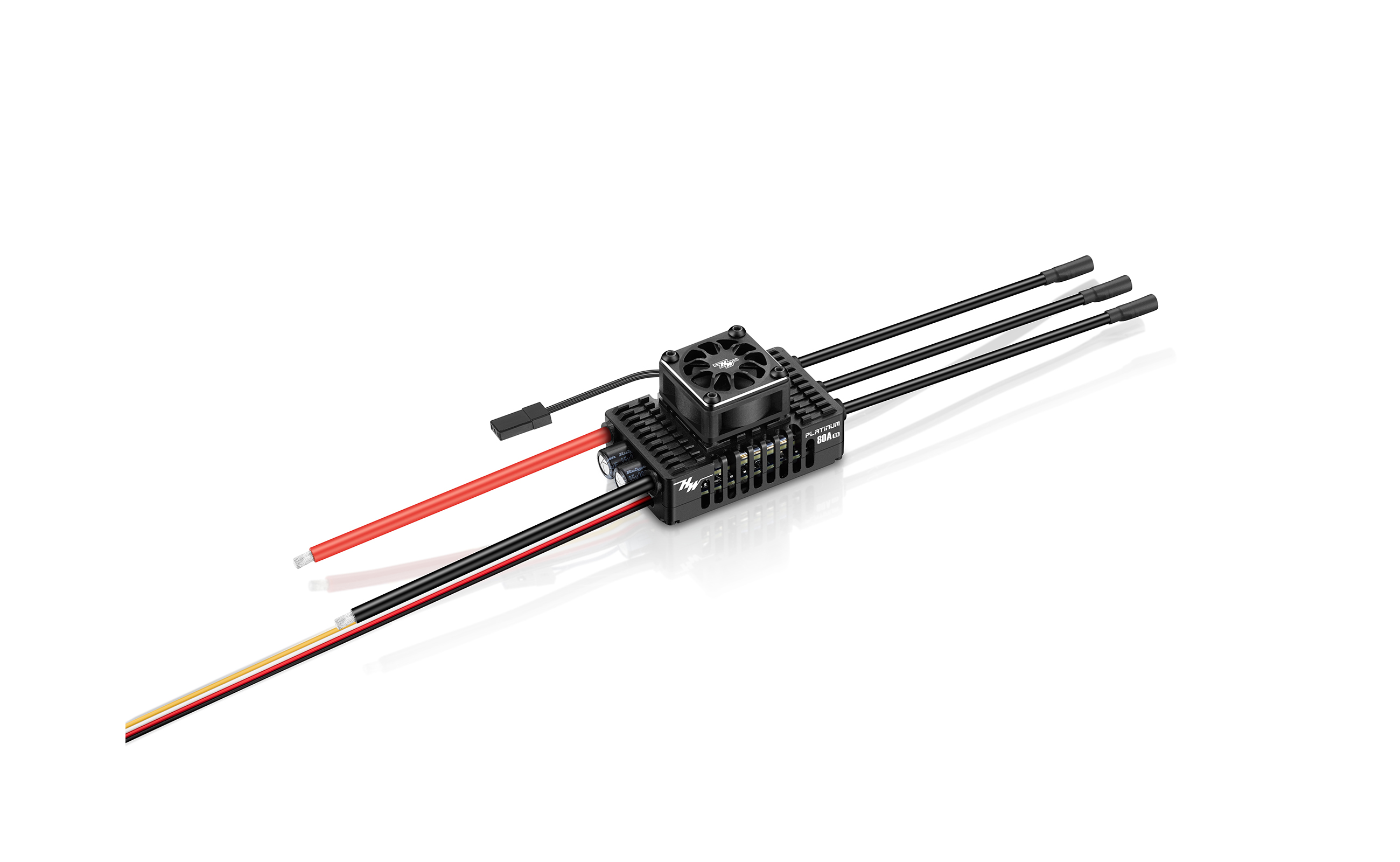

Size 60.5*33*17.6mm (without fan)
Weight 77.5g (with wires, no fan)
Application scope
  325-420 class electric helicopter (main blade length 325-420mm),or fixed-wing
