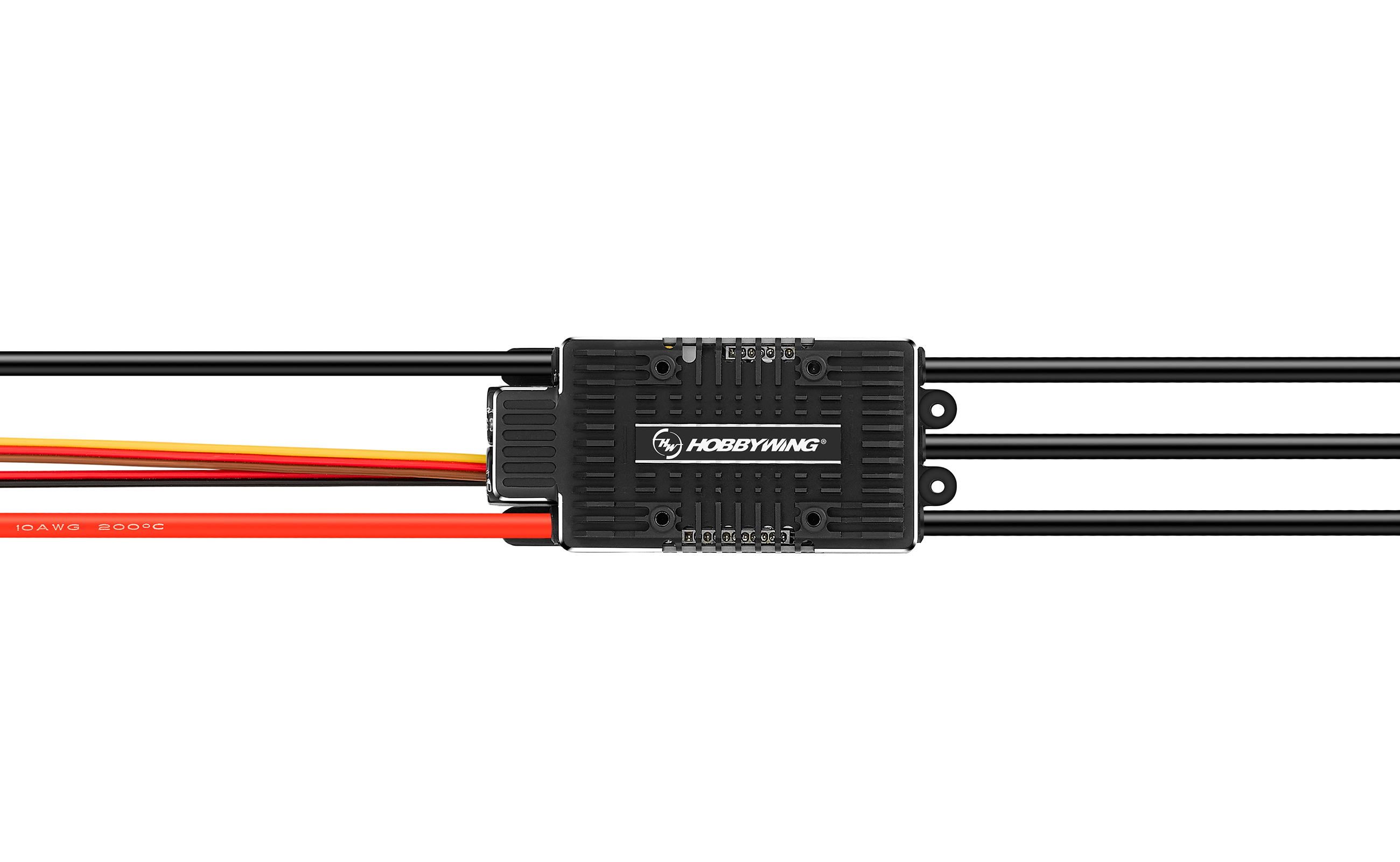

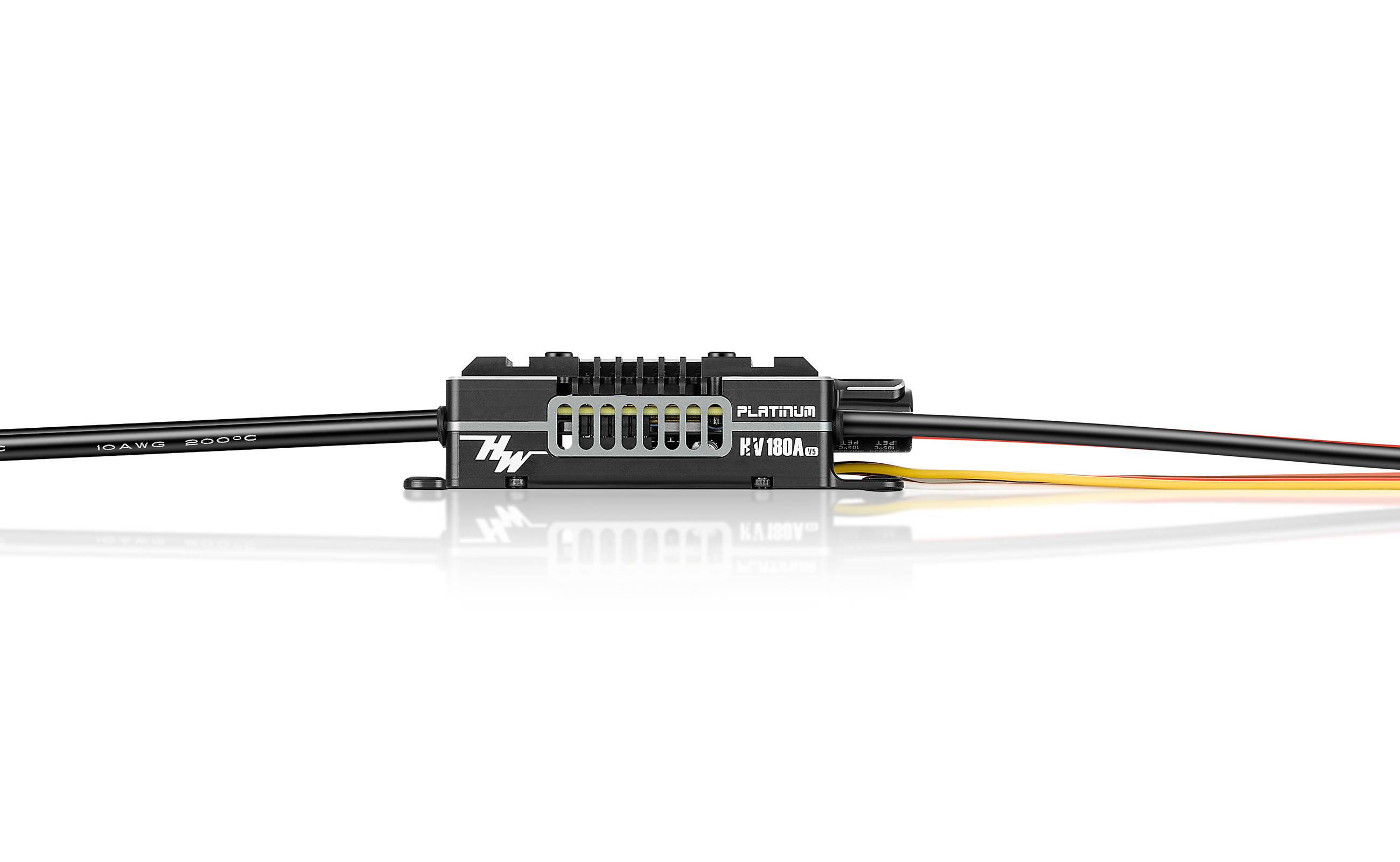

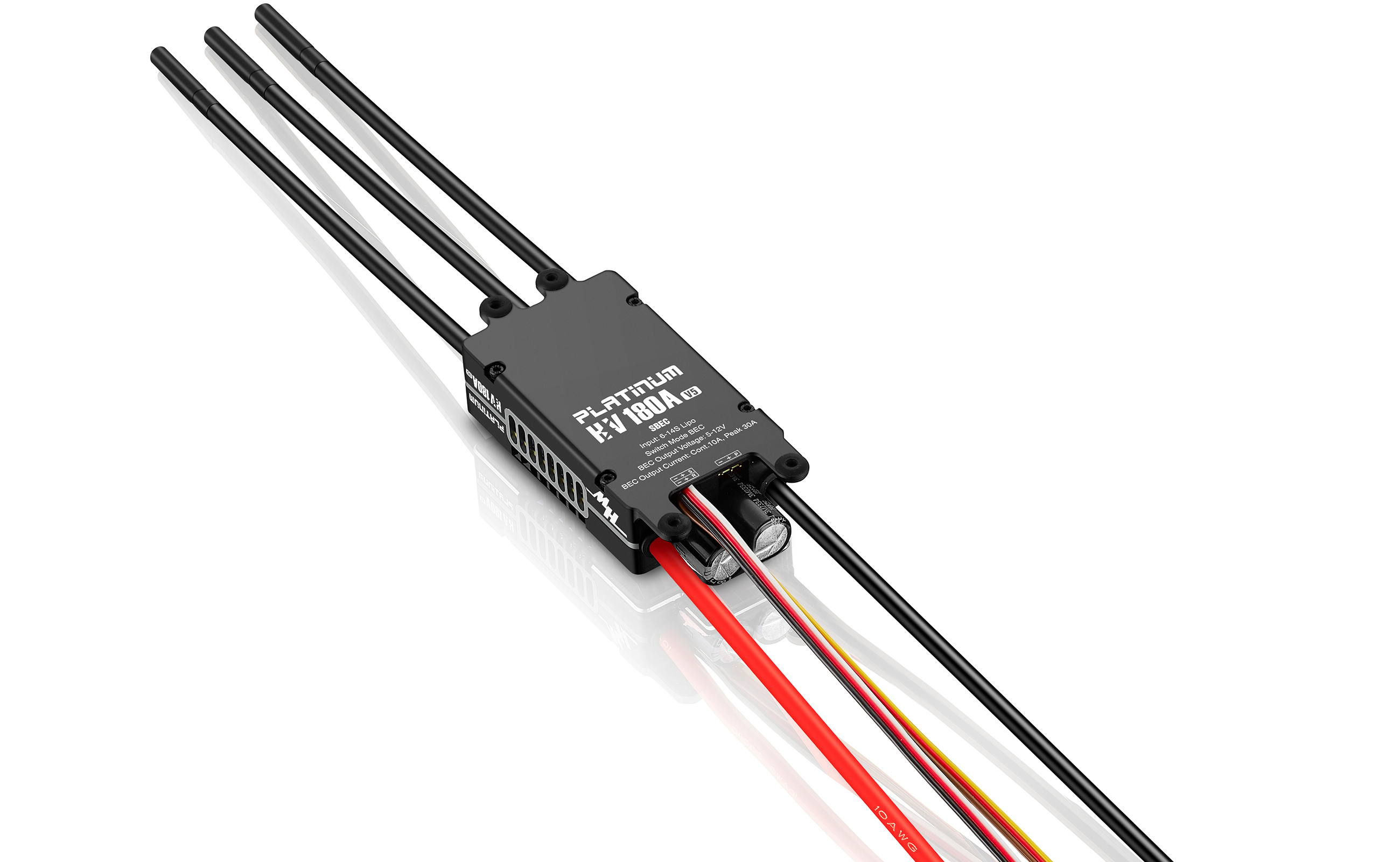

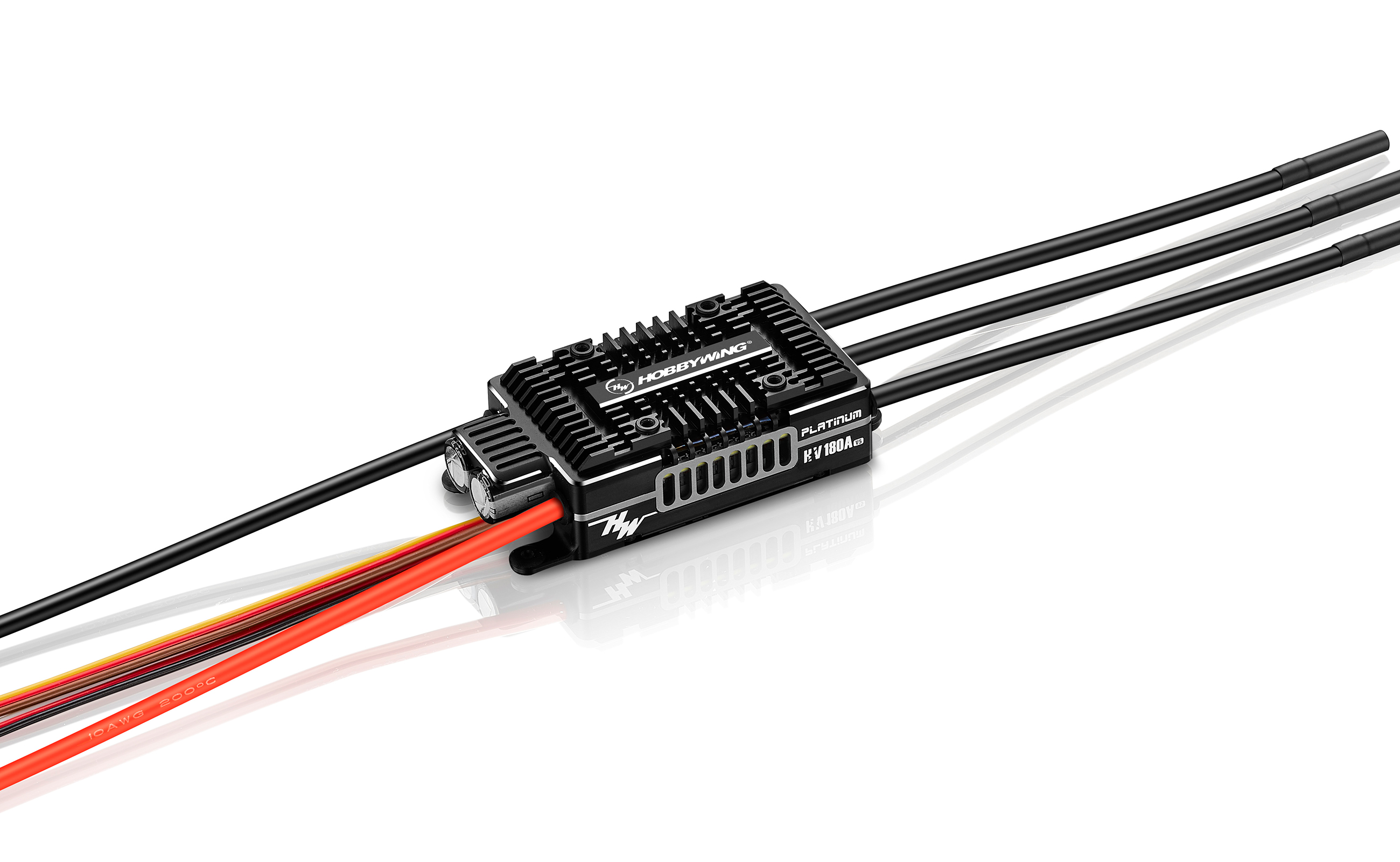

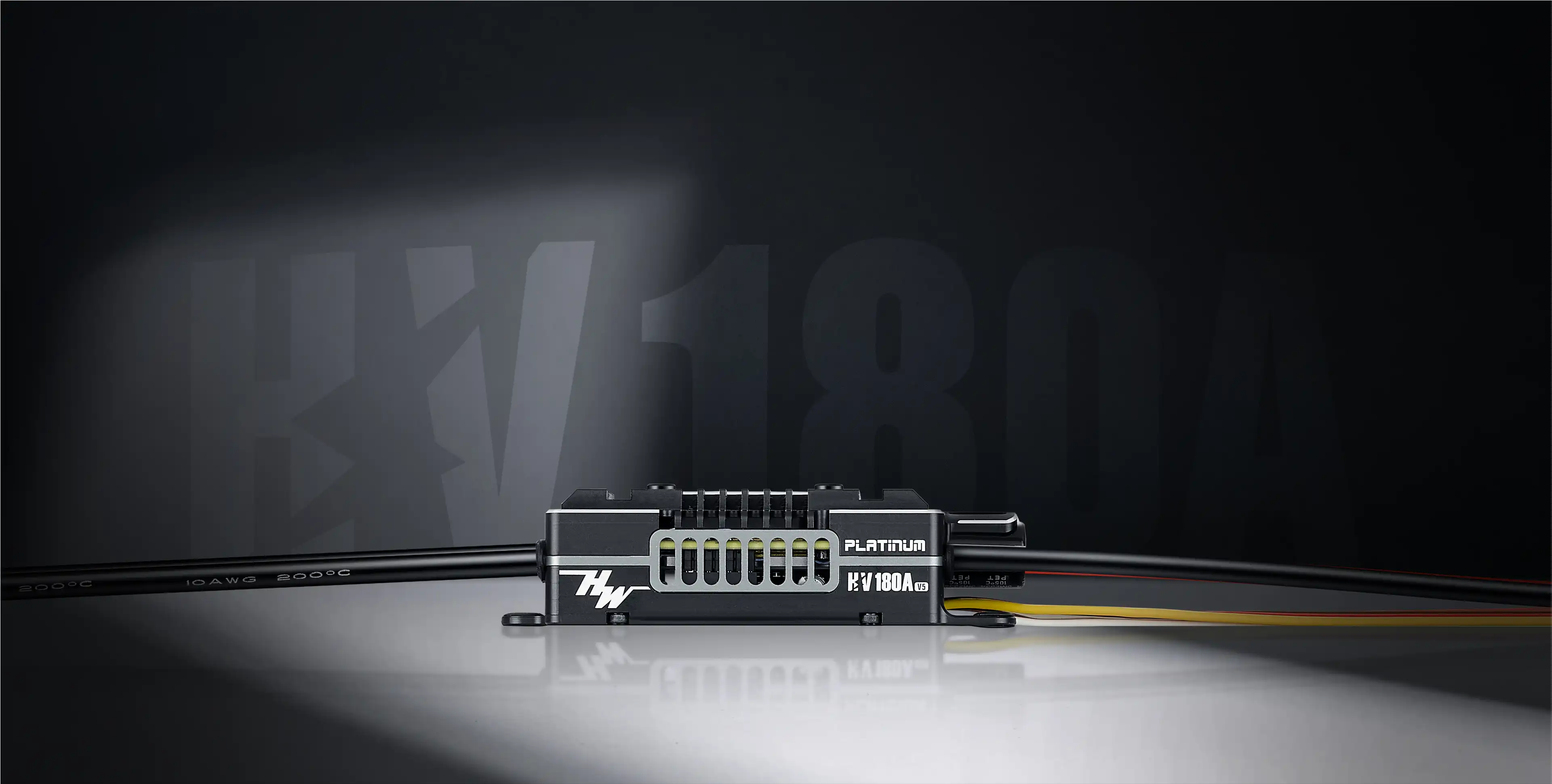

Platinum HV 180A V5
Compact size with
excellent heat dissipation
The new design allows for the ESC to be more compact and
weigh less. The ESC can meet the demands of more crafts.

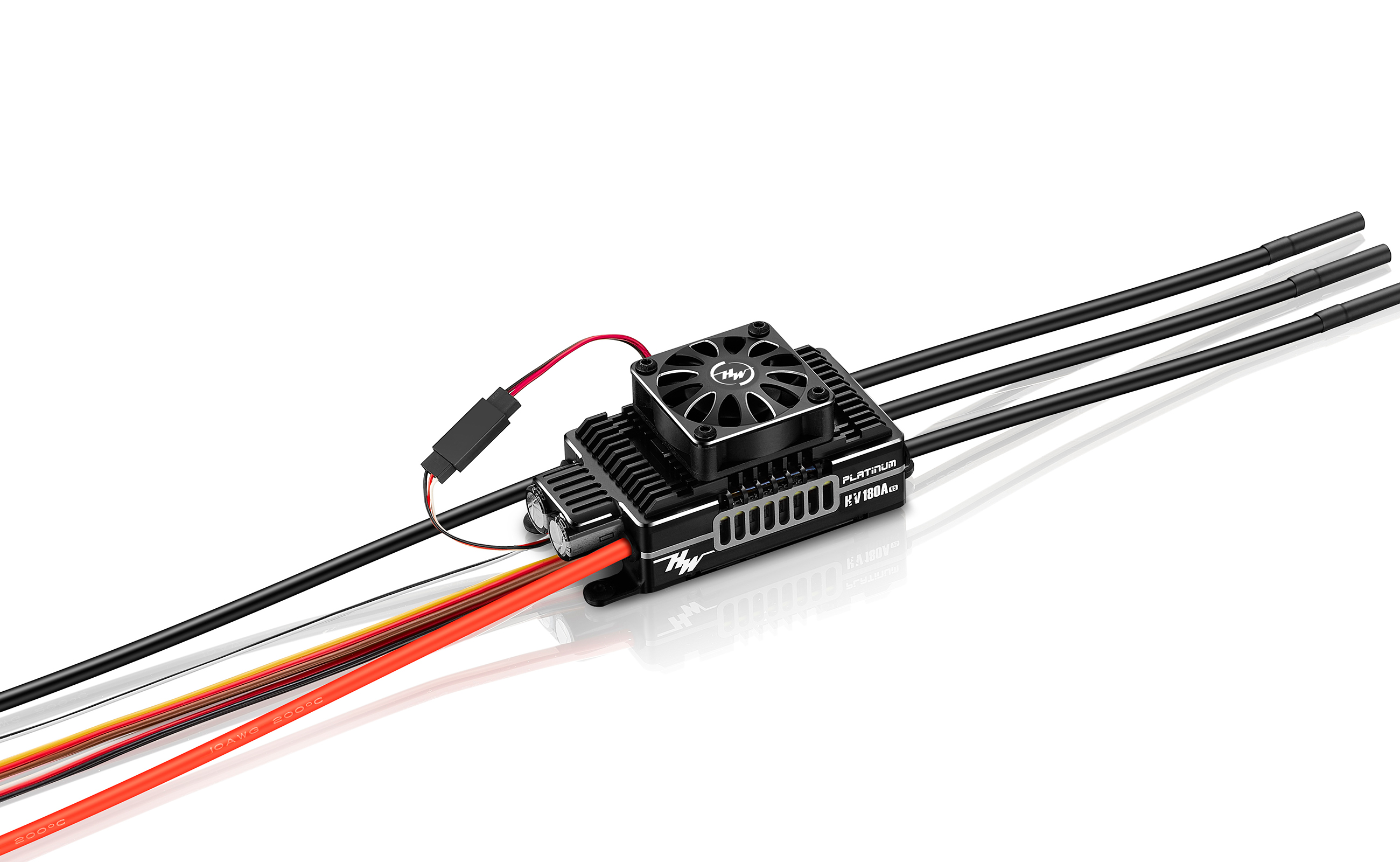

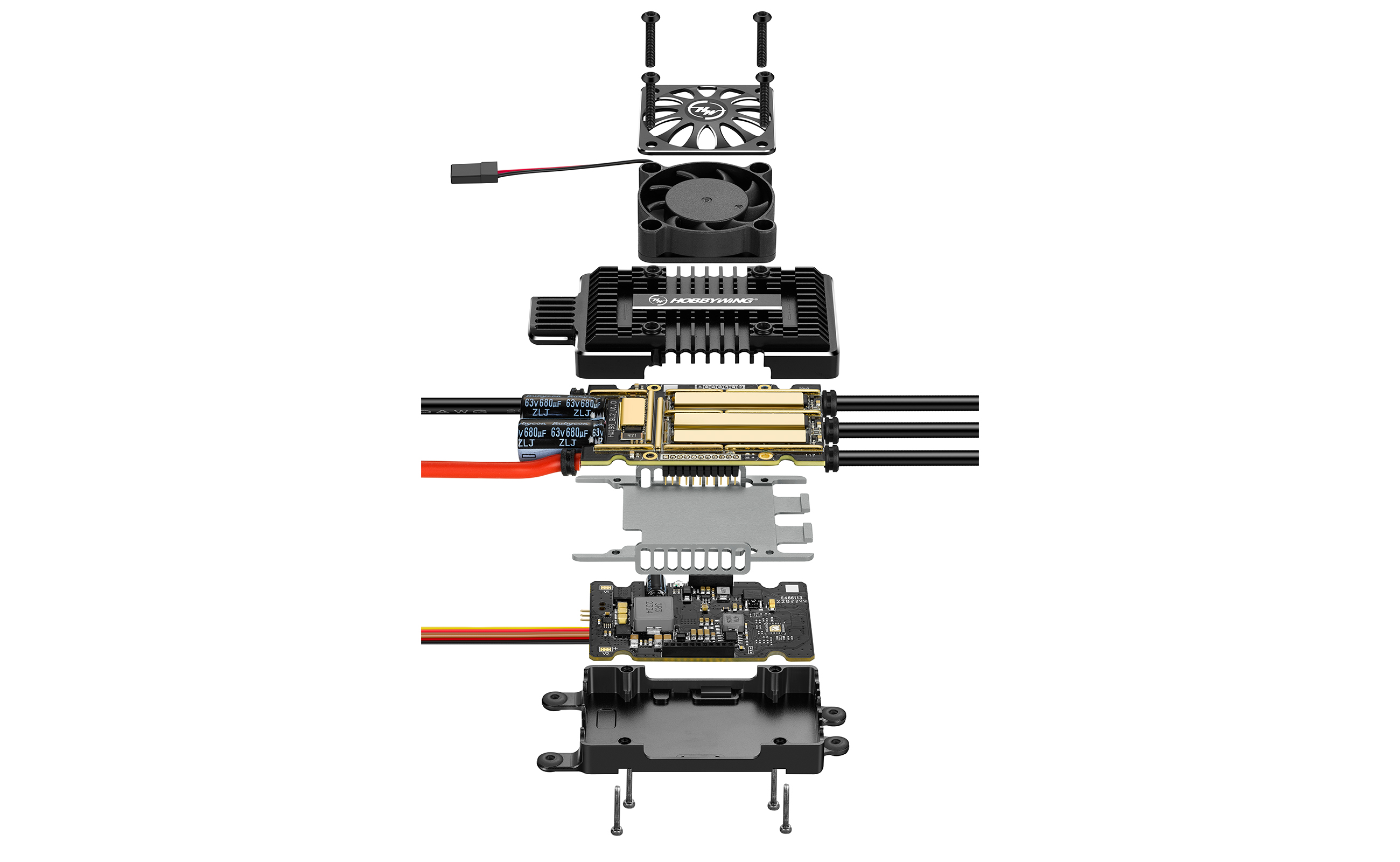

The ESC is redesigned with a double-sided heat sink with a side
vent. The air is able to quickly pass through the inside of the ESC
and cool the ESC more efficiently. This innovative air duct design
is able to generate strong airflow on the entire ESC from the
cooling fan. Significantly improving the cool capability.
Note: The cooling structure is patent pending. Do not copy it.
Built-in 12V Switch BEC for
greater output capability
  • Instantaneous high
    current with a built-in 12V
    programmable BEC
  • The new circuit design raises the
    max output from 8.4V to 12V.
    (5-12V adjustable)
  • The high-power BEC has added an anti-reverse circuit
    to use parallel with external 2S batteries at
    the same time to provide double protection.
Constant speed performance upgrade,
ultimate flight experience
  • The 32-bit processor combined with the RPM
    accuracy algorithm makes the ESC more
    powerful and more consistent, maximizing the
    RPM accuracy to enhance overall performance.
  • The adjustable constant speed
    sensitivity allows every pilot to
    easily find a setting that suits
    them personally!
Support multiples protocols,
strong adaptability.
Support
Support Mikado VBar System, Futaba S.BUS2 and other devices' data return
protocols. Users are able to adjust parameters on the remote-control device
(VBar protocol support) or check the working status of the ESC at any time.
Built-in anti-spark circuitry
The built-in anti-spark circuitry effectively
eliminates the electric spark generated
during battery connection. Prolonging the
life of the battery connectors.
Multiple protections,
double security
It has multiple protection functions,
to effectively prolonging the lifespan of the ESC.
  • start-up
    protection
  • current
    protection
  • temperature
    protection
  • overload
    protection
  • throttle signal
    loss protection
  • capacitor temperature
    protection
input voltage
abnormality protection
Product Name
Product Number
Type Brushed/Brushless

High Voltage/Regular
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Firmware Firmware Upgrade
Telemetry Function



Size & Weight Size

Weight
Application scope
Product Name Platinum HV 180A SBEC V5
Product Number 30209103
Type Brushed/Brushless

High Voltage/Regular
BL

High Voltage
Specifications Cont./Peak Current

Input Voltage

BEC Output
180A/260A

6-14S LiPo

Switch Mode:5-12V & Cont. 10A,Peak 30A
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors
Red-10AWG-255mm*1/Black-10AWG-255mm*1

Black-10AWG-150mm*3

No

No
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Not Support

Not Support

Not Support

Supported

Supported

Separate Program Port
Firmware Firmware Upgrade Supported
Telemetry Function



Mikado VBar;Futaba S.Bus2;etc.
Size & Weight Size

Weight
100.6*45.5*26.1mm (without fan)

250.6g (without fan)
Application scope 550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing
