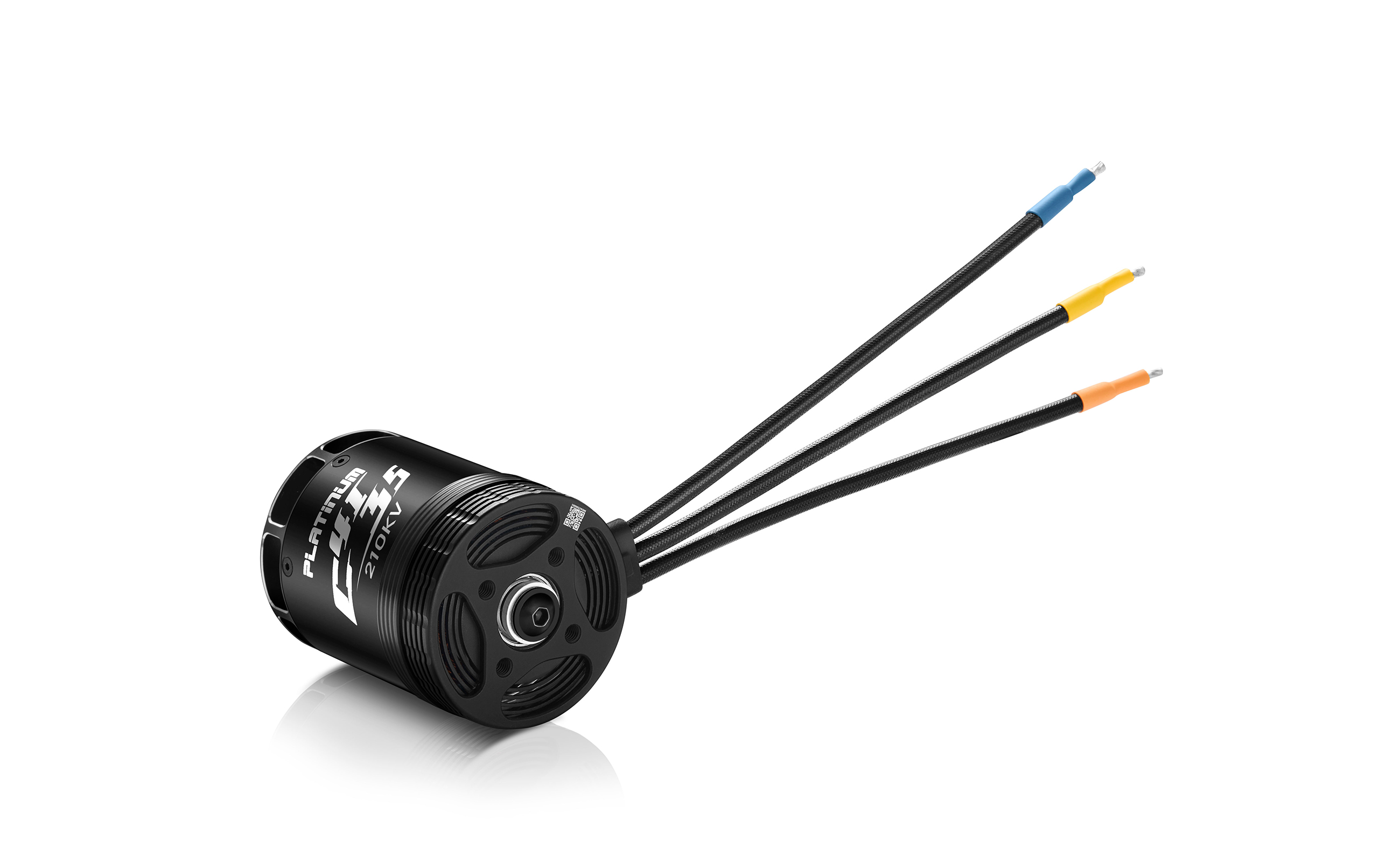

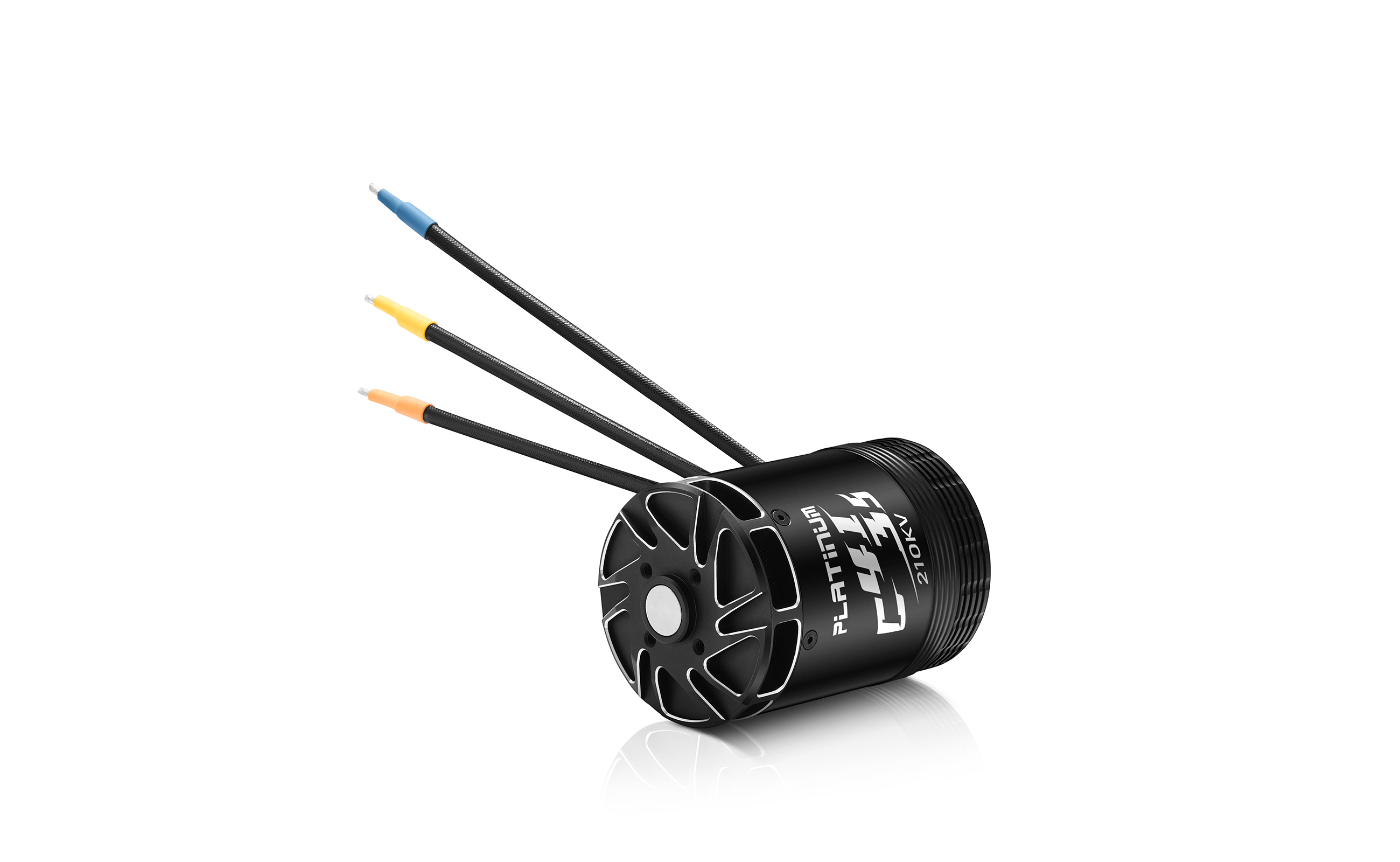

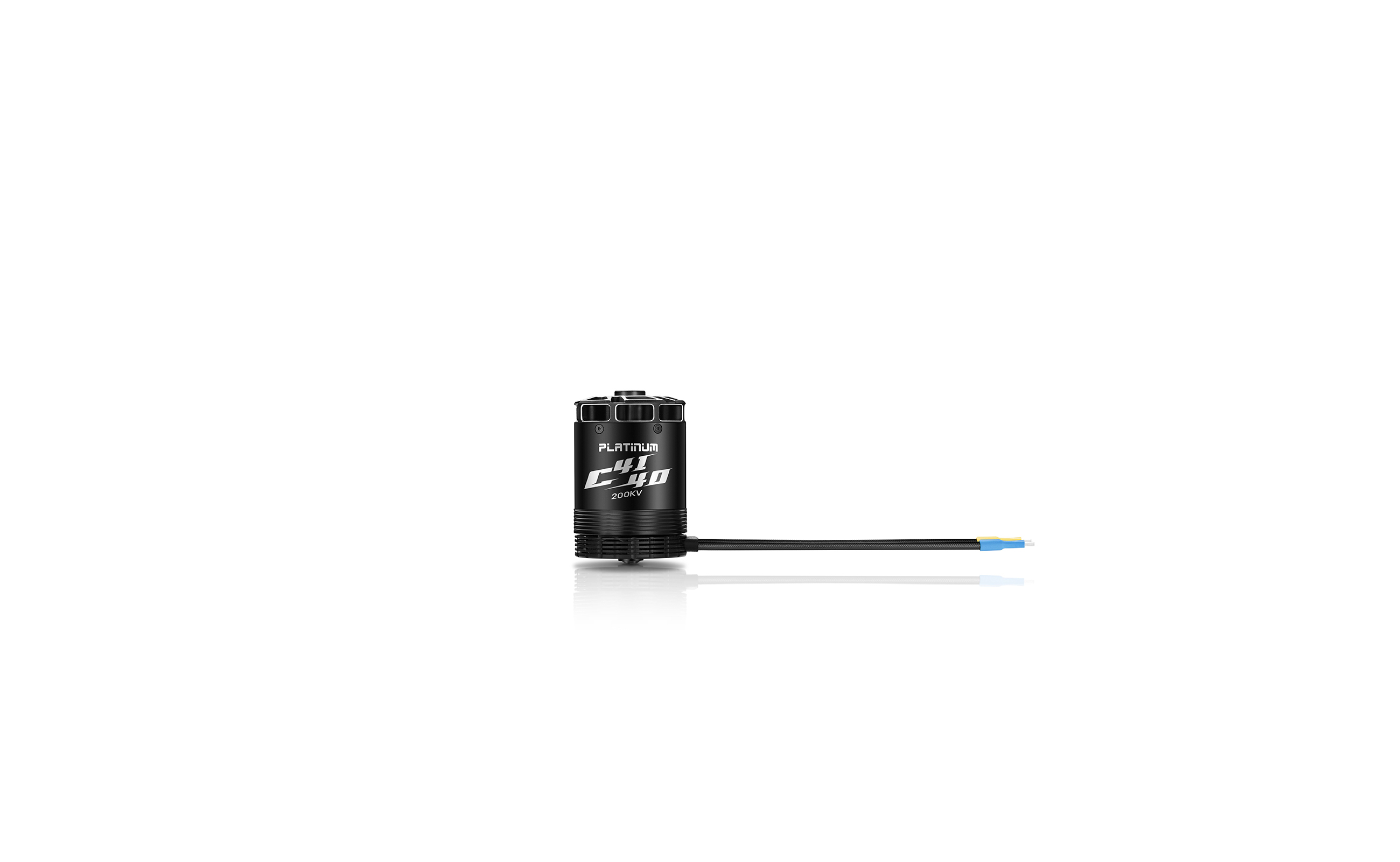

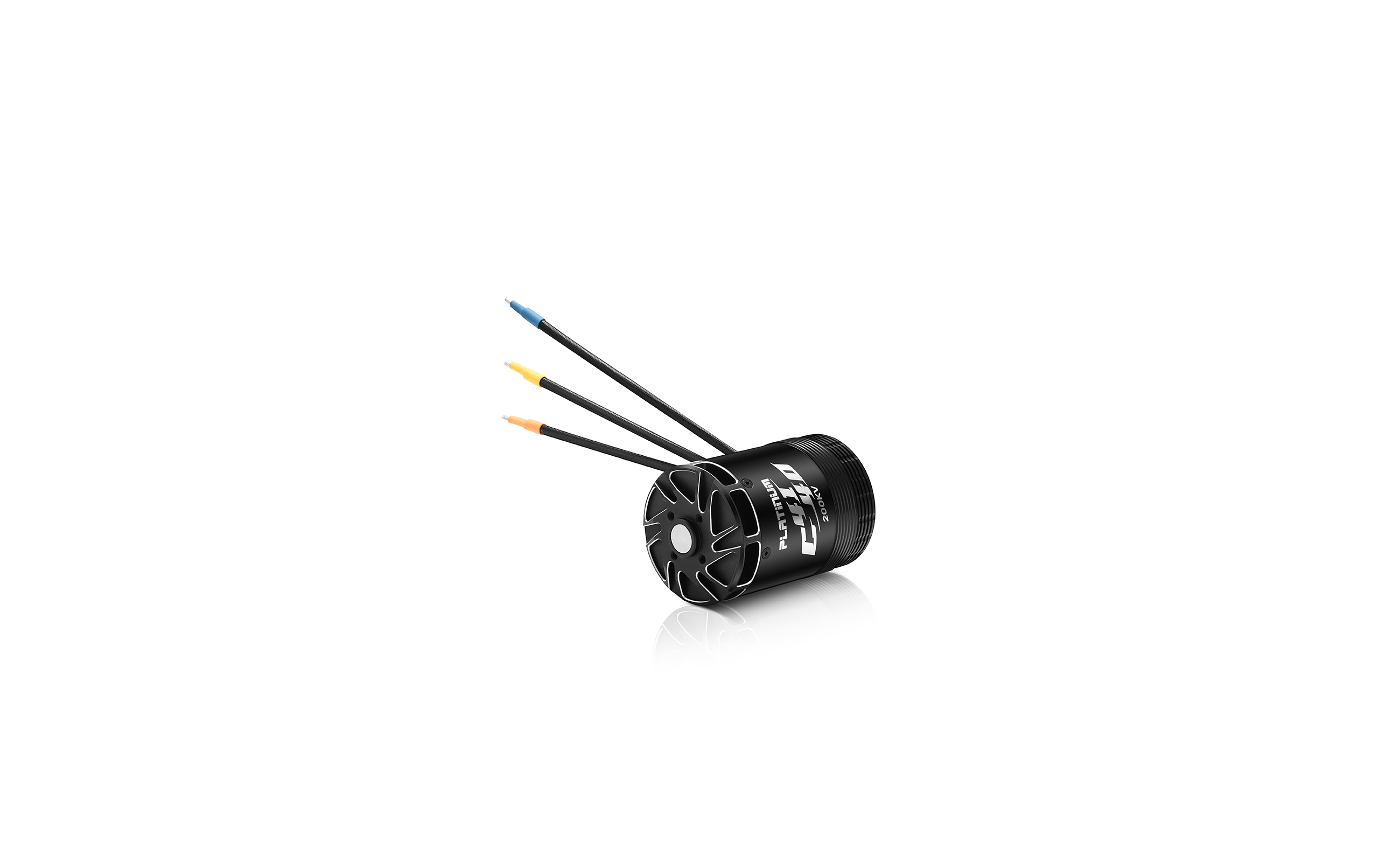

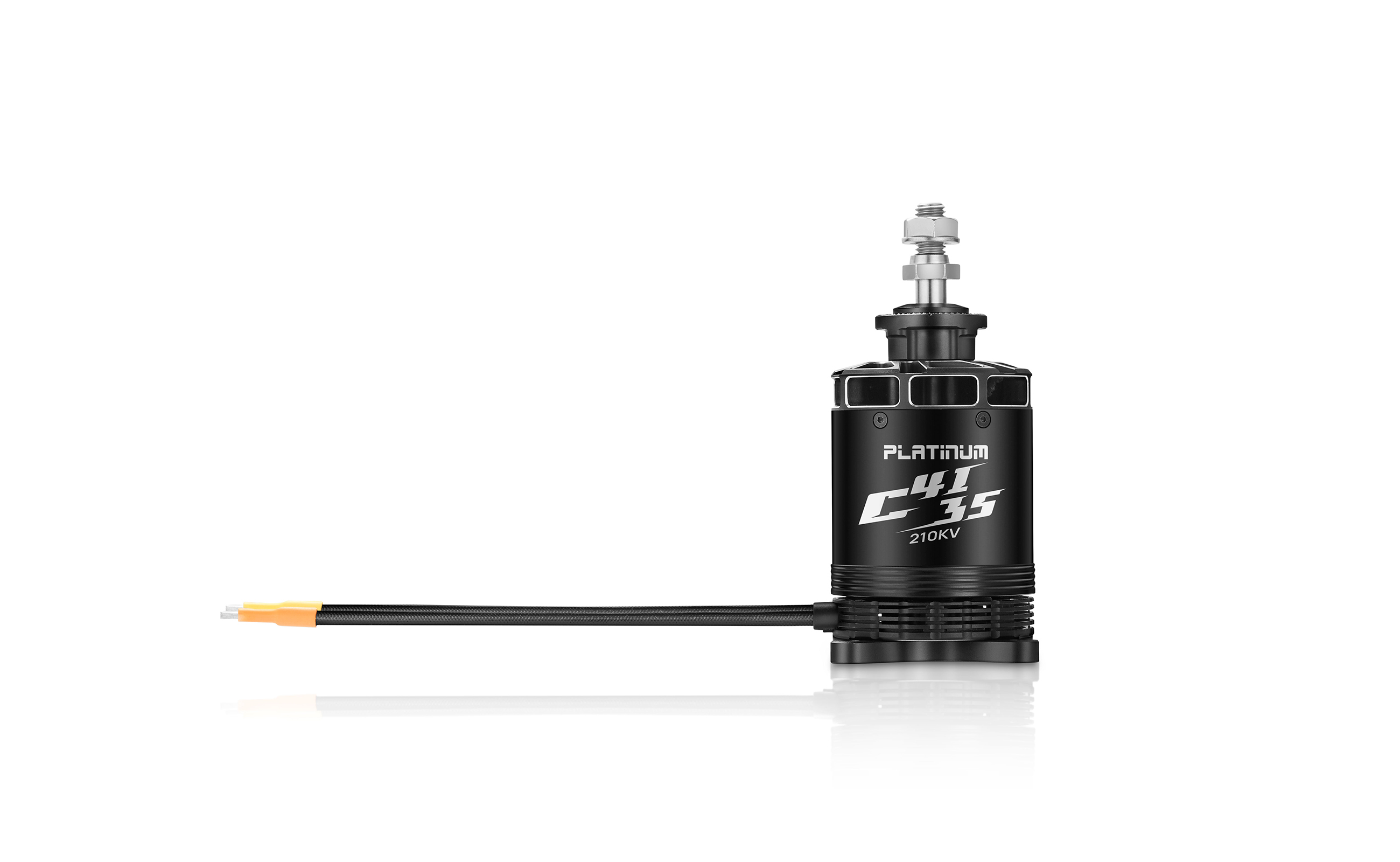

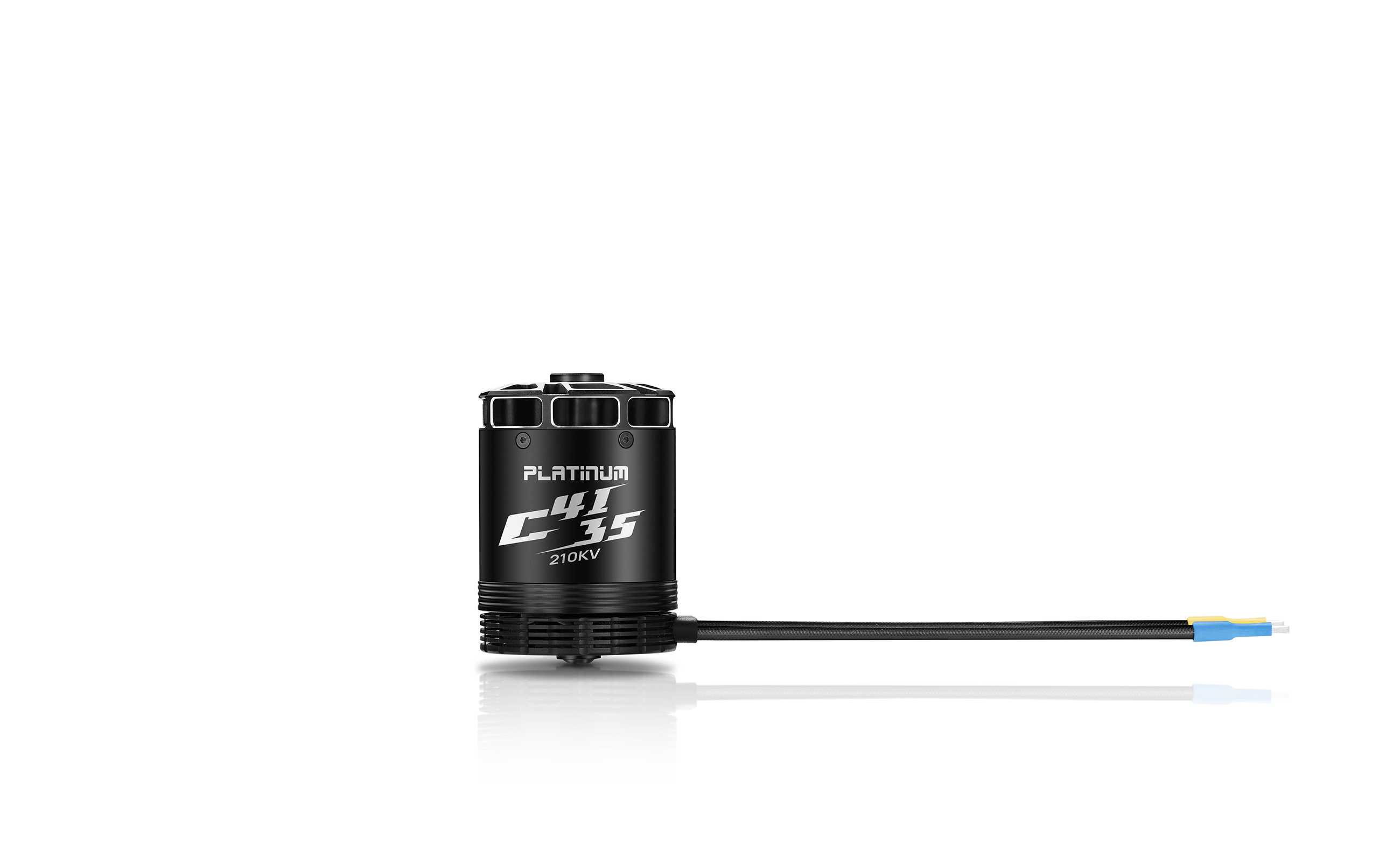

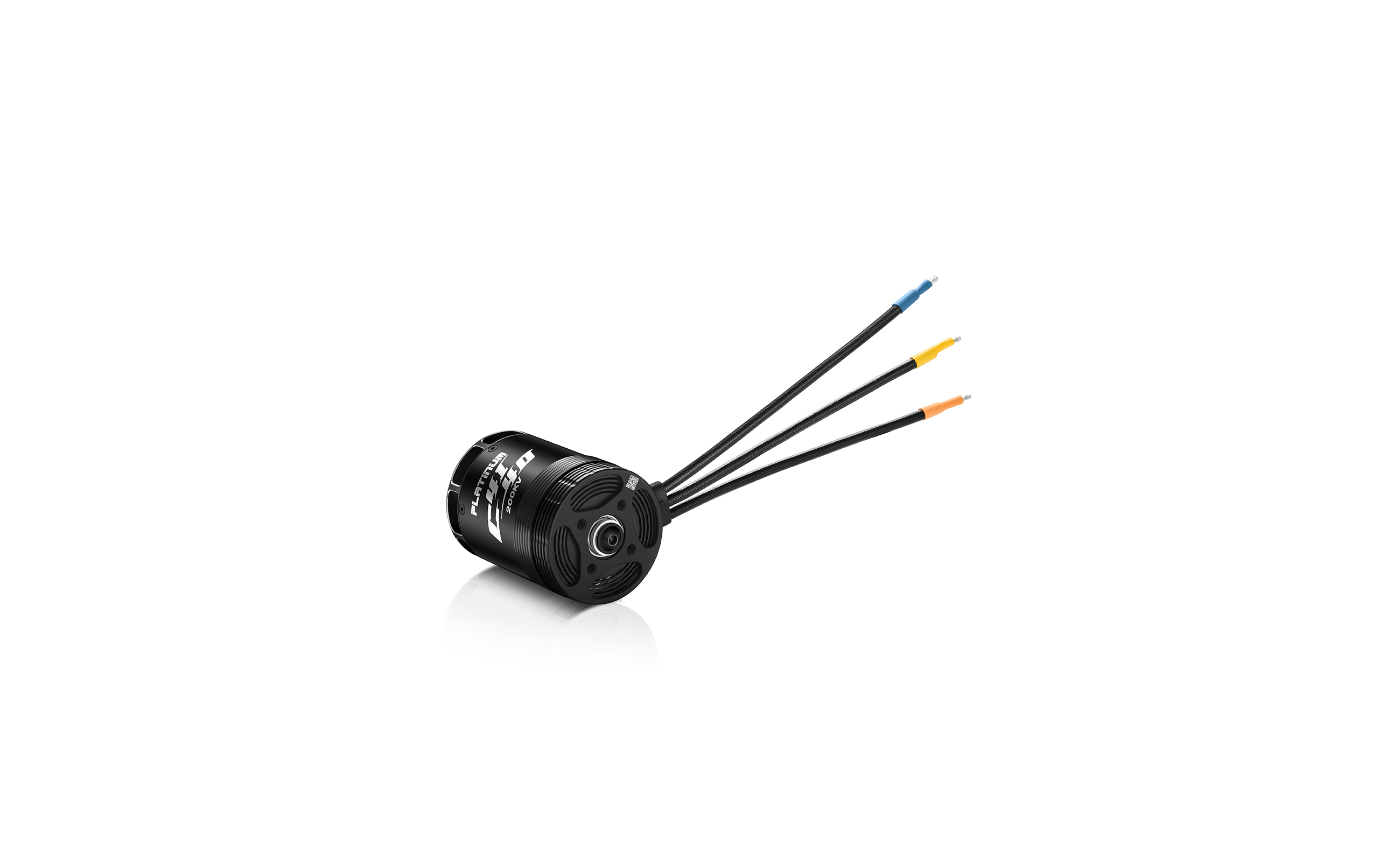

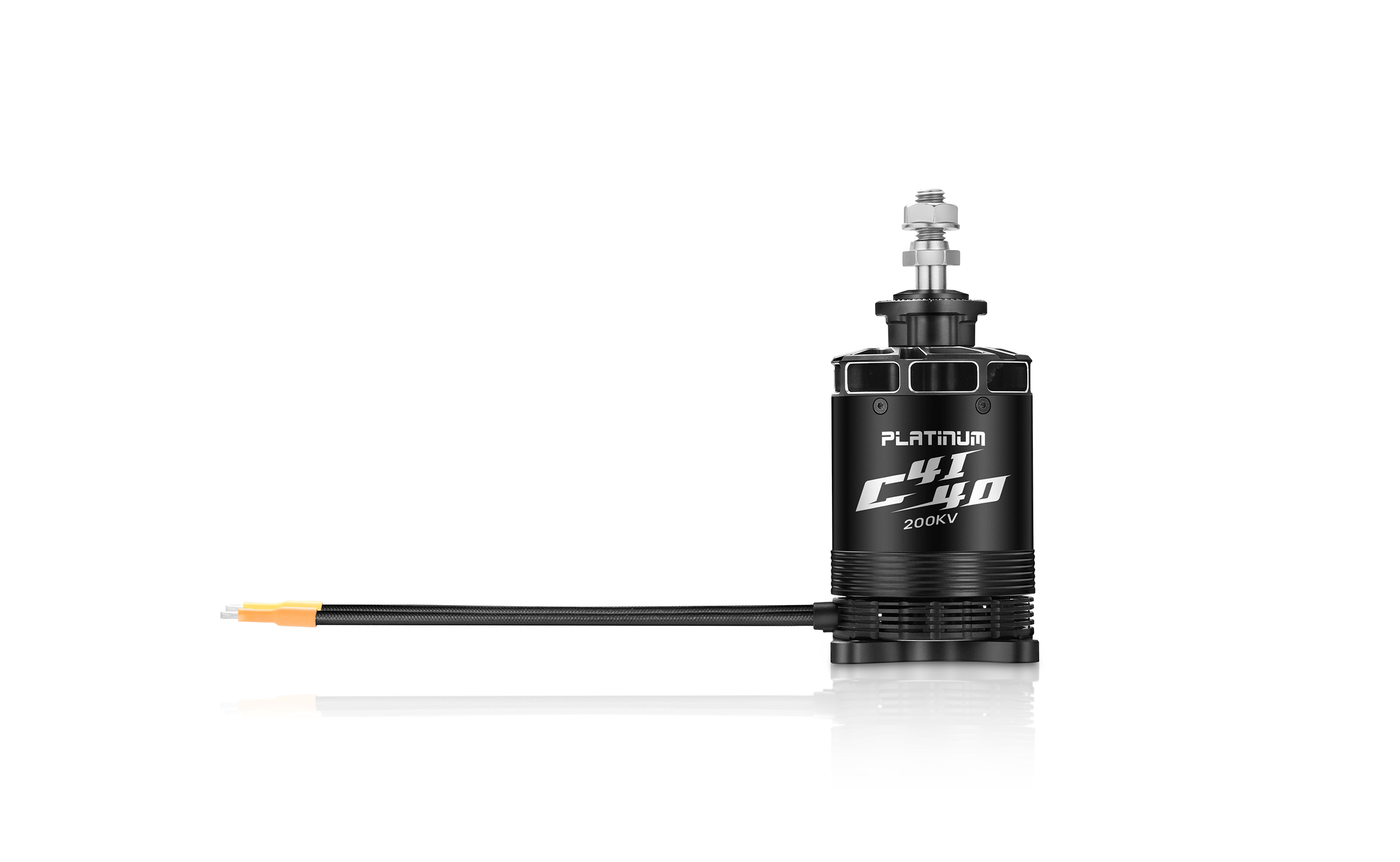

PLATINUM C4135/C4140
Fixed-Wing Motor
Powerful Performance,
Extended Flight Time
Extended Flight Time

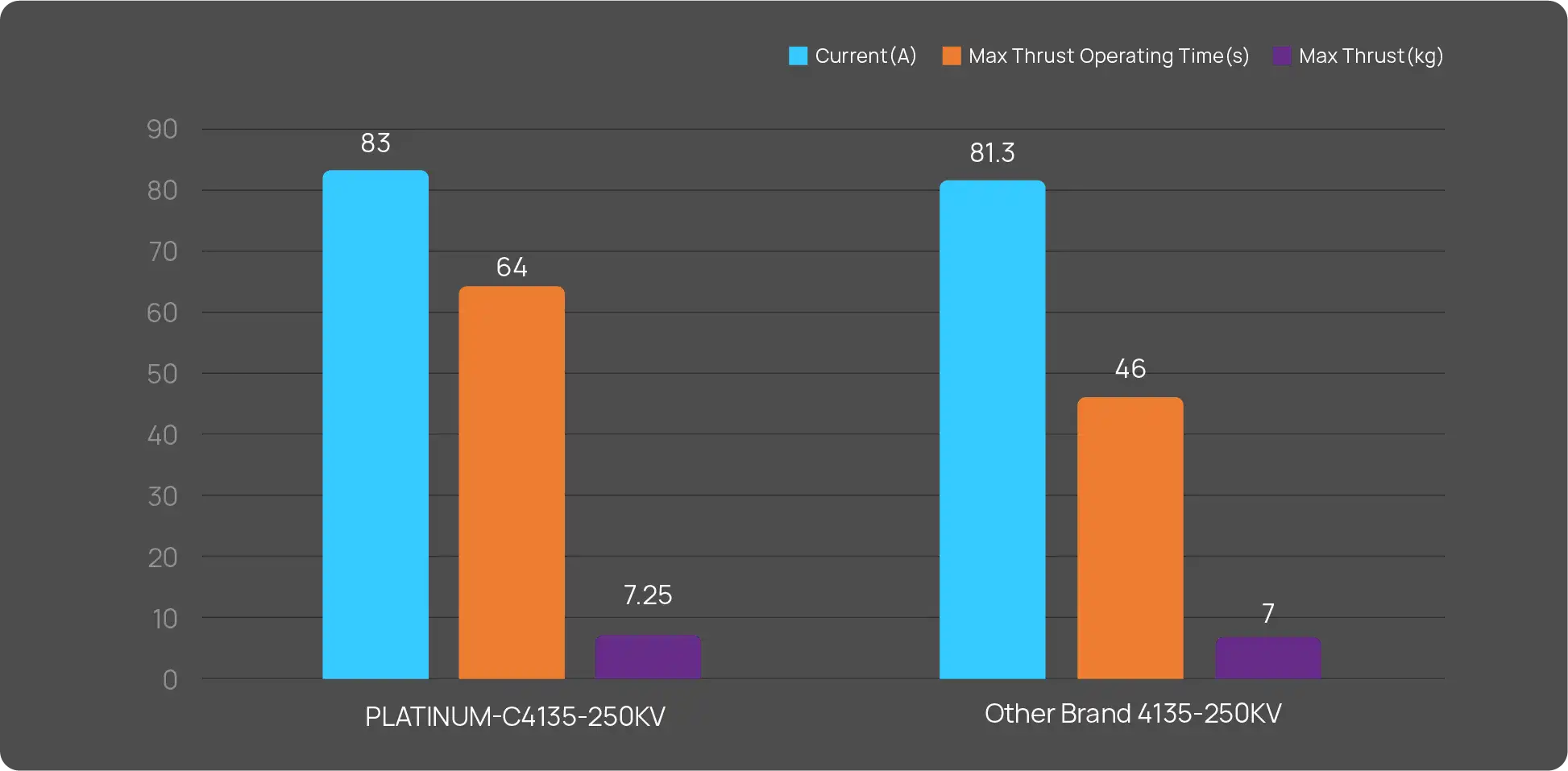

The PLATINUM-C4135-250KV motor, paired with a 16×13 folding propeller, delivers up to 7.25 kg of thrust. Compared
with equivalent motors from other brands, it provides 3.5% higher maximum thrust and over 40% longer operation
time at maximum thrust, ensuring more powerful and efficient performance.

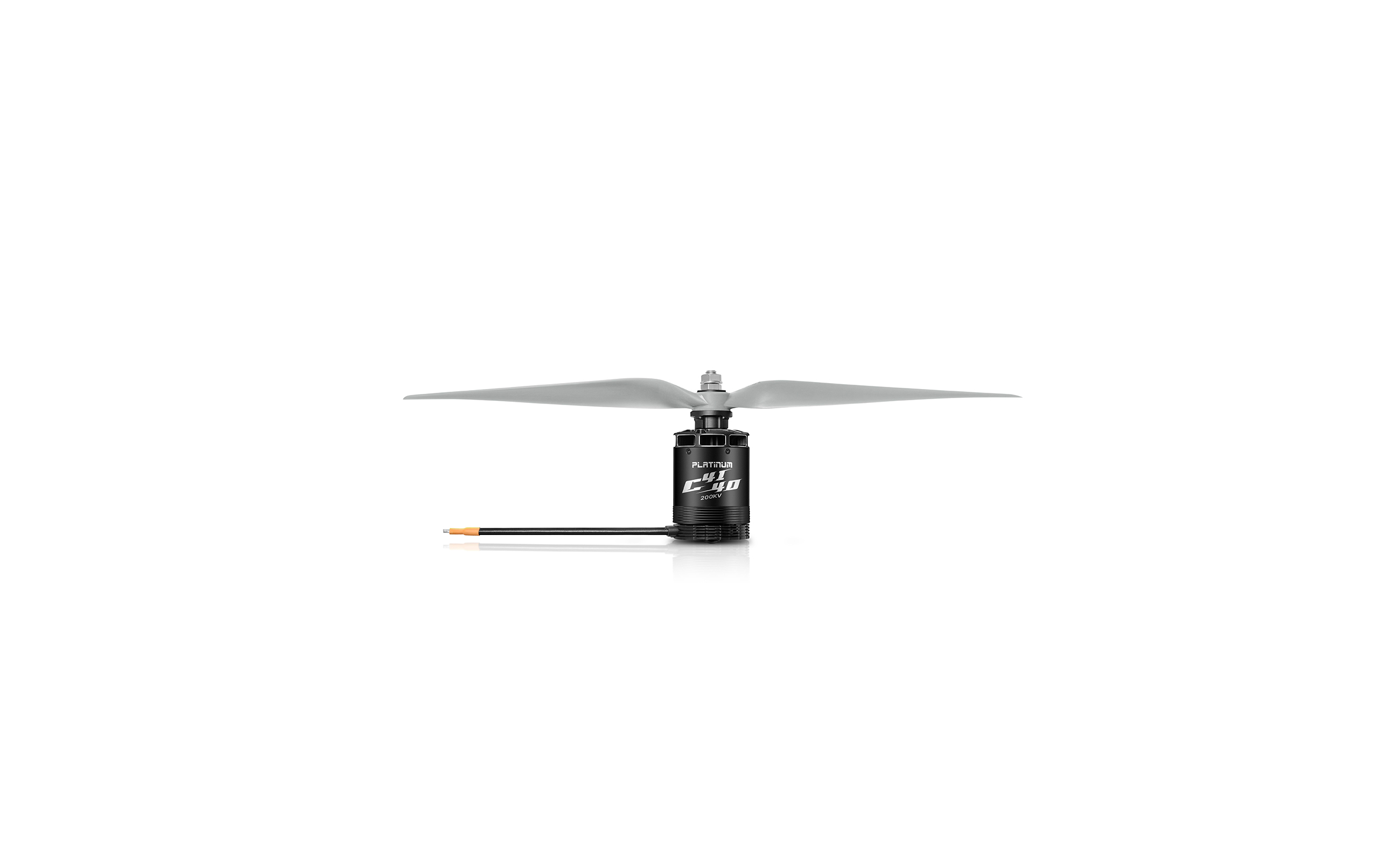

Versatile Application Compatibility

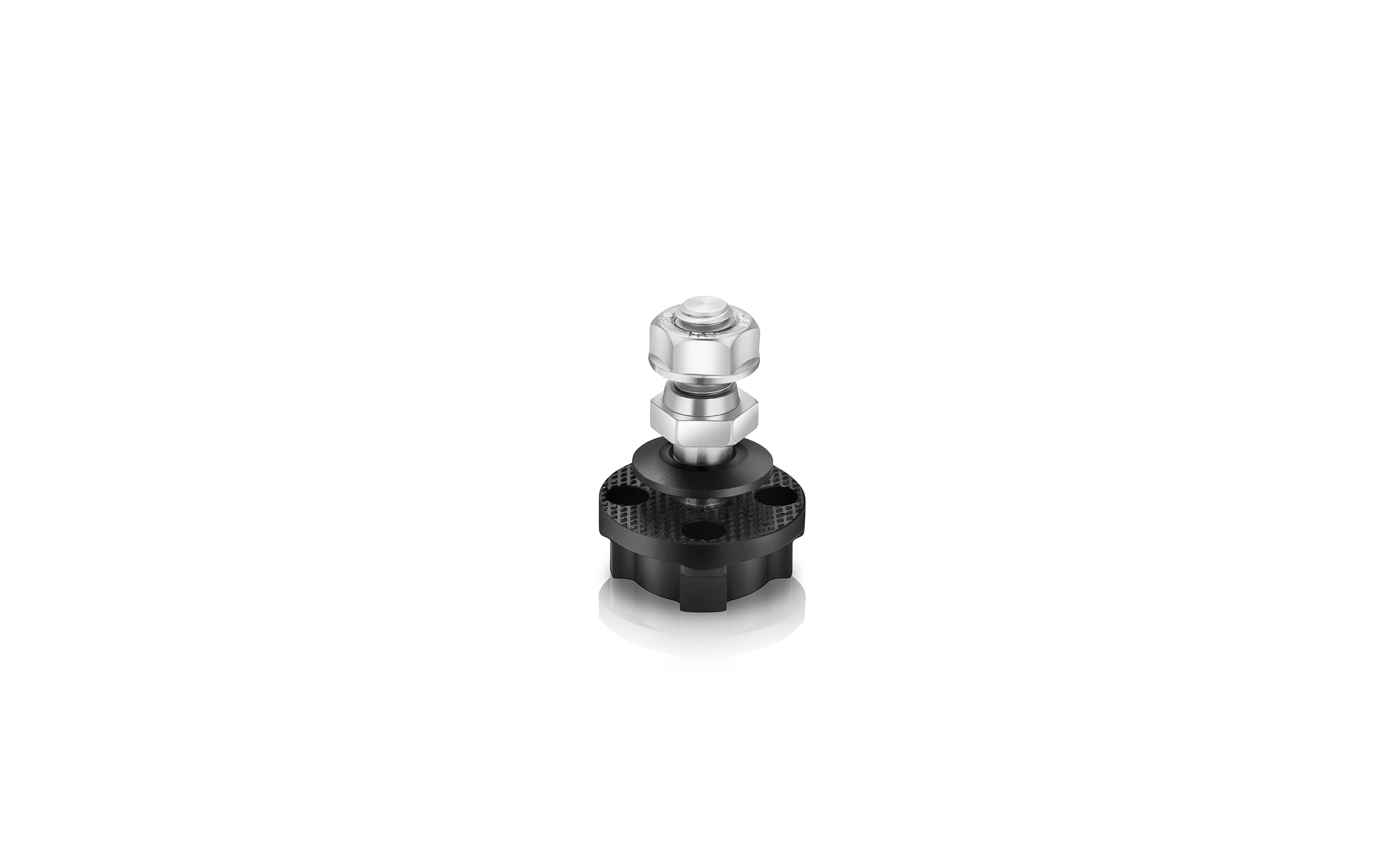

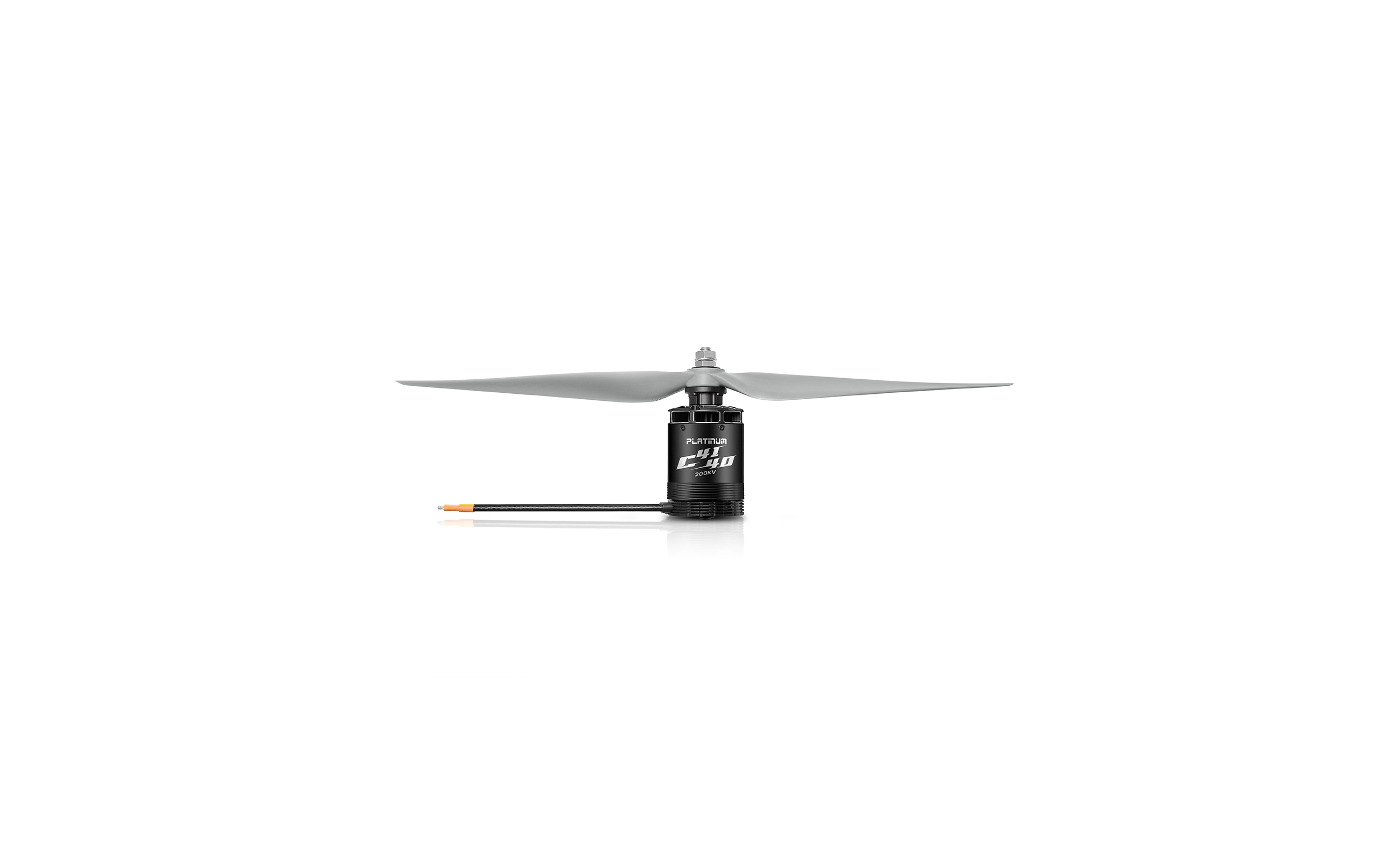

With its standard propeller adapter, the motor supports both tractor and pusher setups, so it fits a wide range of fixed-wing aircraft.

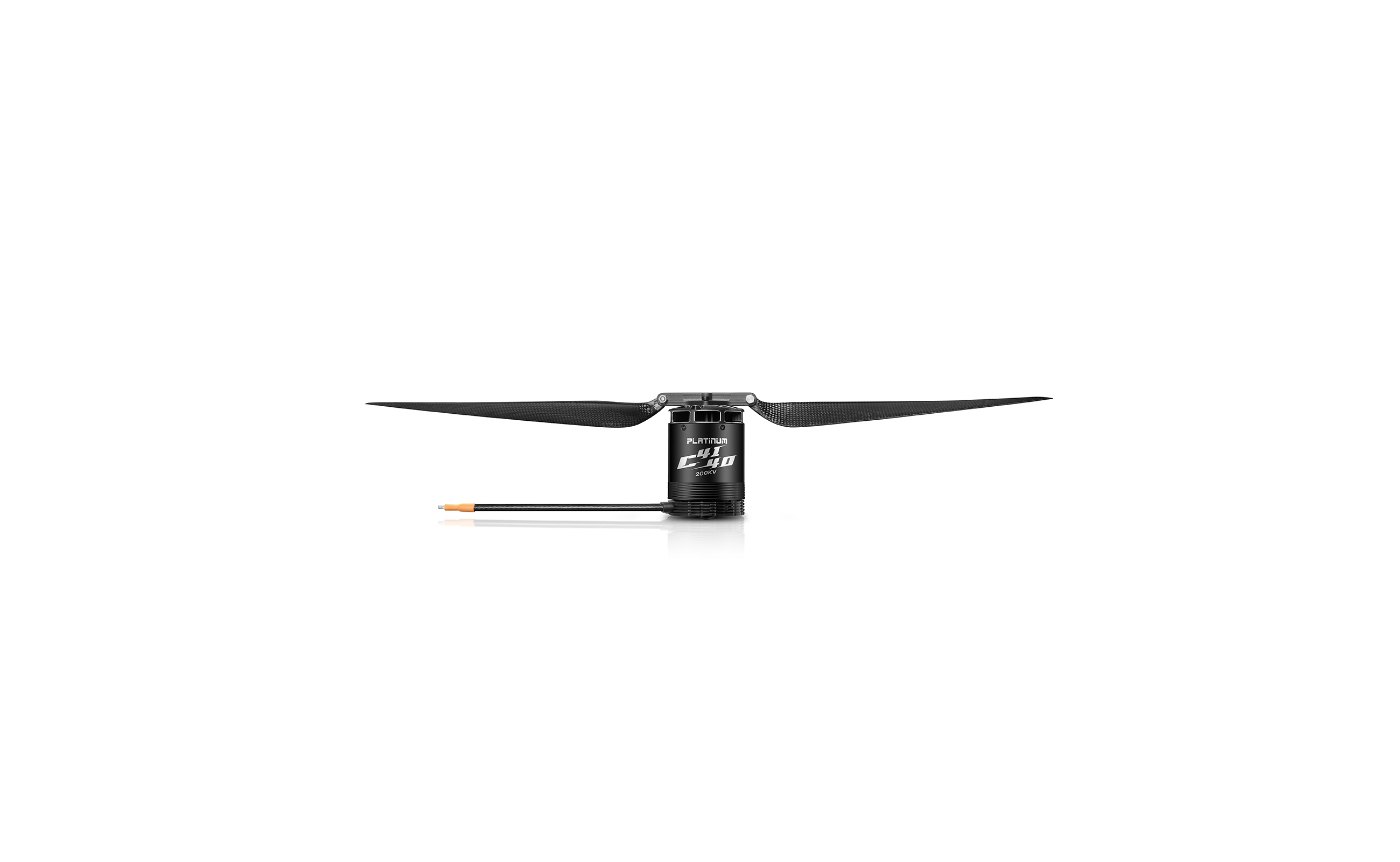

The motor supports optional high-speed folding propellers, making it ideal for pusher applications with limited airframe space.Optimized Heat Dissipation,
Continuous Power Output
Continuous Power Output
Optimized Heat Dissipation for Continuous Power. The rotor bracket pairs rectangular exhaust vents with a centrifugal fan
design to reduce airflow resistance and turbulence. This improves heat dissipation by more than 20%,
ensuring the motor delivers steady power output over long runs.
Reliable Protection,
Against Complex Flight Environments
Against Complex Flight Environments
Featuring a dust-resistant structure with a steel mesh design, the motor effectively blocks particles ≥1 mm in
diameter from entering through the air inlet. It is designed to withstand harsh environments such as dust and rain, meeting
the demands of diverse scenarios.
Reliable Protection,
Against Complex Flight Environments
Against Complex Flight Environments
Dustproof steel meshDustproof and heat dissipation design
Featuring a dust-resistant structure with a steel mesh design, the motor effectively blocks particles ≥1 mm in
diameter from entering through the air inlet. It is designed to withstand harsh environments such as dust and rain, meeting
the demands of diverse scenarios.
Superior Design, Premium Materials
High-performance 0.15mm
low-loss silicon steel sheets
effectively reduce iron loss and
improve motor efficiency.
low-loss silicon steel sheets
effectively reduce iron loss and
improve motor efficiency.
TC4 titanium alloy shaft reduces
motor weight while ensuring
durability.
motor weight while ensuring
durability.
220°C high-temperature-resistant
enameled wire meets the
requirements of continuous
high-load operation.
enameled wire meets the
requirements of continuous
high-load operation.
Three-bearing design enhances
motor reliability.
motor reliability.
Dual anti-loosening protection ensures long-term reliable operation.
Product NamePlatiunm C4135 / C4140
- Platiunm C4135 210KV
- Platiunm C4135 250KV
- Platiunm C4140 200KV
Specification
-
- Model
- Motor size
- Stator size
- Stator process
- Enamelled wire
- Isolation test
- Slot & pole
- Bearing
- Fiber Screw Thread
- Motor mounting dimensions
-
- Platiunm C4135 210KV
- Φ51 *69.5mm
- Φ40.6*35.1mm
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- 220℃ C-class
- 500V AC high voltage resistance test
- 12N14P
- 1680KKMTR，MR148ZZ
- Φ20mm-4*M3
- Φ25mm-4*M4
- Platiunm C4135 250KV
- Φ51 *69.5mm
- Φ40.6*35.1mm
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- 220℃ C-class
- 500V AC high voltage resistance test
- 12N14P
- 1680KKMTR，MR148ZZ
- Φ20mm-4*M3
- Φ25mm-4*M4
- Platiunm C4140 200KV
- Φ51 *74.5mm
- Φ40.6*40.05mm
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- 220℃ C-class
- 500V AC high voltage resistance test
- 12N14P
- 1680KKMTR，MR148ZZ
- Φ20mm-4*M3
- Φ25mm-4*M4
Specification
-
- KV
- Battery(LiPo)
- No-load current
- Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）
- Rated power output
- Max power
- Max thrust
- Resistance
- Wire Size
- Wire length
- Weight (With wire)
-
- 210
- 12S Lipo
- 1.6A
- 64A/1min17s
- 1093W
- 2834W
- 6.6kg
- 52mΩ
- Enamelled wire – direct output
- 150mm
- 494g
- 250
- 12S Lipo
- 1.8A
- 82.7A
- 1333W
- 3670W
- 7.7kg
- 35mΩ
- Enamelled wire – direct output
- 150mm
- 496g
- 200
- 12S Lipo
- 1.7A
- 73.8/1min19s
- 1267W
- 3277W
- 8.6kg
- 43mΩ
- Enamelled wire – direct output
- 150mm
- 548g
Recommended application combinations
-
- Motor
- Propeller
- ESC
- Battery
-
- Platinum C4135 210KV
- APC17*10;Carbon Fiber Folding Propeller 17*12 / 17*13 / 17*14
- Skywalker HV 130A OPTO V2/Platinum HV 180A SBEC V5
- 12S LiPo
- Platinum C4135 250KV
- APC16*10/APC16*12/Carbon Fiber Folding Propeller 16*13
- Skywalker HV 130A OPTO V2/Platinum HV 180A SBEC V5
- 12S LiPo
- Platinum C4140-200KV
- APC18*10;APC18*12;Carbon Fiber Folding Propeller 18*12/18*13/18*14
- Skywalker HV 130A OPTO V2/Platinum HV 180A SBEC V5
- 12S LiPo
