QuicRun 2840 & 2850 SL G215

Overview
Specifications
Support
Accessories
Detail

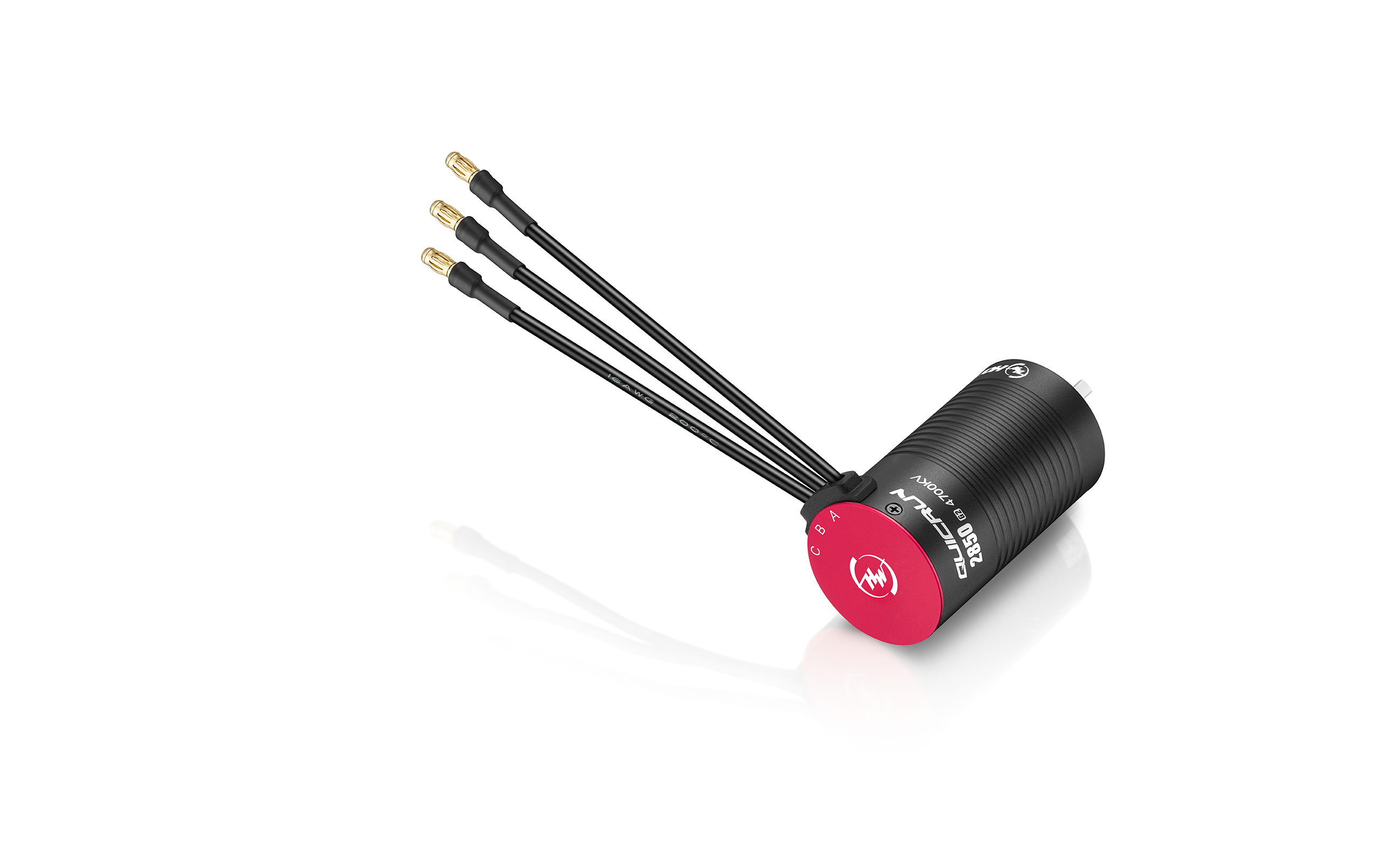

QuicRun 2840/2850 SL G2

High Efficiency, Low Power Consumption,
Low Temperature Rise

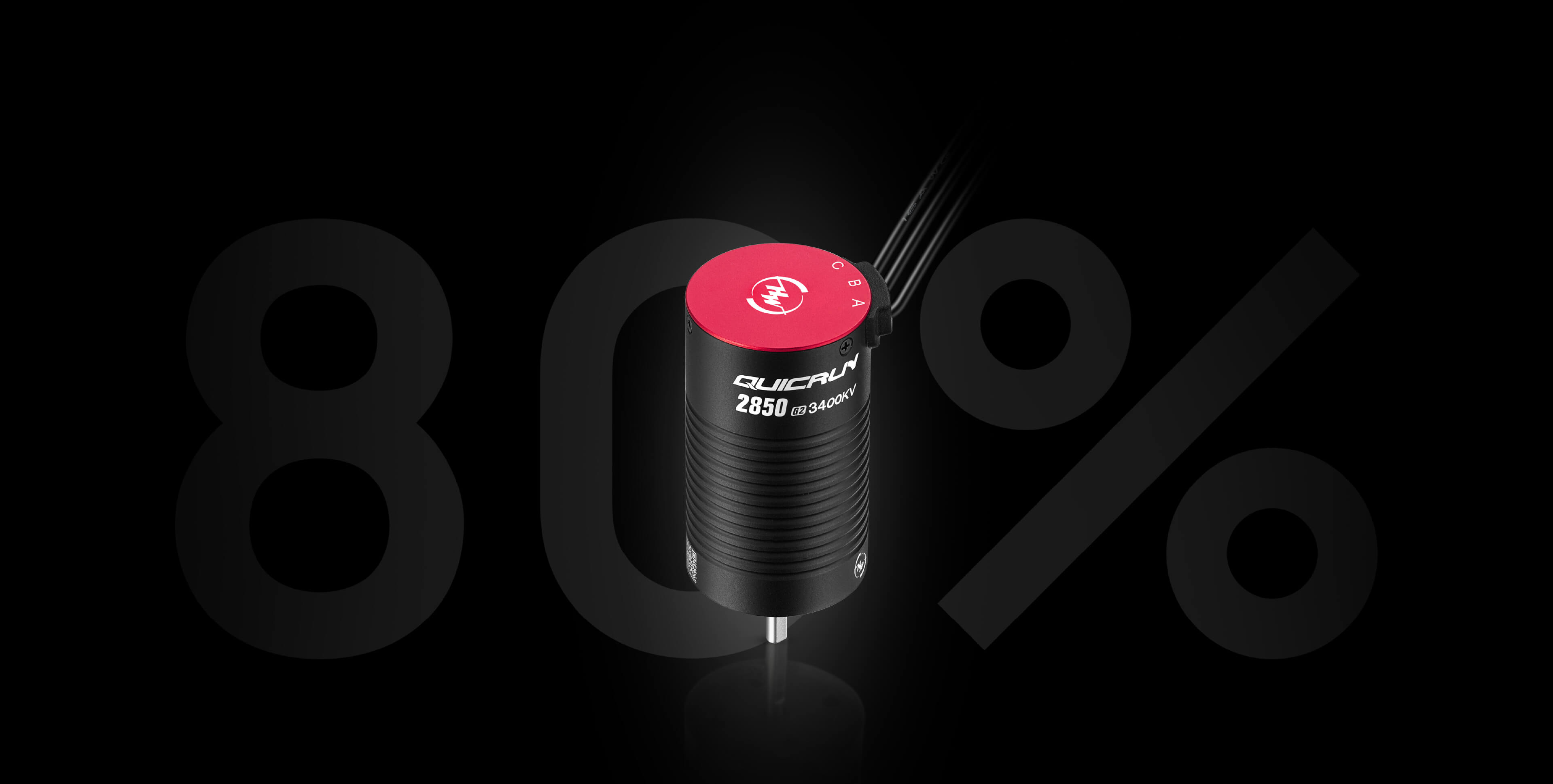

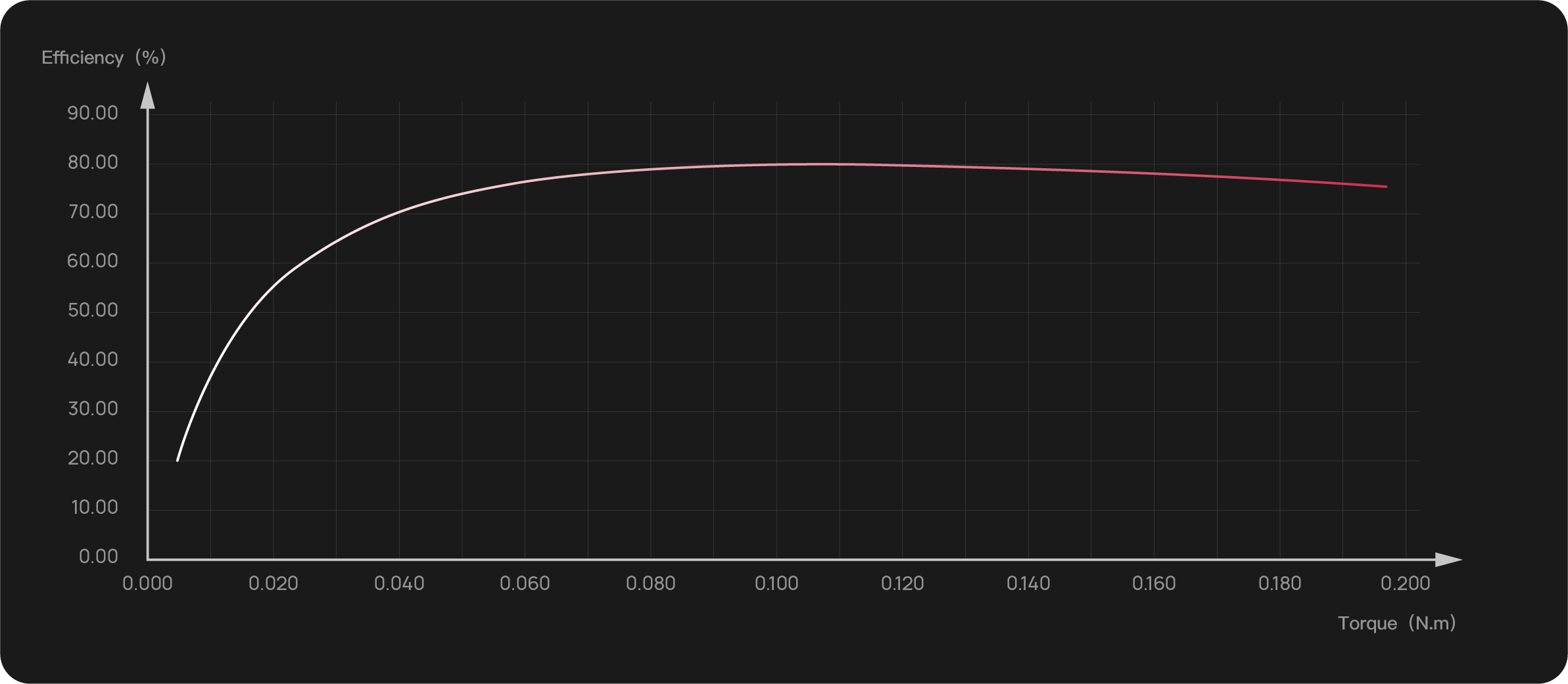

The motor is designed for high efficiency.
Using the 2850-3400KV motor as an example,
it is able to achieve a maximum efficiency of up to 80%.

Under the same load conditions

The motor operates at a lower temperature

More stable continuous output

Consistently maintains optimal performance

Robust Protection,
Ready for any Challenges

The motor has an IP56 protection rating,
ensuring dust resistance and reliable performance even in wet conditions.
It is fully capable of handling off-road vehicles
operating in harsh outdoor environments.

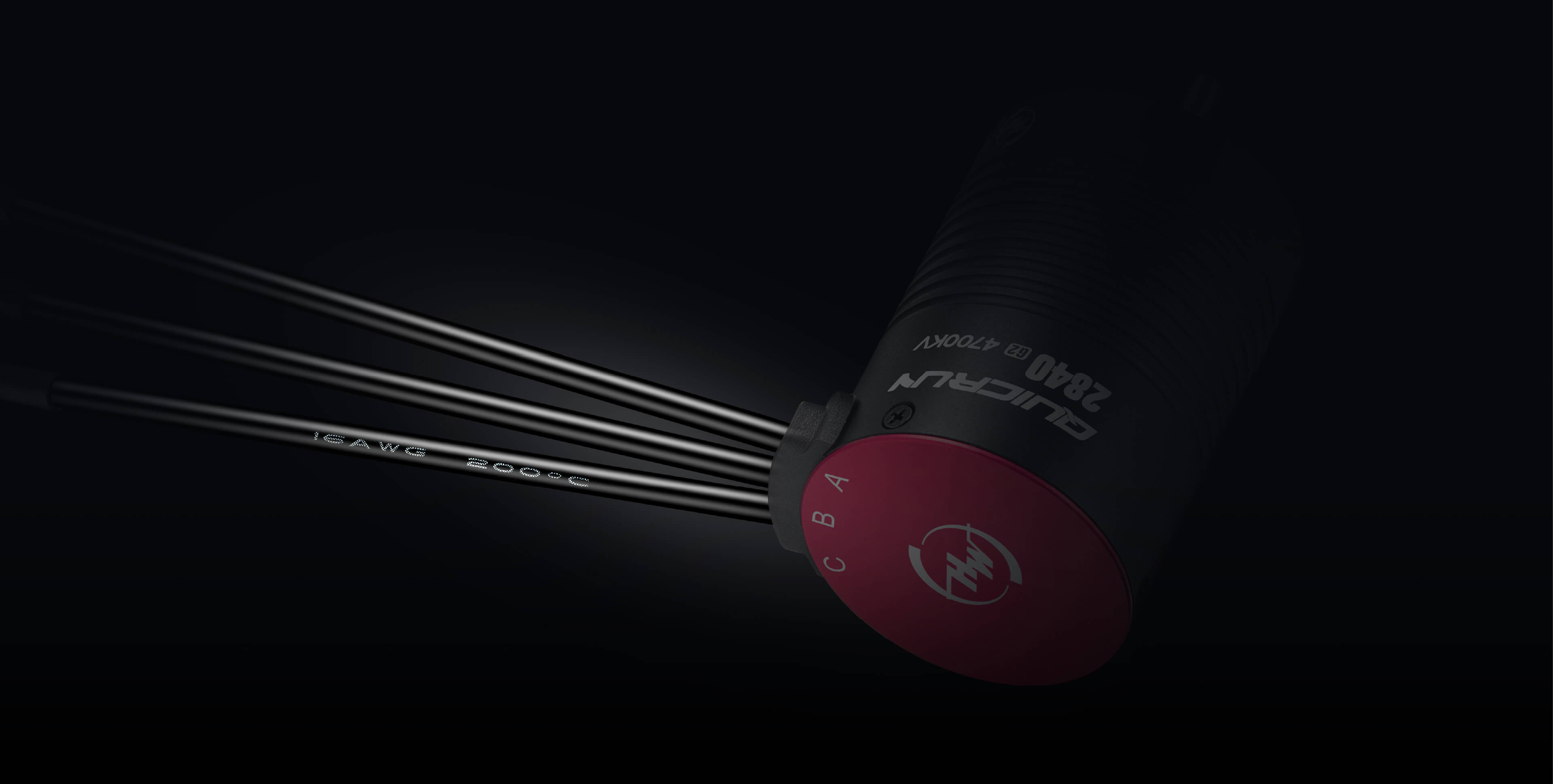

Silicone Wire Output

The motor features a silicone wire output design,
eliminating the rigidity of traditional enameled wires.
This allows for more flexible and clean wire routing,
making installation easier.

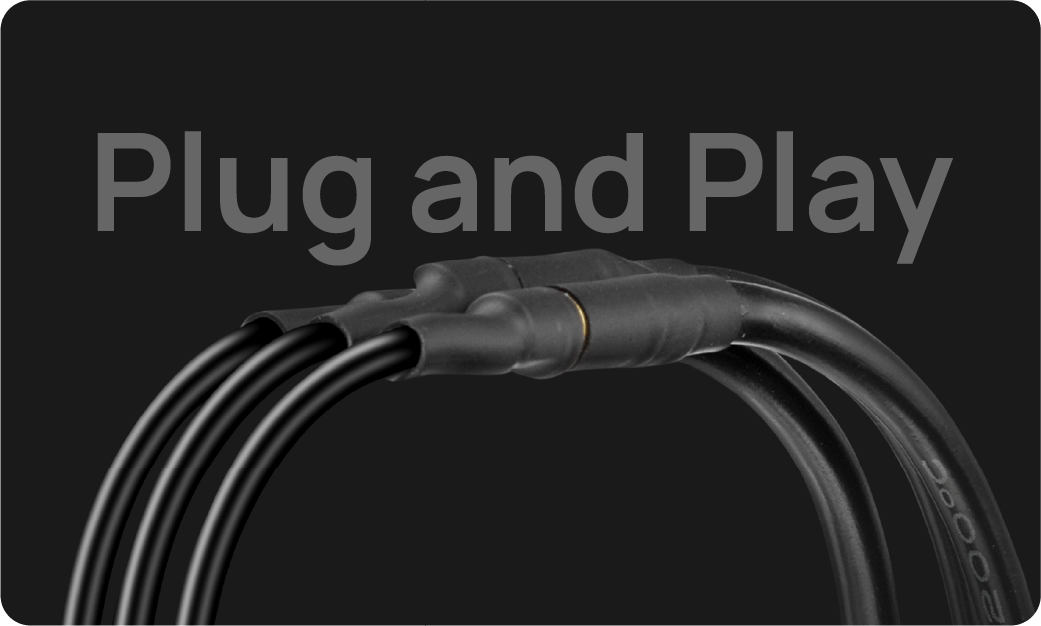

Plug and Play

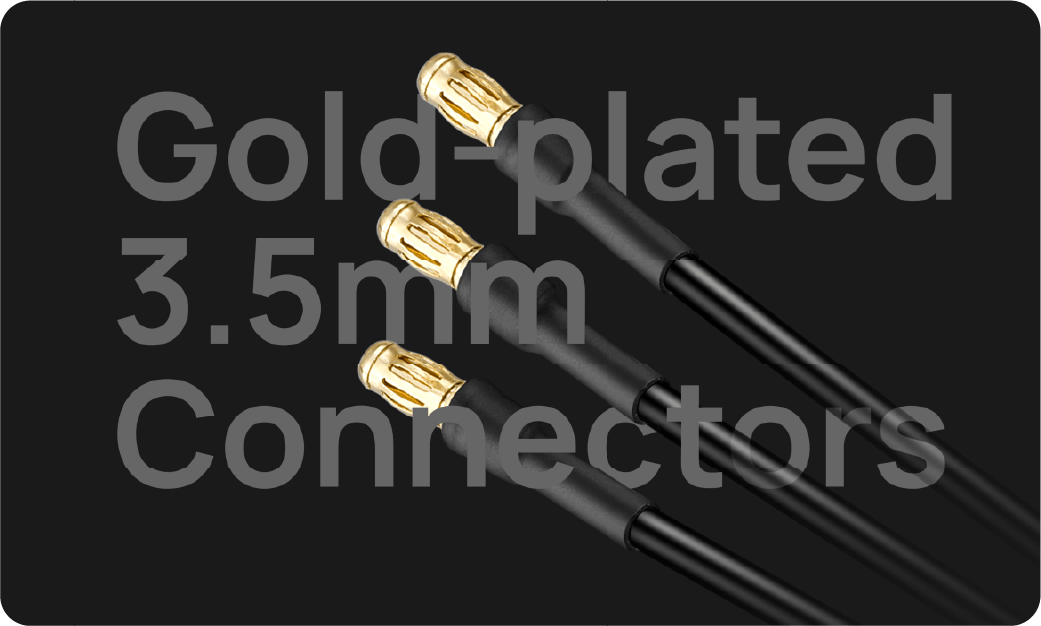

The motor comes pre-soldered with high-quality
gold-plated 3.5mm connectors,
eliminating the hassle of soldering.
The plug-and-play improves the quality of life and
allows you to enjoy the thrill of racing.

Precision Craftsmanship,
Built to Last

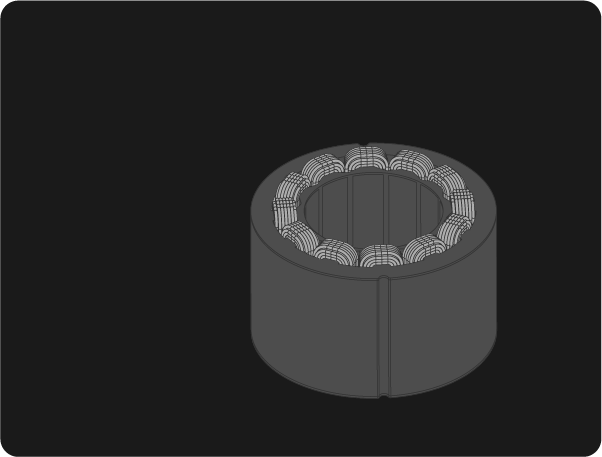

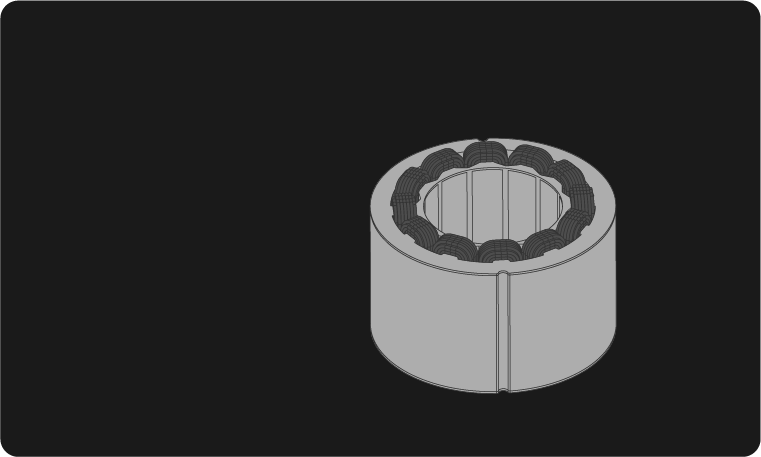

Selected 0.2mm Thick
Silicon Steel
Laminations

High-strength
Explosion-proof Rotor

High-temperature
Resistant
Enameled Wire

Leading Brands
Premium High-precision
Bearings

Ensure Exceptional
Durability of the Motor

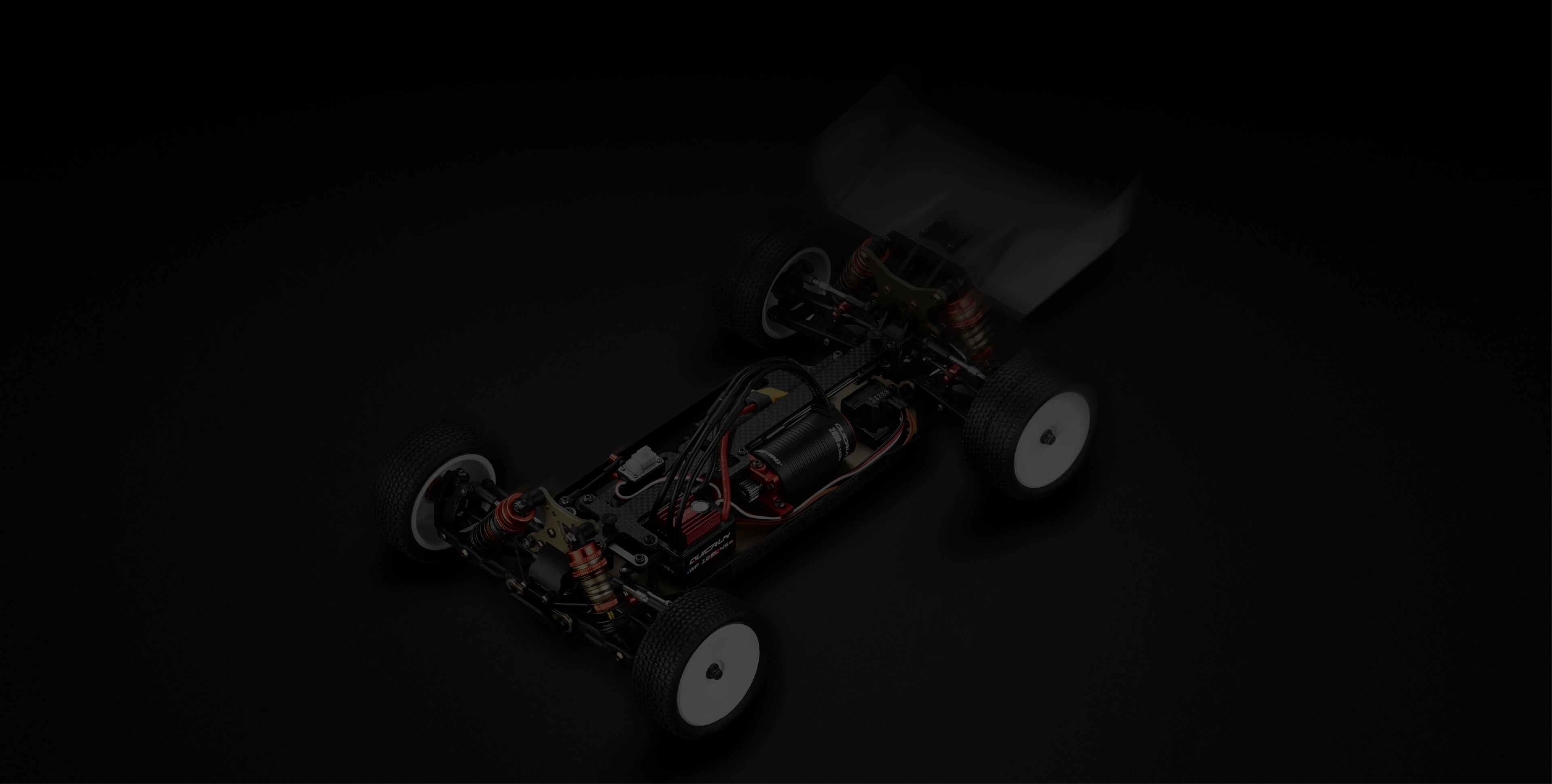

Wide Applicabilitiy

The 2840 motor is
suitable for both
1/16^th & 1/14^th
scale models.

The 2850 motor is
suitable for both
1/14^th & 1/12^th
scale models.

Three KV options are available

28404700KV

28504700KV 3400KV

Compatible with

Trucks

Off-Road

On-Road

Short Course Trucks

Monster Trucks

Product NameQuicRun 2850SL 4700KV G2

QuicRun 2850SL 4700KV G2
QuicRun 2850SL 3400KV G2
QuicRun 2840SL 4700KV G2

Product Number

30404805

30404804

30404803

Type

Scale Brushed/Brushless Sensored/Sensorless Pole

1/12^th、1/14^th
BL
SL
4

1/12^th、1/14^th
BL
SL
4

1/14^th、1/16^th
BL
SL
4

Relevant Parameters

KV Rating LiPo Cells No-load Current(A)

4700KV
2S
4.3A

3400KV
2-3S
2.8A

4700KV
2S
3.1A

Size & Weight

O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing Rear Bearing

28
50.5
3.175
125g
D9*D4*T4
D9.525*D3.175*T3.967

28
50.5
3.175
125g
D9*D4*T4
D9.525*D3.175*T3.967

28
40.5
3.175
89g
D9*D4*T4
D9.525*D3.175*T3.967

Other Parameters

ESC Vehicles

QuicRun WP 12BL45 G2
1/12^th Vichles (Light-load), 1/14^thVichles (Heavy-load)

QuicRun WP 12BL45 G2
1/12^th Vichles (Light-load), 1/14^thVichles (Heavy-load)

QuicRun WP 12BL45 G2
1/14^th Vichles (Light-load), 1/16^thVichles (Heavy-load)

Support

Manuals & Documents

Manuals
