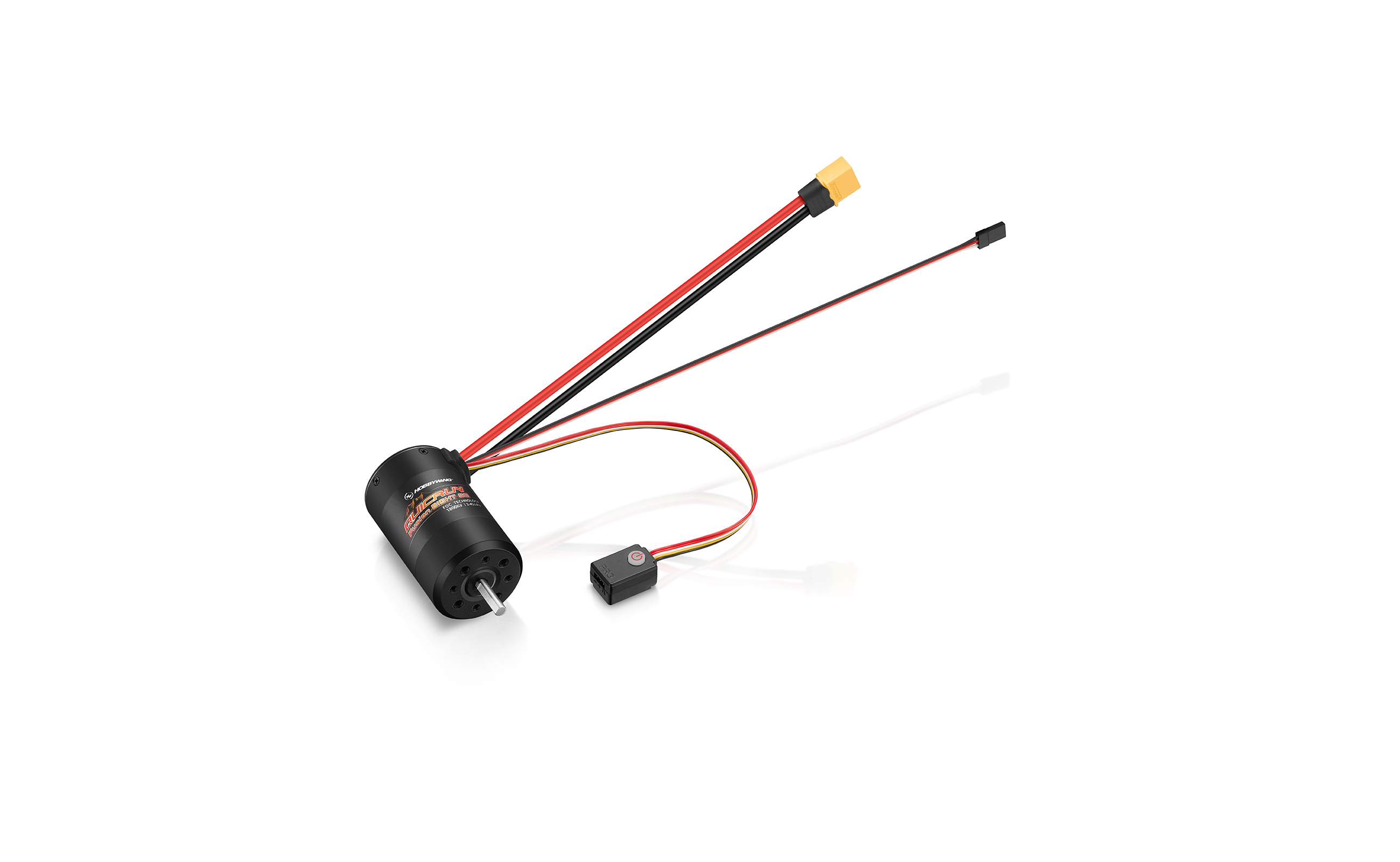

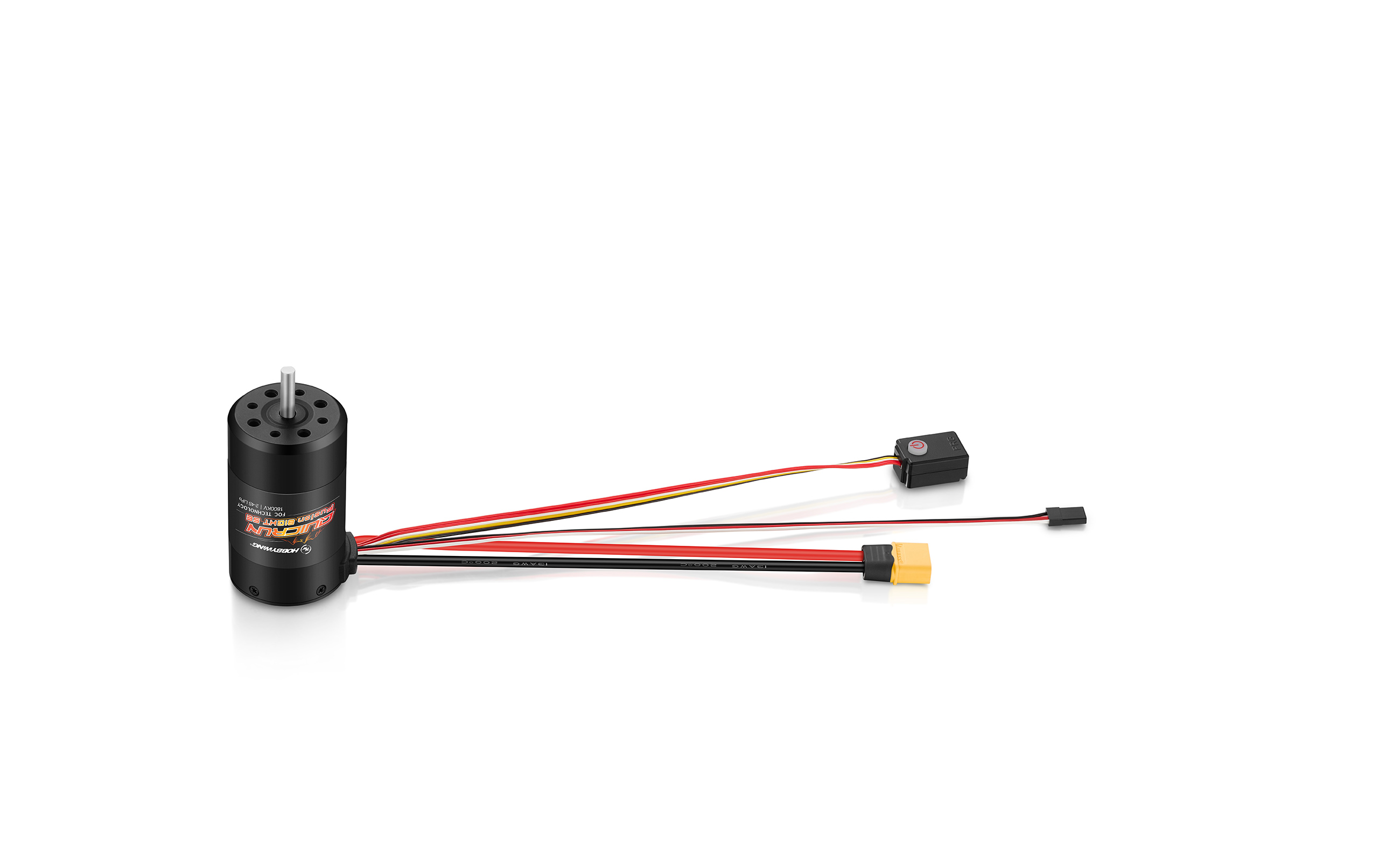

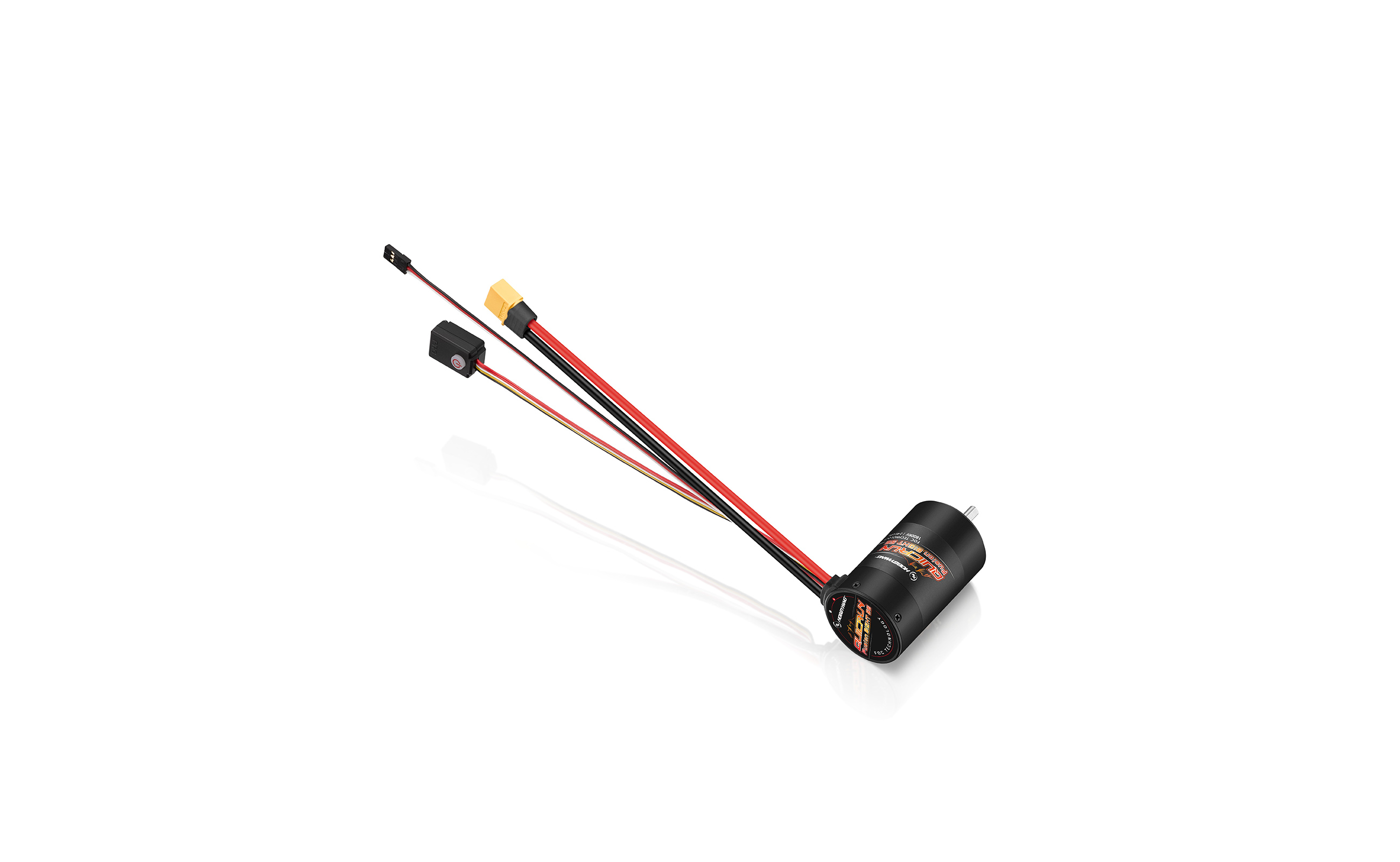

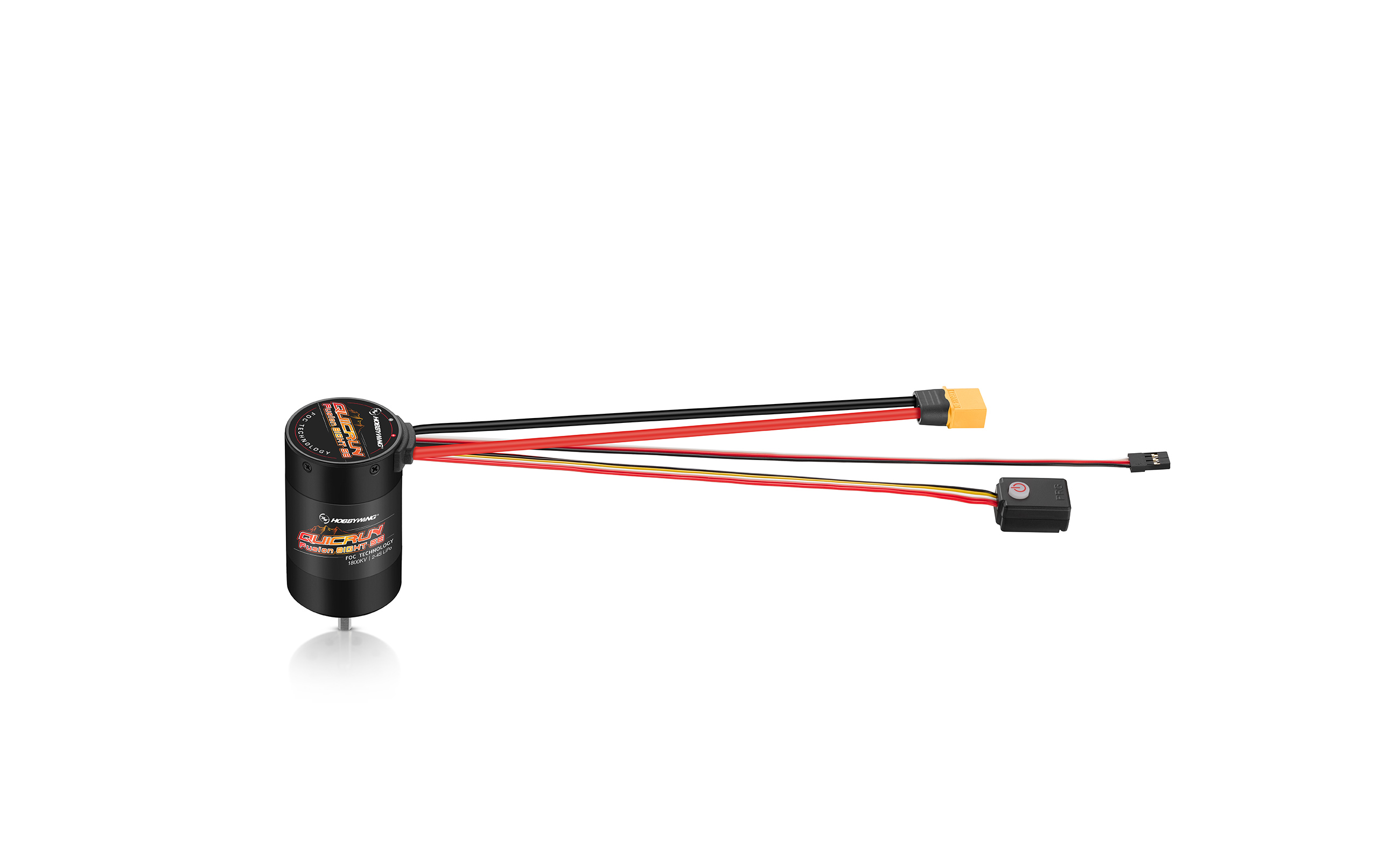

QuicRun Fusion 8IGHT SECrawler Integrated Power System

Integrated Design

The Fusion 8IGHT SE is FOC integrated power system, specifically designed for

1/8th scale models. Its compact frame layout measures 41×69mm, making it a

powerful yet space-efficient solution for users. The integrated design creates

an ultra easy to install system that makes for an extremely clean setup.

4S 1/8th Crawler ESC

The ESC is designed to
support up to4S LiPo

Maximum continuous output
current of up to60A

Its compact design makes it
suitable not only for 1/8th
climbing models, but also for
1/7th light-load climbing models.

FOC for Super Linearity
& High Torque
& Extreme Mute

The Fusion 8IGHT SE adopts FOC driving mode.Low speed torque is extremely powerful and smooth providing drivers ultra fine control and response under load. FOC provides superior response to standard brushless or brushed motor setups.In addition to ultra fine low speed power, the system is extremely quiet, nearly silent when in operation.

Intelligent Torque Output &
Speed Closed-loop Control
for Easy Control

The ESC intelligently adjusts torque output to match driving conditions, automatically increasing torque to overcome resistance and accelerate uphill.

Reducing torque to stabilise vehicle speed when descending. This smart torque management ensures precise speed control and smooth performance, delivering a consistently responsive driving experience.

Note: When operating in normal mode, the ESC does not have a fixed speed
function, providing a driving experience similar to that of a traditional brushed motor.

Suitable for all weather
and conditions

The entire power system is rated IP67, offering outstanding waterproof and dust-proof

performance. This allows drivers to tackle any terrain ranging from Ice, snow, sand and water,

knowing their system will perform flawlessly.

Note: The IP67 protection level mentioned above provides splash-proof, water-resistant, and dust-proof

capabilities under normal use. However, it is not permanently effective, as protective performance may diminish

over time due to regular wear and aging. Avoid prolonged immersion in water, as it may result in product damage.

Note: The IP67 protection level mentioned above provides splash-proof, water-resistant, and dust-proof

capabilities under normal use. However, it is not permanently effective, as protective performance may diminish

over time due to regular wear and aging. Avoid prolonged immersion in water, as it may result in product damage.

Supports Three Operating Modes

The system supports multiple operating modes to meet various application needs.

Fixed Speed Mode
(Direct Forward and Reverse)

Normal Mode without
Fixed Speed Functionality
(Forward and Reverse with Brake)

Normal Mode without
Fixed Speed Functionality
(Direct Forward and Reverse)

Supports LED / LCD Program Boxes

The ESC is compatible with both basic LED program box and advanced LCD program box.

Variety of Parameters

The Fusion 8IGHT SE offers a wide range of customisable parameters, with a total of 11 adjustable
settings to accommodate diverse application requirements and fine-tune performance.

Running Mode

LiPo Cells

Cutoff Voltage

Thermal Protection

Motor Rotation

BEC Voltage

Drag Brake Force

Drag Brake Rate

Max. Reverse Force

Max. Brake Force

RPM Decrease Rate

Product NameQuicRun Fusion 8IGHT SE

Product Number

30109100

Type

Scale Brushed/Brushless Sensored/Sensorless Waterproof

1/8^th
Brushless
Sensored
Waterproof

Specifications

Cont./Peak Current Input Voltage BEC BEC Output KV Motor Poles

60A/200A
2-4S LiPo,6-12 Cells NiMH
6V/7.4V adjustable,continuous current 4A (Switch mode)
1800KV
4

Wires & Connectors

Input Wires Input Connectors

Black-13AWG-200mm*1 Red-13AWG-200mm*1
XT60

ESC Programing via

SET Button on ESC LED Program Box LCD G2 Program Box LCD PRO OTA Programmer Program Port

Not Supported
Supported
Supported
Supported(Bluetooth not supported)
Not Supported
Separate Program Port(switch position)

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Diameter / Length of motor Shaft diameter / exposed shaft length Weight

41mm/69mm
5mm/18.5mm
326.5g(including wires&connectors)

Applications

Vehicles

1/8^th Crawlers

Support

Manuals & Documents

Manuals

LED Program Box_General

Part Number: 30501003
Size: 88x58x14mm（LxWxH）
Applications:
Platinum V1/V2 series & FlyFun V5 SkyWalker V2
Series of brushless aircraft ESCs
XeRun series (most), EzRun series
& QuicRun series of brushless car ESCs
SeaKing series of brushless boat ESCs

LCD Program Box Pro

NEW

LCD Program Box Pro

Product Number: 30502002
Input Voltage: DC 5V~12.6V
Application: brushless ESC
Weight: 85g
Display:LCD
