QuicRun Fusion Pro Elite - Integrated Crawler Power System

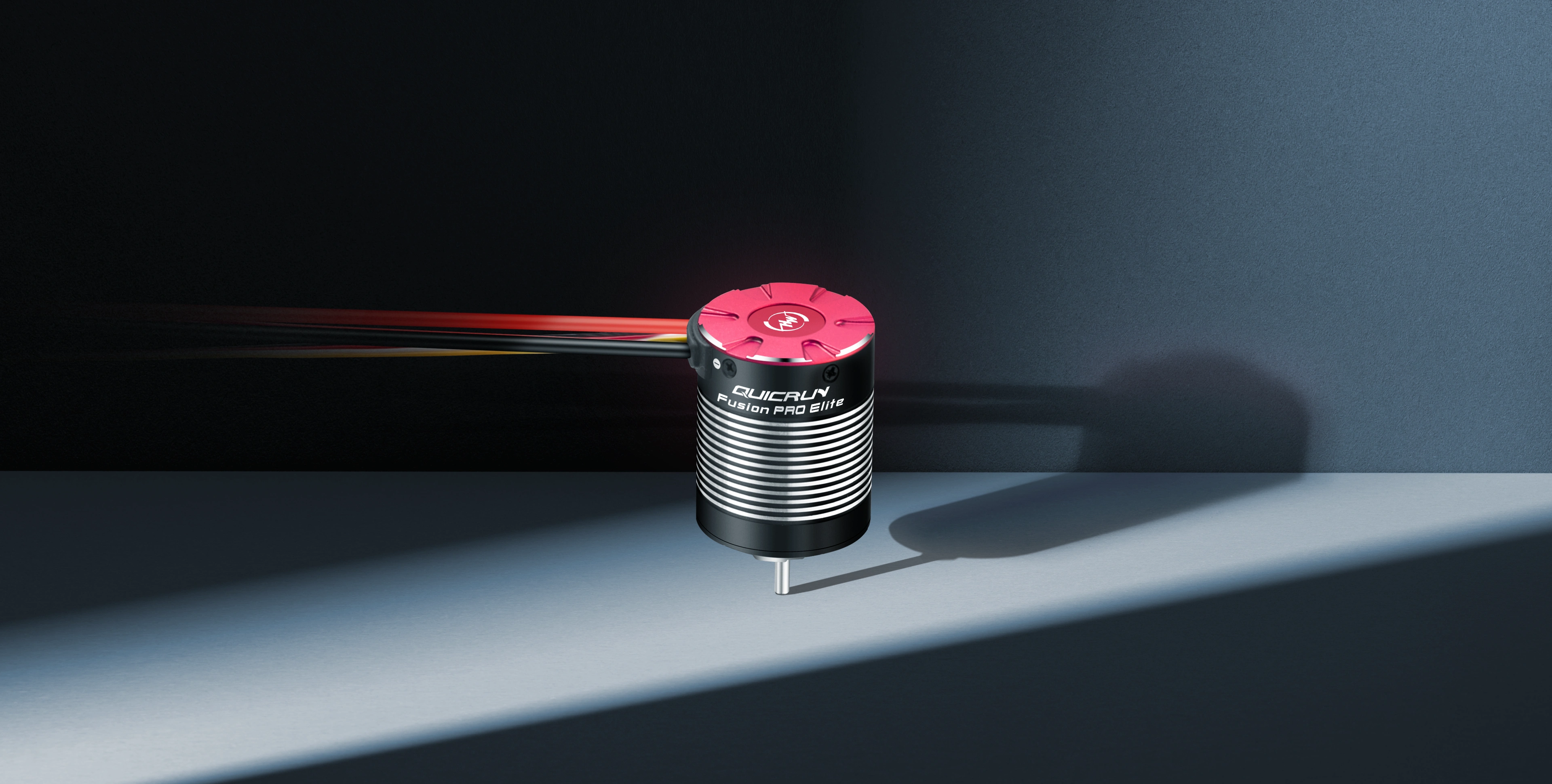

QuicRun Fusion Pro Elite crawler motor ESC combo
QuicRun Fusion Pro EliteIntegrated Crawler Power System
Compact yet Powerful

Fits nearly all 1/10th scale vehicles on the market. This ultra compact 2-in-1 motor and ESC

allows for super clean installation and wiring.

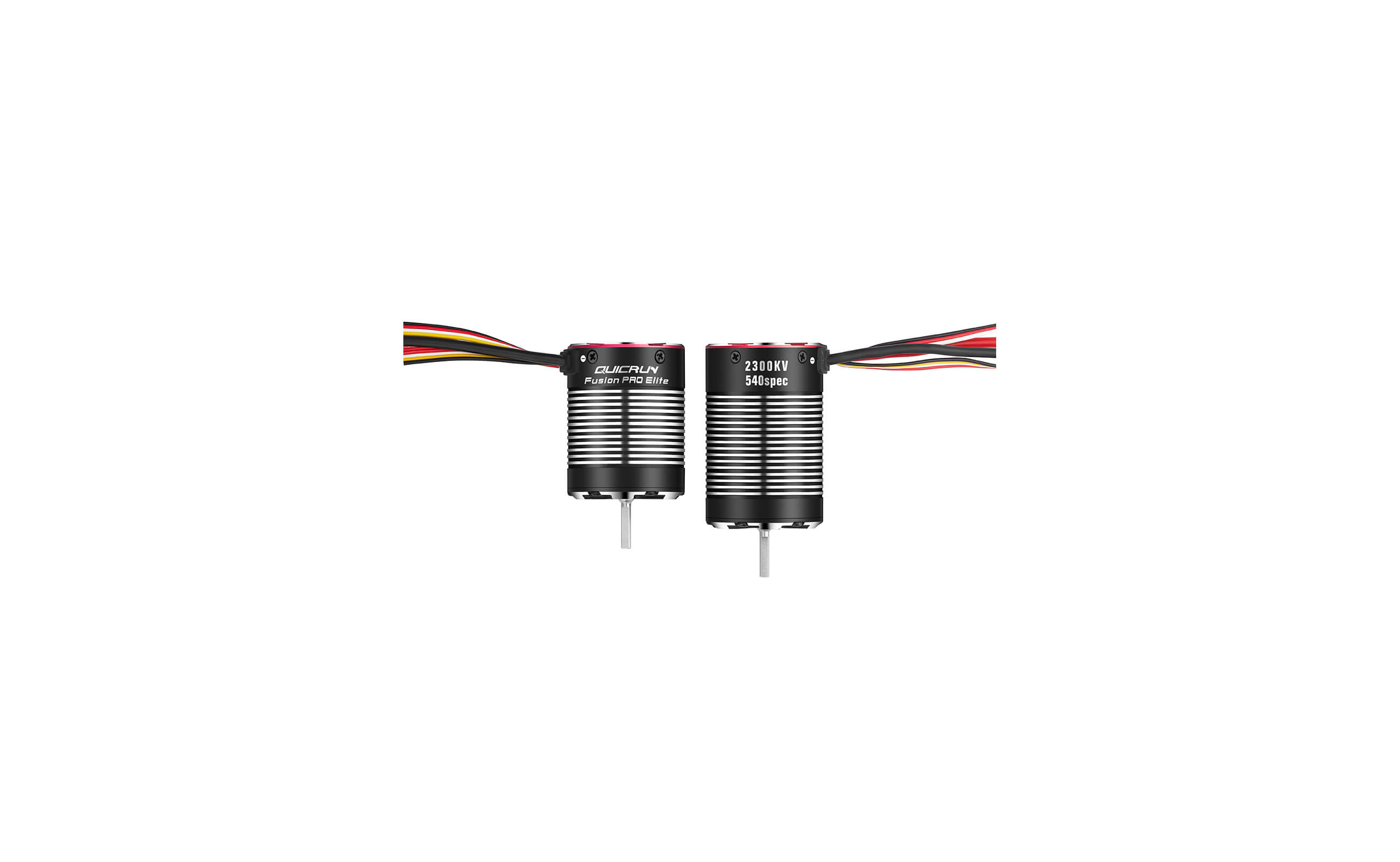

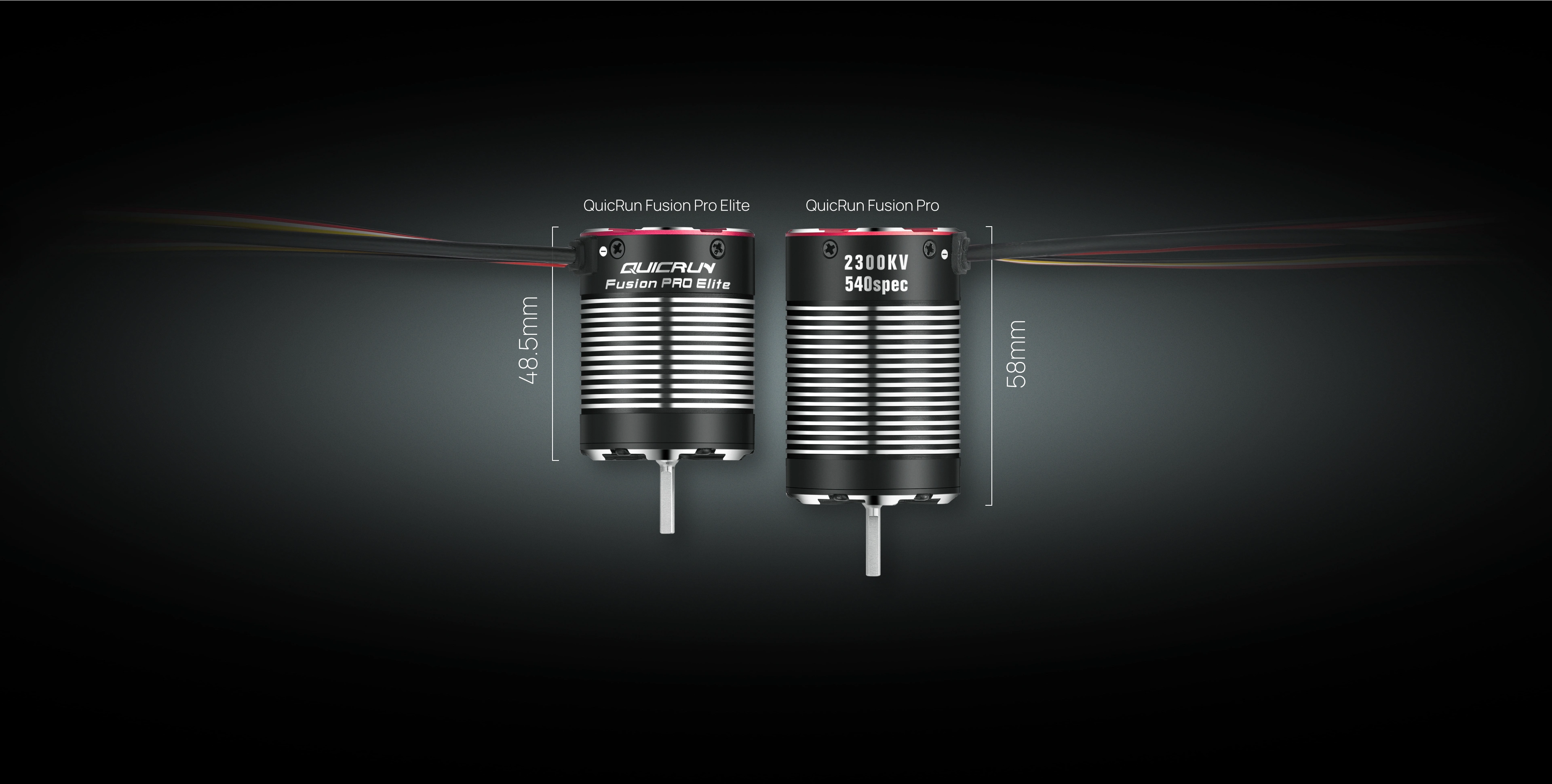

Featuring an ultra-short integrated design with a length of just 48.5mm,
the motor is 9.5mm shorter than the Pro Standard version.

It's 1.3mm shorter than the AXE 540.

QuicRun Fusion Pro Elite Crawler motor and ESC
Supports 2-4S Lipo,
Ideal Choice for
1/10th Climbing Vehicles
The ESC supports
2-4S LiPo
batteries
Maximum continuous
output current of
50A
Combined with its compact designs, it meets the demands of most 1/10th scale crawler applications, providing stable, consistent power without performance drop-offs.

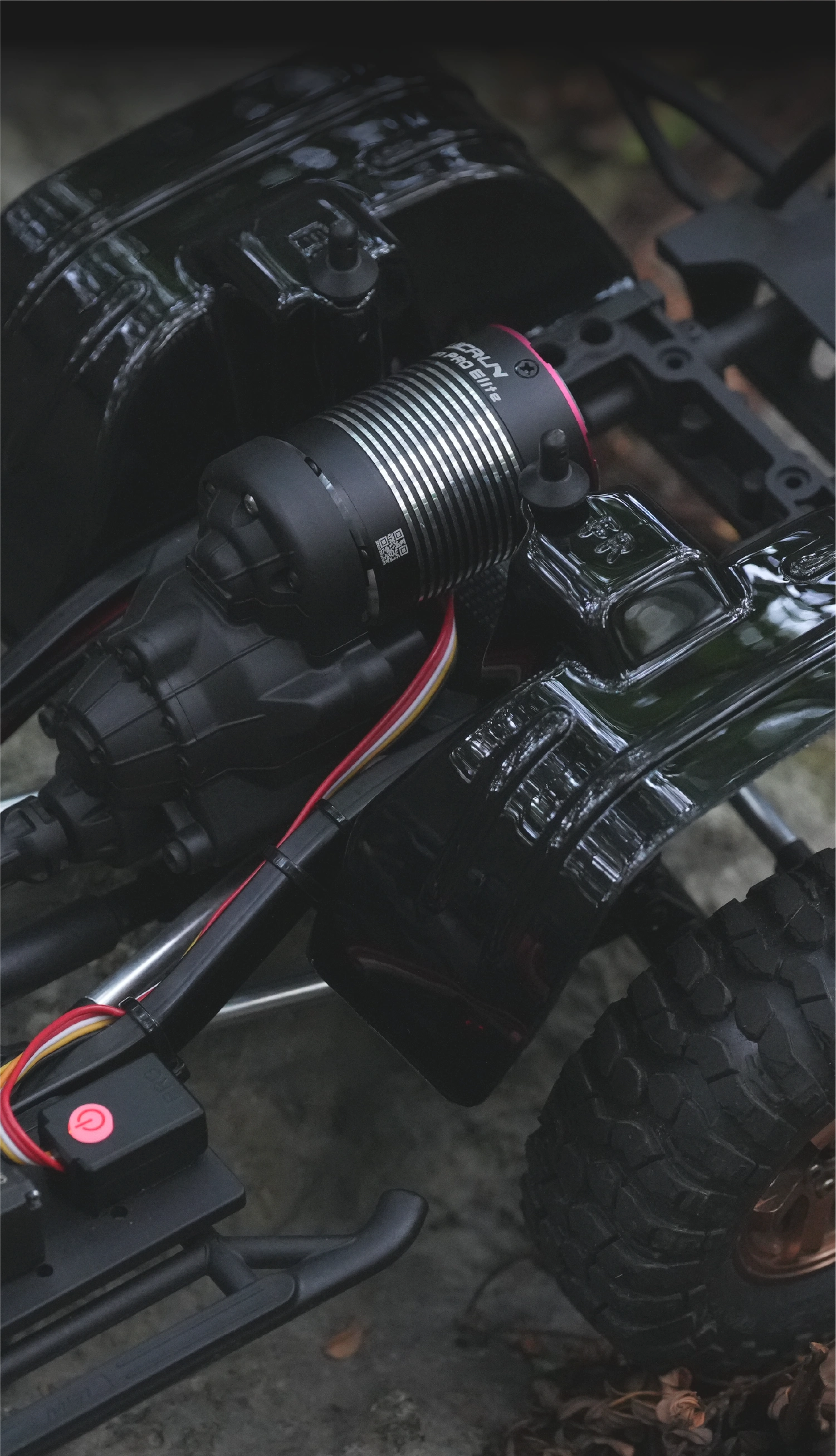

Hobbywing 1/10 brushless RC Car motor
AUX External Control, Channel for
Real-time Parameter Adjustment
AUX External Control,
Channel for Real-time
Parameter Adjustment

By connecting the yellow AUX CH signal wire to an unused receiver channel, you

can adjust ESC parameters (like drag brake force) in on the fly from your radio.

On trail tuning has never been this easy.

brushless crawler motor esc combo
FOC Drive, Quiet,
Powerful Torque with
Excellent Linearity

The power system uses FOC (Field-oriented control) drive, delivering significantly stronger low-speed

torque and smoother performance than conventional sensored systems.

It eliminates motor noise for near-silent operation, allowing you to fully enjoy the experience.

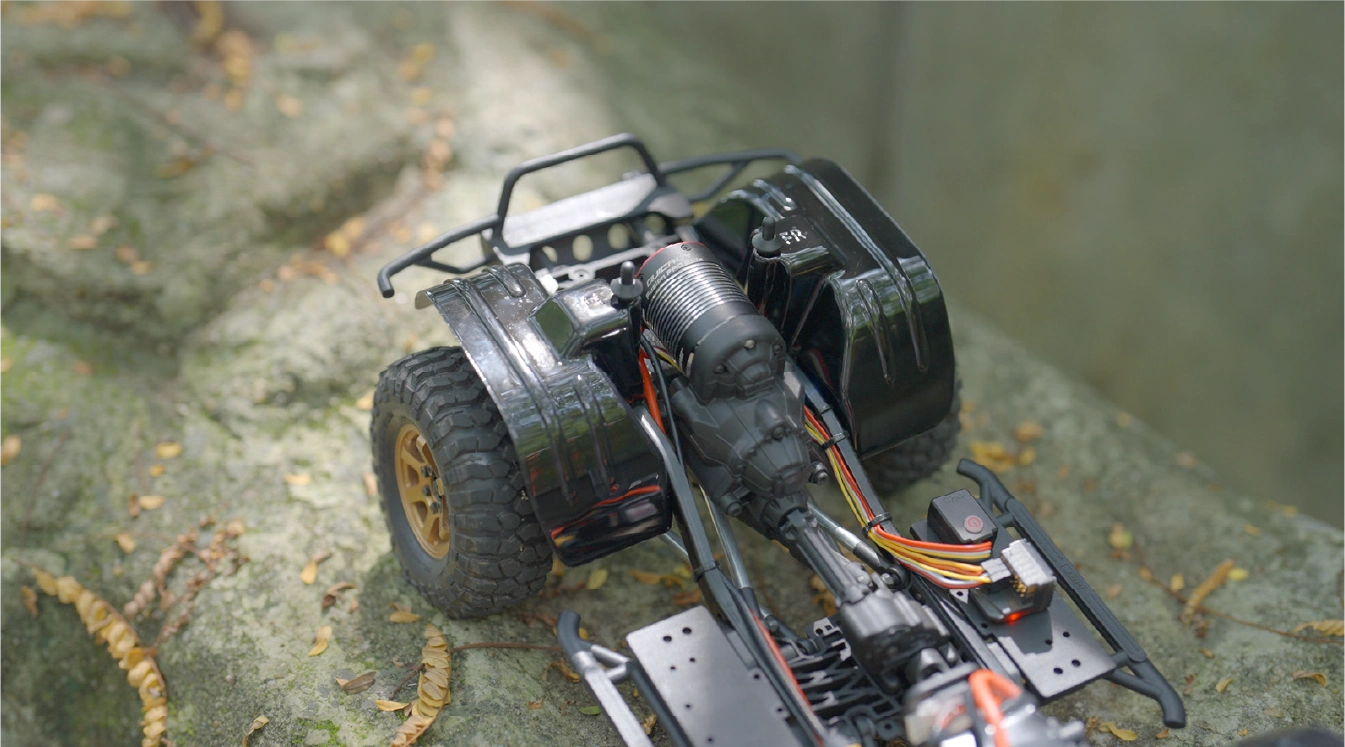

RC crawler motor
Closed loop, Intelligent Torque
Control for Precise Throttle
Matching and Amazing Control
Closed loop,
Intelligent Torque
Control for Precise
Throttle Matching and
Amazing Control

The ESC features an intelligent torque output and speed closed-loop control system that

automatically adapts to changing terrain conditions.

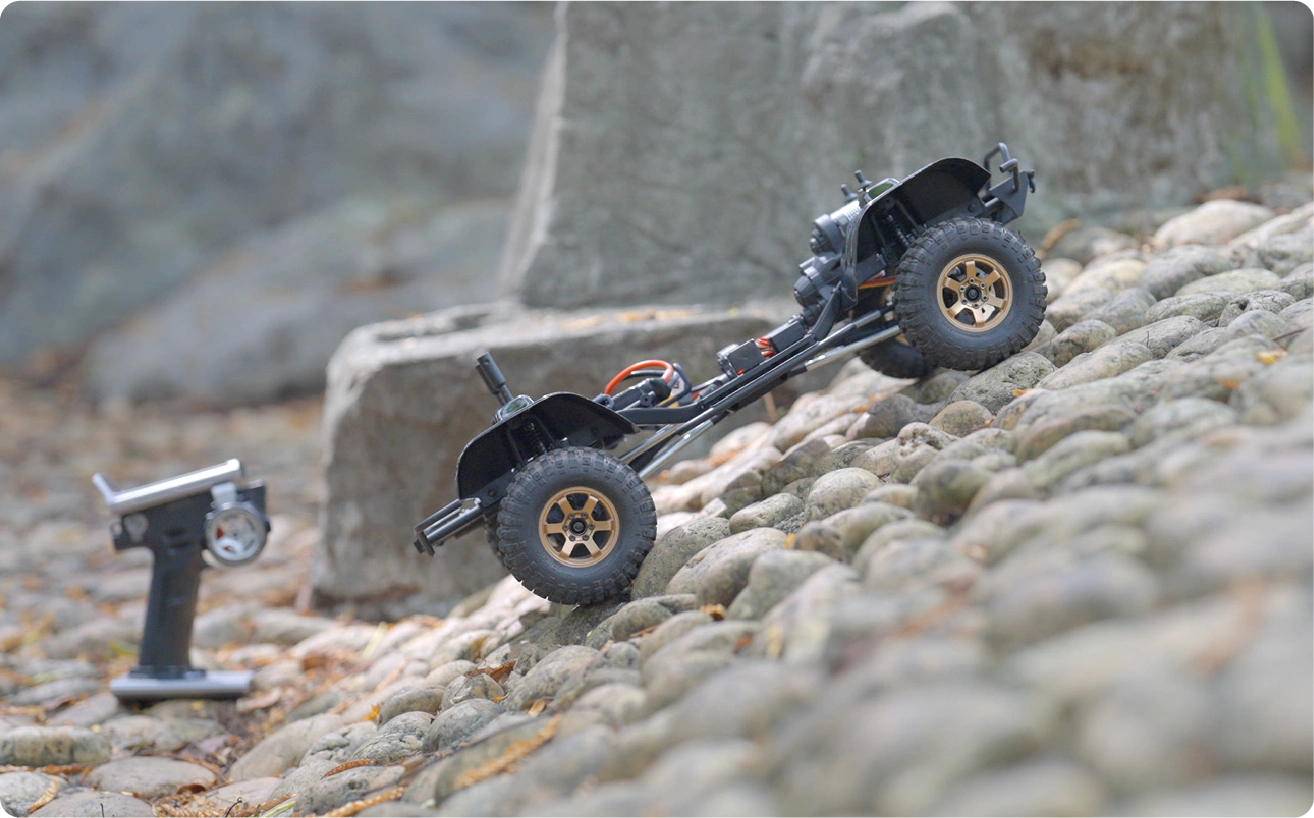

1/10th RC Car Brushless Motor
The ESC increases output torque to overcome obstacles when encountering resistance.

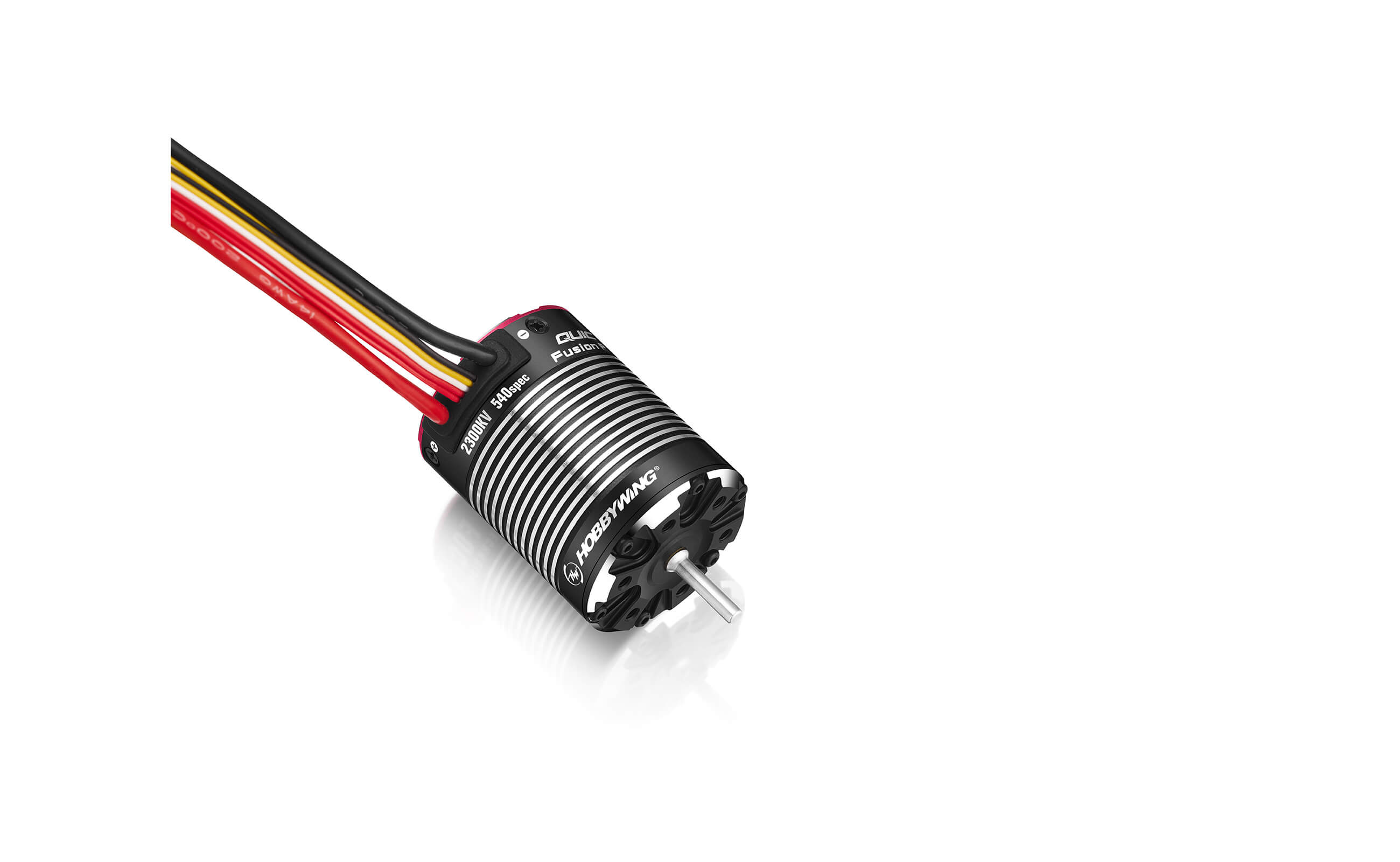

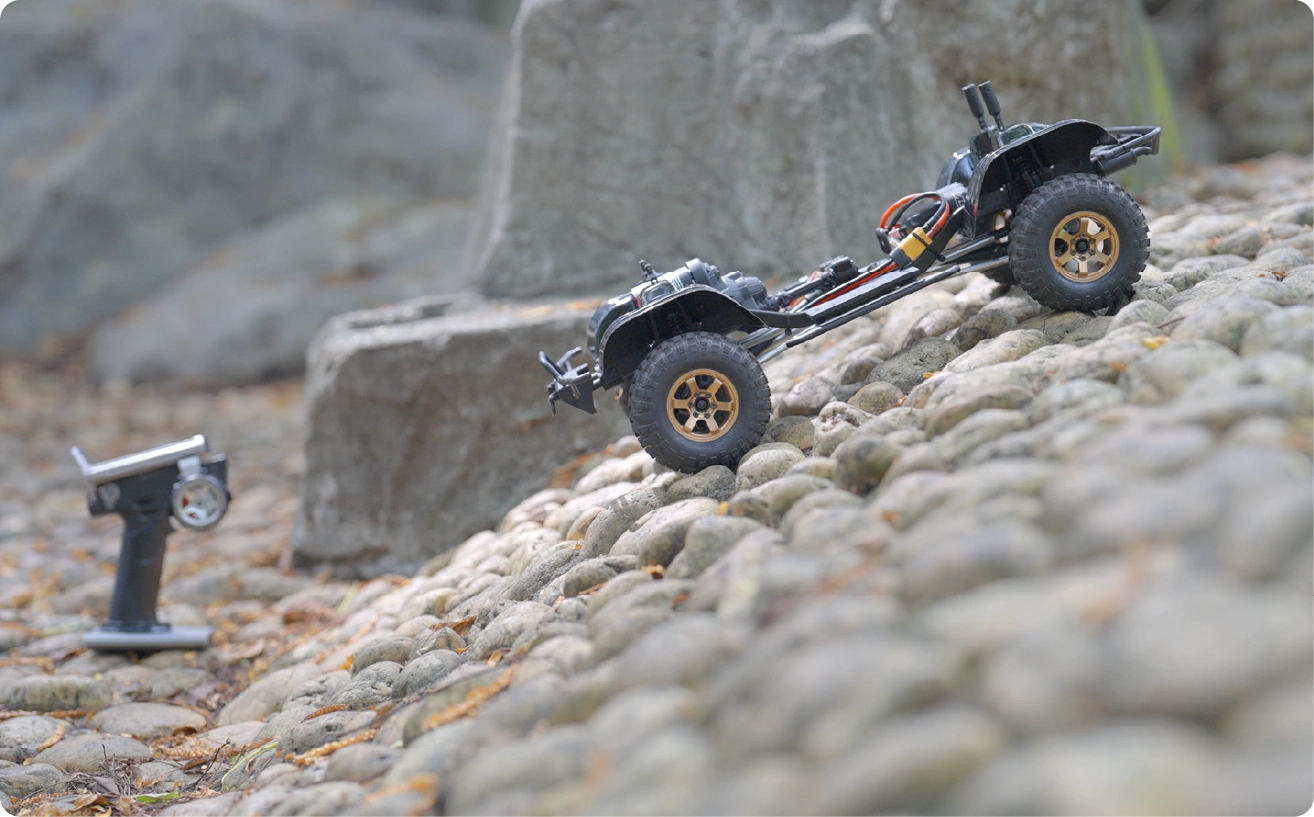

QuicRun Fusion Pro Elite 2300kv Crawler motor
On descents, it reduces torque output and stablizes vehicle speed, making driving remarkably simply.
IP67 All-terrain Protection
IP67 All-terrain
Protection

The entire power system is rated IP67, delivering outstanding waterproof and
dustproof performance. Whether in rain, snow, mud, sand, or standing water,
it handles harsh environments with confidence.

Note: The IP67 rating protects against splashes, water exposure, and dust under normal

use but is not permanent. Protective performance may decline over time due to aging.

Do not submerge the product for extended periods, as this may cause damage.

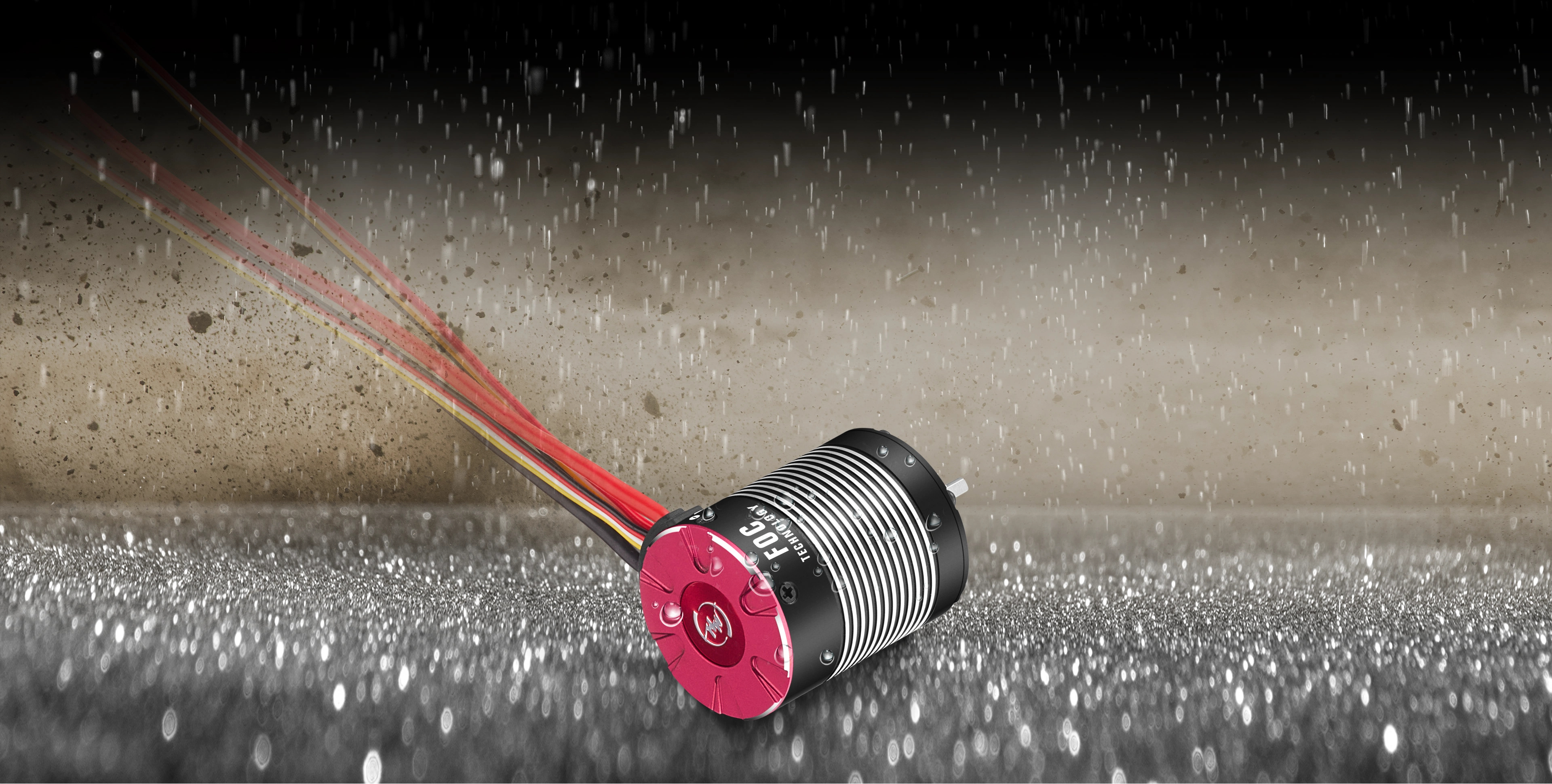

RC crawler motor and esc
Built-in 10A
High-performance BEC
Built-in 10A
High-performance
Integrated BEC

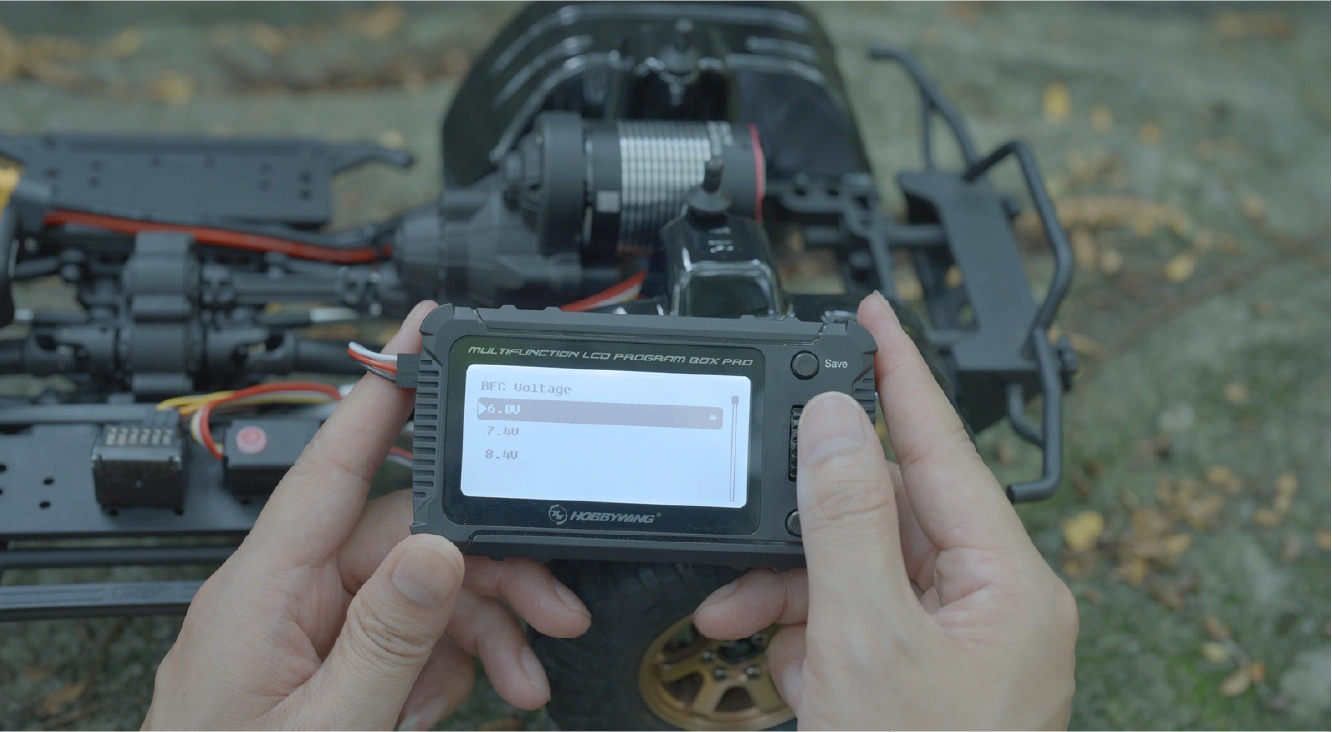

1/10 FOC brushless with built-in BEC
Built-in BEC capable of
delivering up to
10A of output current
Supports selectable voltages of
6V/7.4V/8.4V
It effortlessly powers standard and high-voltage servos, as well as accessories like lighting systems and winches.
Five Selectable Operating Modes
Five Selectable
Operating Modes

The ESC offers versatile control with five operating modes,

this flexibility easily adapts to a wide range of applications.

1
Constant Speed Mode(Direct Forward/Reverse)
2
Normal Mode(Forward/Reverse with Brake)
3
Normal Mode(Direct Forward/Reverse
without Constant Speed)
4
Hybrid-RPM Matching Mode
5
Hybrid-Normal Mode

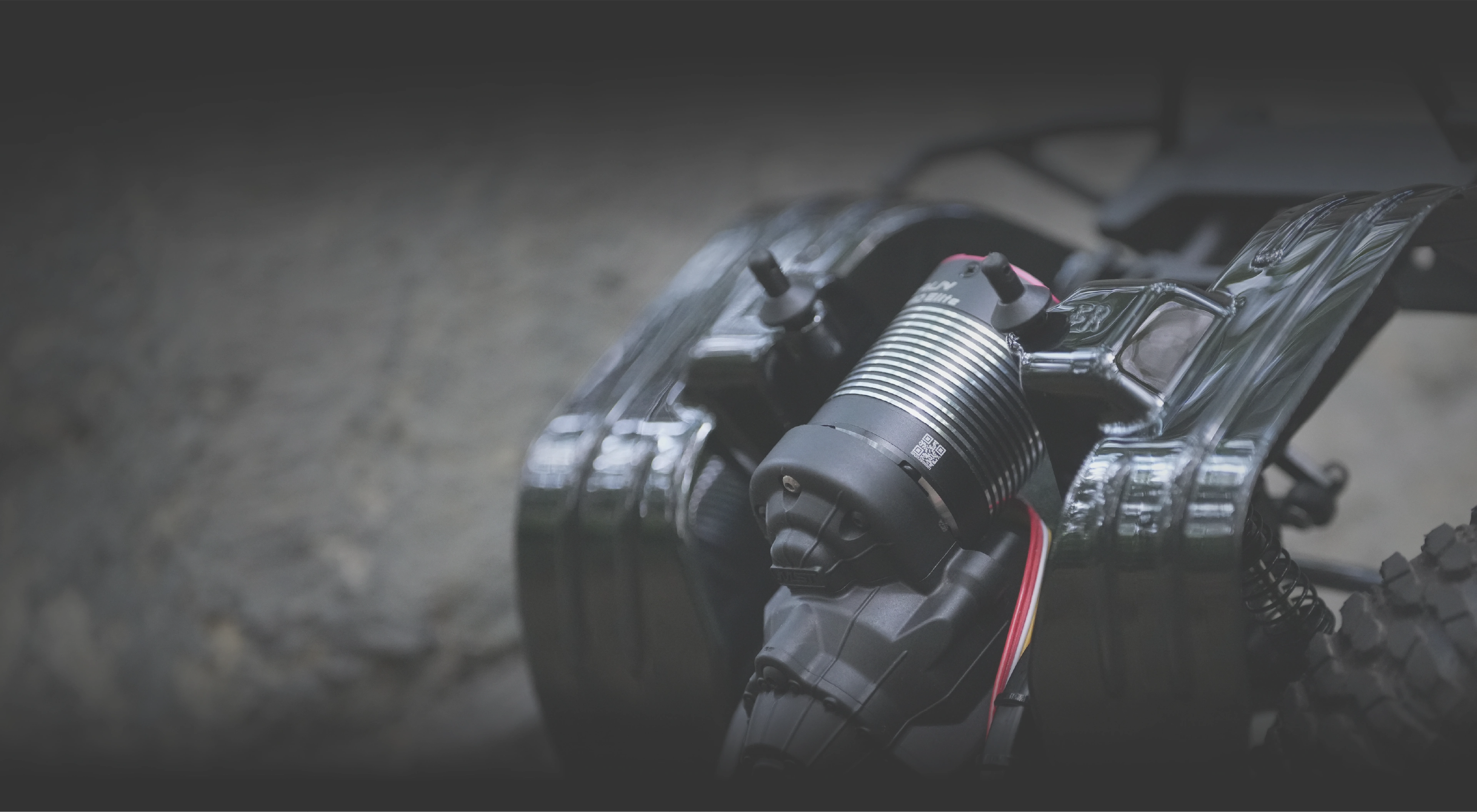

RC Crawler Motor and FOC Controller
Compatible with both
LED and LCD Pro Program
Compatible with
both LED and LCD
Pro Program Boxes

The ESC supports not only the simple LED Program Box but also the more advanced LCD Pro

Program box, which offers a complete range of settings and professional-level adjustments.

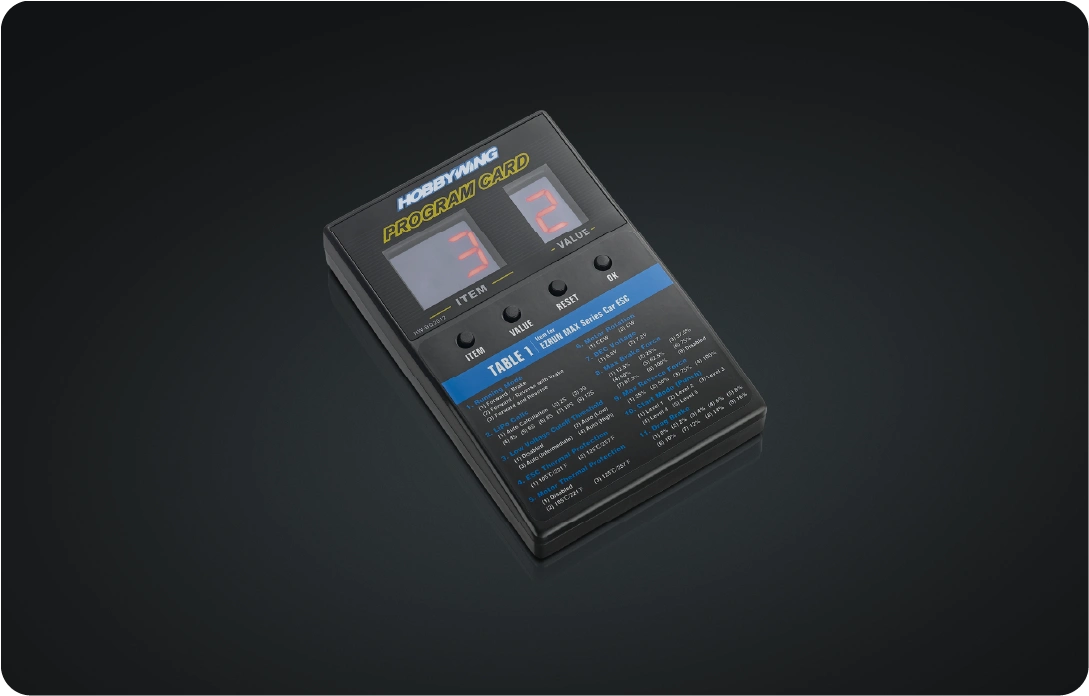

Hobbywing LED Program Box
LED Program Box
Hobbywing LCD Program Box Pro
LCD Program Box Pro

The ESC supports not only the simple LED Program Box but also the more advanced LCD Pro

Program box, which offers a complete range of settings and professional-level adjustments.

Extensive Parameters Options
Extensive
Parameters Options

The ESC offers 14 adjustable parameters to meet a wide variety of setup application requirements.

Running Mode
Lipo Cells
Cutoff Voltage
Thermal Protection
Motor Rotation
BEC Voltage
Drag Brake Force
Drag Brake Rate
Max. Reverse Force
Max. Brake Force
RPM Decrease Rate
Punch
Neutral Range
AUX CH Function

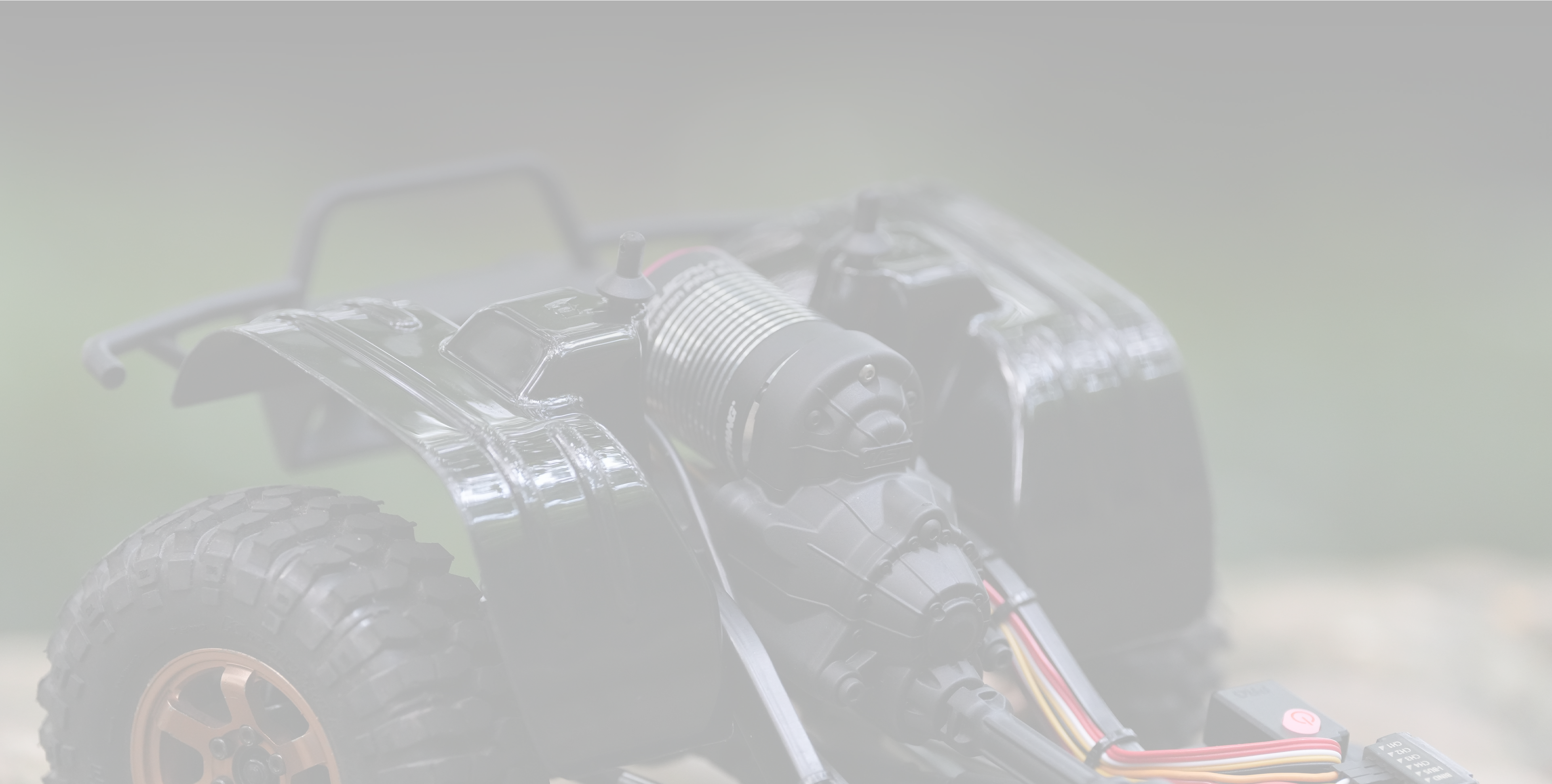

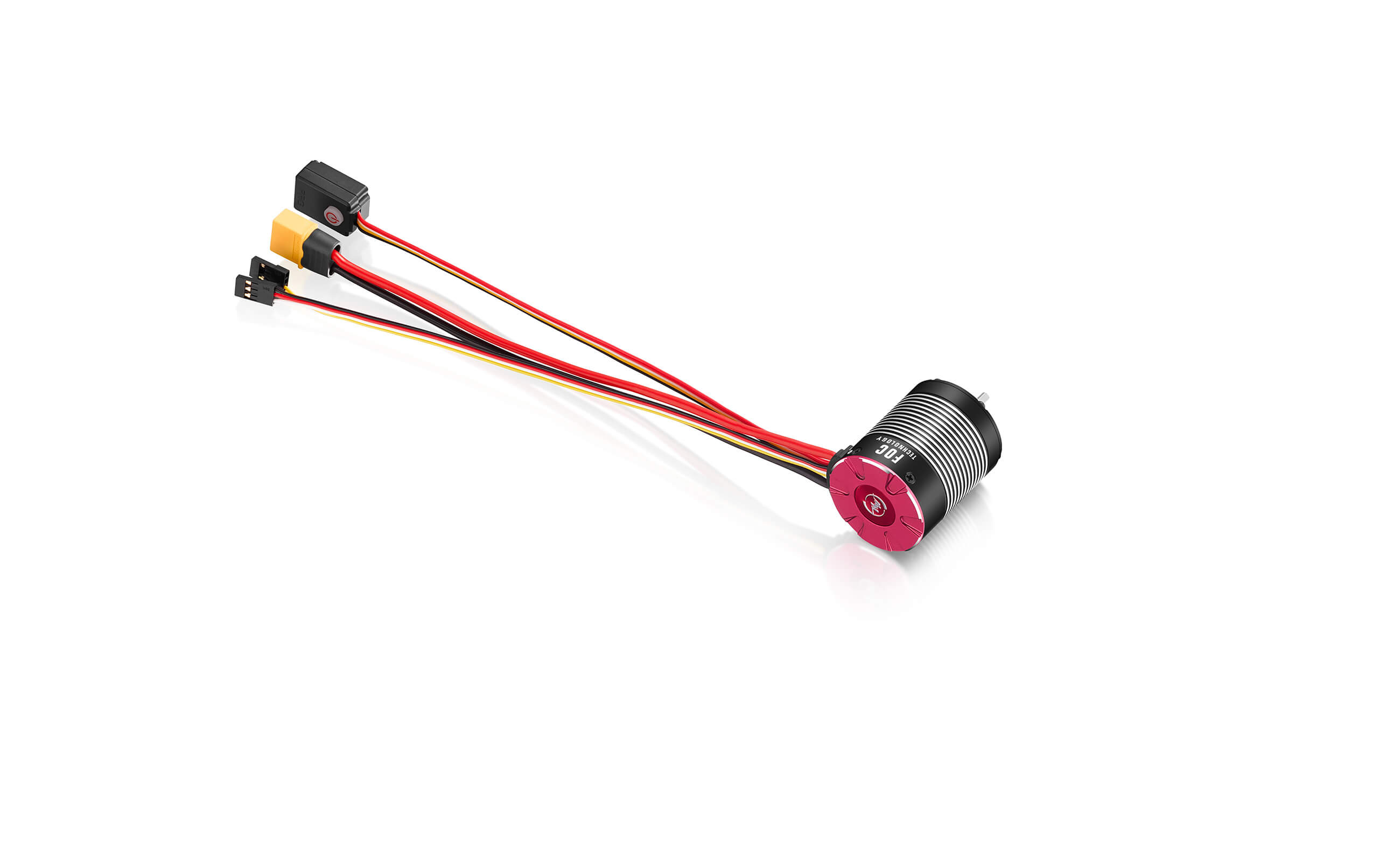

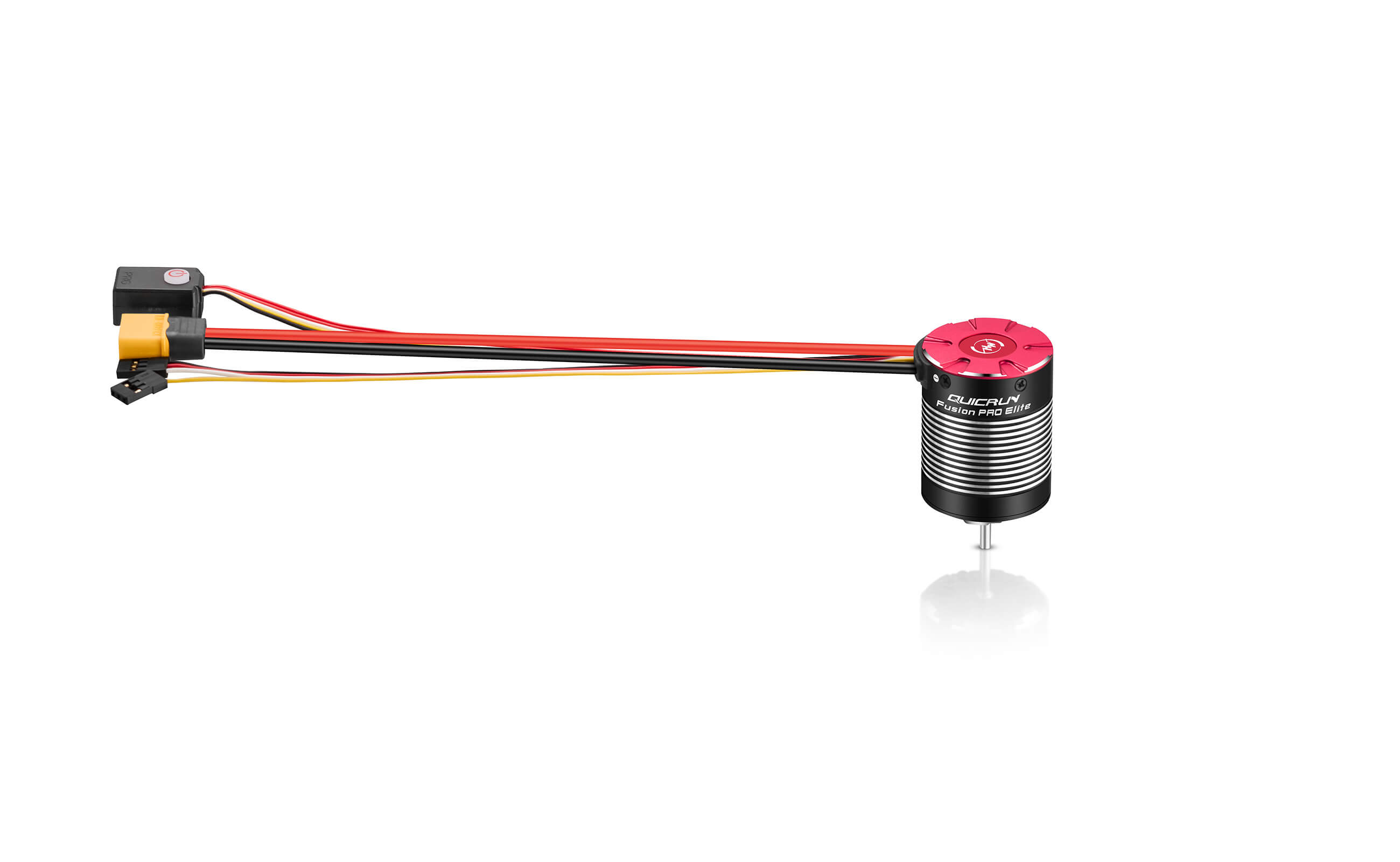

QuicRun Fusion Pro Elite Crawler 2in1 FOC System
Product NameQuicRun Fusion Pro Elite
Product Number
  •
  • 30120500
Type
  • Scale
  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • 1/10th
  • Brushless
  • Sensored
  • Waterproof
Specifications
  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • KV
  • Motor Poles
  • 50A/150A
  • 2-4S LiPo,6-12 Cells NiMH
  • 6V/7.4V/8.4 adjustable,continuous current 5A (Switch mode)
  • 2300KV
  • 4
Wires & Connectors
  • Input Wires
  • Input Connectors
  • Black-14AWG-220mm*1 Red-14AWG-220mm*1
  • XT60
ESC Programing via
  • SET Button on ESC
  • LED Program Box
  • LCD G2 Program Box/LCD PRO
  • OTA Programmer
  • Program Port
  • Not Supported
  • Supported
  • Supported
  • Not Supported
  • Independent programming port(switch position)
Firmware
  • Firmware Upgrade
  • Not Supported
Size & Weight
  • Diameter / Length of motor
  • Shaft diameter / exposed shaft length
  • Weight
  • 37mm/48.5mm
  • 3.175mm/16mm
  • 178.5g (including wires&connectors)
Applications
  • Vehicles
  • 1/10th Crawlers
Support

Manuals & Documents

Manuals

Software Download

FAQ

LED Program Box_General
LED Program Box_General

LED Program Box_General

Part Number: 30501003
Size: 88x58x14mm（LxWxH）
Applications:
Platinum V1/V2 series & FlyFun V5 SkyWalker V2
Series of brushless aircraft ESCs
XeRun series (most), EzRun series
& QuicRun series of brushless car ESCs
SeaKing series of brushless boat ESCs

+
LCD Program Box Pro
LCD Program Box Pro

NEW

LCD Program Box Pro

Product Number: 30502002
Input Voltage: DC 5V~12.6V
Application: brushless ESC
Weight: 85g
Display:LCD

+
Hobbywing QuicRun Fusion Pro Elite
Hobbywing QuicRun Fusion Pro Elite
Hobbywing QuicRun Fusion Pro Elite
Hobbywing QuicRun Fusion Pro Elite
Hobbywing QuicRun Fusion Pro Elite
Hobbywing QuicRun Fusion Pro Elite
Hobbywing QuicRun Fusion Pro Elite
Hobbywing QuicRun Fusion Pro Elite
