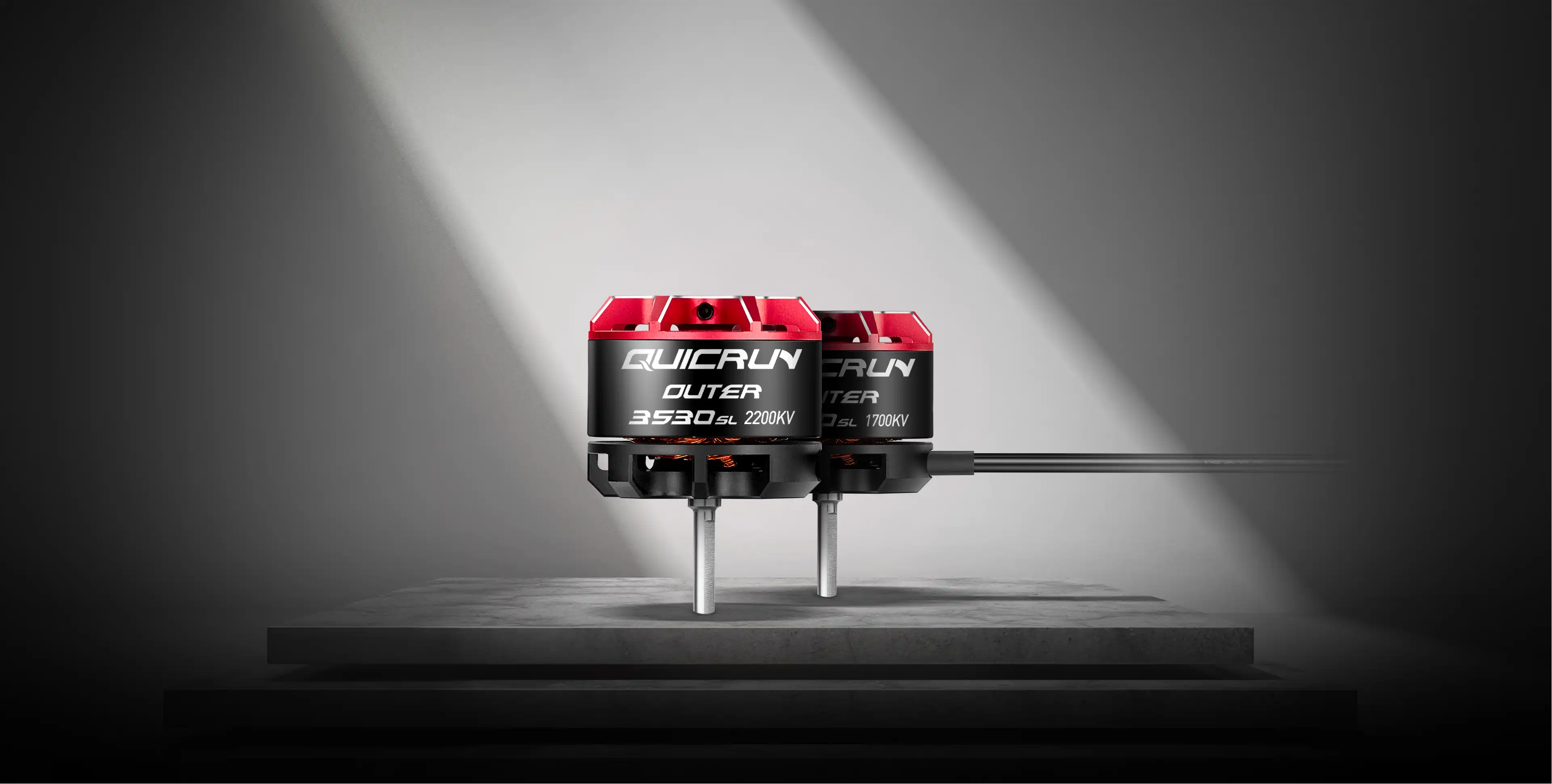

QuicRun
Outer 3530 SL

Compatible with
QuicRun WP 10BL80 Crawler ESCQuicRun WP
10BL80 Crawler ESC

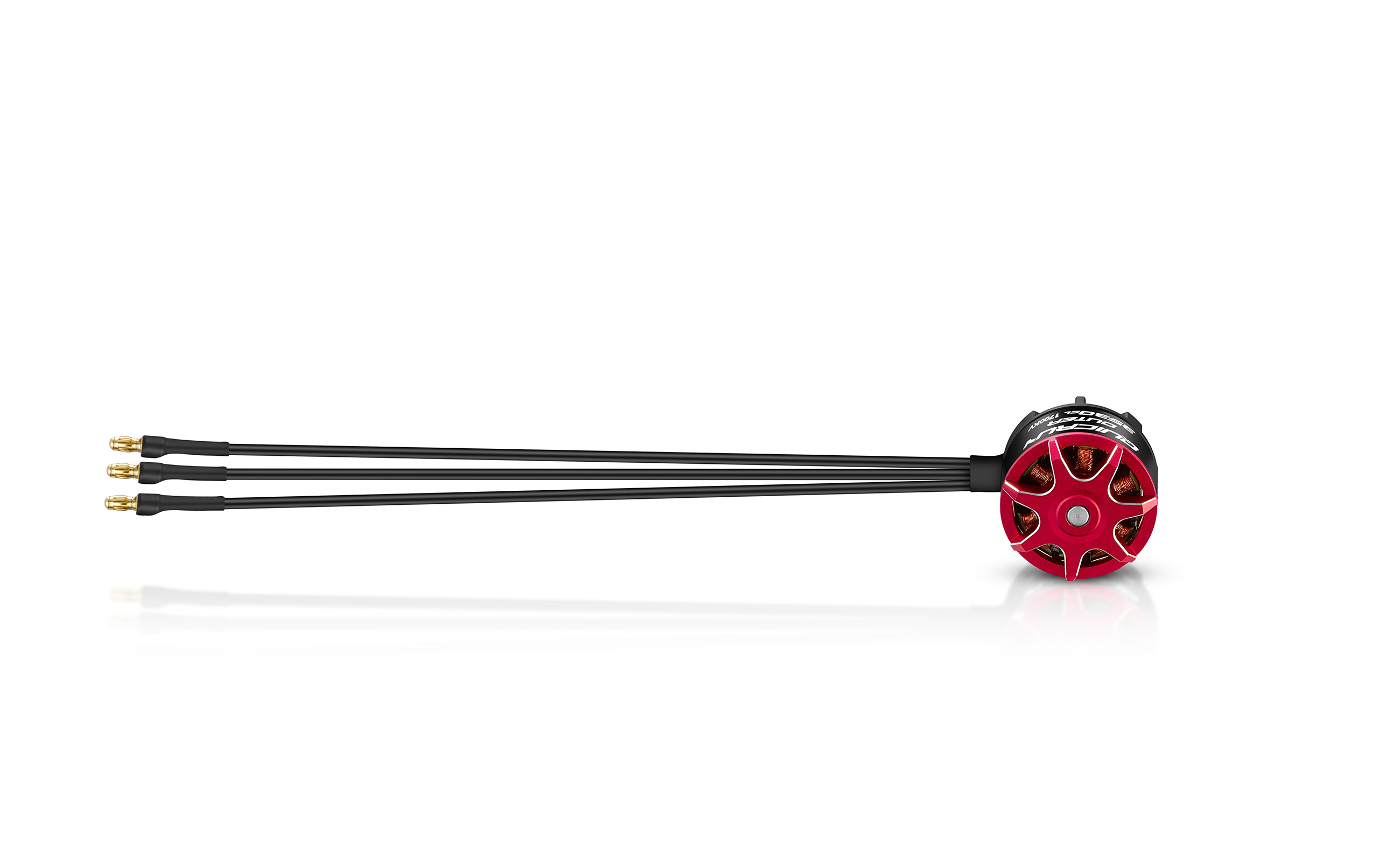

The motor comes standard with 3.5mm male connectors, allowing plug-and-play compatibility

with the QuicRun WP 10BL80 Crawler ESC. No soldering is required

QuicRun

WP 10BL80 Crawler ESC

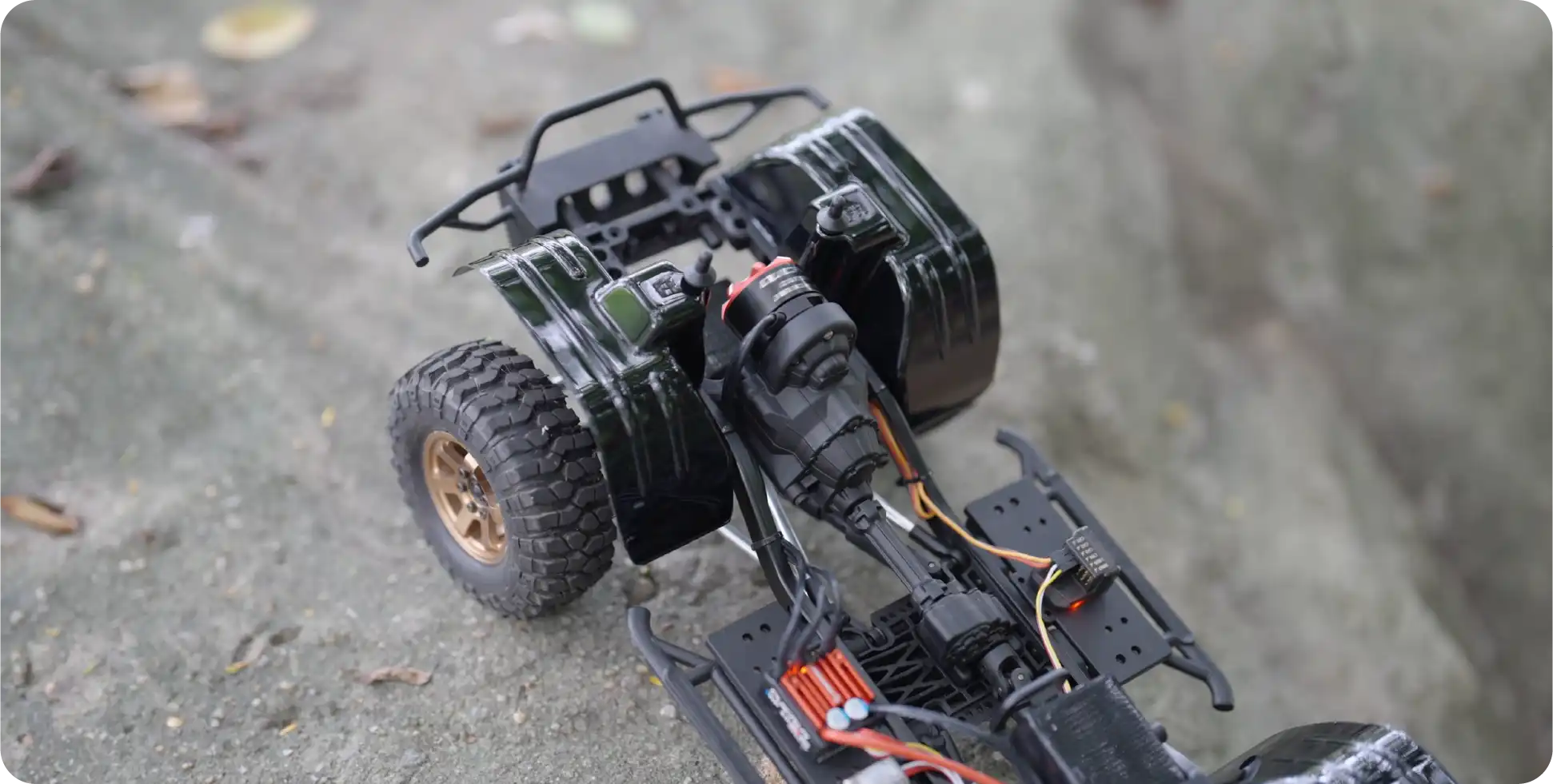

Outstanding Linear
Throttle Response

The rotor is precisely balanced to reduce vibration and energy loss.

Low-speed linearityExceptional

Climbing performanceExtremely Smooth

Control of fine movementsAccurate and Intuitive

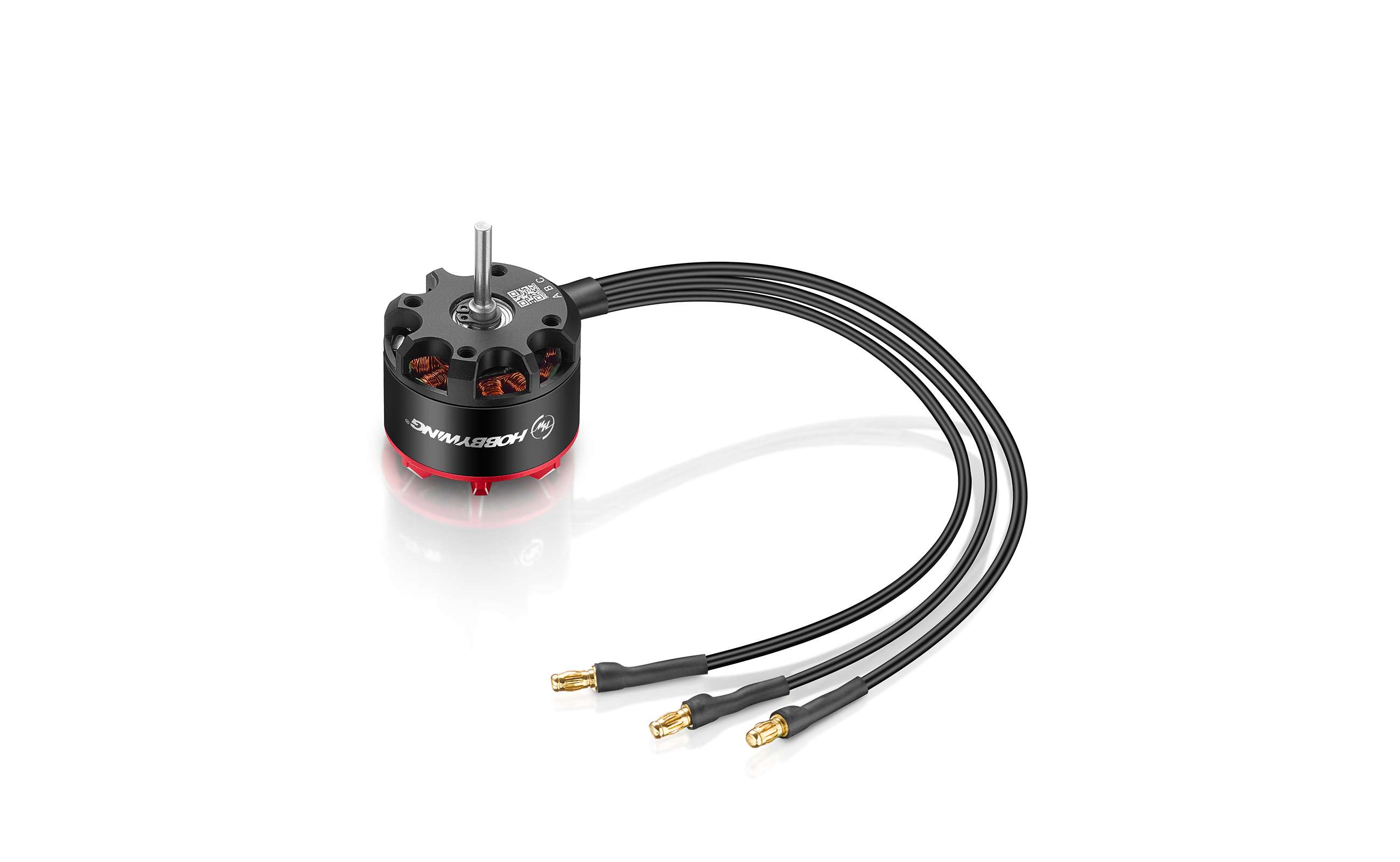

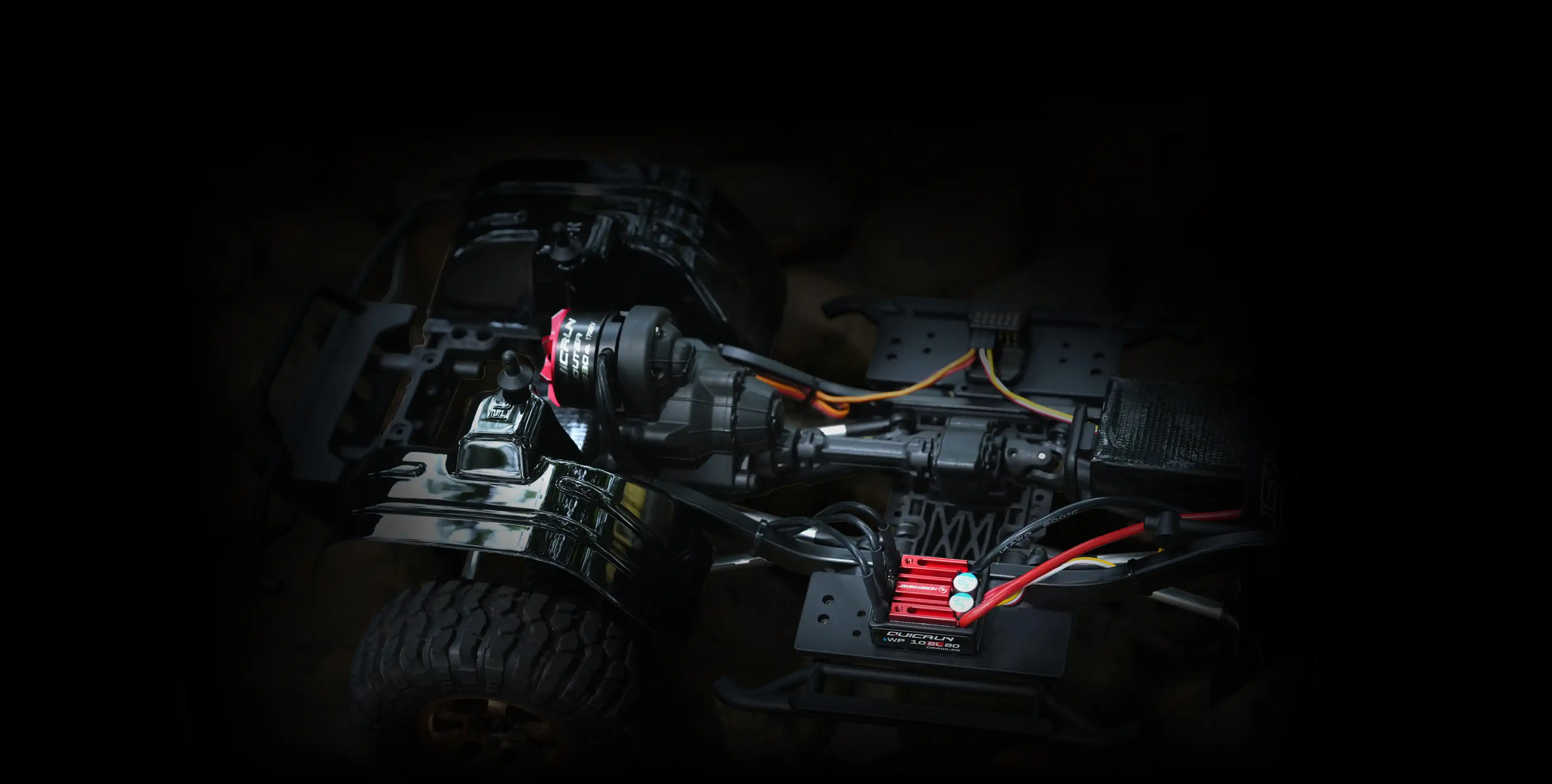

Flexible Silicone Motor Wires

The motor uses silicone motor wires to connect to the ESC to allow clean installation and wire management.

Wire management isMore Convenient

Chassis isCleaner

Overall appearance isAesthetically Pleasing

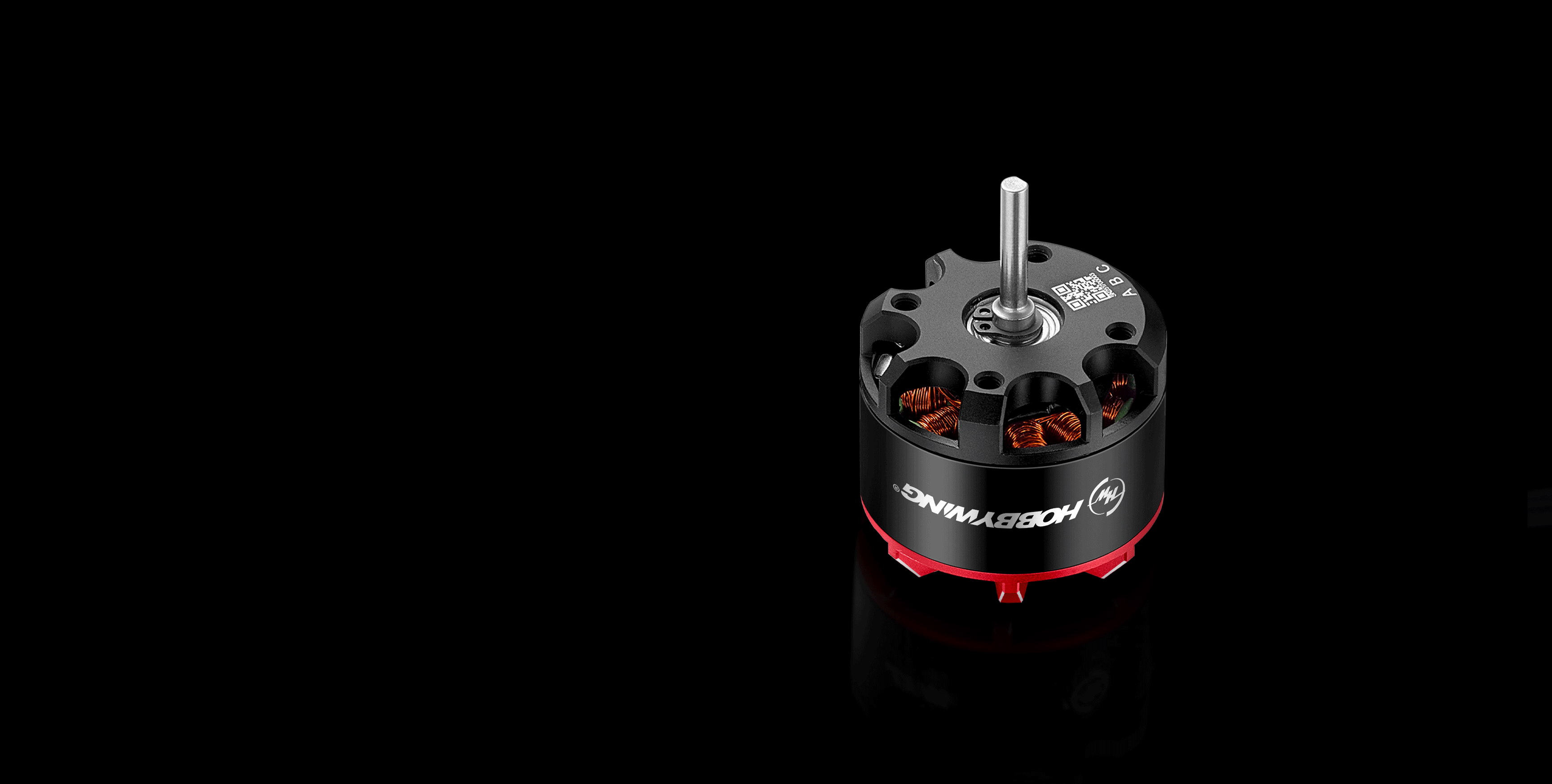

QuicRun Outer 3530 RC Car Brushless Motor

Widely Compatible

The motor is equipped with: 4*M3 mounting holes

mounting holes spaced: 25mm apart

making it compatible with the majority of: 1/10th，1/12th
scales vehicles available on the market

Low Cogging

The motor has a low cogging effect and minimal torque ripple, ensuring exceptionally smooth and stable

performance at low speeds and delivering a superior control experience.

Low Cogging

The motor has a low cogging effect and minimal torque ripple, ensuring exceptionally smooth and stable performance at low speeds and delivering a superior control experience.

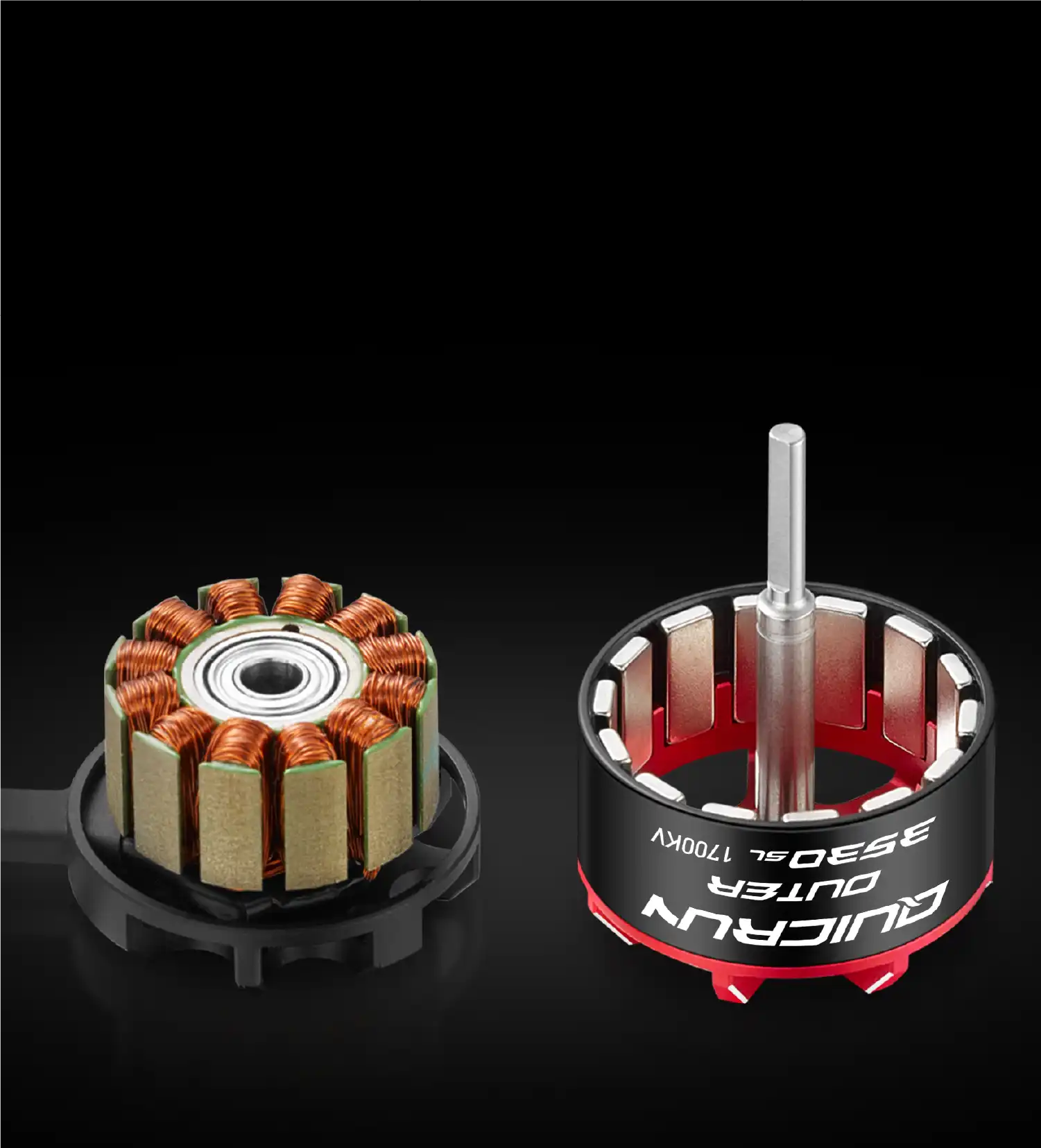

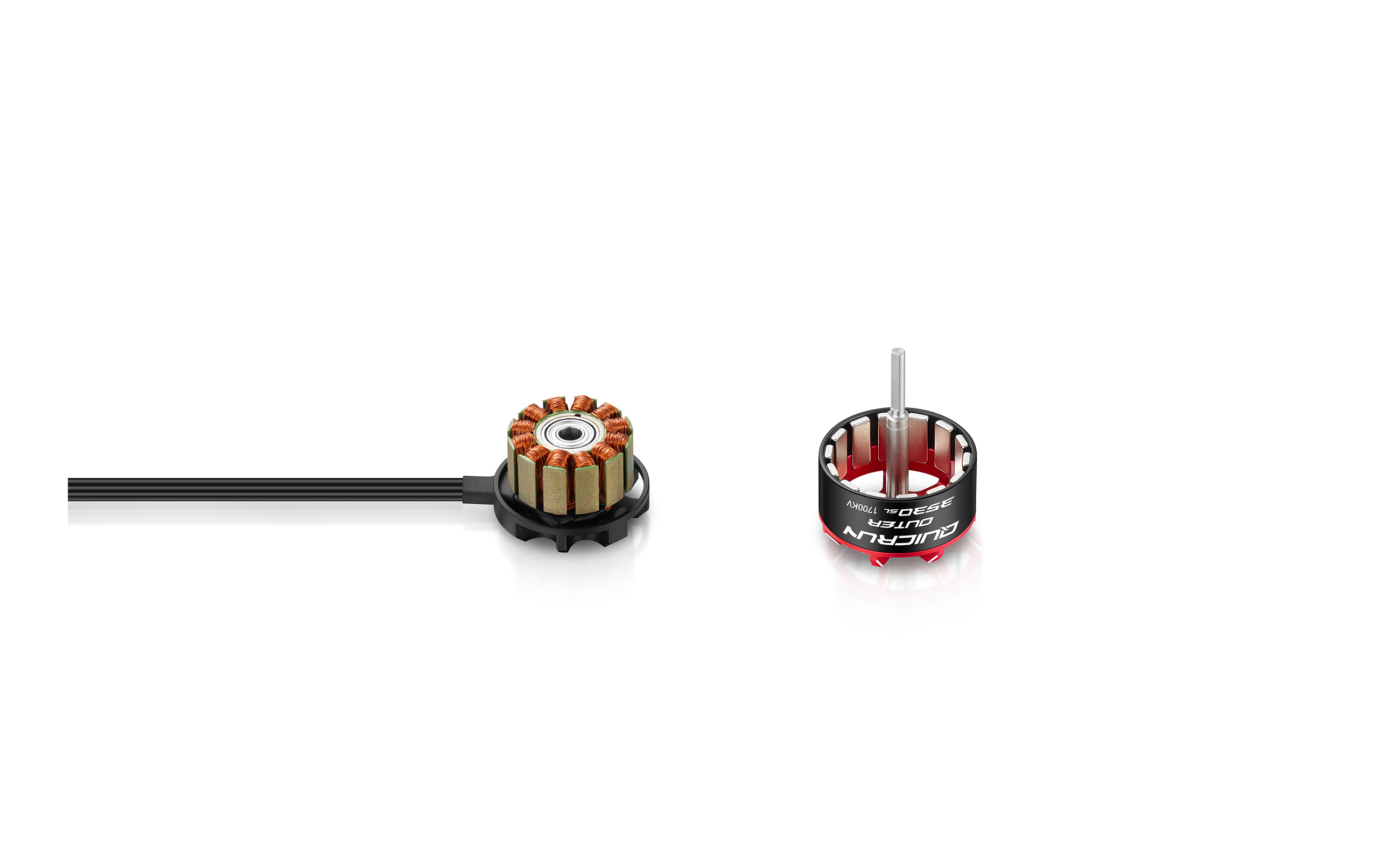

Modular Design

The motor features a modular, removable construction

Makes routine
cleaning and
maintenance easy.

It helps maintain
optimal
performance.

Extend the
lifespan of the
motor.

Top Tier Iron
Core Material

220℃
High-performance
Enameled Wire

Precision-grade
Bearings

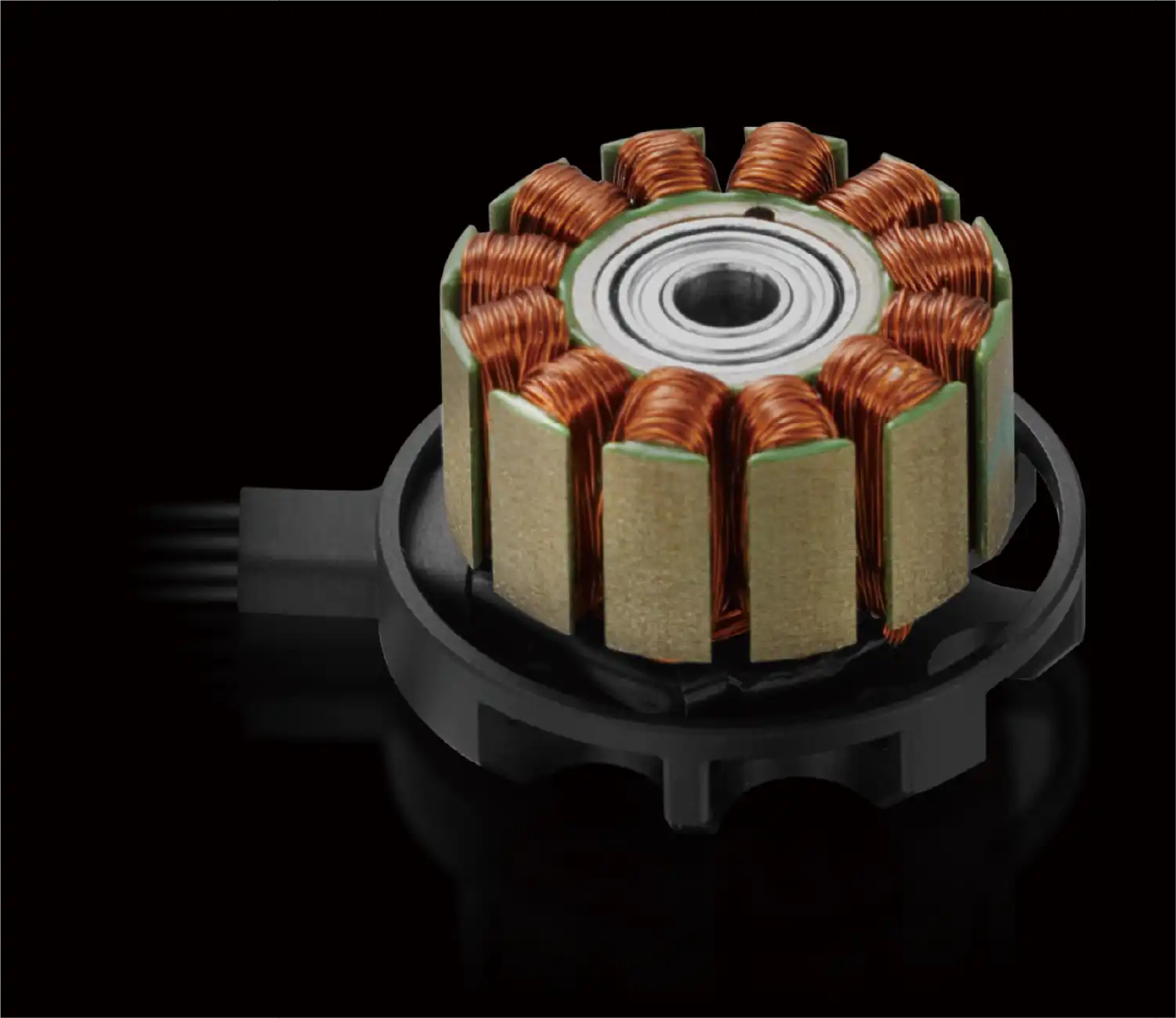

High-quality Materials

The motor is constructed with permit iron cores from top-tier brands, 220℃ high-performance enameled

wire, and precision-grade bearings. These high-spec components provide a solid foundation for

long-lasting durability and consistent performance.

High-quality Materials

The motor is constructed with permit iron cores from top-tier brands, 220℃ high-performance enameled

wire, and precision-grade bearings. These high-spec components provide a solid foundation for

long-lasting durability and consistent performance.

Top Tier Iron
Core Material

220℃
High-performance
Enameled Wire

Precision-grade
Bearings

Product NameQuicRun Outer 3530SL

1700KV
2200KV

Product Number

30404851

30404852

Type

Scale Brushed/Brushless Sensored/Sensorless Pole Count

1/10^th、1/12^th
Brushless
Sensorless
14

1/10^th、1/12^th
Brushless
Sensorless
14

Specifications

KV Rating LiPo Cells No-load Current(A)

1700KV
2-4S
4A

2200KV
2-4S
5A

Size & Weight

O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g)

35
30
3.175
102g

35
30
3.175
102g

Other Parameters

ESC Vehicles

QUICRUN WP 10BL80 Crawler
1/10^th、1/12^th Crawlers

QUICRUN WP 10BL80 Crawler
1/10^th、1/12^th Crawlers
