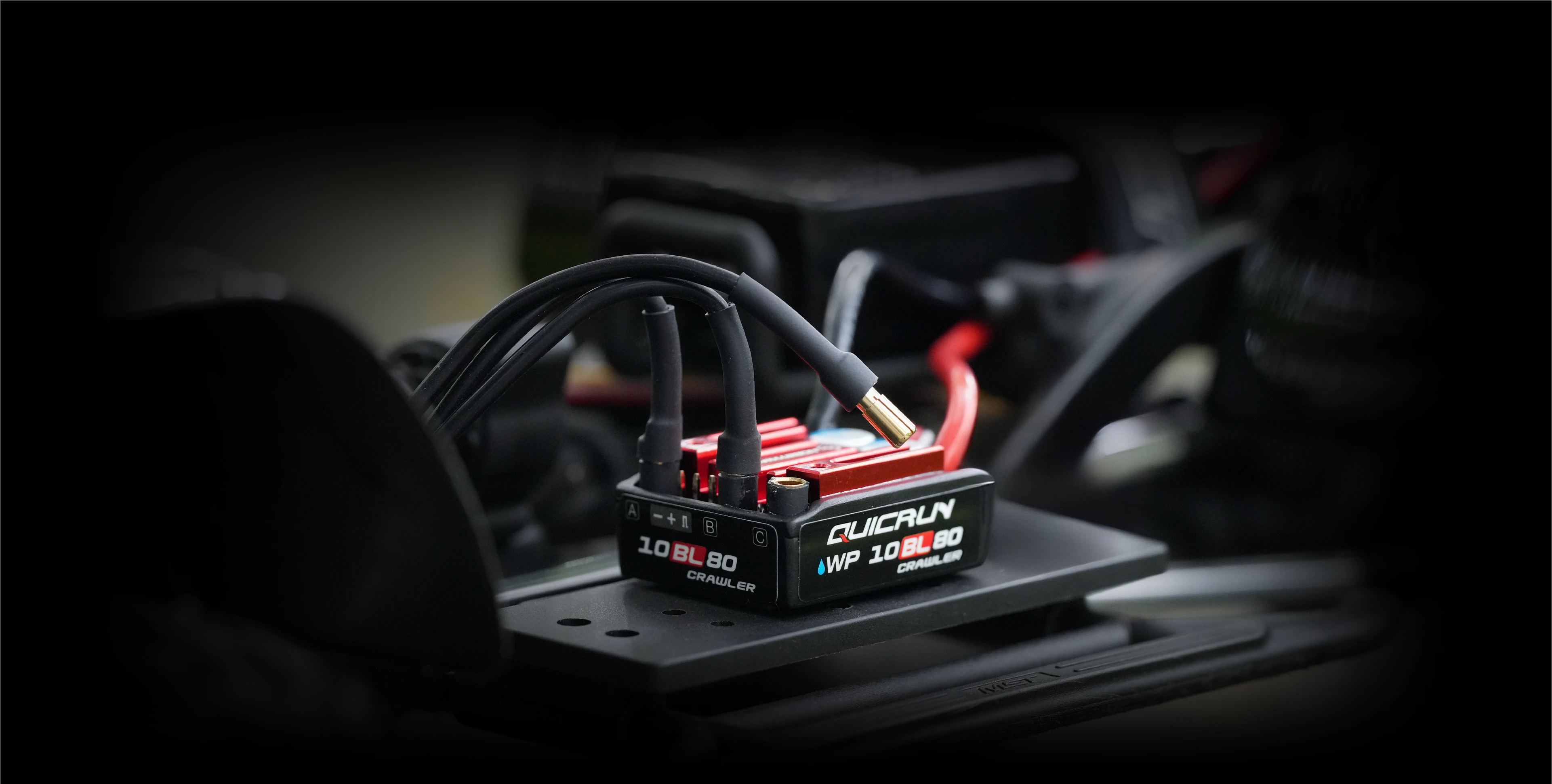

The ESC delivers high-performance output of 4S/80A.

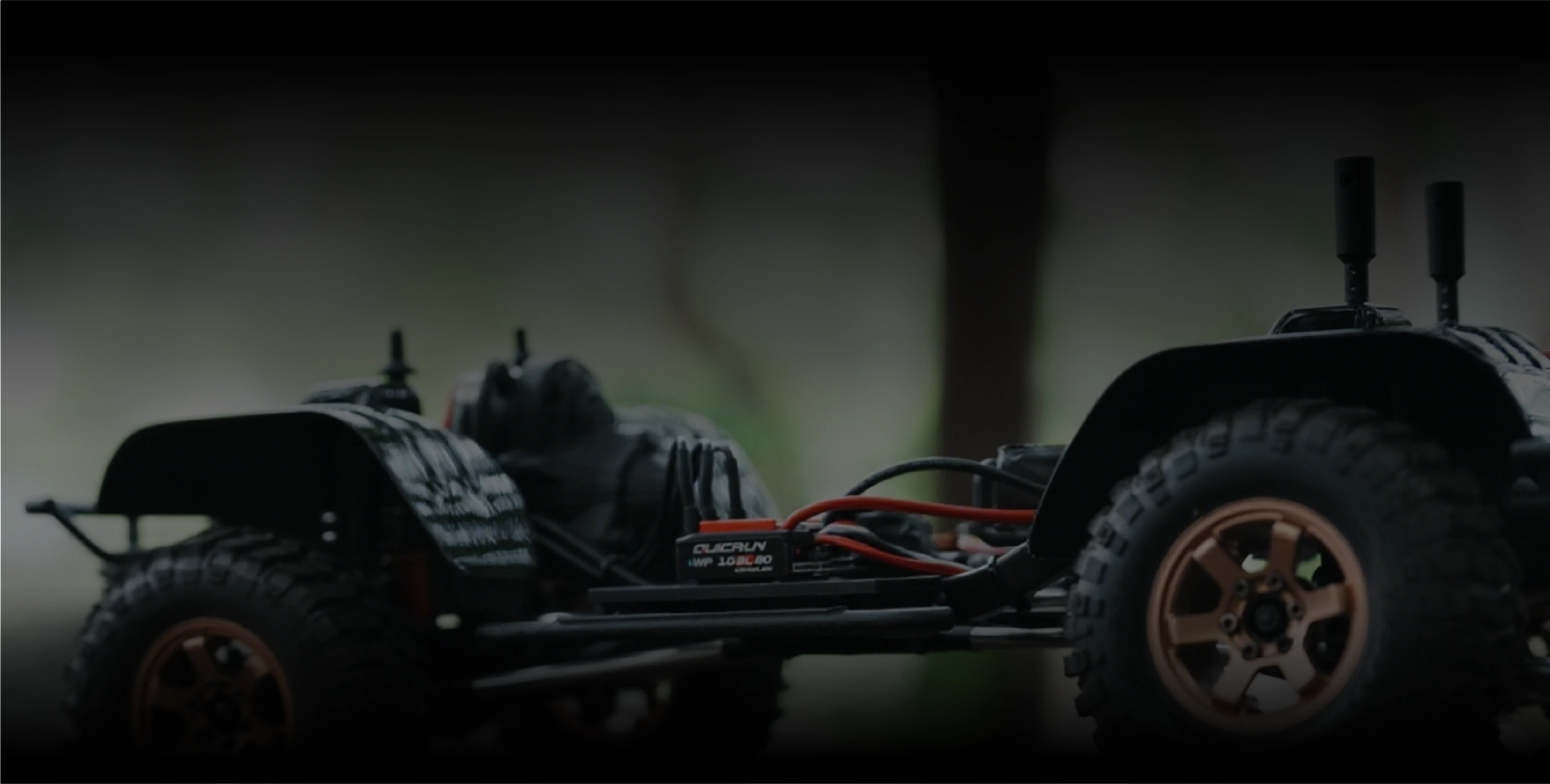

It features strong low-speed torque, low startup speed, and smooth operation, making it an ideal power choice for 1/10th scale crawling.

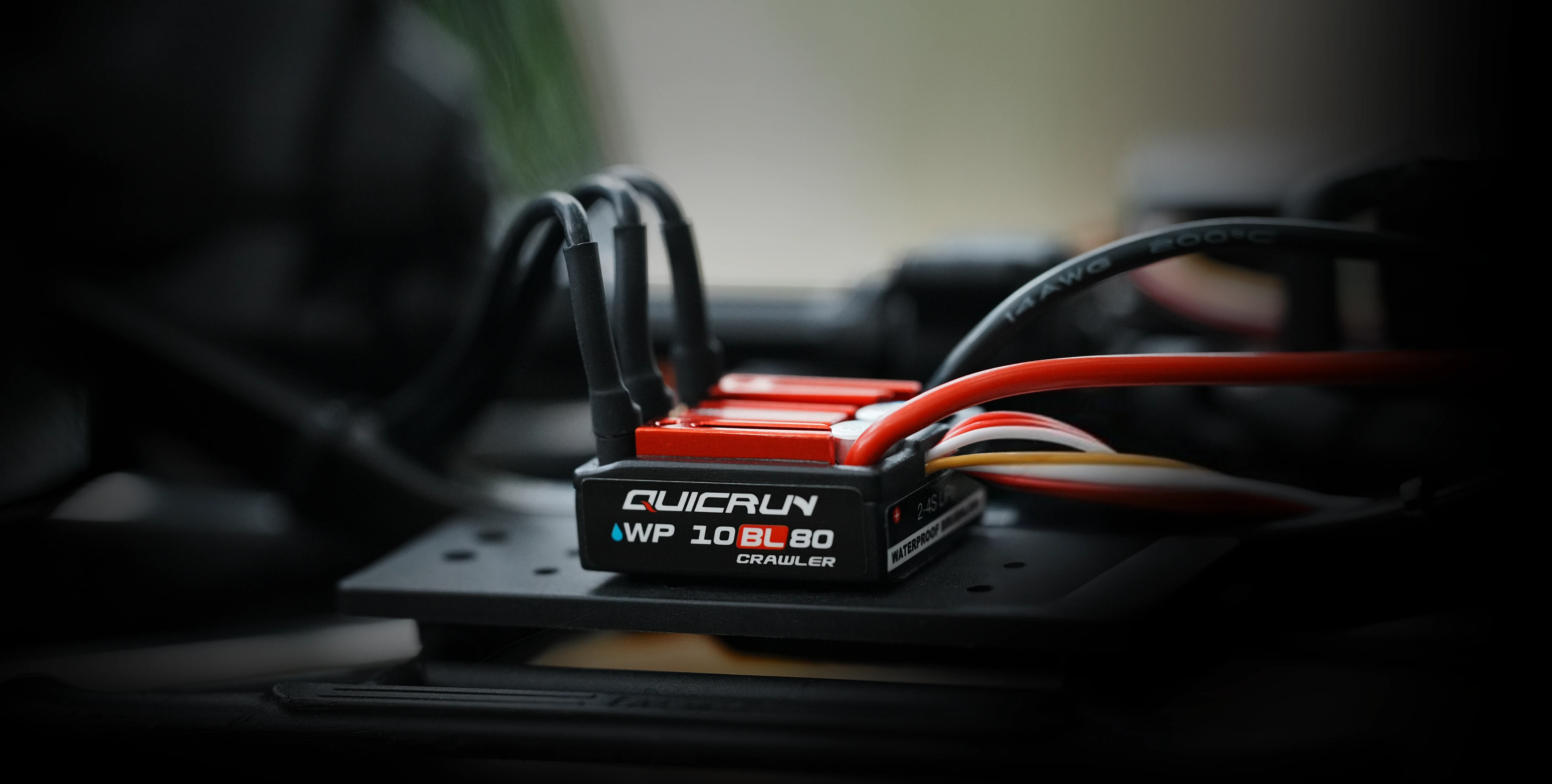

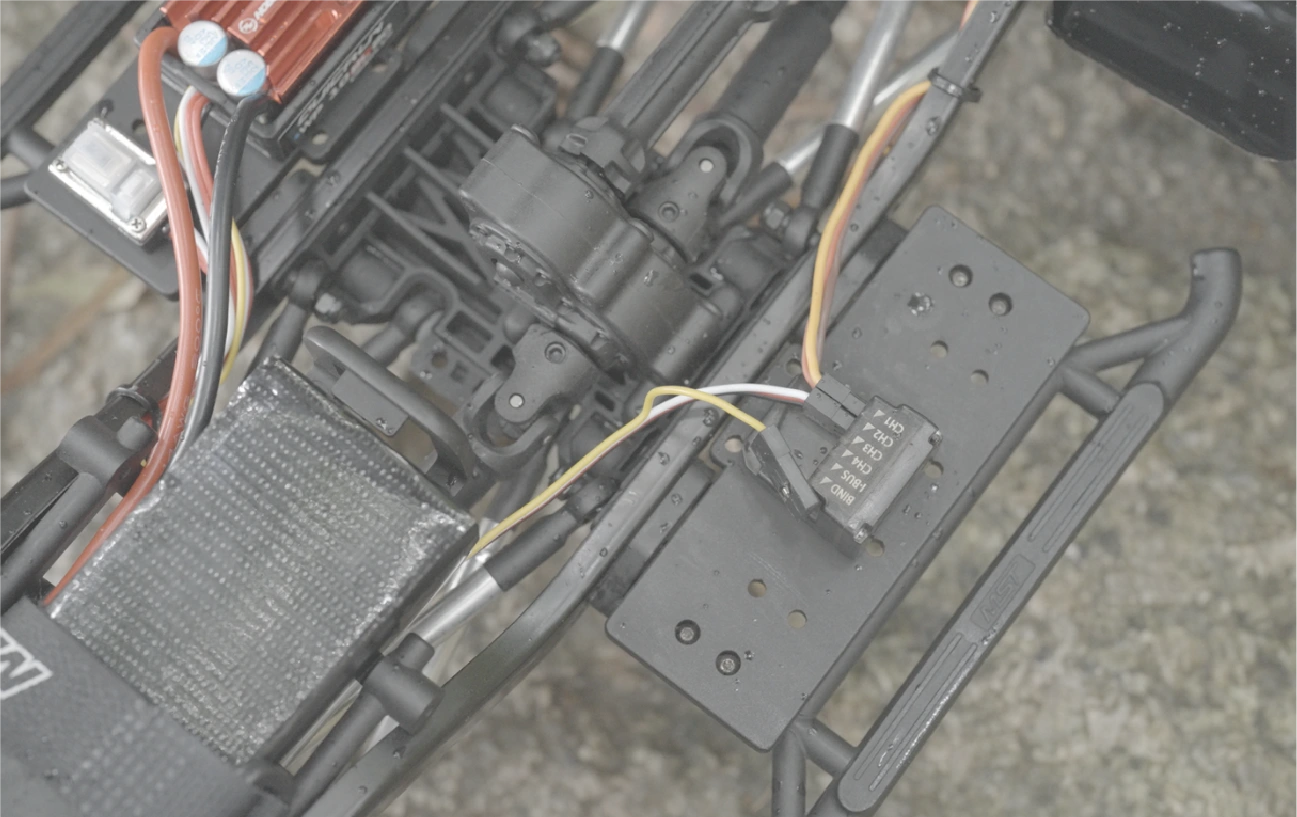

Real-Time Drag Brake Adjustment, Real-Time Drag Brake Adjustment, Precise Control
The ESC supports AUX channel control of drag brake force. By connecting the Aux input
signal wire to an available channel on the receiver, you can adjust the drag brake
power as you drive from your remote control.
Built-in BEC Supporting High-voltage Servos
The integrated high-voltage BEC provides up to 11A of output current.
Supports selectable output voltages of 6V/7.4V/8.4V.
It easily powers high-torque, high-voltage servos, meeting a wide range of demands.

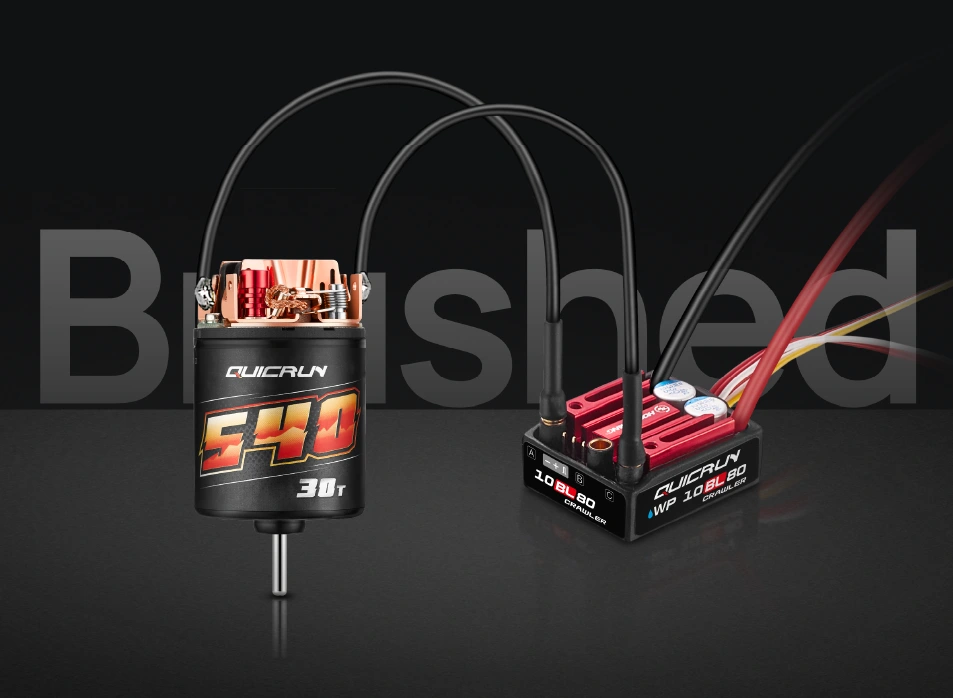

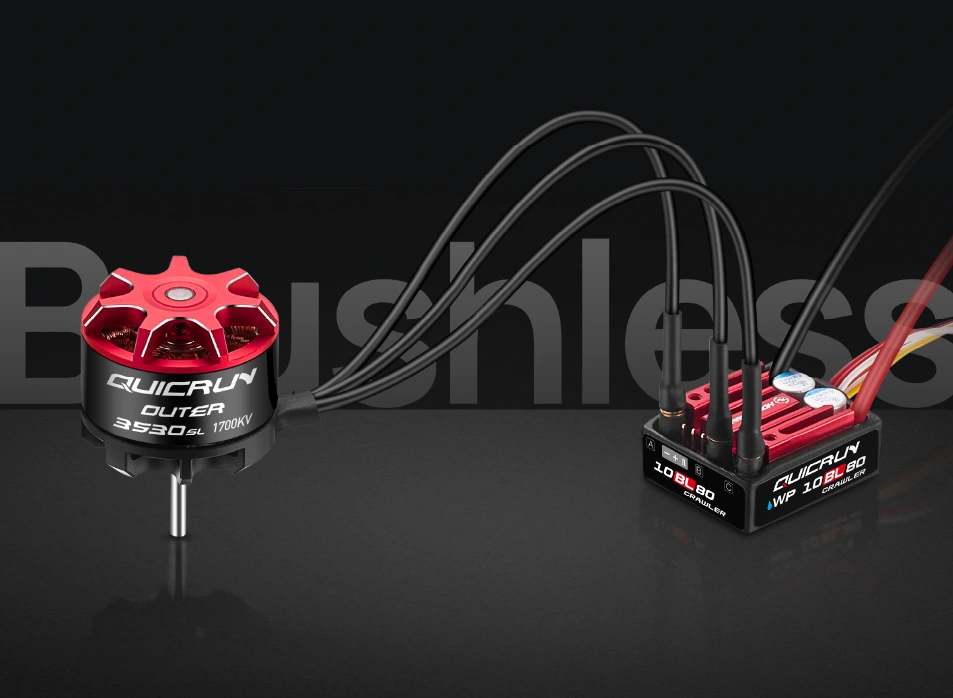

Supports Brushed and Brushless Modes
The ESC is compatible with both Brushless and Brushed motors.
Note: The ESC has been factory pre-set to brushless mode by default. When connecting a brushed motor, be sure to connect the “A” and “C” wires and switch the ESC to “Brushed Motor” mode. Operating in the wrong mode may cause damage to the ESC.

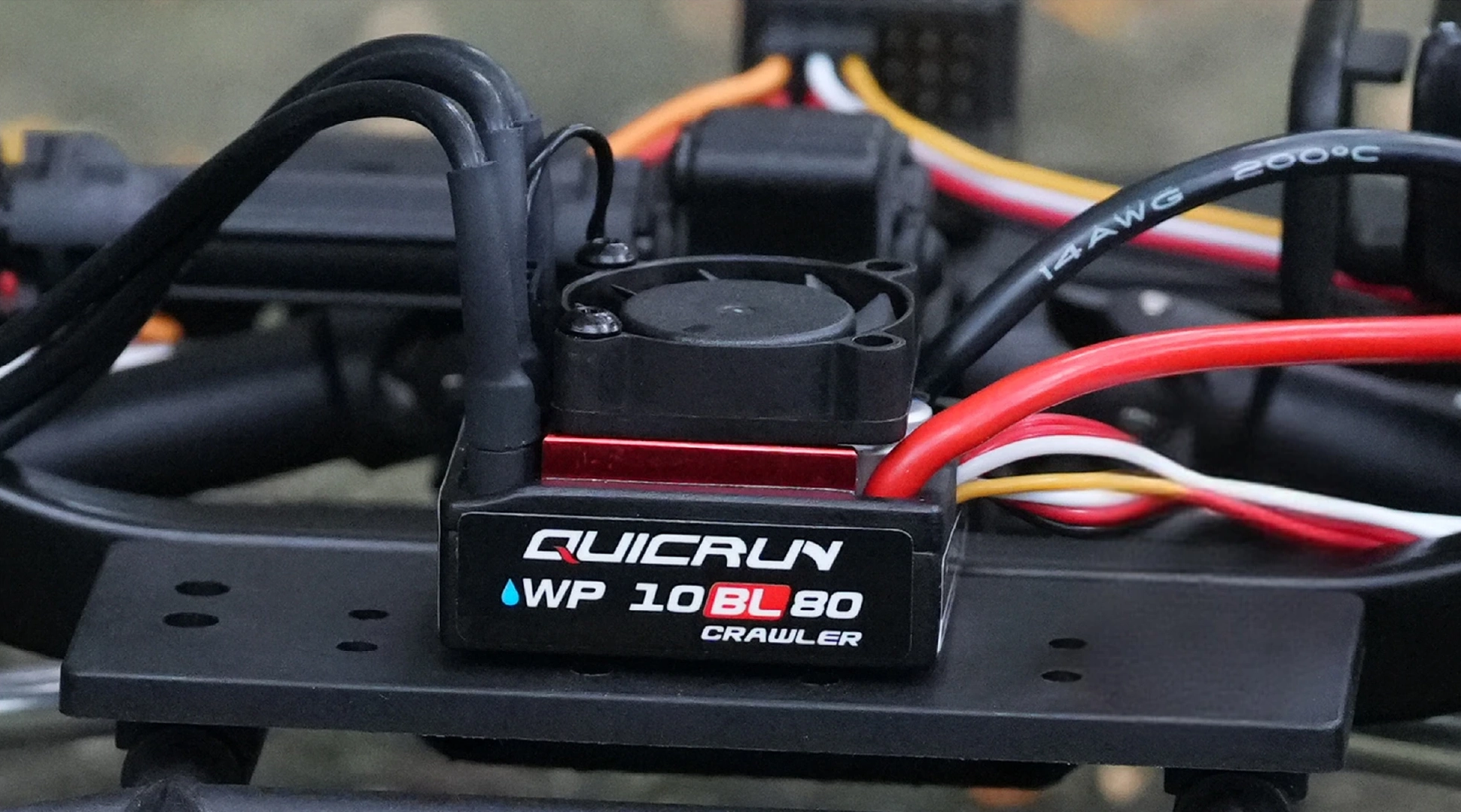

Supports Fan InstallationSupports Fan Installation
The ESC includes mounting holes for a cooling fan to be installed. Depending on vehicle
load and appplication requirements, users can choose whether to install the fan to ensure
the ESC operates within the ideal temperature range
(around 60℃ on the case).
Note: A fan and screws are included in the package by default.

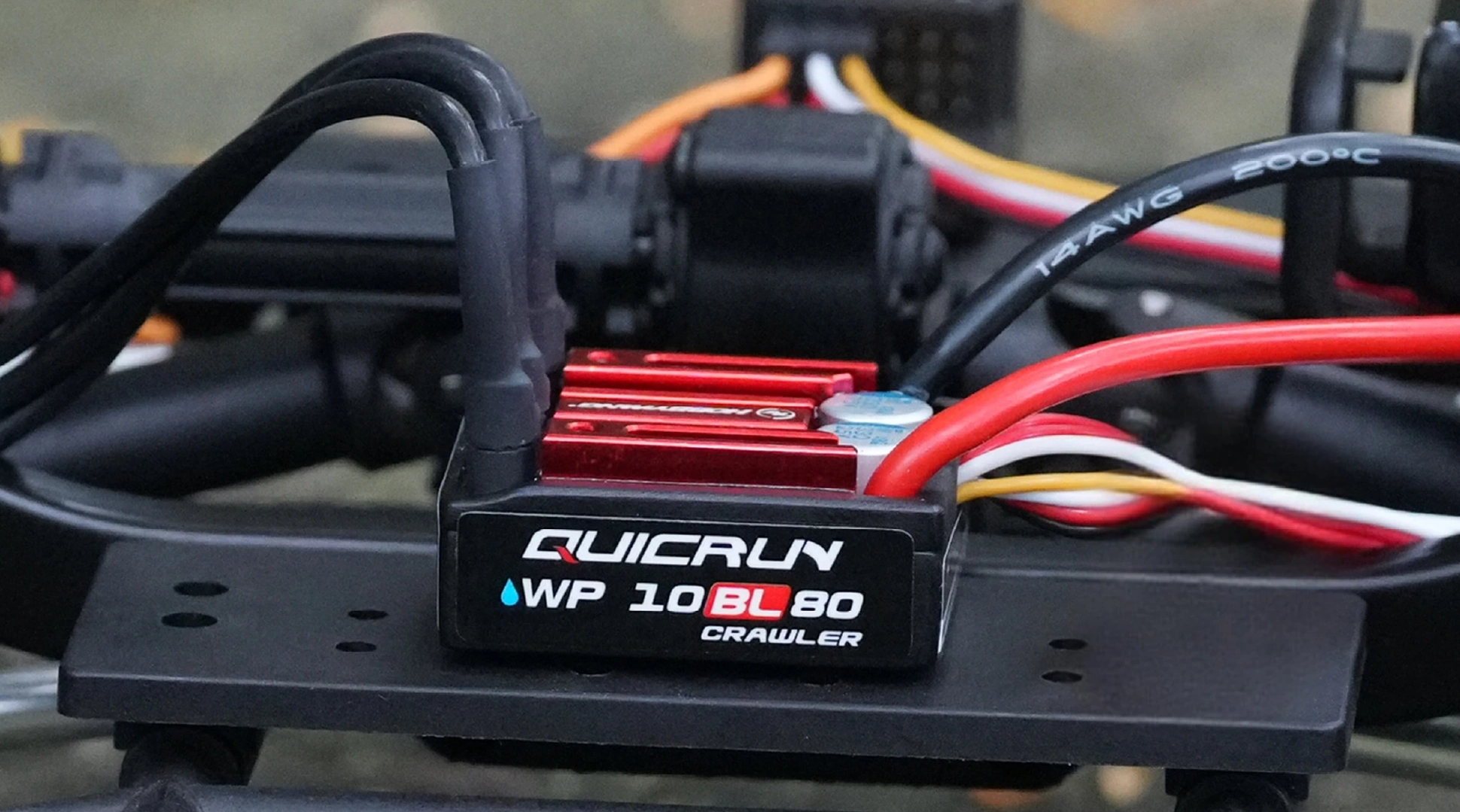

Easy Installation, Ready for Immediate UsageUsage
The ESC comes equipped with integrated 3.5mm female connectors on the output side,
enabling seamless connection to HOBBYWING motors or other motors with compatible plugs.
No soldering is needed.

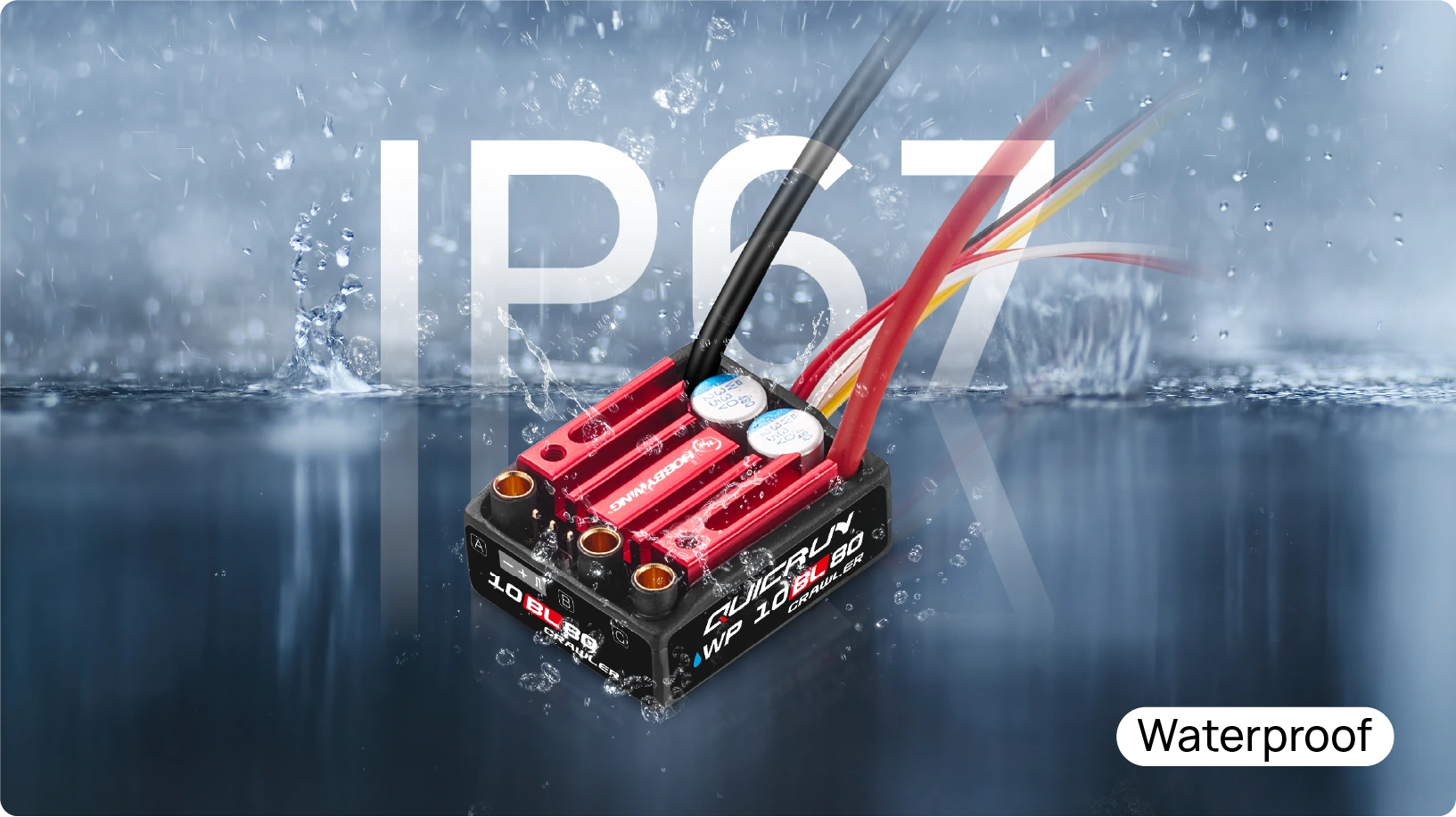

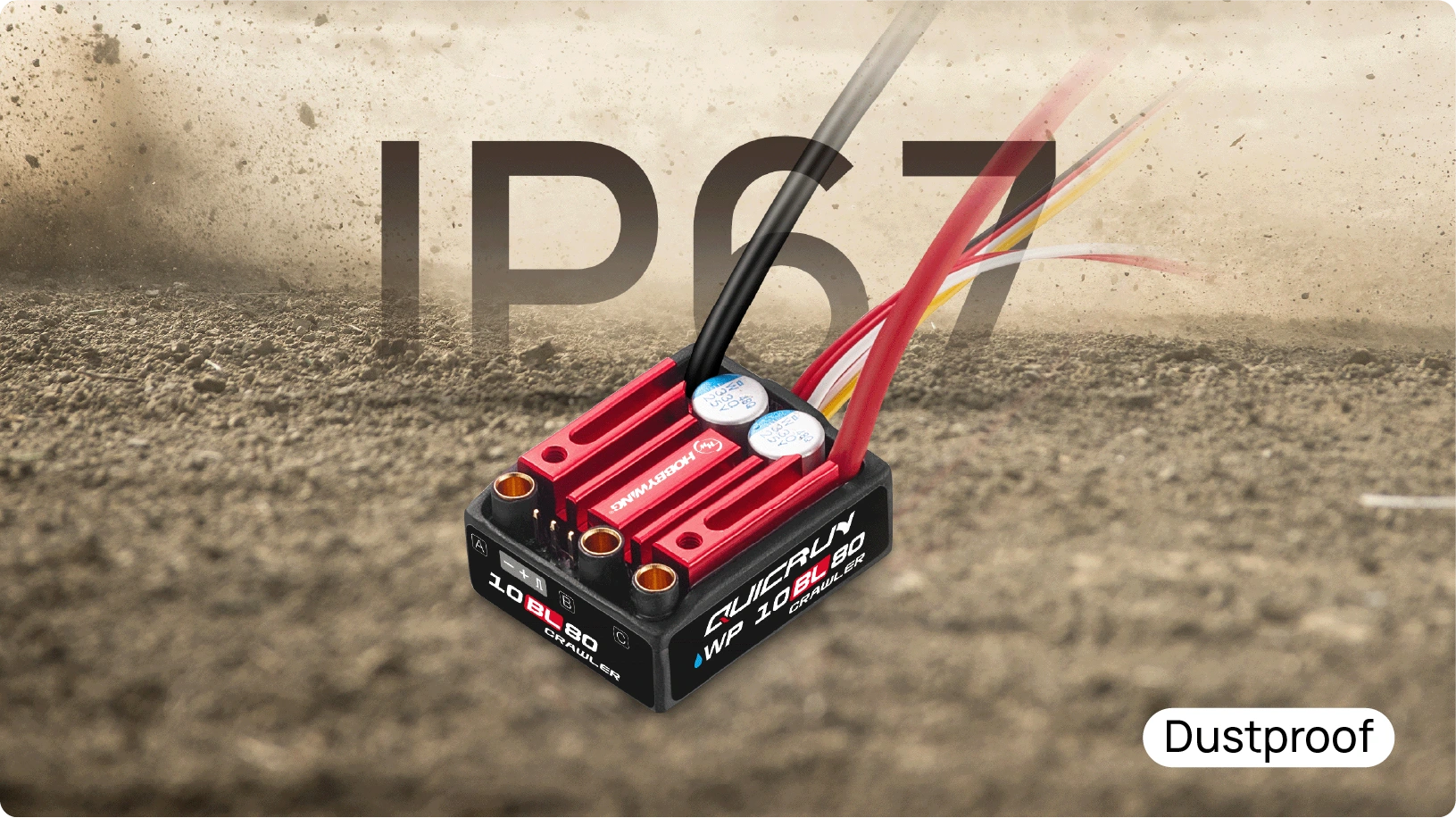

High Level Protection
The ESC’s protection rated IP67, offering outstanding waterproof and dustproof performance. It can be
used in muddy, sandy, icy, snowy, or wet terrain under various weather conditions without concern.
Note: The IP67 rating provides protection against splashes, water exposure, and dust under normal use but is not permanent. Protective performance may degrade over time due to agin. Do not submerge the product for extended periods, as this may cause damage.
Compatible with both LED and LCD Program Boxes
Compatible with both LED and LCD Program Boxes

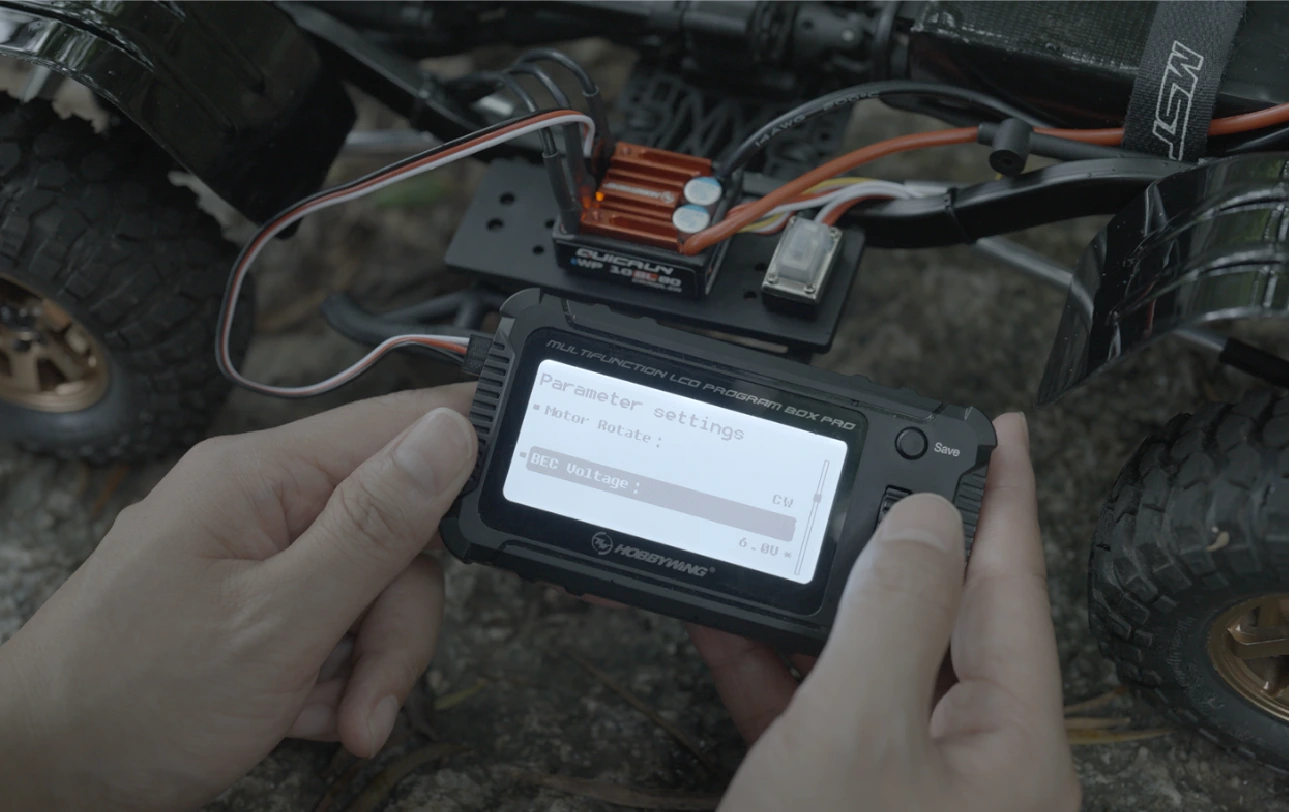

The ESC supports both the LED Program Box and the more advanced LCD Program Box PRO,
giving users the flexibility options for setup and adjustment to suit different tuning needs.

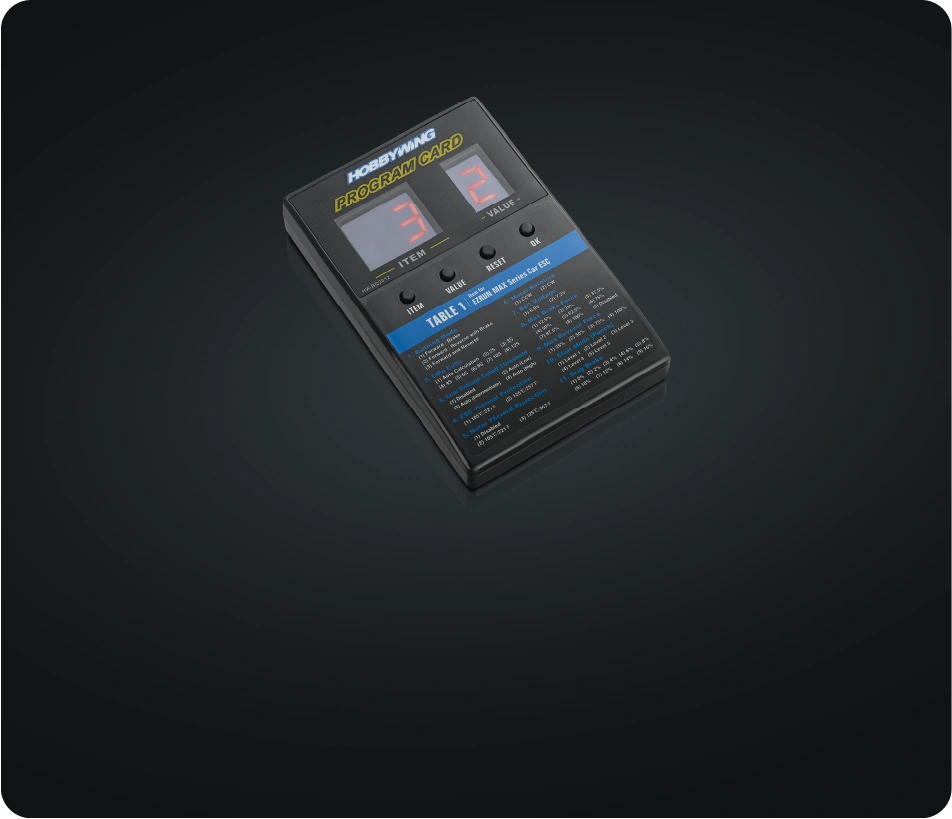

LED Program Box

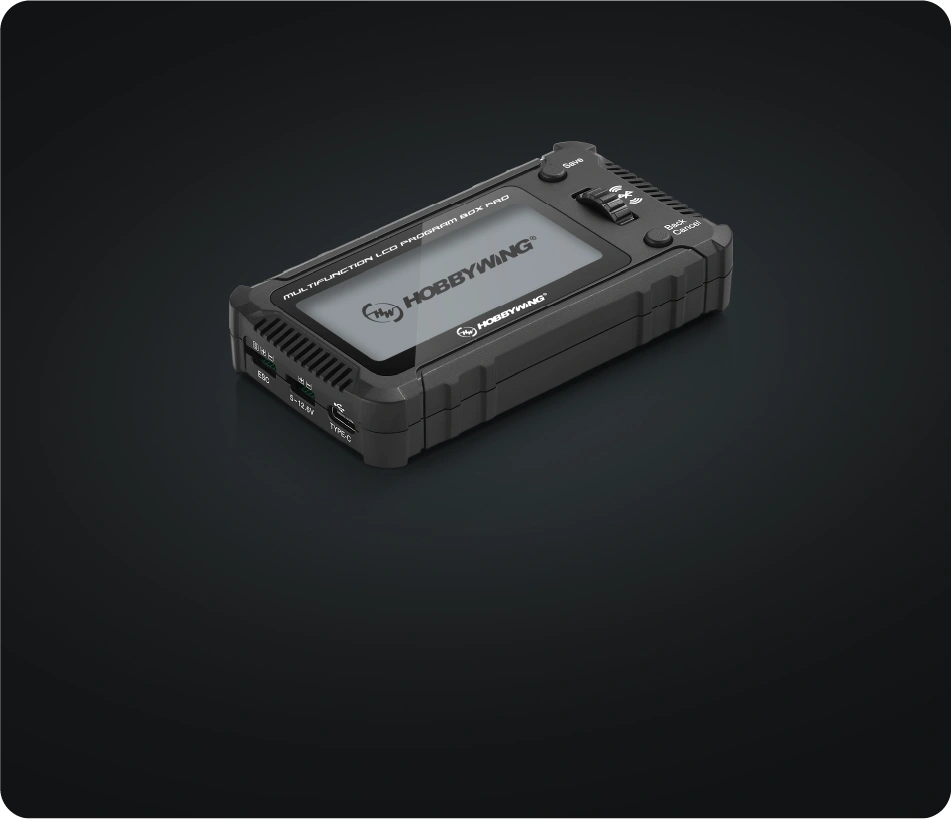

LCD Program Box Pro
Extensive Parameter Settings
Extensive Parameter Settings
The ESC offers 13 adjustable parameters, including essential options commonly used in crawler
power systems, such as drag brake force and drag brake rate. Drivers can fine-tune settings
precisely to meet the requirements of different conditions and terrain.
Running Mode
Drag Brake Force
Neutral Range
Motor Type
Drag Brake Rate
FOC Power
Cutoff Voltage
Max.Reverse Force
Low Speed Throttle
Motor Rotation
Max.Brake Force
BEC Voltage
Punch

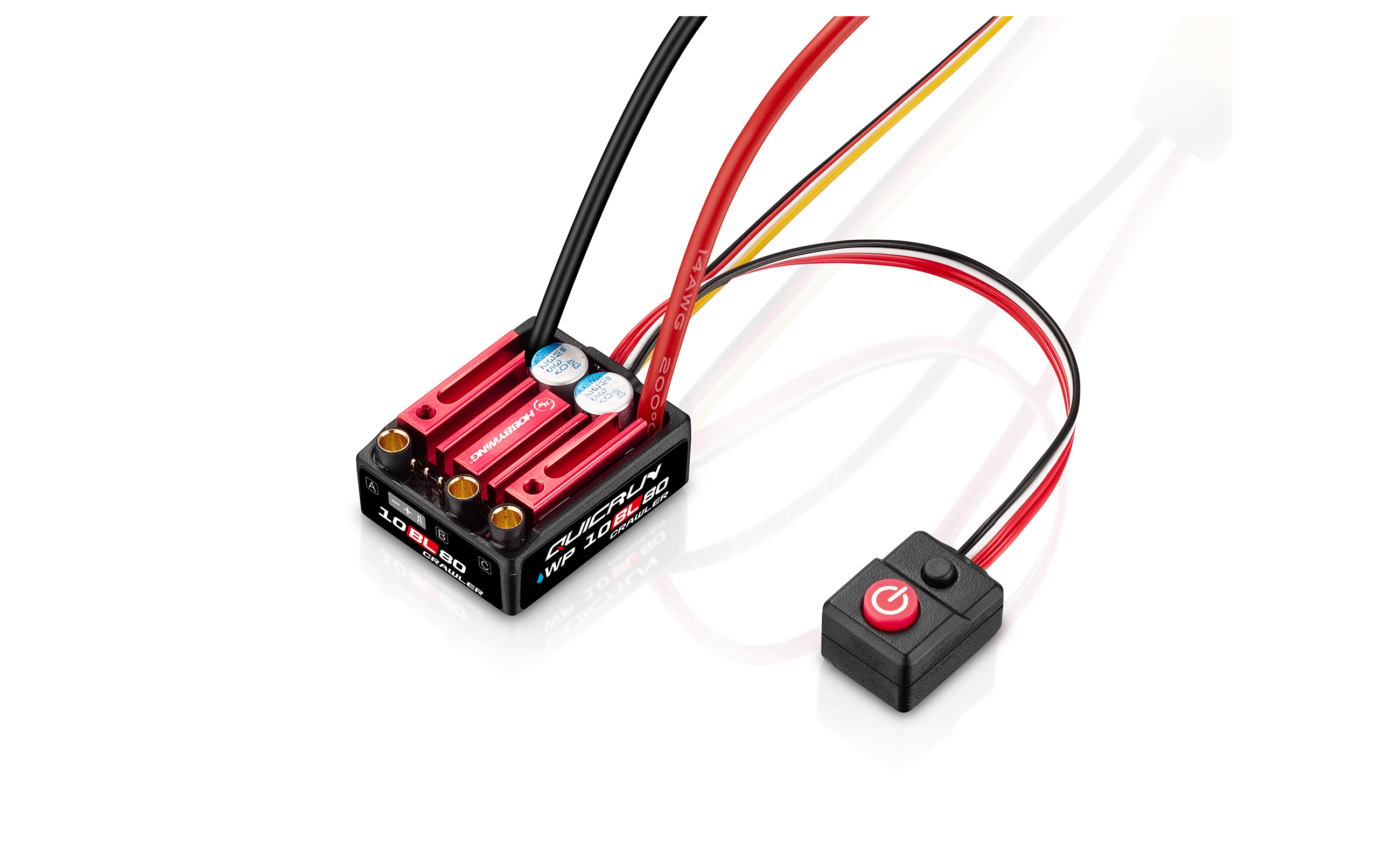

Product NameQUICRUN WP 10BL80 Crawler
Product Number
30108002
Type
Scale
Brushed/Brushless
Sensored/Sensorless
Waterproof
1/10th
Brushless
Sensorless
Waterproof
Specifications
Cont./Peak Current
Input Voltage
BEC Output
80A/240A
2-4S LiPo
6V/7.4V/8.4V,5A
Wires & Connectors
Input Wires
Output Wires
Input Connectors
Output Connectors
Black-14AWG-175mm*1,Red-14AWG-175mm*1
No
XT60
3.5MM Gold (female)
ESC Programing via
SET Button on ESC
LED Program Box
LCD G2 Program Box
LCD PRO
OTA Programmer
Program Port
Supported
Supported
Supported
Supported
Not Supported
Independent program port
Data Recording
Extreme value
Real-time Data
Historical data (Graph)
Not Supported
Not Supported
Not Supported
Firmware
Firmware Upgrade
Not Supported
Size & Weight
Size
Weight
36*30*15.5mm
47.8g( Included wires & connectors)
Applications
Motors
Vehicles
KV Rating/T Count
Sensorless / Sensored Brushless Motor
1/10th Crawlers
Outer 3530SL sensorless outrunner motors; 540, 555 including other brushed motors
