QuicRun WP 16BL30G2

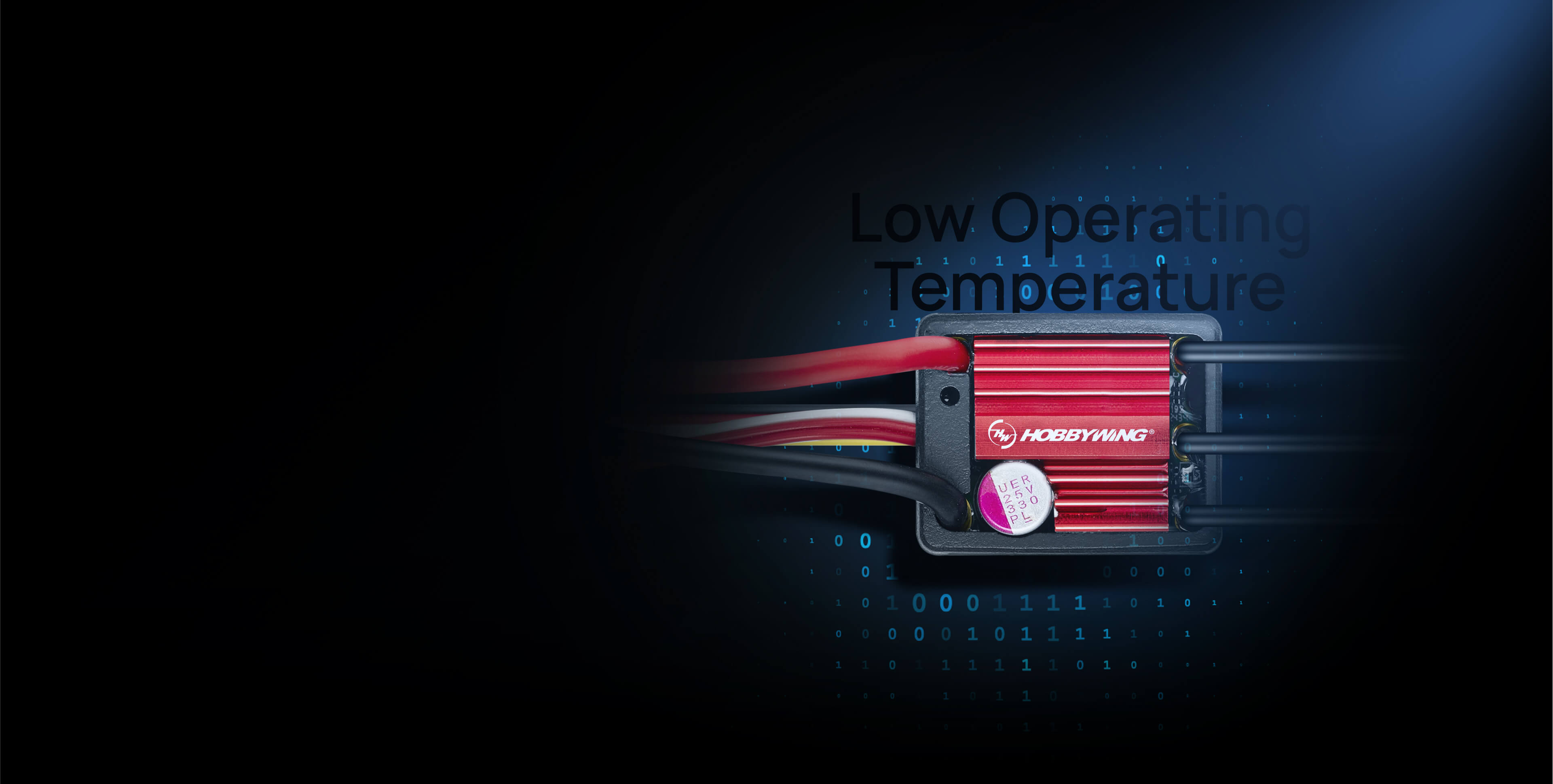

Intelligent Freewheeling
for Lower Heat
and Enhanced Performance

The ESC features intelligent freewheeling technology,
delivering higher drive efficiency, lower operating
temperatures, improved stability, and greater reliability.

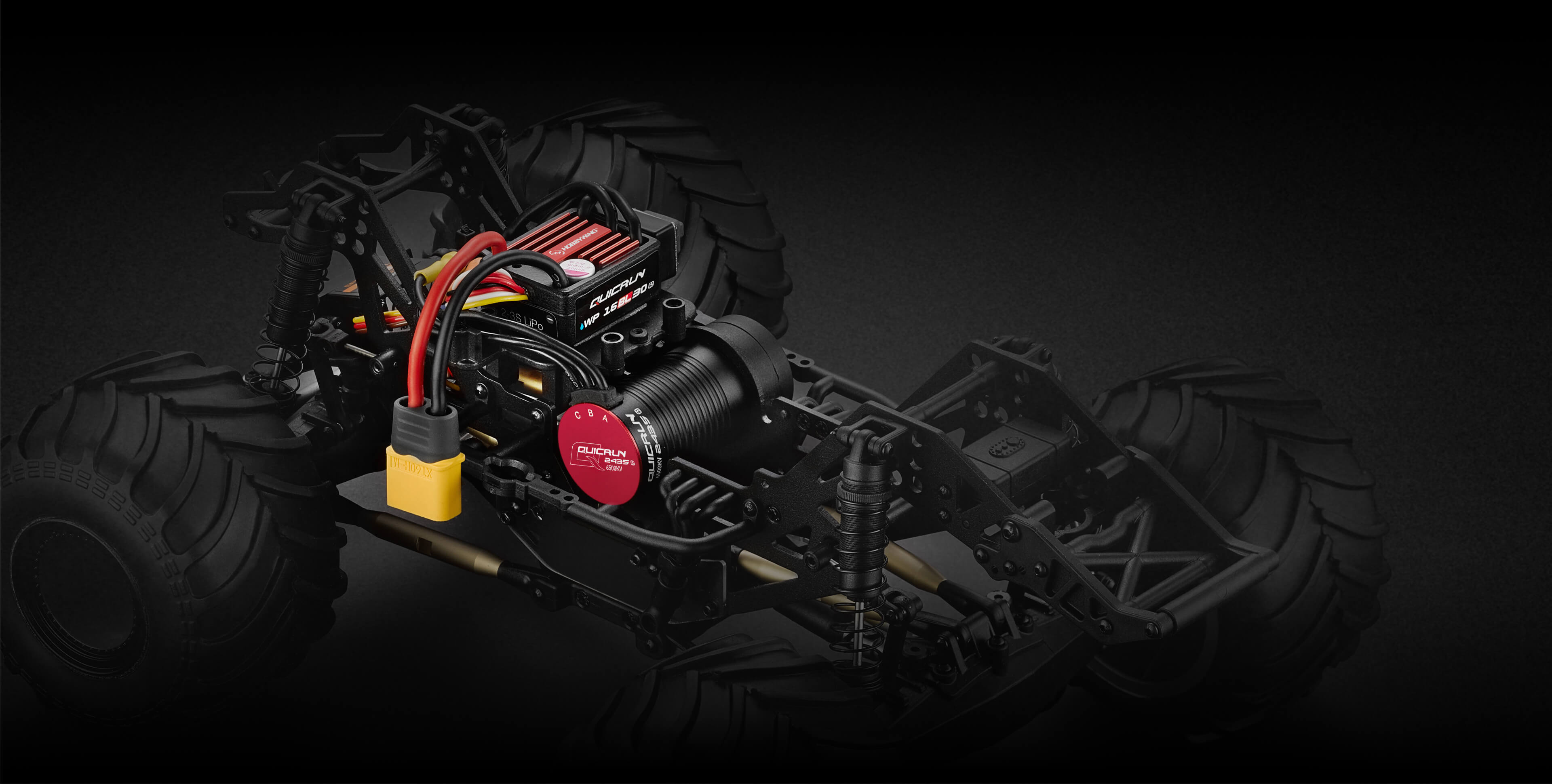

Compact Size for Easier
Installation and Flexible Layout

Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller:
8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact
and makes installation easier and allows for cleaner wiring on the chassis.

BEC Upgrade

Compared to the G1 ESC,

The BEC’s continuous current
has been upgraded from
1A to 2A.

A peak current
of up to
4A

The output voltage can
be switched between
6V and 7.4V.

Easily powering high-torque and high-voltage servos. This provides
faster response and more precise control.

High Protection Rating

IP67-rated protection allows it to easily handle harsh environments such as rain, sand,
and muddy roads, ensuring reliable performance without environmental limitations.

Note: The IP67 protection rating described above applies under normal usage conditions, providing splash resistance, water resistance, and
dust resistance, as tested under controlled laboratory conditions. These protective features are not permanent, and protection performance
may degrade over time due to regular wear and aging. Do not submerge the product in water for extended periods, as this may cause damage.

Multiple Programming Methods

Supports three programming methods: LCD Program Box Pro, LED Program Box,
and SET button, allowing users to conveniently select their preferred
programming method for parameter adjustments.

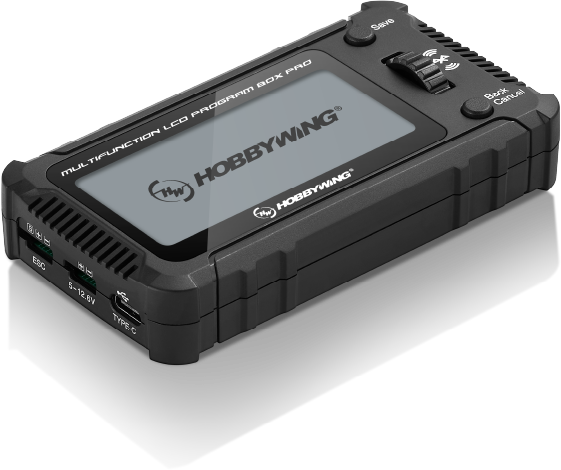

: LCD Program Box Pro

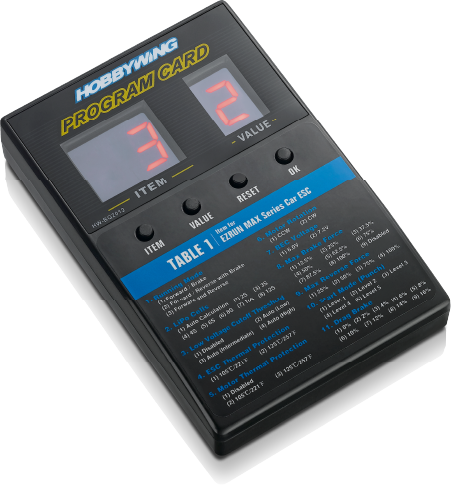

: LED Program Box

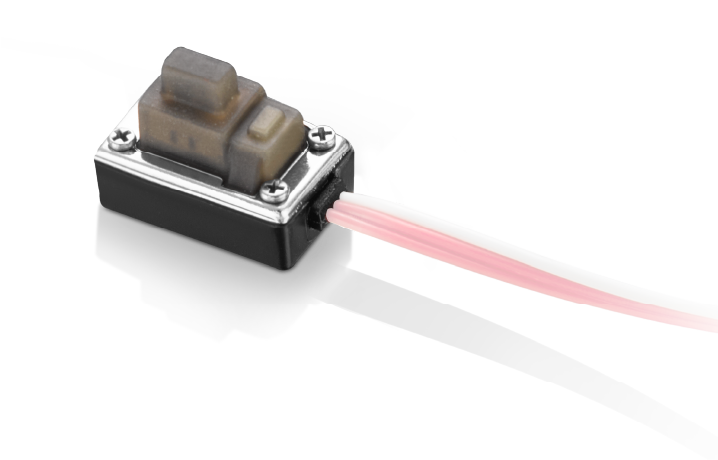

: SET Button

Exceptional Value
for Money

Specifically designed for entry-level users,
with HOBBYWING’s exceptional quality.
Easy to operate and beginner-friendly, with no
complex setup required .

Perfect Match for
QuicRun 2030 G2/2435 G3 Motors

The ESC offers excellent compatibility when paired with
QuicRun 2030 G2/2435 G3 motors, delivering smoother control.

Wide Compatibility

The power system is suitable for both
1/16^th & 1/18^th scale hobby vehicles.

Product NameQUICRUN WP 16BL30 G2

Product Number

30110001

Type

Scale Brushed/Brushless Sensored/Sensorless Waterproof

1/16^th、1/18^th
Brushless
Sensorless
Waterproof

Specifications

Cont./Peak Current Input Voltage BEC Output

30A/100A
2-3S
6V/7.4V,2A

Wires & Connectors

Input Wires Output Wires Input Connectors Output Connectors

Black-16AWG-75mm*1,Red-16AWG-75mm*1
Black-16AWG-60mm*3
XT60
3.5MM Gold (female)

ESC Programing via

SET Button on ESC LED Program Box LCD G2 Program Box LCD PRO OTA Programmer Program Port

Supported
Supported
Supported
Supported
Not Supported
Throttle Wire+yellow signal wire

Data Recording

Extreme value Real-time Data Historical data (Graph)

Not Supported
Not Supported
Not Supported

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size Weight

33.4*26.8*15.1mm
38.5g( Included wires & connectors)

Applications

Motors Vehicles Applicable Motor

Sensorless / Sensored Brushless Motor (only in sensorless mode)
1/16^th、1/18^th On-Road & Off-Road & Short Course Truck& Monster Truck
QUICRUN 2435 G2

Support

Manuals & Documents

Manuals

LED Program Box_General

Part Number: 30501003
Size: 88x58x14mm（LxWxH）
Applications:
Platinum V1/V2 series & FlyFun V5 SkyWalker V2
Series of brushless aircraft ESCs
XeRun series (most), EzRun series
& QuicRun series of brushless car ESCs
SeaKing series of brushless boat ESCs

LCD Program Box Pro

NEW

LCD Program Box Pro

Product Number: 30502002
Input Voltage: DC 5V~12.6V
Application: brushless ESC
Weight: 85g
Display:LCD
