QuicRun 10BL60 Sensored G2

Overview
Specifications
Support
Accessories
Detail

QuicRun
10BL60 SENSORED G2

Outstanding quality,
amazing price

Crafted for entry-level and intermediate
builders, this ESC stands out with its
exceptional quality and user-friendly
design. It eliminates the complex setup,
allowing users to jump right into action
without the need for complicated tuning
or trouble shooting.

Compared to the G1 ESC, the G2 ESC features
a significant upgrade in its BEC output.

The continuous output current has
increased from 2A to 4A
A peak current of up to
7A

Switchable output voltages of
6V/7.4V

It effortlessly powers high-torque and high-voltage servos,
giving users a smooth and responsive control experience.

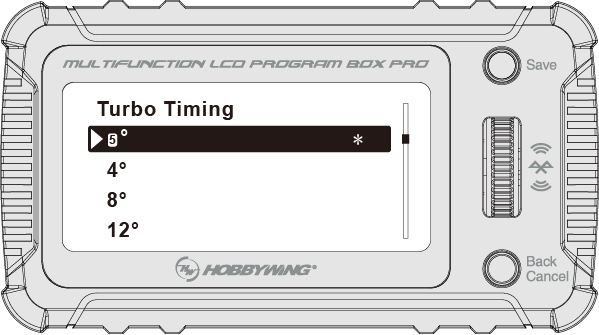

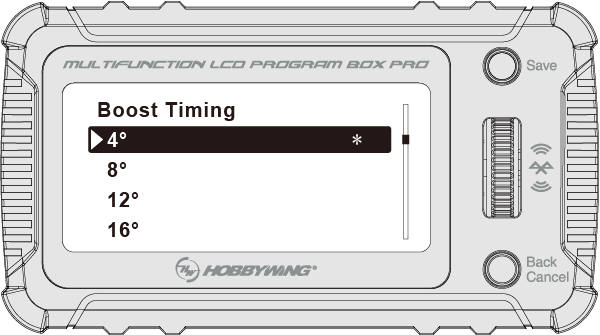

Support Boost/Turbo timing technology
Boost Timing Turbo Timing

With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability
and durability

low voltage protection over-temperature protection throttle signal loss protection overload protection

Continuous current 60A Peak Current 200A A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Continuous current 60A Peak Current 200A A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.

Support multiple
programming methods

The ESC supports three programming options:
a multi-function LCD programming box, an LED
programming box, and a SET button. This
flexibility allows users to choose their preferred
method for adjusting parameters with ease.

LCD Program Box Pro

LED Program Box

SET button

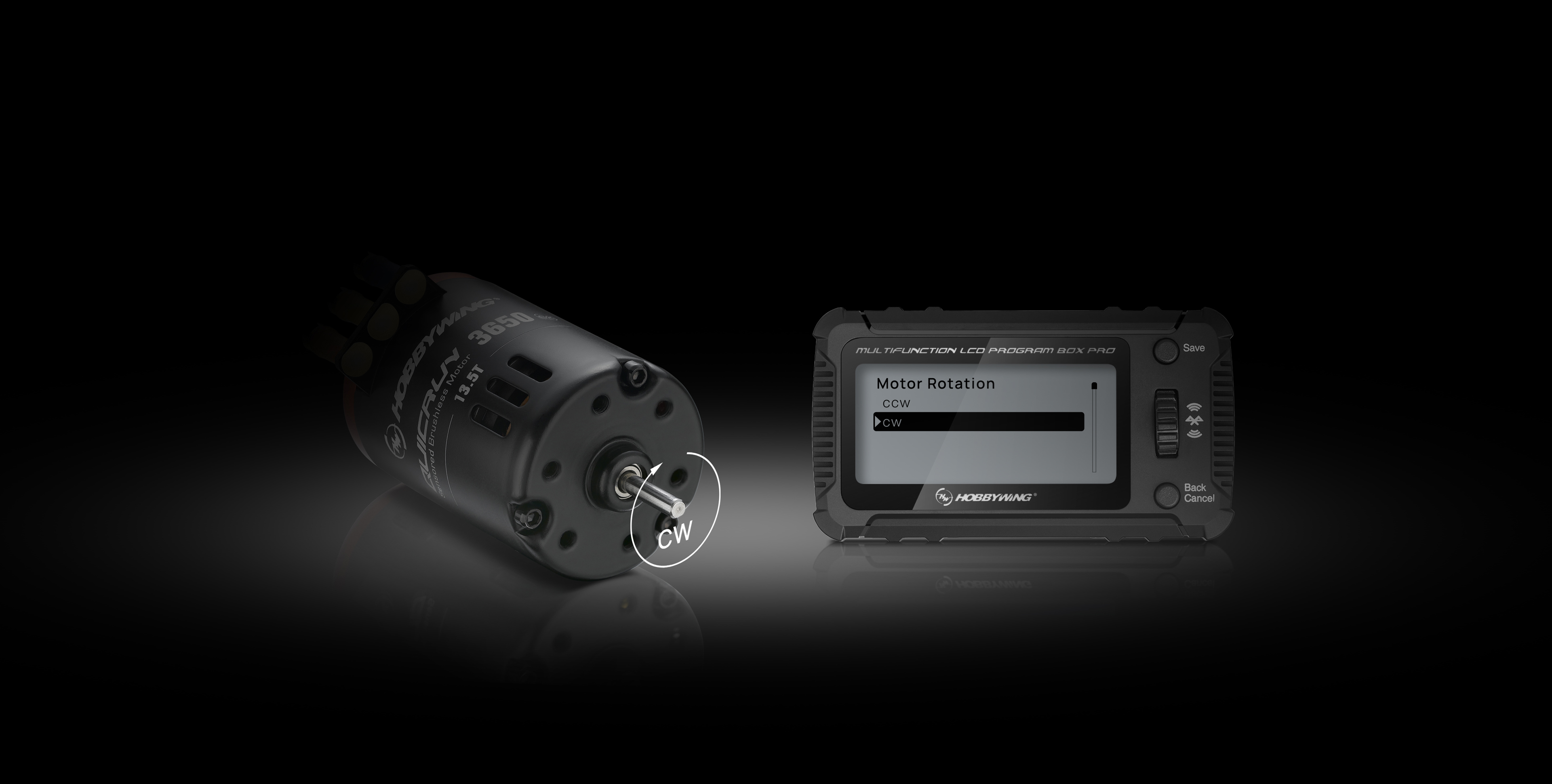

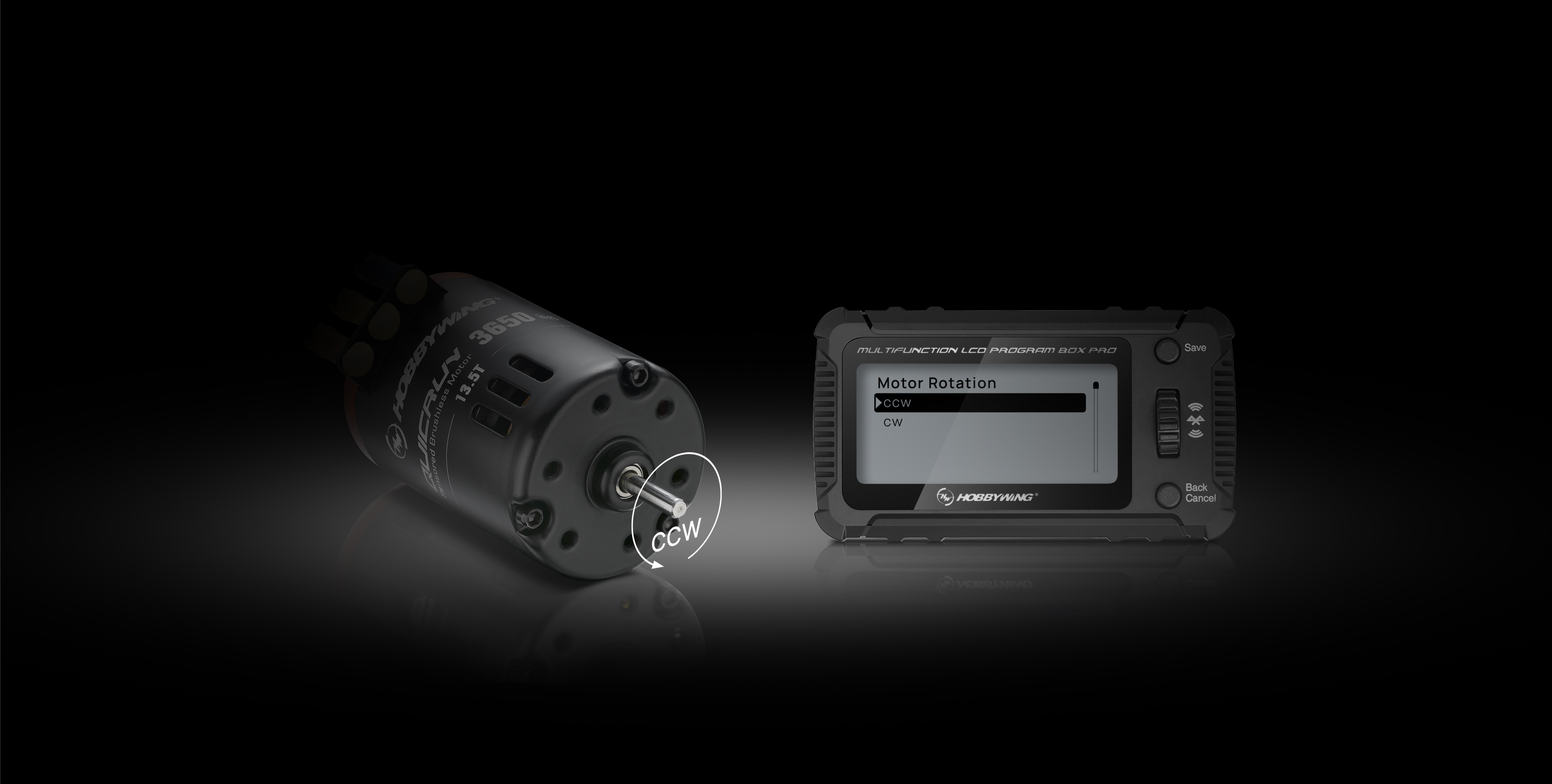

Support Motor
Rotation Adjustment

This ESC is compatible with a wide range of vehicle
frames, ensuring versatility across different setups.

Support motor
steering adjustment

This ESC is compatible with a wide range of vehicle
frames, ensuring versatility across different setups.

Counterclockwise (CCW)
Clockwise(CW)

Product Name

QUICRUN 10BL60 SENSORED G2

Product Number

30108001

Type

Scale	1/10^th
Brushed/Brushless	Brushless
Sensored/Sensorless	Sensored
Waterproof	NO

Specifications

Cont./Peak Current	60A/200A
Input Voltage	2S Lipo
BEC BEC Output	Switch Mode 6V/7.4V @4A

Wires & Connectors

Input Wires	Black--14AWG-175mm1 Red--14AWG-175mm1
Output Wires	Blue-14AWG-175mm1、Yellow-14AWG-175mm1、Orange-14AWG-175mm*1
Input Connectors	No
Output Connectors	No

ESC Programing via

SET Button on ESC	Supported
LED Program Box	Supported
LCD G2 Program Box	Supported
LCD PRO	Supported(Bluetooth not supported)
OTA Programmer	Not Supported
Program Port	Shared with fan port

Data Recording

Extreme value	Not Supported
Real-time Data	Not Supported
Historical data (Graph)	Not Supported

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size	35.03130.8mm
Weight	66.5g (Included wires&connectors)

Applications

Motors	Sensored/Sensorless Brushless motor
Vehicles	1/10^th Touring, Buggy, Drift,1/12^th and 1/14^th Vehicles
Applicable Motor	QUICRUN 3650 SD G2
