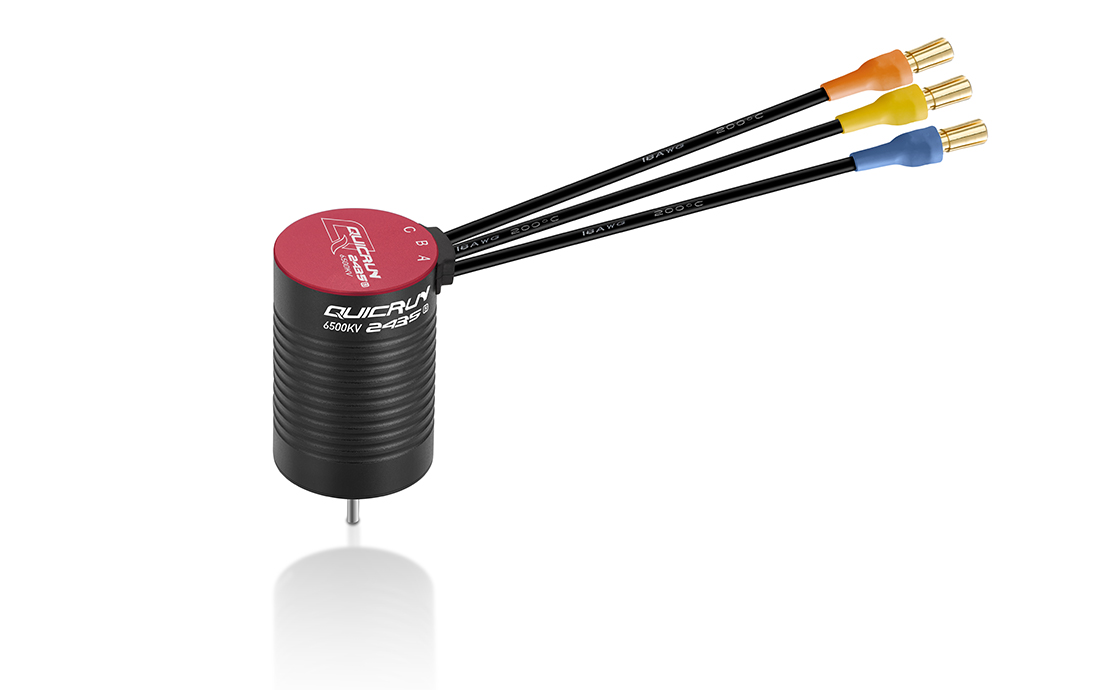

QuicRun 2435 SL G3
Stronger power,
upgraded to 4-pole rotor
upgraded to 4-pole rotor
The G3 motor adopts a four-pole rotor design with
stronger torque and stronger explosive power.
stronger torque and stronger explosive power.
Better performance
Compared with the same specification of products under the same load
conditions, the maximum output power is 60% higher, the maximum efficiency
is 5% higher, and the temperature is reduced by approximately 30 degrees.
conditions, the maximum output power is 60% higher, the maximum efficiency
is 5% higher, and the temperature is reduced by approximately 30 degrees.
Upgraded
materials,
durable
materials,
durable
0.2mm thick silicon steel,
high-strength explosion-proof rotor,
200°C high-temperature-resistant
enameled wire,
and first-line brand high-precision and
high-quality bearings make the
motor durable.
high-strength explosion-proof rotor,
200°C high-temperature-resistant
enameled wire,
and first-line brand high-precision and
high-quality bearings make the
motor durable.
High-strength
explosion-proof rotor
explosion-proof rotor
0.2mm thick
silicon steel
silicon steel
200°C high-temperature-
resistant enameled wire
resistant enameled wire
Excellent
protection
protection
The output of the motor is sealed with a silicone
rubber on the housing. It is dust-proof for off-road
vehicles/trucks. Users will now enjoy bashing without
having to worry in harsh operating environments
such as outdoor sand, stones, and dust
rubber on the housing. It is dust-proof for off-road
vehicles/trucks. Users will now enjoy bashing without
having to worry in harsh operating environments
such as outdoor sand, stones, and dust
Note: It is recommended to block the unused
mounting holes of the motor front cover with screws.
mounting holes of the motor front cover with screws.
Silicone
rubber on
the housing
rubber on
the housing
Plug and play,
flexible play
flexible play
The motor output line has been welded
with high-quality gold-plated plugs.
Plug and play without
worrying about soldering
with high-quality gold-plated plugs.
Plug and play without
worrying about soldering
One "machine" with multiple functions,
compatible with a wide range of models
compatible with a wide range of models
The product is applicable to 1:16 and 1:18 vehicles,
from on-road to buggy, short course truck, and monster truck.
from on-road to buggy, short course truck, and monster truck.
-
Off-road
-
Short Course Truck
-
Truggy
-
Monster
| Product Name | |
| Product Number | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Pole Count |
| Relevant Parameters | KV Rating LiPo Cells No-load Current(A) |
| Size & Weight | O.D.(mm) Length (mm) Shaft Diameter (mm) Connectors (mm) Weight (g) |
| Other Parameters | Front Bearing Rear Bearing Applications |
| Product Name | QuicRun 2435SL G3-4500KV | QuicRun 2435SL G3-6500KV | |
| Product Number | 30404002 | 30404003 | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Pole Count |
1/16th ,1/18th BL SL 4 |
1/16th ,1/18th BL SL 4 |
| Relevant Parameters | KV Rating LiPo Cells No-load Current(A) |
4500 2-3S 2.1 |
6500 2S 3.4 |
| Size & Weight | O.D.(mm) Length (mm) Shaft Diameter (mm) Connectors (mm) Weight (g) |
24 36 2 3.5(male) 61.2g |
24 36 2 3.5(male) 61.2g |
| Other Parameters | Front Bearing Rear Bearing Applications |
D8*D3*t4 D8*D3*t4 1/16th ,1/18th On-road,Off-road |
D8*D3*t4 D8*D3*t4 1/16th ,1/18th On-road,Off-road |

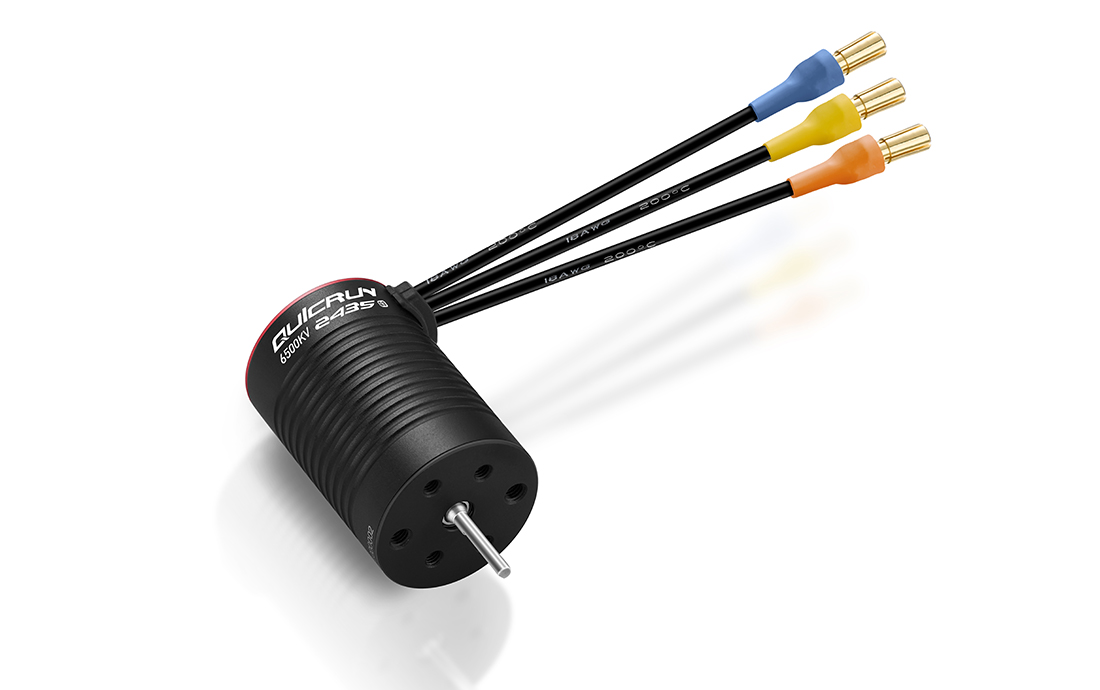

QuicRun 2435 SL G3
QuicRun 2435 SL G3
Stronger power,
upgraded to
4-pole rotor
upgraded to
4-pole rotor
The G3 motor adopts a four-pole rotor
design with stronger torque and
stronger explosive power.
design with stronger torque and
stronger explosive power.
Better performance
Compared with the same specification of products
under the same load conditions, the maximum output
power is 60% higher, the maximum efficiency is 5%
higher, and the temperature is reduced by
approximately 30 degrees.
under the same load conditions, the maximum output
power is 60% higher, the maximum efficiency is 5%
higher, and the temperature is reduced by
approximately 30 degrees.
Upgraded
materials, durable
materials, durable
0.2mm thick silicon steel,
high-strength explosion-proof rotor,
200°Chigh-temperature-resistant
enameled wire, and first-line brand
high-precision and high-quality
bearing make the motor durable.
high-strength explosion-proof rotor,
200°Chigh-temperature-resistant
enameled wire, and first-line brand
high-precision and high-quality
bearing make the motor durable.
High-strength
explosion-proof rotor
explosion-proof rotor
0.2mm thick
silicon steel
silicon steel
200°C high-temperature-
resistant enameled wire
resistant enameled wire
Excellent
protection
protection
The output of the motor is sealed with a
silicone rubber on the housing. It is
dust-proof for off-road vehicles/trucks.
Users will now enjoy bashing without
having to worry in harsh operating
environments such as outdoor sand,
stones, and dust.
silicone rubber on the housing. It is
dust-proof for off-road vehicles/trucks.
Users will now enjoy bashing without
having to worry in harsh operating
environments such as outdoor sand,
stones, and dust.
Note: It is recommended to block
the unusedmounting holes of the
motor front cover with screws.
the unusedmounting holes of the
motor front cover with screws.
Silicone
rubber on
the housing
rubber on
the housing
Plug and play,
flexible play
flexible play
The motor output line has been welded
with high-quality gold-plated plugs.
Plug and play without
worrying about soldering.
with high-quality gold-plated plugs.
Plug and play without
worrying about soldering.
One "machine" with
multiple functions,
compatible with a
wide range of models
multiple functions,
compatible with a
wide range of models
The product is applicable to 1:16 and 1:18
vehicles, from on-road to buggy, short course
truck, and monster truck.
vehicles, from on-road to buggy, short course
truck, and monster truck.
-
Off-road
-
Short Course Truck
-
Truggy
-
Monster
| Product Name | QuicRun 2435SL G3-4500KV | |
| Product Number | 30404002 | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Pole Count |
1/16th ,1/18th BL SL 4 |
| Relevant Parameters | KV Rating LiPo Cells No-load Current(A) |
4500 2-3S 2.1 |
| Size & Weight | O.D.(mm) Length (mm) Shaft Diameter (mm) Connectors (mm) Weight (g) |
24 36 2 3.5(male) 61.2g |
| Other Parameters | Front Bearing Rear Bearing Applications |
D8*D3*t4 D8*D3*t4 1/16th ,1/18th On-road,Off-road |
| Product Name | QuicRun 2435SL G3-4500KV | QuicRun 2435SL G3-6500KV | |
| Product Number | 30404002 | 30404003 | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Pole Count |
1/16th ,1/18th BL SL 4 |
1/16th ,1/18th BL SL 4 |
| Relevant Parameters | KV Rating LiPo Cells No-load Current(A) |
4500 2-3S 2.1 |
6500 2S 3.4 |
| Size & Weight | O.D.(mm) Length (mm) Shaft Diameter (mm) Connectors (mm) Weight (g) |
24 36 2 3.5(male) 61.2g |
24 36 2 3.5(male) 61.2g |
| Other Parameters | Front Bearing Rear Bearing Applications |
D8*D3*t4 D8*D3*t4 1/16th ,1/18th On-road,Off-road |
D8*D3*t4 D8*D3*t4 1/16th ,1/18th On-road,Off-road |
