QuicRun 4268 & 4274 SL G2

Overview
Specifications
Support
Accessories
Detail

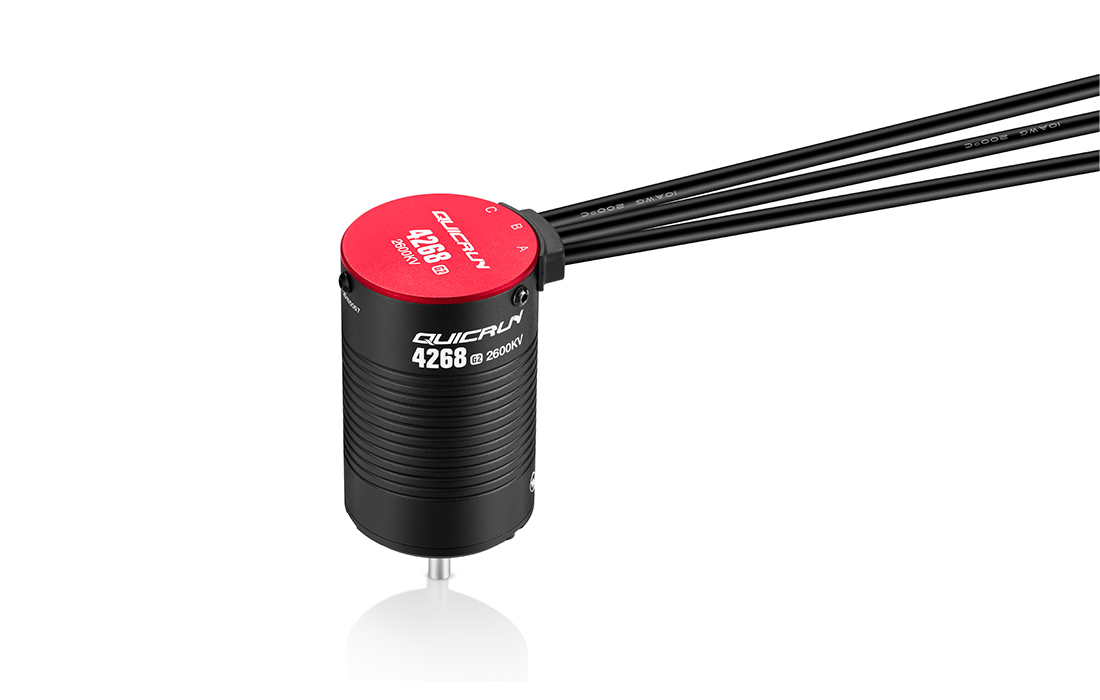

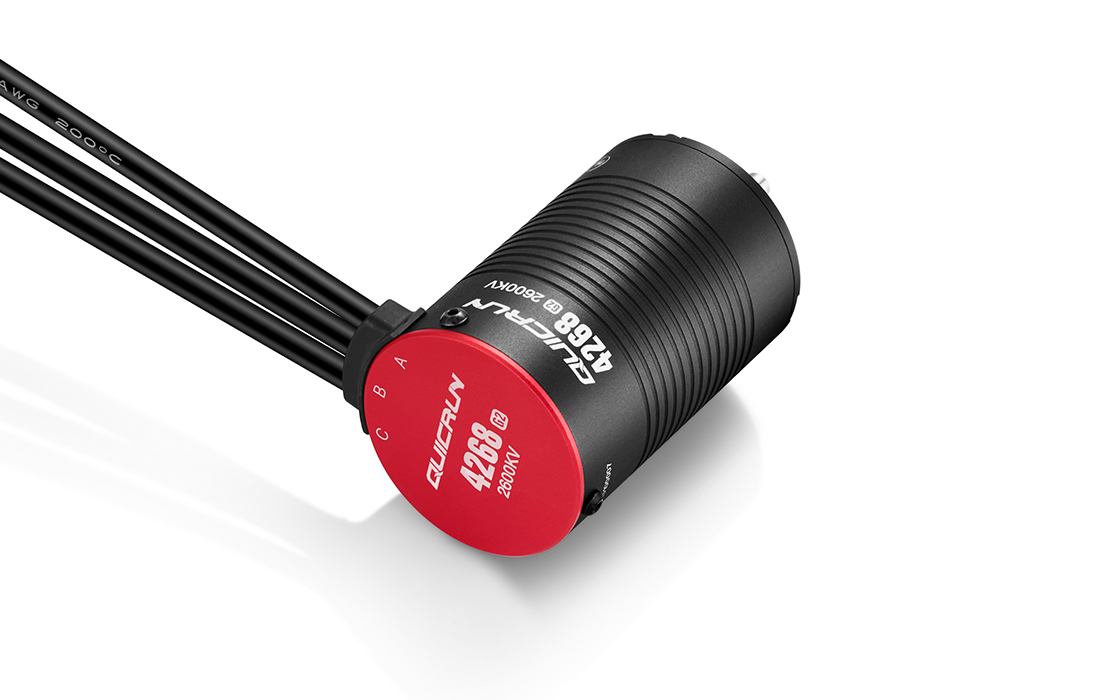

QuicRun 4268/4274 SL G2

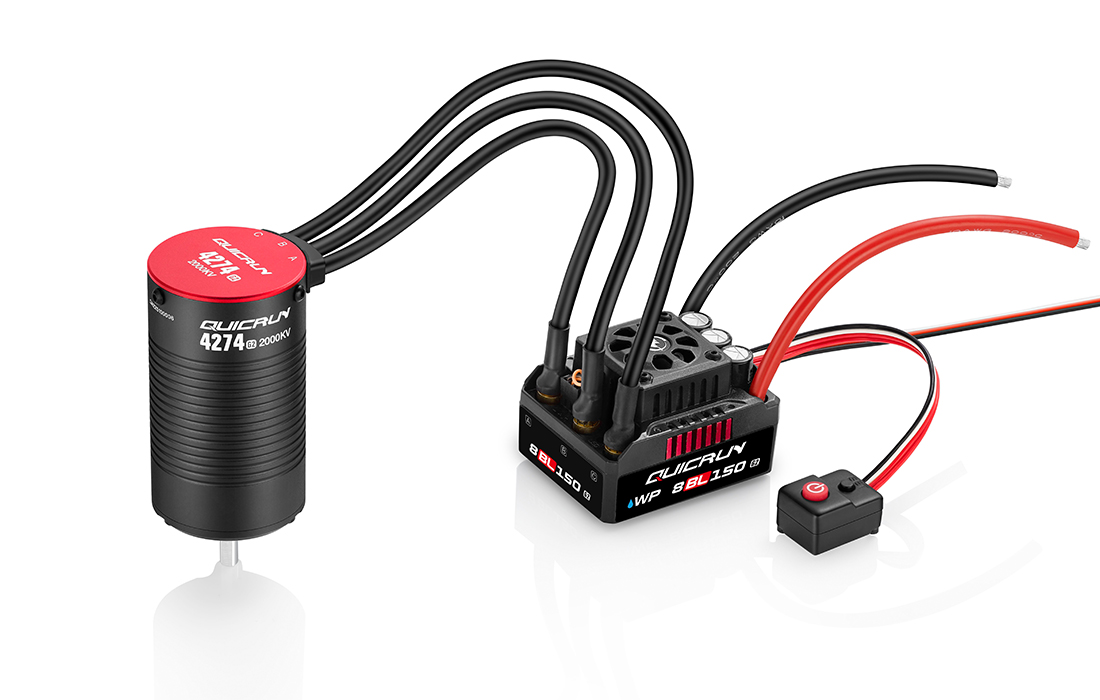

Perfectly compatible with
QuicRun WP 8BL150 G2

The motor perfectly paired with the
WP 8BL150 G2 ESC.
It is equipped with a standard 6.5mm male connector (low IR)
to support plug and play on the system.

6.5mm
male
connector

Increased efficiency and
reduced temperature rise

The motor has ultra-high efficiency, resulting in extremely low temperature buildup.
Compared with motors of the same specifications and under the same test conditions,

internal temperatures are
lowered by approximately 20°C

external temperatures are
lowered by approximately 12°C

Asymmetrical bearing
design, increases reliability
and efficiency

The front end of the motor uses a precise large bearing
structure to improve load-carrying performance;
the rear end uses a precise small bearing structure with lower resistance;
Having asymmetrical bearings increases reliability and efficiency.

Rear end

precise small bearing structure
with lower resistance

Front end

precise large bearing
structure to improve
load-carrying performance

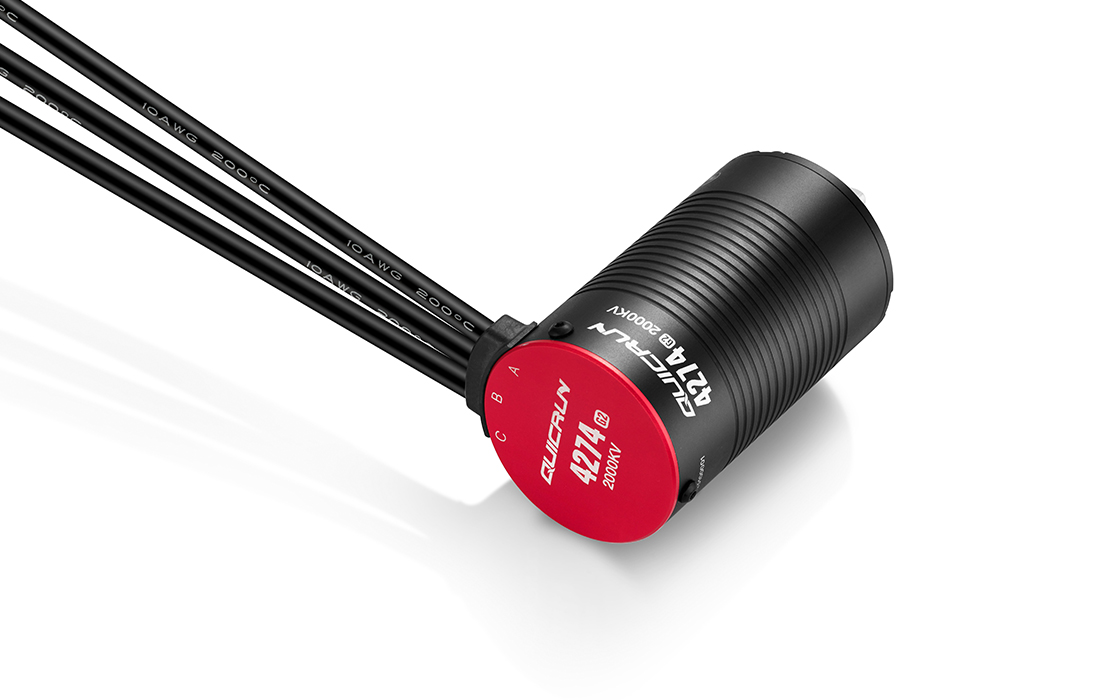

Silicone outlet,
easier wiring

The motor uses 10AWG silicone wire.
Compared with straight out high-hardness enameled wire,
the new wiring is simple and is aesthetically pleasing.

10AWG
silicone wire

Solid materials, quality assurance

At Hobbywing, we take pride in our manufacturing process and the high-quality materials we use to build a motor.
that offer exceptional durability, maximum performance and consistency.

Note: The highest support is 55000RPM

High-hardness
aluminum CNC

0.2mm ultra-thin
low-loss silicon
steel sheet

High-precision
grade bearings

High temperature
resistant
wire(200°C)

High temperature
resistant
explosion-proof
rotor(180°C)

Good linearity
and low loss

The rotor is precisely balanced to reduce
motor vibration and energy loss.
It also further ensures good linearity of
the overall powerband.

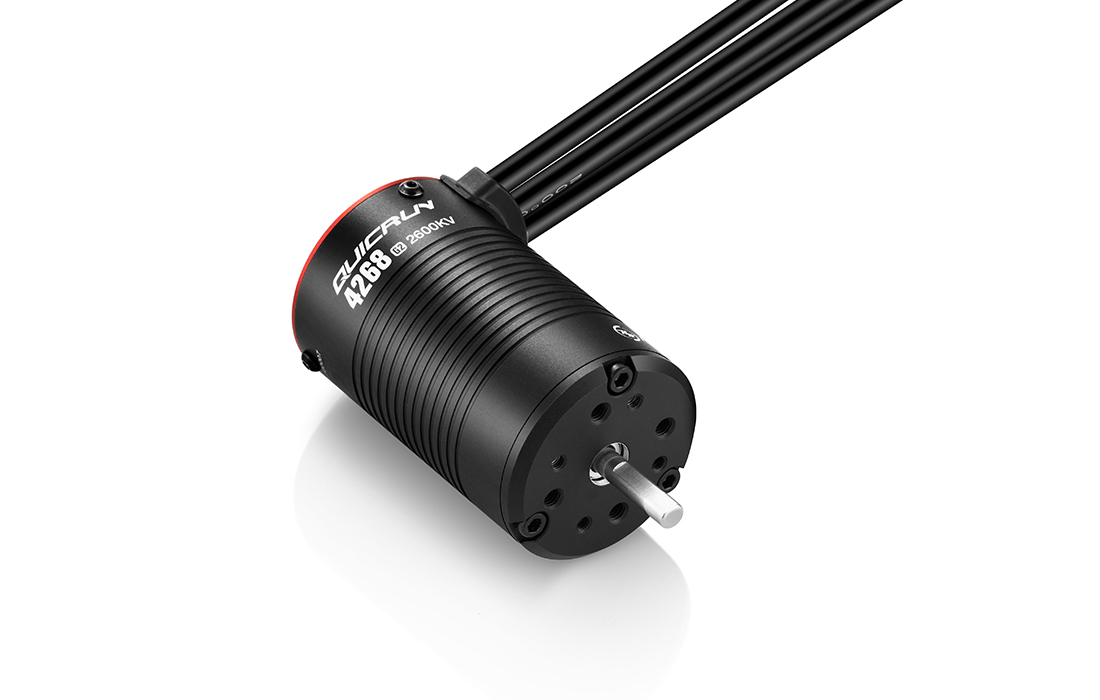

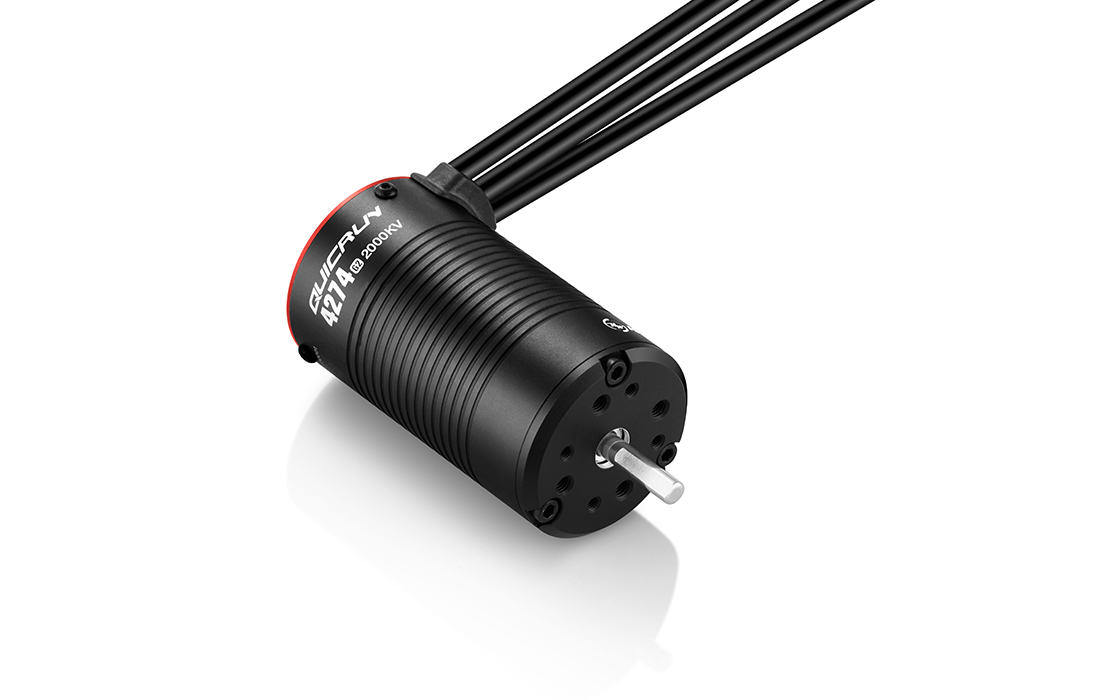

Blind hole thread design,
highly compatible

The front end of the motor adopts a blind hole thread design to prevent
the motor from being damaged due to long mounting screws;
it also takes into account of M3 or M4 screw installation,
which is compatible with various installation requirements.

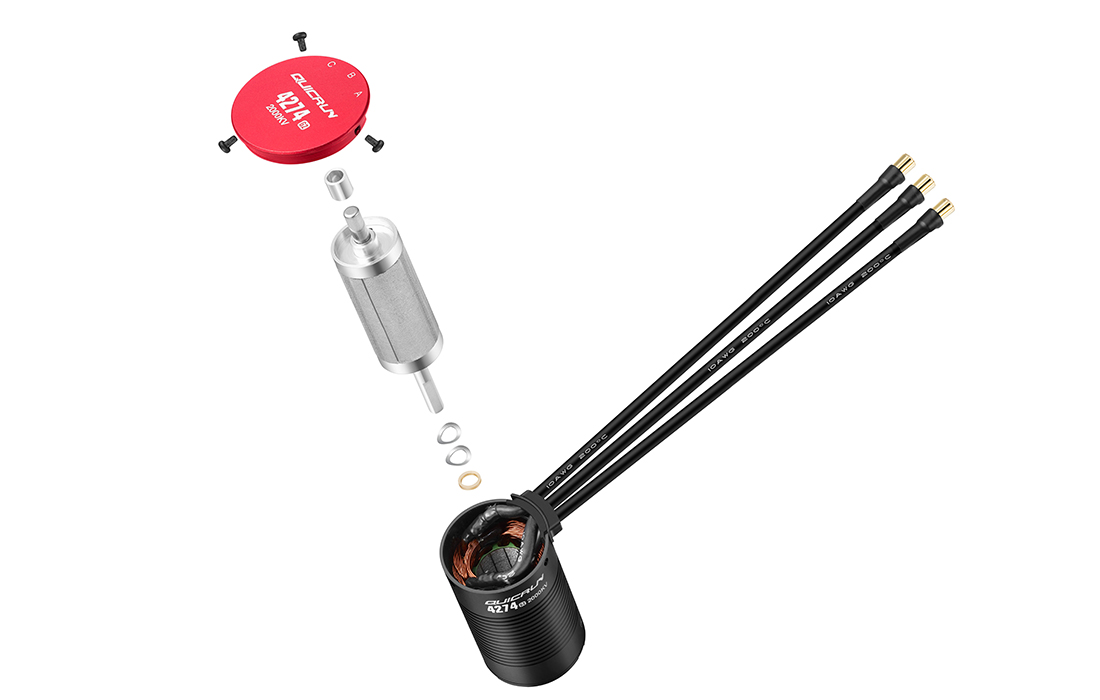

Modular design,
easy to disassemble
and maintain

The motor adopts a modular structure design.
It makes daily cleaning and maintenance convenient,
effectively prolonging the life-span of the motor
and maintaining the working efficiency of the motor.

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Pole Count
Relevant Parameters	KV Rating LiPo Cells No-load Current(A)
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Connectors Wire Weight (g) Front Bearing Rear Bearing
Other Parameters	ESC Vehicles

Product Name		QuicRun 4274SL 2000KV G2	QuicRun 4268SL 2600KV G2
Product Number		30404700	30404600
Type	Scale Brushed/Brushless Sensored/Sensorless Pole Count	1/8^th Brushless Sensorless 4	1/8^th Brushless Sensorless 4
Relevant Parameters	KV Rating LiPo Cells No-load Current(A)	2000KV 3-6S LIPO 5.9A	2600KV 3-4S LIPO 6.1A
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Connectors Wire Weight (g) Front Bearing Rear Bearing	42 74.9 5 6.5mm（male） Black-10AWG-200MM3 477g D16D5T5 D13D5*T4	42 68.4 5 6.5mm（male） Black-10AWG-200MM3 417g D16D5T5 D13D5*T4
Other Parameters	ESC Vehicles	QUICRUN WP 8BL150 G2 1/8^th Truck,Monster truck	QUICRUN WP 8BL150 G2 QUICRUN WP 10BL120 G2(4mm motor connectors required) 1/8^th Buggy & 1/10^th Monster truck
