QuicRun Outer 1621 SL

Overview
Specifications
Support
Accessories
Detail

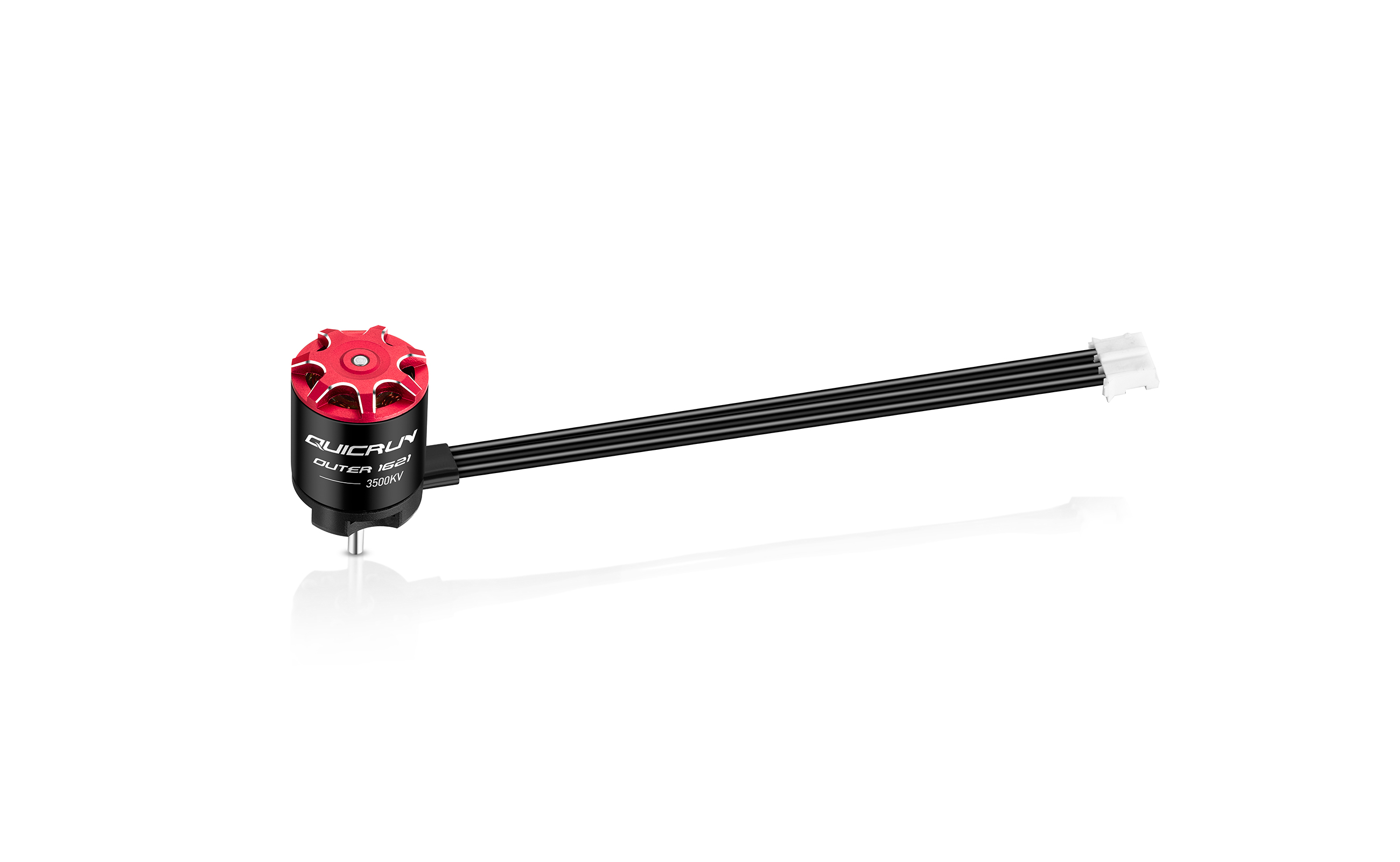

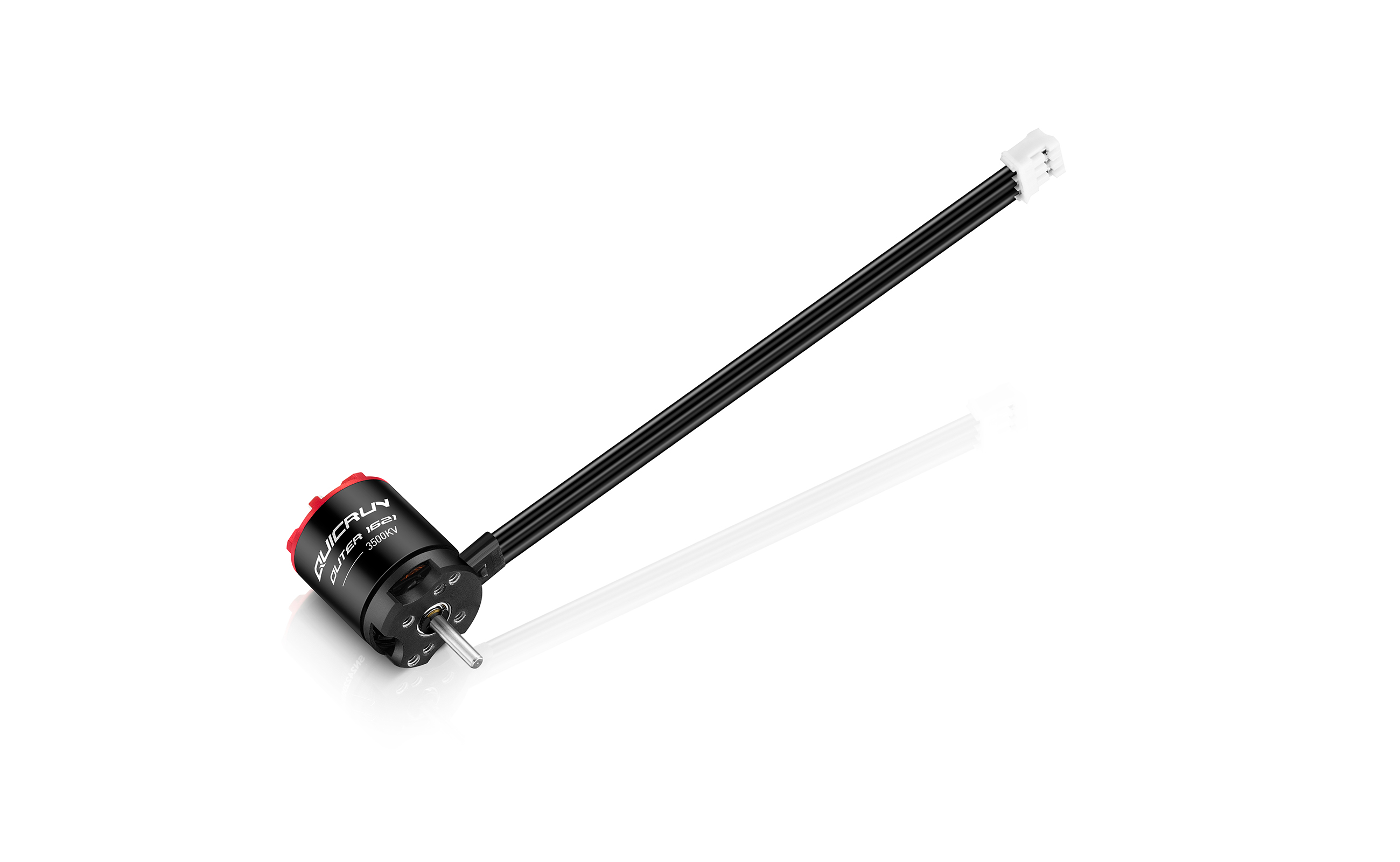

QuicRun
Outer 1621 SL

The perfect combination for
QuicRun WP-MINI24 ESC

The motor is equipped with a standard PH 2.0-3PIN
male connector, ensuring seamless plug-and-play
functionality with the QuicRun WP-MINI24 ESC,
offering excellent compatibility

Provides good inearity
at low speeds with
minima vibration amplitude

The rotor has undergone precision dynamic balancing,
significantly reducing vibration and performance loss
while ensuring excellent low-speed linearity and a
smooth control experience.

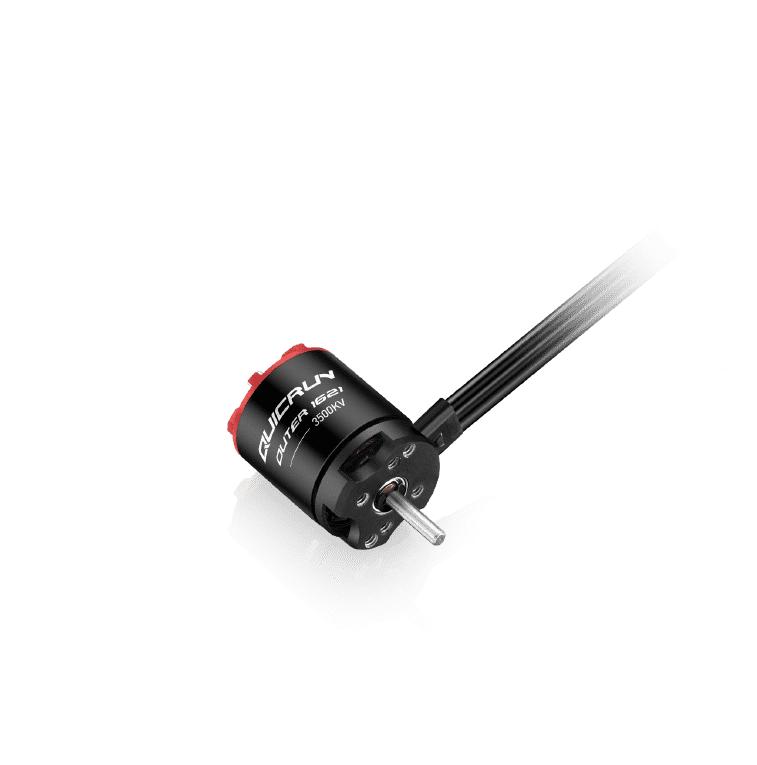

Silicone wire outlet

The motor features a silicone wireoutlet,
0ffering easier and more aesthetically pleasing wiring
compared to traditional high-hardness enameled wire outlets.

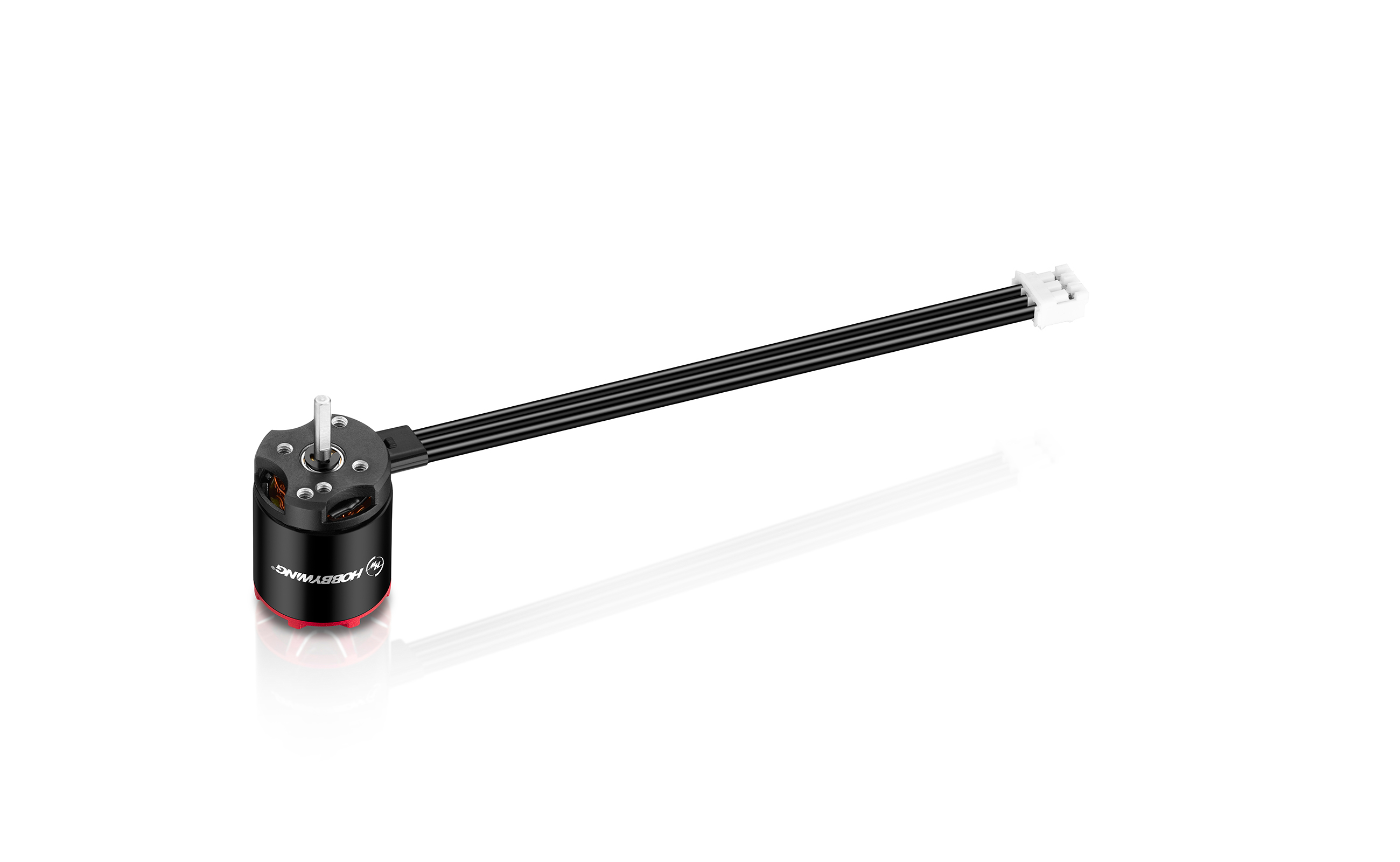

High installation compatibility
for versatile usage

The motor includes
3 sets of M2 screw holes
hole pitches
9mm/10mm/12.5mm
making it compatible with various
motor base mounting hole diameters
and offering excellent adaptability.

Low cogging torque for
smoother operation

The motor features
a low cogging effect

and
minimaltorque pulsation，
ensuring exceptionallysmooth operation
at low speeds, perfectly meeting the
drivers' need for precise control.

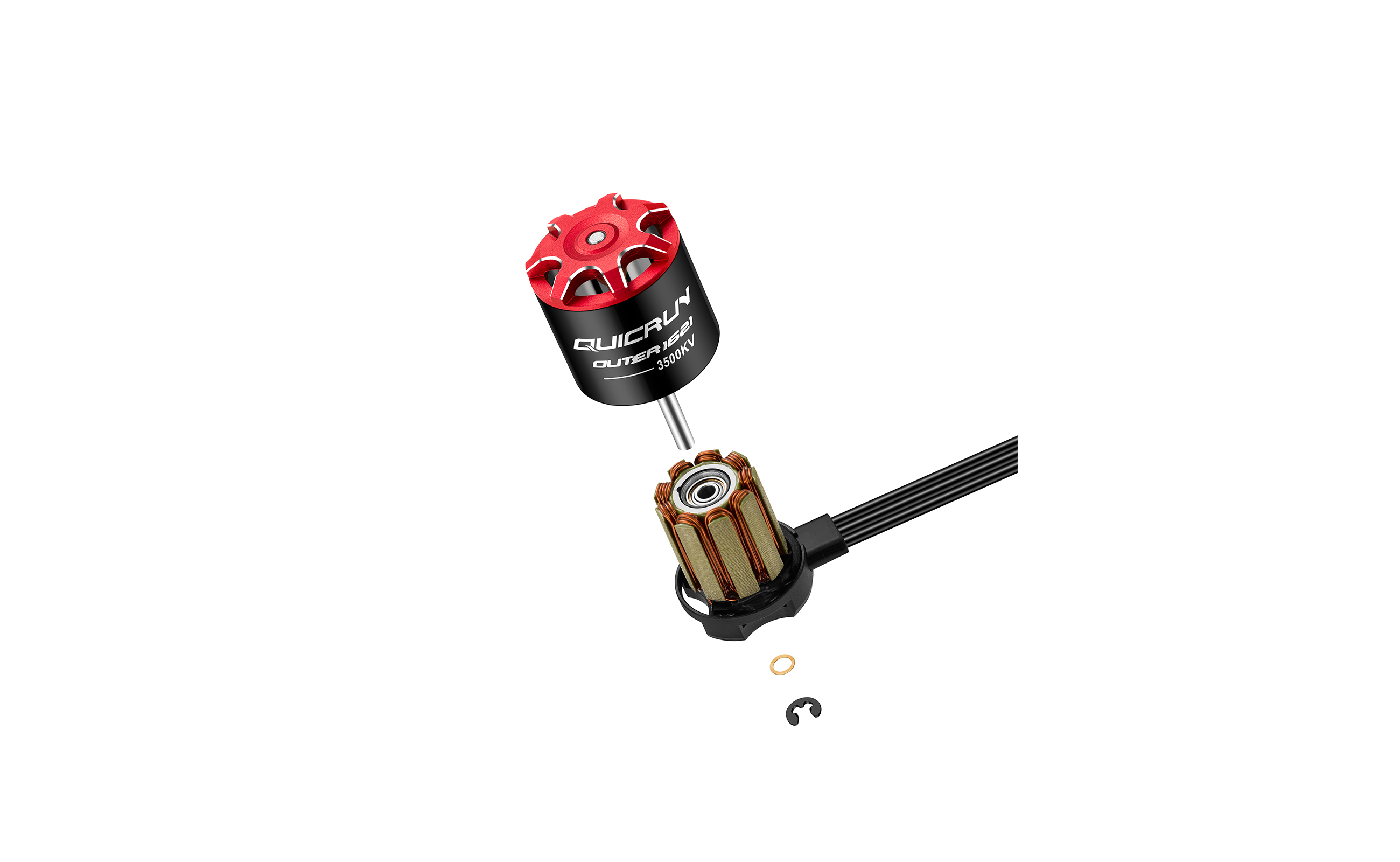

The modular design allows
for easier disassembly
and maintenance

The motor features
a modular design
allows for direct disassembly,
making daily cleaning
and maintenance easy.
This not only extends the motor's
service life but also helps maintain
optimal working efficiency.

Product Name

QuicRun Outer 1621 SL

Product Number

30404850

Type

Scale	1/24^th
Brushed/Brushless	Brushless
Sensored/Sensorless	Sensorless
Pole Count	12

Specifications

KV Rating	3500KV
LiPo Cells	2-3S
No-load Current(A)	0.6A

Size & Weight

O.D.(mm)	15.8
Length (mm)	21
Shaft Diameter (mm)	2
Weight (g)	16.7g

Other Parameters

ESC	QuicRun WP MINI24
Vehicles	1/24^th Crawlers
