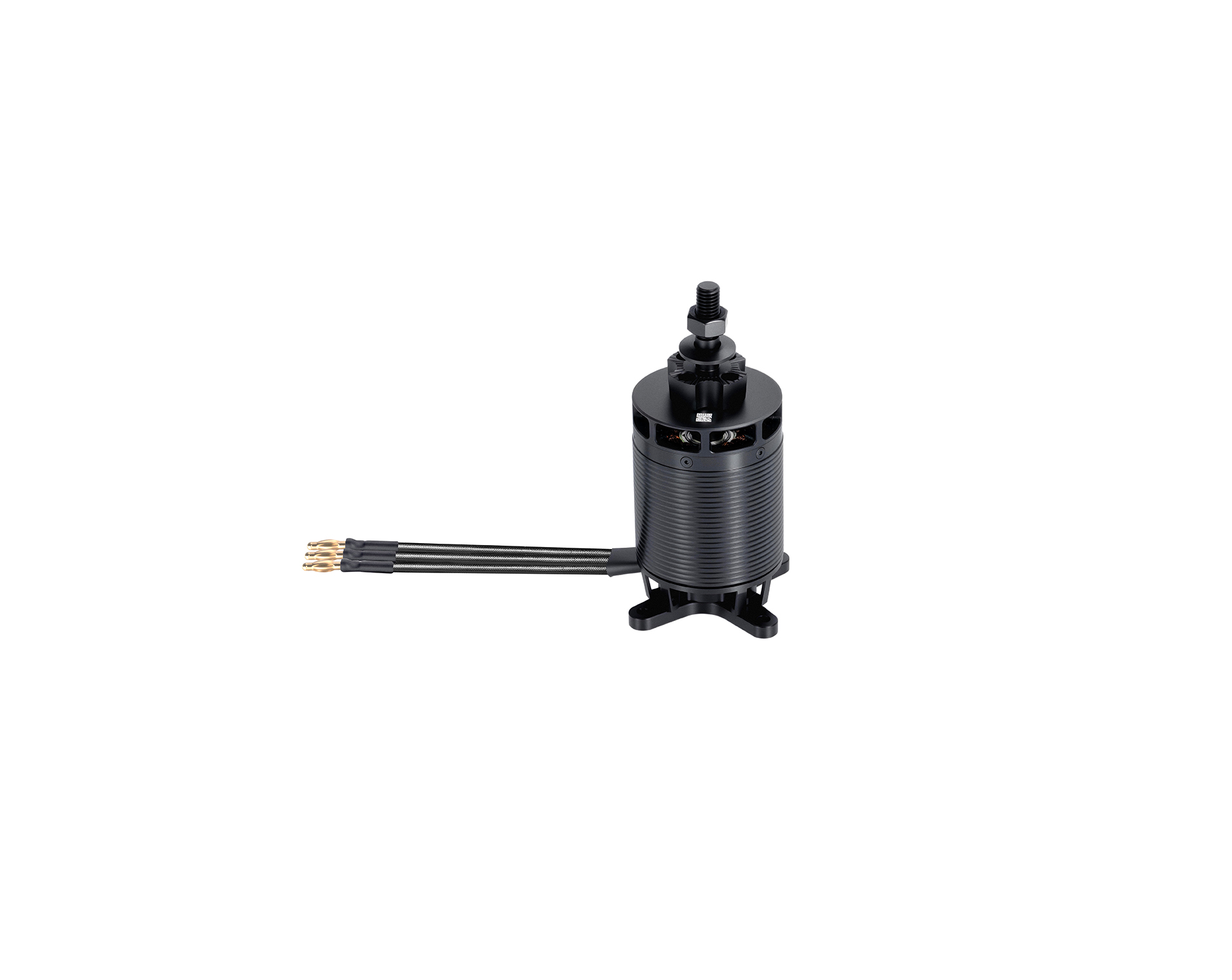

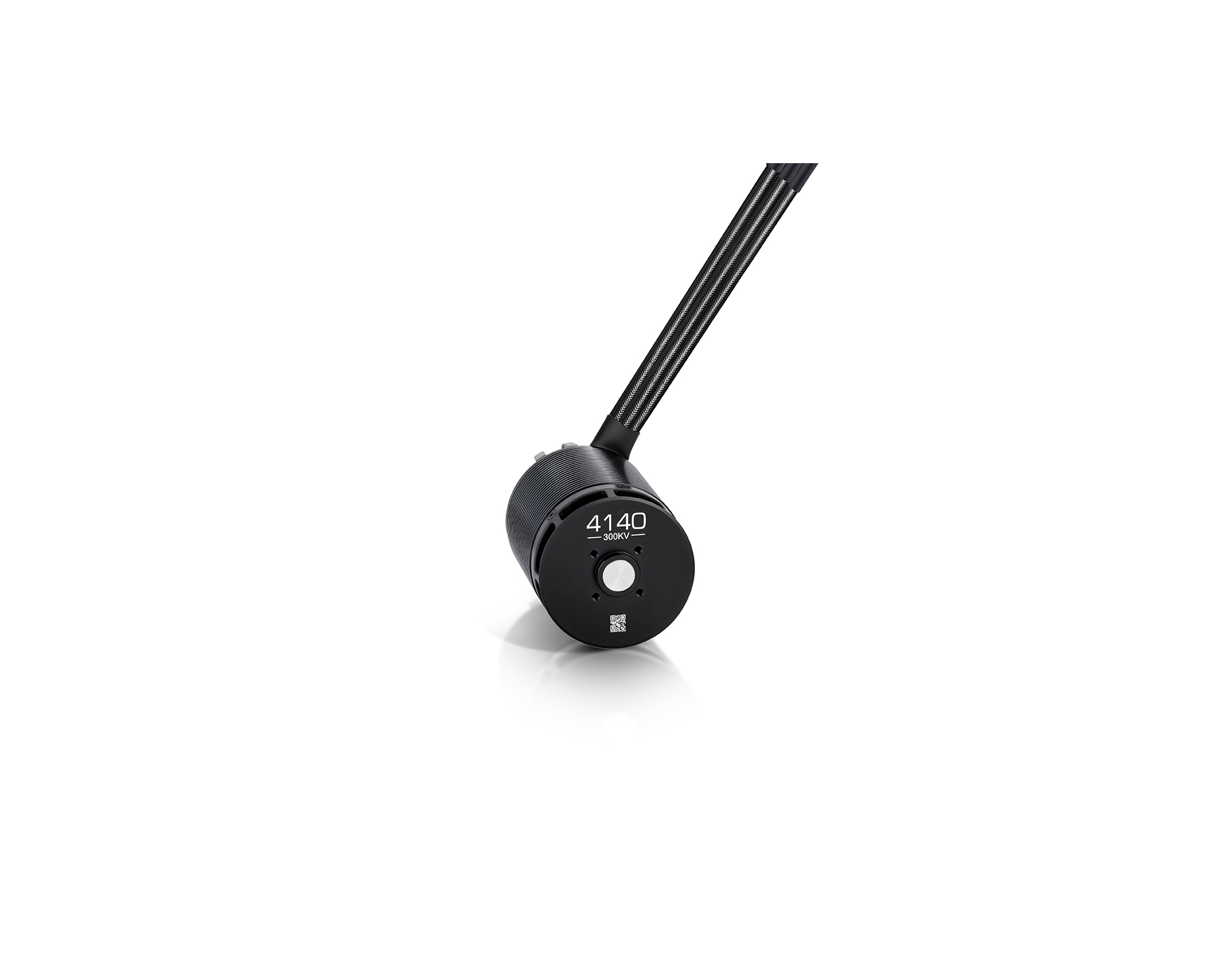

RTF 4140
Fixed-wing Pusher Motor
High Efficiency and
Outstanding Performance
Outstanding Performance

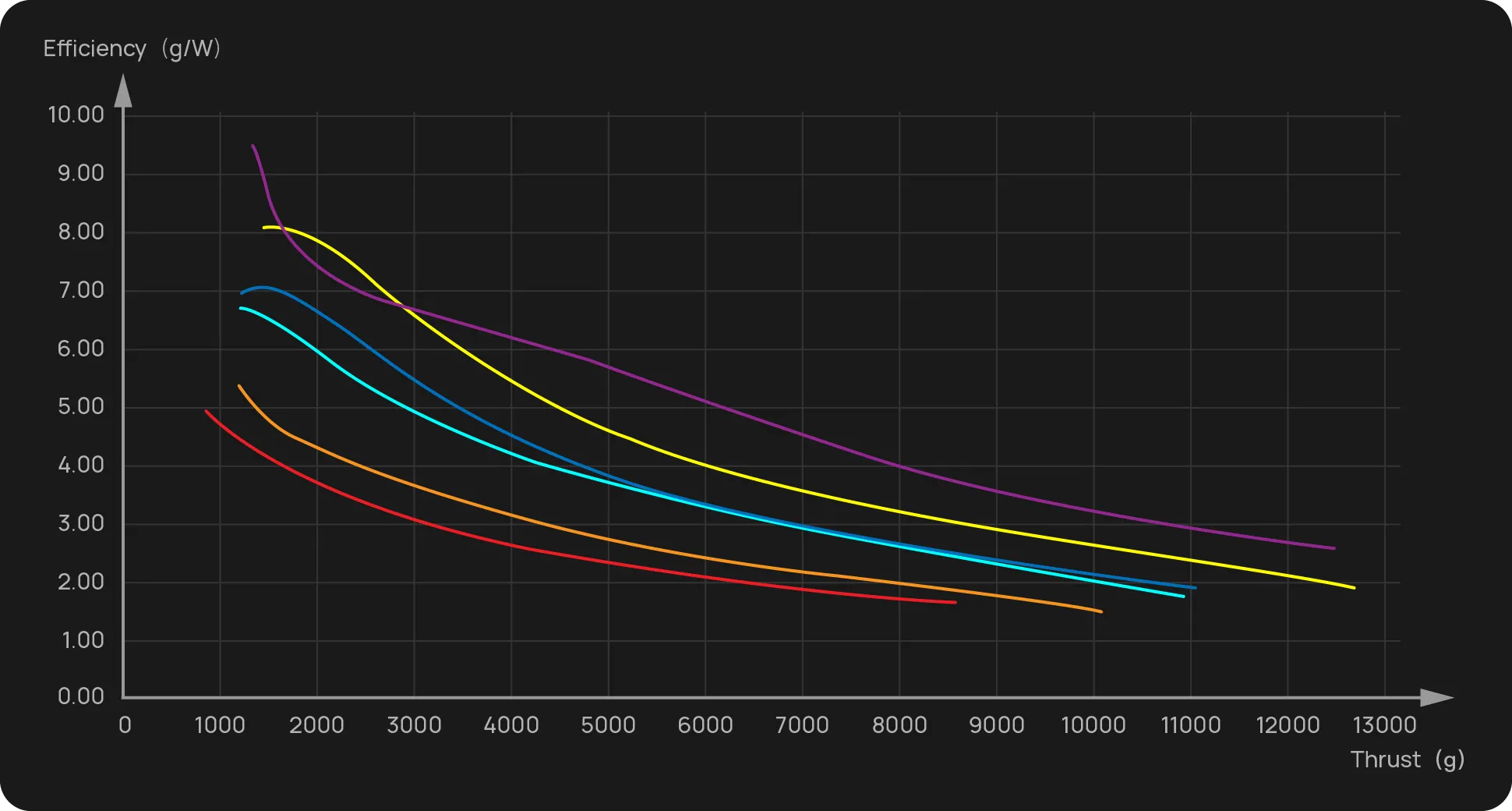

RTF 4140-300KV-PL180A-APC16*10-44.4V
RTF 4140-300KV-PL180A-APC16*12-44.4V
RTF 4140-300KV-PL180A-APC17*8-44.4V
RTF 4140-300KV-PL180A-APC17*10-44.4V
RTF 4140-300KV-PL180A-Folding Propeller15*12-44.4V
RTF 4140-300KV-PL180A-Folding Propeller16*13-44.4V

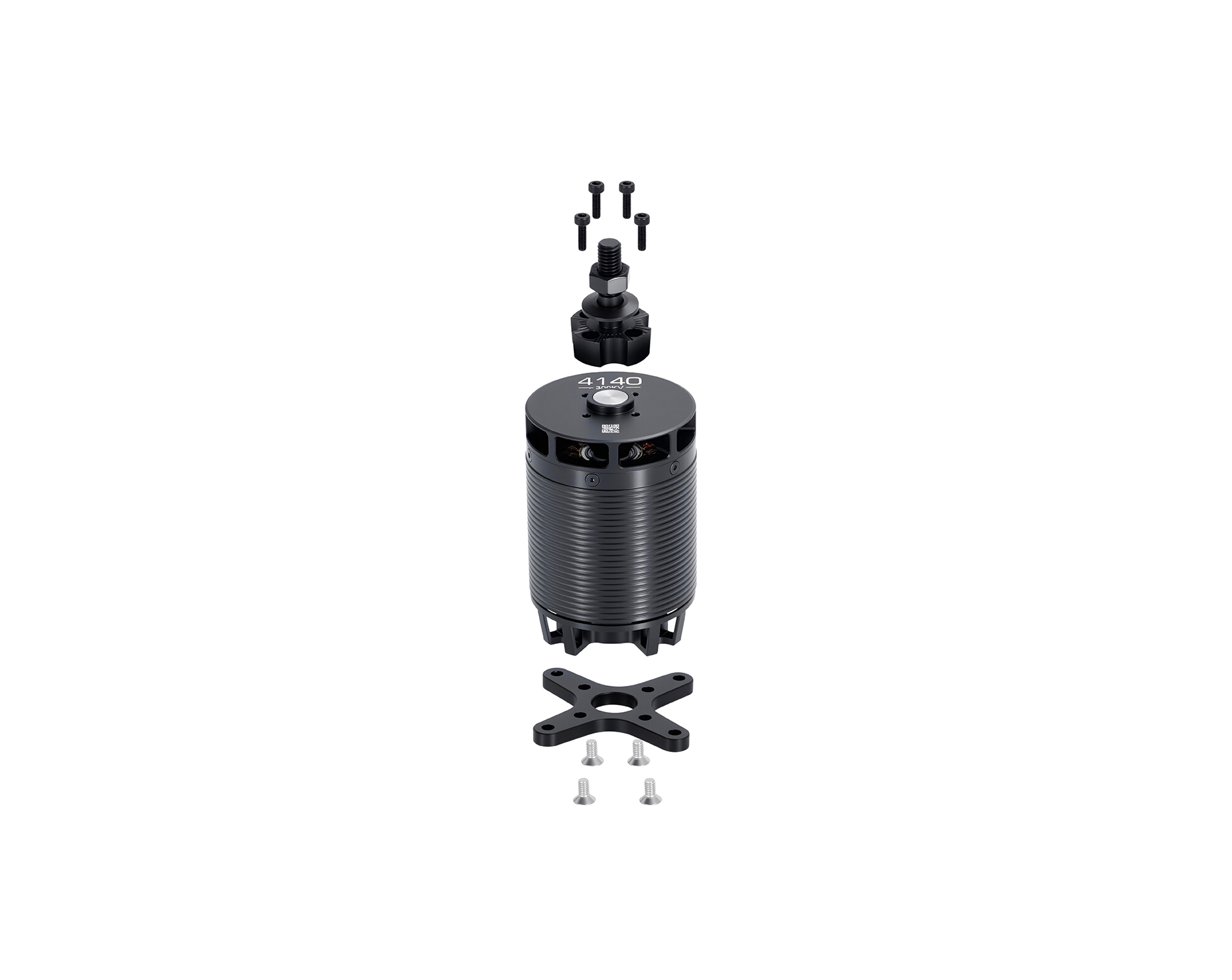

Lightweight Structural Design with
Optimized Strength
Optimized Strength

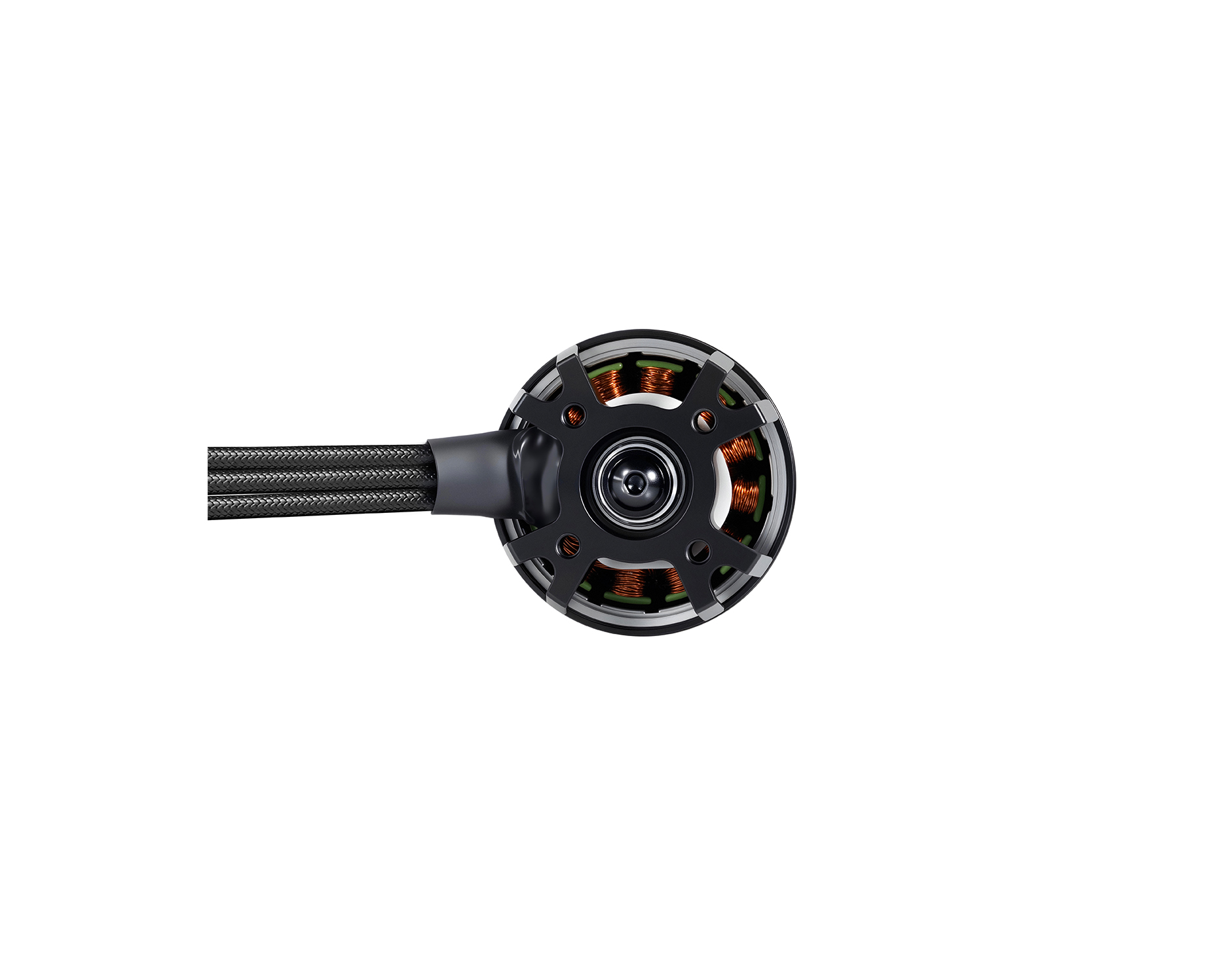

Rotor BracketThe rotor bracket features a side air-vent structure, which effectively reduces weight and improves heat dissipation efficiency while maintaining structural strength.
Stator MountThe stator mount uses a large hollowed-out design for weight reduction, resulting in a cleaner structure and improved machinability of the parts.
Triple-Bearing DesignTriple-bearing design enhances durability and extends the motor's service life.
Dual-Locking Protection for
Enhanced Reliability
Enhanced Reliability
A dual mechanical locking system combining a circlip and screws,
reinforced with anti-loosening treatment,
provides multiple protections for reliable operation at high speeds.
Efficient Self-Cooling Structure
The motor's outer rotor bracket features a self-cooling structure
that rapidly dissipates heat from the coils during flight,
maintaining lower operating temperatures for greater efficiency and a longer lifespan.
High-Spec Materials for Superior
Performance and Protection
Performance and Protection
The motor adopts
high-performance
0.2 mm low-iron-loss
silicon steel sheets
from a leading brand.
The multi-strand parallel
winding process of the
enameled wire
significantly increases
the slot fill factor,
reducing operating
temperature under rhe
same power output.
220℃
high-temperature
resistant enameled
wire to meet users'
pursuit of performance.
Featuring high-strength
N45SH arc magnets with
a retaining ring,
ensuring stronger torque,
a uniform magnetic
air gap, and more
consistent power output.
Product NameRTF 4140
Specification
-
- Model
- Motor Size
- Slot& Pole
- Stator Size
- Dynamic balance
- Stator process
- Bearing
- Enamelled wire
- Fiber Screw Thread
- Isolation test
- Motor mounting dimensions
-
- RTF 4140 300KV
- Φ51*H73.5mm
- 12N14P
- Φ40.6*40mm
- ≤20mg
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- 1680ZZ
- 220℃ high temperature resistant, C class insulation
- 4×M3@Φ20
- 500V AC high voltage resistance test
- 4×M4@Φ30
Specification
-
- KV
- Battery(LiPo)
- No-load current
- Maximum current
(Non-hermetic Ambient Temperature ≤ 25℃） - Rated power output
- Max power
- Max thrust
- Resistance
- Wire Size
- Wire length
- Weight (With wire)
-
- 300
- LiPo-12S
- 2.6A
- 155.7A/10s
- 1679W
- 6907.3W/10s
- 12.7kg
- 23.3mΩ
- enameled wire direct lead-out
- 120mm
- 575g
Recommended application combinations
-
- Motor
- Propeller
- ESC
- Battery
-
- RTF 4140SL 300KV
- APC16*10 APC16*12 APC17*8 APC17*10 15*12 16*13
- PLATINUM HV 180A V5/Skywalker HV 160A OPTO V2
- 12S LiPo
