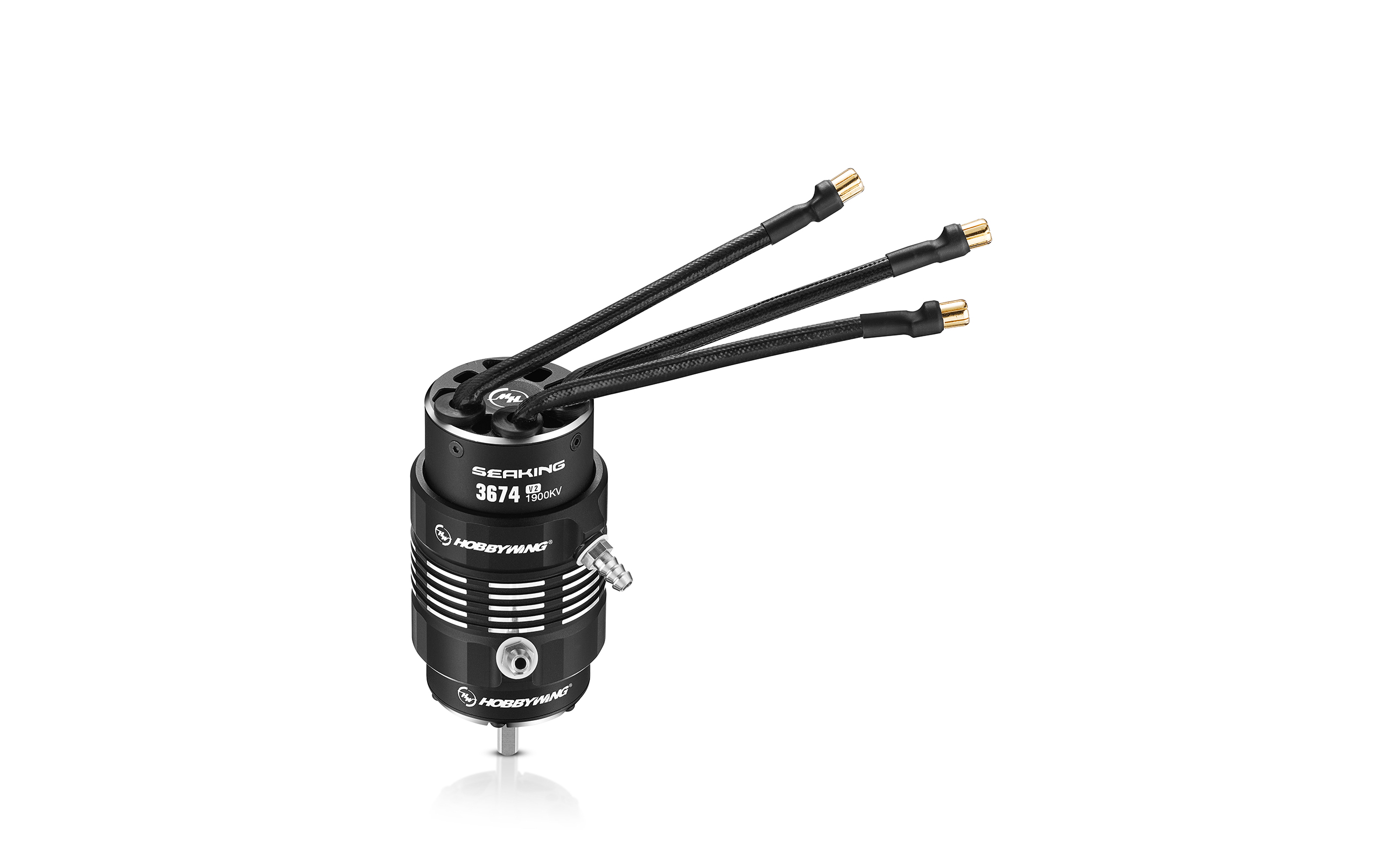

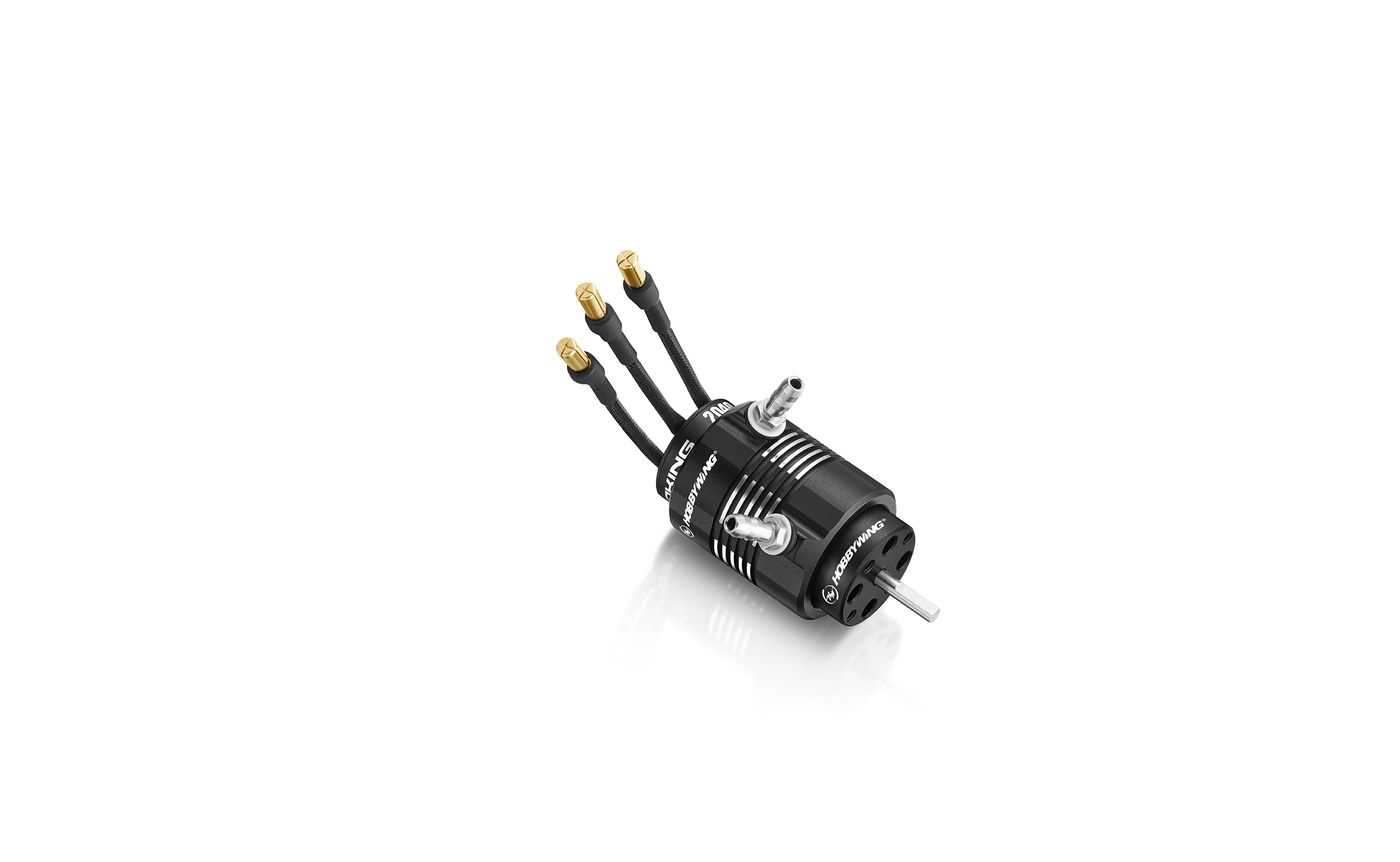

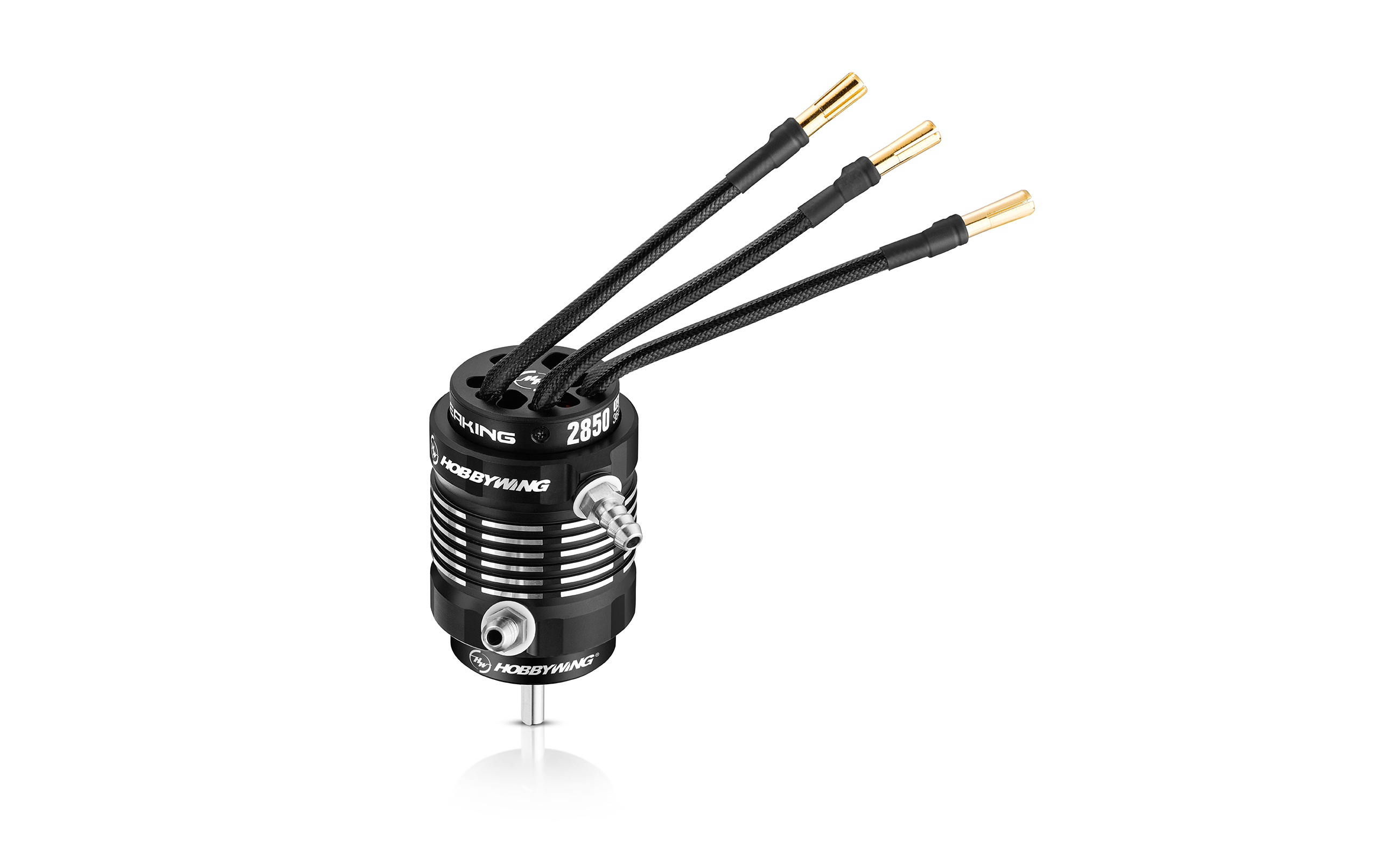

SeaKing 3674/3660/2850/2040 SL V2

Overview
Specifications
Support
Accessories
Detail

3674 3660 2850 2040 SL V2

Engineered for Power and
Outstanding Performance

The motor is designed
for high-performance
RC boat models.

Delivers high power
output with balanced
efficiency.

Designed for high
load extended
operation

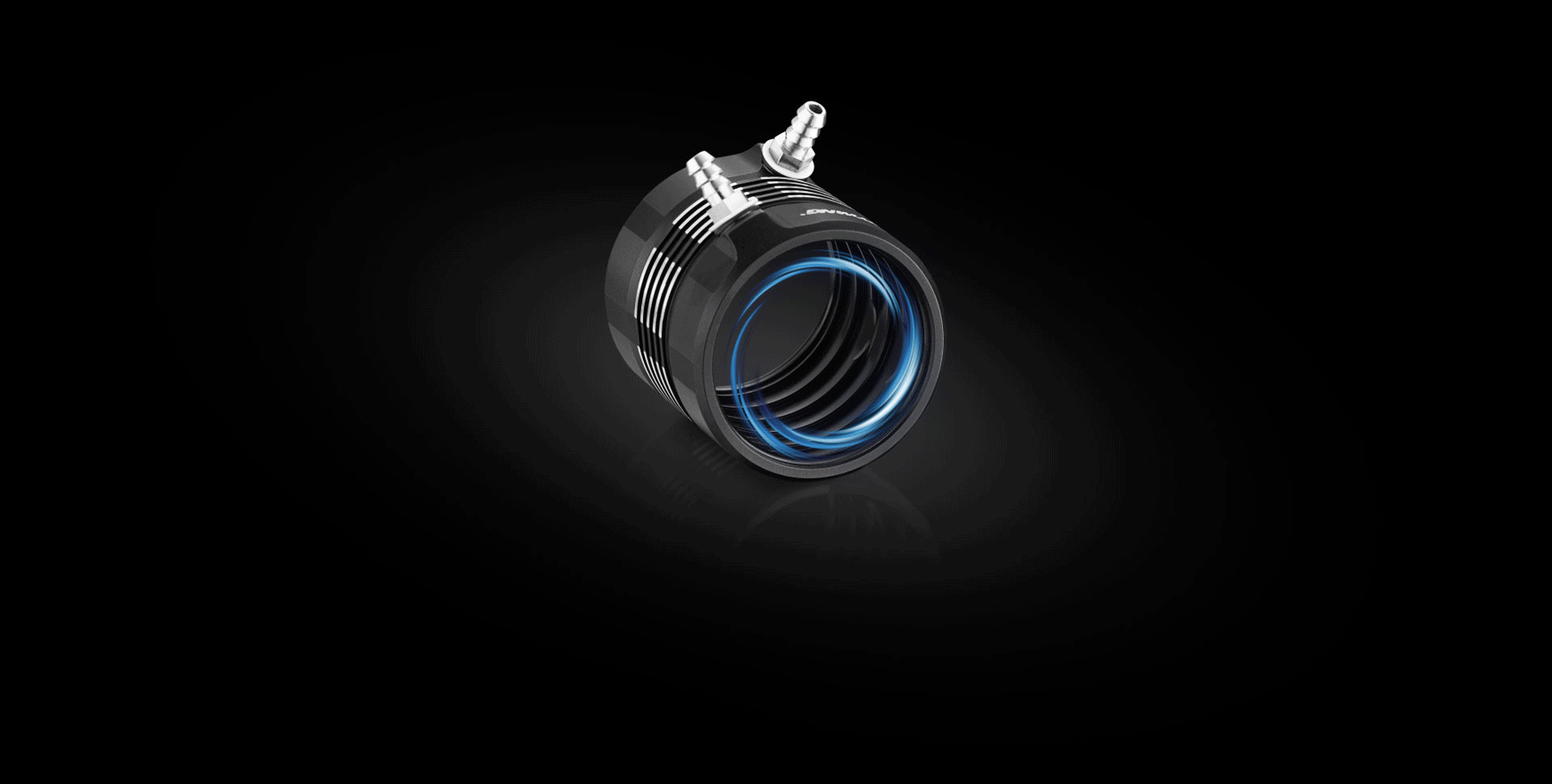

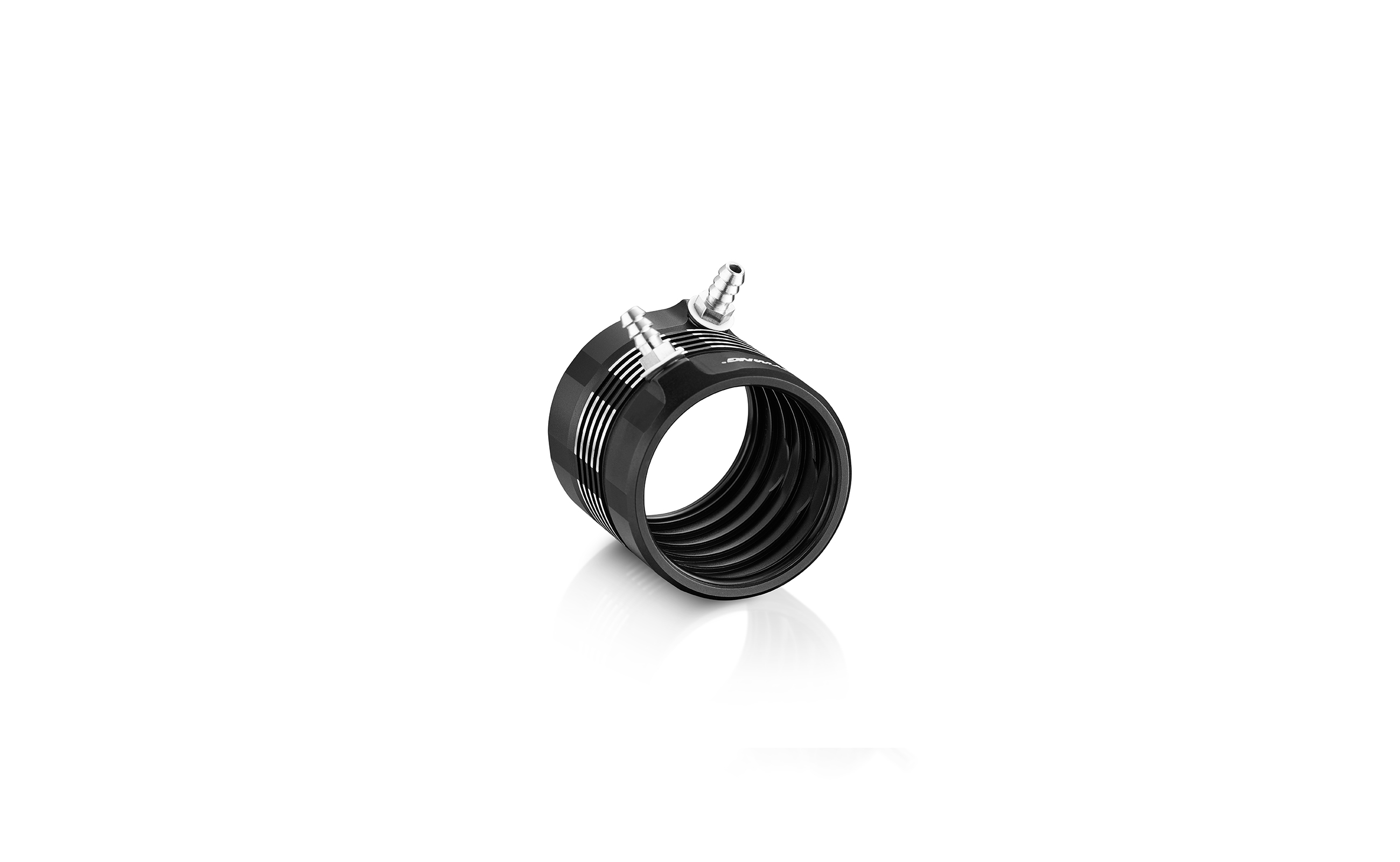

Efficient Heat Dissipation

The motor features a water cooling jacket with highly efficient internal circulation, as well as heat sink

external design for maximum heat transfer.

This helps the motor maintain higher levels of performance during extended runs.

External Cooling Fins

High-efficiency Internal
Circulation Design

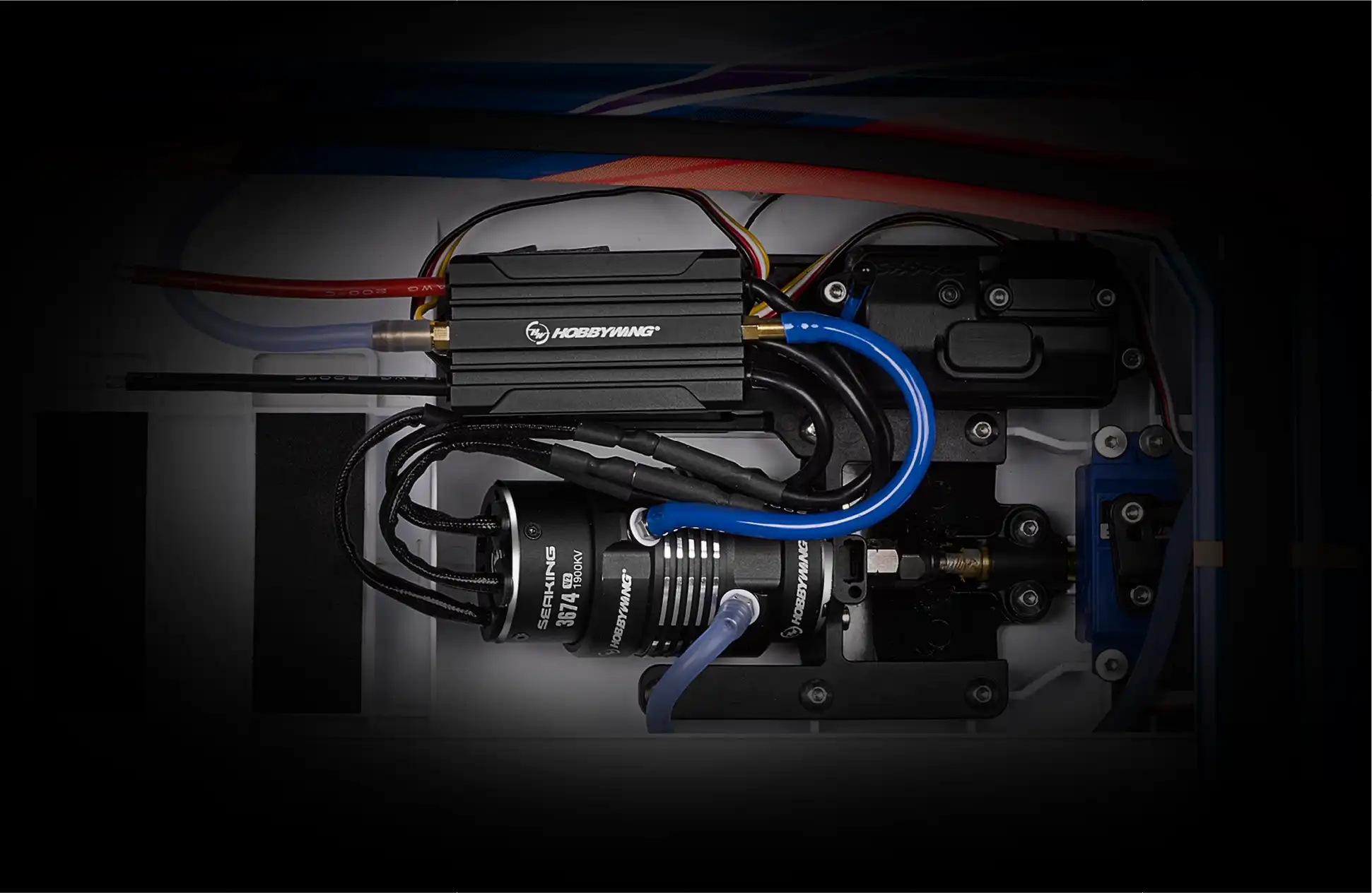

Perfectly Compatible with
SeaKing V4 Series ESC

When paired with
SeaKing V4 series of ESCs

the motor delivers
better compatibility

providing excellent
control performance

Designed for Performance with Amazing Aesthetics

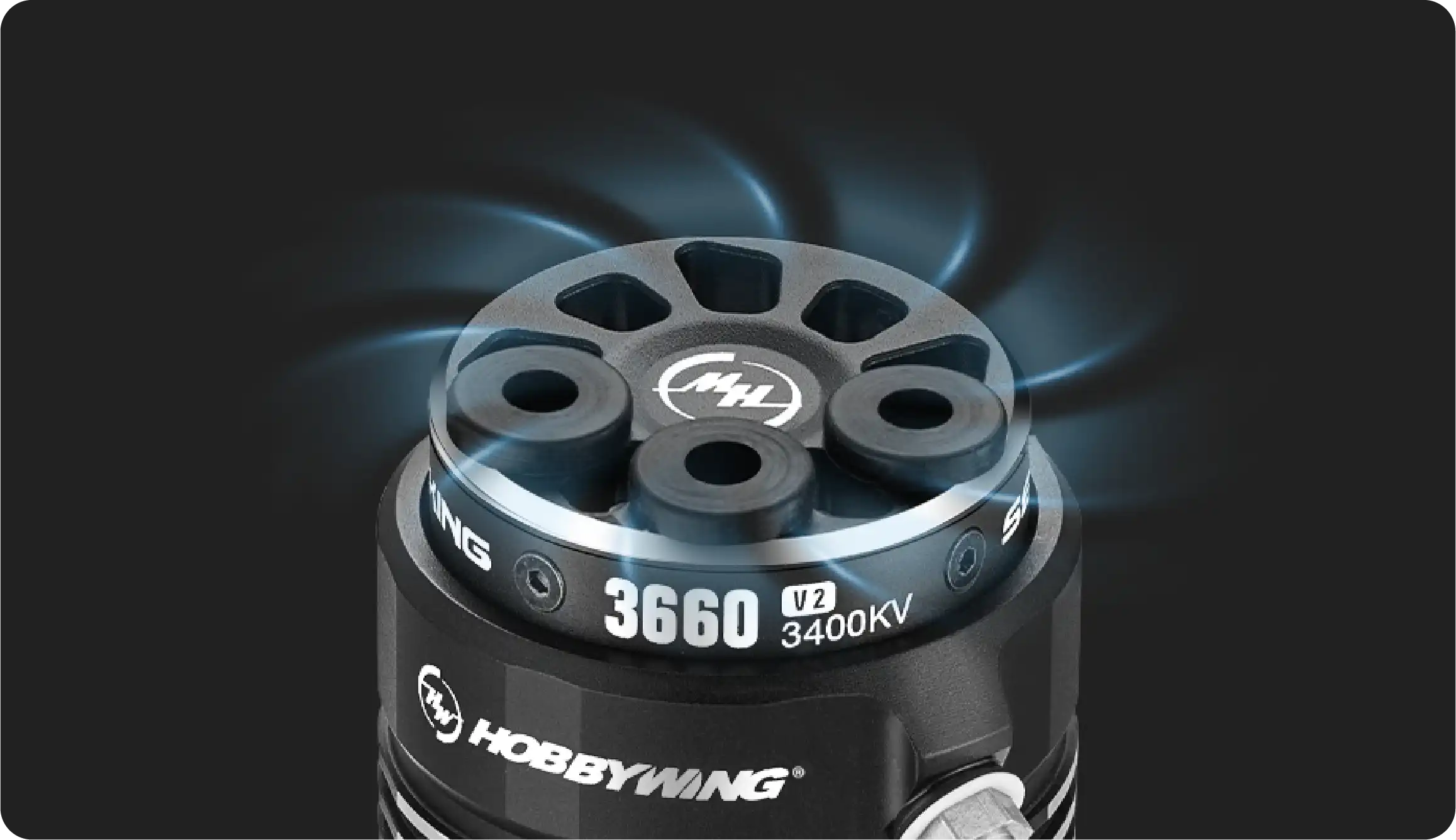

Fan Blade-shaped: The motor end caps feature fan
blade-shaped cooling holes inspired by
propeller designs.

Note:Seaking 2040 V2 is non-fan-shaped structure.

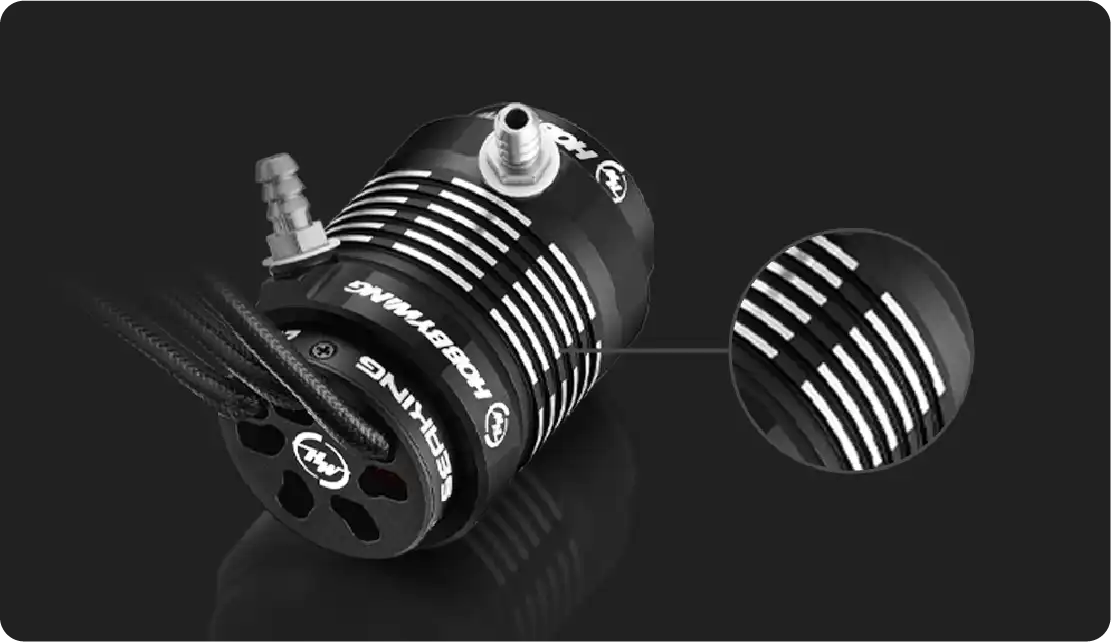

CNC-machined Polished Cooling Fins: The motors case design feature
specifically shaped cooling vents to
promote additional cooling. The Water
cooling jacket is machined and polished
to ensure maximum flow and heat transfer

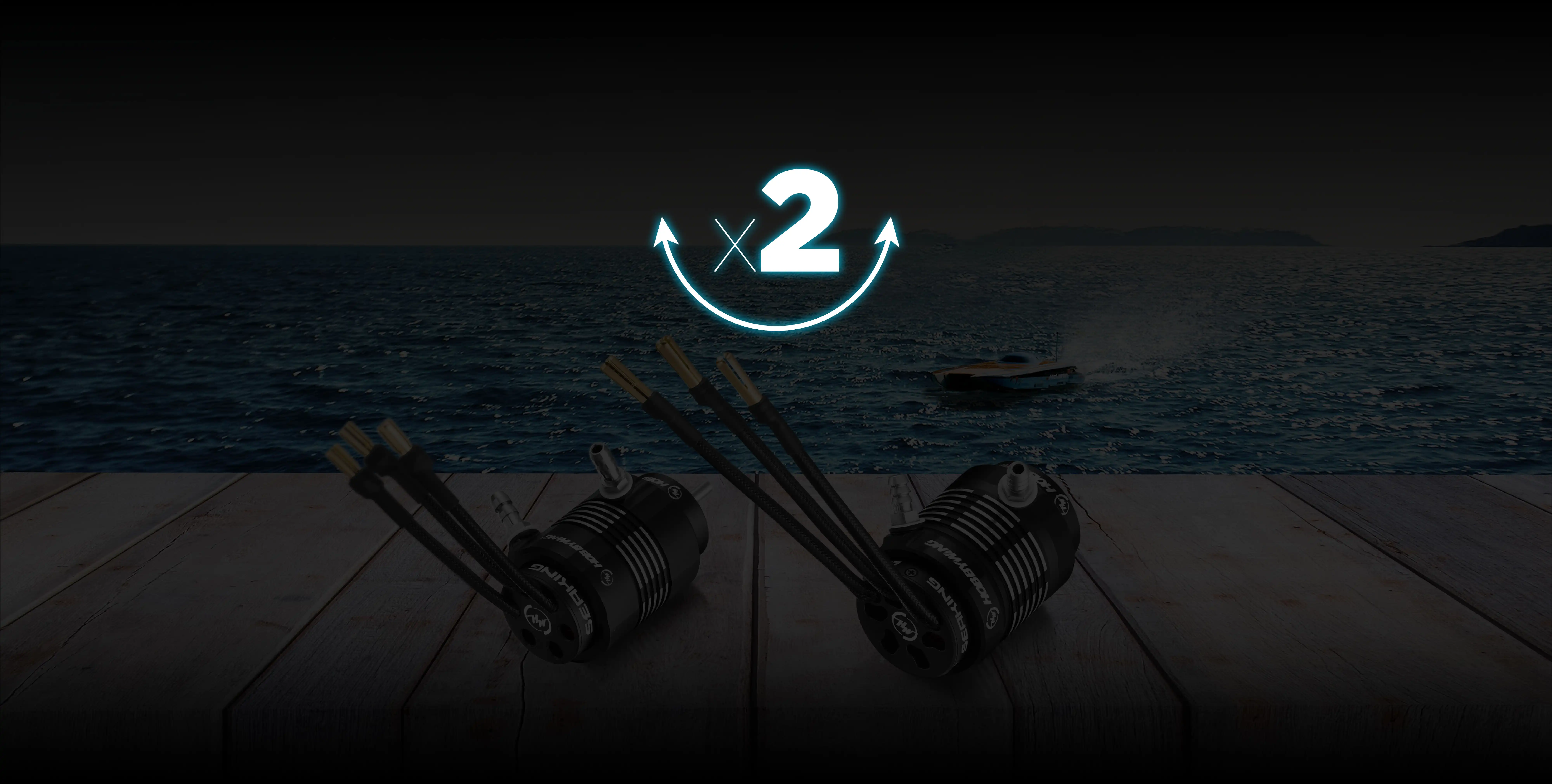

Two Options Available,
Flexible Configuration

Each motor has two optional KV values to adapt configuration requirements for different propeller setups.

Model

SeaKing 2040 V2

SeaKing 2850 V2

SeaKing 3660 V2

SeaKing 3674 V2

KV Value

4000KV/ 5000KV

3600KV/ 4500KV

2600KV/ 3400KV

1900KV/ 2300KV

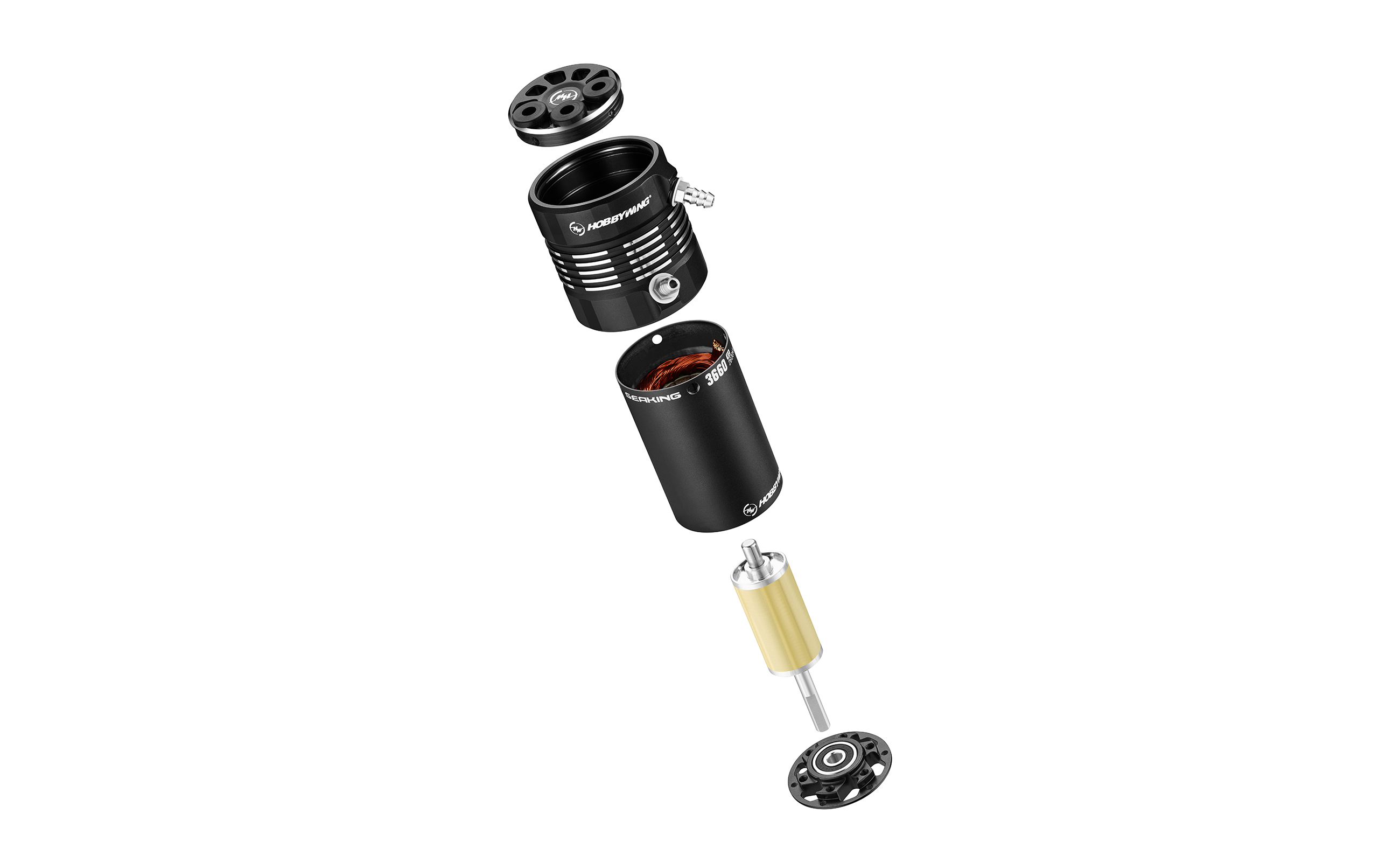

Premium Materials, Built to Last

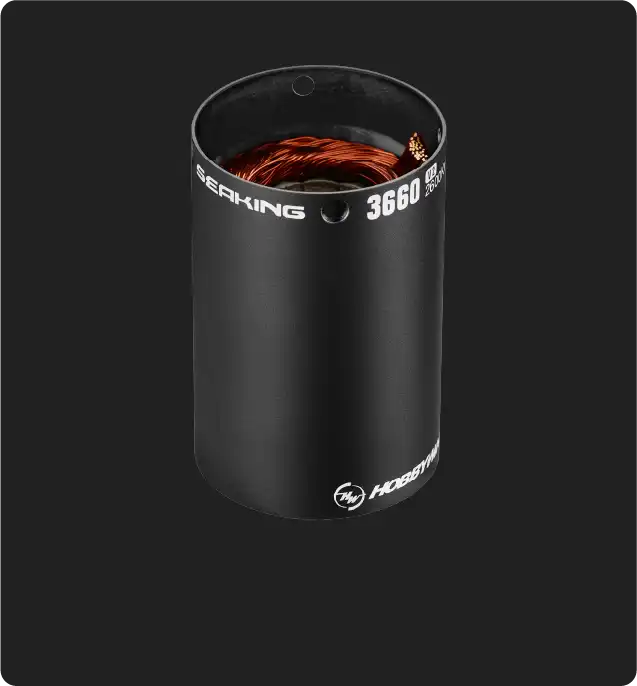

Constructed with a high-hardness CNC aluminum housing, premium brand high-quality bearings, ultra-thin
silicon steel laminations, high-temperature oxygen-free copper wire, high-temperature explosion-proof
rotor, and high-toughness alloy output shaft. Every material is carefully selected to ensure the motor
delivers long-lasting and stable performance.

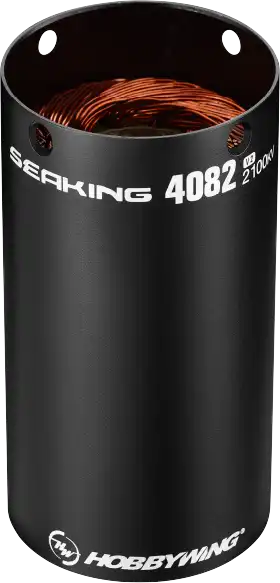

High-hardness CNC
Aluminum Housing

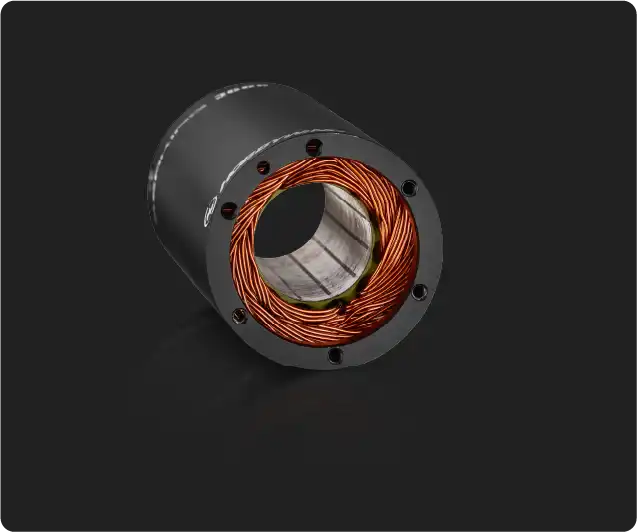

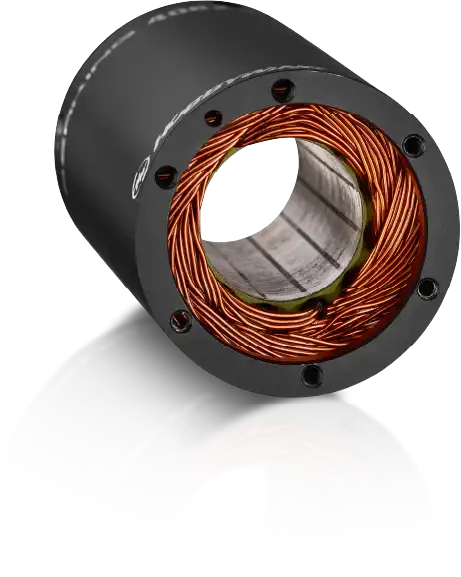

High-temperature
Oxygen-free Copper Wire

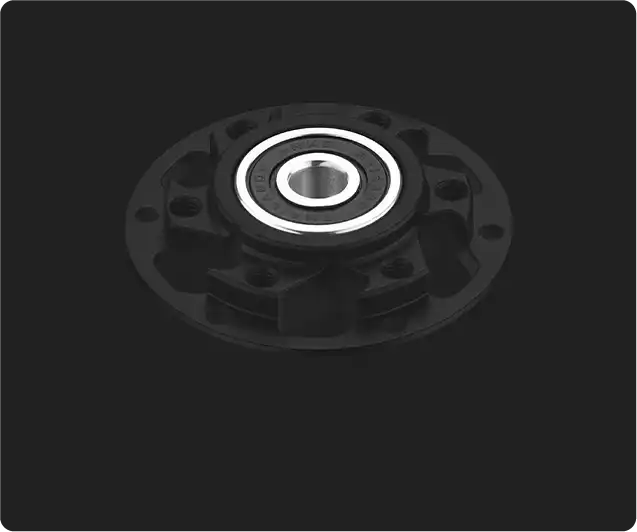

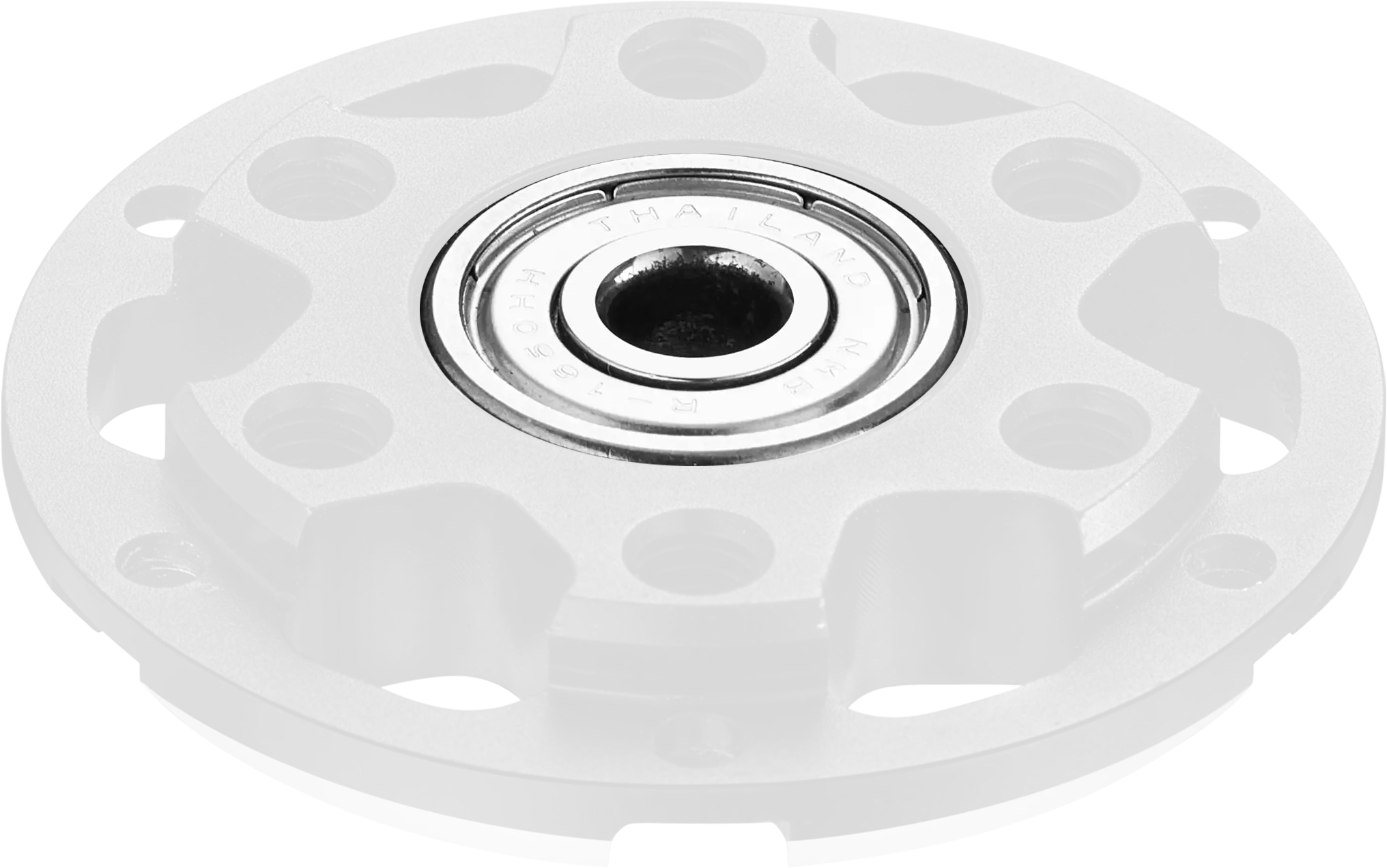

Premium Brand
High-quality Bearings

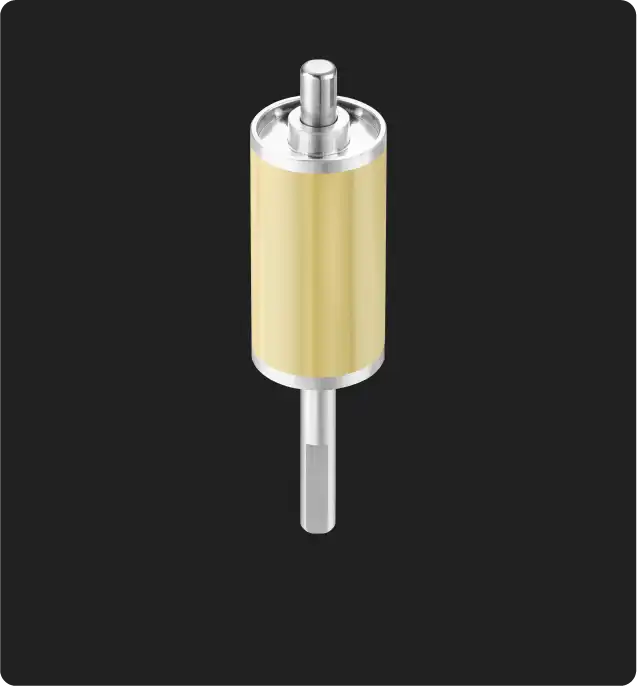

High-temperature
Explosion-proof Rotor

Ultra-thin Silicon
Steel Laminations

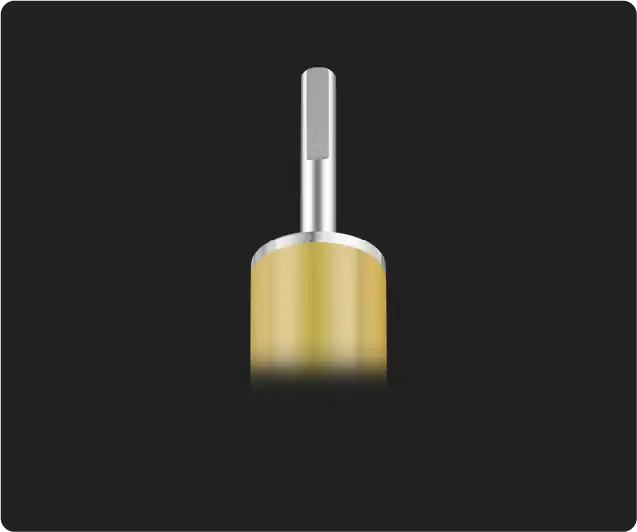

High-toughness
Alloy Output Shaft

High-hardness CNC
Aluminum Housing

High-temperature
Oxygen-free Copper Wire

Premium Brand
High-quality Bearings

High-temperature
Explosion-proof Rotor

Ultra-thin Silicon
Steel Laminations

High-toughness
Alloy Output Shaft

Product Name

SeaKing 2040 SL 4000KV V2
SeaKing 2040 SL 5000KV V2
SeaKing 2850 SL 3600KV V2
SeaKing 2850 SL 4500KV V2
SeaKing 3660 SL 2600KV V2
SeaKing 3660 SL 3400KV V2
SeaKing 3674 SL 1900KV V2
SeaKing 3674 SL 2300KV V2

Product Number

30419010

30419011

90070011

90070012

30419007

30419006

30419008

30419009

Type

Brushed/Brushless Sensored/Sensorless Pole

Specifications

KV Input Voltage No-load Current(A)

4000KV
2-3S
0.9A

5000KV
2S
1.1A

3600KV
2-3S
3.7A

4500KV
2S
4.0A

2600KV
2-4S
8.4A

3400KV
2-4S
7.6A

1900KV
2-6S
4.3A

2300KV
2-6S
6.1A

Size & Weight

O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing(mm) Rear Bearing(mm)

20
41.2
3
73g
D8*D3*T4
D8*D3*T4

20
41.2
3
73g
D8*D3*T4
D8*D3*T4

28
50
4
146g
D9*D4*T4
D8*D3*T4

28
50
4
146g
D9*D4*T4
D8*D3*T4

36.5
60
5
284g
D16*D5*T5
D11*D5*T5

36.5
60
5
290g
D16*D5*T5
D11*D5*T5

36.5
74
5
372g
D16*D5*T5
D11*D5*T5

36.5
74
5
372g
D16*D5*T5
D11*D5*T5

Other Parameters

ESC Boat Applicable

Seaking 30A V4
Boat Length ≤45cm

Seaking 30A V4
Boat Length ≤45cm

Seaking 60A V4
Boat Length ≤60cm

Seaking 60A V4
Boat Length ≤60cm

Seaking 90A V4
Boat Length ≤80cm

Seaking 90A V4
Boat Length ≤80cm

Seaking 120A V4
Boat Length ≤100cm

Seaking 120A V4
Boat Length ≤100cm
