SeaKing 160A V4 - RC Boat ESCs
SeaKing160A V4
High Reliability and Durability
Supports up to

8S LiPo
Maximum
continuous current
160A
Strong

EXPLOSIVE
Super large

OUTPUT POWER
Excellent

LINEARITY

Effortlessly handling high-load applications and providing precise, responsive control.

High Reliability and Durability
Supports up to
8S LiPo
Maximum
continuous current
160A
Strong
EXPLOSIVE
Super large
OUTPUT POWER
Excellent
linearity

Effortlessly handling high-load applications and providing precise, responsive control.

Built-in Bluetooth
for Connecting the
Mobile APP Directly
  • The ESC features a built-in Bluetooth module,
  • allowing easy connection to a mobile app for
  • parameter settings data reading firmware upgrades
  • all without the need for additional devices, making it incredibly
  • user-friendly.

Note: Due to transmission distance of bluetooth,
the effective distance isonly about 5m!

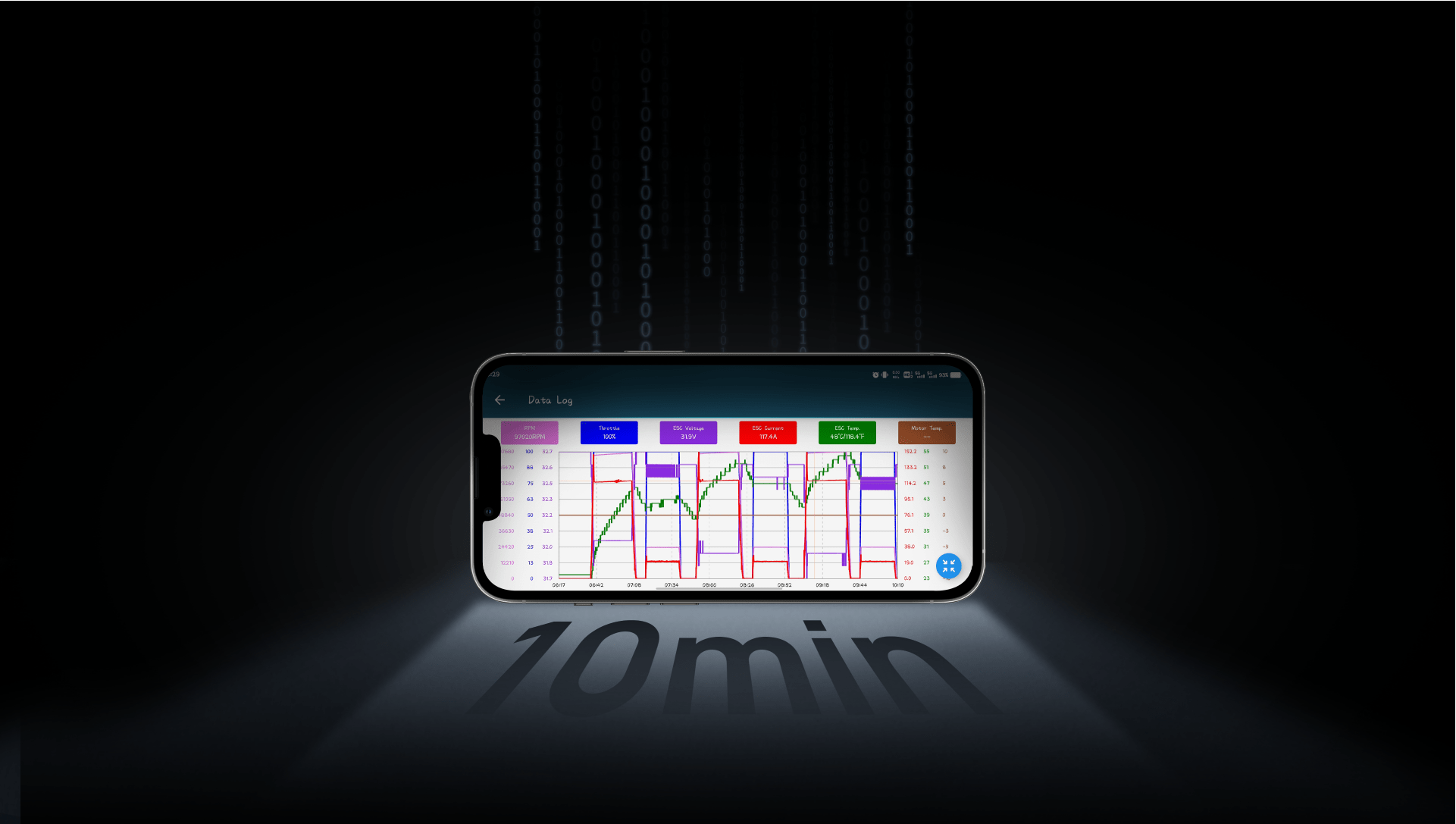

Built-in Data Logging for
Performance Monitoring
  • The ESC features a built-in Bluetooth module,
  • allowing easy connection to a mobile app for parameter settings, data reading,
  • and firmware upgrades, all without the need for additional devices, making it incredibly user-friendly.
IP67 Fully Waterproof Design
  • With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities.
  • It can be used immediately without any additional waterproofing treatment.
Splash protect
waterproof
dustproof
Note: The IP67 rating ensures protection against splashes, water, and dust under
normal use. It has been tested under controlled lab conditions according to GB/T
4208-2017 (domestic) and IEC 60529 (international) standards. However, the
protection is not permanent and may decrease with wear and aging.
Super Built-in BEC
Maximum
continuous current
8A
Maximum
instantaneous current
25A
The output voltages are switchable between
6.0V / 7.4V / 8.4V
  • Which can easily drive various powerful
  • servos and high-voltage servos.
Dual-Channel Water Cooling
for Lower Temperature
This ESC features a dual-channel
water cooling system
Providing enhanced
heat dissipation
Ensuring the ESC remains within
a safe temperature range during use
Sleek Design for
，Easier Installation
  • The SeaKing 160A V4 ESC features a sleek, elongated design
  • that is 15% narrower (7mm slimmer) than its
  • predecessor, the SEAKING 180A V3. This streamlined profile
  • enhances installation convenience, particularly in boats with
  • limited space, offering greater adaptability for
  • professional and recreational applications.
Capacitor
Overheating
Protection
  • The capacitor overheating protection helps
  • prevent damage to the ESC caused by capacitor
  • failure due to overloading, safeguarding the unit
  • against complete failure.
Freewheeling Function
When enabled the
Freewheeling function
ESC temperature is

cooler
When the throttle is released
the boat decelerates
faster
Cornering control
and handling
BETTER
When Freewheeling function is enabled, the boat decelerates faster when the throttle is released
When Freewheeling function is disabled, the boat decelerates slower when the throttle is released
AUX External Control
Channel for Real-time
Parameter Adjustment
  • By connecting the yellow signal wire to an unused receiver channel,
  • you can adjust ESC parameters (like reverse thrust) in real-time using the remote control,
  • adding convenience to parameter management.
Swipe left to view all

Note:The actual function of the yellow wire corresponds to the AUX CH Function settings in the parameter table.

Optimized Programmable Parameter
  • With 11 programmable parameters, the ESC is designed to meet competitive racing needs, offering a wider and more detailed range of settings.
Swipe left to view all
Product NameSeaking 160A V4
Product Number
  •
  • 30206200
Type
  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • BL
  • SL
  • Waterproof
Specifications
  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • 160A/800A
  • 3-8S Lipo
  • Switch mode 6V/7.4V/8.4V @8A
Wires & Connectors
  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Red-10AWG-160mm*1,Black-10AWG-160mm*1
  • Black-12AWG-150mm*3
  • No
  • 6.5mm Gold female plug
ESC Programing via
  • LED Program Box
  • LCD G2 Program Box
  • LCD PRO
  • OTA Programmer
  • Program Port
  • Not Supported
  • Not Supported
  • Not Supported
  • Not Supported
  • Built-in Bluetooth
Data Recording
  • Extreme value
  • Real-time Data
  • Historical data (Graph)
  • Supported
  • Supported
  • Supported
Firmware
  • Firmware Upgrade
  • Supported
Size & Weight
  • Size
  • Weight
  • 91*41*25.5mm
  • 220g(Including wire and output plug)
Applications
  • Boat Applicable
  • ≤120CM
Support

Manuals & Documents

Manuals

Software Download

FAQ
