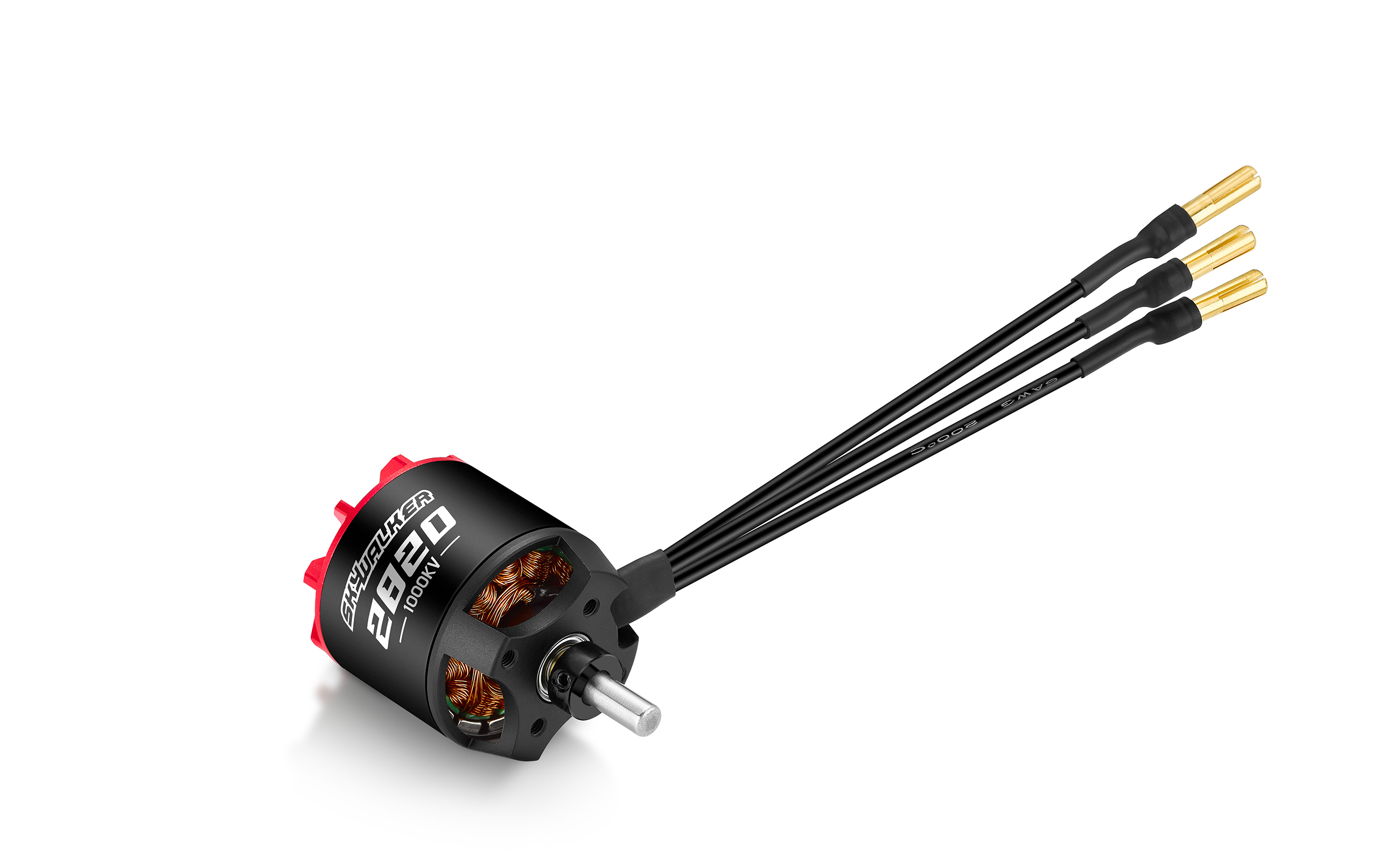

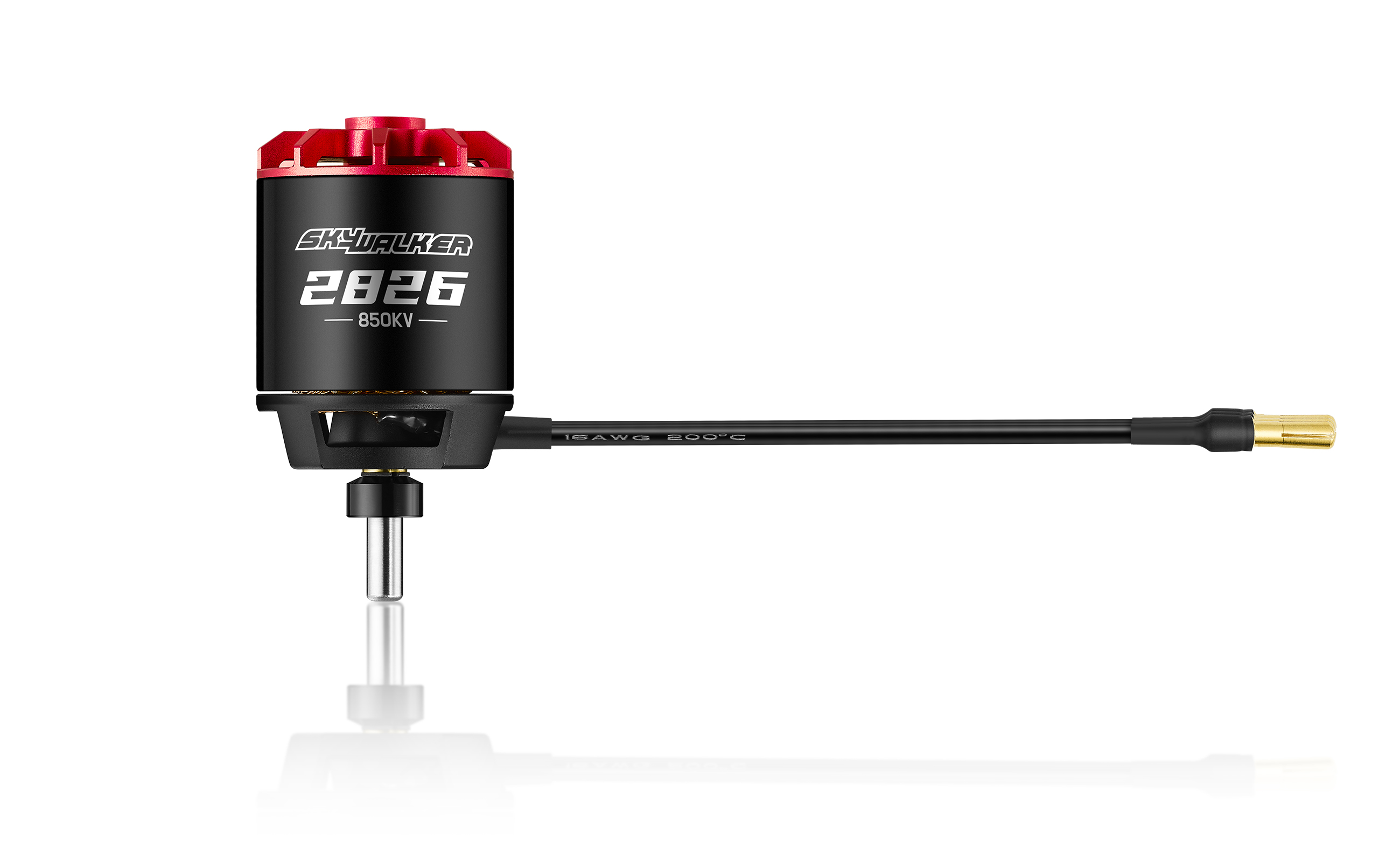

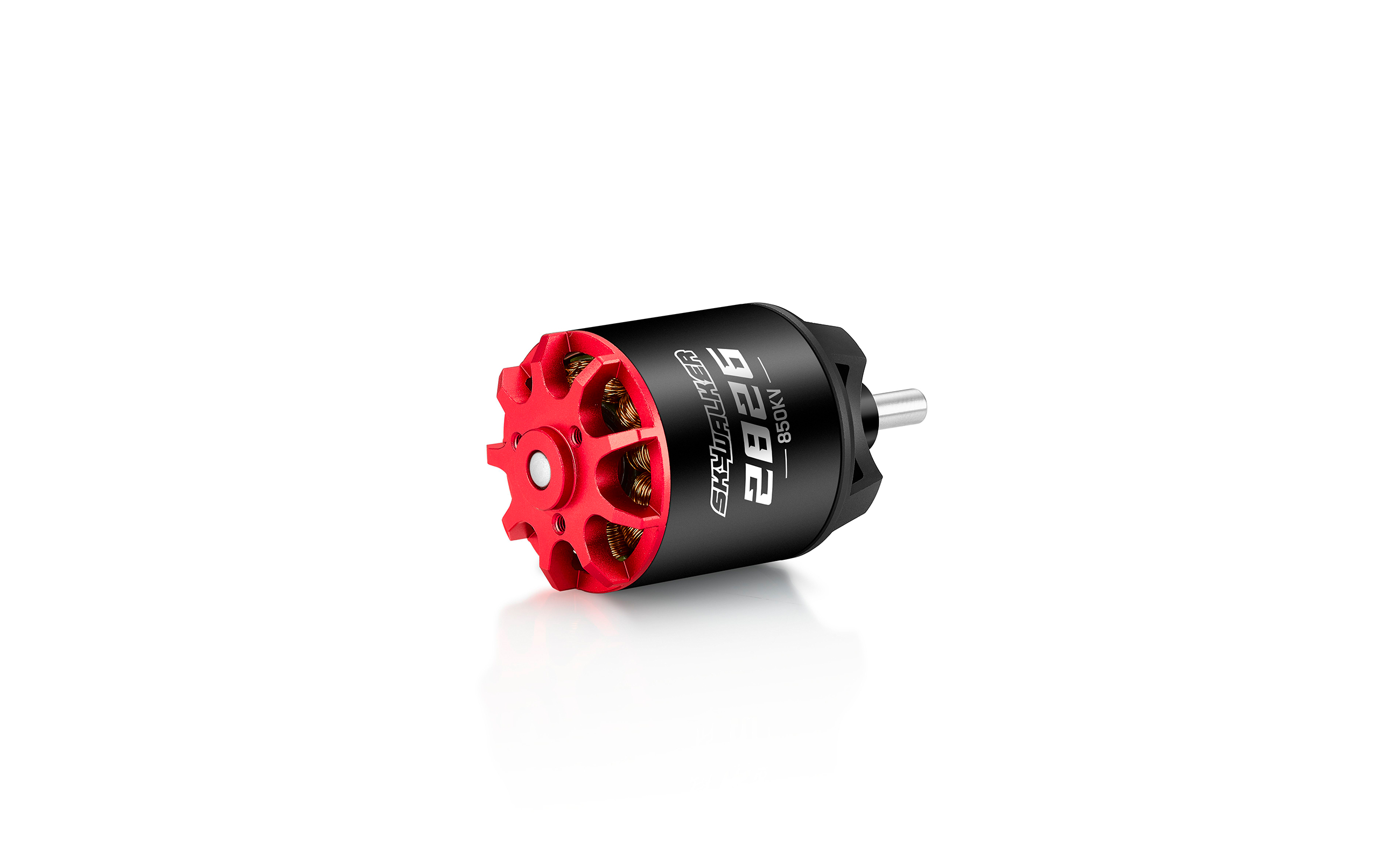

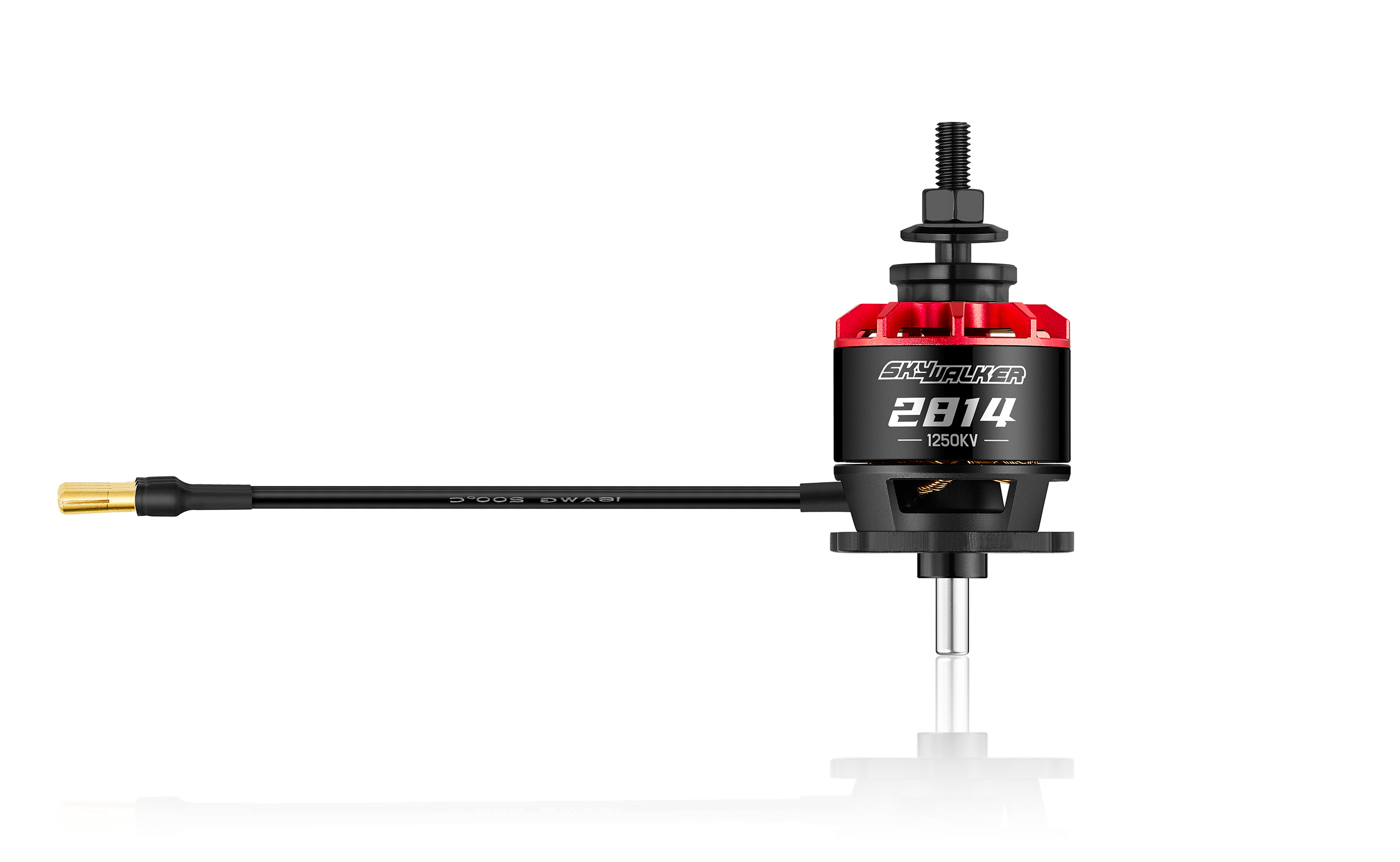

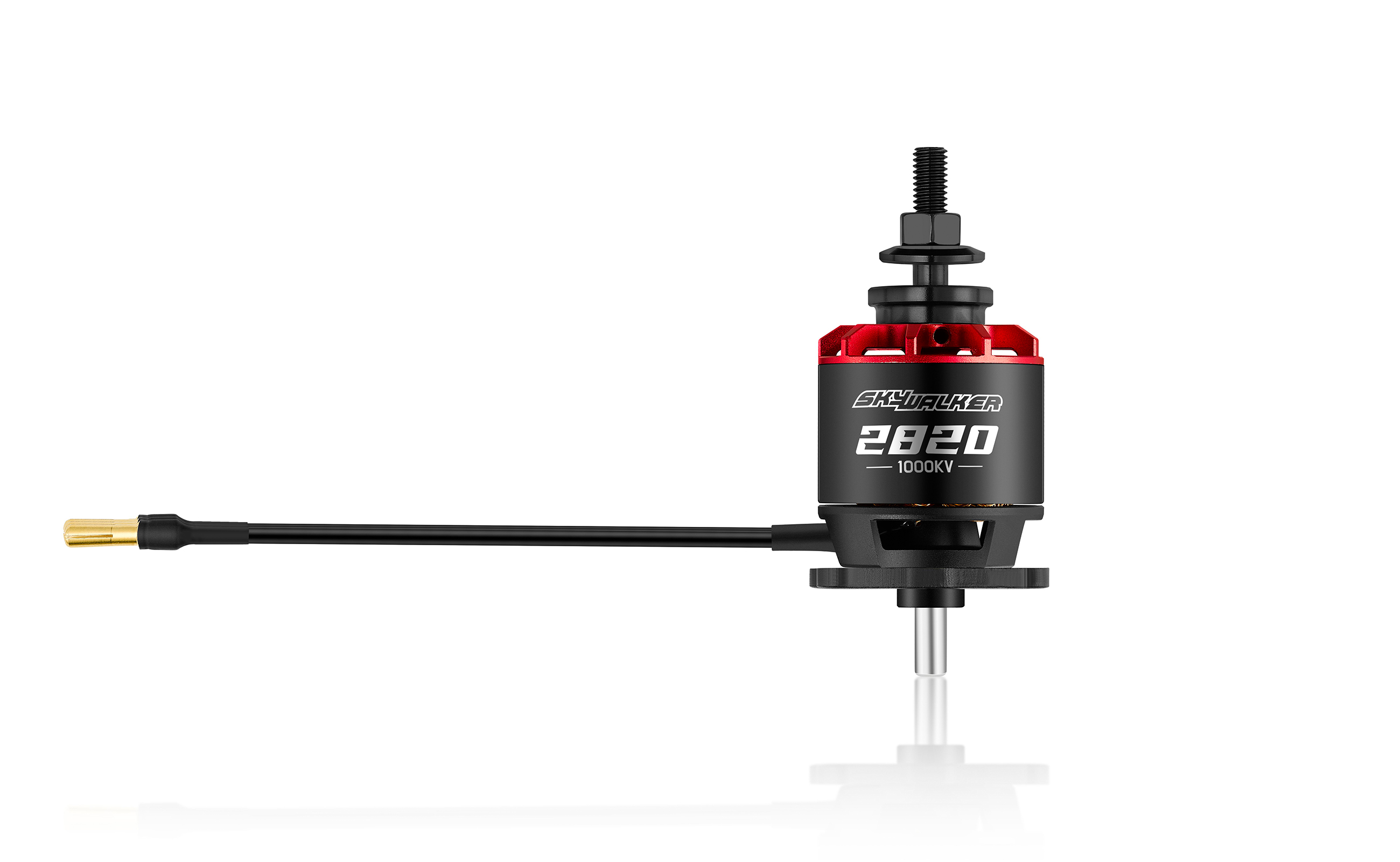

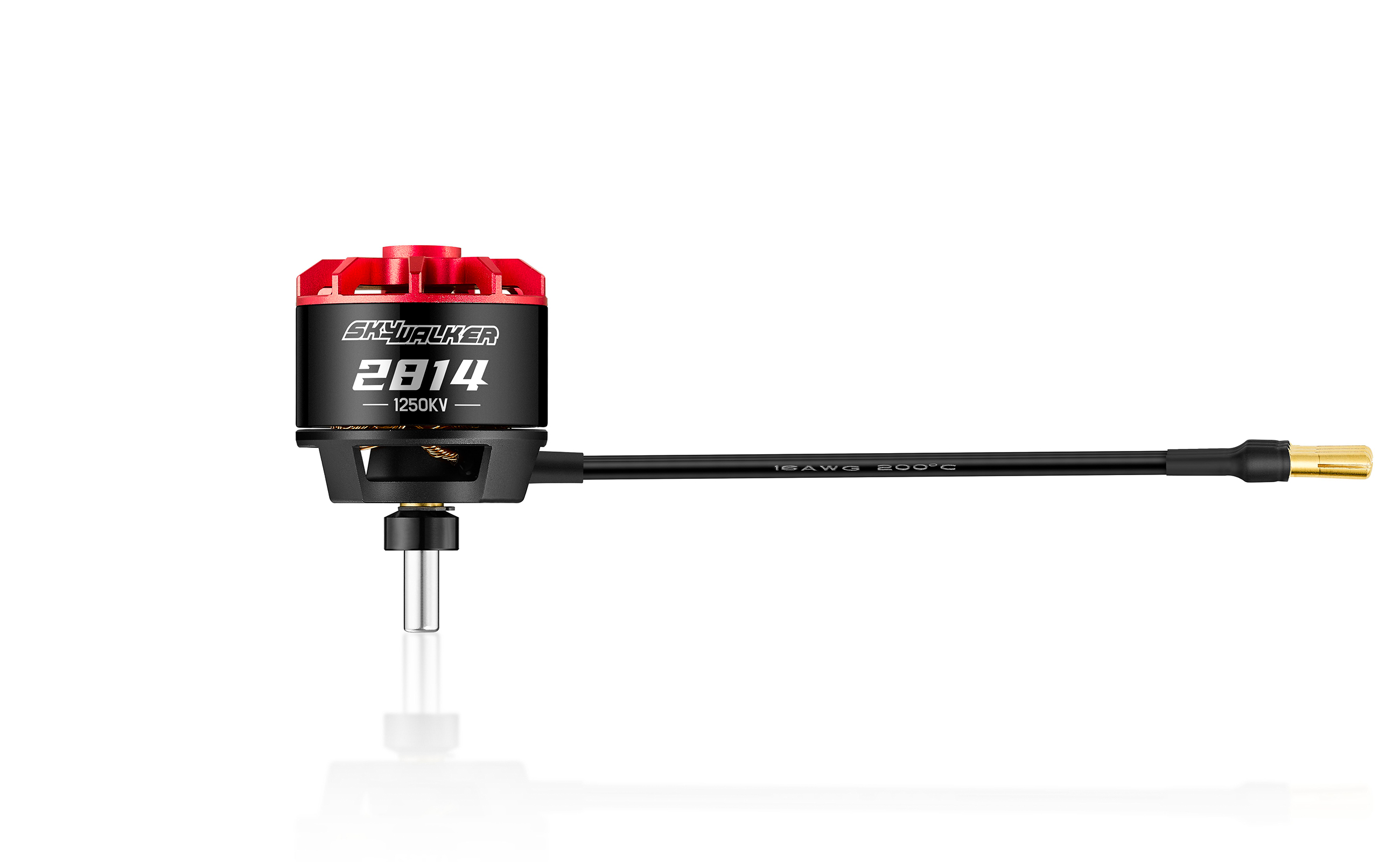

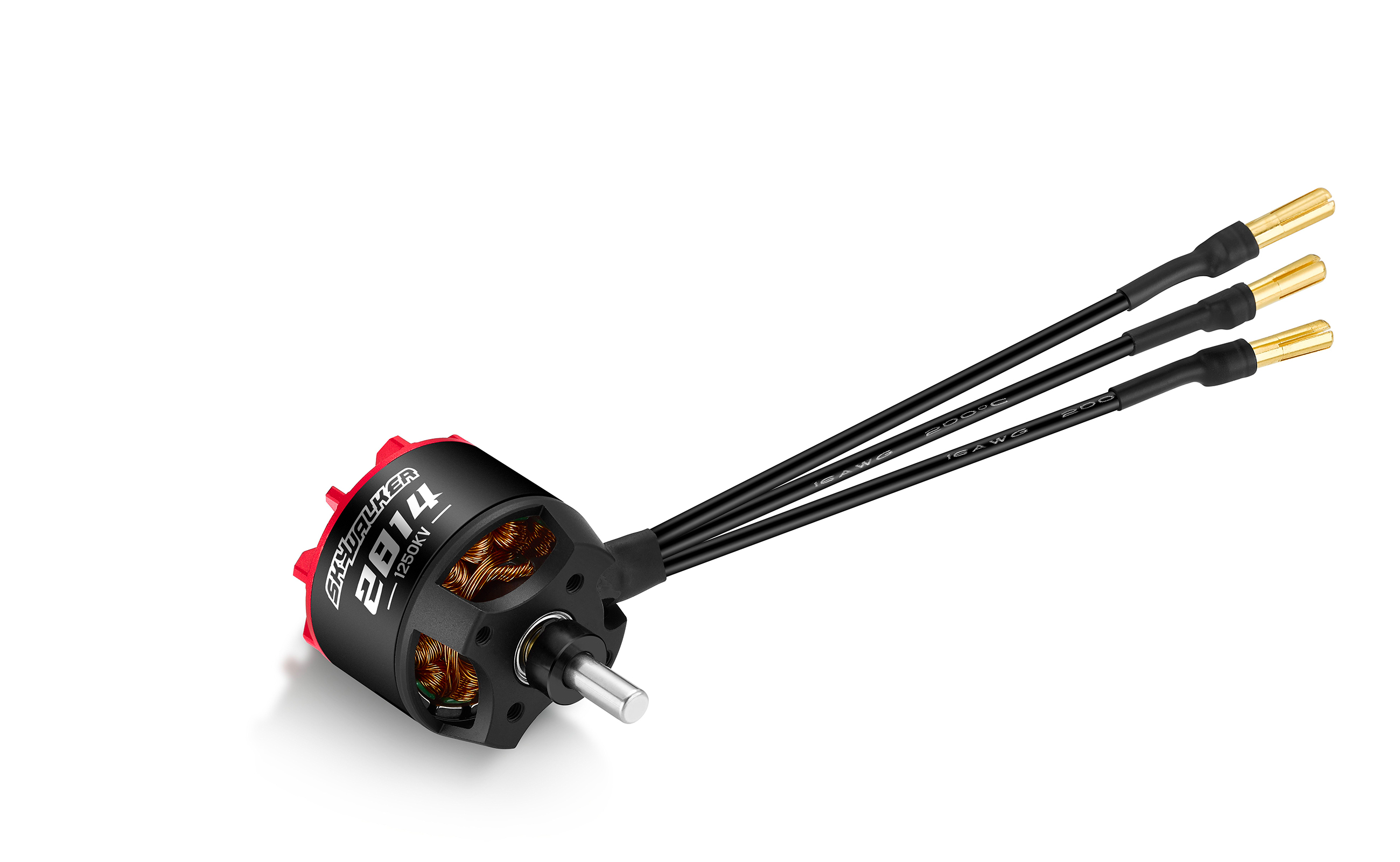

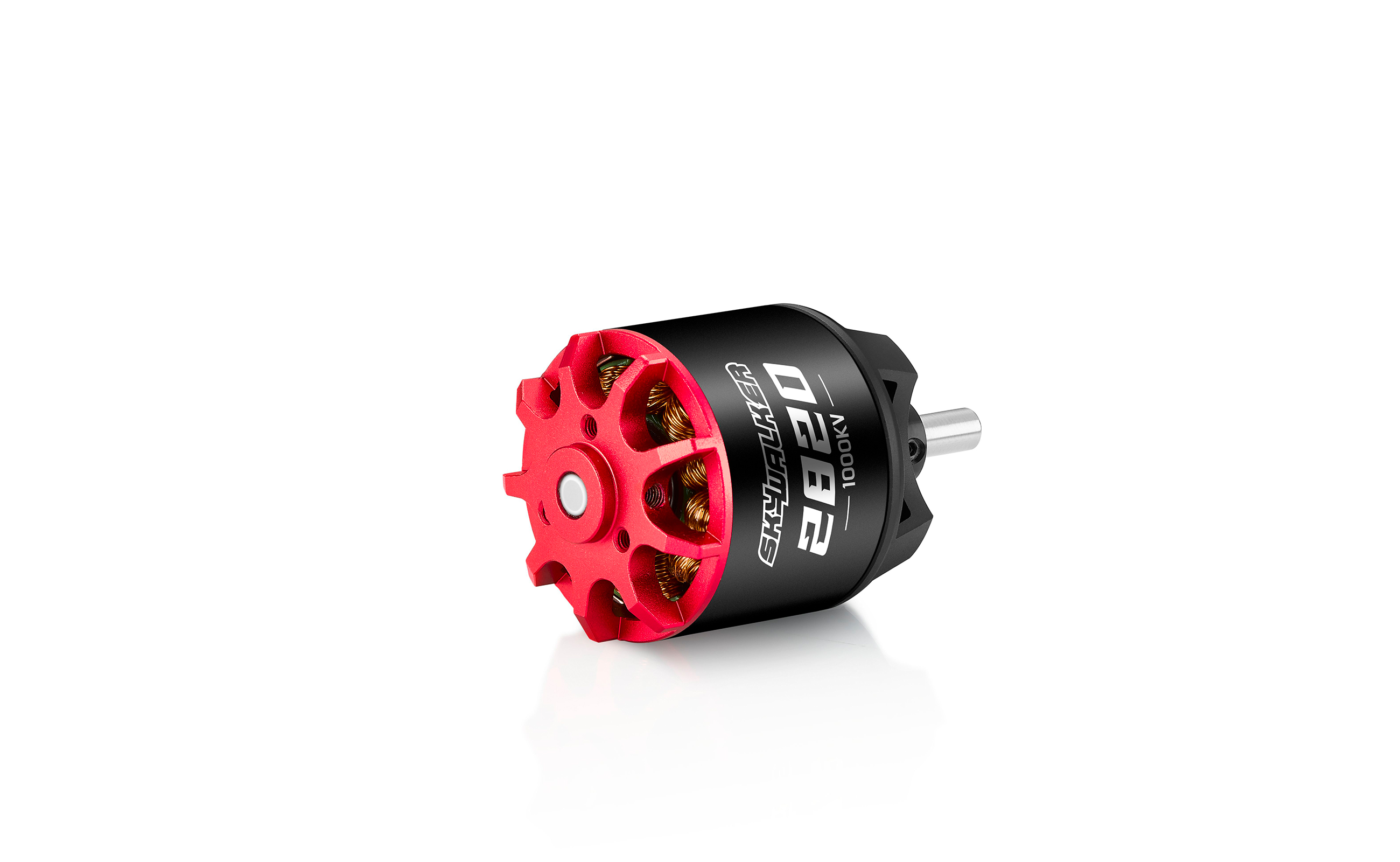

SkyWalker 2814 2820 2826
SkyWalker 2814 2820 2826
LOAD PERFORMANCE PARAMETERS
Big power for a wide
range of applications
The newly designed
2814, 2820, and 2826 fixed wing motors have a
maximum pulling force of
4785g (22.2V, 14x6E paddles, 2826 540KV),
Suitable for 800-2300g 3D fixed wings,
gliders, sport fixed wings, etc...
Suitable for many applications.
The large open design, combined with
the self-cooling structure of the top cover
enhances the cooling capacity of
the motor and prolongs the lifespan of the motor.
Higher dynamic balance
Adopts an excellent production and assembly dynamic
balance technology with high-quality bearing and high-precision CNC machining,
it provides an extremely low dynamic balance of
the rotor to reduce motor vibration and provide smoother operation.
Anti-loosening
rotor design
After installing the copper pad and retainer
spring on the core of the rotor shalf,
the bushing and set screw help secure the rotor
and improving the reliability of the motor
Bushing

Premium Materials

Top branded JNEH1200
silicon steel sheet,
0.2mm thick material,
provides lower iron loss.

N48 strong magnetic arc
magnetic steel design
provides maximum torque
output for the motor.

180℃ high temperature
resistant enameled wire,
enhances the high
temperature
resistance of the stator coil.

Silicone wire outlet,
which is softer and easier
to route than the traditional
straight outlet silicone wire.

Standard components


Product Name
Product Number
Relevant Parameters Rated Voltage(LiPo)

KV Rating

No-load Current

Resistance

Number of slot poles

Maximum continuous current

Maximum continuous power
Specification and weight Motor Size

Motor Weight

Shaft Diameter

Bearing model

Phase cable

Cable length
Matching and installation Recommend ESC

propeller



Paddle mounting hole dimensions

Motor mounting hole dimensions
Product Name Skywalker 2814 SL 1000KV Skywalker 2814 SL 1250KV Skywalker 2814 SL 1400KV Skywalker 2820 SL 550KV Skywalker 2820 SL 1000KV Skywalker 2820 SL 1250KV Skywalker 2826 SL 540KV Skywalker 2826 SL 850KV Skywalker 2826 SL 1100KV
Product Number 30415150 30415151 30415152 30415200 30415201 30415202 30415250 30415251 30415252
Relevant Parameters Rated Voltage(LiPo)

KV Rating

No-load Current

Resistance

Number of slot poles

Maximum continuous current

Maximum continuous power
3-4S LIPO

1000KV

2A/14.8V

29mΩ

12N14P

55.2A/43s

815.8W/43s
3-4S LIPO

1250KV

2.98A/14.8V

19.7mΩ

12N14P

75.1A/35s

1111.5W/35s
3-4S LIPO

1400KV

3.3A/14.8V

16.8mΩ

12N14P

77.5A/44s

1148.6W/44s
6S LIPO

550KV

1.38A/22.2V

60.8mΩ

12N14P

40.9A/46s

910.2W/46s
3-4S LIPO

1000KV

2.65A/14.8V

21.4mΩ

12N14P

77A/46s

1139.7W/46s
3-4S LIPO

1250KV

3.7A/14.8V

14.8mΩ

12N14P

81.8A/1min49s

1110.7W//4min3s
6S LIPO

540KV

1.58A/22.2V

43.9mΩ

12N14P

49.7A/1min

1106.5W/1min
3-4S LIPO

850KV

2.55A/14.8V

20.5mΩ

12N14P

69A/2min11s

1006.5W/1min49s
3-4S LIPO

1100KV

3.7A/14.8V

14.08mΩ

12N14P

82.4A/2min15s

1218.9W/2min15s
Specification and weight Motor Size

Motor Weight

Shaft Diameter

Bearing model

Phase cable

Cable length
Φ35.1 *54mm

115g

5mm

685ZZ(D11*d5*5)

16AWG

110mm
Φ35.1 *54mm

114g

5mm

685ZZ(D11*d5*5)

16AWG

110mm
Φ35.1 *54mm

115g

5mm

685ZZ(D11*d5*5)

16AWG

110mm
Φ35.1 *60mm

144.5g

5mm

685ZZ(D11*d5*5)

16AWG

110mm
Φ35.1 *60mm

145g

5mm

685ZZ(D11*d5*5)

16AWG

110mm
Φ35.1 *60mm

145.5g

5mm

685ZZ(D11*d5*5)

16AWG

110mm
Φ35.1 *66mm

175.5g

5mm

685ZZ(D11*d5*5)

16AWG

110mm
Φ35.1 *66mm

176.2g

5mm

685ZZ(D11*d5*5)

16AWG

110mm
Φ35.1 *66mm

175.8g

5mm

685ZZ(D11*d5*5)

16AWG

110mm
Matching and installation Recommend ESC

propeller



Paddle mounting hole dimensions

Motor mounting hole dimensions
Skywalker 80A

4S:10X5E,10X6E,11X5.5E

3S: 12X6E,13X6.5E

Φ15mm-3*M2.5

Φ19mm-2*M3/Φ25mm-2*M3
Skywalker 80A

4S:8x6E,9x4.5E,10X5E

3S:10x5E,10x6E,11X5.5E

Φ15mm-3*M2.5

Φ19mm-2*M3/Φ25mm-2*M3
Skywalker 80A

4S:8x4E,8x6E,9X4.5E

3S:10x5E,10x6E,11X5.5E

Φ15mm-3*M2.5

Φ19mm-2*M3/Φ25mm-2*M3
Skywalker 80A

6S:10x5E,12x6E,13x6.5E



Φ15mm-3*M2.5

Φ19mm-2*M3/Φ25mm-2*M3
Skywalker 80A

4S:10x5E,11x5.5E,12x6E

3S:12x6E,13x6.5E,14x6

Φ15mm-3*M2.5

Φ19mm-2*M3/Φ25mm-2*M3
Skywalker 80A

4S:9x4.5E,10x5E

3S:10x6E,11x5.5E,12x6

Φ15mm-3*M2.5

Φ19mm-2*M3/Φ25mm-2*M3
Skywalker 80A

6S:12x6E,13x6.5E,14X6



Φ15mm-3*M2.5

Φ19mm-2*M3/Φ25mm-2*M3
SSkywalker 80A

4S:12x6E,13x6.5E

3S:14x6E,15x6E,15x8E

Φ15mm-3*M2.5

Φ19mm-2*M3/Φ25mm-2*M3
Skywalker 80A

4S:10x5E,11x5.5E

3S:11x5.5E,12x6E,13x6.5E

Φ15mm-3*M2.5

Φ19mm-2*M3/Φ25mm-2*M3
