Excellent quality
great text compatibility

High performance 32-bit ARM M4 master chip,
with an operating frequency of up to 120 MHz,
and up to 300000 rpm (2-pole motor).
Great flexibility for a 60-67 "3D fixed wing motor.
Explosive power, rapid response!

DEO Technology / Active Freewheeling

Flexibility
During flight
Lower ESC
temperatures
Longer
flight time

The DEO technology (Driving Efficiency Optimization)
implemented in the ESC has multiple advantages.
Fast and smooth throttle response, better stability and flexibility during flight.
Higher driving efficiency, longer flight times.
Lower ESC temperature, more reliable operation.
( For 3D extreme flying, it is recommended to turn off this function)

Reverse Brake

With Reverse Brake and Linear Reverse Brakes mode enabled
can effectively shorten the landing distance
of the aircraft to simulate the landing of a real aircraft.
Normal Brake Mode and Brake Disabled mode are also available;
the brake amount is adjustable in normal brake mode.
(This is HOBBYWING's registered patented)

Search Mode

Search mode can help users find their aircraft by
pulsing the motor to beep after the aircraft falls into
a visually obstructed environment and is difficult to find.
This mode can also be used to prompt the user to disconnect
the battery of an ESC that has not been working for a set time to prevent the
battery from running out of power and being damaged.

Programmable Parameters

Programmable with the LED Program Box, or transmitter.
Users can easily program the SKYWALKER V2 to their preference.

Programmable Items

Note: Those values marked with * in the form below are the factory default settings.

Multiple Protections

Multiple protection features include abnormal input voltage,
ESC thermal, throttle signal loss (or Fail Safe),
and low voltage cutoff effectively prolongs the life of the ESC

Abnormal
Input voltage
Low voltage
Cutoff
ESC
thermal
Throttle
Signal loss

Product Name
Product Number
Type	Brushed/Brushless High Voltage/Regular
Specifications	Cont./Peak Current Input BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors
ESC Programing via	Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port
Firmware	Firmware Upgrade
Size & Weight	Size Weight

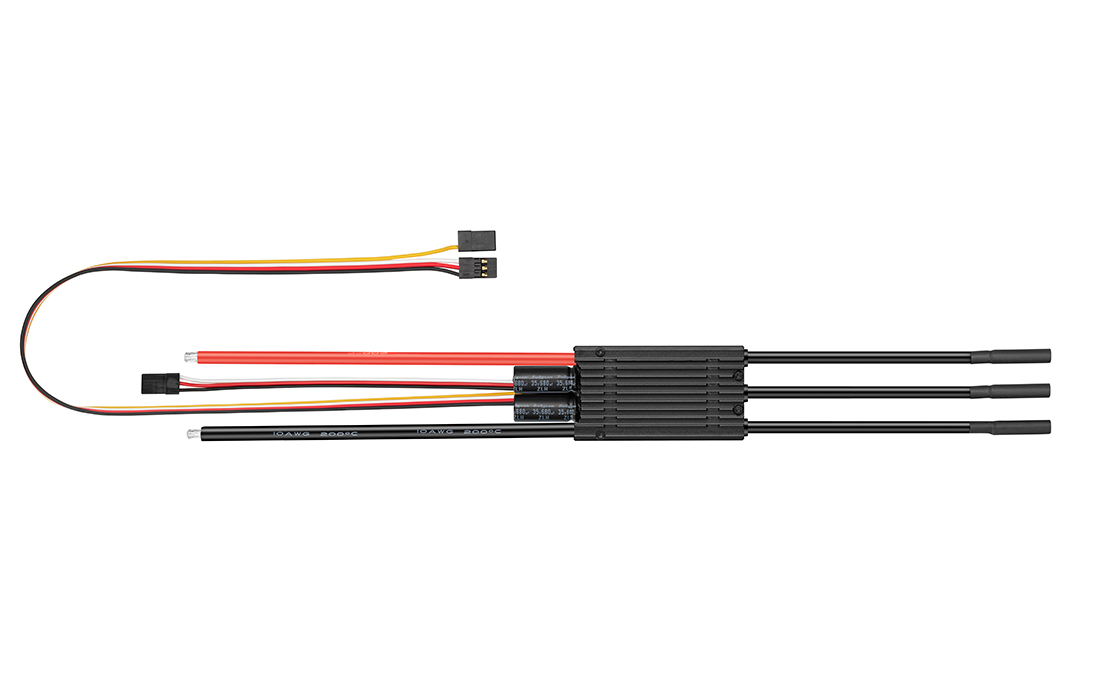

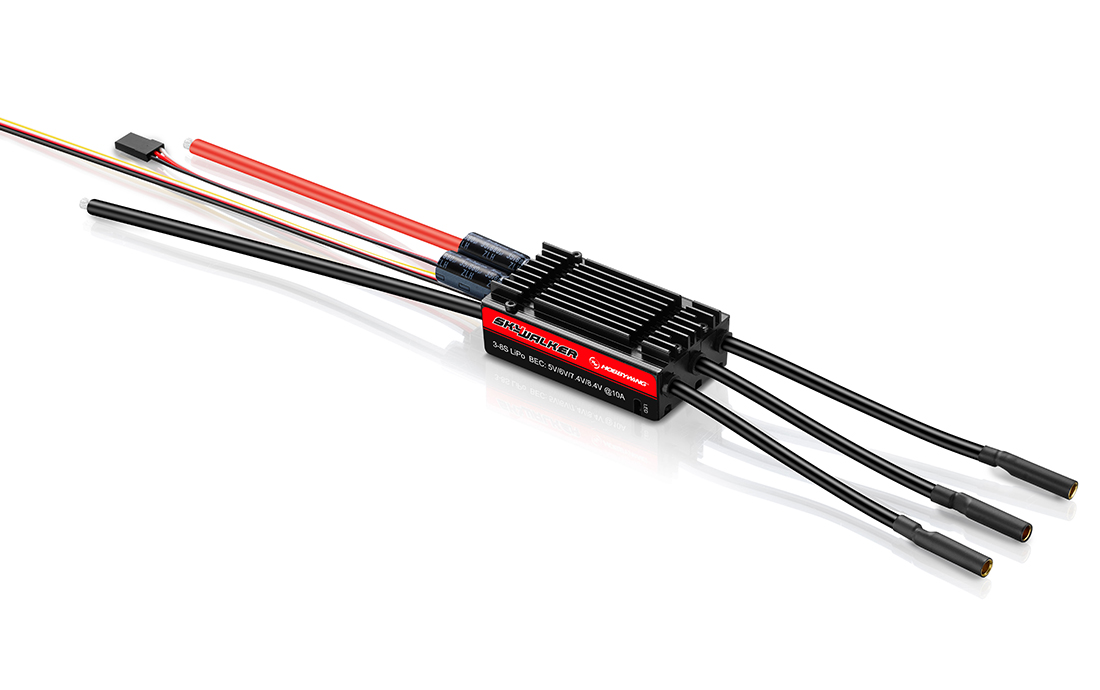

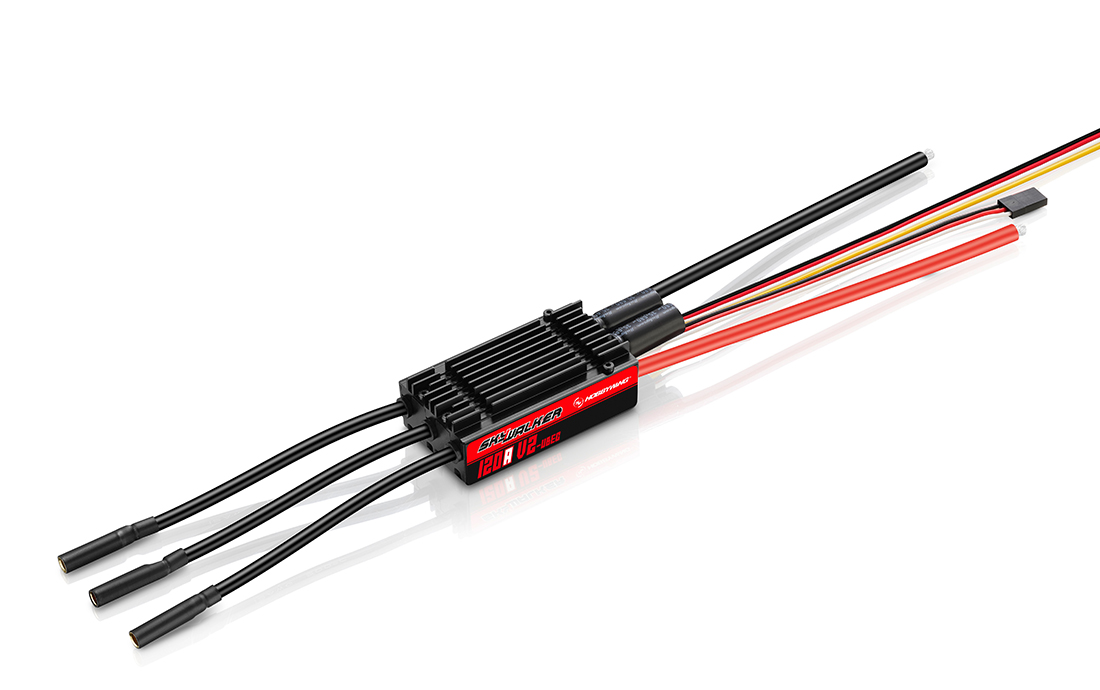

Product Name		Skywalker 120A V2
Product Number		30205450
Type	Brushed/Brushless High Voltage/Regular	BL Regular
Specifications	Cont./Peak Current Input BEC Output	120A/150A 3-8S LiPo Switch Mode:5V/6V/7.4V/8.4V,10A/30A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors	Red-10AWG-150MMx1 Black-10AWG-150MMx1 Black-12AWG-100MMx3 No 4.0 Gold Connectors (Female)
ESC Programing via	Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port	Supported Not Supported Supported Not Supported Not Supported Not Supported Program Wire Firmware
Firmware	Firmware Upgrade	Not Supported
Size & Weight	Size Weight	83x35x22mm 117g
