XeRun Bandit G4R

Overview
Specifications
Support
Accessories
Detail

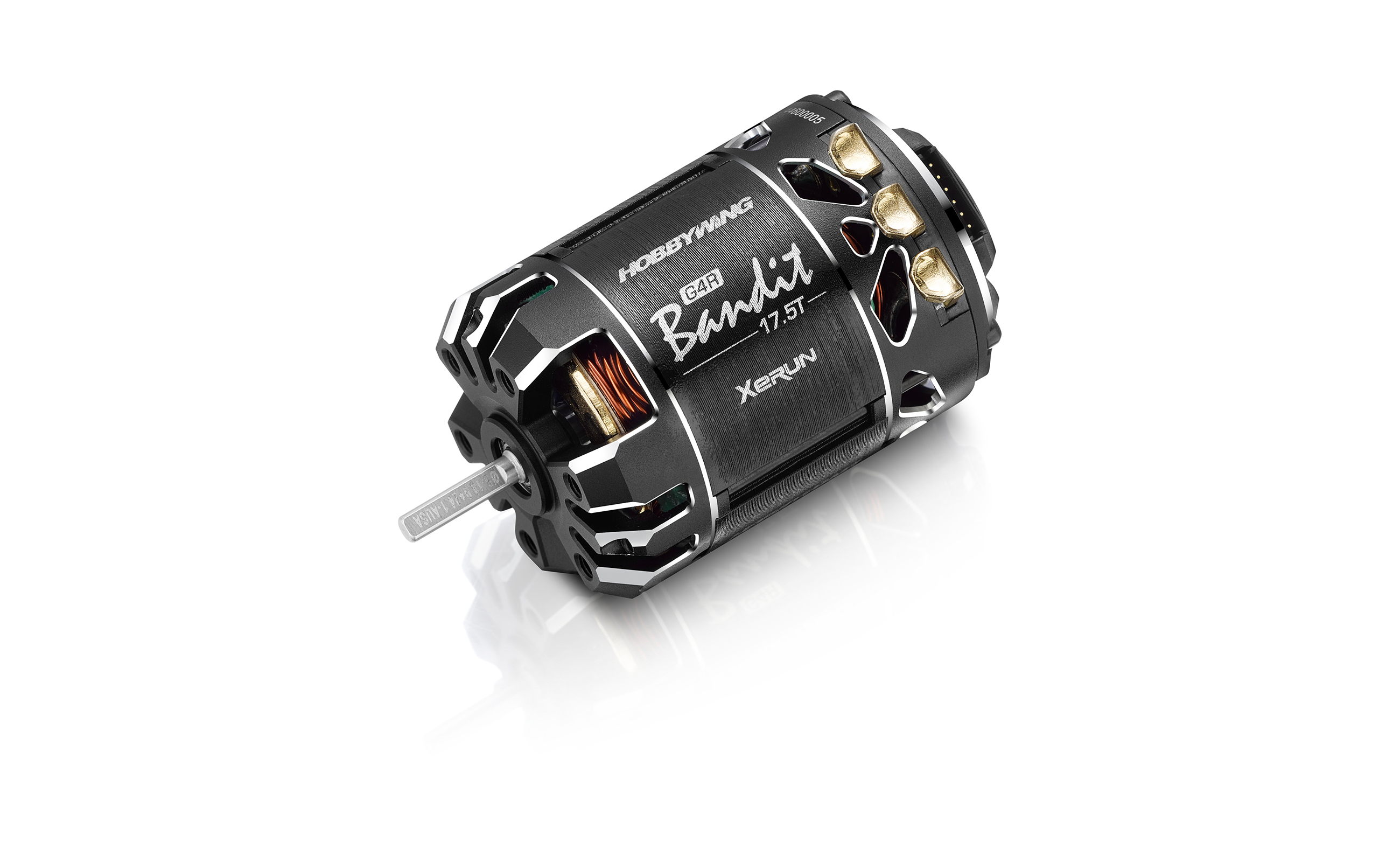

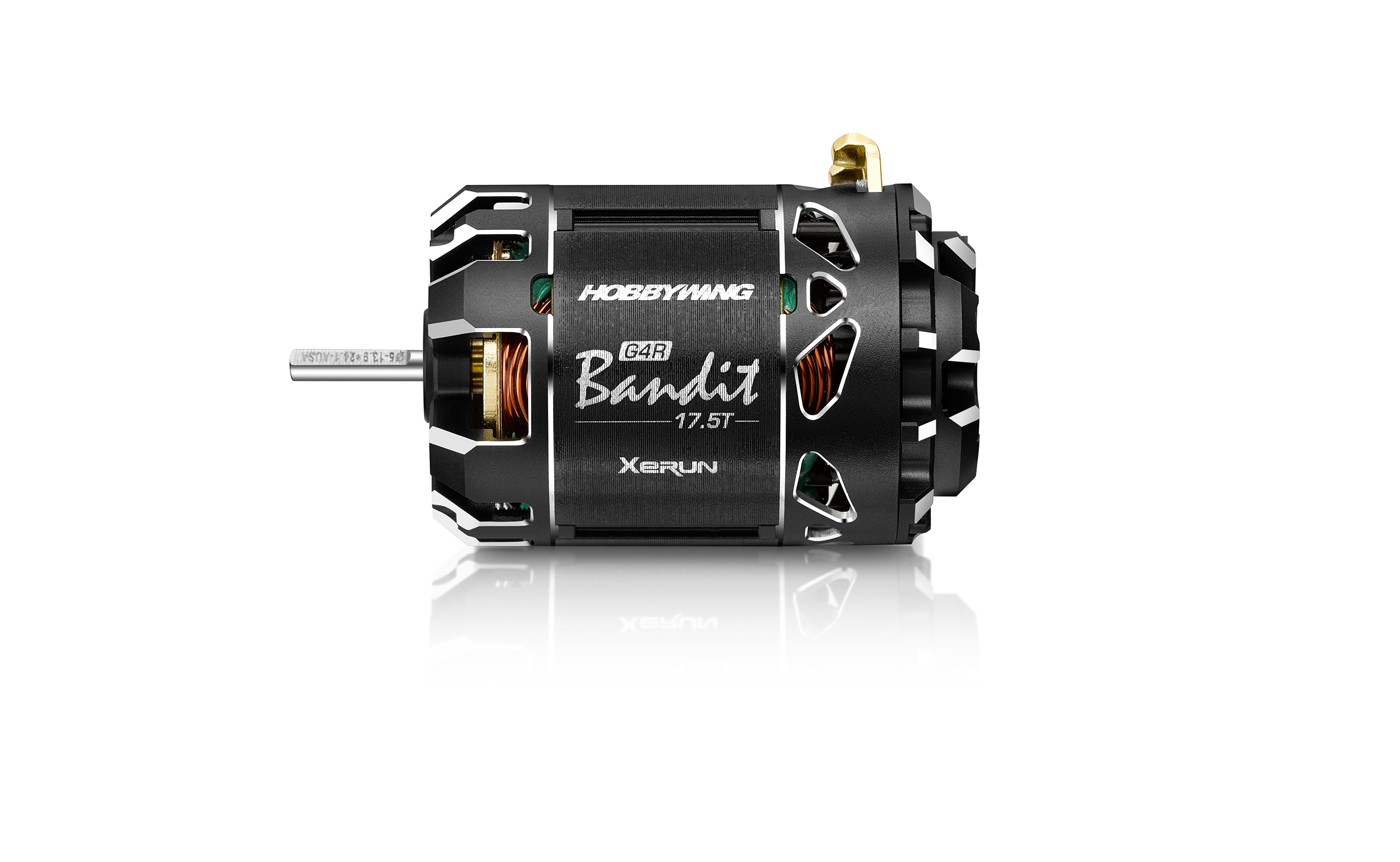

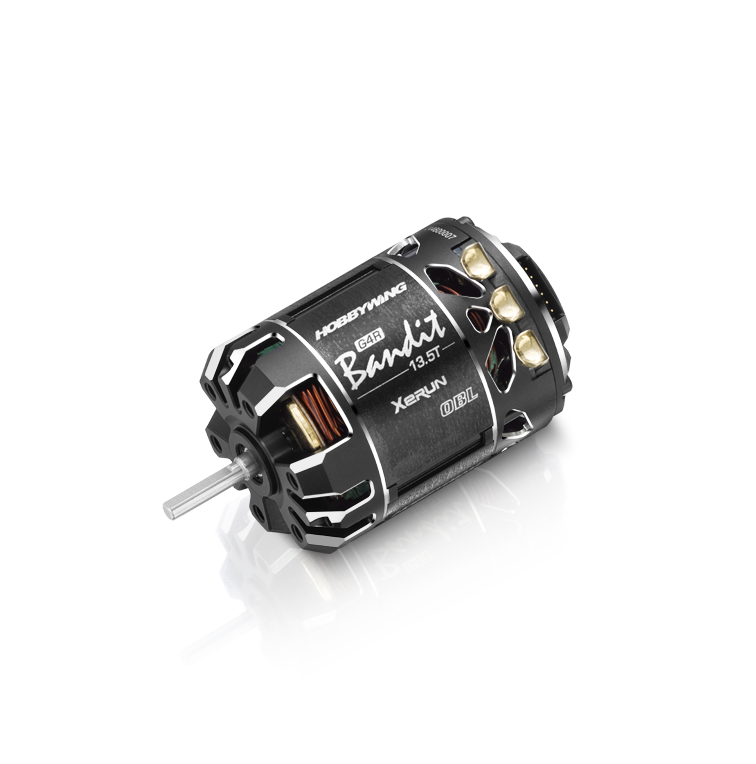

XeRun BanditG4R

13.5T (Torque / OBL) & 17.5T

Designed to Dominate:
The Perfect Choice for
1/10th Scale Outlaw Competition

1/10th Outlaw
Ultra-large output power

Built with precision and tailored to meet Outlaw competition regulations.

Ultra-large output power and exceptionally low internal resistance.

Lower temperature rises,
safer performance

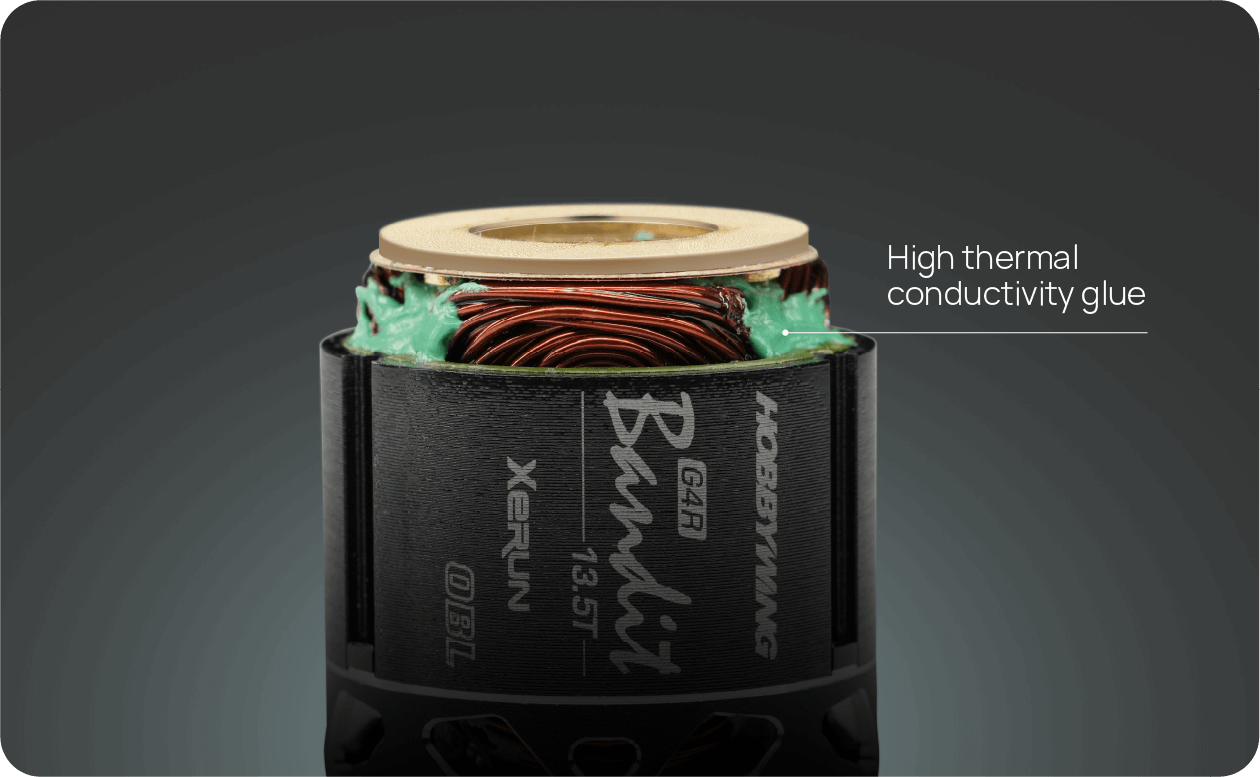

Using high thermal conductivity glue to fill gaps in
the stator coil, it ensures optimal heat dissipation
and enhances overall reliability.

The Bandit G4R takes motor efficiency to the next level
with cutting-edge thermal management technology.
In the same input power, the Bandit G4R is
about 15°C cooler than the G4 motor.

Adjustable timing for maximum power

The Bandit G4R motor features an adjustable
mechanical timing angle ranging from 20 to 60 degrees,
providing unmatched versatility and performance.

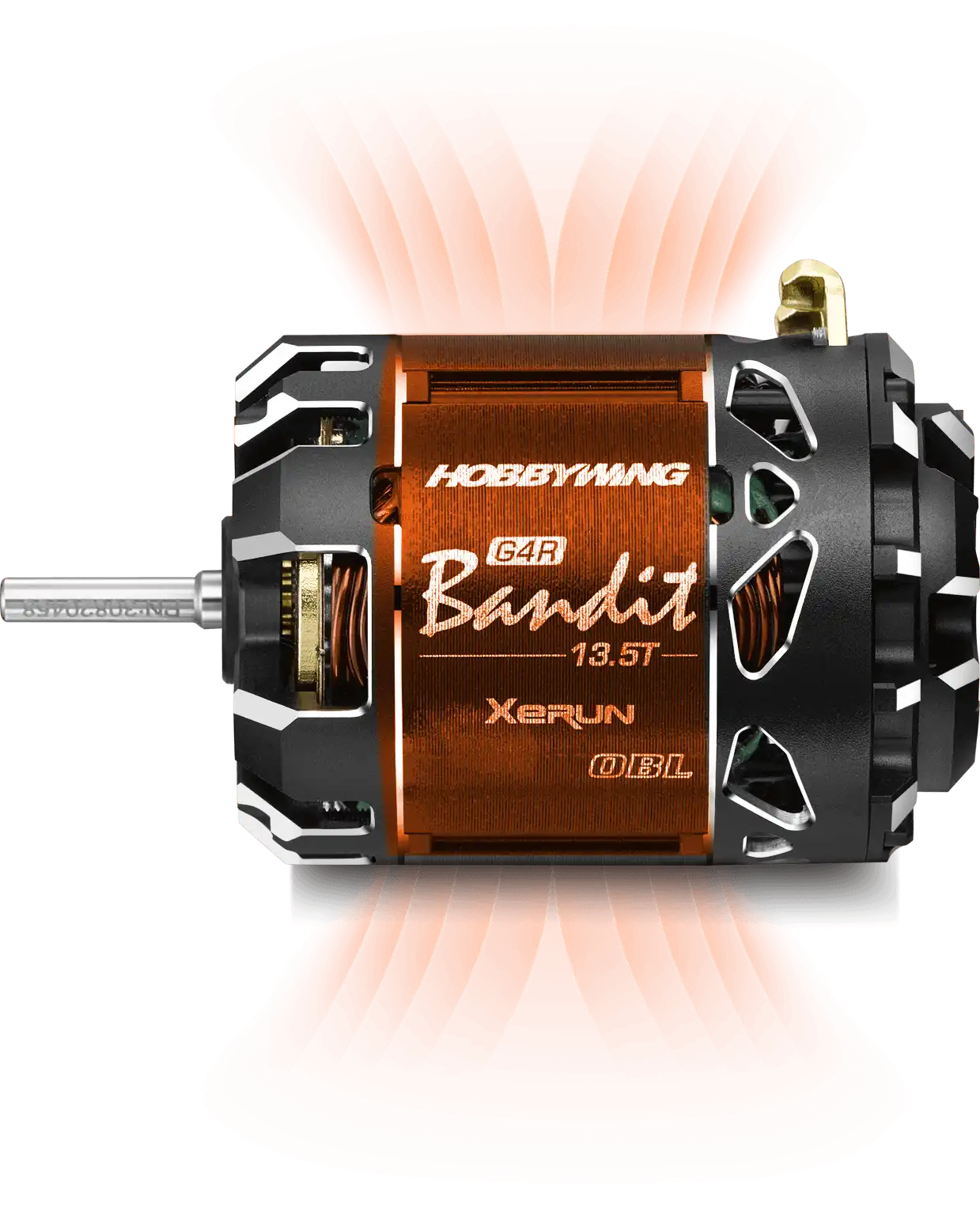

Efficient heat dissipation: The Bandit G4R motor features a fully; exposed stator core outer diameter; structure, setting a new benchmark for thermal; efficiency. By directly exposing the stator core to; air, the design optimizes the outer diameter and; maximizes the heat dissipation area.

13.5T dual version options

The Bandit G4R 13.5T motor is available in two specialized versions Torque and OBL.
Designed to meet diverse competitive needs with precision and power.

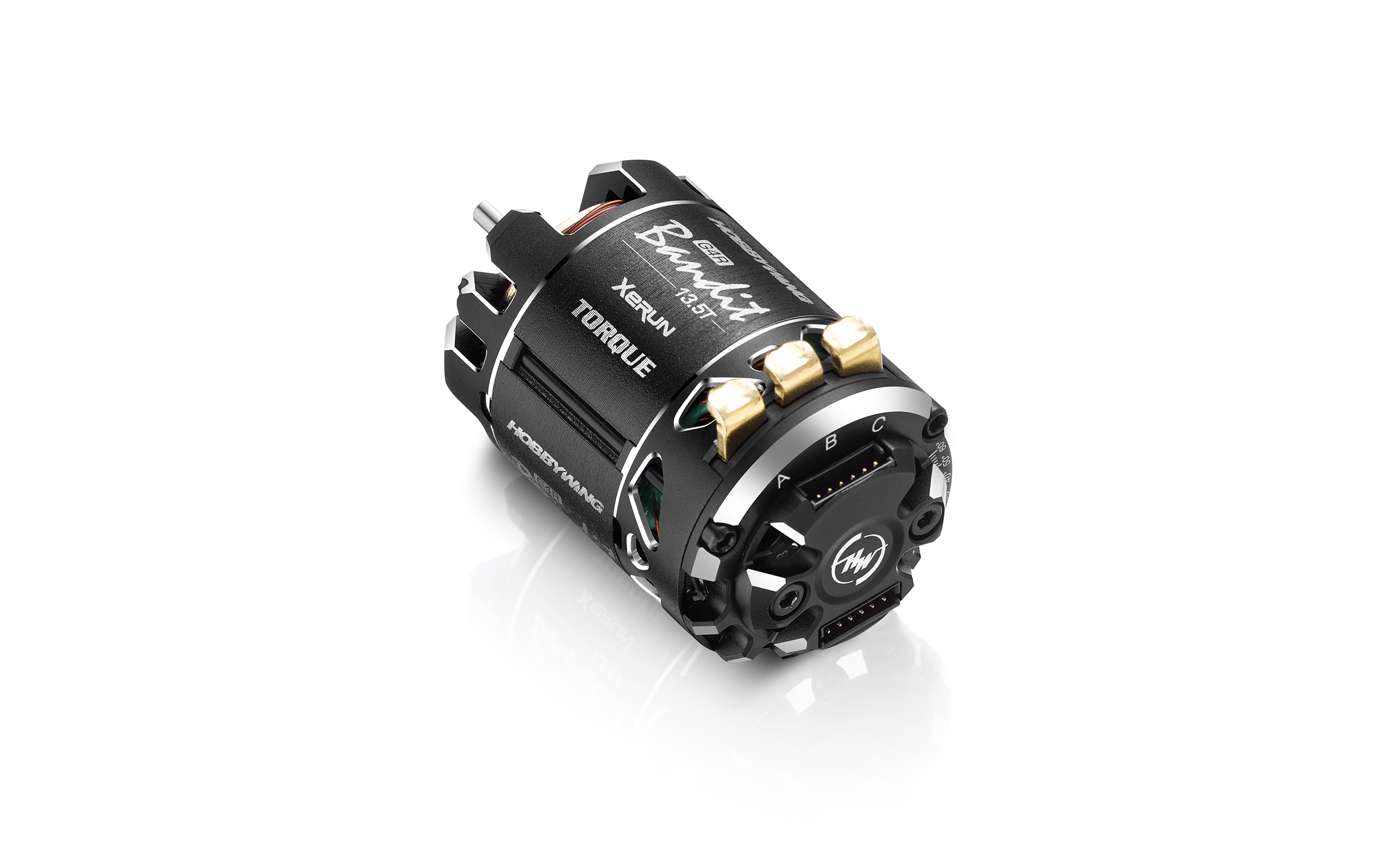

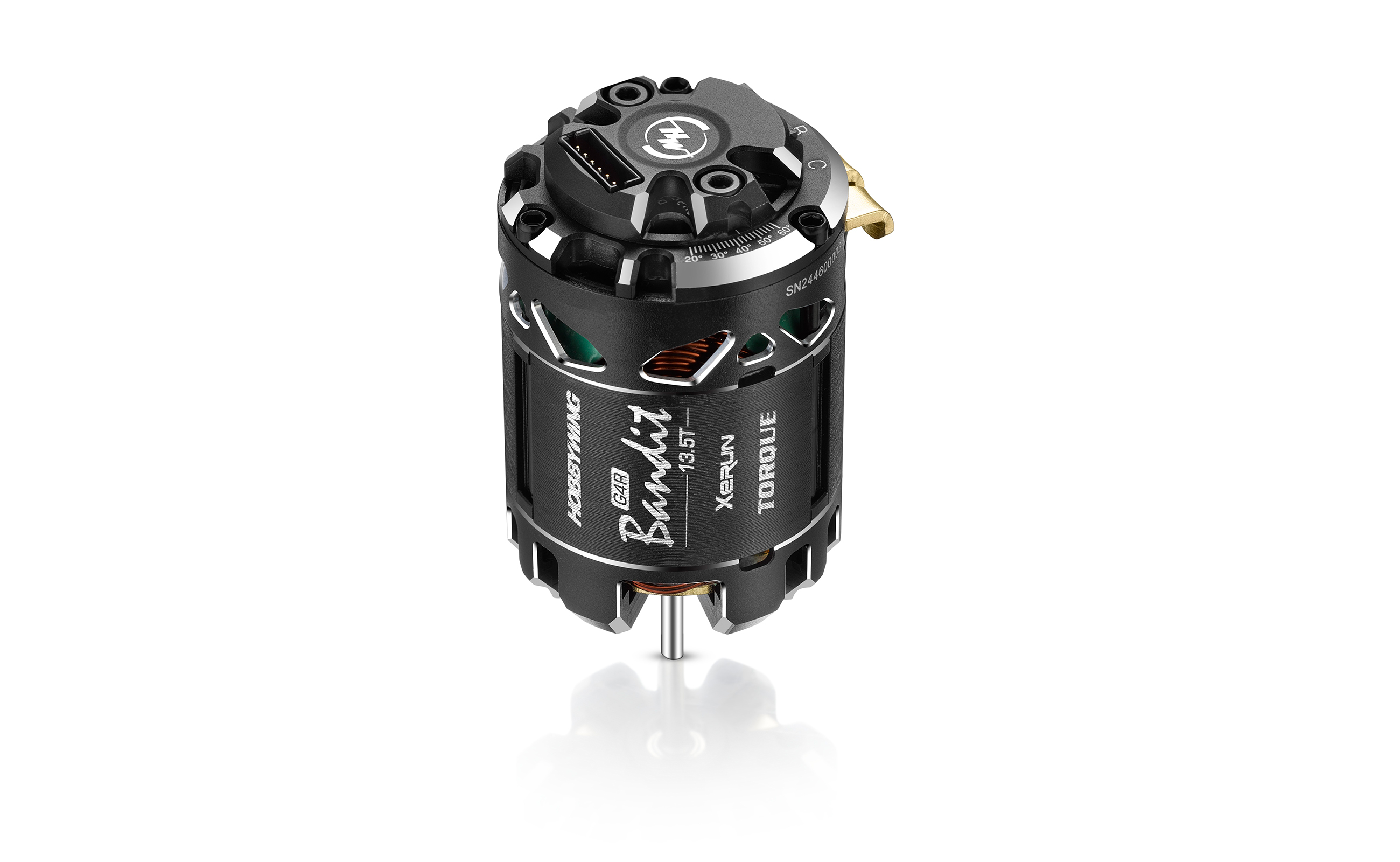

Torque

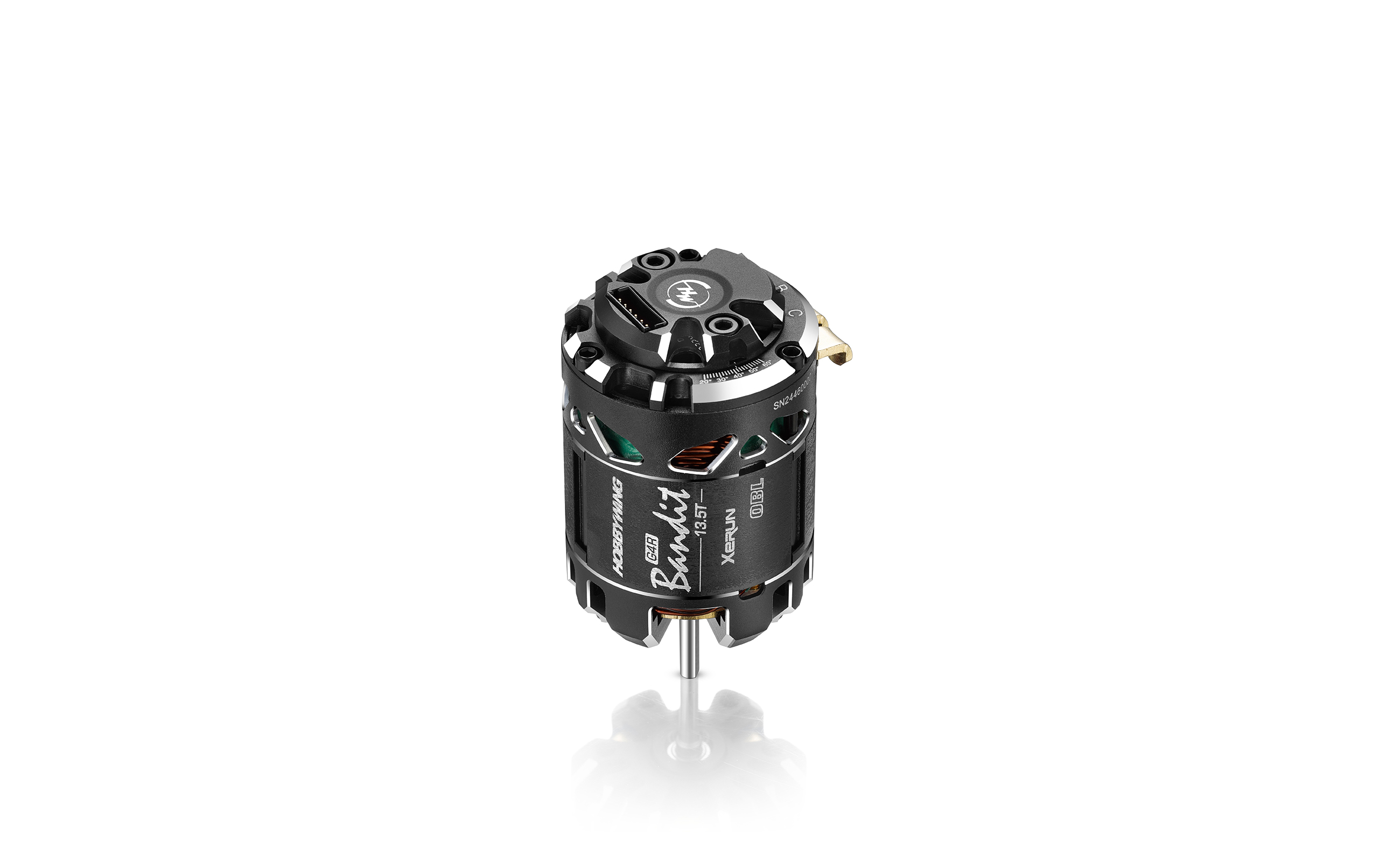

OBL

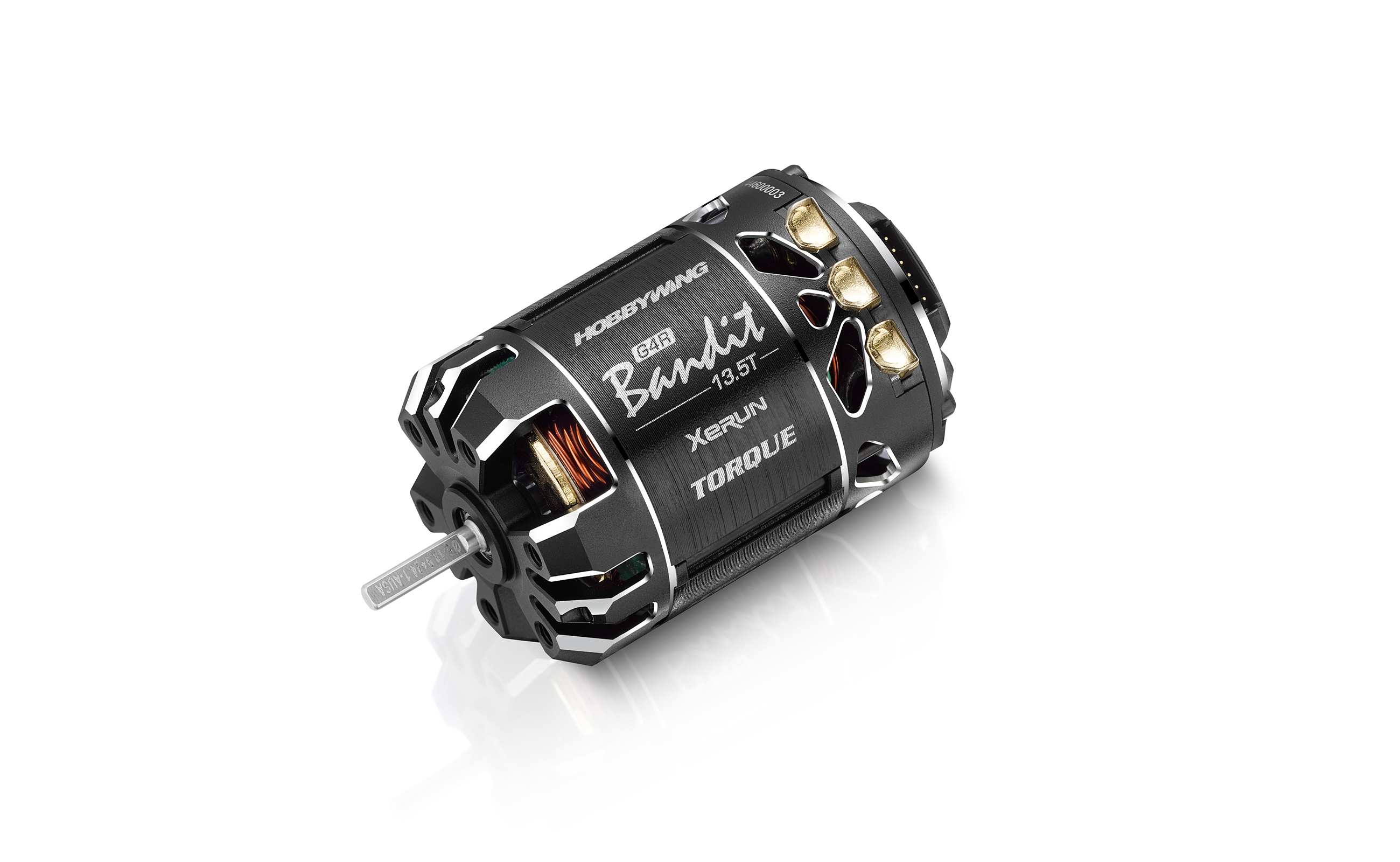

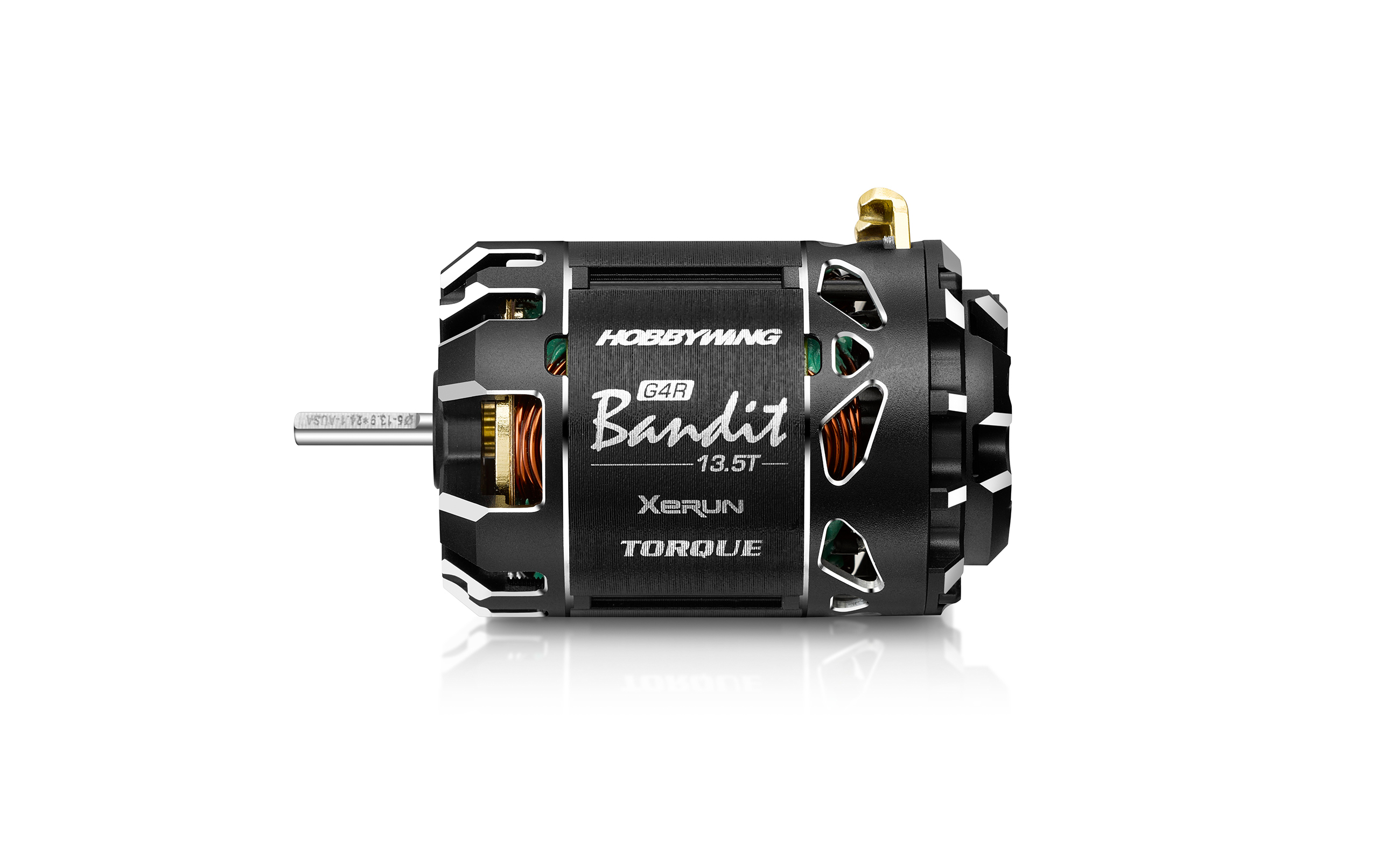

The Torque version comes standard with super strong rotors,
which is suitable for Blinky application.

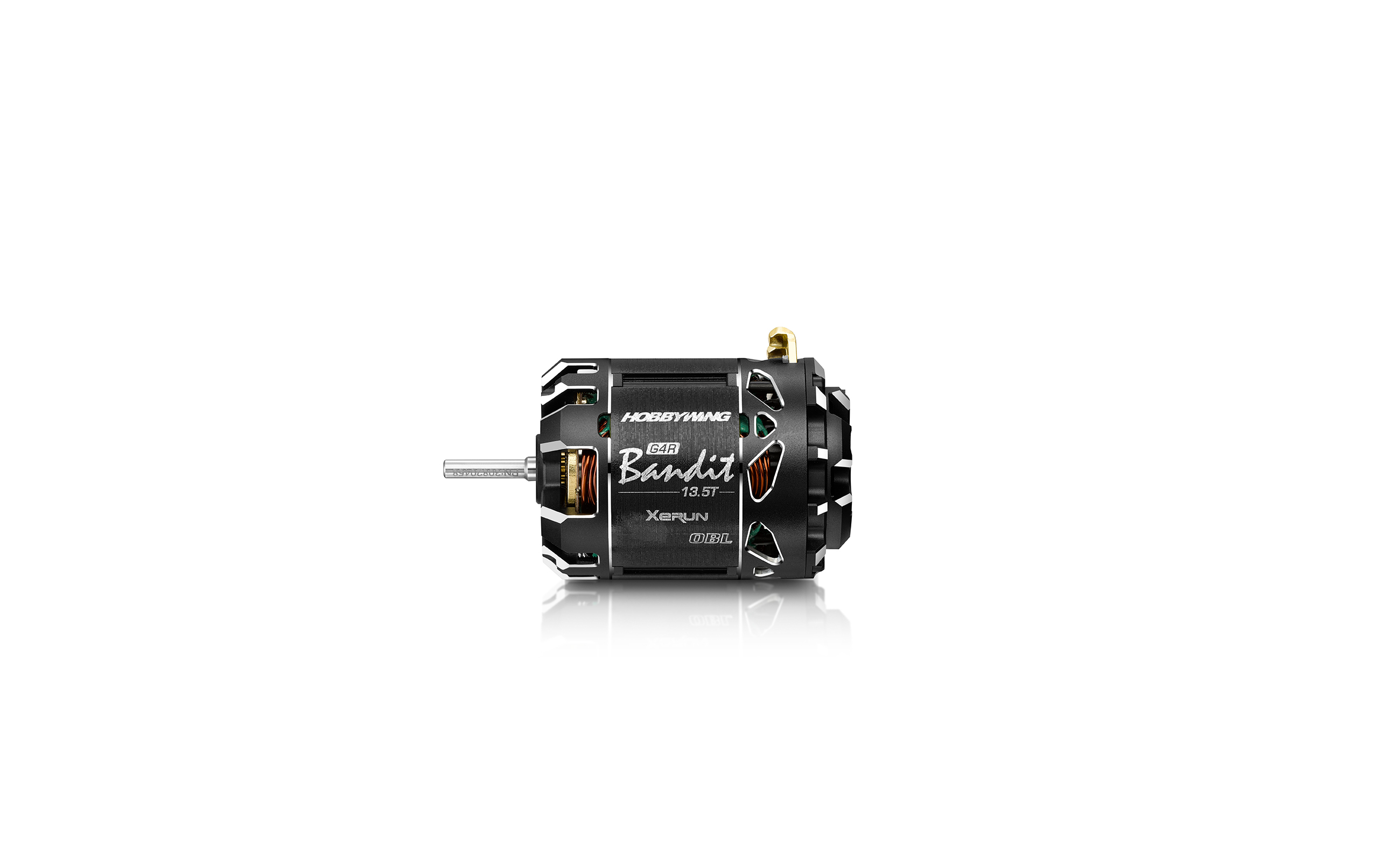

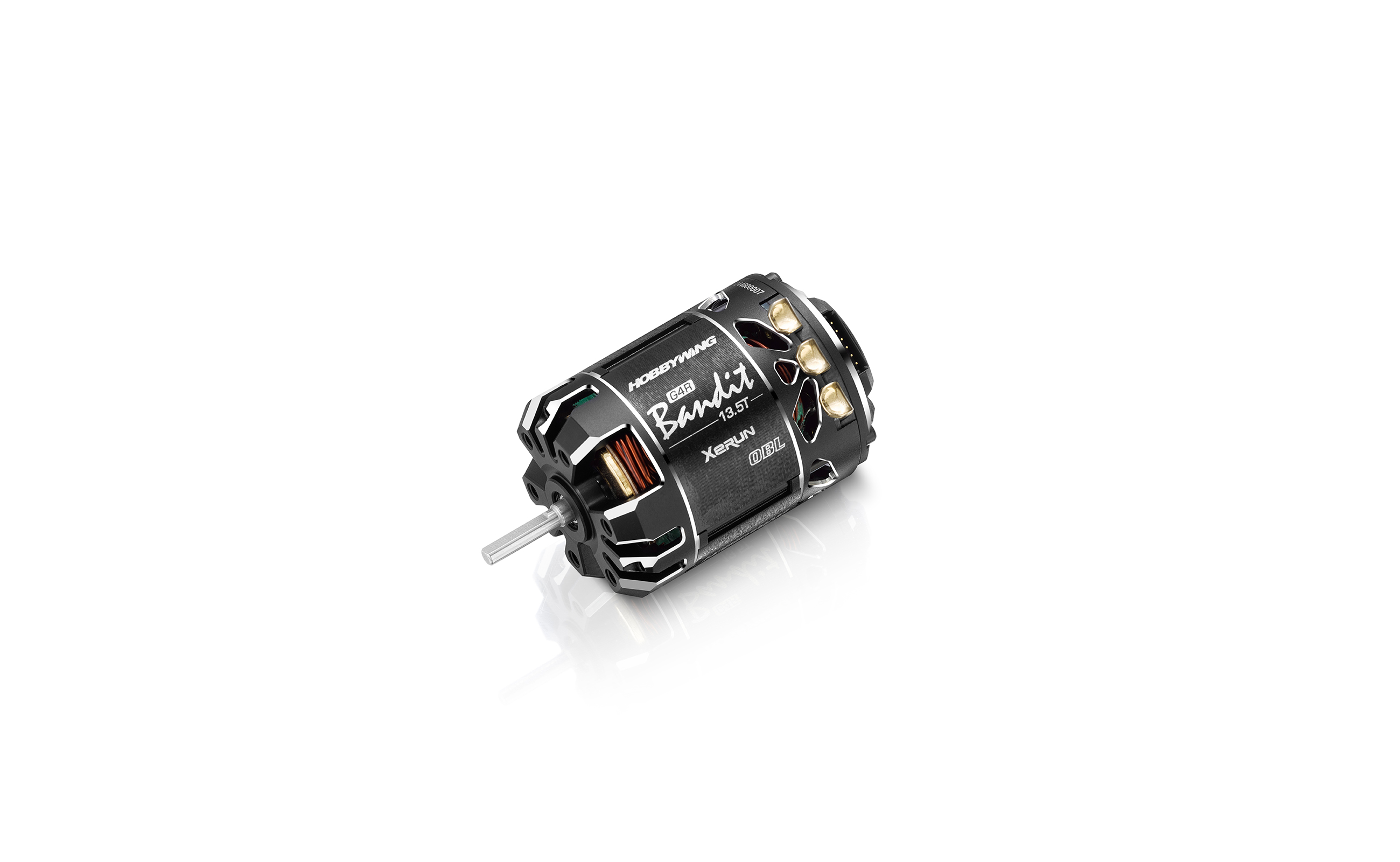

The OBL version is lighter, shorter, and provides more RPM.
It’s suitable for OBL Stock Class that delivering exceptional speed applications.

XeRun Bandit G4R 13.5T-OBL13.5T-Torque17.5T: KV3800KV; Length51.9mm; Weight172g; Stock RotorΦ5-12.5*24.1; Enameled Wire220°C; Heat-conducting GlueYes; KV3200KV; Length53.9mm; Weight190g; Stock RotorΦ5-13.9*24.1; Enameled Wire220°C; Heat-conducting GlueYes; KV2500KV; Length53.9mm; Weight185g; Stock RotorΦ5-13.9*24.1; Enameled Wire220°C; Heat-conducting GlueYes

XeRun Bandit G4 13.5T-OBL13.5T-Torque17.5T: KV3400KV; Length53.9mm; Weight187g; Stock RotorΦ5-13.3*24.1; Enameled Wire200°C; Heat-conducting GlueNo; KV3200KV; Length53.9mm; Weight187g; Stock RotorΦ5-13.9*24.1; Enameled Wire200°C; Heat-conducting GlueNo; KV2500KV; Length53.9mm; Weight181g; Stock RotorΦ5-13.9*24.1; Enameled Wire200°C; Heat-conducting GlueNo

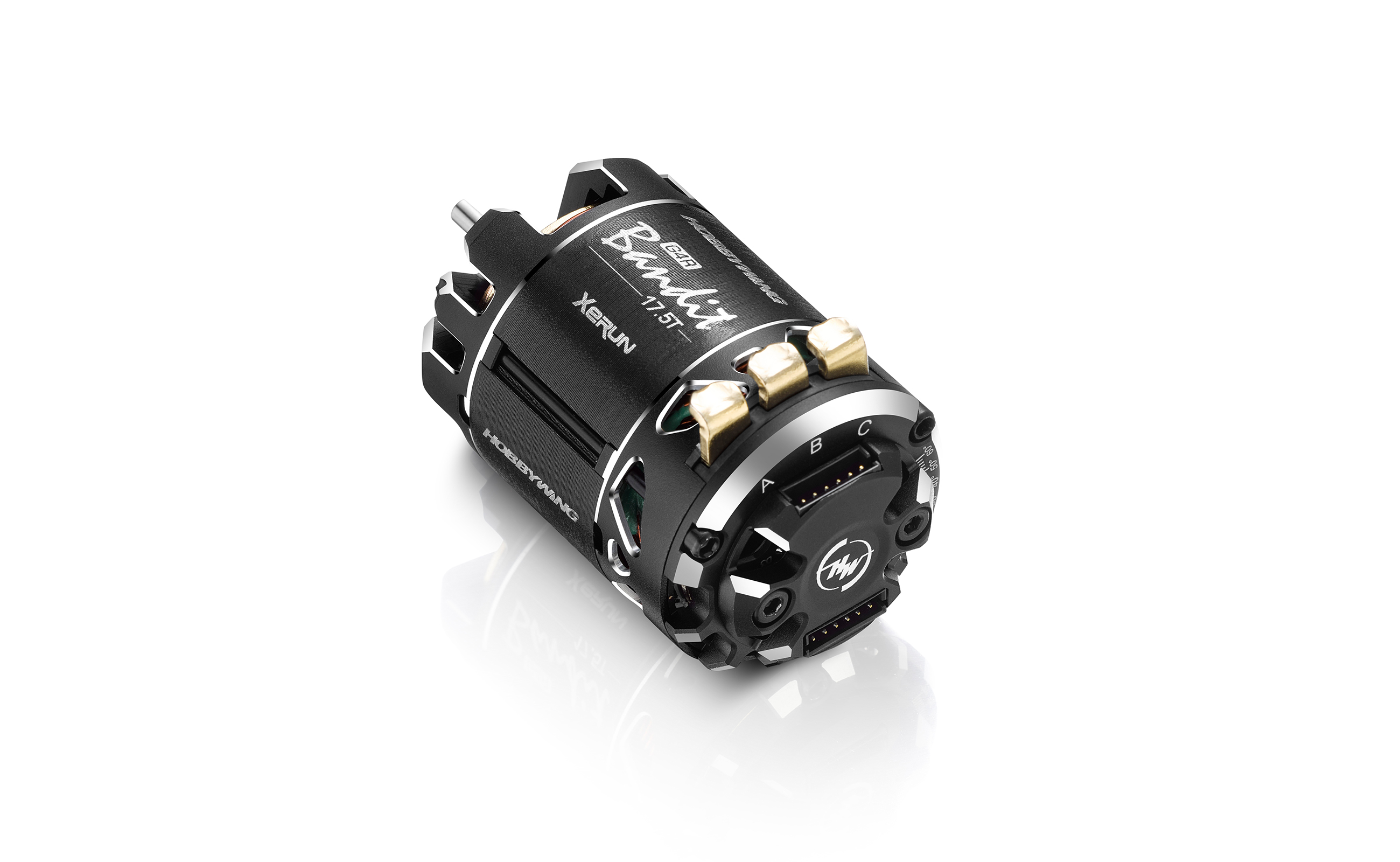

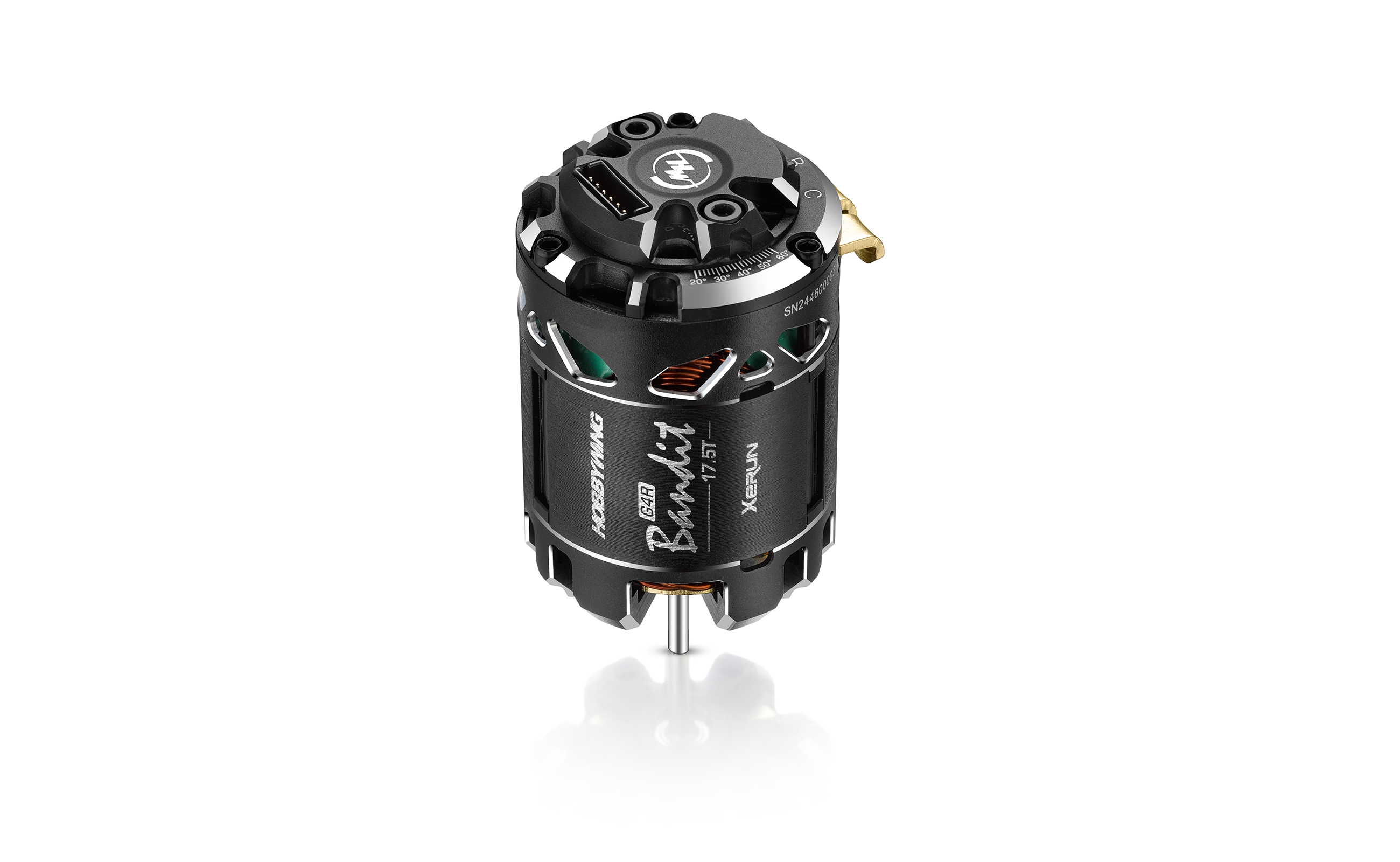

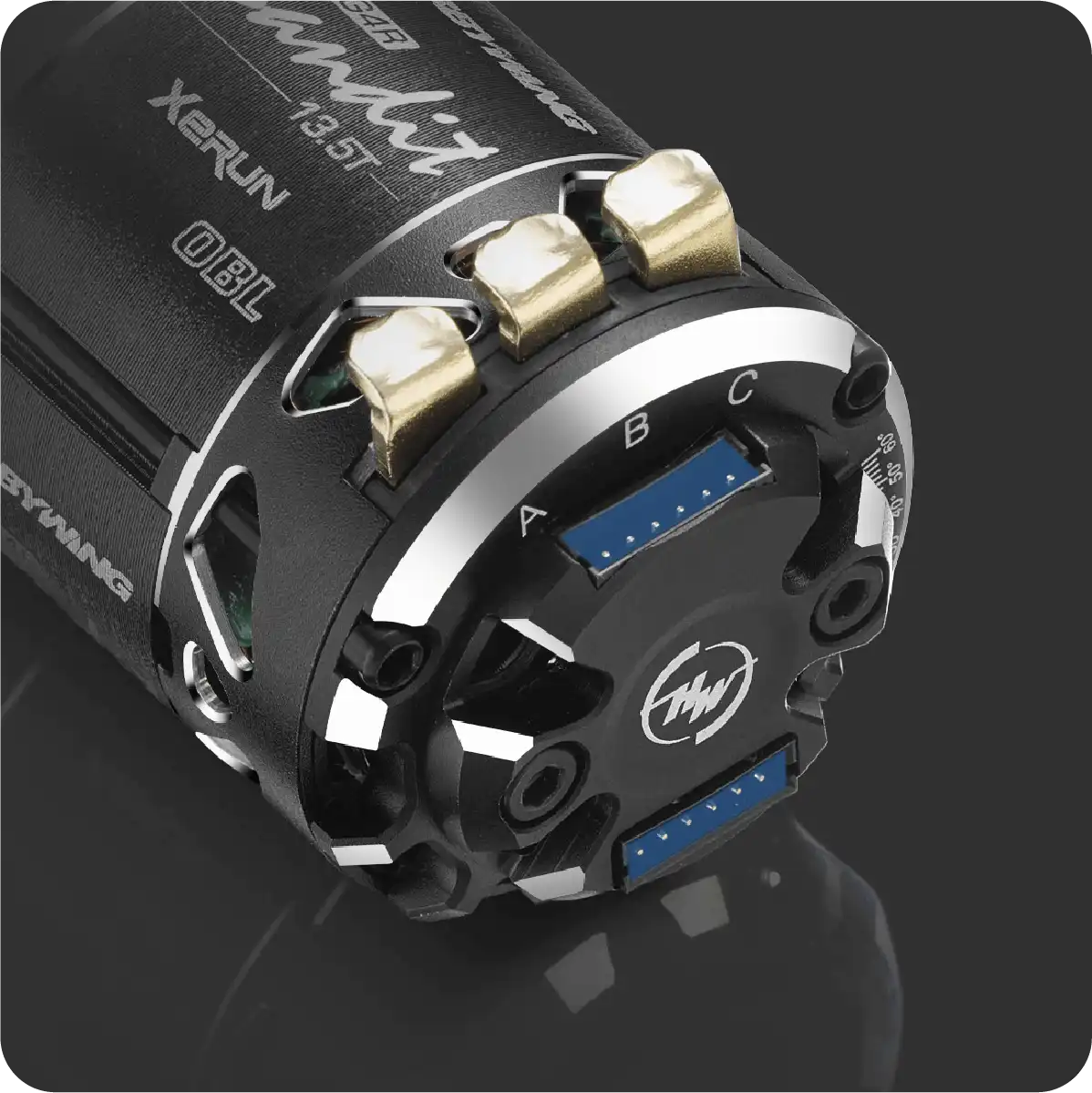

Dual Hall sensing port design: The Bandit G4R motor incorporates a dual hall output socket
design at the rear, revolutionizing the way wiring is managed
for both functionality and aesthetics.

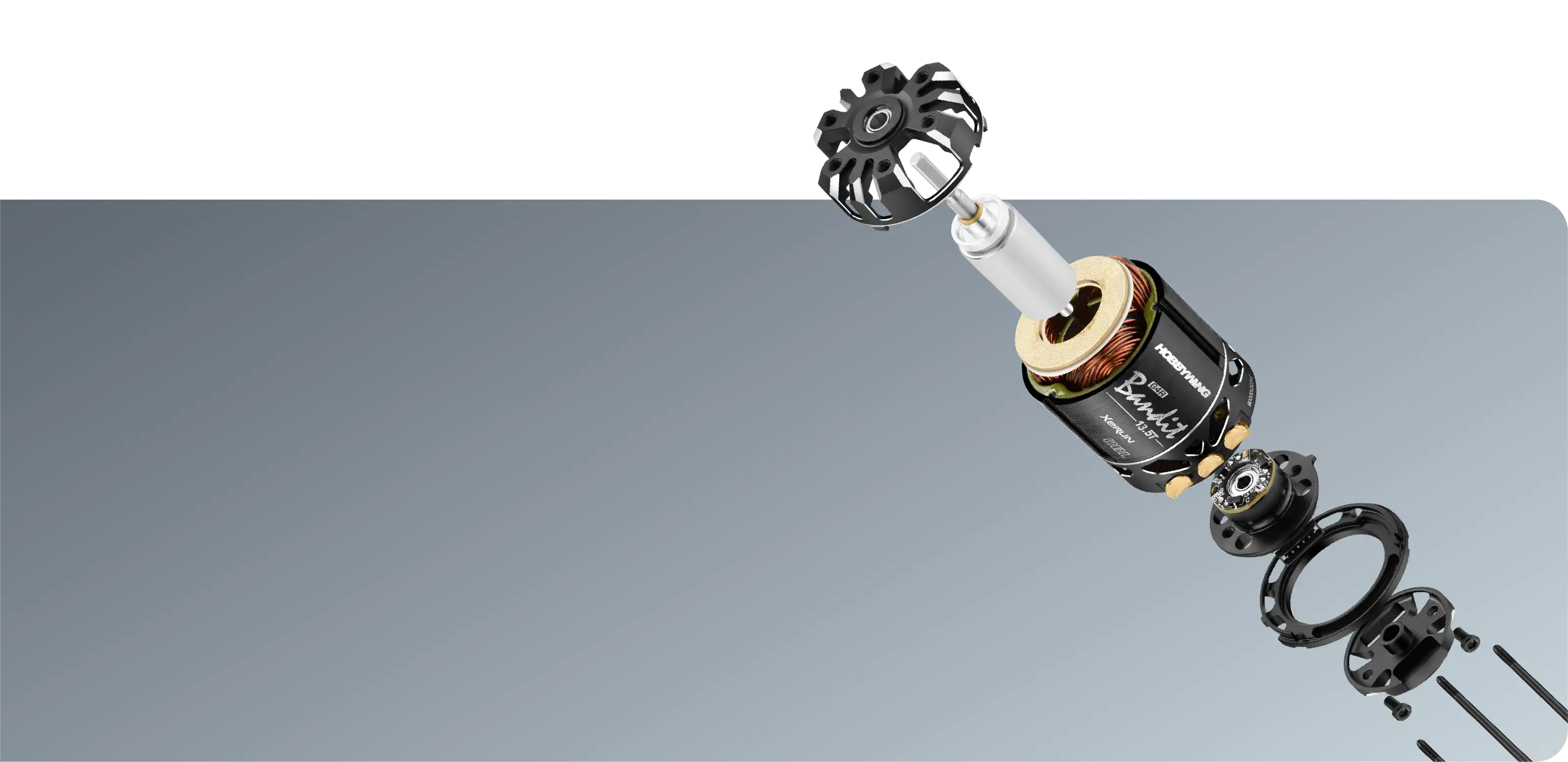

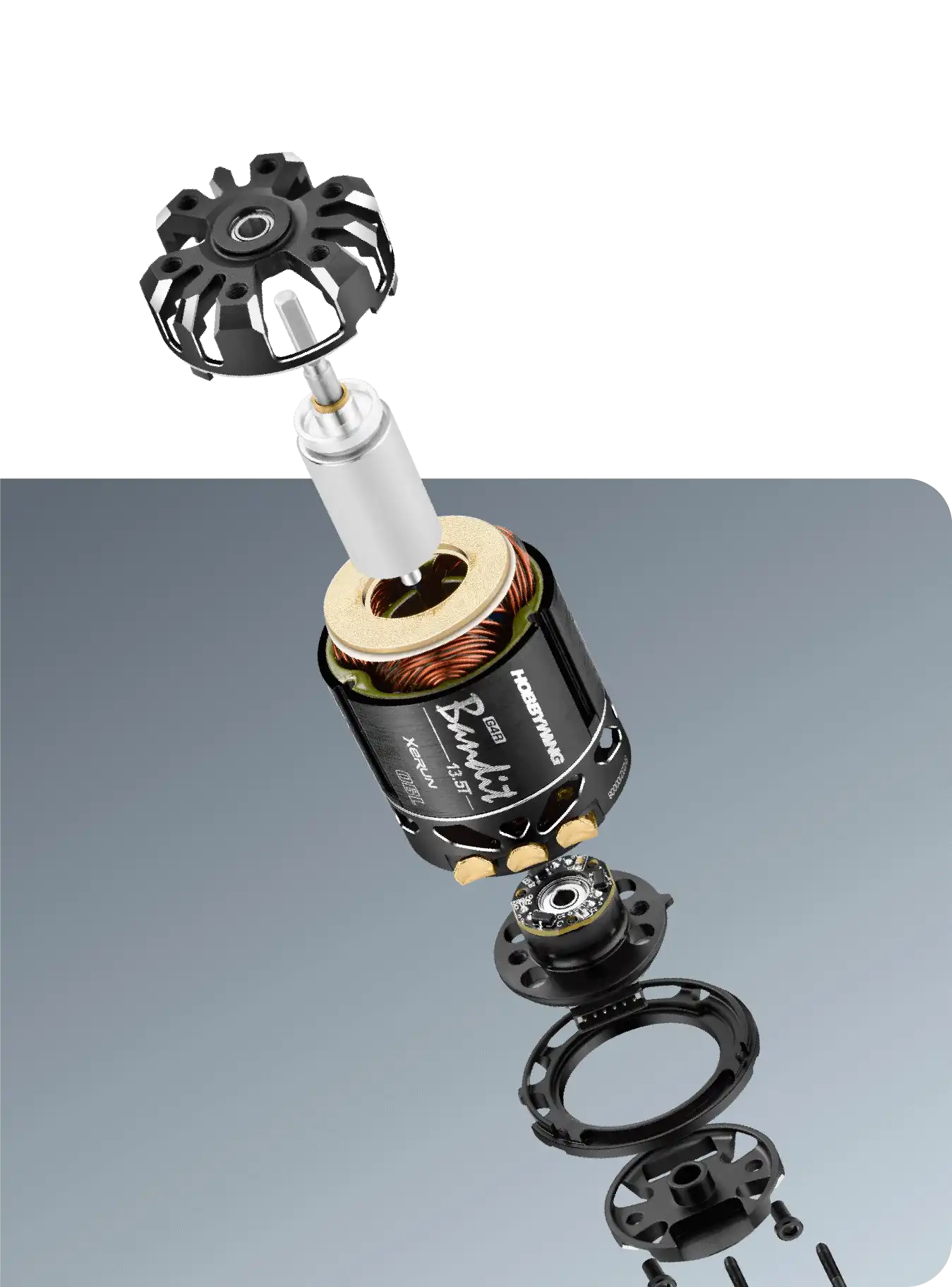

Designed for Easy disassembly and maintenance: The Bandit G4R features a modular structure design,; making daily cleaning and maintenance straightforward; while enhancing motor durability and efficiency.

Exquisite design
meets premium
materials

180°C high-temperature resistant explosion-proof structure rotor1

220°C high-temperature resistant wire rod2

High-performance iron core3

Top international brand bearings4

The outlet end adopts a customized widened
U-shaped gold-plated curved copper bar.5
It has extremely low internal resistance, it also
increases the space between the copper bars
for ease of soldering.
The large opening heat dissipation structure6
at the rear of the motor enhances the heat
dissipation effect of the Hall component.

Model

XERUN BANDIT G4R 13.5T-OBL

XERUN BANDIT G4R 13.5T-TORQUE

XERUN BANDIT G4R 17.5T

Type

PN	30401861	30401860	30401862
Scale	1/10^th	1/10^th	1/10^th
Brushed/Brushless	BL	BL	BL
Sensored/Sensorless	SD	SD	SD
Pole Count	2	2	2

Relevant Parameters

KV Rating	3800KV	3200KV	2500KV
LiPo Cells	1-3S	1-3S	1-3S
No-load Current(A)	4.4A	5.3A	4.5A

Size & Weight

O.D.(mm)	35.8	35.8	35.8
Length (mm)	51.9	53.9	53.9
Shaft Diameter (mm)	3.175	3.175	3.175
Weight (g)	172g	190g	185g
Front Bearing	D9D4T4	D9D4T4	D9D4T4
Rear Bearing	D8D3T4	D8D3T4	D8D3T4

Other Parameters

ESC	XERUN XR10 PRO G3	XERUN XR10 PRO G3	XERUN XR10 PRO G3
Vehicles	1/10^th Outlaw Stock Racing	1/10^th Outlaw Stock Racing	1/10^th Outlaw Stock Racing
