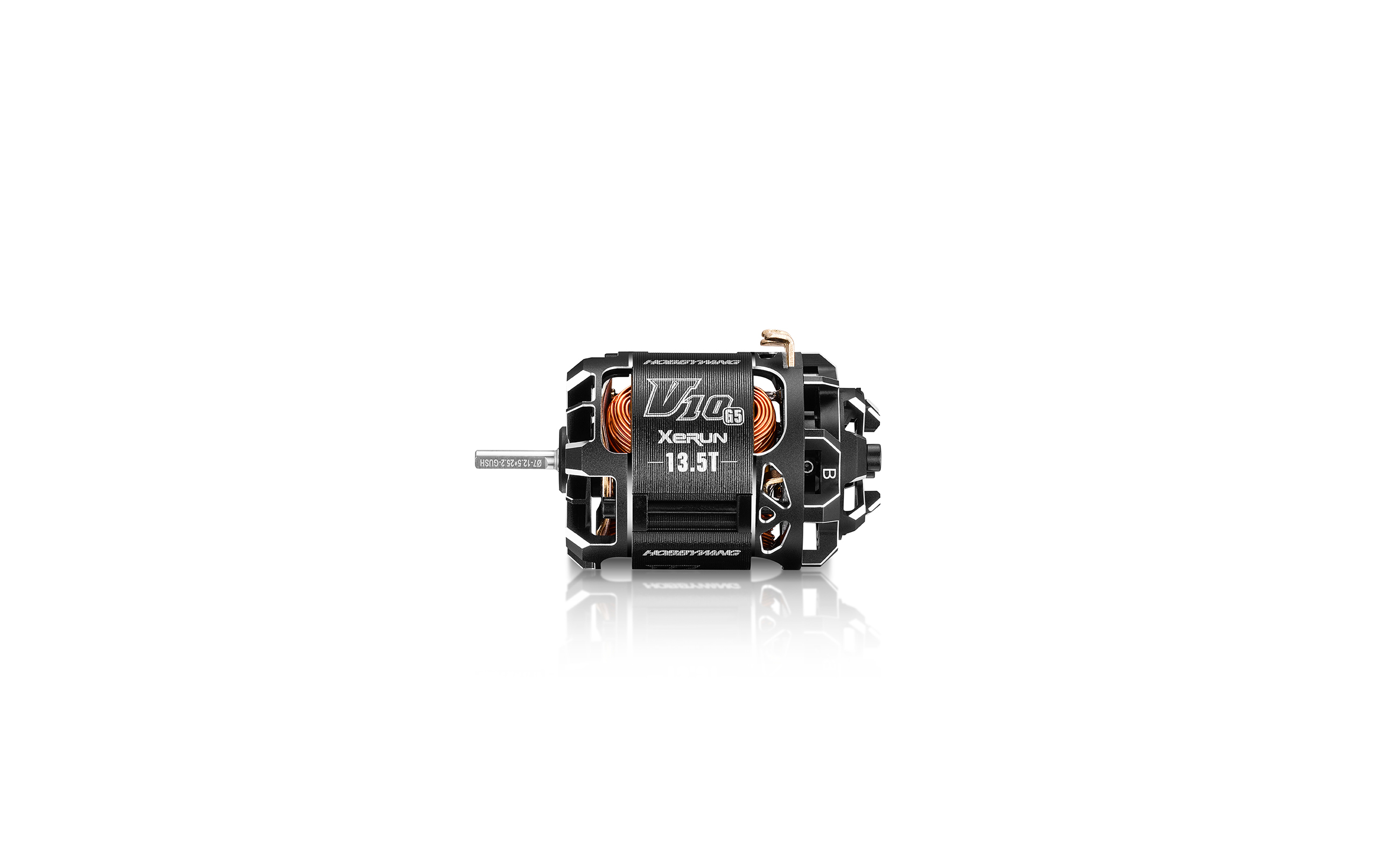

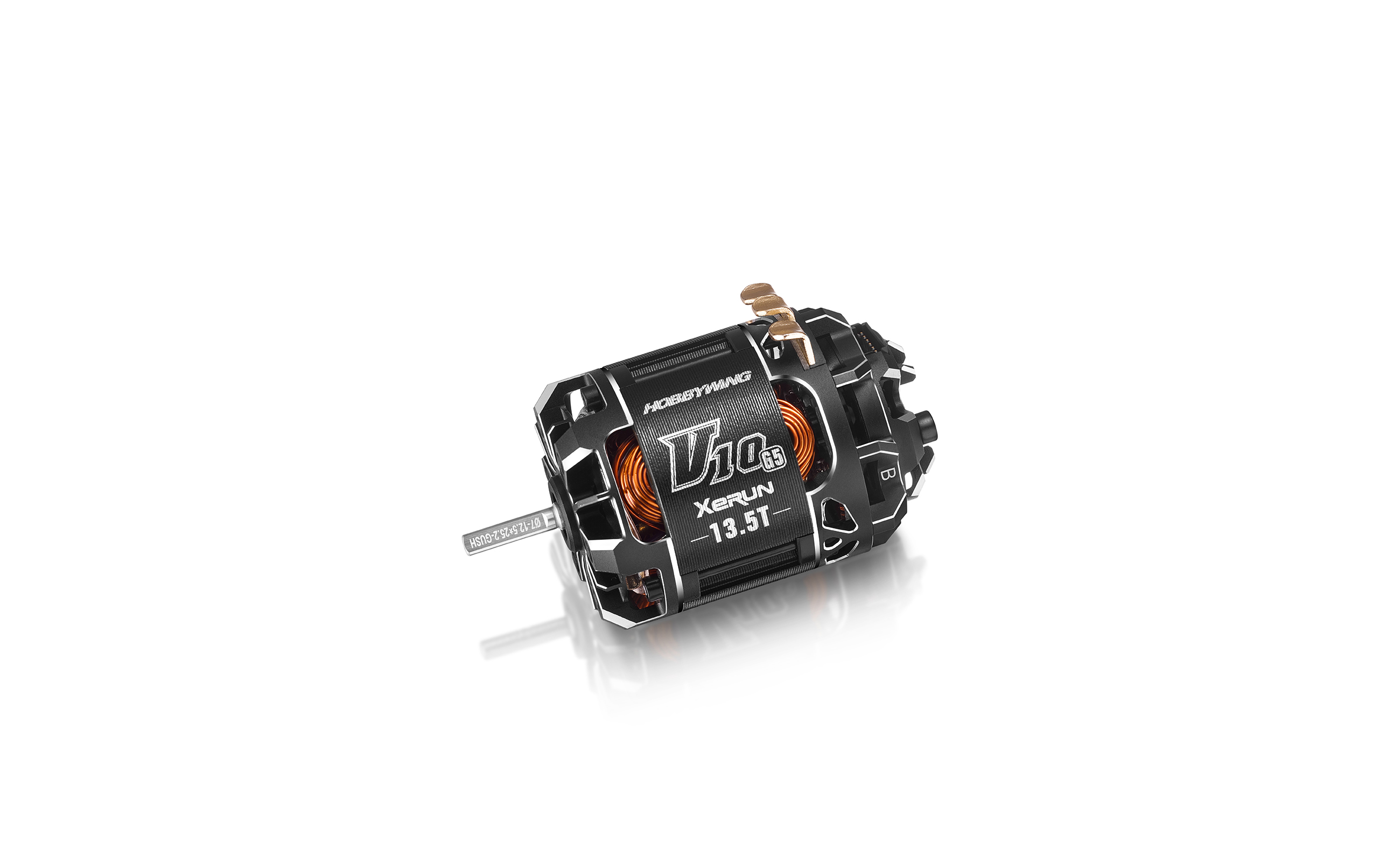

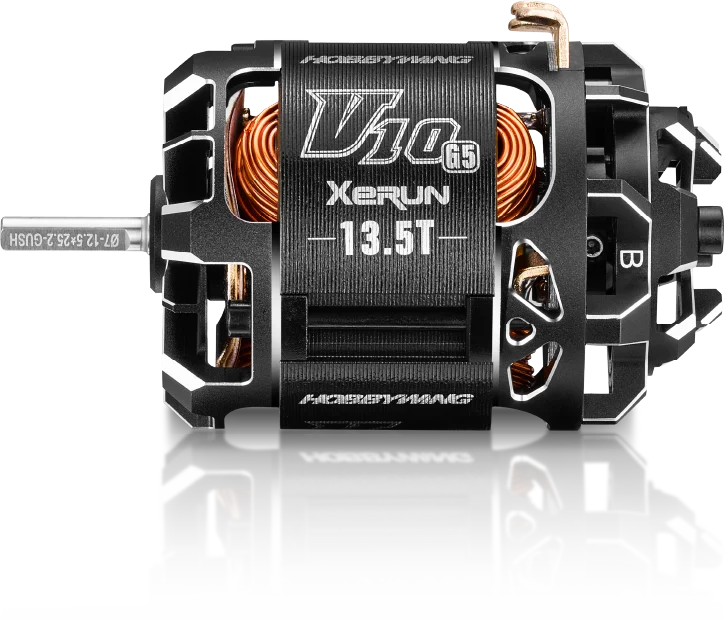

XeRun V10 G5Sensored Brushless RC Racing Motor
Built to be More than Just Fast
Built from the ground up, the XeRun V10 G5 motor delivers more power and greater efficiency.
It delivers a 3.9% boost in maximum output power and over 4% improvement in efficiency
versus the V10 G4R 13.5T.
XeRun V10 G5 13.5T

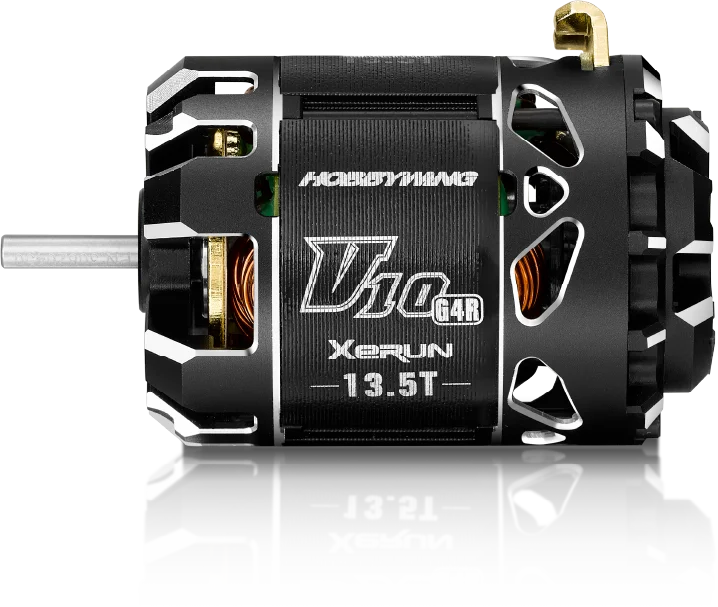

XeRun V10 G4R 13.5T

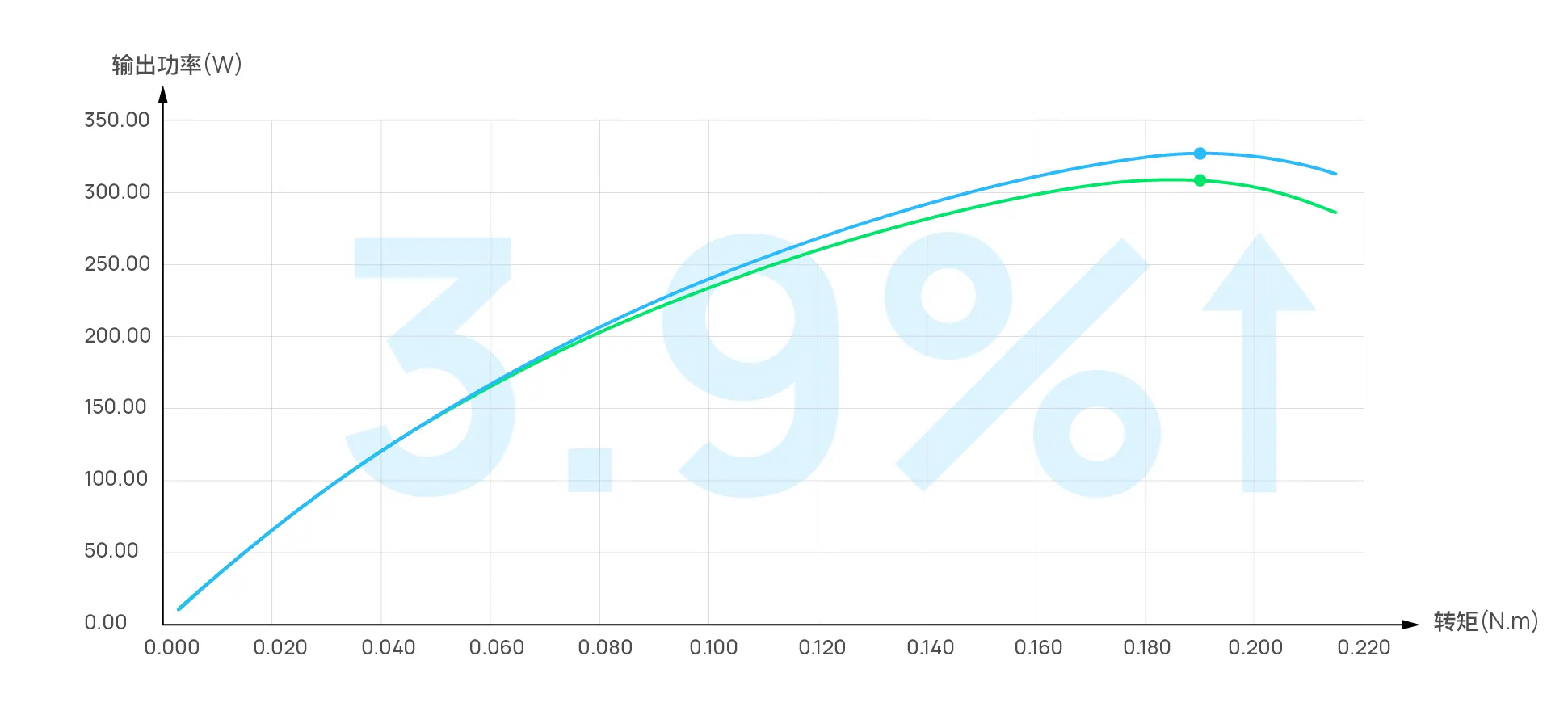

Maximum Output Power
Compared to the V10 G4R 13.5T motor, the maximum output power is improved by 3.9%.

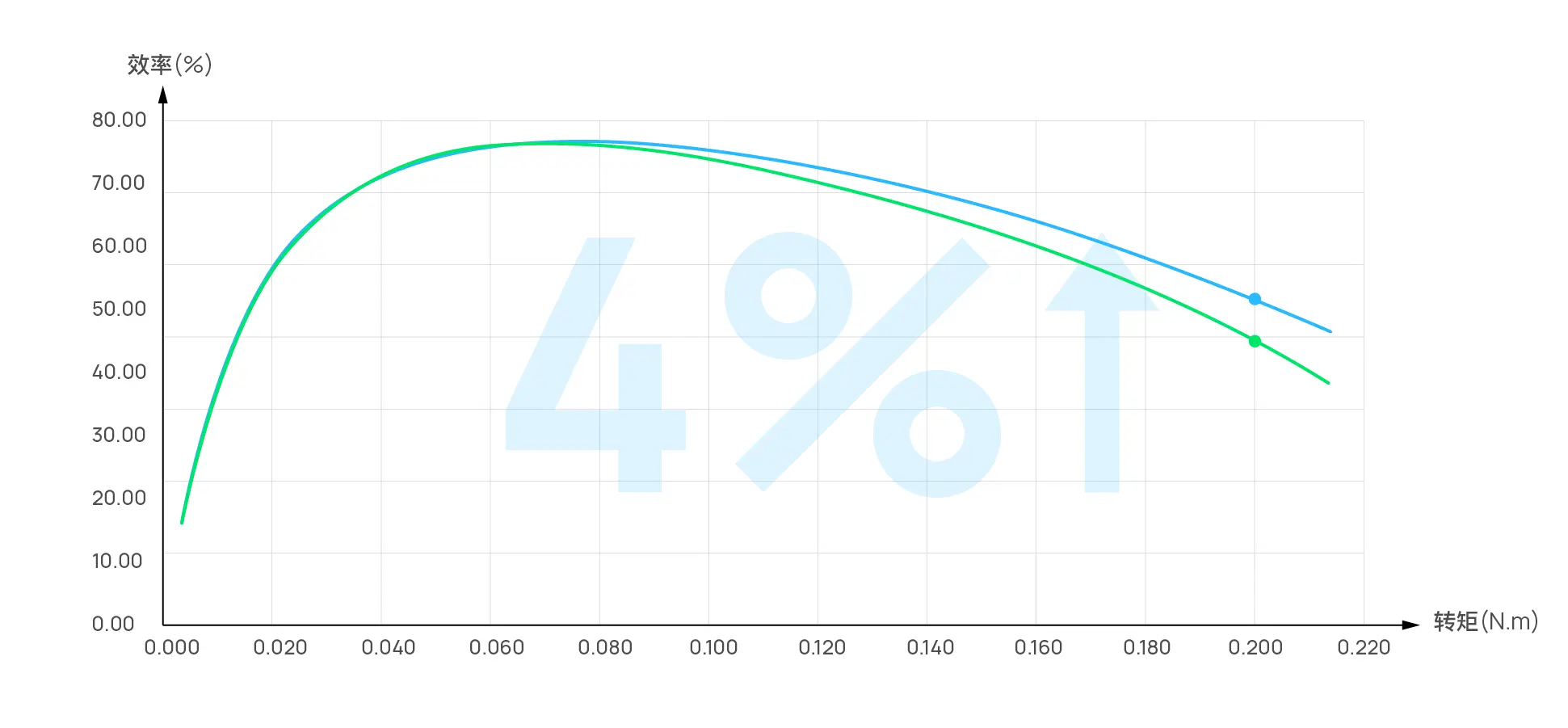

Efficiency
Compared to the V10 G4R 13.5T motor, the heavy-load efficiency is improved by more than 4%.
- Maximum Output Power
Compared to the V10 G4R 13.5T motor,
the maximum output power is improved by 3.9%. - Efficiency
Compared to the V10 G4R 13.5T motor,
the heavy-load efficiency is improved by more than 4%.
Excellent Heat Dissipation
Efficiency has been improved to reduce overall temperatures and provided better consistency.

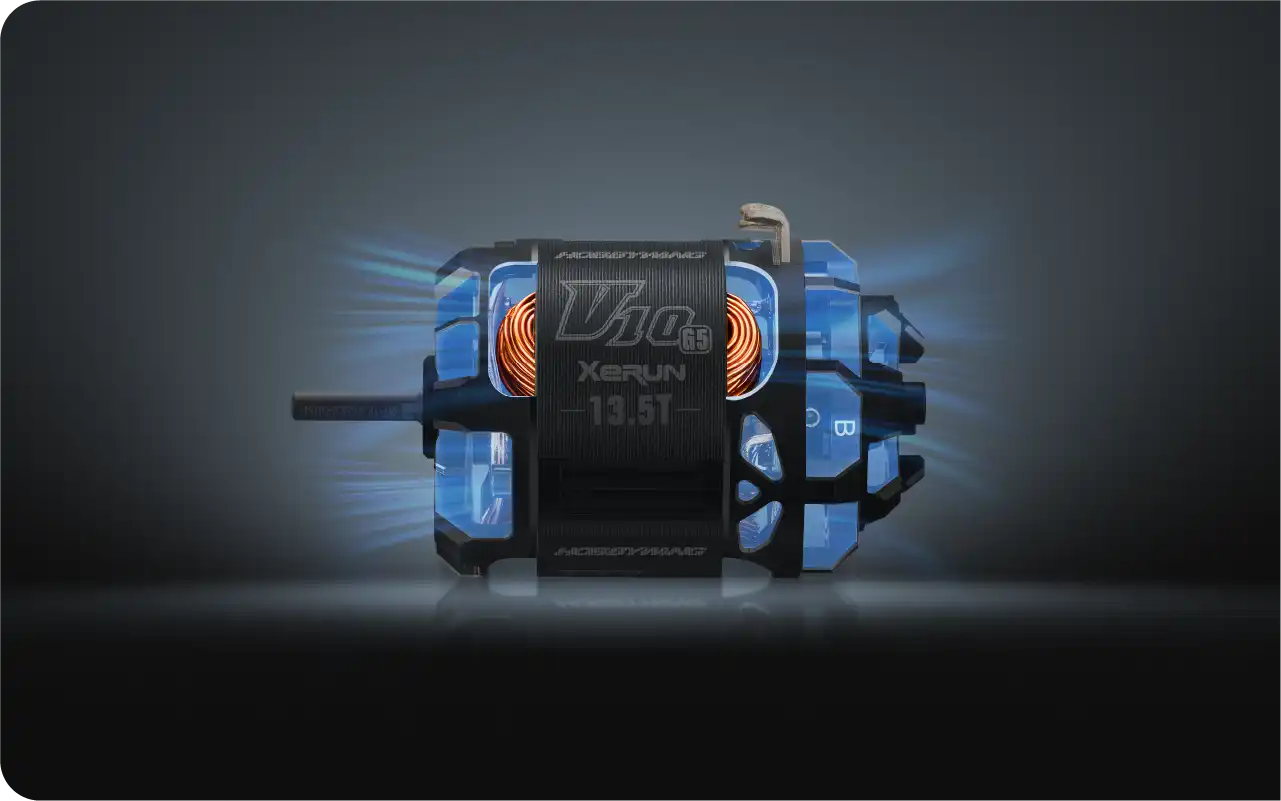

Exposes the Windings
New endbell design exposes more of the winding to allow better heat dissipation.

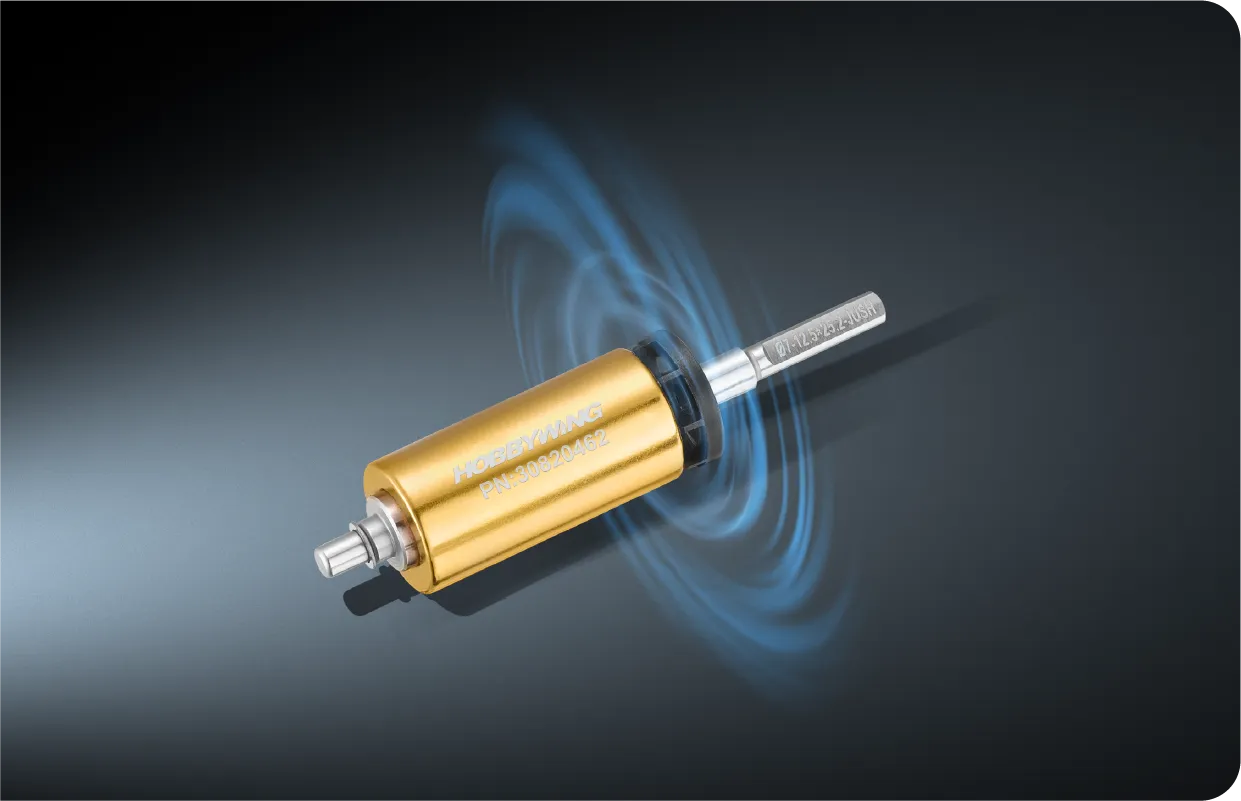

Patented Rotor Cooling
Design
Design
Warning: The rotor cooling system is protected by patent. Any unauthorized copying is prohibited.
Optimized Weight and Center of Gravity

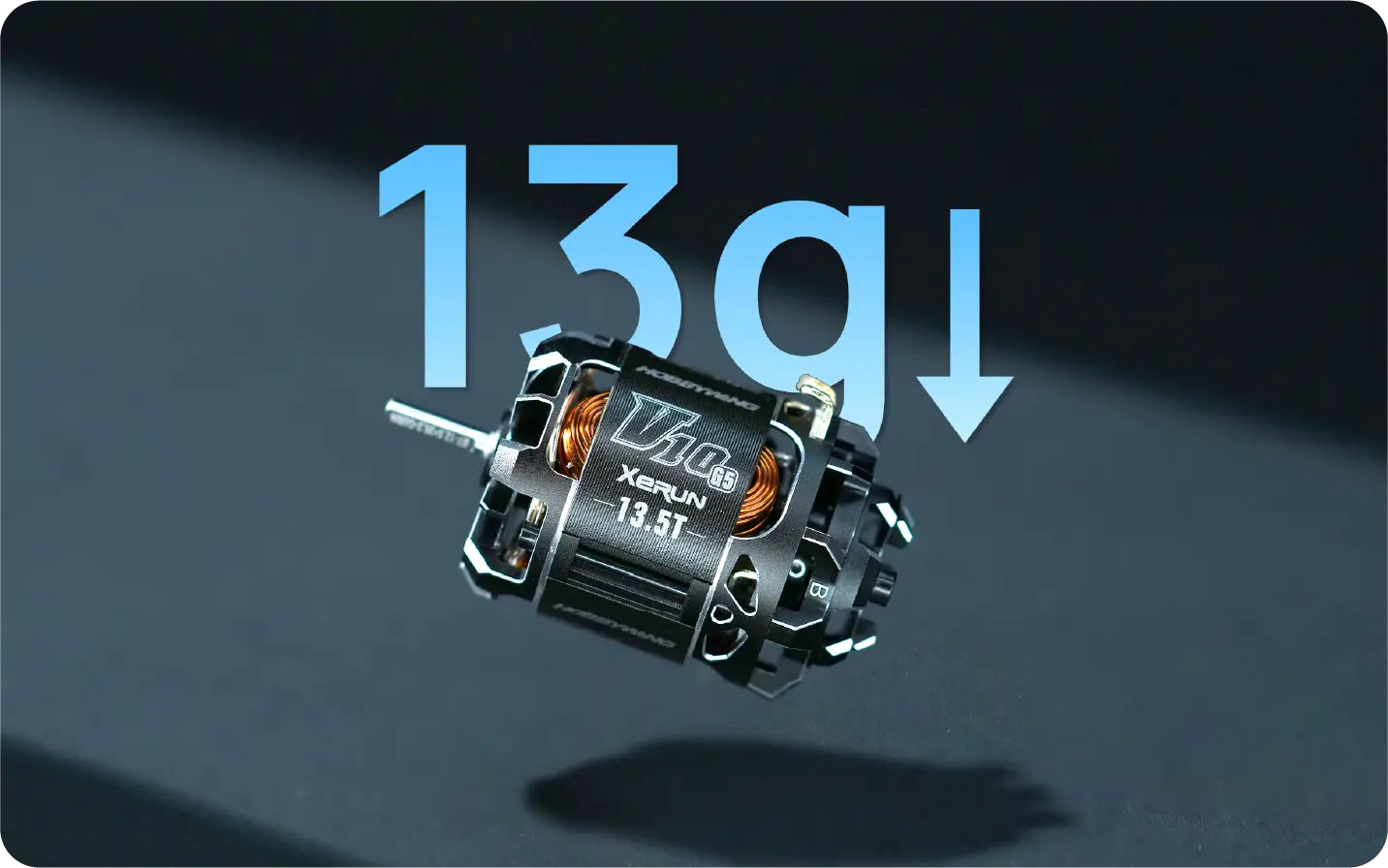

- Weight
- Redesigned inside and out, the new-generation G5 motor is 13g lighter than the G4R.

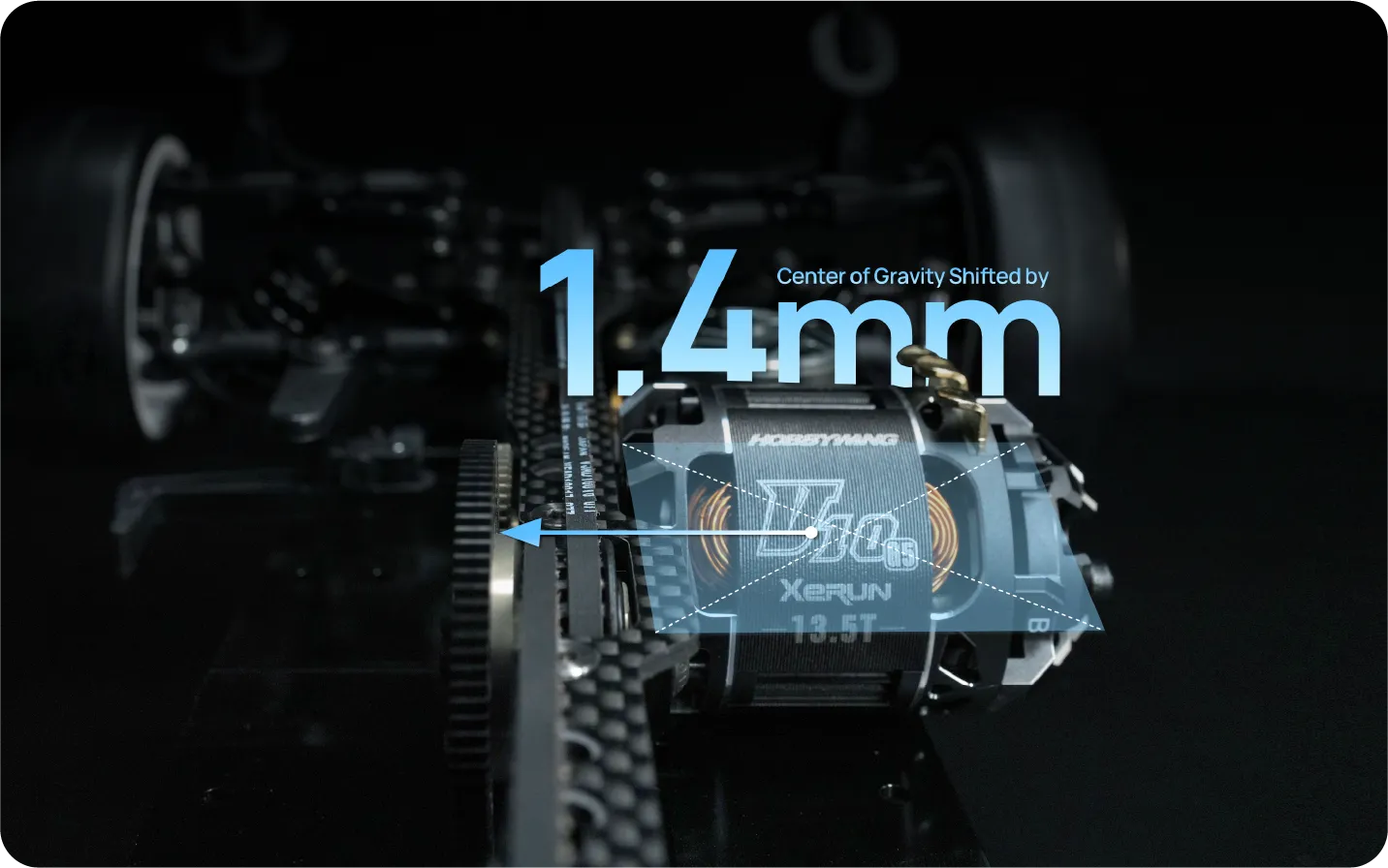

- Center of Gravity
- The G5 has been designed to move the weight towards the centerline of the vehicle.

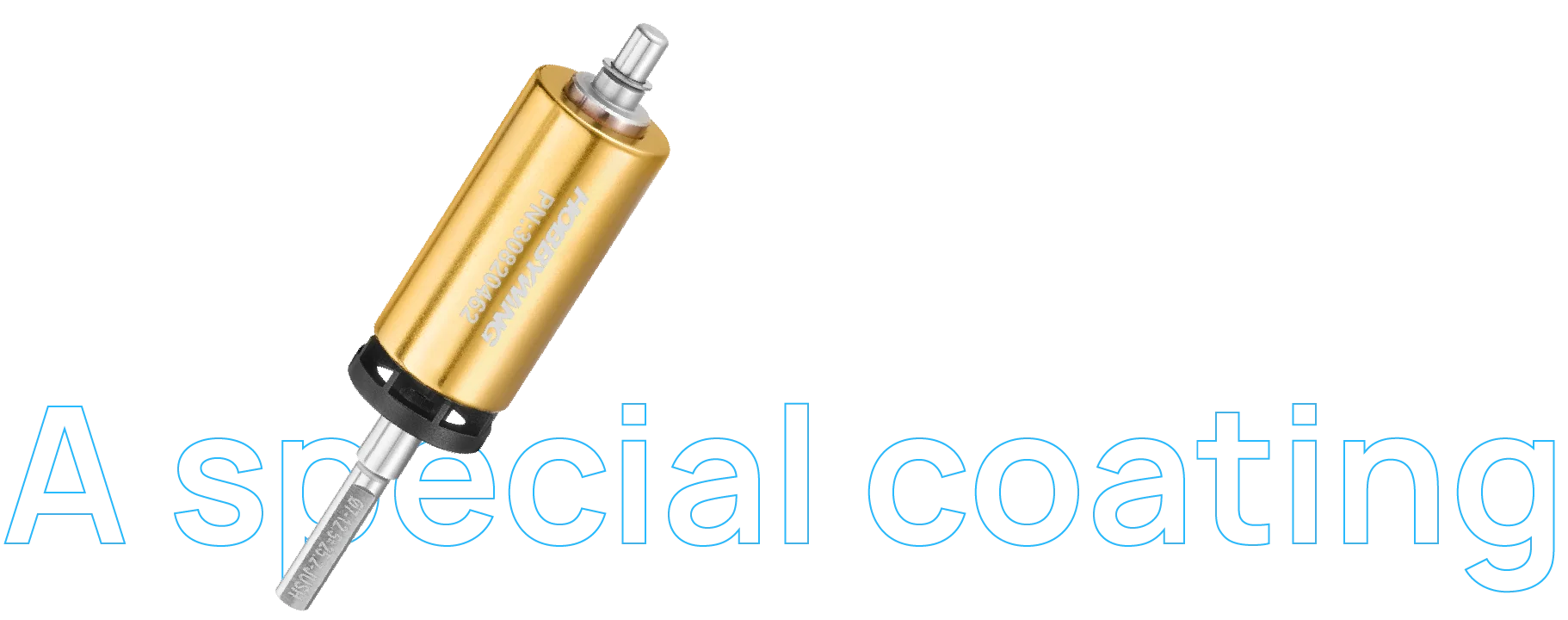

One LayerNext-Level Performance
A special coating on the rotor surface delivers both corrosion protection
and improved magnetic performance, enabling higher load capability
and greater power output of the motor.
Adjustable Hall
Timing Accuracy
Timing Accuracy
The timing assembly introduces a new adjustment to allow further fine tuning of the sensors. This new angle adjustments means your motor will run smoother and be more efficient.
Note: The timing tolerance are based on results displayed by the HOBBYWING Tunalyzer.
Warning: Patented invention — Copying is prohibited. Application No.: 202511627979.X
- 0.1mm
- 0.2mm
- 0.3mm

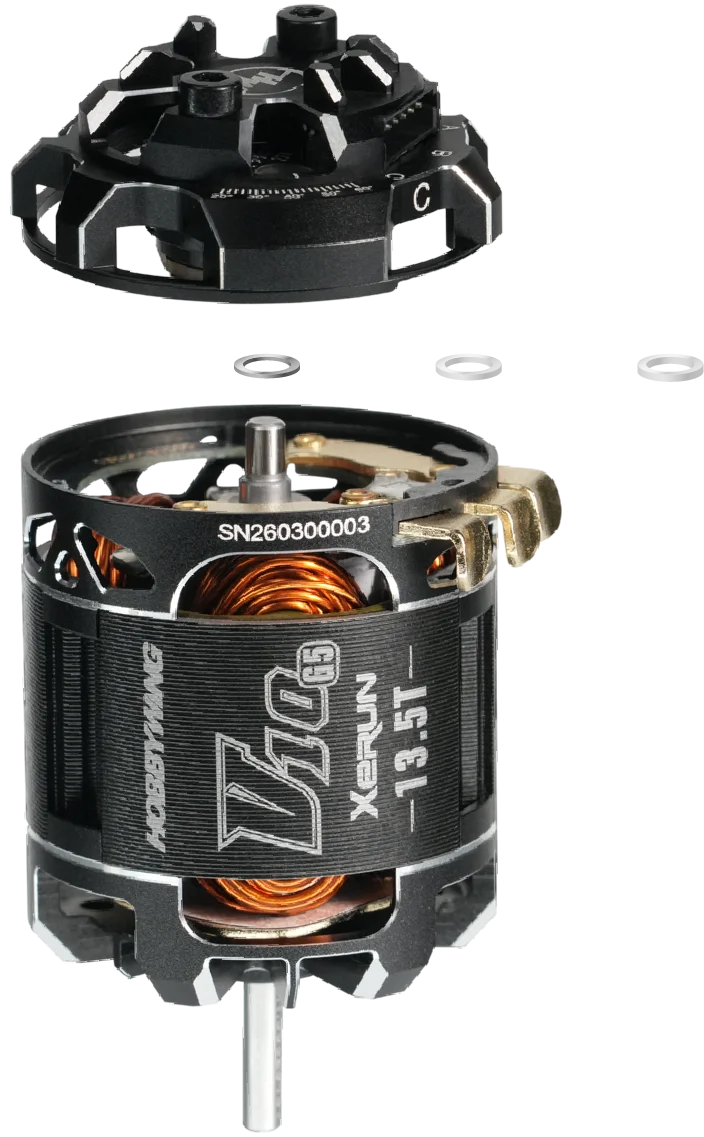

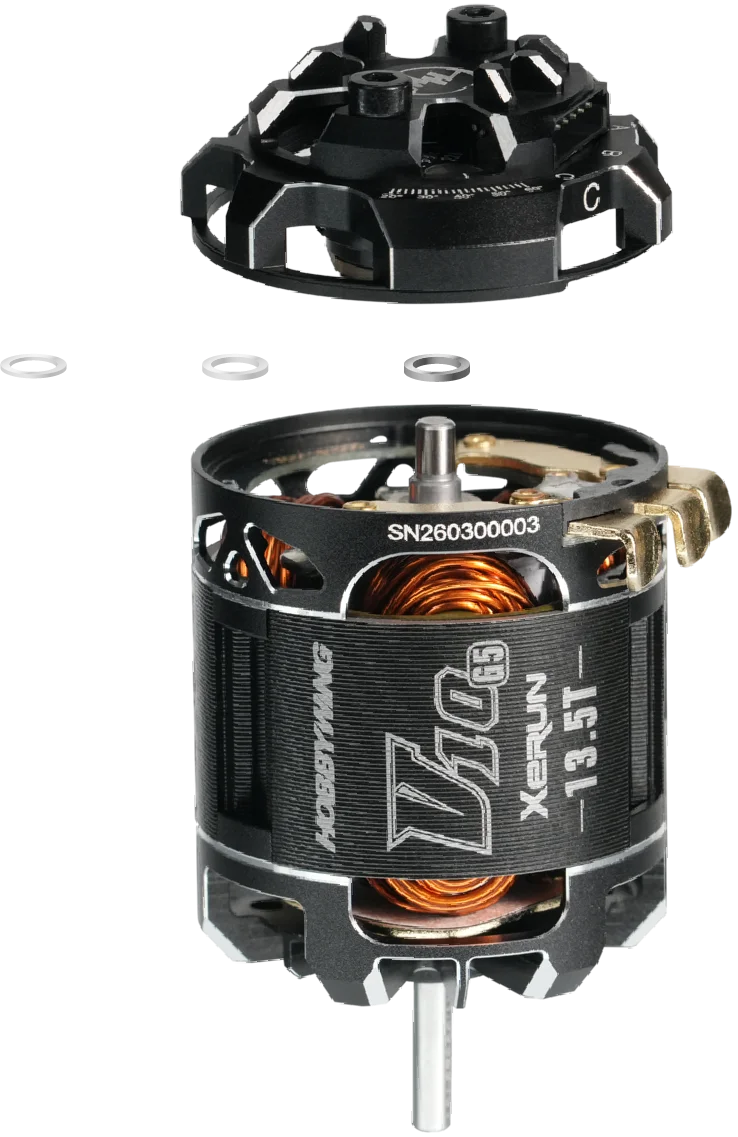

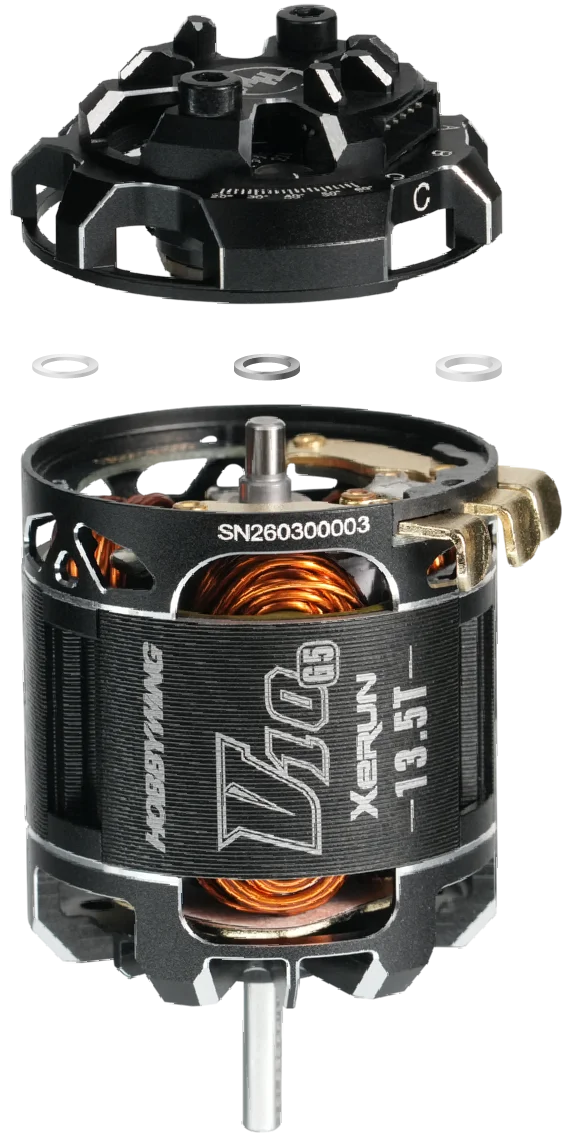

Adjustable Hall
Sensing Distance
Sensing Distance
Rotor and sensor spacing is now easily adjustable. Three settings allow racers the ability to fine tune the response and feel of the power delivery
Warning: Ensure proper clearance between the Hall sensor and rotor ring during adjustment to prevent component damage.

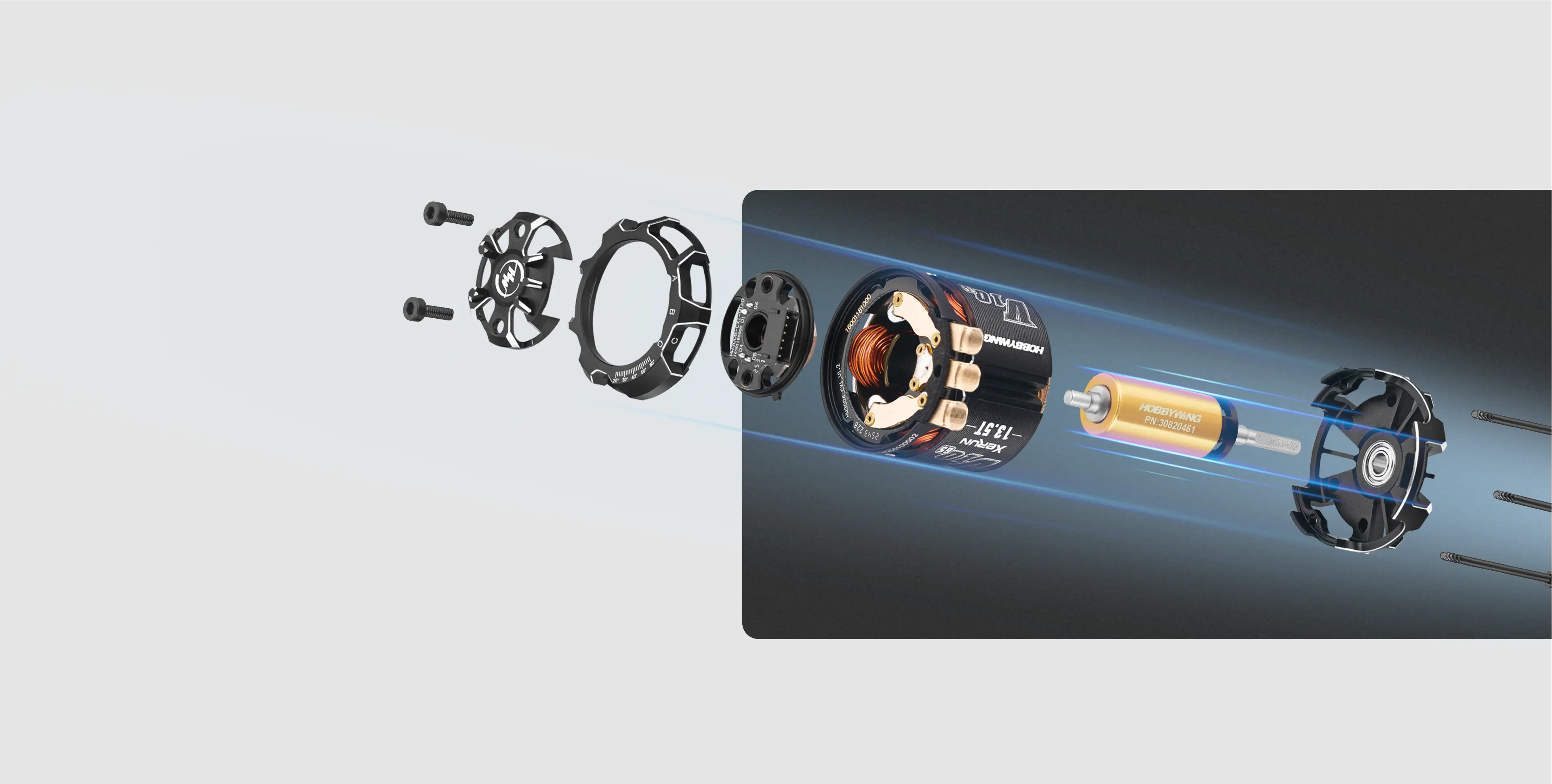

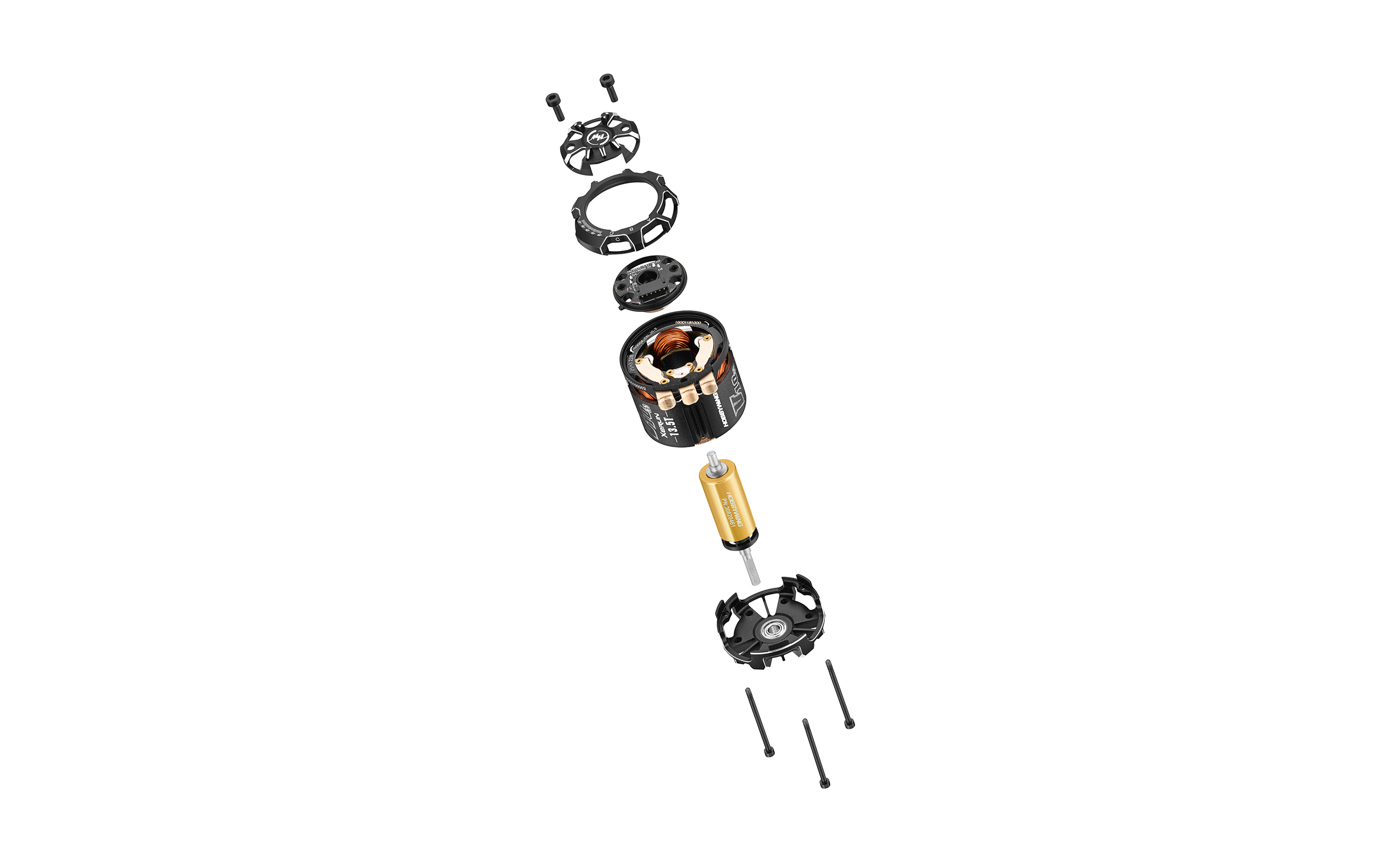

Designed for Easy
Maintainence
Maintainence
Modular design allows for quick and simple motor
cleaning to allow racers to keep their motors
performing at their best.
Built with Superior Materials
The V10 G5 motor is built to excel in the harshest race conditions.
High-performancePremium Stator Core

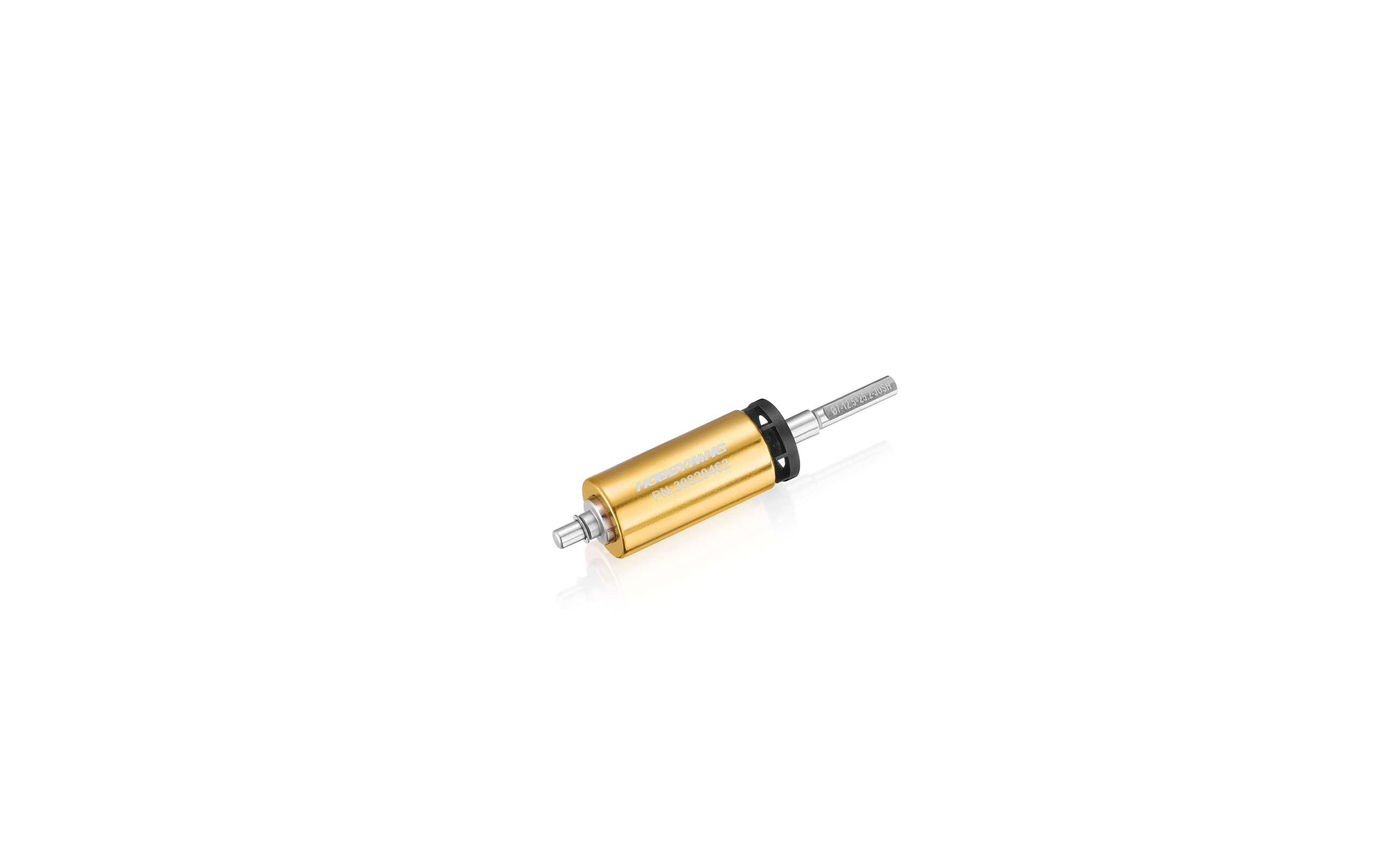

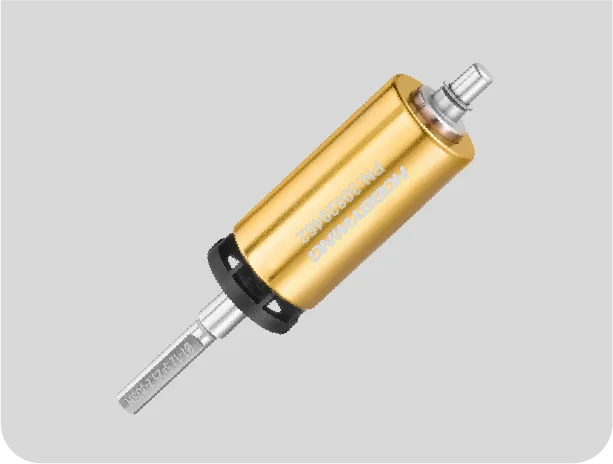

180°c High-temperature–rated Reinforced Rotor Design

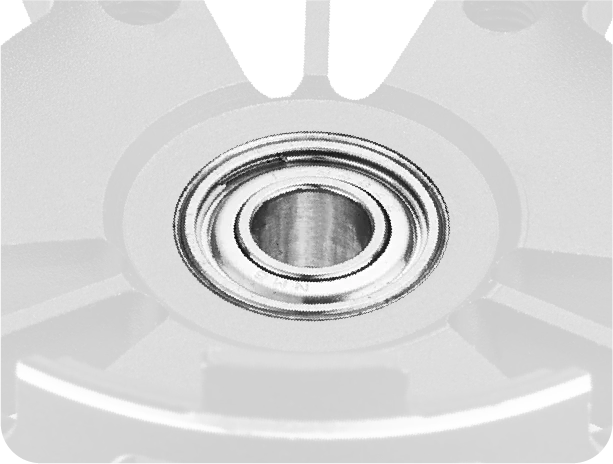

Top-tierBearings
ModelXeRun V10 G5 13.5T
PN
-
-
- 30401762
Type
-
- Scale
- Brushed/Brushless
- Sensored/Sensorless
- Pole Count
-
- 1/10th
- BL
- SD
- 2
Relevant Parameters
-
- KV Rating
- LiPo Cells
- No-load Current(A)
-
- 4050KV
- 1-3S LiPo
- 5.4A
Size & Weight
-
- O.D.(mm)
- Length (mm)
- Shaft Diameter (mm)
- Weight (g)
- Front Bearing
- Rear Bearing
-
- 35.8
- 51.5
- 3.175
- 138g
- D9*D4*T4
- D8*D3*T4
Other Parameters
-
- ESC
- Vehicles
-
- XeRun XR10 PRO G3 / G3X
- 1/10,1/12 Stock Racing
